PUSR DIN Rail mounting "Lipstick" Size 4G Modem RS485 to Cellular Modbus Gateway Cat1 1*RS485 MQTT SSL USR-DR154-E Eur version
5.0 (2 votes) | 44 orders
Price:
US $109.15
Discount Price:
US $
72.22
-34%
- Color

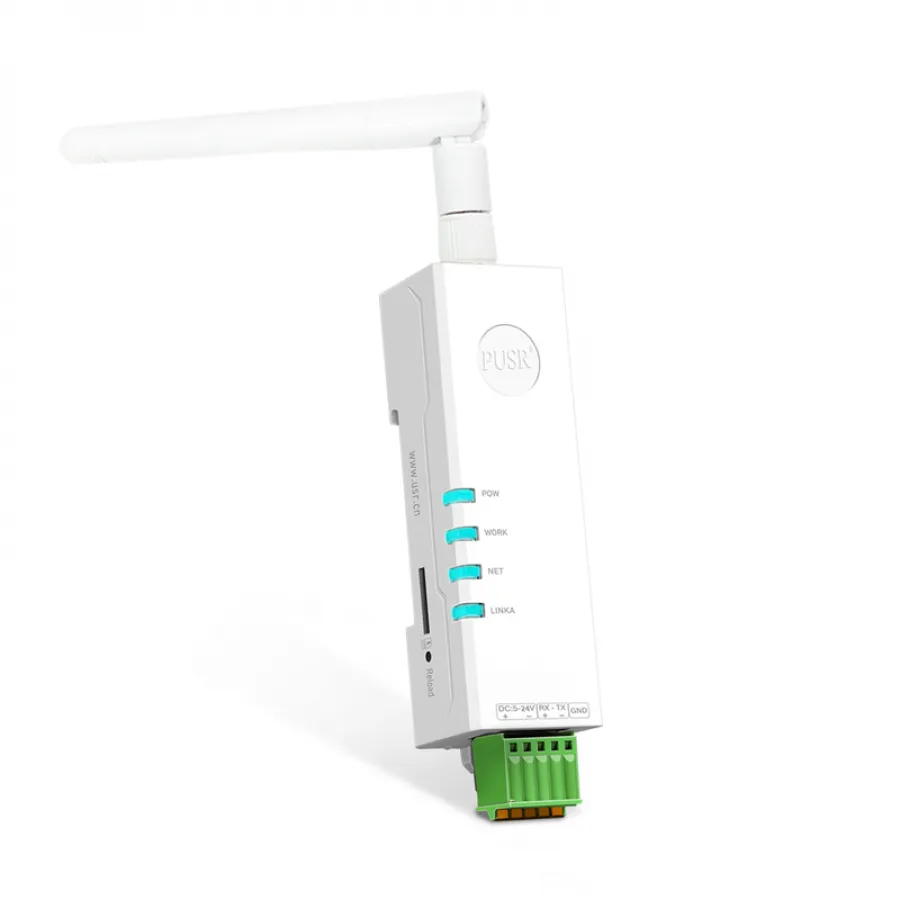

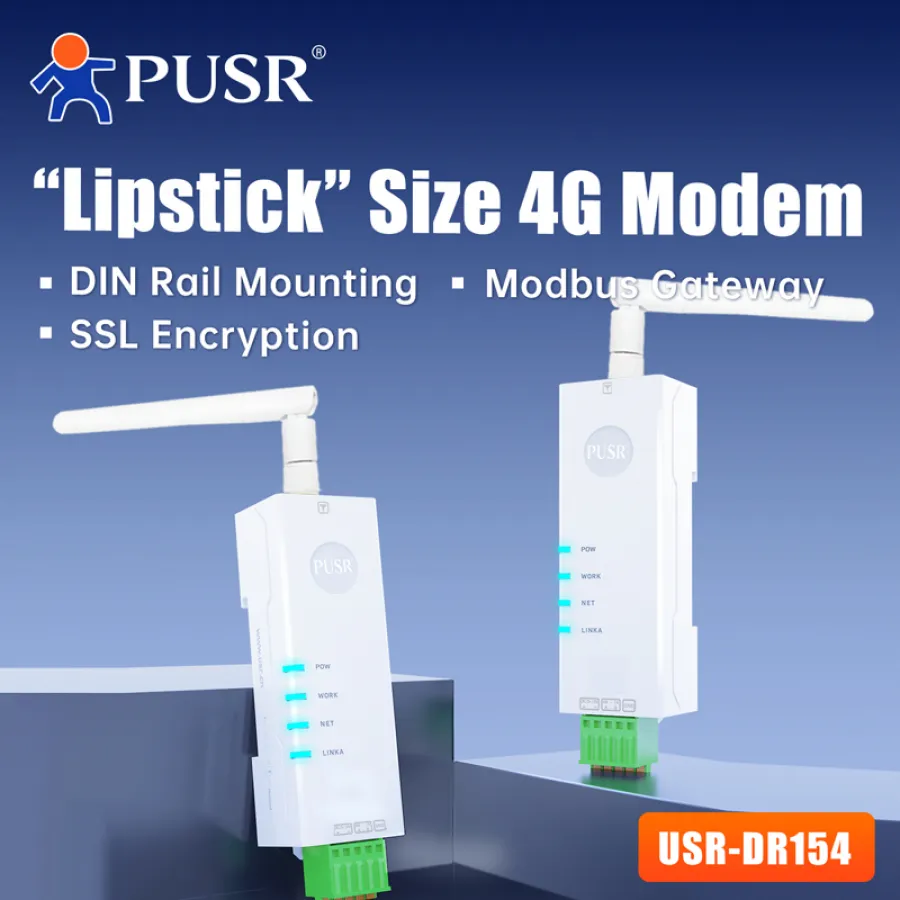

USR-DR154 | “Lipstick” Size 4G Modem DIN Rail Mounting, Modbus Gateway, SSL Encryption The USR-DR154 is an ultra-small size 4G modem with RS485 port . It can realize transparent transmission between RS485 and 4G network. It supports multiple protocols like TCP/UDP/HTTP/MQTT. It supports timeout restart, DNS and other advanced features such as heartbeat packet, registration packet etc. With this device, users can make it easy for data transmitting of the field serial device.

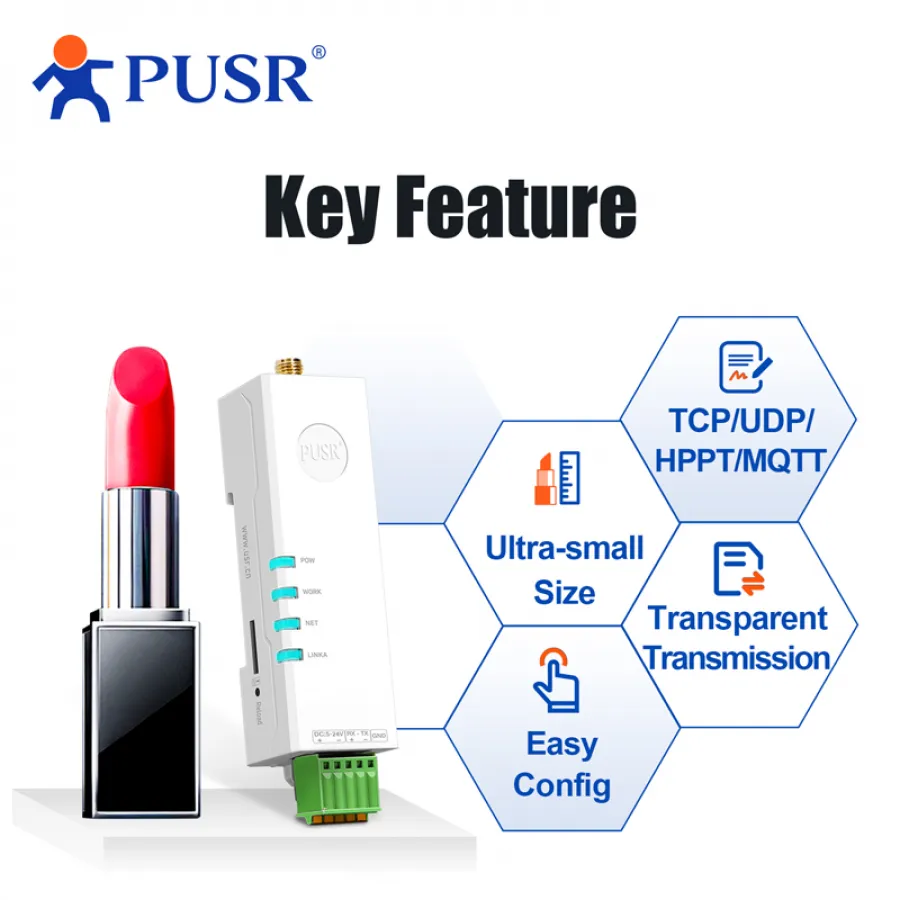

Key Feature
“Lipstick” Size: Save Your Space
Competitive Data Plan: 1200M
Rich Protocols: TCP/UDP/HTTP/MQTT/SSL
Modbus Gateway: Modbus TCP/RTU conversion Easy Config: AT command config utility
If you want to know more or download files, Please Click here:
https://www.pusr.com/products/Lipstick-Size-4G-Modem.html

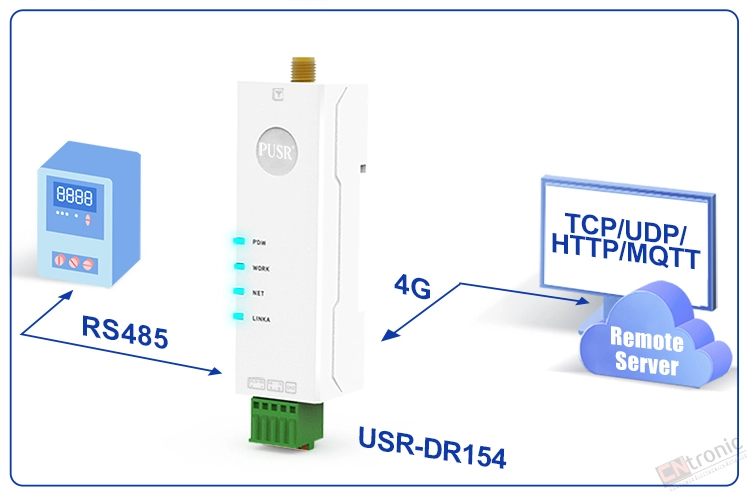

Serial to 4G, Bidirectional Transparent Data Tata Transmission
With this 4G modem, traditional serial devices can be connected to 4G network and send data to remote server via TCP/UDP/MQTT protocol. For MQTT protocol, it supports SSL encryption whicn can protect the data from leaking.
Data Service Solution, PUSR Provides one-stop Service
PUSR not only offers equipment with outstanding performance, but also provides highly competitive data plans. Pls contact our professional sales team, who will tailor the most suitable data plan for you based on your specific needs.APN: linksnetUser name/Password: None/noneData Plan: 100M/month, total 12 MonthsRegion: Europe, compatible with the mainstream carrier like Vodafone,France Telecom,Telefonica,TeliaSonera,Orange,Wind Tre and etc.Contact: Contact your sales manager or Contact Us when you have any question

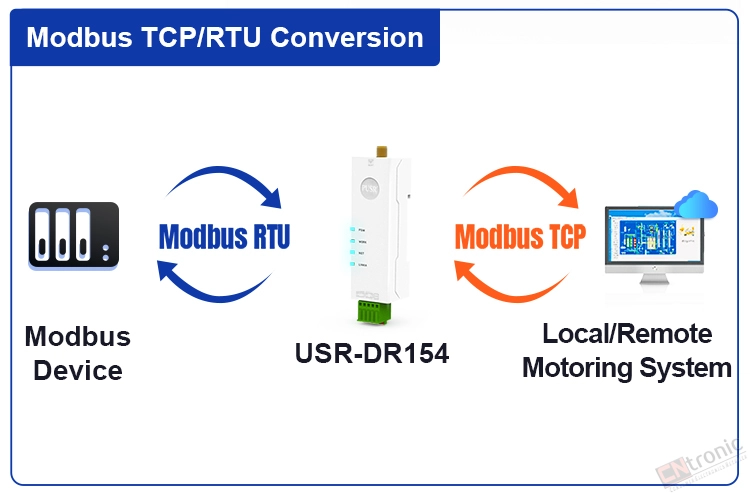

One More Thing, Modbus Gateway
Connect to PLC, SCADA system or user’s private server to achieve local or remote motoring.

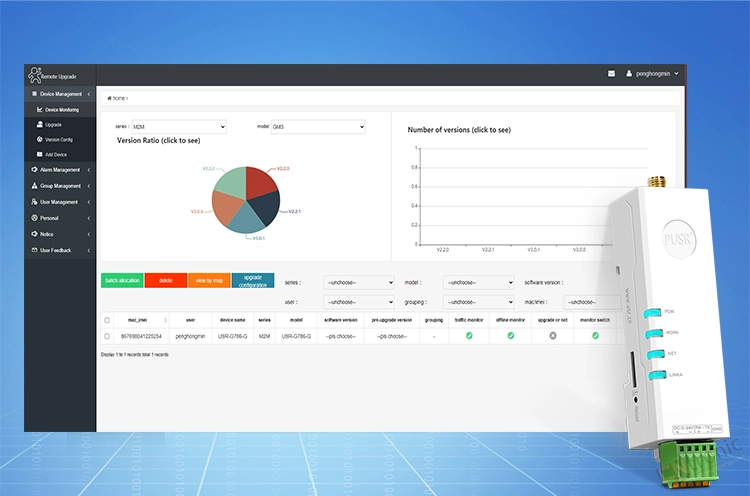

FOTA Remote Upgrade
With the management platform, it can realize the remote firmware upgrade. The upgrade package of difference algorithm is small, and the upgrade traffic and time are saved.
Additional Features
Heartbeat Packet Server can detect abnormal disconnection from the client using this feature(DR3X as an TCP client) Registration Packet The server can identify different clients by using registration packets.

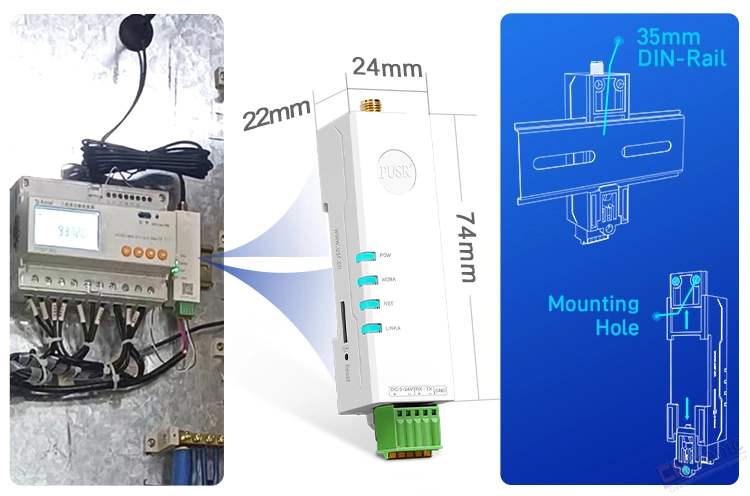

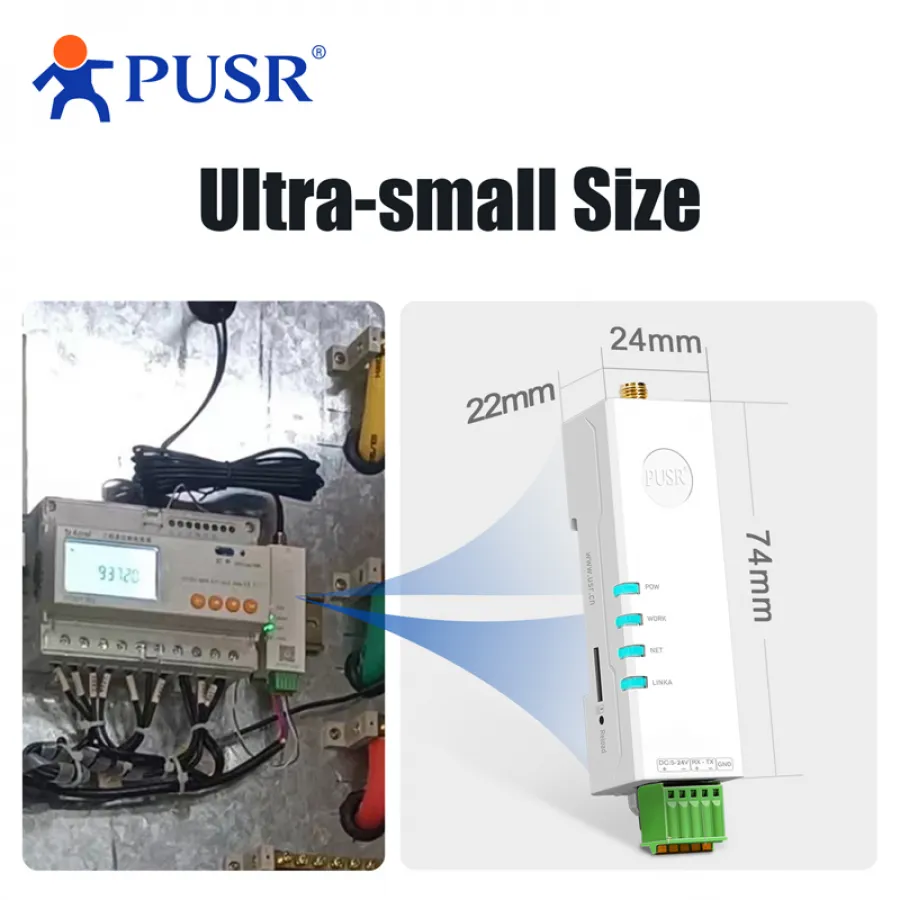

Ultra-small Size
3 Practical Designs, Easy Your Installation
Ultra-small size like a lipstick, can be applied to various scenarios, especially the small box.
Appearance patent number: 202130367085.8

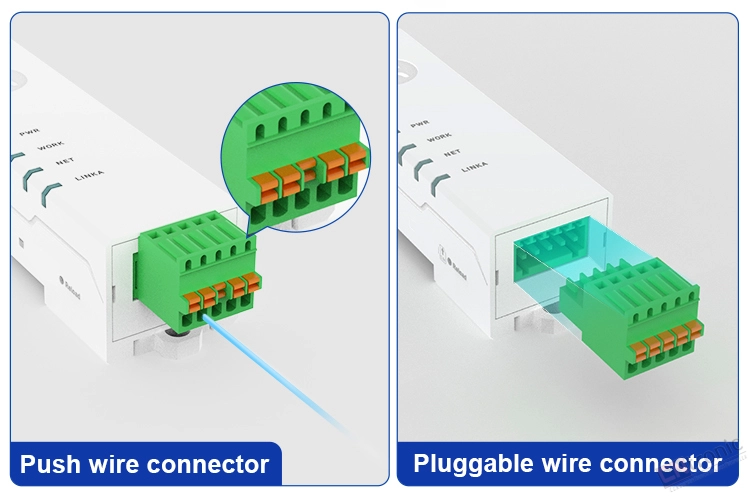

Easy connection
Push-type, pluggable wire connector, easy wiring, no need for additional tools such as screwdrivers Push wire connector Pluggable wire connector
High Reliability Design
Watchdog Protection Hardware & software dual watchdog to ensure stable operation.
EMC Protection: Level 2 Wide Operating Temp -25℃ ~ 75℃, industrial grade design, stable operation in harsh environments.
Flame retardant rating: V0, burning stops within 10 seconds on a vertical part allowing for drops of plastic that are not inflames.

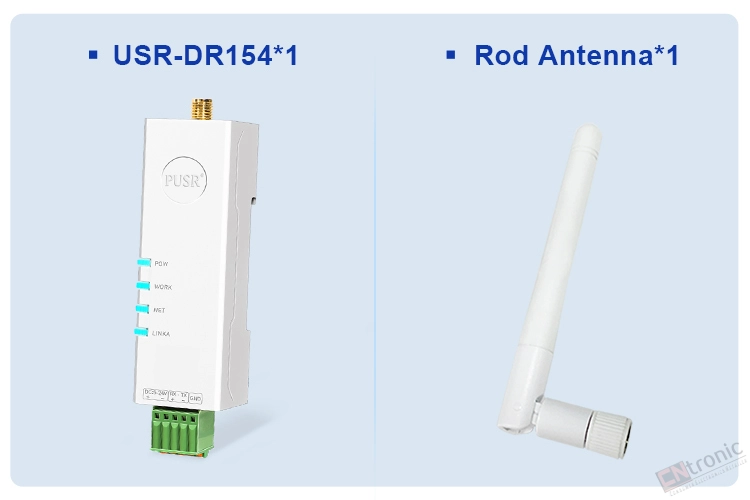

What’s in the box?
Default: USR-DR154*1 Rod Antenna*1
Optional: Power Adapter+patch cord: Sucker Antenna

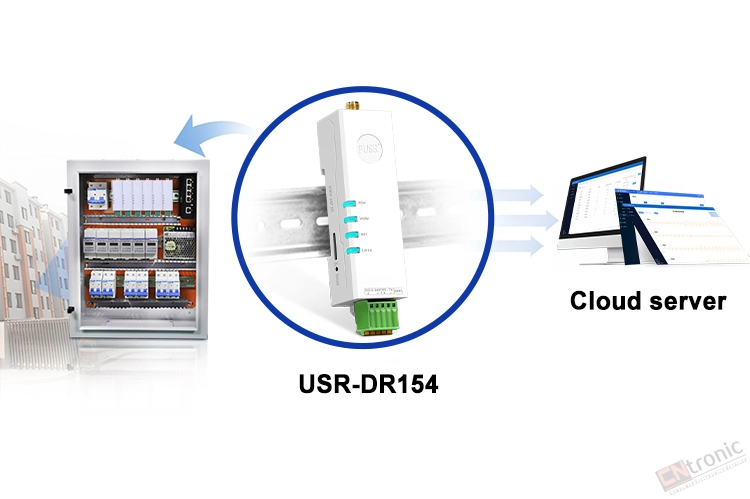

Data Collection of Distribution Boxes
By virtue of its small size and DIN-Rail installation, USR-DR154 can be installed in a low voltage distribution box to save space. With extremely fast response speed, 4G DTU device can timely send data to the control platform.

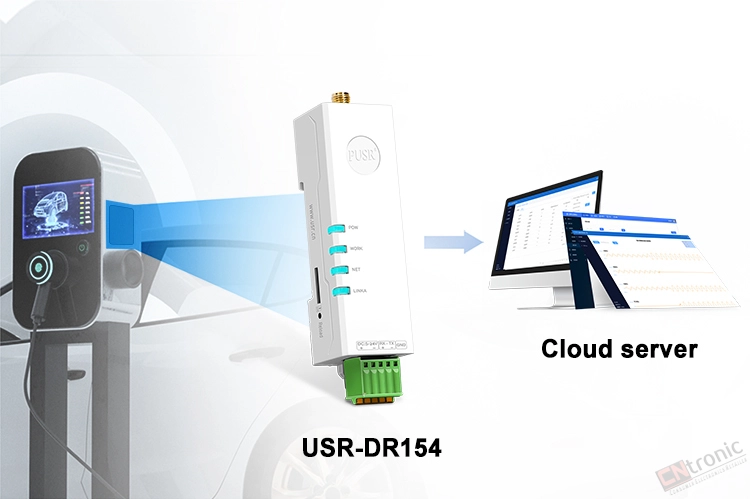

Charging Pile Integrated Installation
By virtue of the variety of product integration modes, USR-DR154 can be directly integrated into the user‘s boxes for real-time data transmission. It can also be applied to intelligent express cabinet installation, self-service vending machine installation and other scenarios.
Packaging Details
- Unit Type:
- Package Weight: 0.300
- Package Size: 10x5x15
- Brand Name: PUSR
- Hign-concerned Chemical: None
- Type: Wireless
- Origin: Mainland China
- Style: Internal
- Transmission Rate: 512Kbps
- Products Status: STOCK
- Model Number: USR-DR154-E
- wirless Modem Type: LTE
- Certification: CE
- Certification: RoHS
- Certification: weee
- Package: Yes
- Power Supply: 5-24V DC, 12V/1A is recommanded
- Consumption: Average:0.8W, Max:3.5W
- Antenna Connector: 1*SMA Female
- Protocols: TCP/UDP/HTTP/MQTT/DNS/NTP/FTP/SSL
- Work Mode: TCP Server, TCP client, UDP client, HTTP client, MQTT CLient
- Modbus Gateway: Modubs RTU to Modbus TCP conversion
- Configuration: Config Tools, AT command
