ESP32-C6 1.47Inch LCD Screen WiFi 6 & Bluetooth ESP32 C6 1.47 inch Display Type-C Development Board Waveshare LCD
4.9 (49 votes) | 500 orders
Price:
US $31.08 - 33.36
Discount Price:
US $
30.31 -
32.49
-2%
- Color
-
-
【Overview】

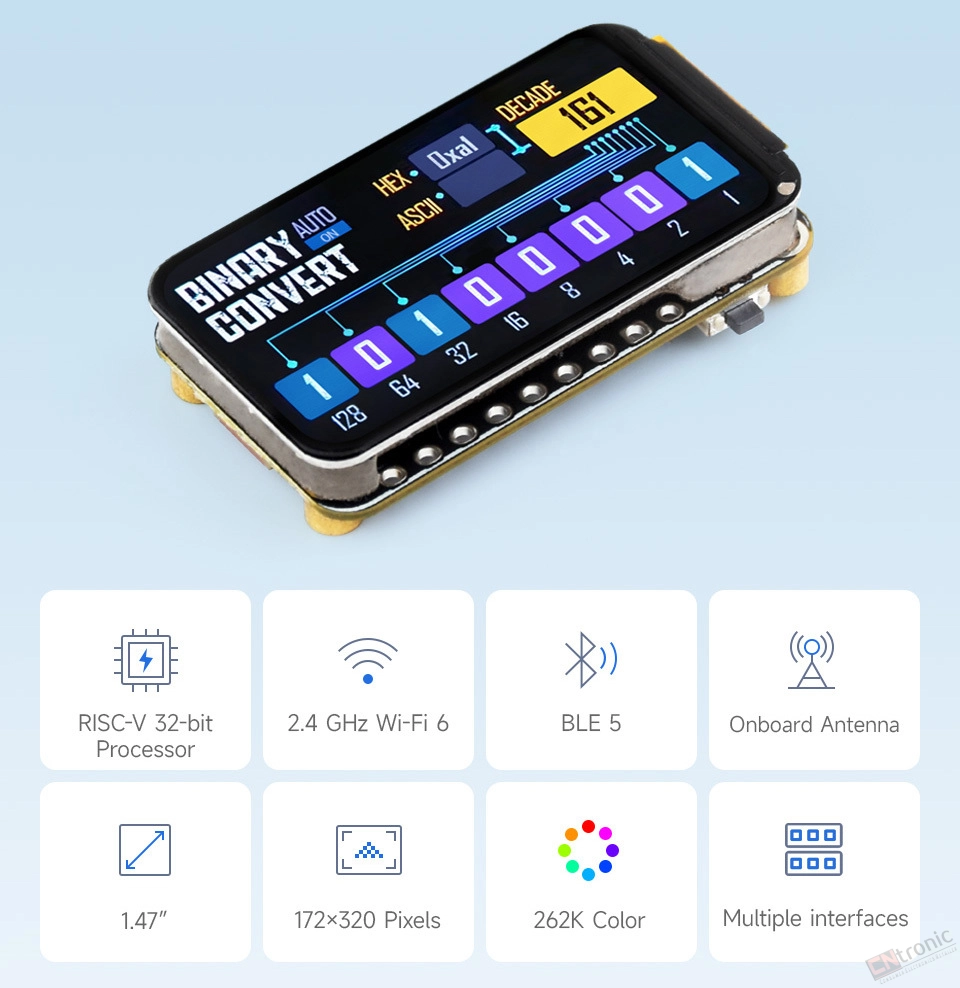

[] ESP32-C6 1.47inch Display Development Board, 172×320, 262K Color, 160MHz Running Frequency Single-Core Processor, Supports WiFi 6 & Bluetooth, With Colorful RGB LED, ESP32 With Display
【Features】
[] ESP32-C6-LCD-1.47 is a microcontroller development board with 2.4GHz Wi-Fi 6 and Bluetooth BLE 5 support, integrates 4MB Flash. Onboard 1.47inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-C6 applications.
[] Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
[] Supports 2.4GHz Wi-Fi 6 (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
[] Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory

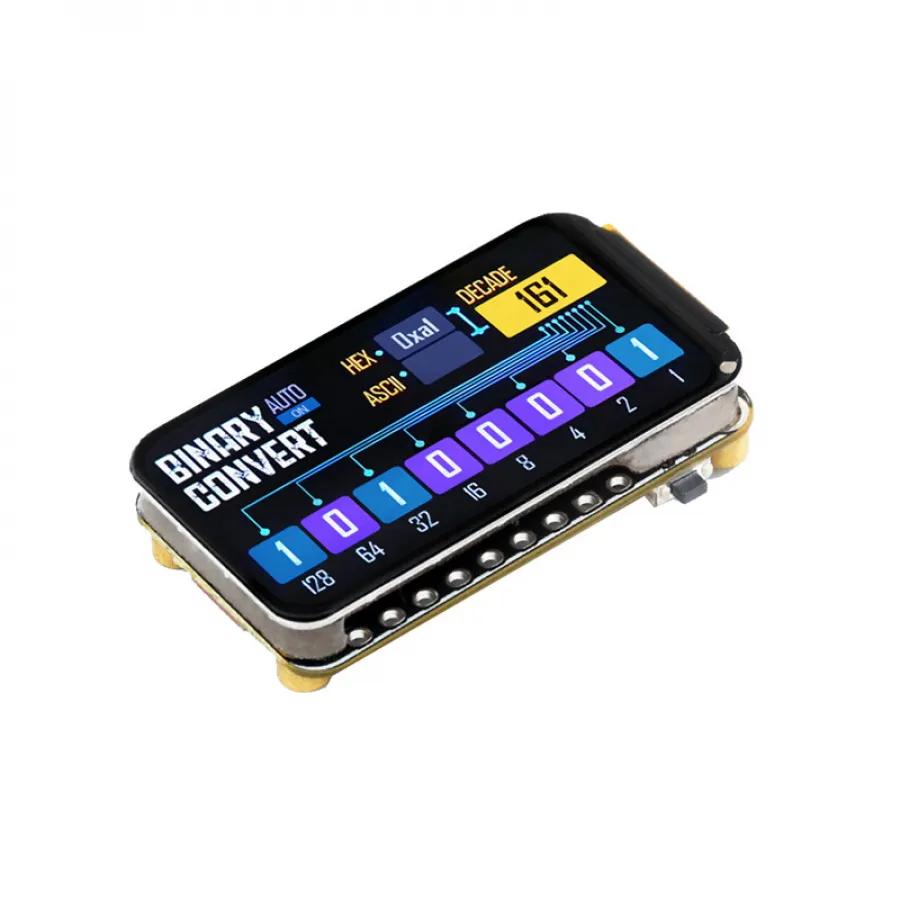

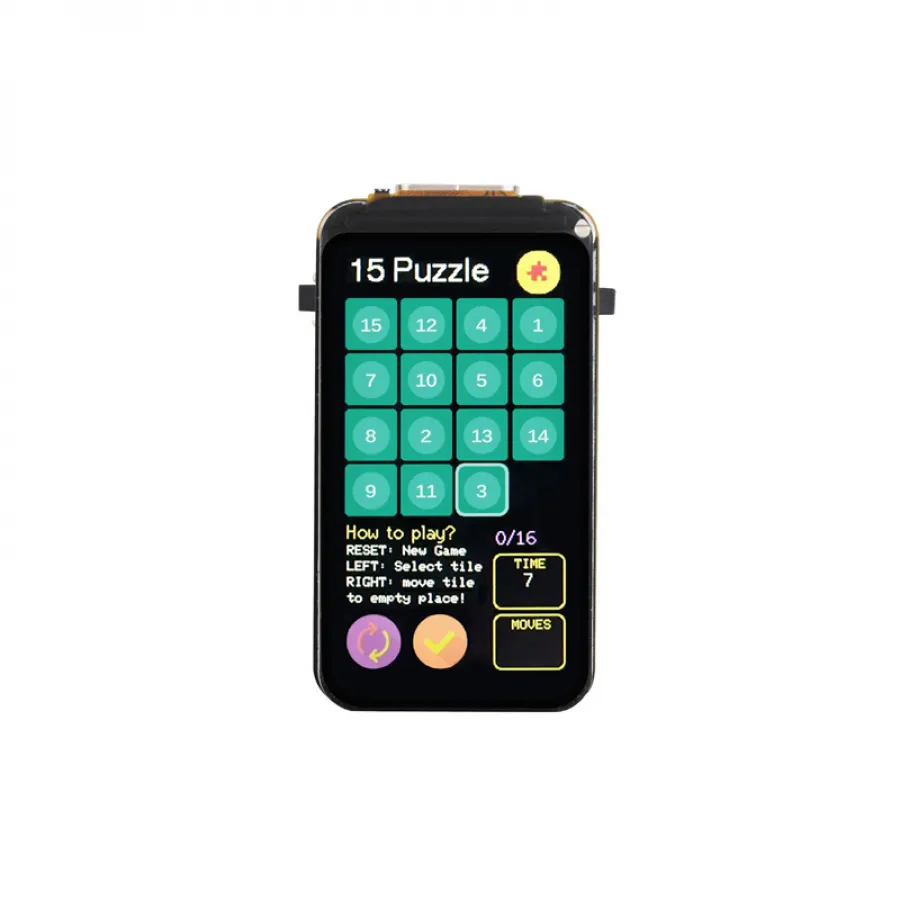

[] Onboard 1.47inch LCD display, 172×320 resolution, 262K color
[] Adapting multiple IO interfaces, integrates full-speed USB port
[] Onboard TF card slot for external TF card storage of pictures or files
[] Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
[] Built-in RGB LED with clear acrylic sandwich panel for cool lighting effect

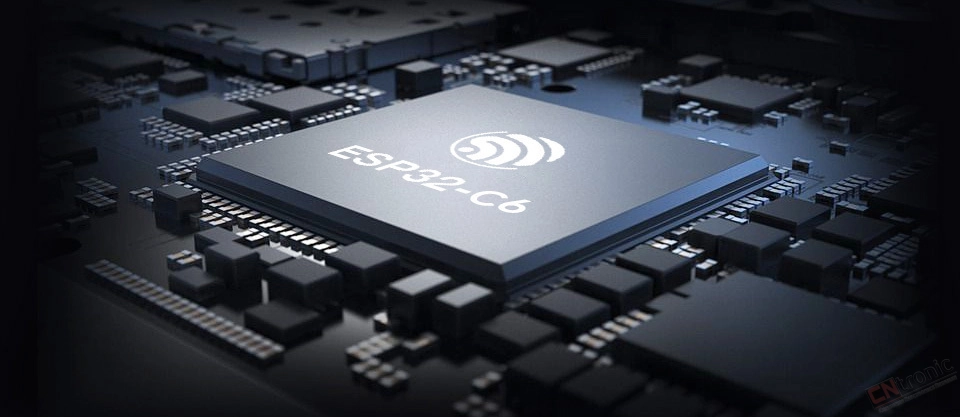

【ESP32-C6 Suitable For AIoT Applications】
[] Powered By A High-Performance 32-Bit RISC-V Processor And A Low-Power 32-Bit RISC-V Processor, The Main Frequency Is Up To 160 MHz, Powerful AI Computing Capability & Reliable Security Features

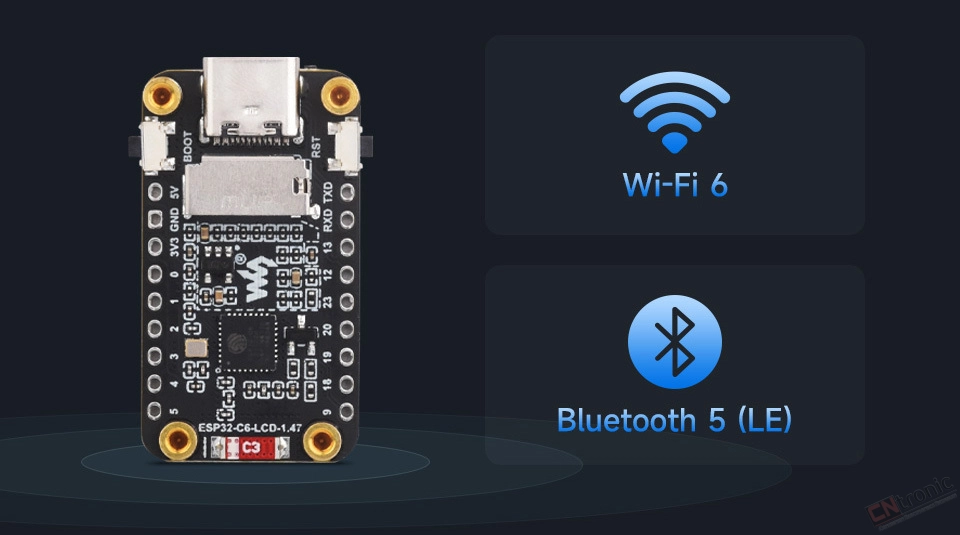

【WIFI 6 And BLE 5 Support】
[] ESP32-C6 Integrates 2.4 GHz Wi-Fi 6 (802.11 Ax/B/G/N) With 40 MHz Of Bandwidth Support, Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh
【Application Scenarios】
【Supports Multiple Peripherals】

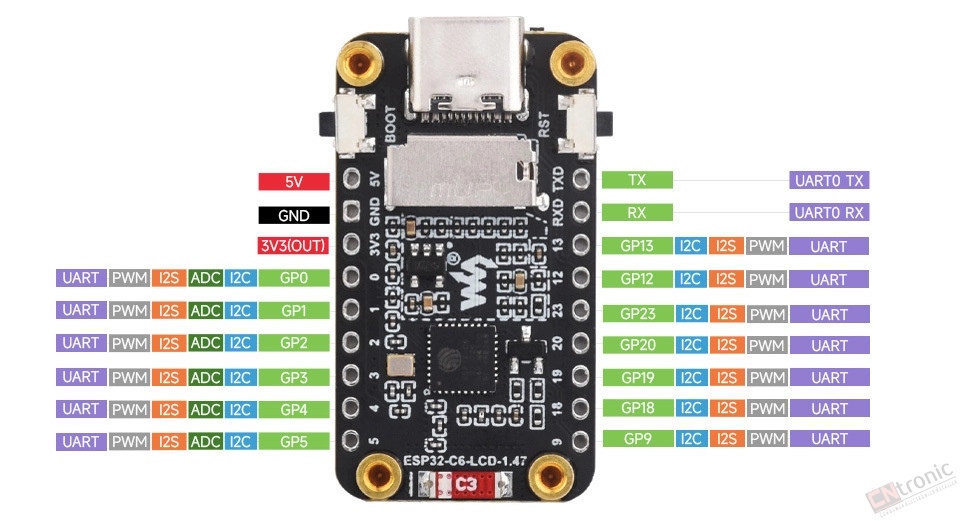

[] Supports The Expansion Of Multiple Peripherals Via GPIO Header

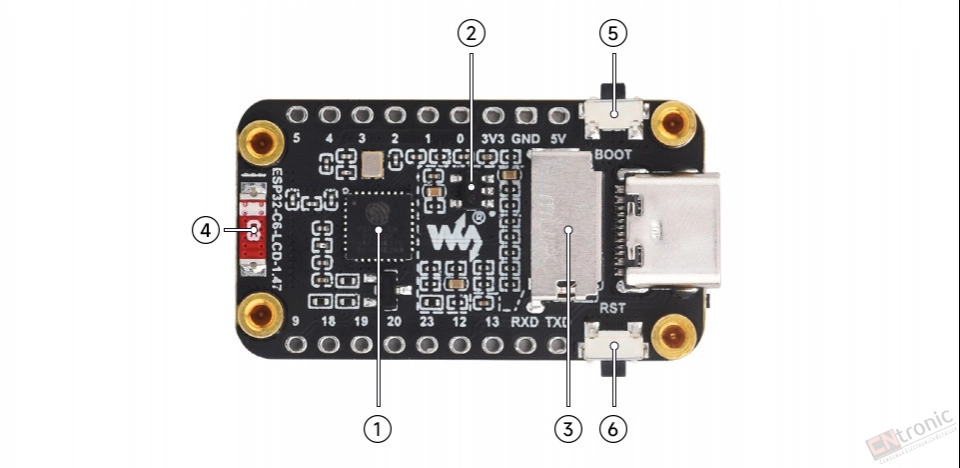

【What's On Board】
[] 1. ESP32-C6FH4
[] 2. ME6217C33M5G: Low dropout regulator, 800mA output (Max.)
[] 3. TF card slot
[] 4. Onboard ceramic antenna
[] 5. BOOT button
[] 6. RESET button

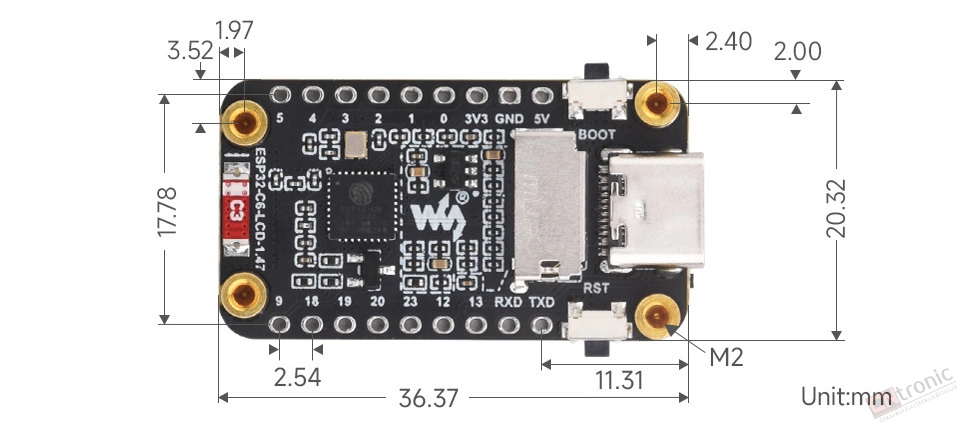

【Outline Dimensions】

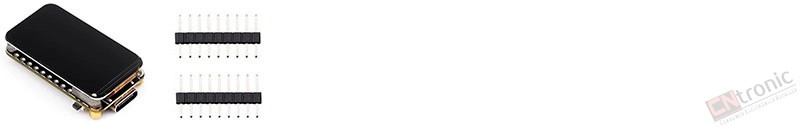

Package Contains

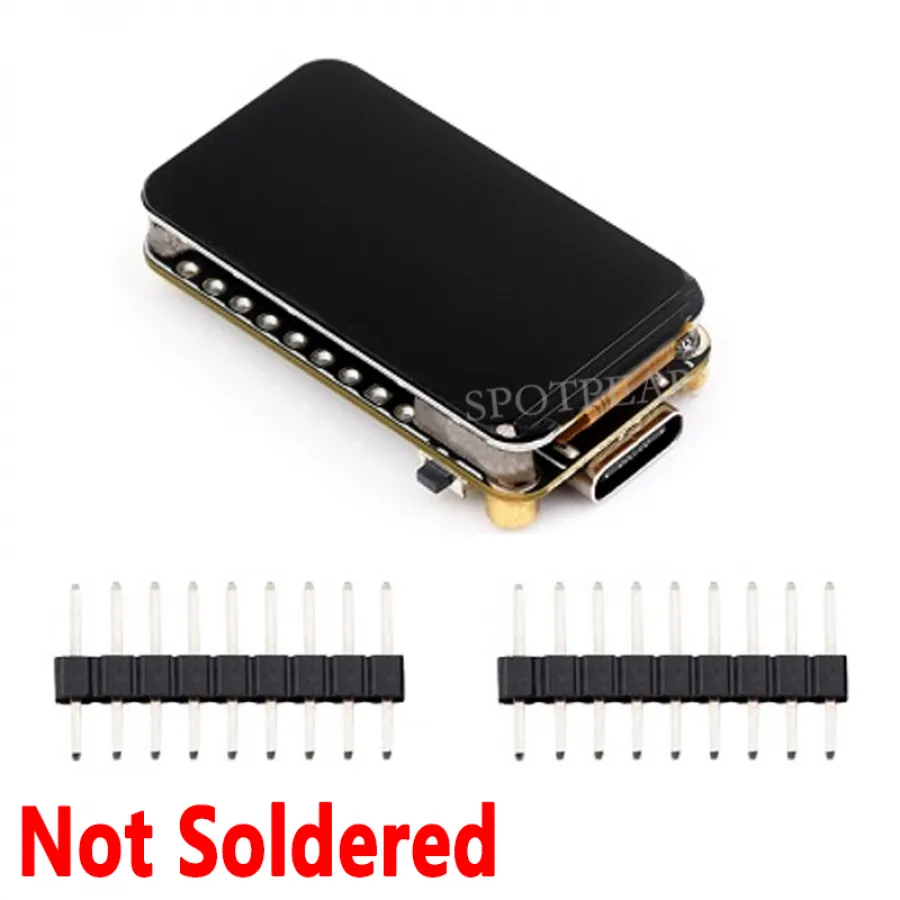

[] ESP32-C6-LCD-1.47 x1

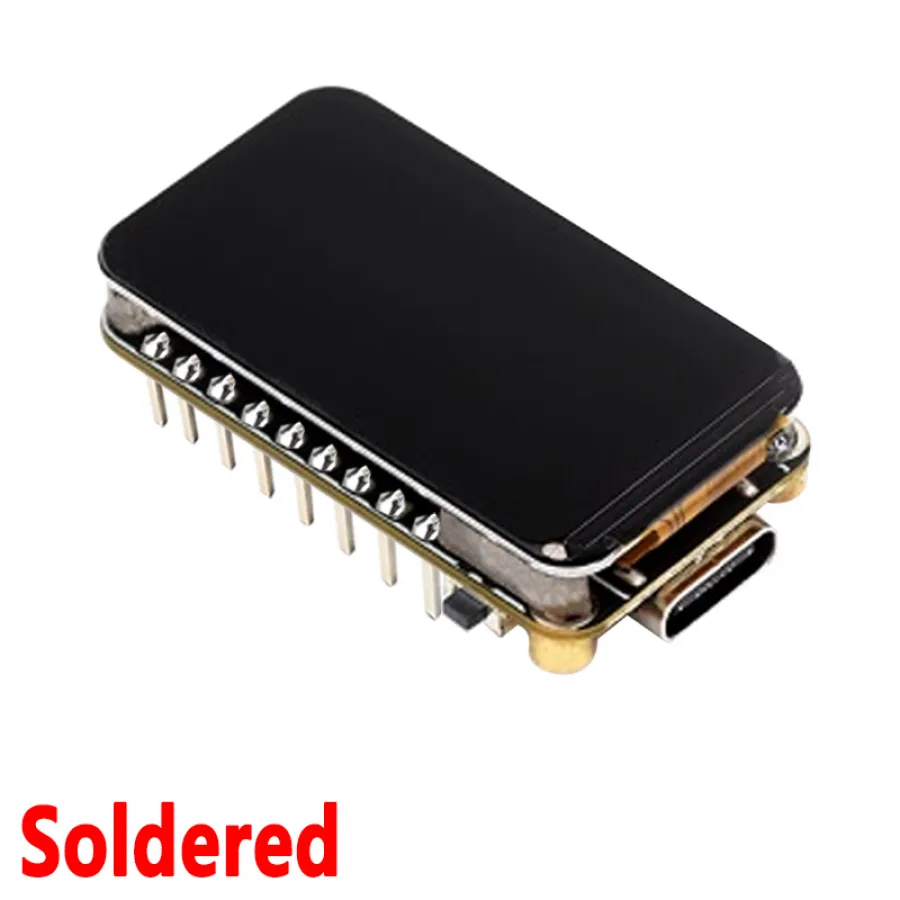

[] ESP32-C6-LCD-1.47 Soldered x1
Packaging Details
- Unit Type:
- Package Weight: 0.010
- Package Size: 10x10x10
- Brand Name: spotpear
- Accessory Type: Extension Board
- Battery Included: No
- Origin: Mainland China
- Hign-concerned Chemical: None
- Compatible With: ESP32-C6
