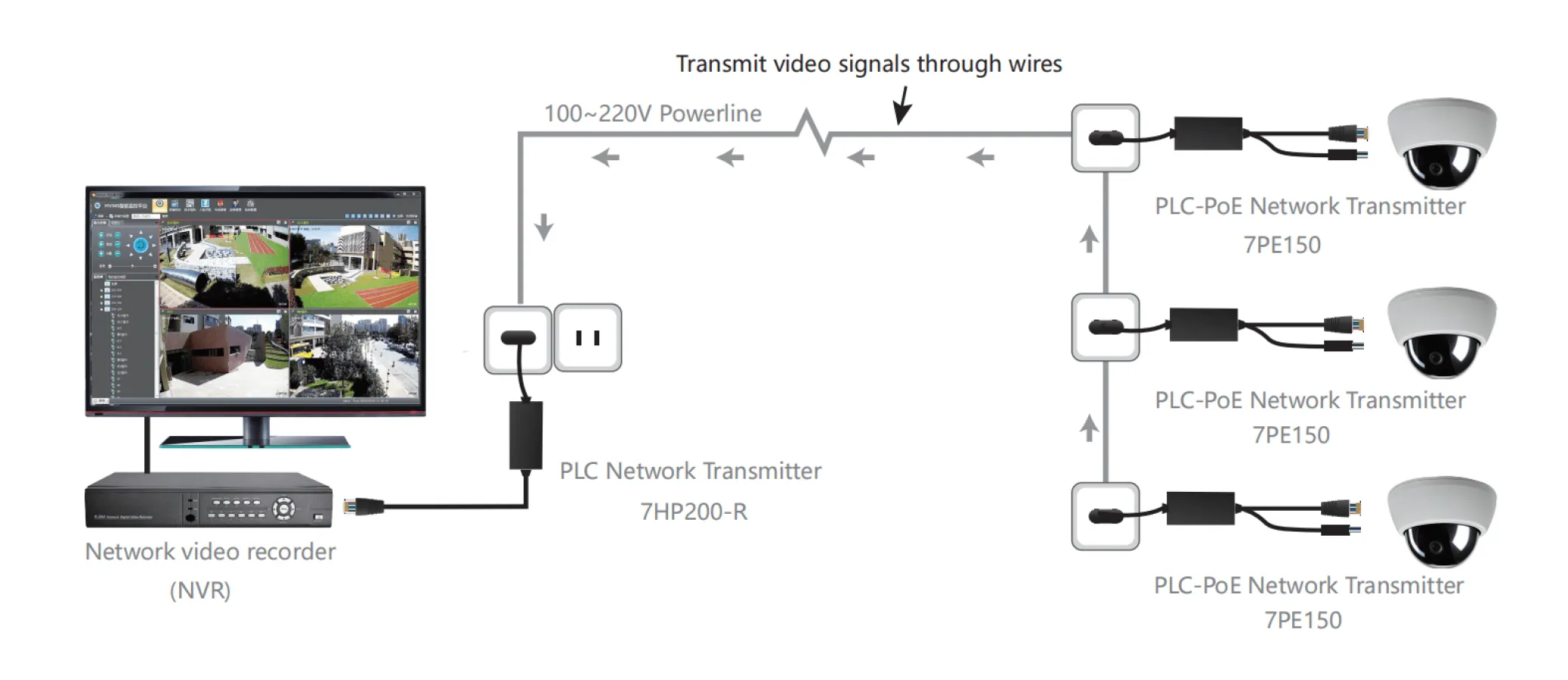

7inova 7HP200-R| AV600 |Ethernet Powerline Network Adapter Receiver For IP Camera Video Transmission
106.58 $
ID: 126338
Quantity
7inova 7PE150| AV600 | PoE Powerline Ethernet Adapter For CCTV Camera/NVR Installation/Elevator/Video Conference Surveillance
0.0 ( votes) | 1 orders
Price:
US $
152.44
- Color
-
-
If you need more technical support and confirmation before order, please contact us and leave your email.
For B2B buyer, kindly contact us for your inquiry.
Reminder: Power line Communication Devices needs at least 2pcs to pair for network transmission, please order 2pcs at least.
*** Important Noted : Power meter OR special switchers will reduce or stop communication signals ***
Introduction:

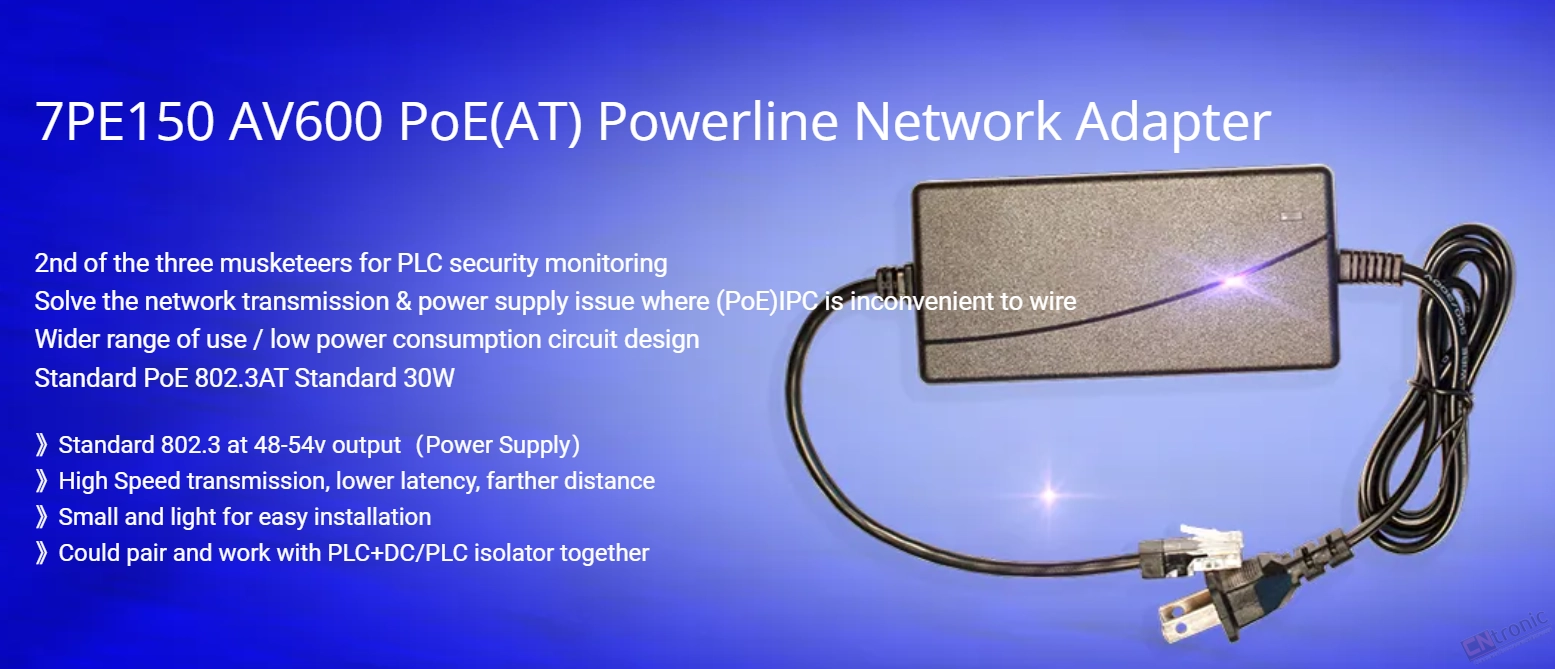

7PE150-PoE AV600 PoE power line adapter adopts EoP+PoE dual chipsets integrated design. With high integration and small size feature. It provides 600Mbps power line transmission rate (physical layer).
Meanwhile it provides extra 802.3at (48-54V) PoE power to the connected devices. Easy for you to power your PoE devices.
Additionally it also offers another DC12V/1A power supply as your optional use. (This is upgraded version now)
Highlights:
Plug and play
Since the adapter is already paired ex-factory, the user does not need to perform any configuration, and it is truly plug and play. By simply plugging a powerline adapter into an electrical outlet, we can set up network infrastructure in a flash.
Built-in PoE injector
Built-in PoE power supply compliant with IEEE802.3at standard, can provide 48V power via CAT5E / CAT6
High speed
With speeds up to 600Mbps, this easy-to-set-up solution delivers fast HD video streaming, online multiplayer gaming and other data-intensive activities, and is ideal for use with CCTV cameras.
Security
The 7PE150 ensures network security and data protection with 128-bit AES encryption.
Features:
*Support up to 14 nodes.
*Support IEEE802.3, IEEE802.3u, standards;
*PoE port supports IEEE802.af/at (30W) standard;
*Support HomePlug AV standard;
*Transmit data through the existing powerline, providing a transmission rate of up to 600Mbps;
*Support 300m (powerline) transmission distance (within the same meter range);
*Support 128-bit AES encryption to ensure the security of network data transmission;
*Support any operating system, including Mac, Linux;
*Support fault self-recovery;
*Support PLC filtering, over current and lightning protection(customers are free to choose);
*Provide a 10/100Mbp adaptive Ethernet RJ45 port (PoE); The RJ45 port supports Auto MDI/MDIX function;

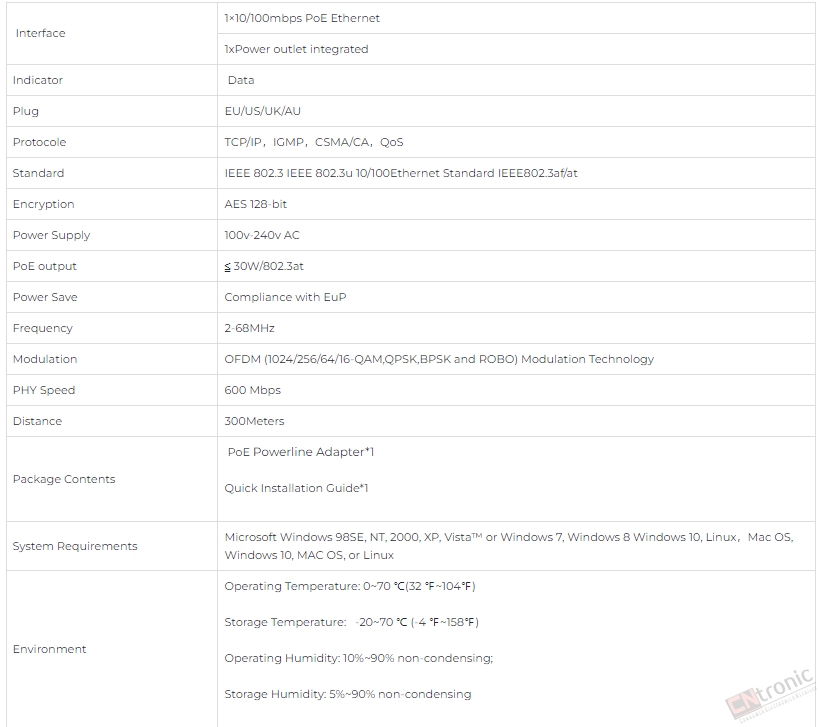

Specification:
Product Tag: #poe powerline video surveillance, #powerline television cameras, #powerline NVR, #powerline CCTV, #powerline CCTV, Powerline for IP cameras and NVR, #Power feed, #poe powerline adapter,#powerline with poe
Packaging Details
- Unit Type:
- Package Weight: 0.300
- Package Size: 20x5x20
- Brand Name: 7INOVA
- Hign-concerned Chemical: None
- Origin: Mainland China
- Package: Yes
- Transmission Rate: 500Mbps
- Model Number: 7PE150
- Color: Black
- Powerline Spec: Homeplug AV600
- PoE Spec: 54v PoE output
- Power output: DC12V output for extra powering
- Interface: Ethernet Port; DC12V
- Ethernet Throughput: 94Mbps under short distance
- Power Cable Length: 2meter
- Ethernet Cable and DC Cable Length: 20cm
- Distance: 300meters
- Size: 95*30mm
- Plug Cable: EU/US/UK optional
