Ethernet Relay Board 16 32 Channel ESP32 WIFI MQTT Home Assistant Domoticz OpenHAB Digital Input Smart Switch
5.0 (22 votes) | 198 orders
Price:
US $198.74 - 409.89
Discount Price:
US $
166.43 -
343.46
-16%
- Color
-
-
Relay board function instruction as below, any questions, please contact us
ETHWiFi means support Ethernet and WIFI

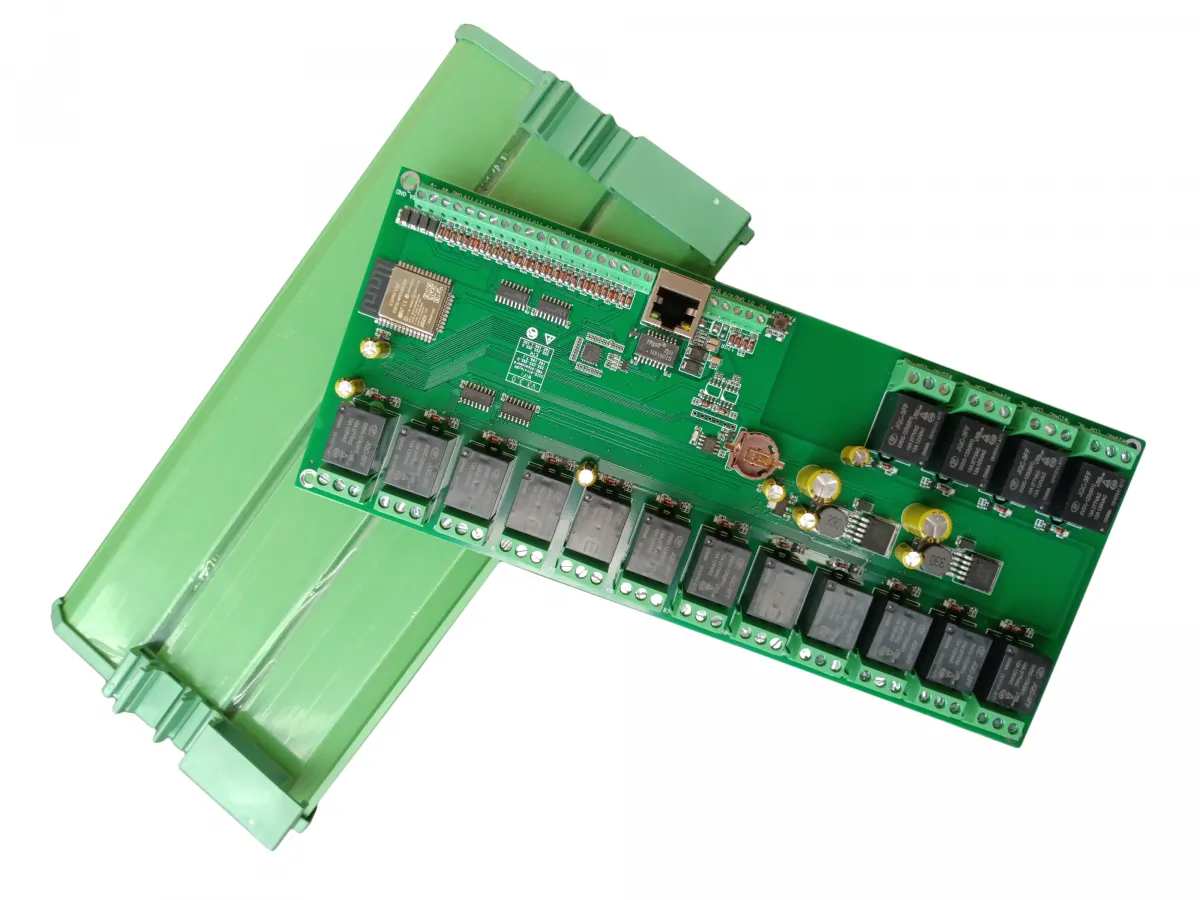

ETHWiFi RS485 means support Ethernet, WIFI and RS485

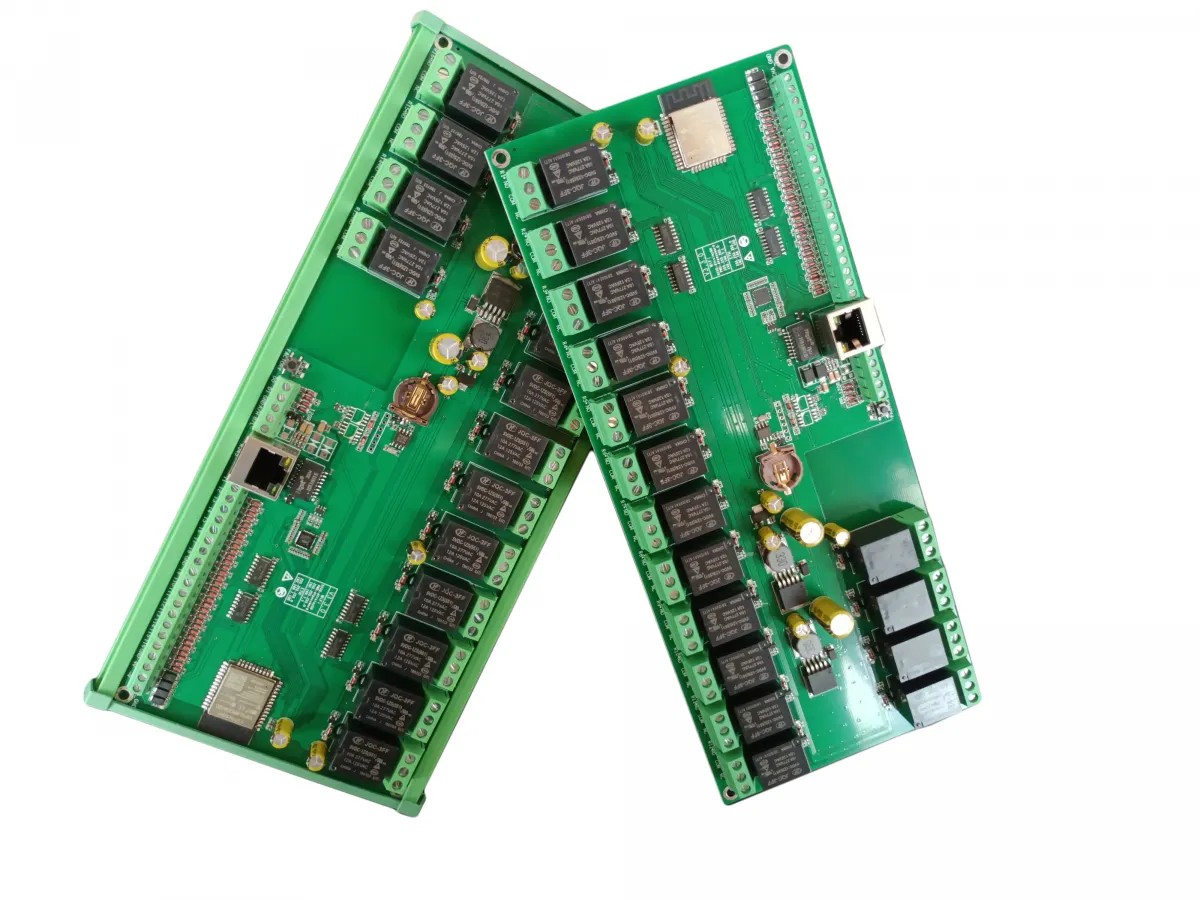

ETHWiFi CAN means support Ethernet, WIFI and CAN bus
ETHWiFi RTC means support Ethernet and WIFI with RTC battery

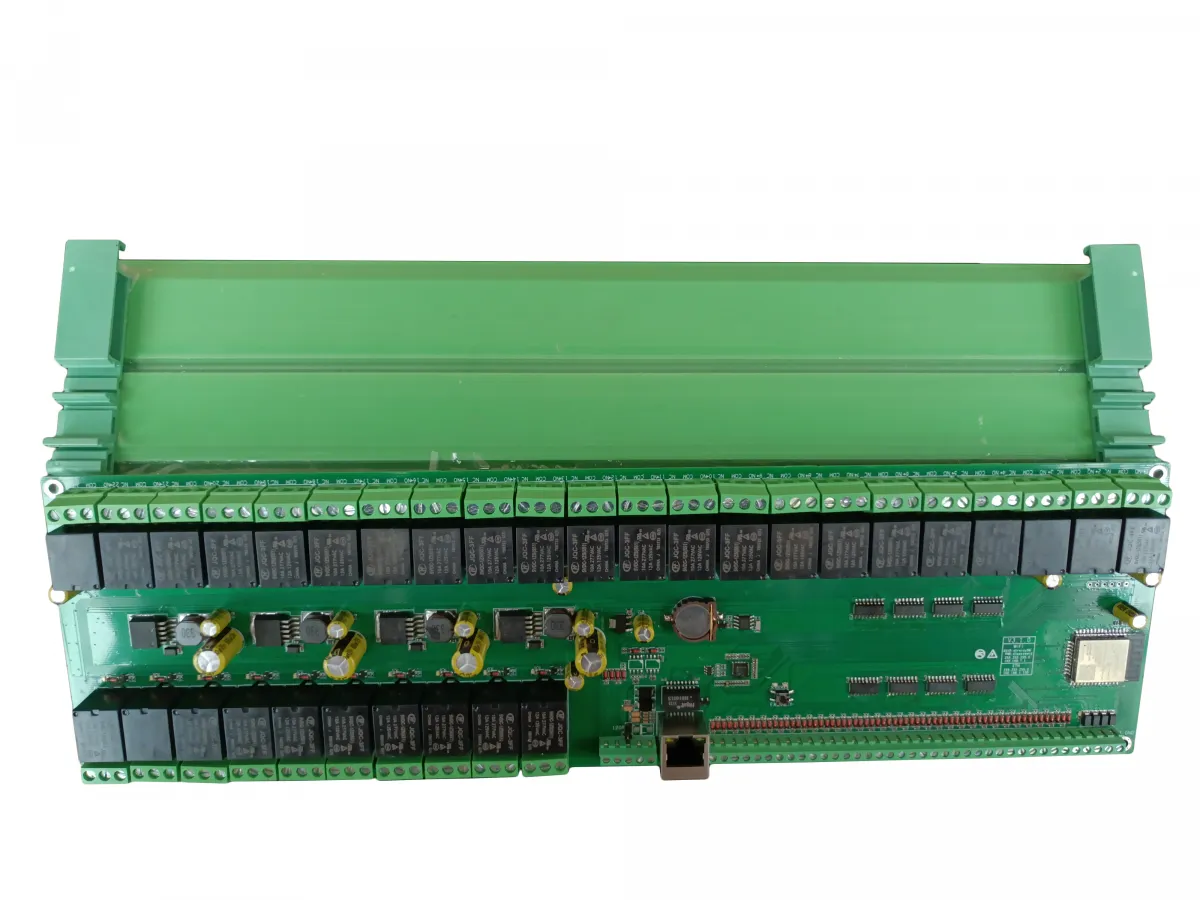

ETHWiFi RS485 RTC means support Ethernet, WIFI and RS485 with RTC battery

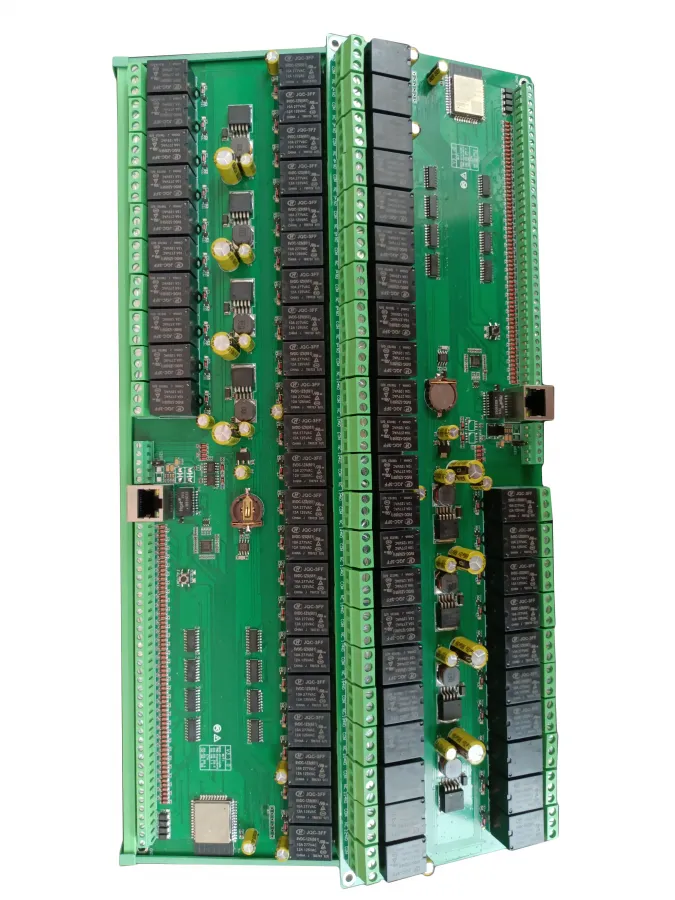

ETHWiFi CAN RTC means support Ethernet, WIFI and CAN bus with RTC battery
Support Customized and develop by our company
User manual and programming manual SDK:
http://www.dingtian-tech.com/sdk/relay_sdk.zip
Notes: it is finished relay board, don’t support flash your own firmware. If you want to flash firmware, please contact us
 Specification | |||||

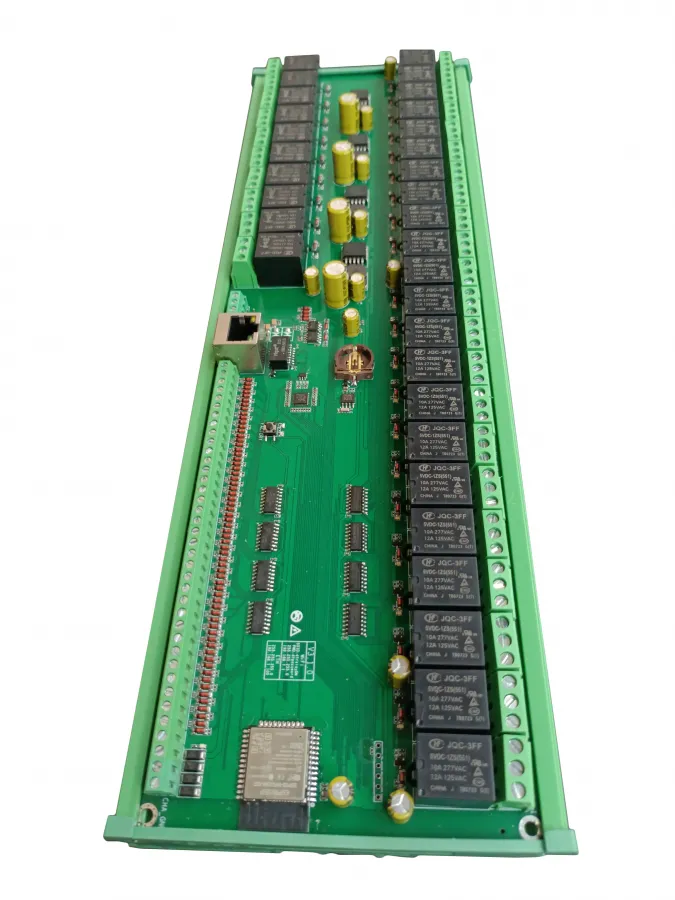

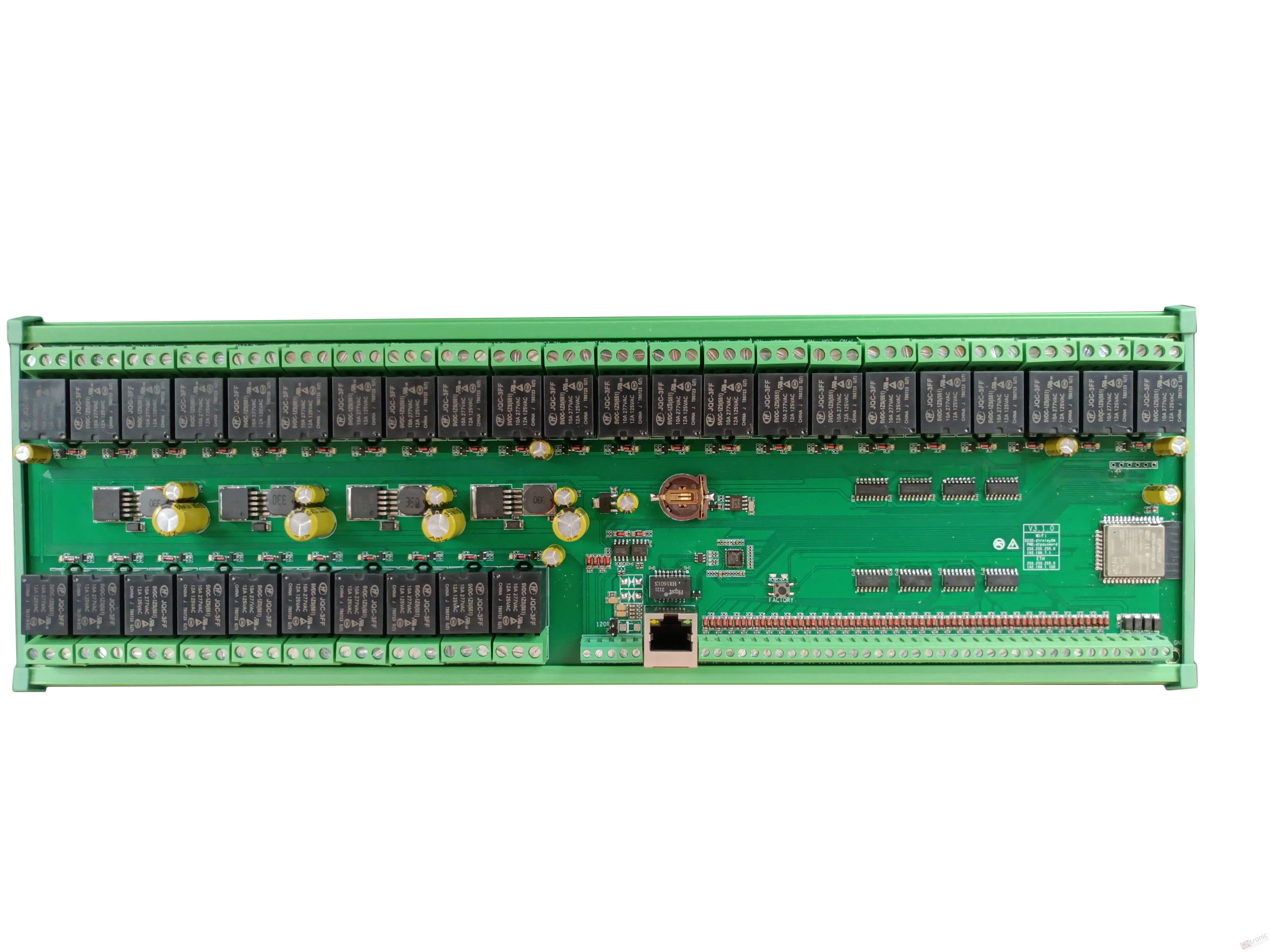

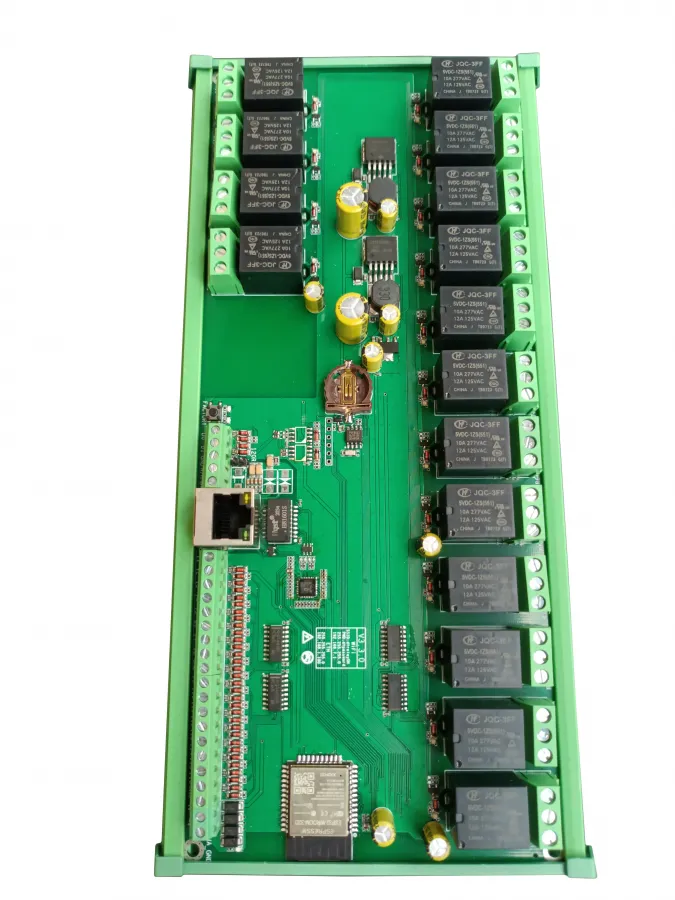

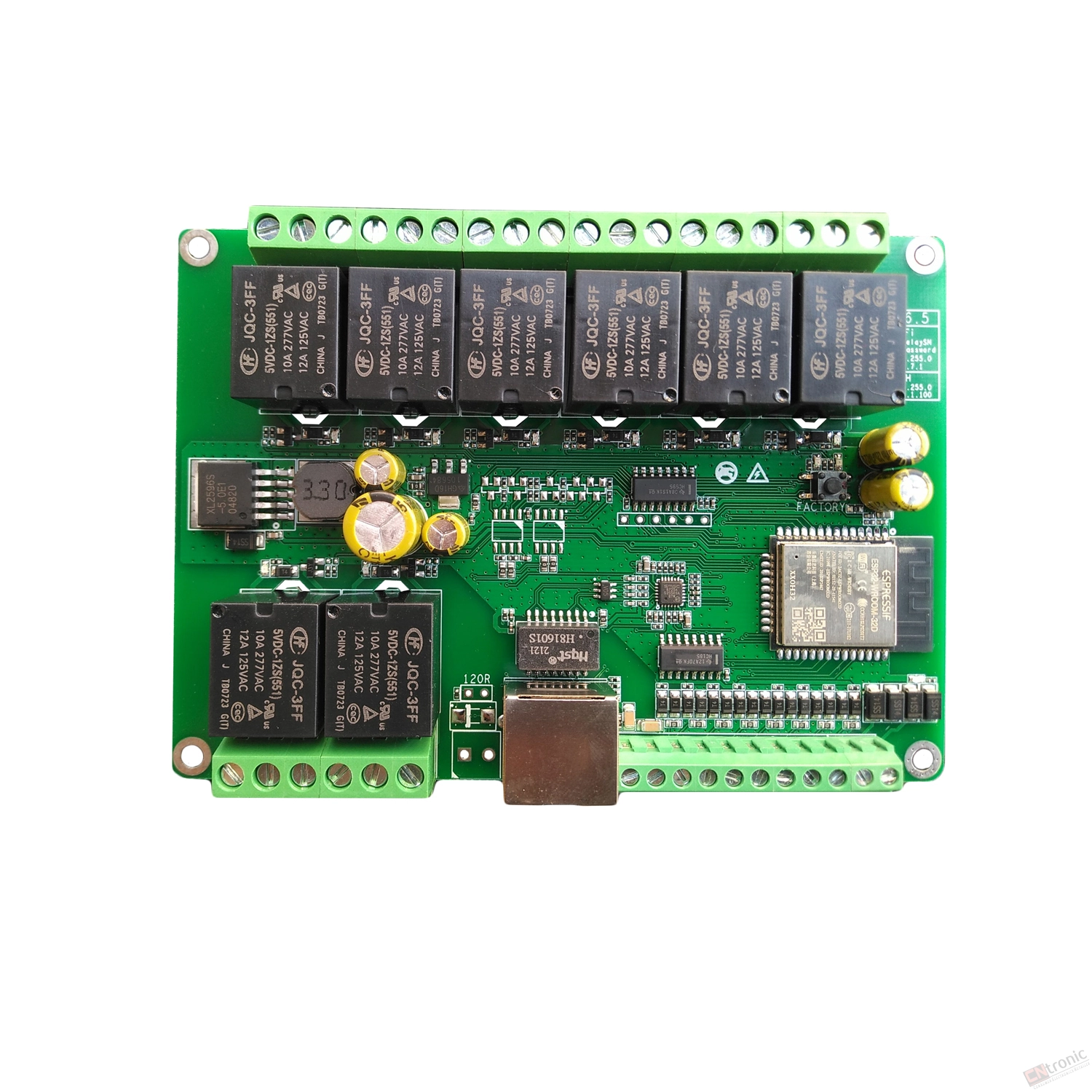

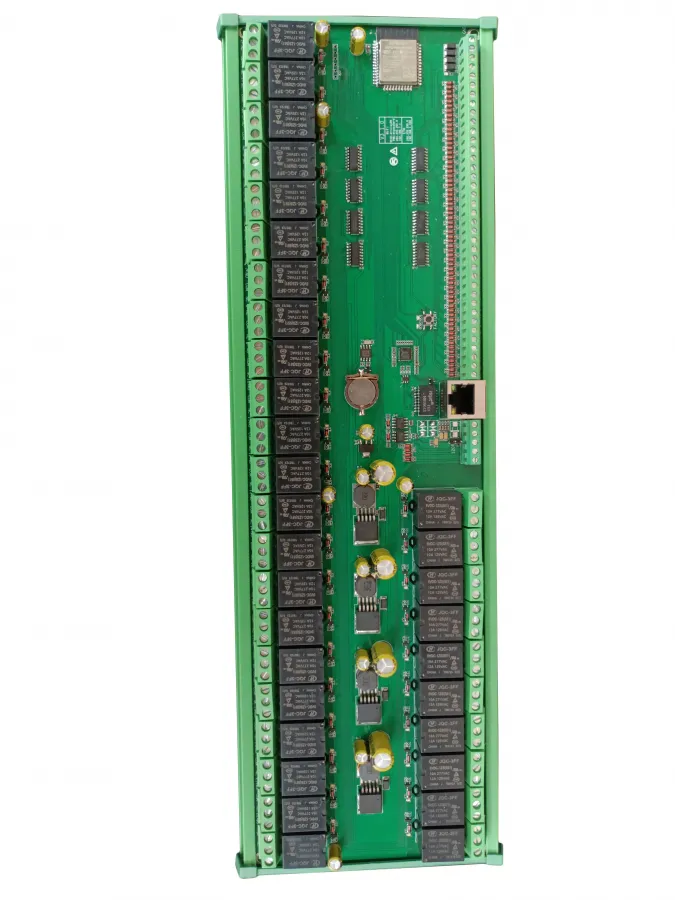

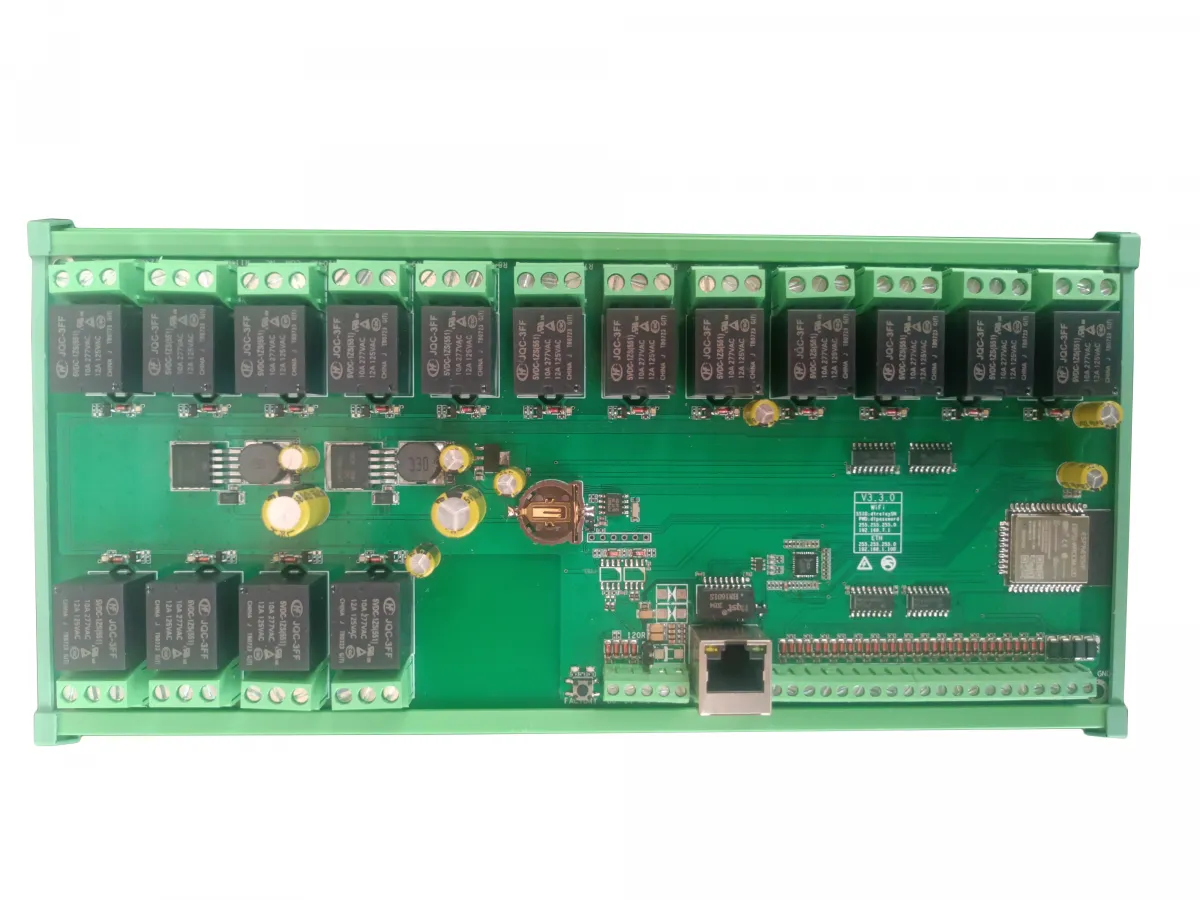

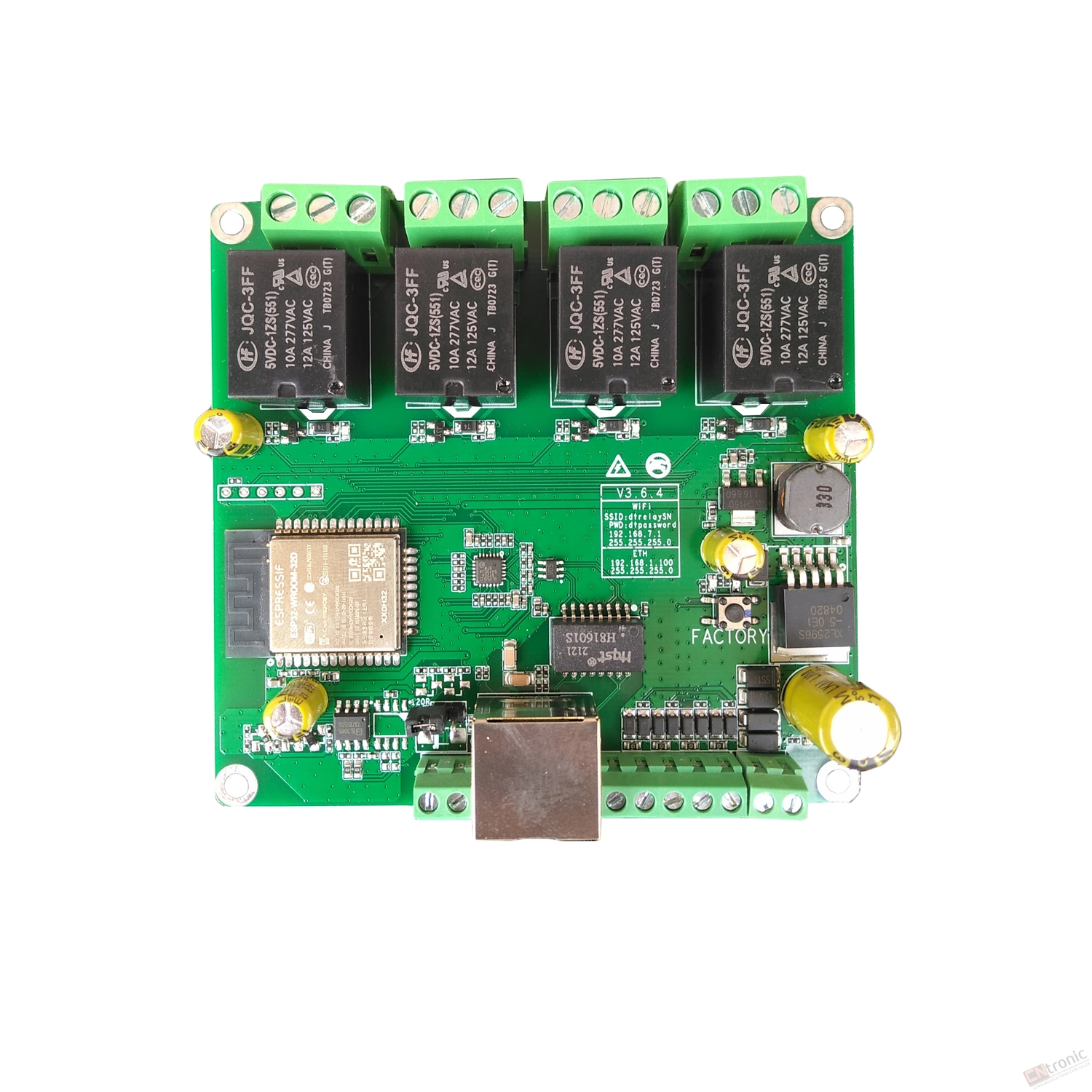

Parameter | DT-R002 | DT-R004 | DT-R008 | DT-R016 | DT-R032 |

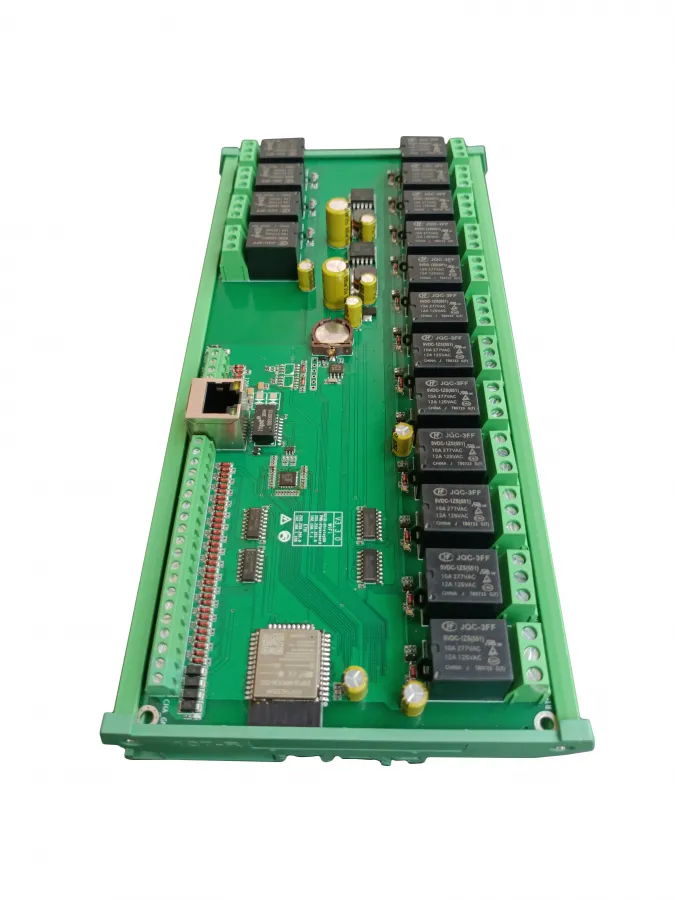

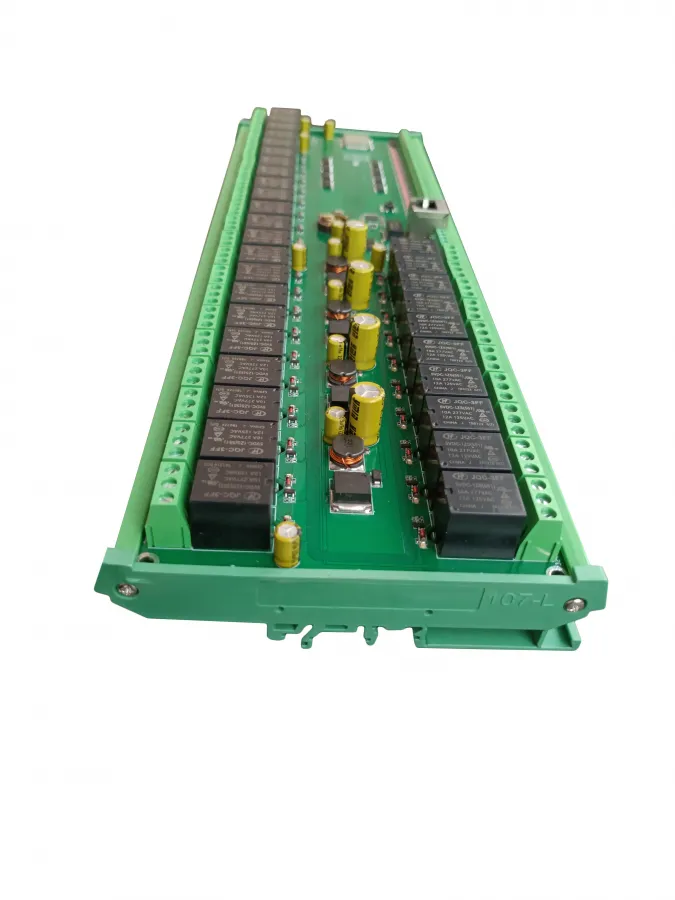

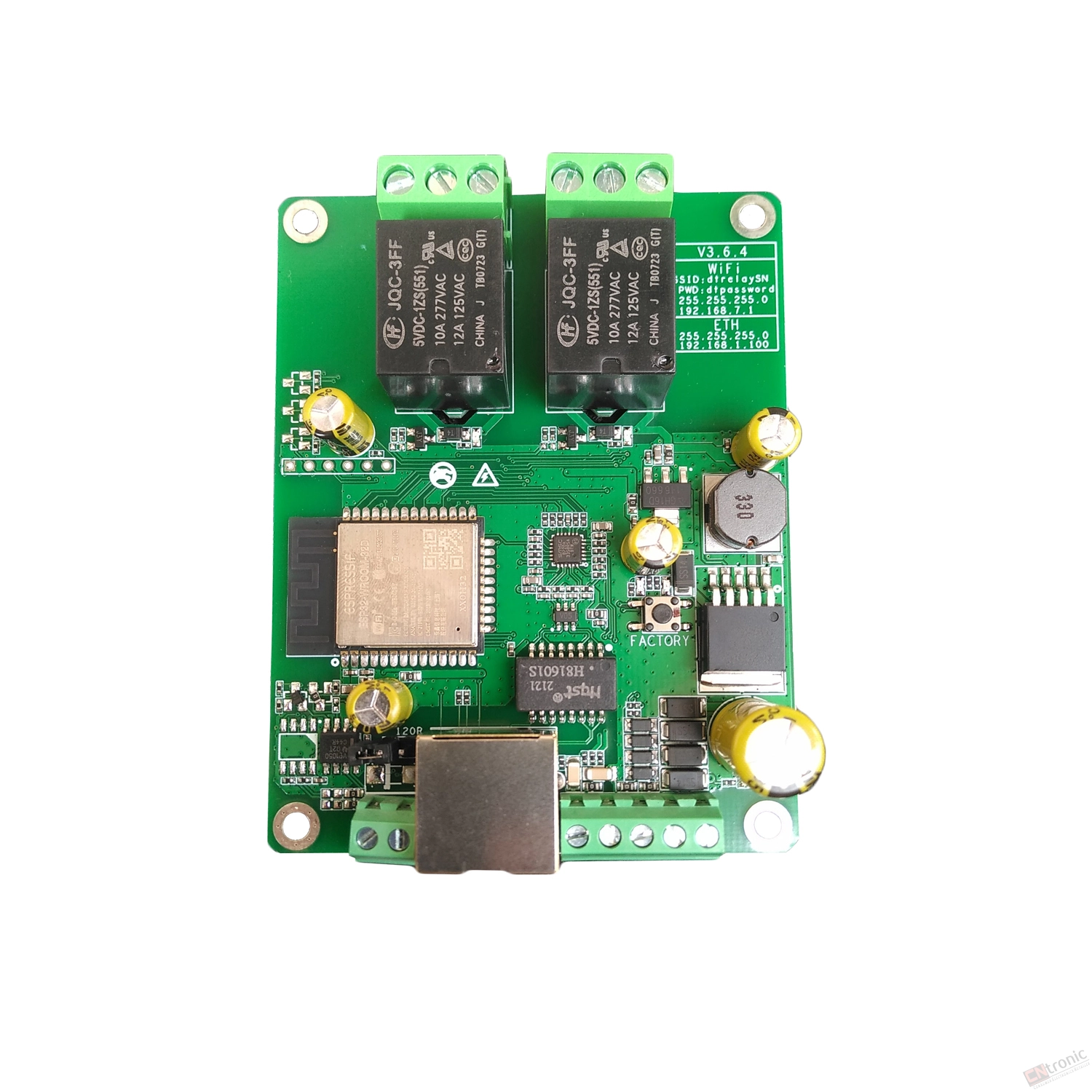

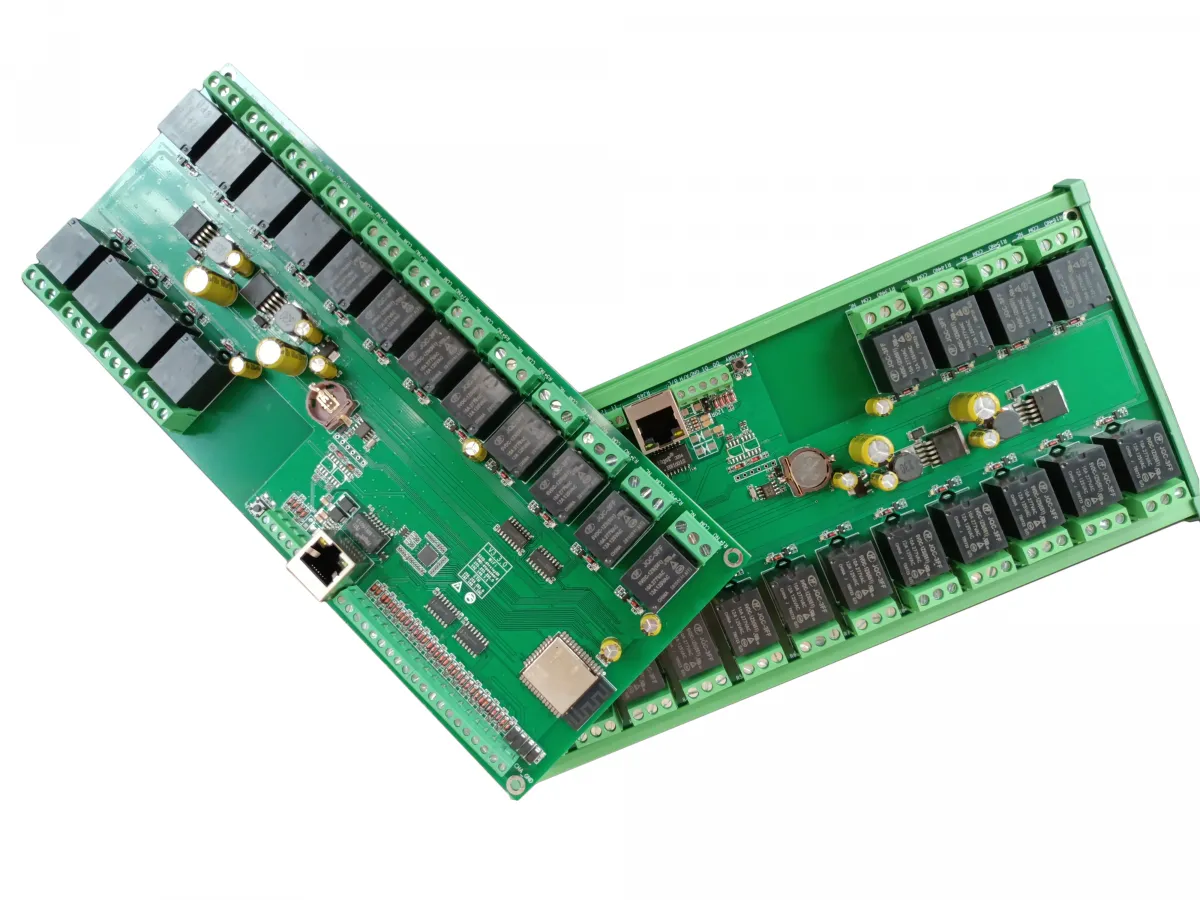

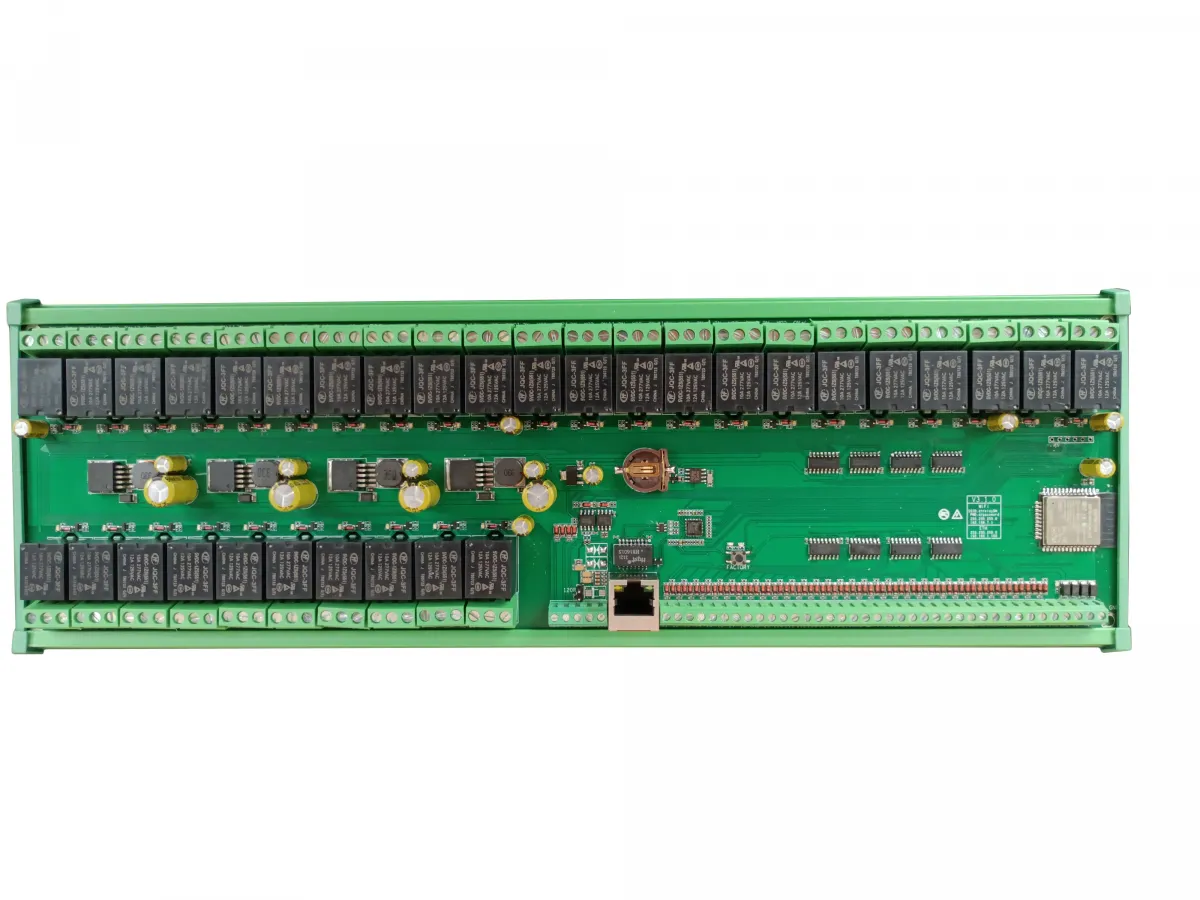

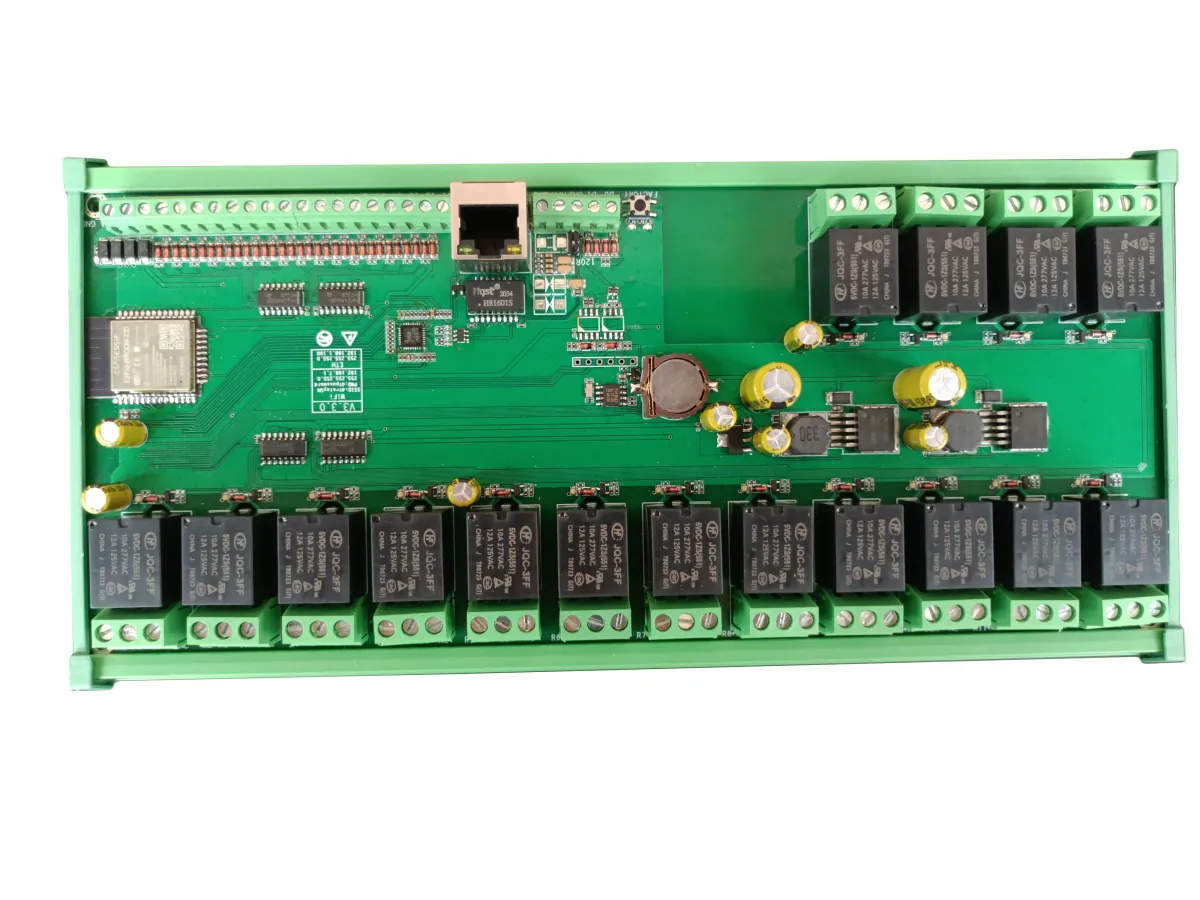

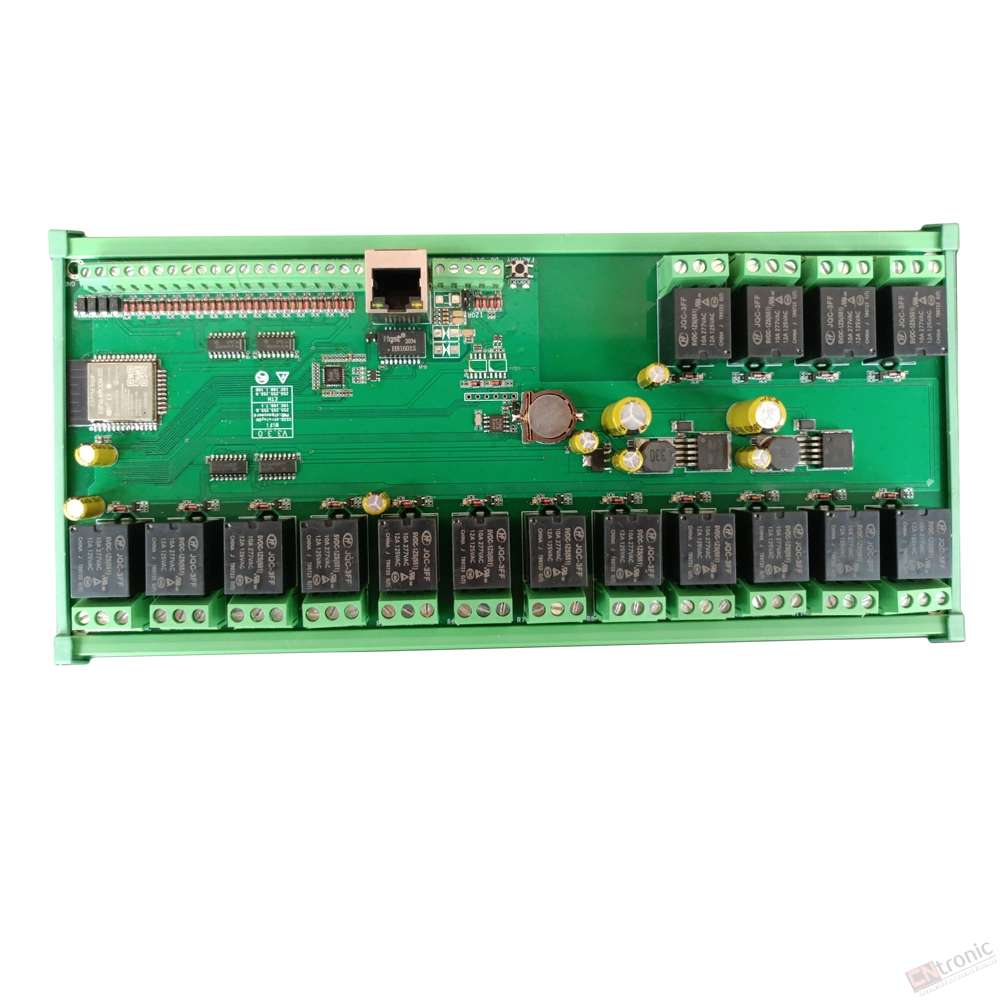

Photo |
|
|
|
|
|
Interface | RJ45, WiFi, RS485, CAN, Wiegand(optional) | ||||

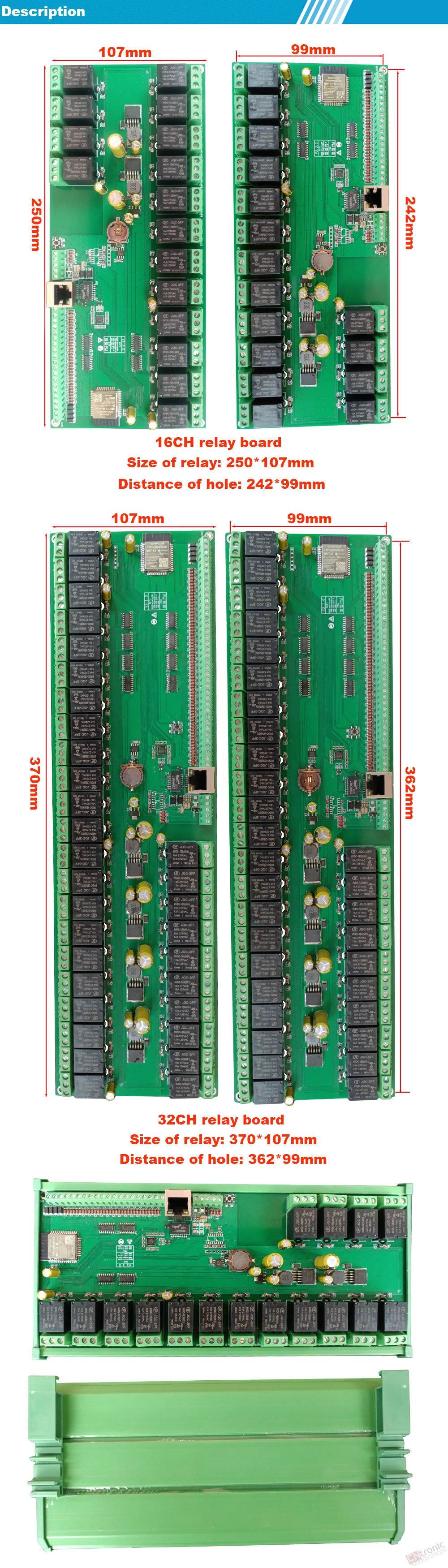

Size(Relay Board) | 87*68mm | 91.6*86.4mm | 122*87mm | 250*107mm | 370*107mm |

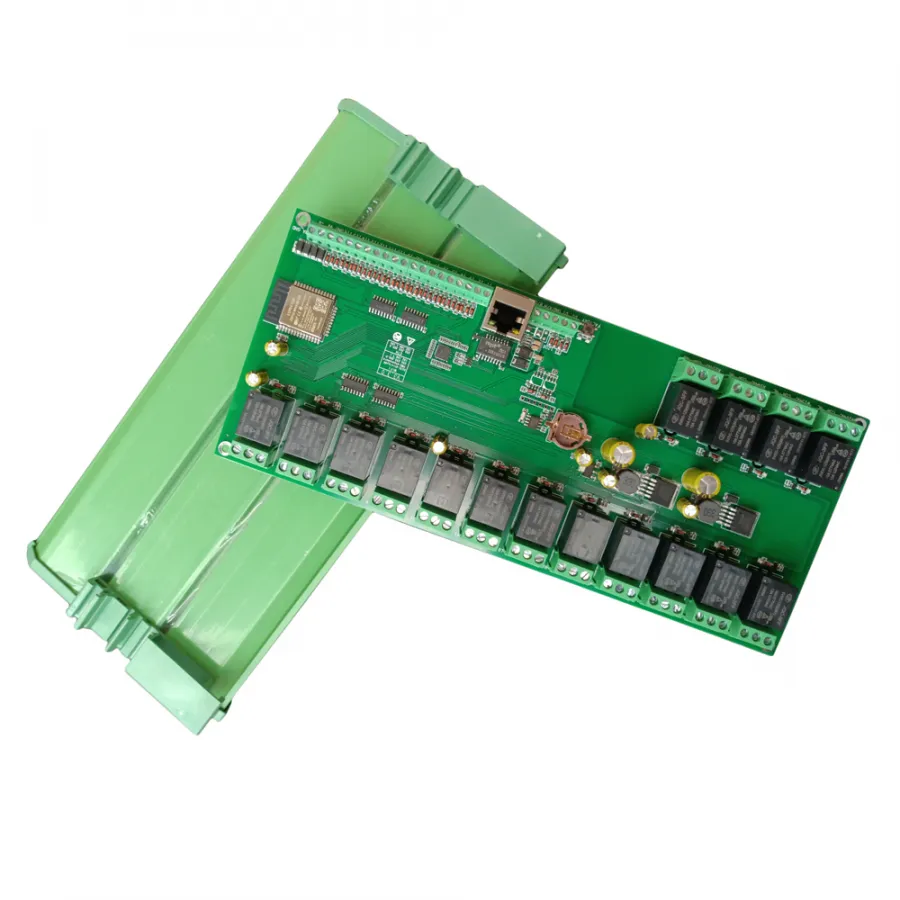

Size(DIN35 Case) | 90*90*40mm | 115*90*40mm | 145*90*40mm | 252*123*43mm | 373*123*43mm |
Power Supply | 12V/24VDC, 5V/24VAC | ||||
Power Adapter | 12VDC/1.5A | 12VDC/1.5A | 12VDC/1.5A | 12VDC/2A | 12VDC/3A |
Power Consumption | 2W | 3W | 5W | 9W | 16W |
Working Temperature | -20~75℃ | ||||
Storage Temperature | -40~80℃ | ||||
Protocol | MQTT, Modbus-RTU/TCP/UDP/ASCII, TCP, UDP, HTTP GET CGI, CoAP | ||||
Quantity Relays | 2DO | 4DO | 8DO | 16DO | 32DO |
Quantity Digital Input | 2DI | 4DI | 8DI | 16DI | 32DI |
Quantity Wiegand | 1(optional) | 1(optional) | 0 | 1 | 1 |
RTC | NO | NO | NO | Optional | Optional |
Home Automation | Domoticz, Home Assistant, openHAB, Red-Node | ||||

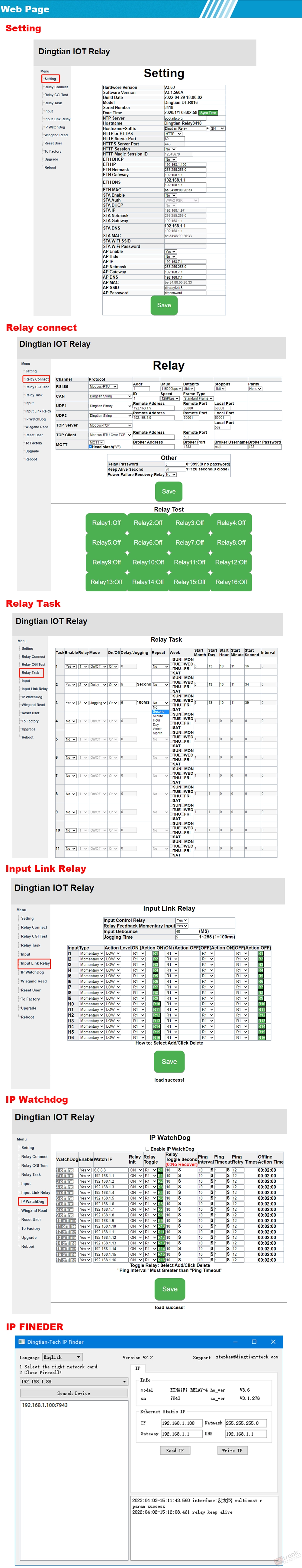

Function | IP Watchdog, Task, NTP Client, Input mutual control, OTA Upgrade | ||||
Ethernet IP | 192.168.1.100 | ||||
Web User/PWD | admin/admin | ||||
WiFi AP IP | 192.168.7.1 | ||||
WiFi AP SSID/PWD | dtrelaySN/dtpassword | ||||
WiFi STA IP | 192.168.1.97 | ||||

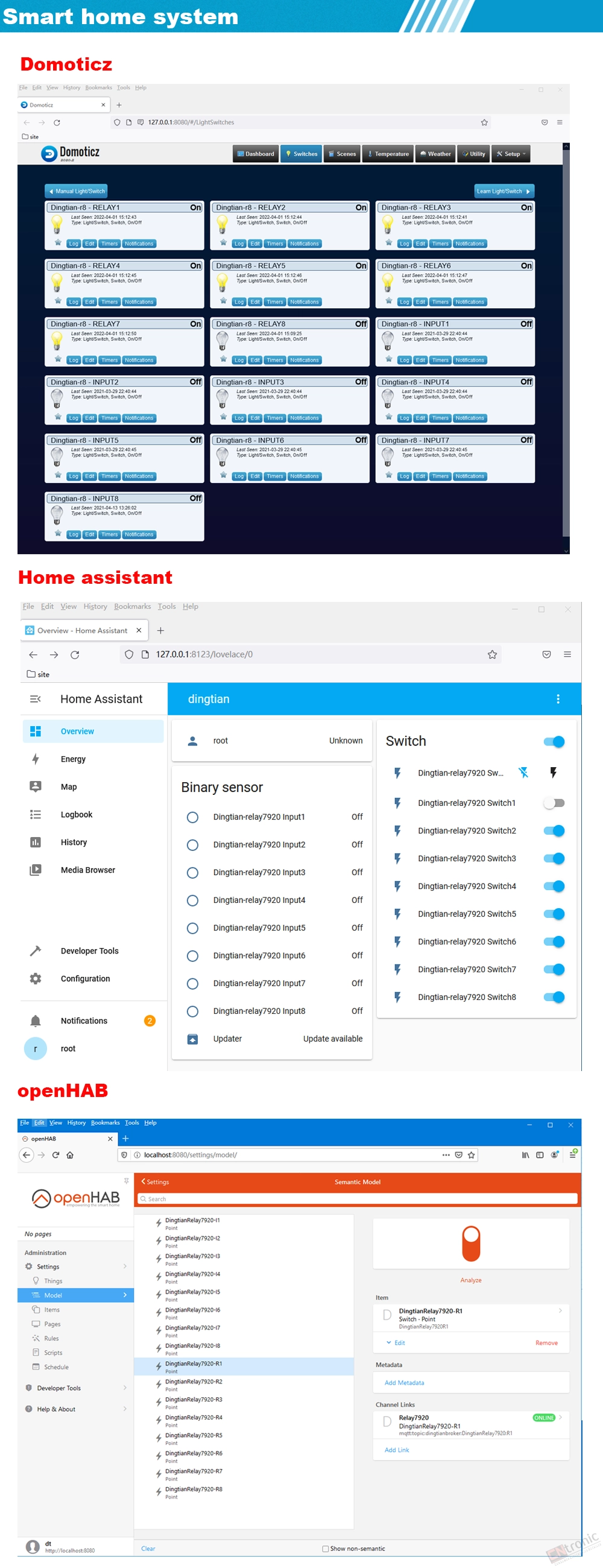

Support Domoticz/ Home Assistant/ openHAB
Note:
Please keep your computer ip is the same NETWORK SEGMENT as our default ip 192.168.1.100
Packaging Details
- Unit Type:
- Package Weight: 1.000
- Package Size: 14x5x38
- Brand Name: DT
- Power Source: DC
- Power Source: DC
- Origin: Mainland China
- Communication method: other
- Hign-concerned Chemical: None
- Inbox adaptor: No
- Compatibility: others
- State of Assembly: Ready-to-Go
- Certification: CE
- Camera Equipped: No
- Model Number: DT-R016/DT-R032
- home automation system: domoticz,home assistant,openHAB,Red-Node
- Interface: ethernet,wifi,rs485,CANbus,wiegand
- protocol: MQTT,HTTP GET,CoAP,dingtian string,dingtian binary
- Function: relay task, IP Watchdog, OTA Upgrade
- Power supply: 12VDC/24VDC, 12VAC/24VAC
- Chip: ESP32
- RTC: RTC(optional)
- case type: DIN35
