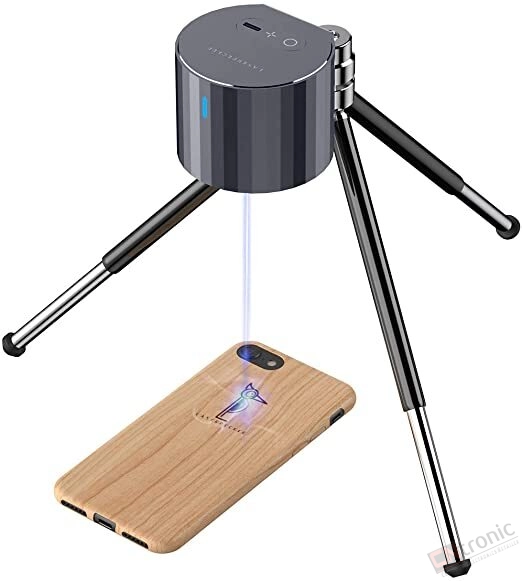

Mini laser printer Portable Engraving Machine 3D Printer Accessories Desktop Etcher Cutter DIY Engraver Lifetime 10000 hours

Precautions:

Precautions:

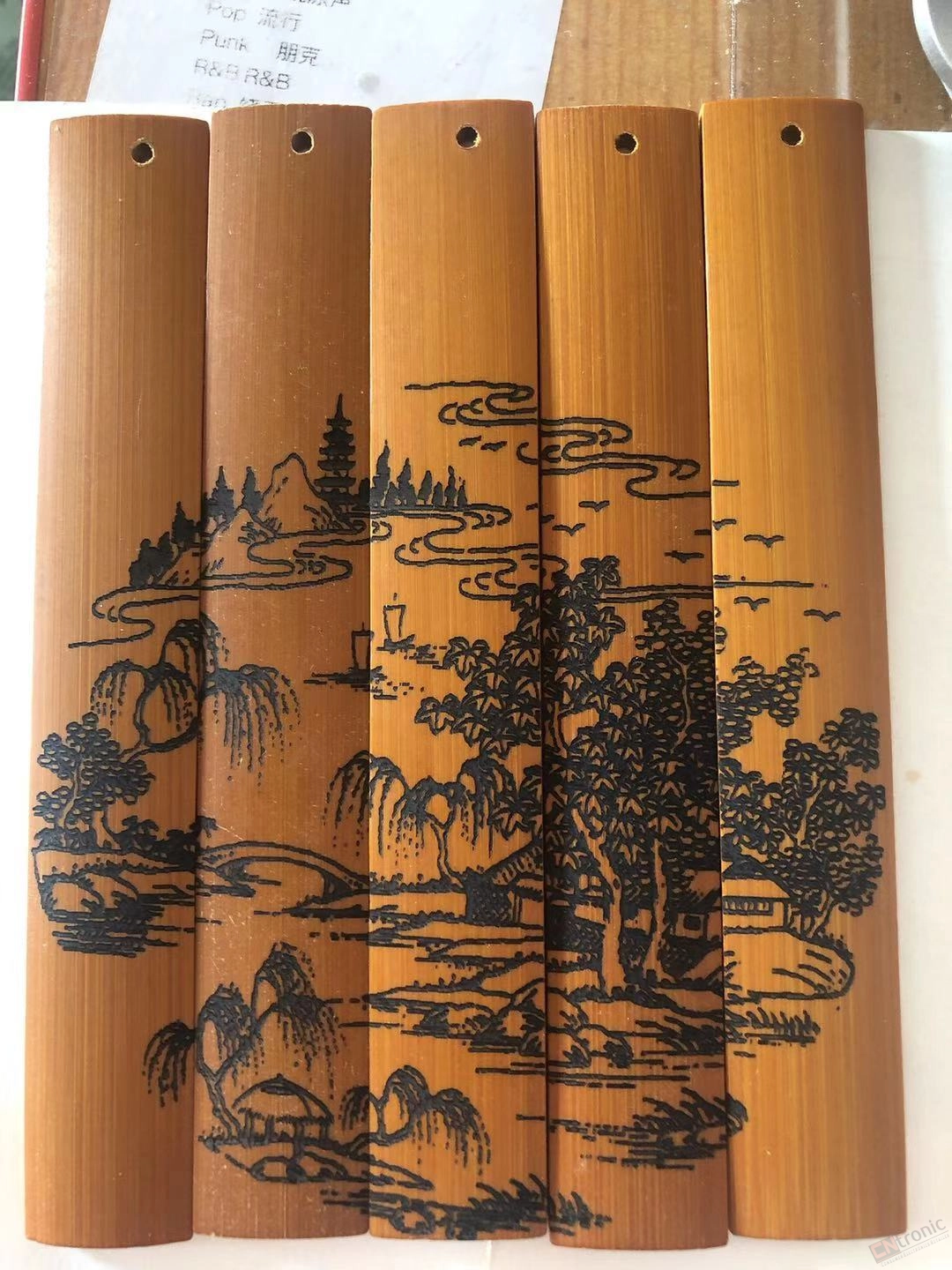

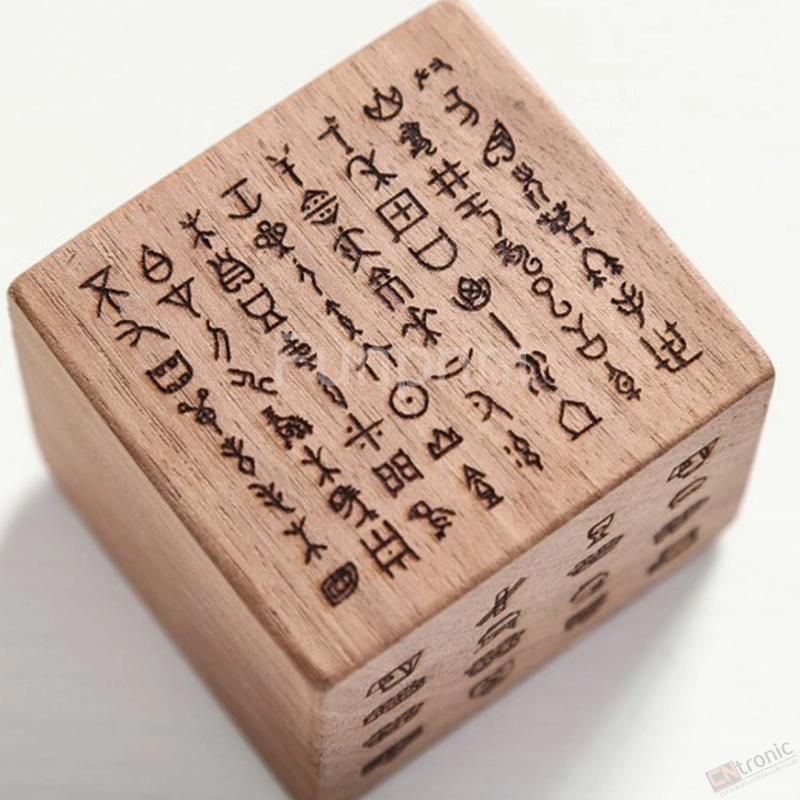

1. Materials that can be engraved: wood, bamboo, paper, plastic, leather, rubber, sponge, comb, wallet or other combustible plastic (such as mobile phone case, mouse, pencil, business card, wallet, plastic comb);
2. Materials that cannot be carved: metal, stone, jewelry, reflective materials, silver, white paper (astigmatism, poor effect), materials that cannot be burned or focused, such as metal without any coating, transparent plastic, with added resistance Combustion material

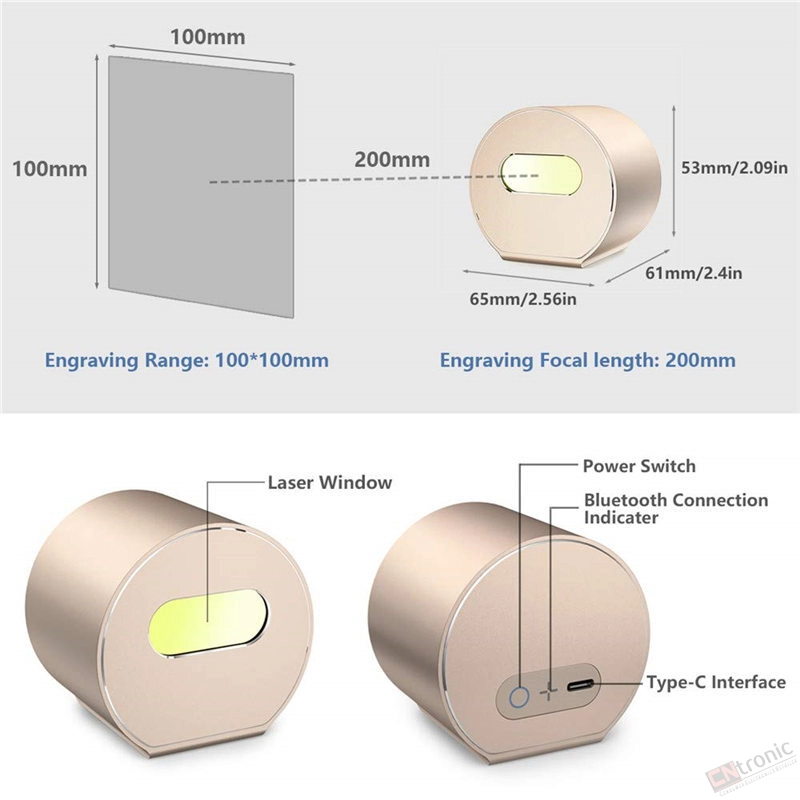

3. Engraving area: 10*10cm
4. Distance between laser head and object to be carved: about 20cm

Common problem
Before buying
1. How to set the engraving parameters of different materials! !! !!
--The laser woodpecker APP intelligently recommends the engraving power and depth parameters of different materials, and the user can also customize the parameters;
2. On what materials can I sculpt?

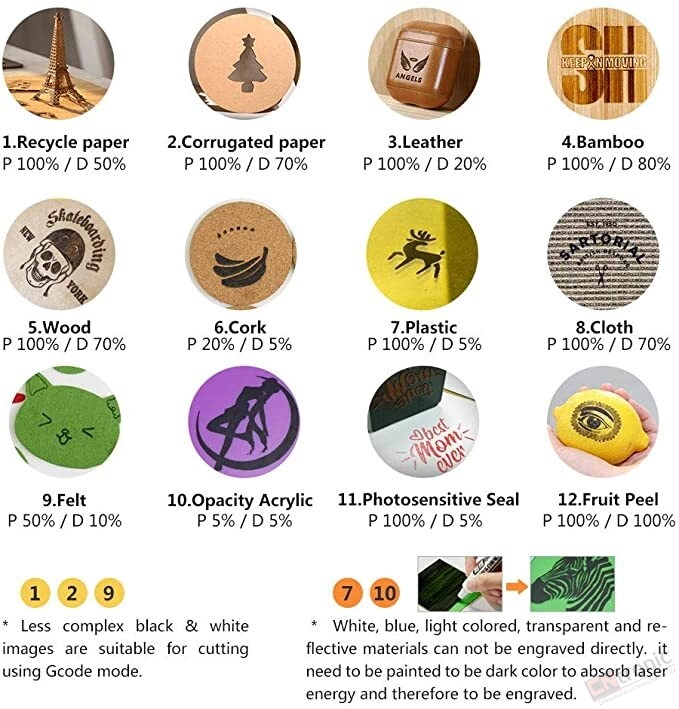

--Laser woodpecker can be carved on non-metal soft materials such as cardboard, cork, cloth, felt, leather, wood, plastic, EVA, etc. (White, blue and highly reflective materials need to be blackened with black whiteboard Re-engraving)
3. Can it be carved on clothes?
--Laser woodpecker can sculpt on clothing fabrics, but there are reflections of white, green and yellow colors, which will damage the laser power when sculpting. Therefore, it is recommended to use a higher laser power to offset the power loss caused by reflection. To achieve the desired effect.
4. Can glass, ceramics and lacquered metal be carved?
Ceramic and glass materials need a thermal transfer layer on the surface before engraving
5. Can stainless steel and stone be carved?
-No
6. Can I engrave the QR code?
--Yes, but the resolution of the pattern required by the QR code is high, so you need to choose a material that is easier to carve a high-definition pattern, such as flat kraft paper, dark colored wooden boards
7. How to carve transparent and white?
-Need to be blackened with a whiteboard pen before engraving to prevent damage to the laser power caused by light transmission;
8.What is the deepest depth of wood and plastic carving?
--The laser woodpecker APP intelligently recommends the engraving power and depth parameters of different materials. Users can also customize the parameters. The wood and plastic systems mentioned here have recommended values;
9. Which materials can be carved out?
-Such as thin wooden boards, cardboard, felt cloth, etc.
10. How big a pattern can be carved on the surface, can it be carved in a circle?

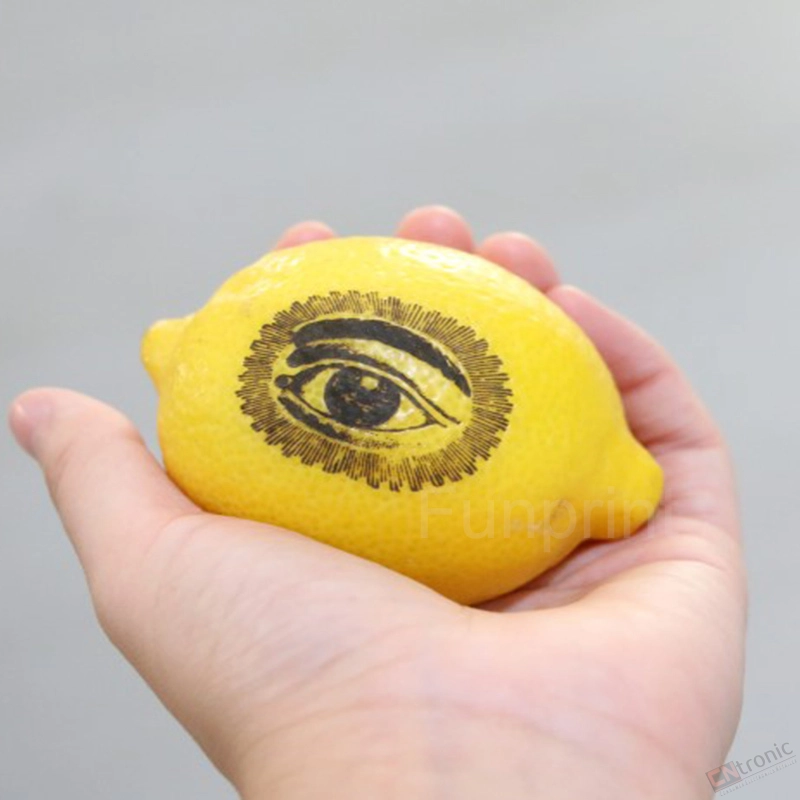

--This is related to the curvature of the surface. For example, a pattern with a diameter of 80mm can be carved on a normal-sized fruit grapefruit, and a pattern with a diameter of 40mm can be carved on a fruit orange with a larger arc. In a circle, you need to prepare a suitable pattern, and combine carving in different positions of the material several times.

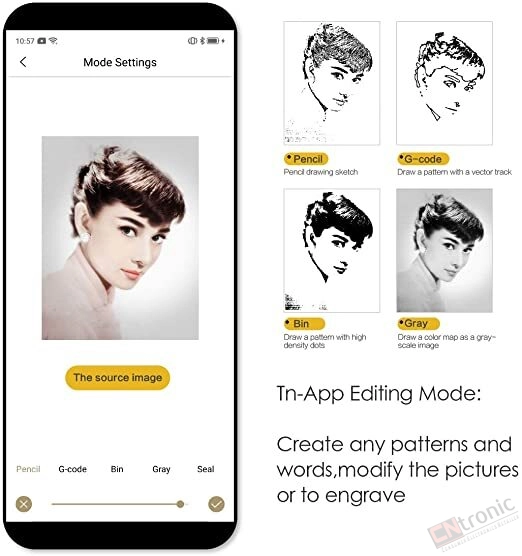

11. How to transfer pictures and what format pictures are needed?
--You can select all the picture engraving in the mobile phone on the app, or transfer the picture or vector material to a G-code file through the computer and transfer it to the mobile phone. After converting the G-code file, the engraving speed will be accelerated: JPG, PNG, JPEG Wait.
12. How to convert G code?
-Use the G-Code mode provided in the laser woodpecker app, or use the open source GCODE editing tool Inkscape software to convert.

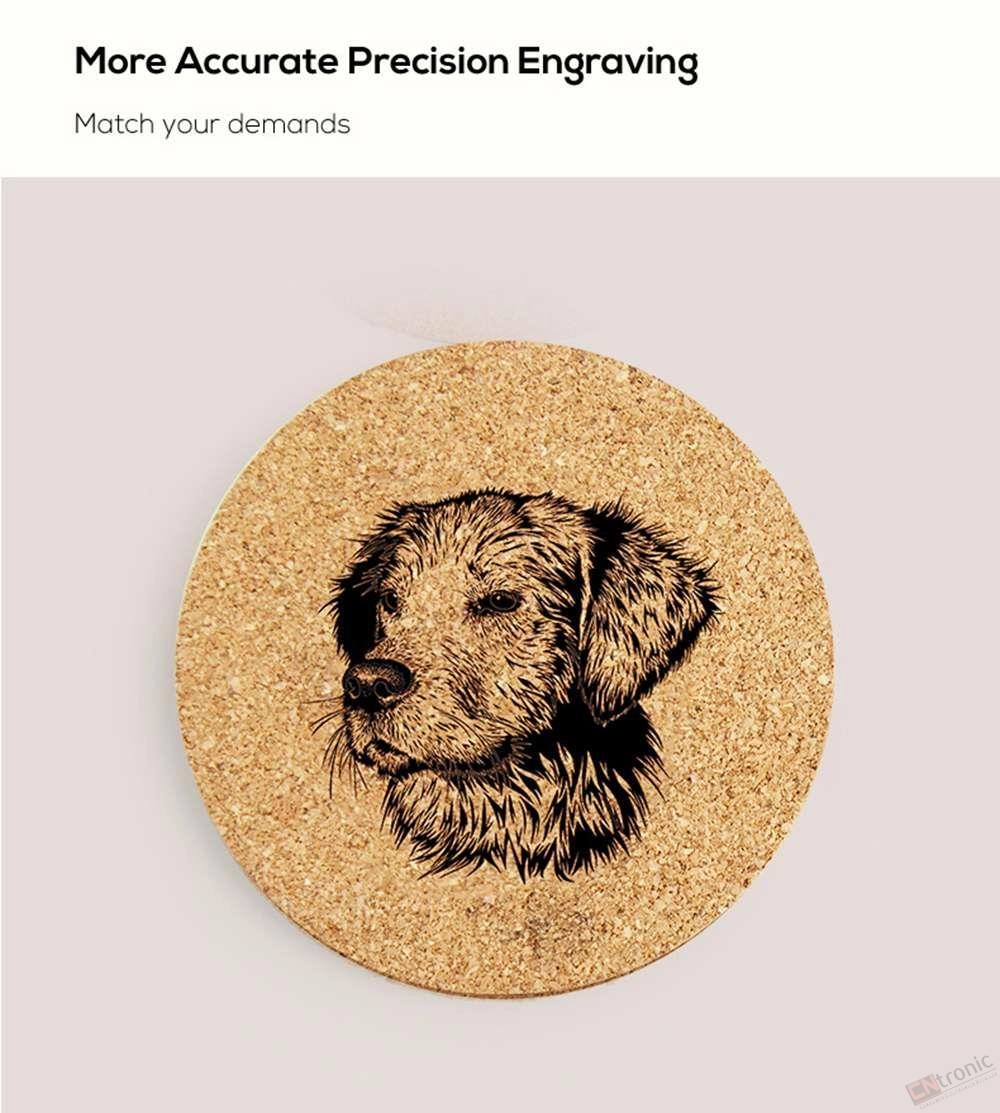

13. Can a thin-line portrait be carved, and how fine is it?
--Yes, the fineness can hit 0.4mm.
14. How to operate the finer engraving range?
--The engraving range is based on the laser focal length of 20cm, and the maximum engraving pattern size is 10cm. You can find the mode setting menu in the menu side menu of the app, which has a continuous preview switch. After you open it, you can use the continuous laser preview function. Quickly and accurately determine the engraving range of a pattern.
15. How many pixels are printed and can I adjust the power? Is the printed picture clear?
-The pixel is 1000x1000, which can adjust the power and use different image processing modes according to actual needs
Patterns with different sharpness can be carved.
16. How long can the product be used continuously, and how long is it used?
-The life of the laser source is more than 10,000 hours, which is equivalent to 9 hours of continuous use for 3 years.
17. What is the smallest and largest range that can be carved?
--Laser woodpecker can sculpt a minimum of 0.4mm points and a maximum of 100mmx100mm.
18. How to determine the scope of batch engraving?
--The mode setting menu can be found in the side menu column of the app, which has a continuous preview switch. After it is turned on, the laser's continuous preview function can quickly and accurately determine the engraving range of the pattern.
19. How much power can I customize?
-The current version has a rated output power of 1.6W, and high-power equipment is under development.
20. How many watts is the high power? When does it come out? Still portable?
-The current version has a rated output power of 1.6W, and high-power equipment is under development. It is expected to be launched in June 2020. The volume will be slightly larger, but it is still portable.
21. Is APP easy to operate? Is it easy for newbies to get started?
--The laser woodpecker app is extremely simple to operate, it is easy to get started, and intelligent reminders are used throughout.
22. Is the APP charged? Is the material charged?
-The laser woodpecker app is free worldwide, and the material is also free.
23. What versions of the App are there and what certificates can I sell overseas?
-At present, the App version is available in Chinese, English and Japanese versions. The software and patents are complete. The App is free worldwide and the supporting equipment can be sold overseas.
24. Can it be operated by computer?
-No.
25. With or without consumables, how many volts do I need to supply power?

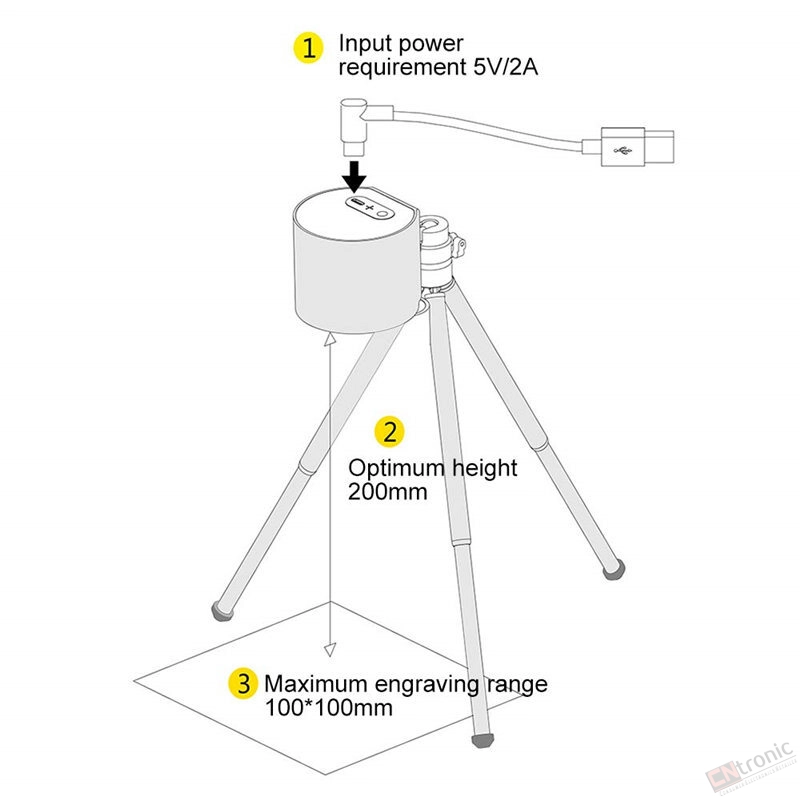

--No consumables, power supply requirement is 5V / 2A.

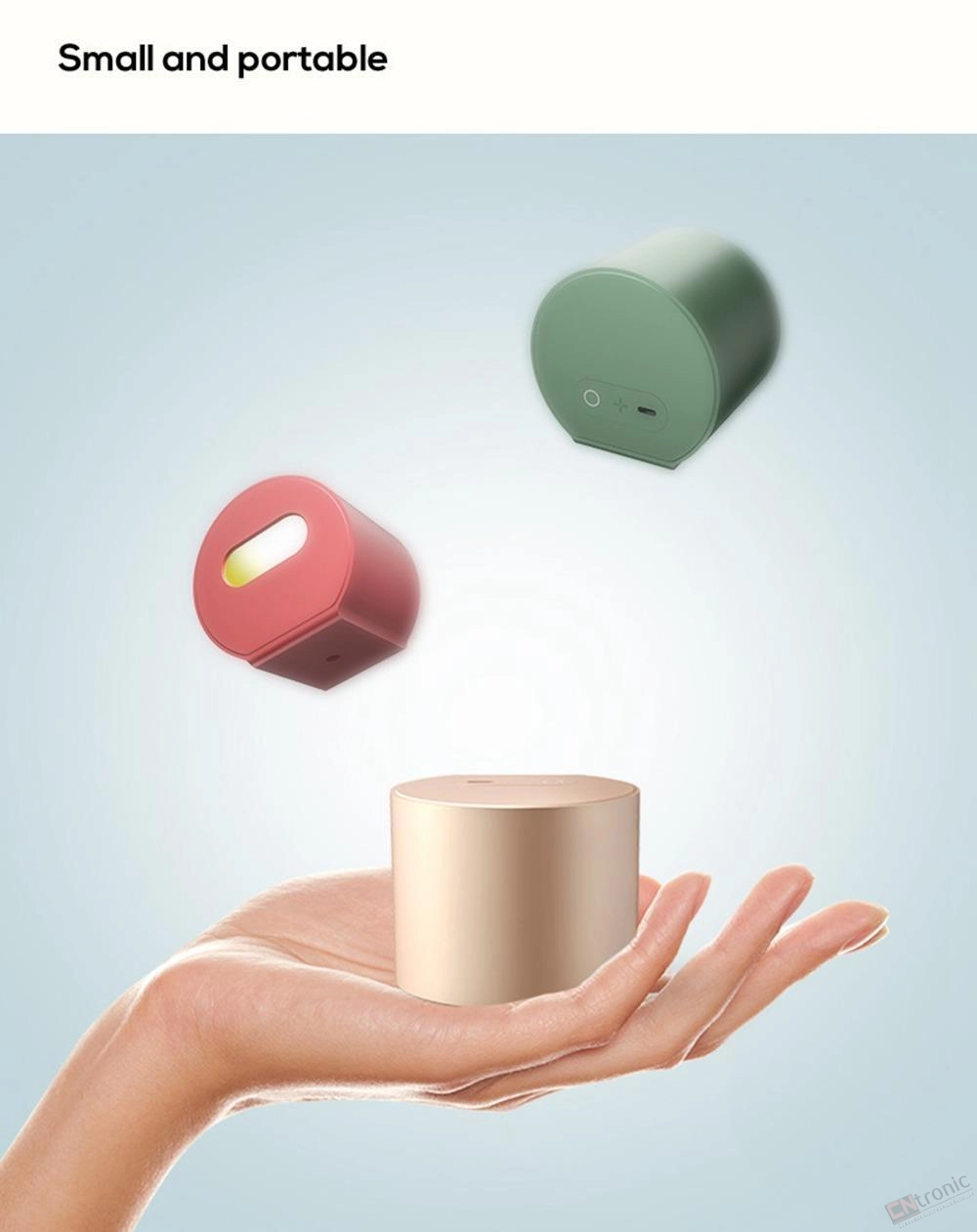

26. Can I take the plane?

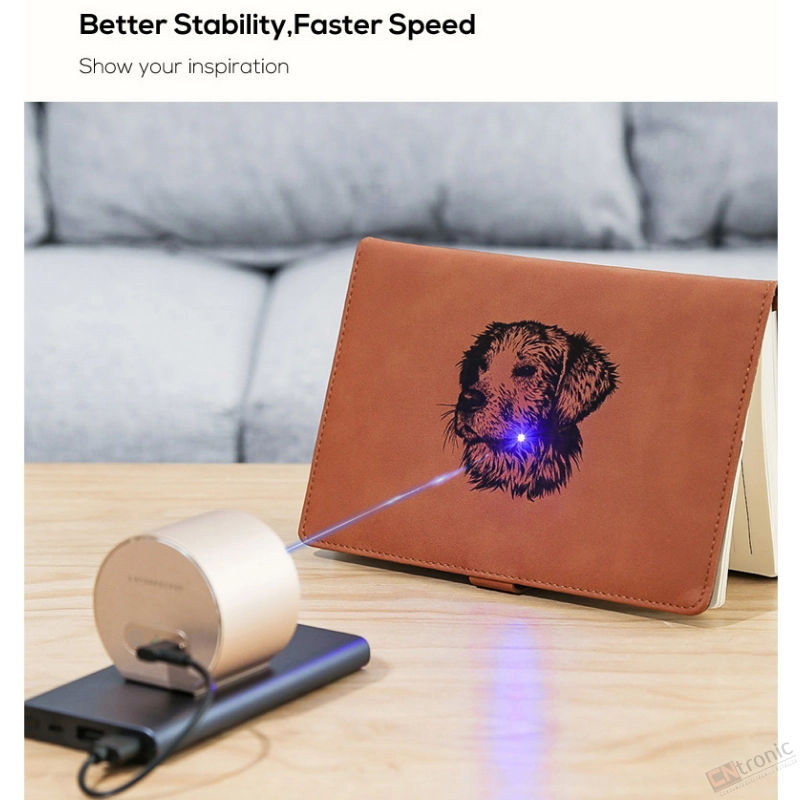

-There is no battery inside, and external stable USB power supply of 5V / 2A or more is required. It can also be powered by mobile power. It can be checked or carried on the plane.
27. Is it harmful to the human body?

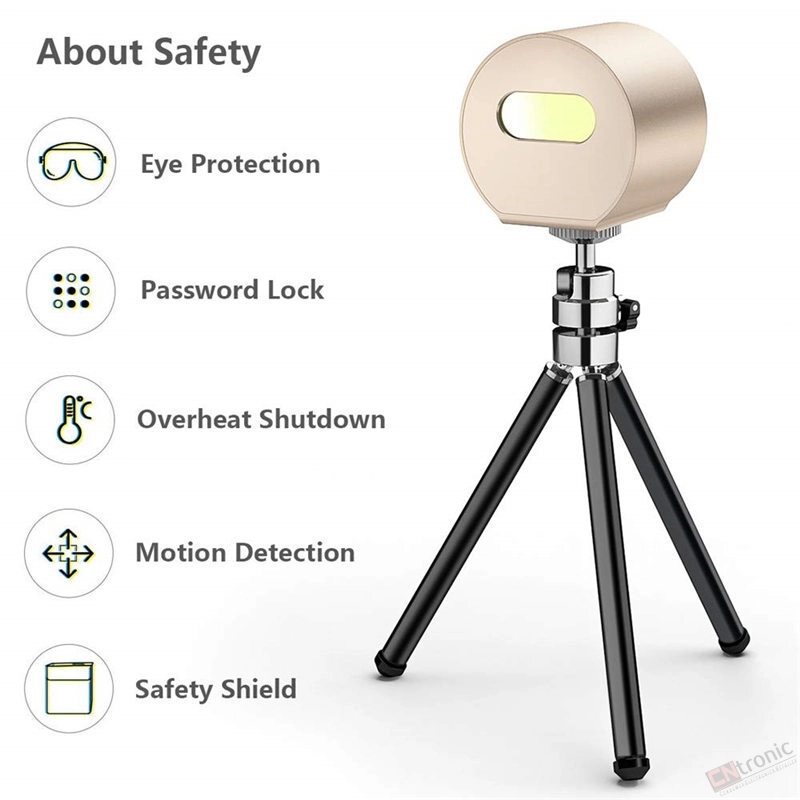

--Because the temperature at the focal point of the laser light can reach more than 300 degrees Celsius, it is harmful to the skin of the human body, especially the eyes. Therefore, it must be used in safe mode or under safety protection.
28. What is the case when using the highest power or engraving?
-If the height of the equipment is appropriate (laser focal length is 20cm), the current laser woodpecker equipment cannot sculpt unusually hard materials such as metal, ceramics, glass, and stone. Therefore, on such materials beyond the design scope, It is impossible to sculpt even with extreme power; but for common materials such as wooden boards, cardboard or non-transparent plastic, if it is not engraving, please observe whether the material is reflective and transparent. If it is black, you need to use blackboard pen to sculpt. .

After purchase
1. What is the security code?
--Is the password set when the user is registered.

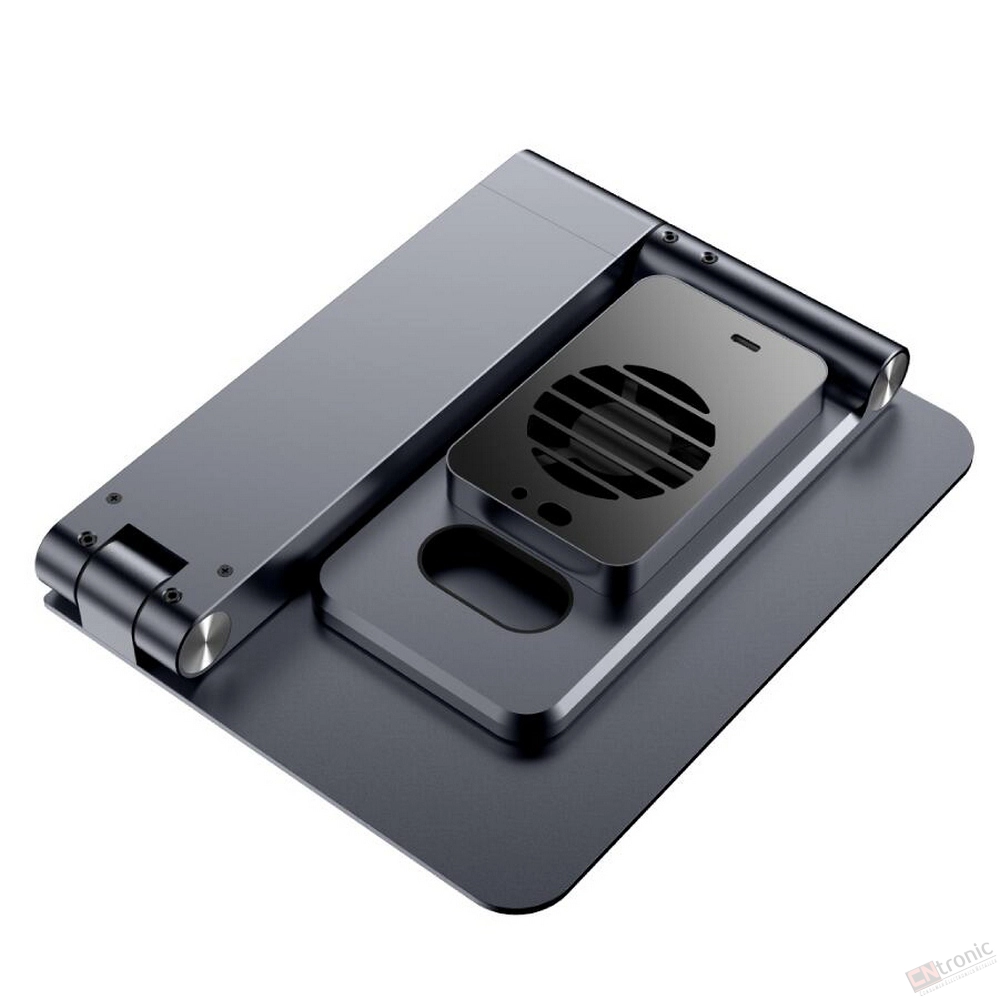

2. Can't detect the protective cover?
-First, make sure that the protective cover is energized normally; second, make sure that the protective cover powers the device normally. It is best to confirm whether the power supply adapter meets the requirements of the specification. The power supply needs 5V / 2A or more.
3. What is the black screen of the APP?
--The problem of new model adaptation. Because for different mobile phone manufacturers and different users, the system settings and mobile phone settings may cause conflicts with app settings, resulting in abnormal adaptations and black screens. In case of such problems, timely feedback to the laser woodpecker service personnel.
4. What do the APP parameters mean? How to set it?
-The APP parameter is the best engraving parameter obtained by the laser woodpecker team based on a test of a large number of commonly used materials. When using it, the user can choose the corresponding material for engraving according to actual needs. .
5.How to update APP?
--Laser Woodpecker will periodically release update reminders after the sale, and mobile phone systems or application markets will also promptly remind.
6. Can the warning sound be turned off?
--It can be turned off, and the setting method is: in the side menu bar in the upper right corner of the homepage, turn off the mode setting> work tone switch.
7. Do I need to maintain a Bluetooth connection at all times?
--need. However, it can be disconnected during the engraving process without affecting the equipment work.

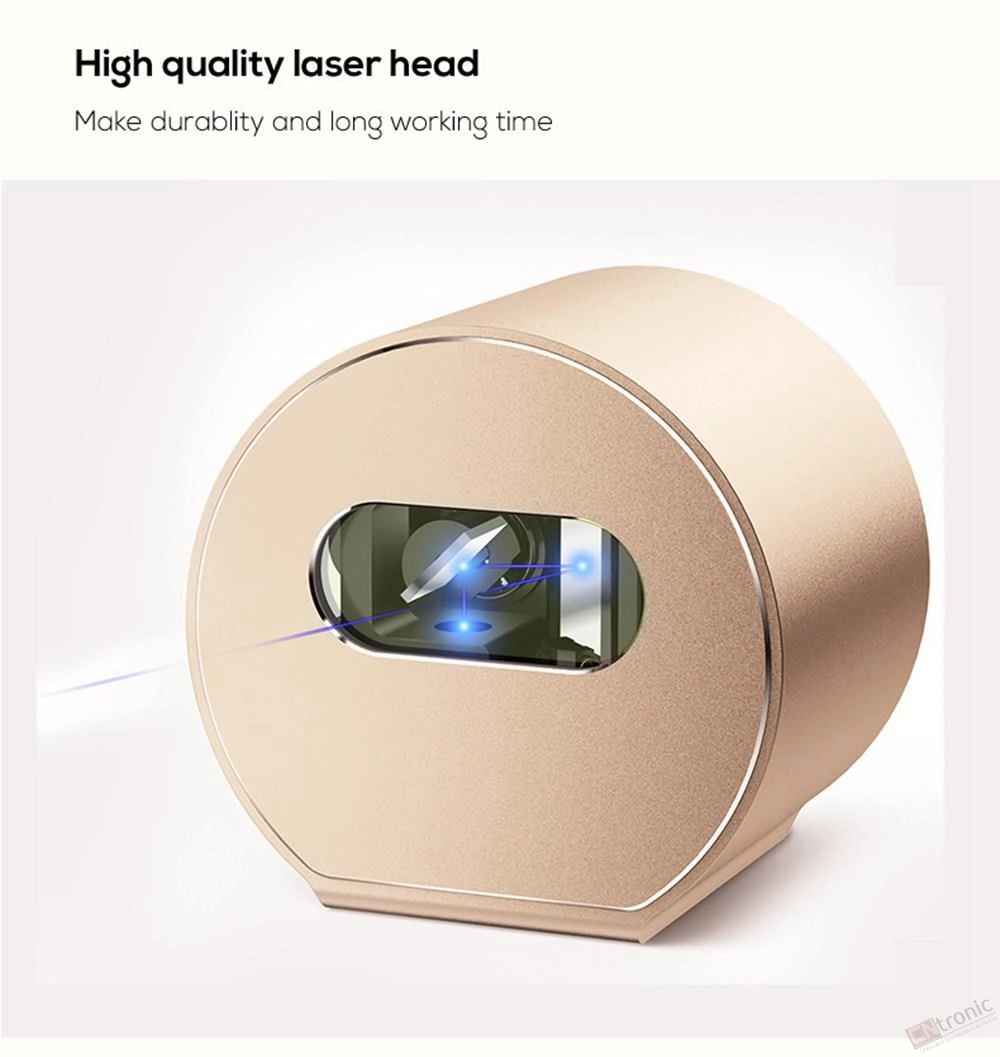

8. Can the laser head be replaced after aging? what is the price?
-It can be replaced at a cost of 500 yuan.
9. How to fix the positioning?
--The mode setting menu can be found in the side menu column of the app, which has a continuous preview switch. After it is turned on, the laser's continuous preview function can quickly and accurately determine the engraving range of the pattern.

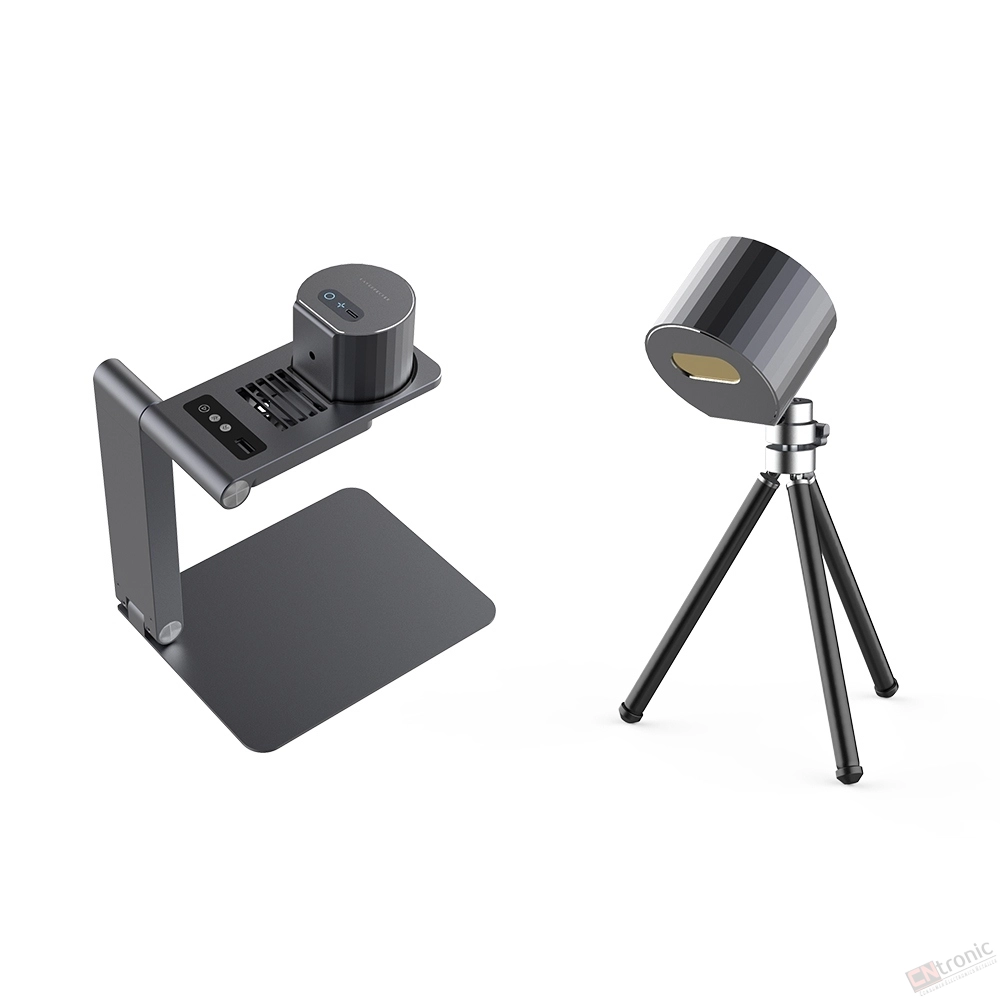

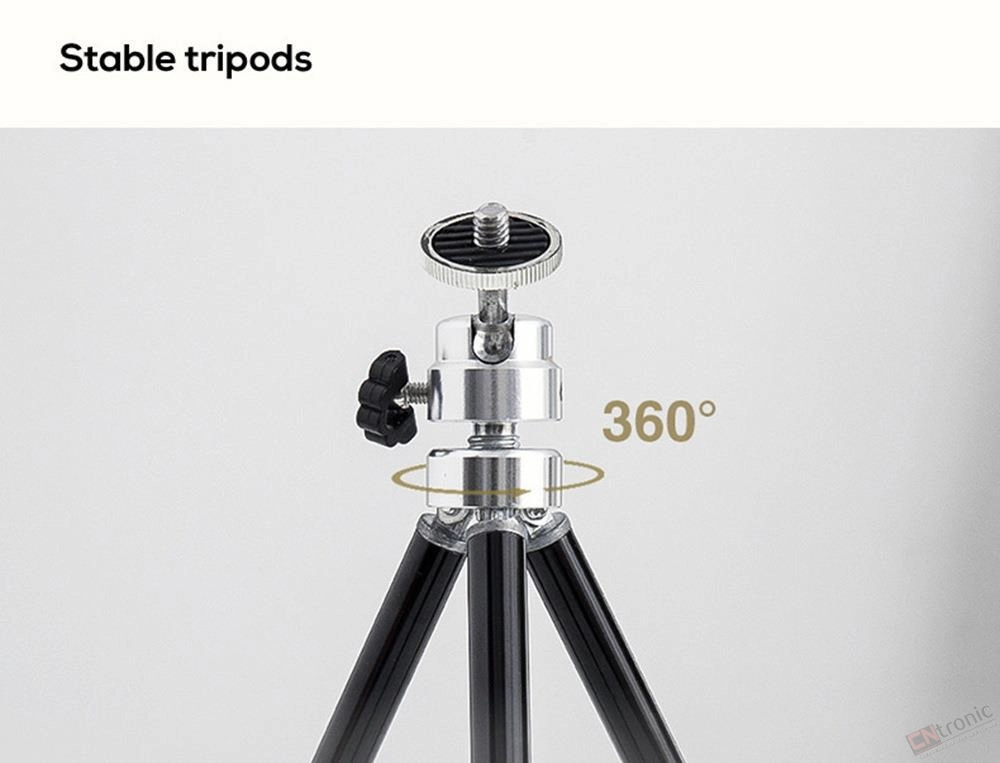

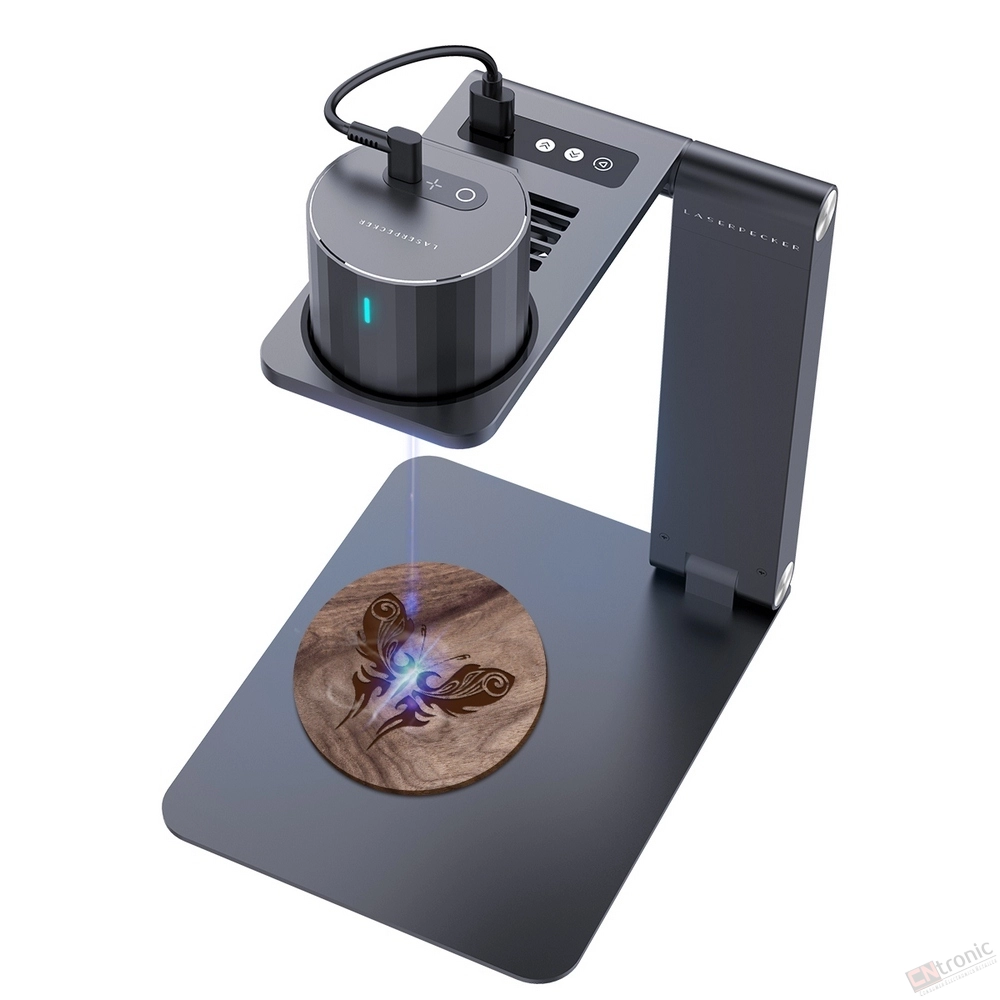

10. The bracket is unstable?
--There is a knob on the top of the bracket, which can be used to fix the bracket.
11, why not round?
--This problem is limited by the pattern correction algorithm, and it is also affected by the size of the gear error of the motor of the device. Many factors jointly determine that the circular pattern is not engraved, and it needs to be continuously optimized in subsequent research and development.
12, easy to engraved, print is not clear?
-The reason for the engraving is that the pattern is not clear enough, or the laser power is set too high.
13. How to set the parameters?
-The APP parameter is the best engraving parameter obtained by the laser woodpecker team based on a test of a large number of commonly used materials. When using it, the user can choose the corresponding material for engraving according to actual needs. .
