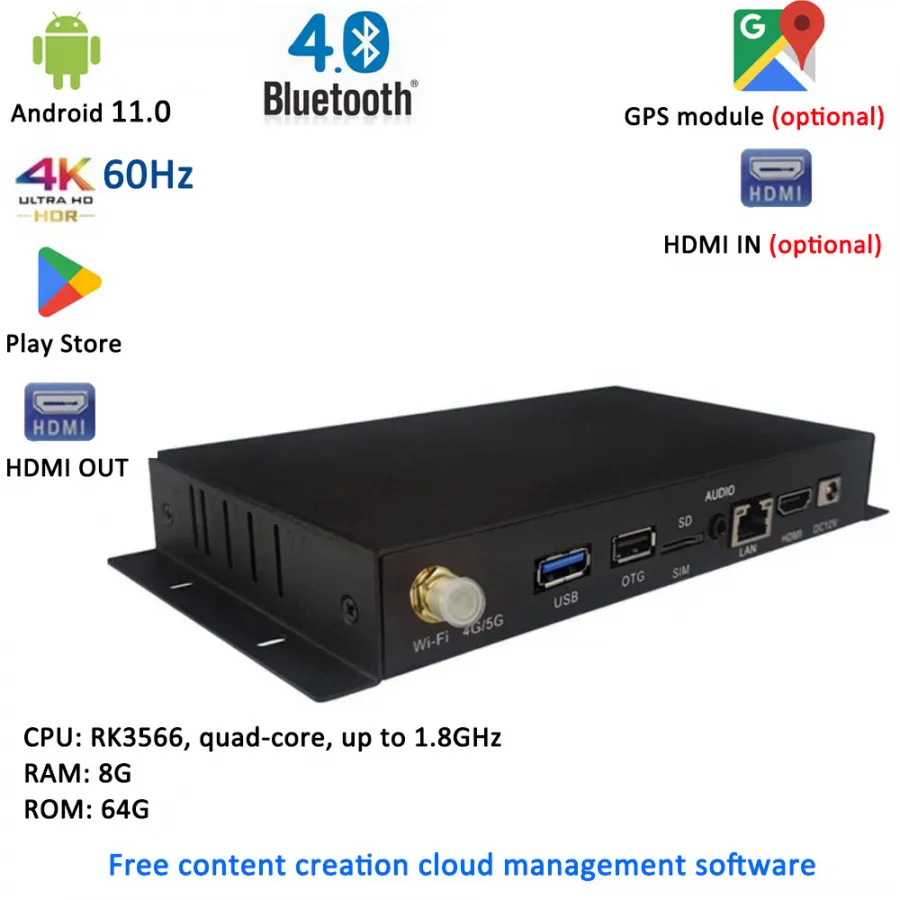

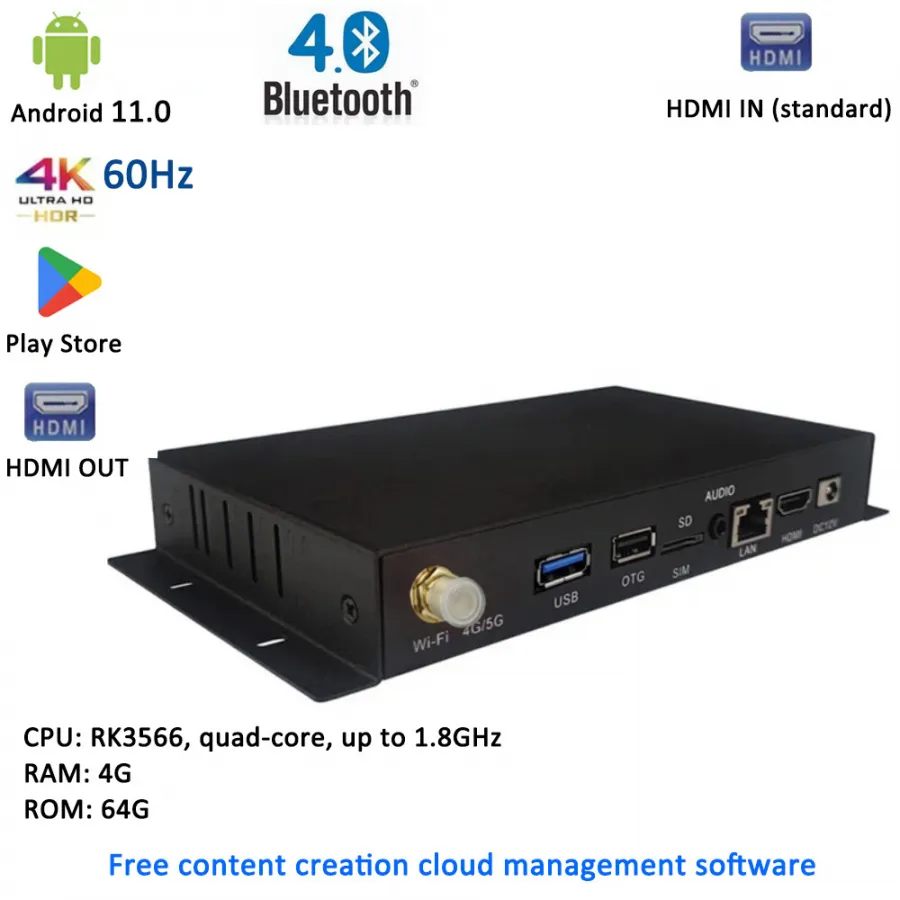

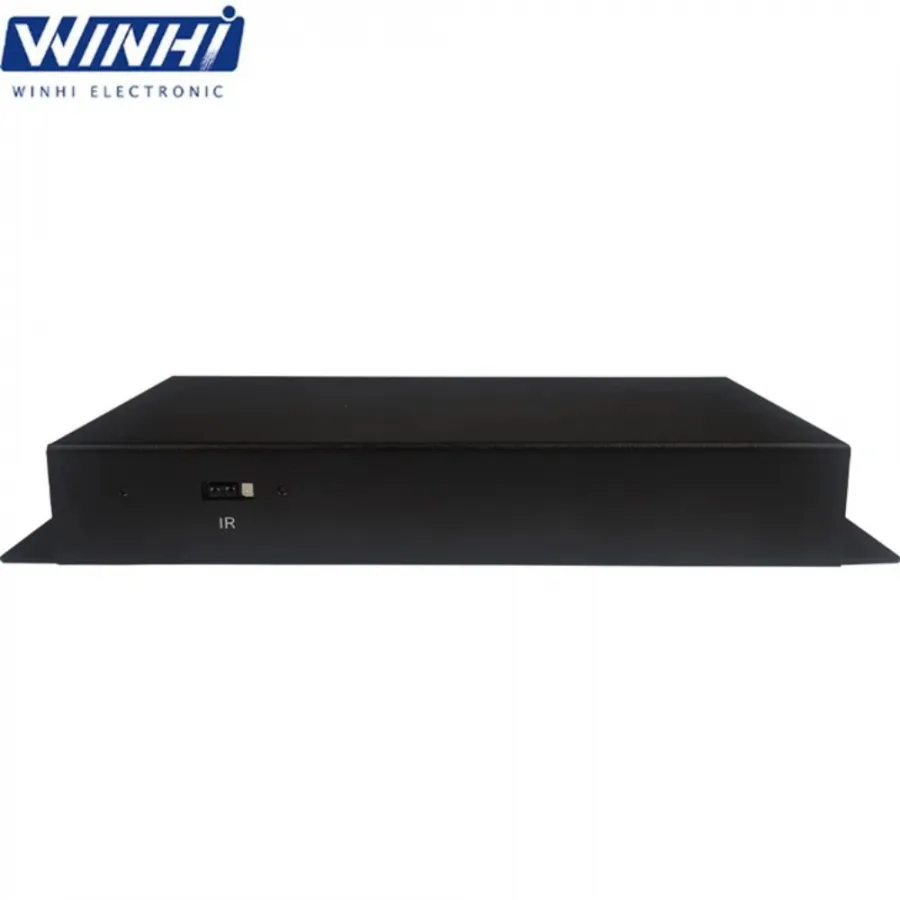

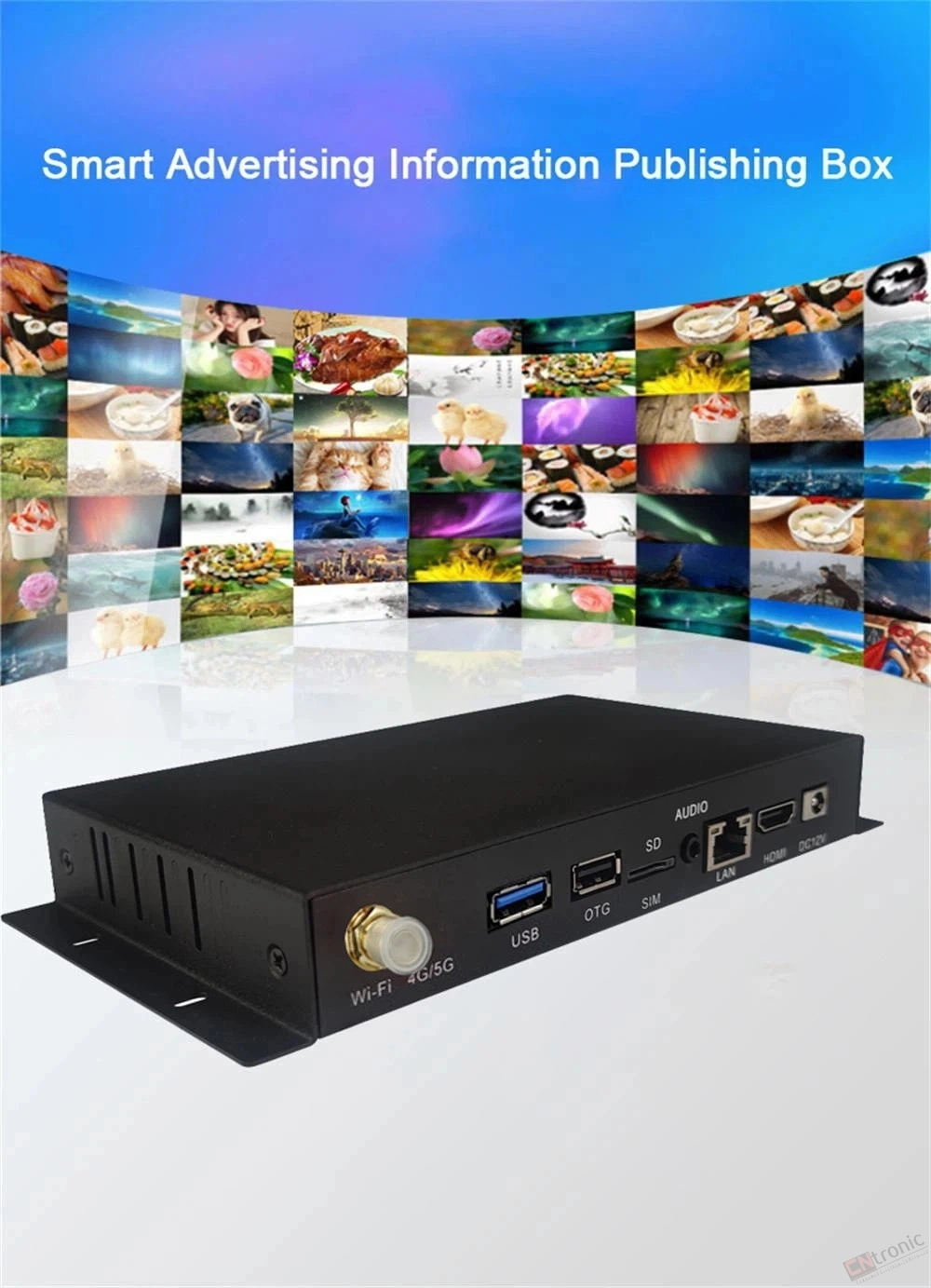

MPC3566 Metal Case RK3566 Quad-core Android 11.0 4K HD-MI TV Box GPS Module Network Digital Signage Media Player

Model: MPC3566

Item: 4K UHD HD-MI Output Android Network Media Player

Product Parameters

FEATURES

MPC3566 is an LCD smart Android player box using Rockchip RK3566 quad-core chip solution. It is equipped with Android 11.0 system and has a maximum frequency of 1.8GHz with super performance. Adopt Mali-T764 GPU, support 4K/H.265 hard decoding, 1080P video decoding. It supports Wi-Fi, network port, U disk, TF card, and 4G communication methods, and is widely used in intelligent control fields such as advertising machines, interactive all-in-one machines, security, medical care, transportation, finance, and industrial control. Due to the characteristics of its hardware platform and Android intelligence, it can be used on the main board of the smart terminal when human-computer interaction and network device interaction are required, and it can be your best choice.

• High performance: adopts quad-core ARM Cortex-A55 architecture, the main frequency can be as high as 1.8GHz, it can play high-definition video in various formats, and can handle complex interactive operations.

• High stability: In terms of hardware and software, adding unique technology to ensure the stability of the product can make the final product reach 7*24 hours unattended.

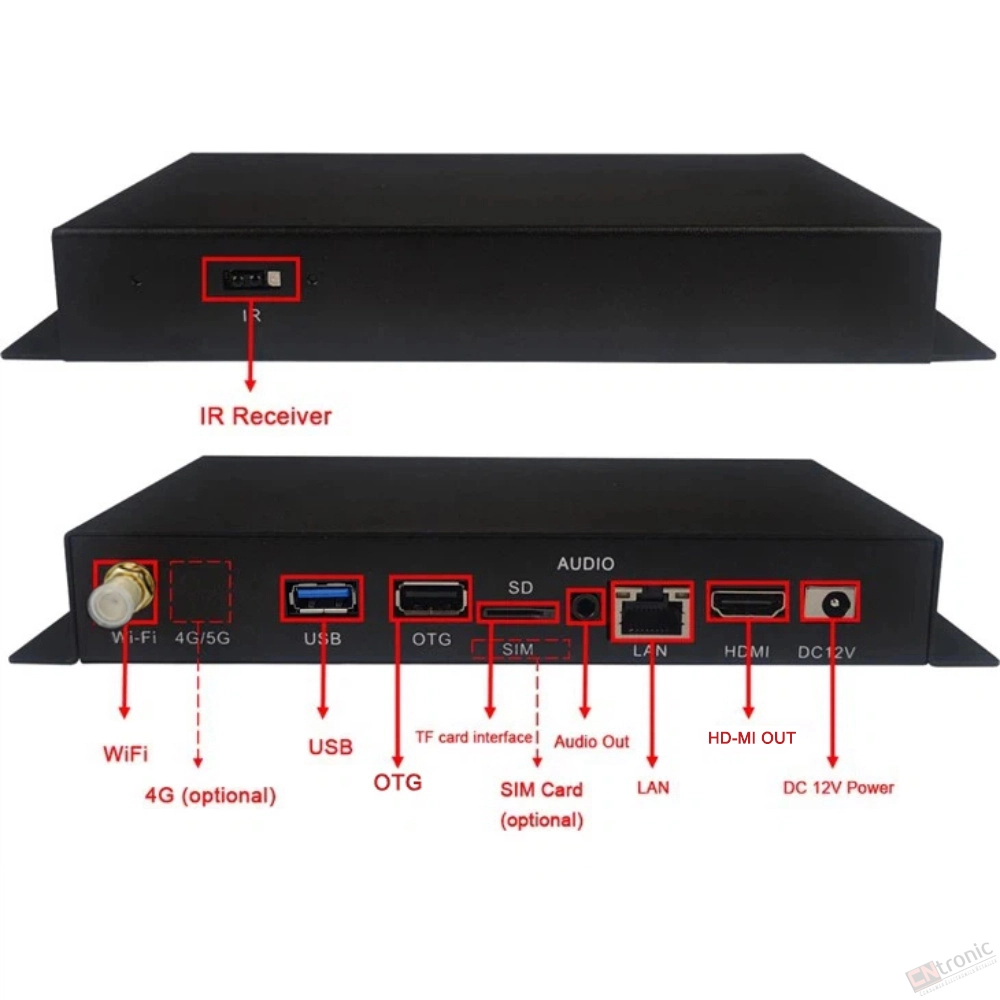

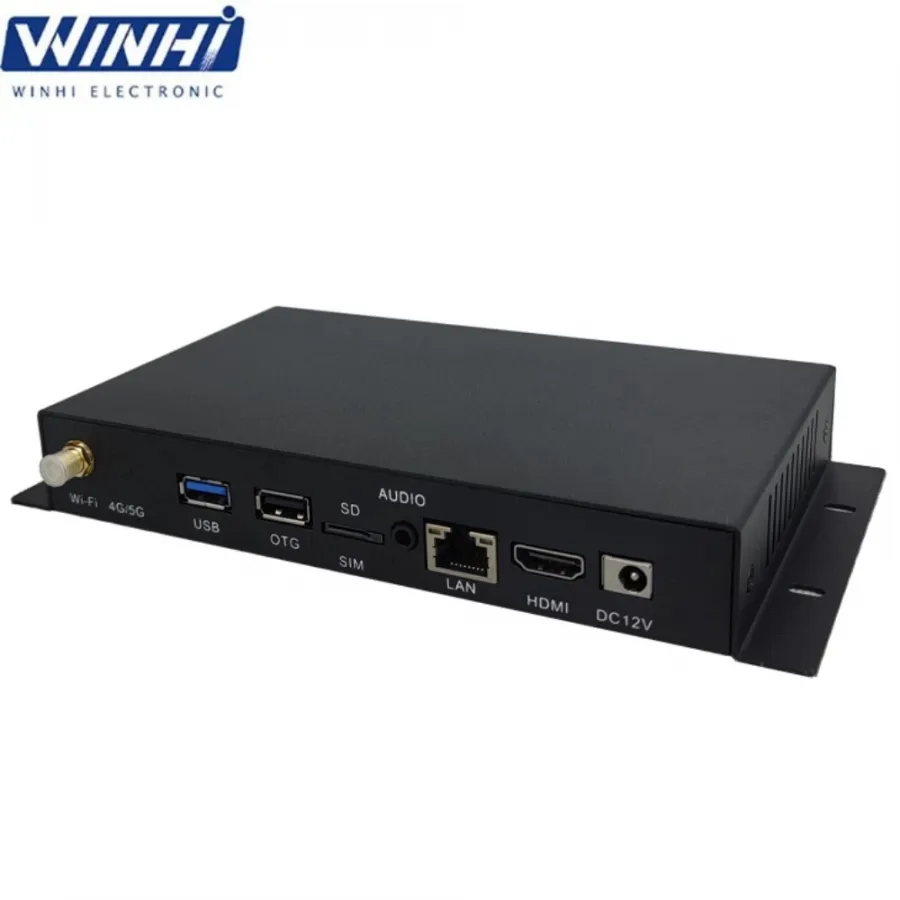

• High integration: The control board integrates Ethernet, Wi-Fi, TF expansion card, USB expansion port, HD-MI output, and other functions.

• High-definition: Support HD-MI interface, can be directly connected to the LCD.

Hardware Specification

System

• CPU: RK3566, quad-core, up to 1.8GHz

• GPU: Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1

• Memory: DDR3, default 2GB

• Built-in storage: eMMC 16GB, support 32GB, support TF Card Expansion

• Network: Support RJ45 R/A 100M Ethernet, support Ethernet. Standard 2.4GHz Wi-Fi (supports optional 5GHz), supports Wi-Fi 802.11b/g/n protocol.

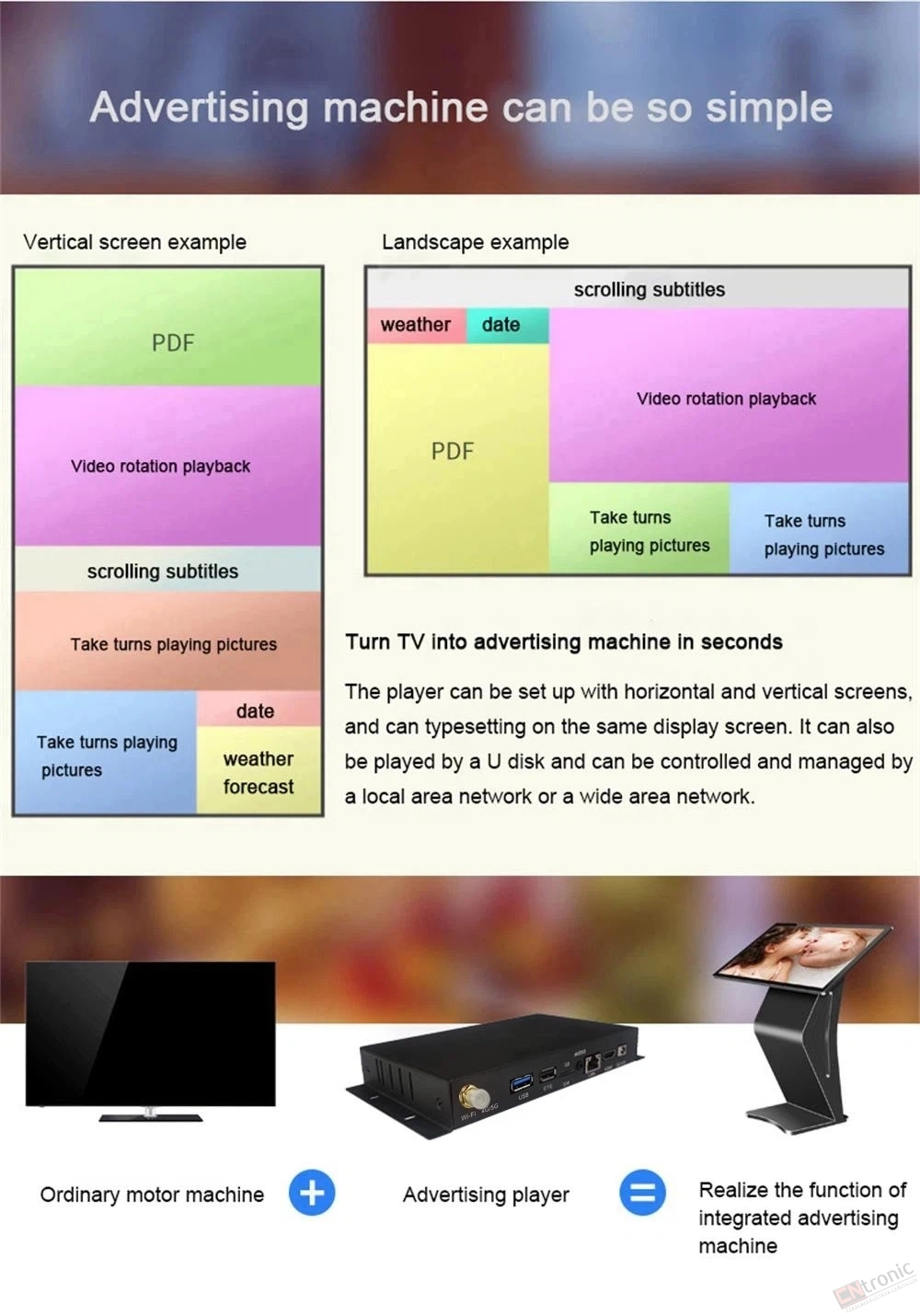

• Image rotation: Support 0°, 90°, 180°, 270° manual rotation

• Display interface: 1 HD-MI interface, support 4K@60Hz video output;

• Audio: Support standard left and right channel line output

• RTC: Built-in real-time clock function

• USB: 1-way USB-3.0, 1-way USB/OTG free switching

• LED: 1*power status LED (green), 1*system LED (green, flashing by default)

• Button: 1*Reset button

• Power Adapter: Input: 100-240V/50-60Hz AC, Output: 12V 1.5A DC(The surge voltage is required to be less than 18V, and the ripple voltage is less than 100mV)

• Storage humidity: 10%～90%, no condensation

• Storage temperature: -40℃~70℃

• Operating temperature: -20℃~70℃

Software specification

• Operating system: Android 11.0

• Audio: MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP and other formats

• Video: Support H.265, H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 and other video formats

• Picture: Support JPG, BMP, PNG, and other image formats

• System self-use application software: APK Installer, Email, Calculator, Browser, Voice Recorder, Calendar, Settings, Clock, Video Player, Search, Contacts, Gallery, Downloads, Camera, Music, Explorer, etc.

• Language: Support multi-language

• Input: Standard Android keyboard, optional third-party input method

• System watchdog: Support for software watchdog

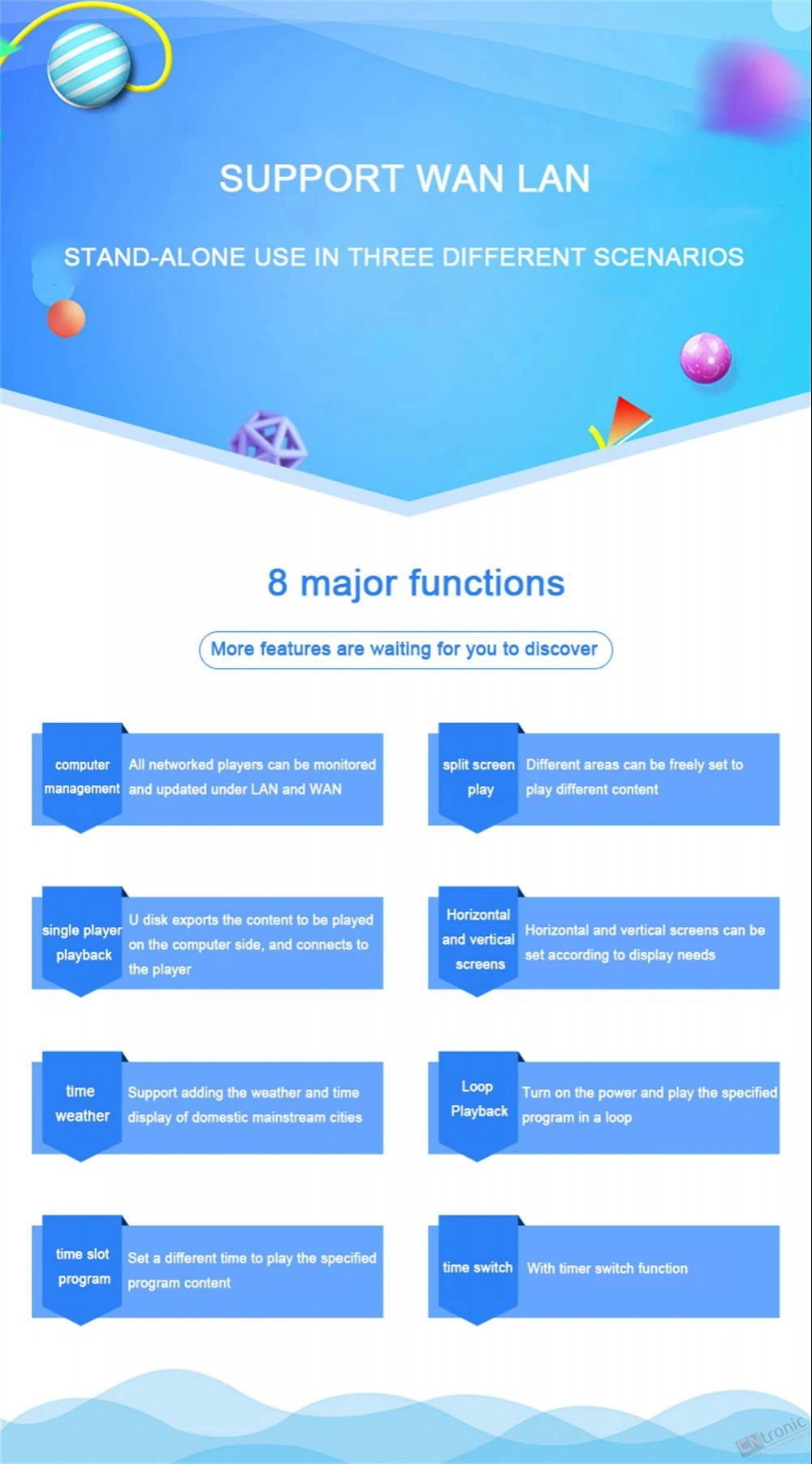

System Management

• Original ecological Android system, open root privileges, and can carry out product customization development

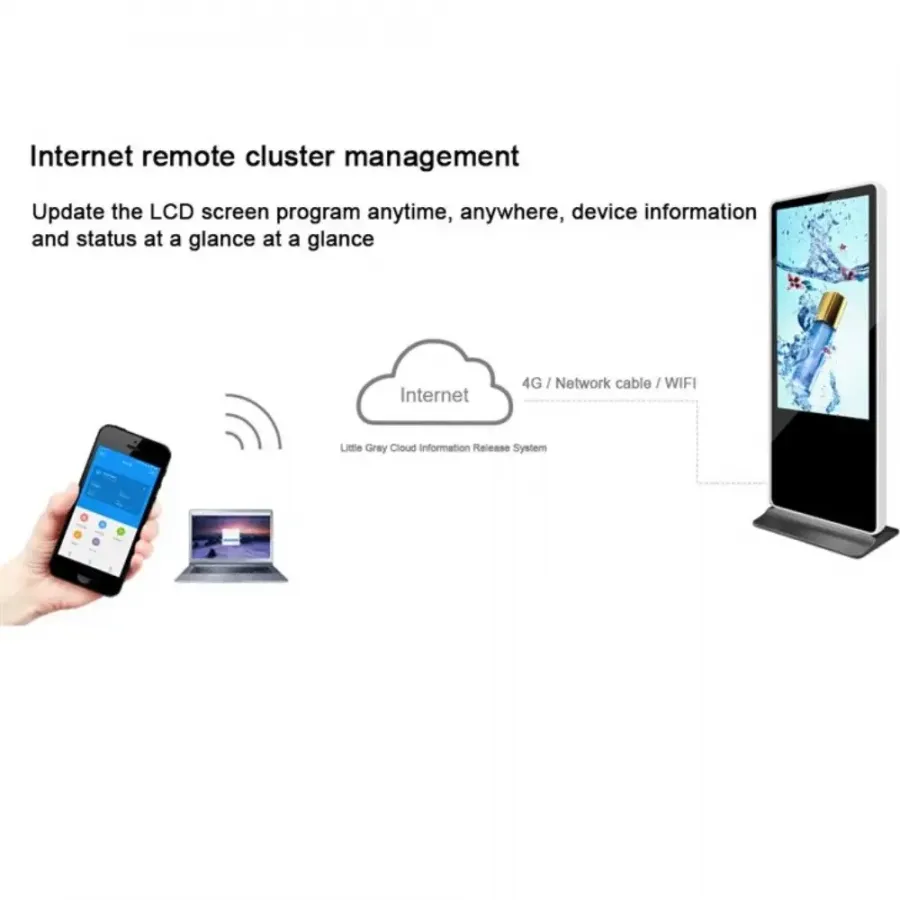

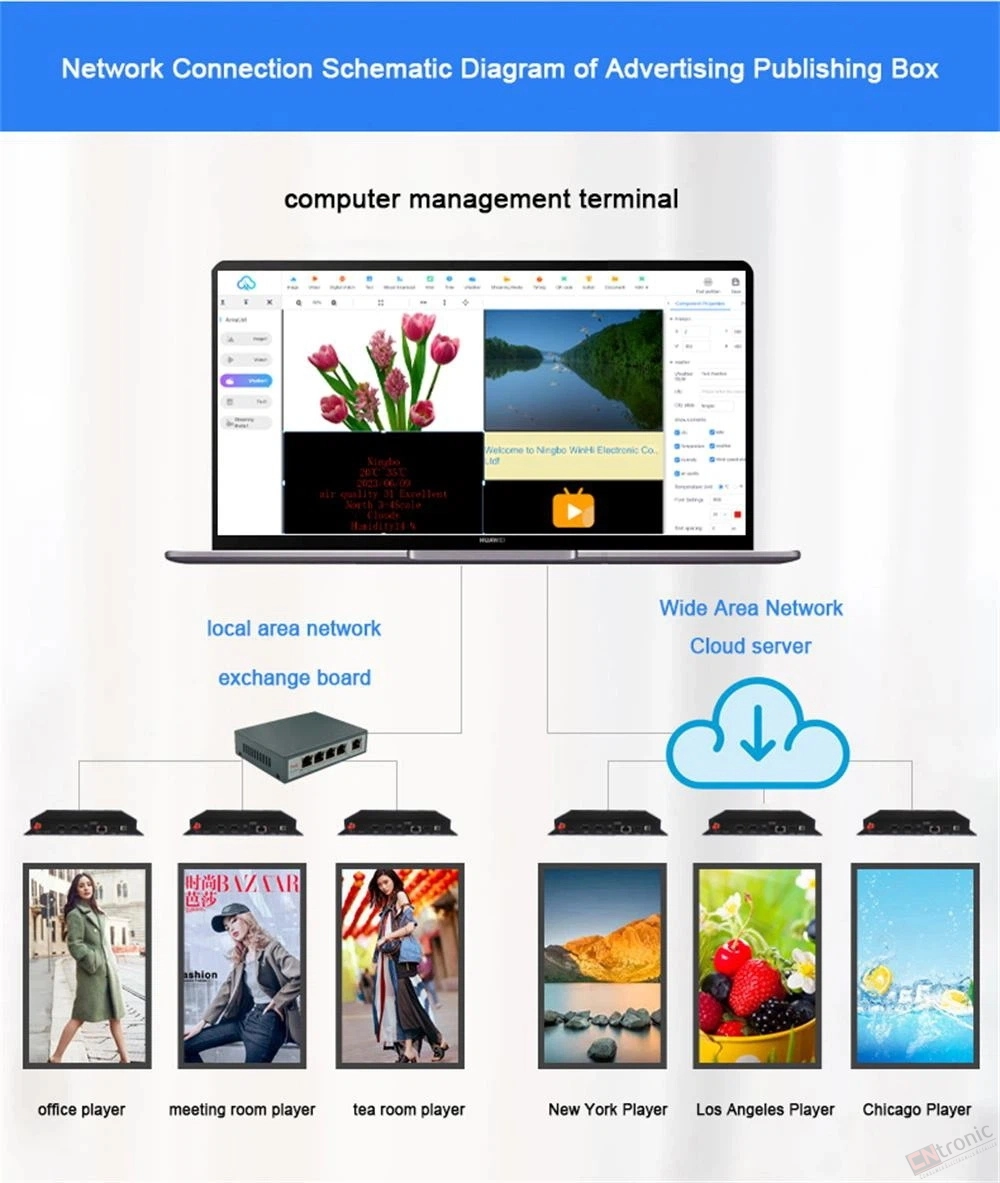

• Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended

• Support OTA remote upgrade; support U disk upgrade

• Support boot animation definition

• Support server/single-machine mode switch

• Support WiFi hotspot
