4K 2160P RS232 Button Control HD-MI CVBS Output USB SD seamless switching between videos digital signage PCBA Board
269.33 $
ID: 121744
Quantity
HD-MI RS232 Optical Button Control 4K Digital Signage Advertising Display Media Player Box For Commodity Audio And Video Promoti
5.0 (2 votes) | 12 orders
Price:
US $
420.11
- Color
-
-
Hot sales recommendation
WINHI MPC1005 HD-MI RS232 Optical Button Control 4K Digital Signage Advertising Display media player Box For Commodity audio and video promotion
Model: MPC1005-N
Item: UHD 4K HD-MI Out Push Button/ RS232 Control/ Digital Optical Out Digital Signage TV Media Player Box
Product Parameters
Features:

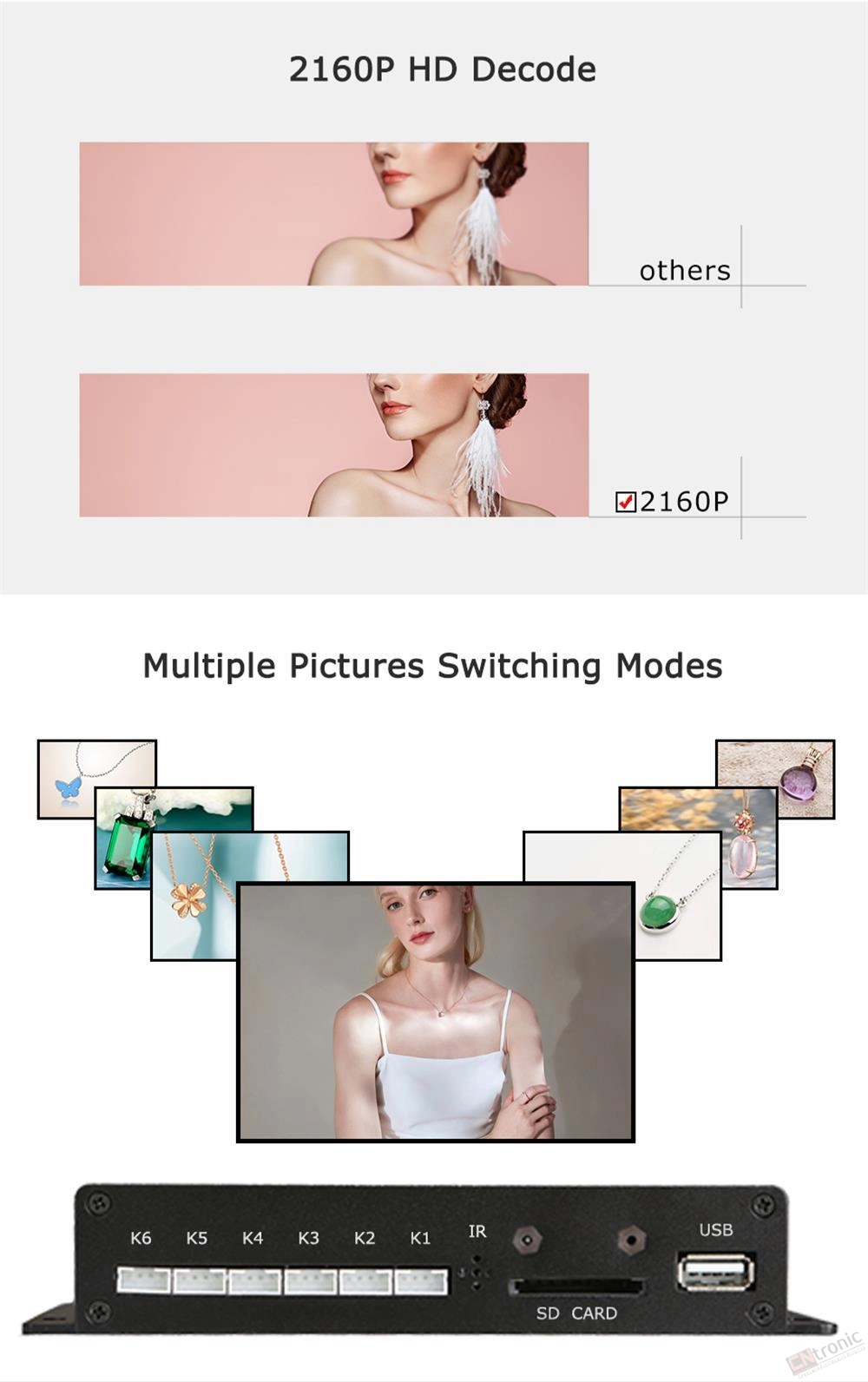

Supports 1080P up to 4K HD-MI output for high-quality audio and video playback.

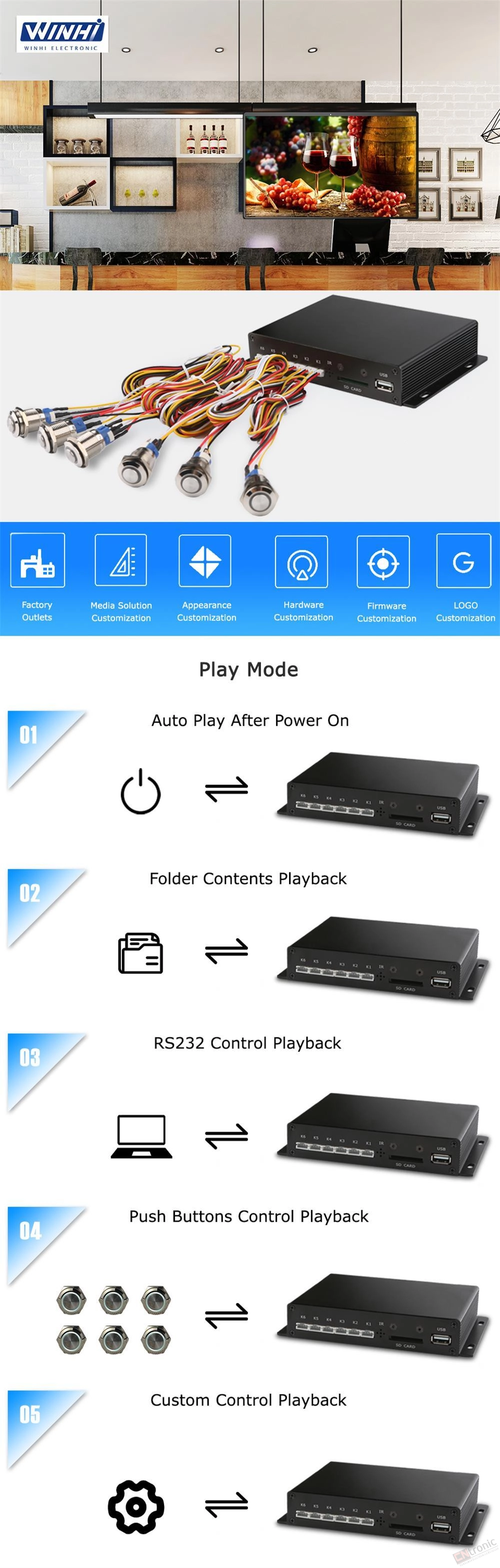

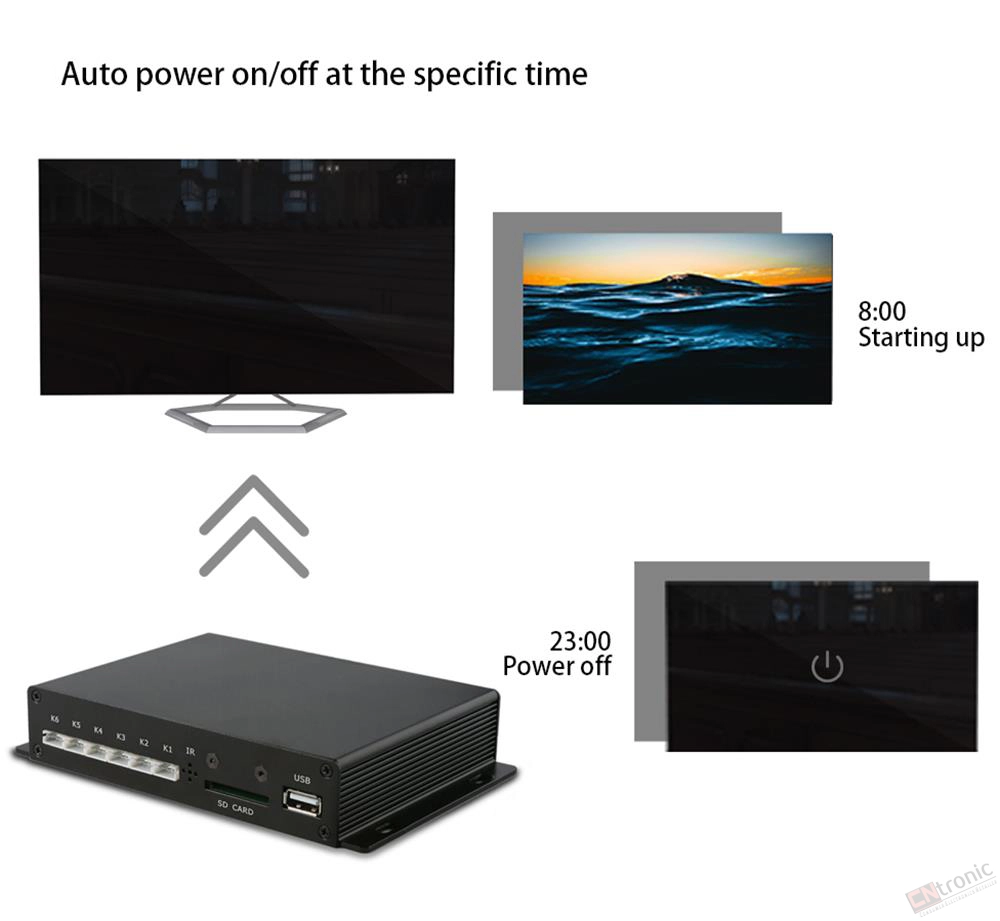

Offers multiple working modes including auto-play upon power-on, folder-based file playback, RS232 serial control, button control, and customizable controls.

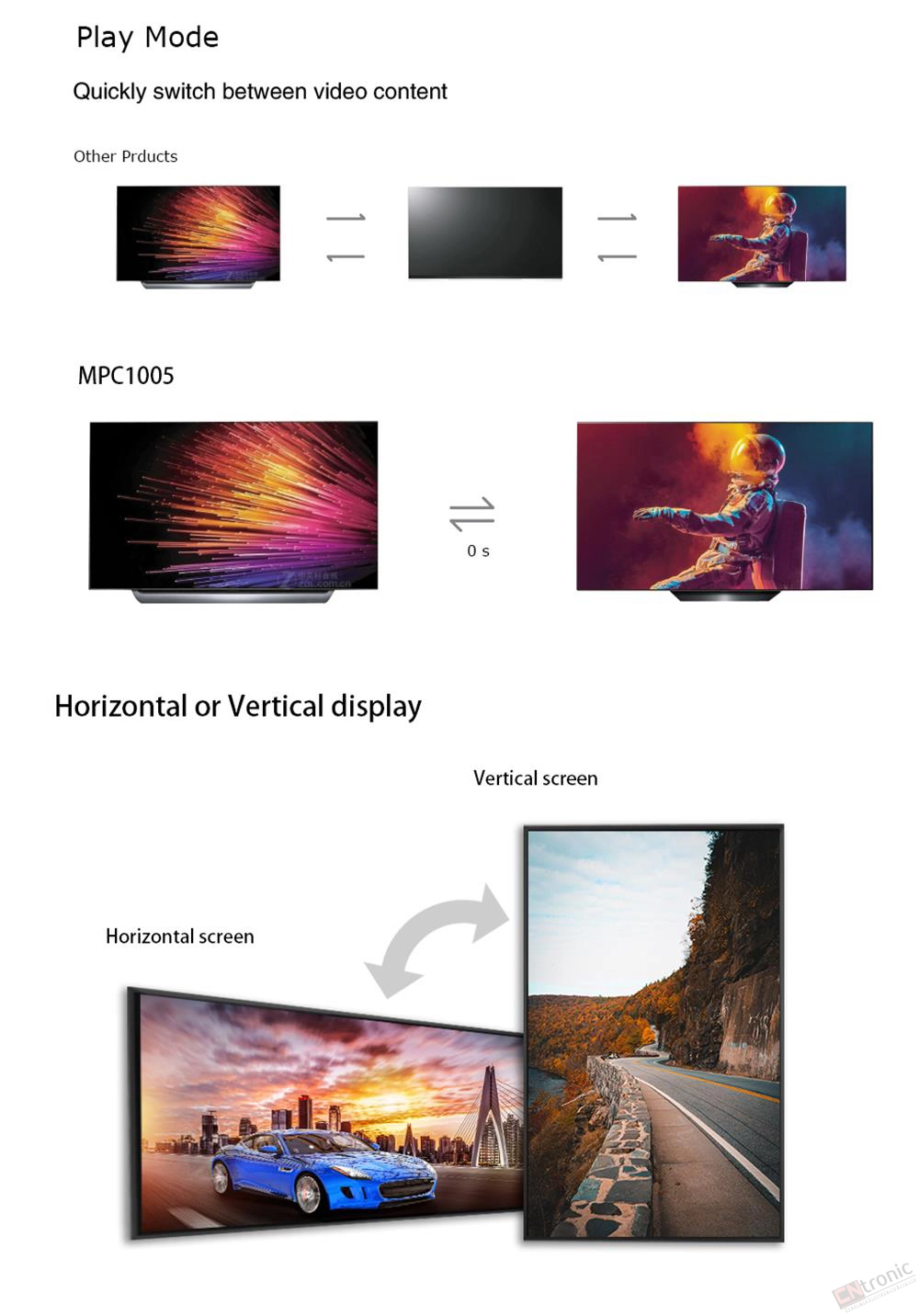

Seamless video transitions without black screens.
Equipped with RS232 interface for external command control (e.g., play, pause, stop, volume adjustment, power on/off).

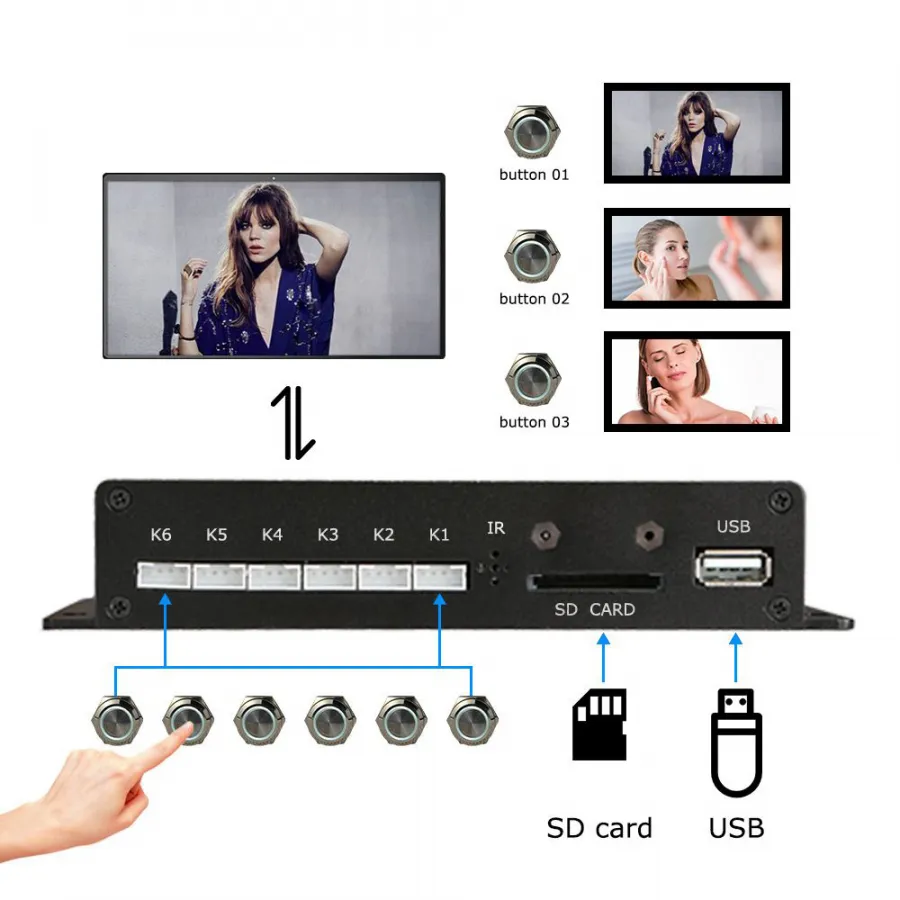

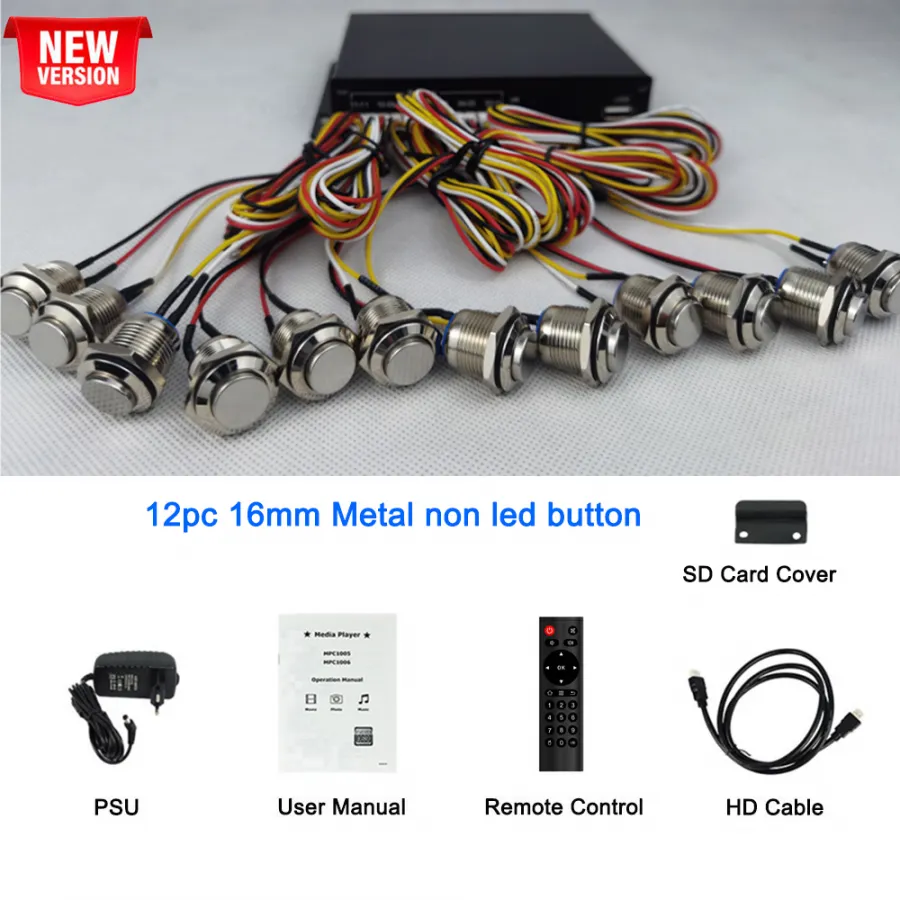

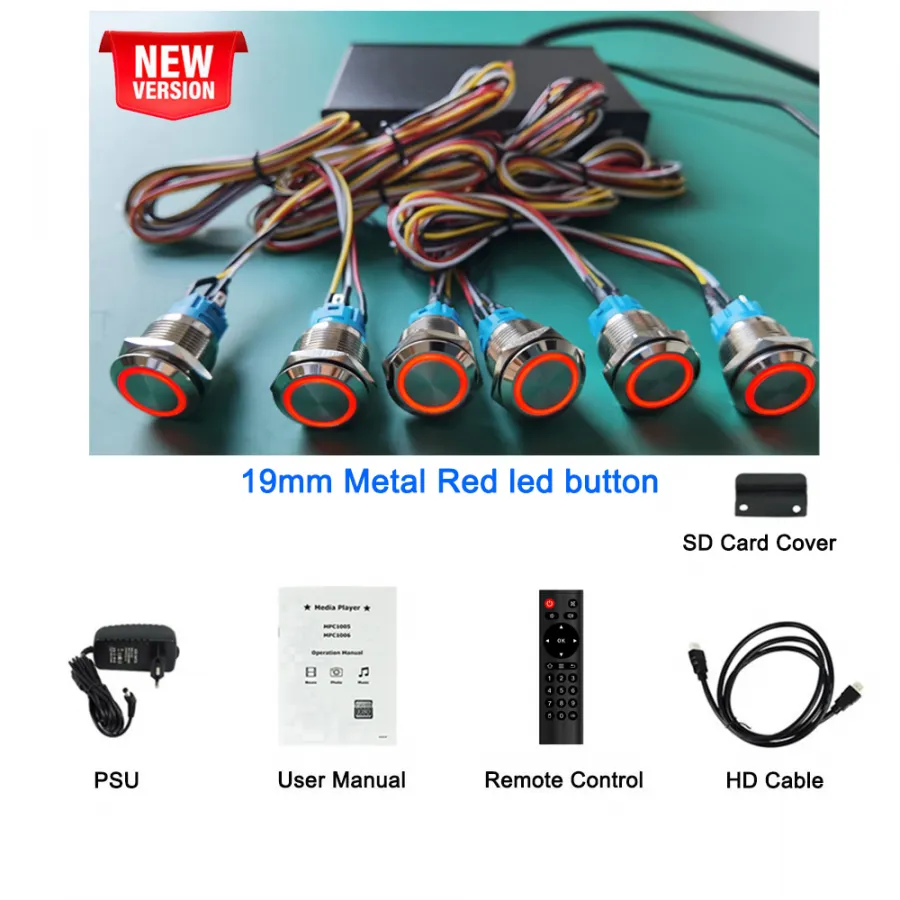

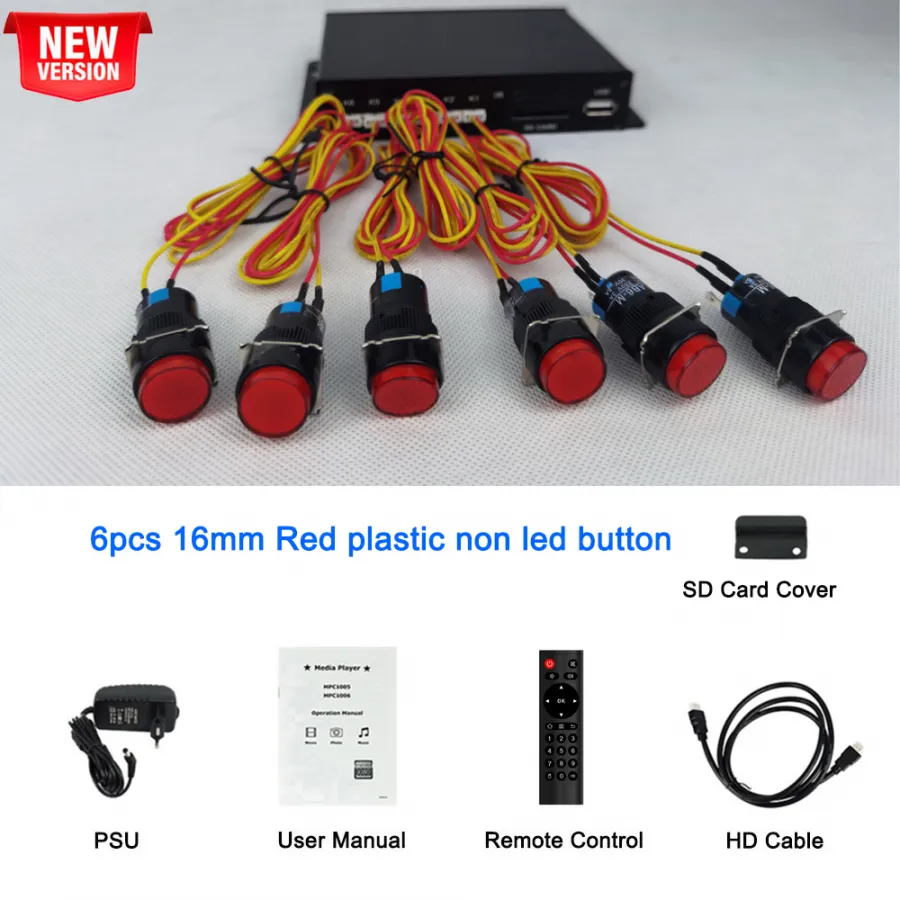

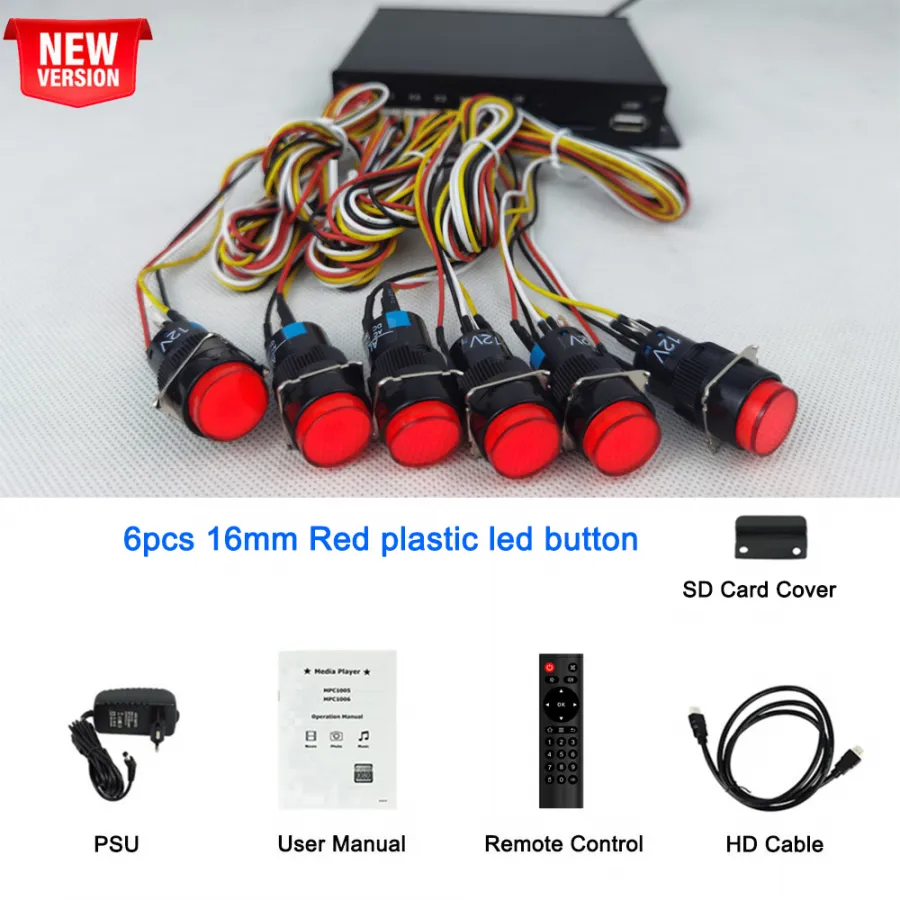

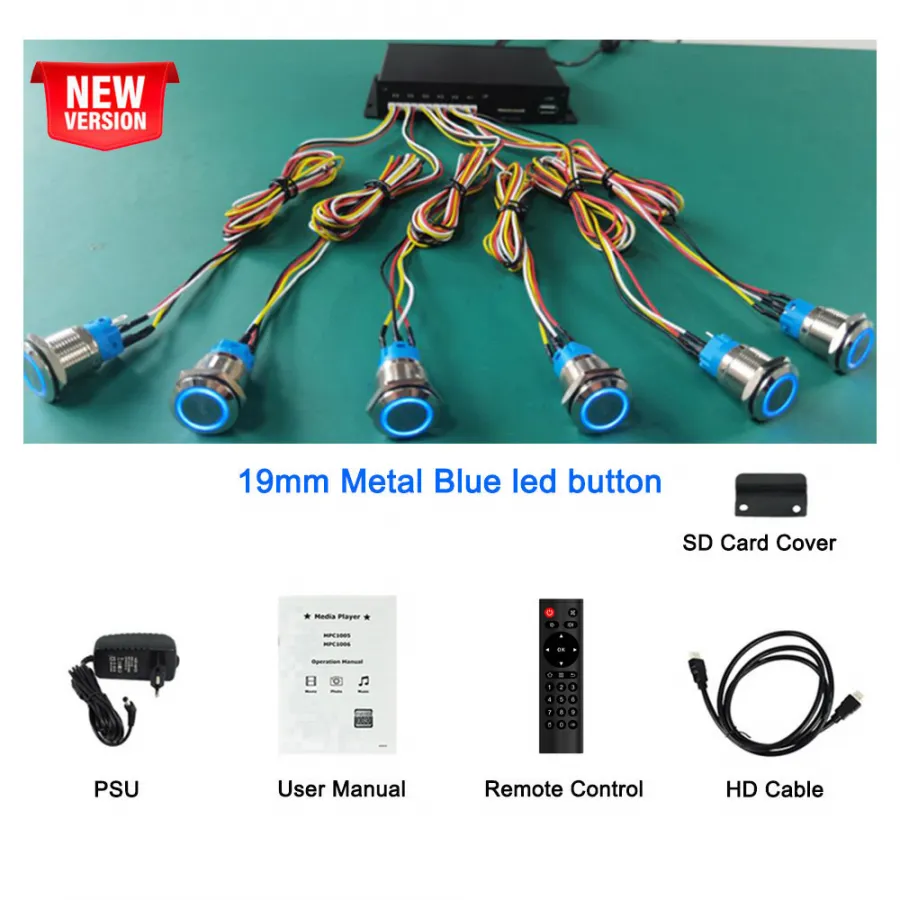

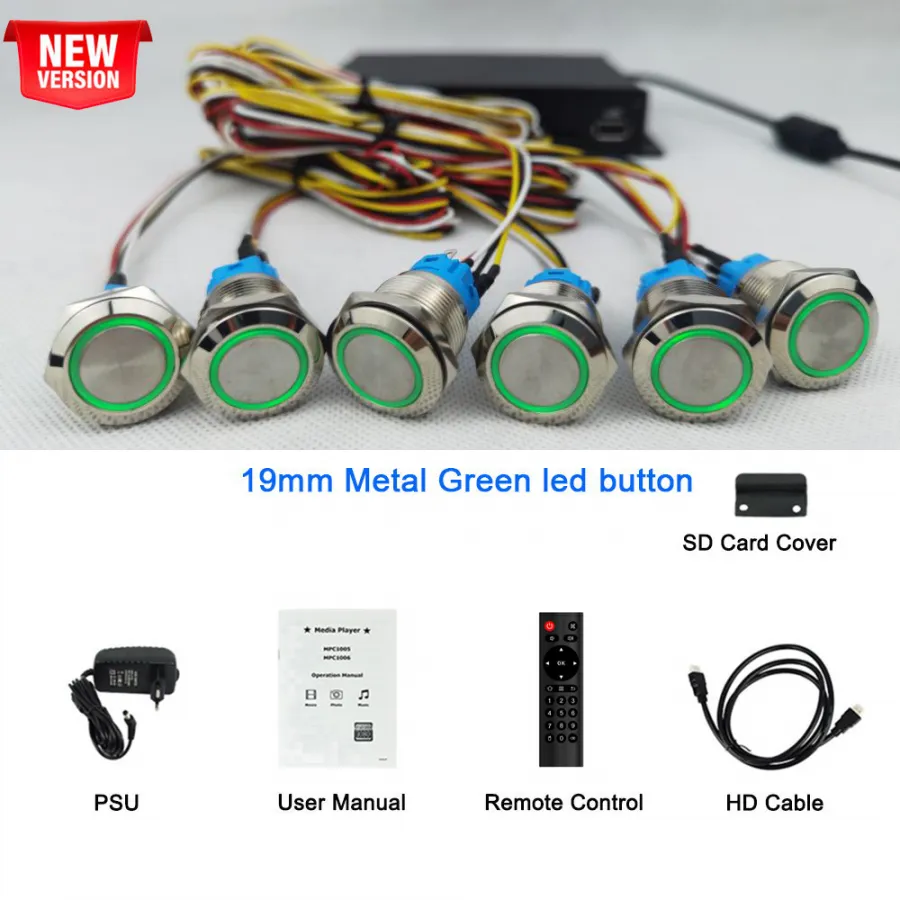

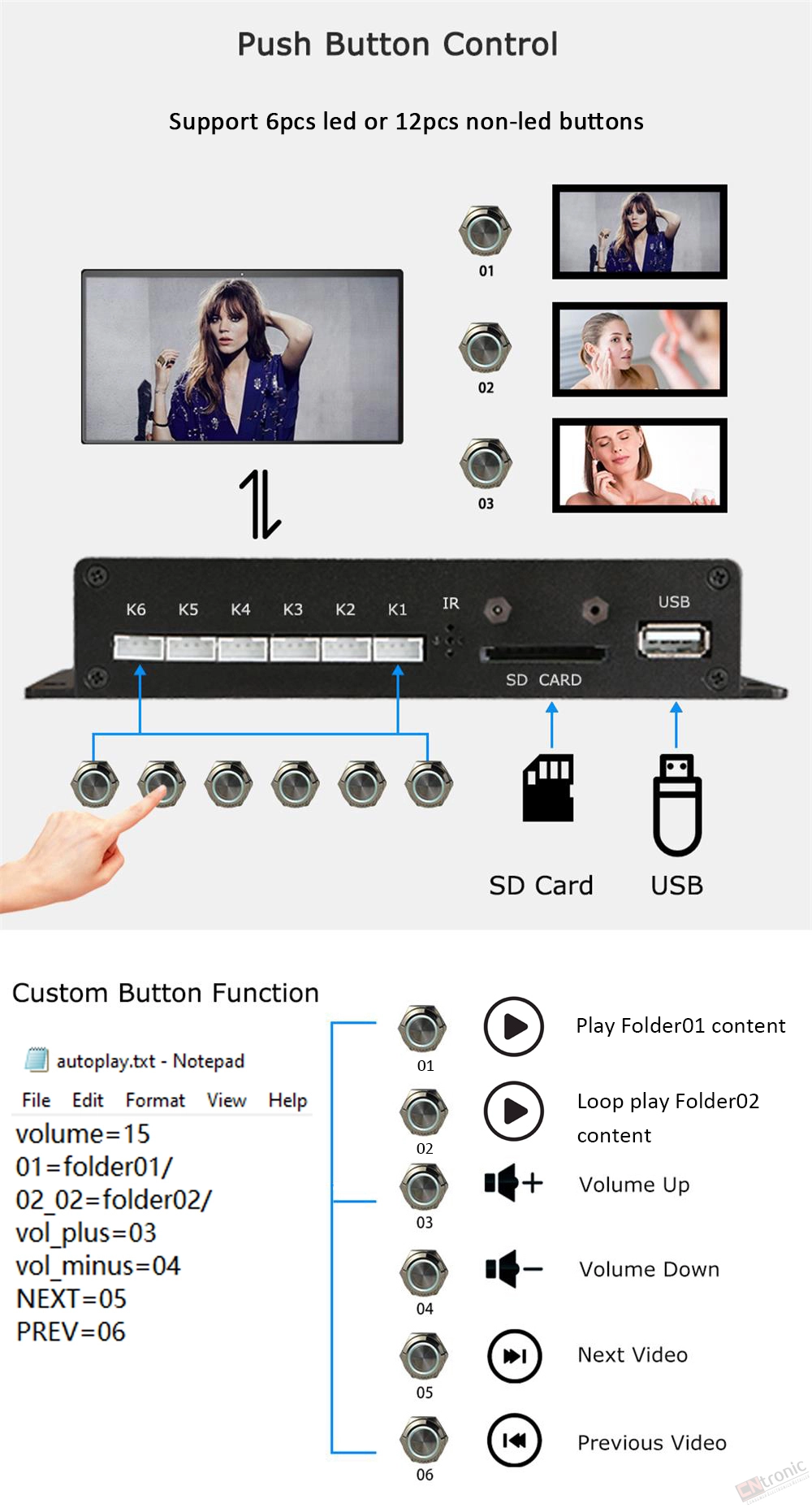

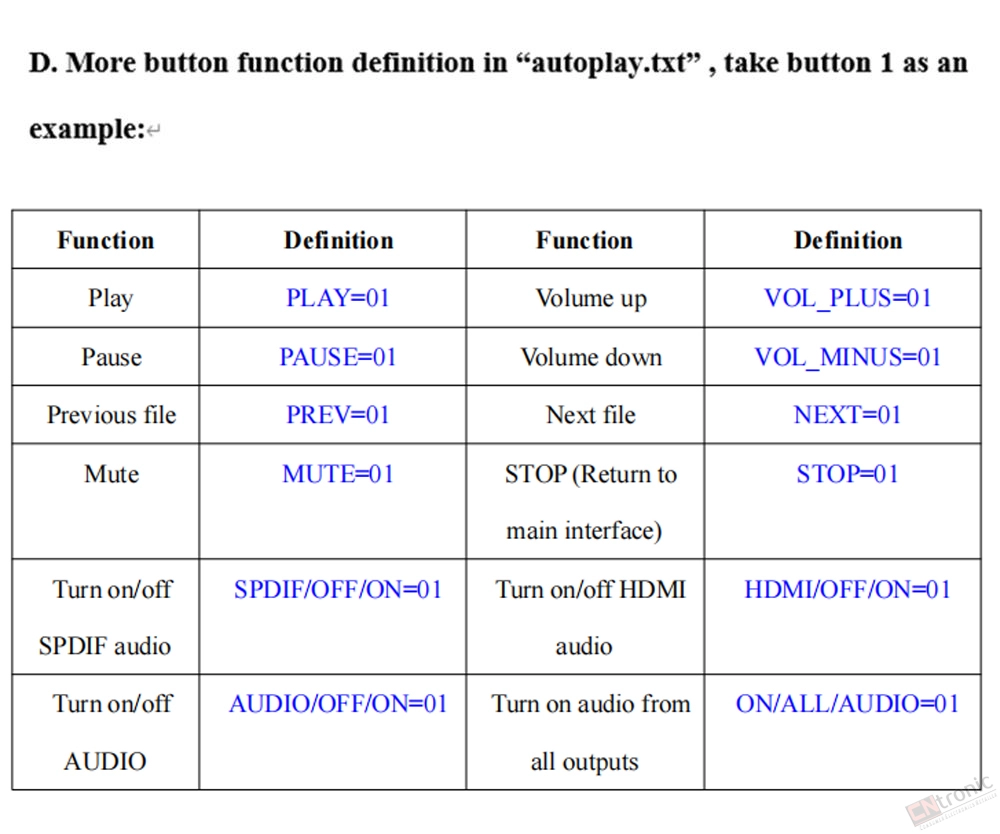

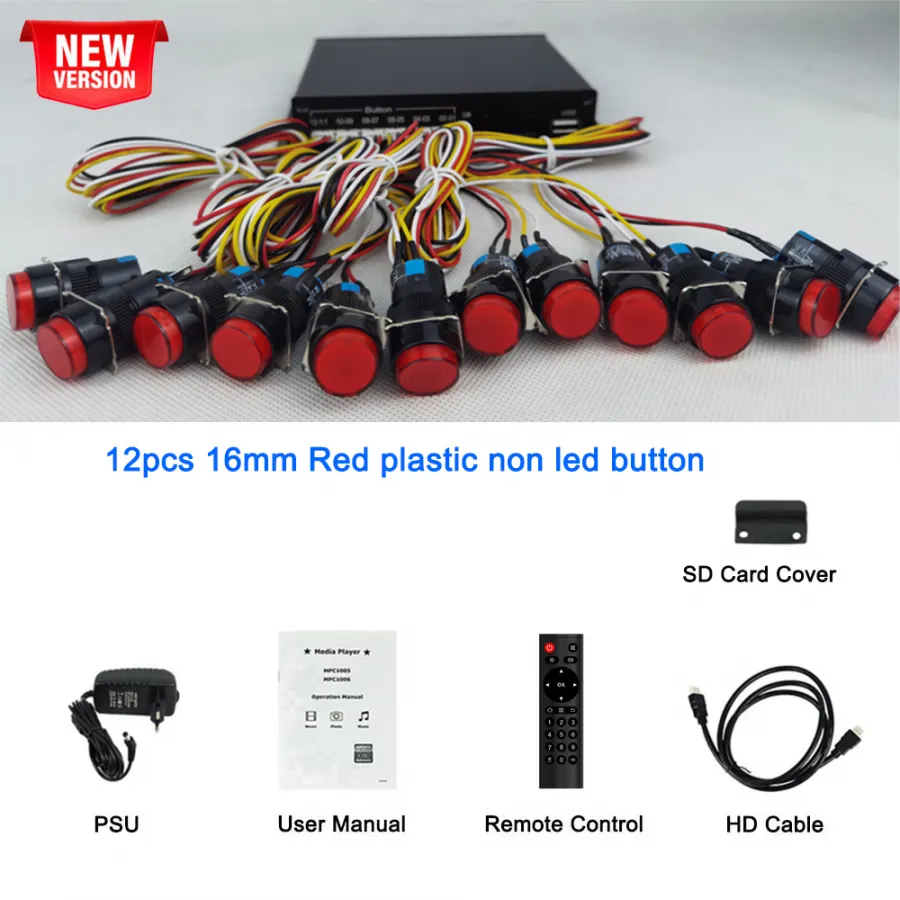

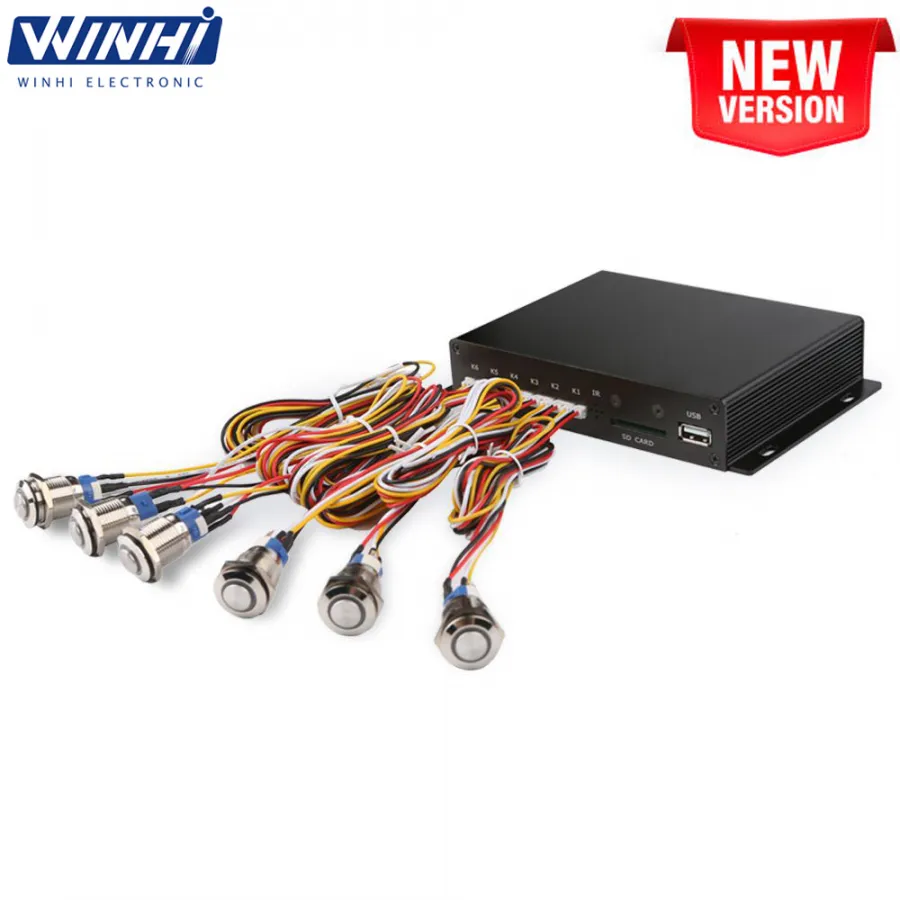

Compatible with both LED (6 buttons) and non-LED (12 buttons) configurations, where each button's function can be customized via an "autoplay.txt" file.
Video outputs include HD-MI and CVBS, supporting screen rotation at 90°, 180°, or 270°.

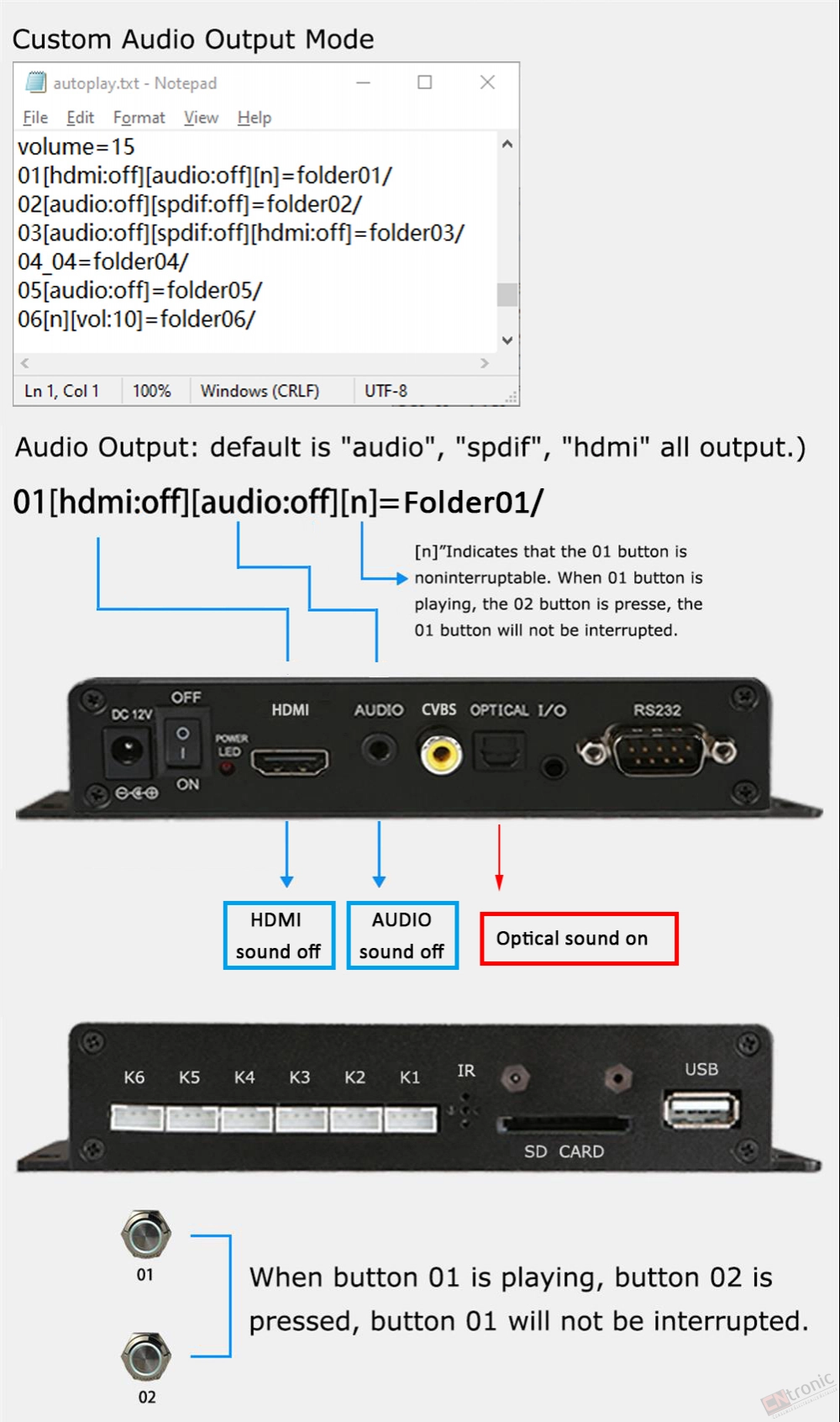

Audio outputs through optical, HD-MI, and standard audio ports, with default settings allowing simultaneous output from all options, customizable in "autoplay.txt".
Capable of playing background music during image slideshows.

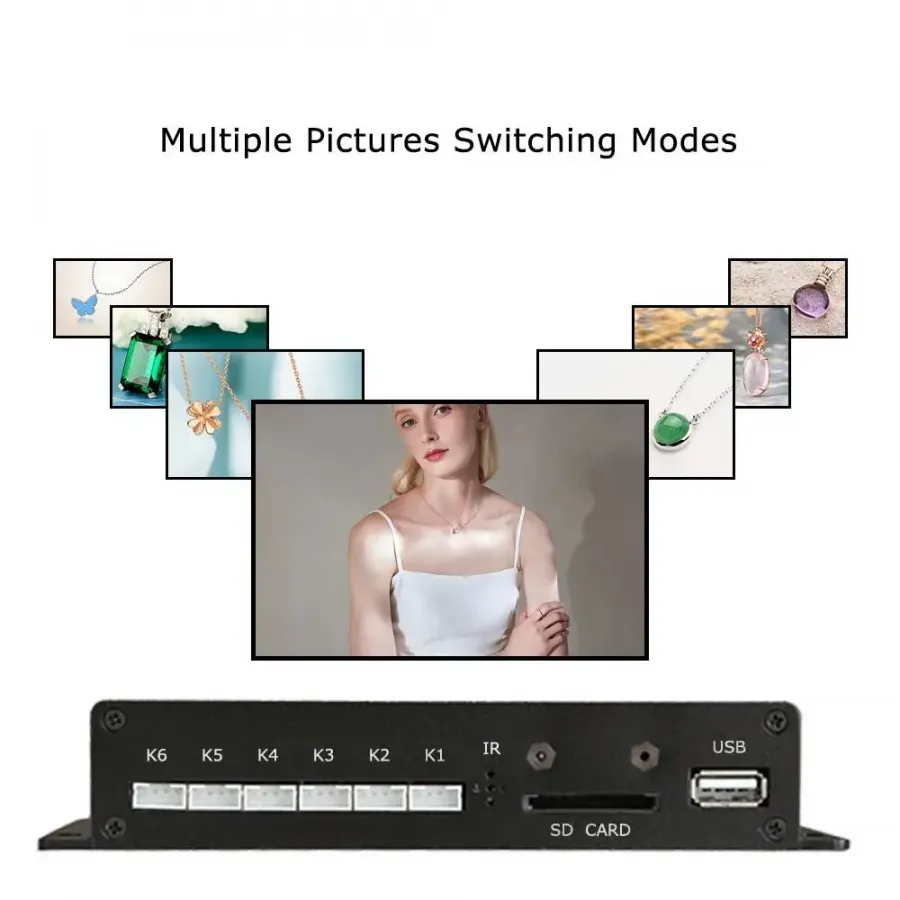

Supports 13 types of image transition effects.
Internal storage of 5GB with USB file copy functionality.
Customizable boot screen with a client-specific logo.
Multi-language OSD support (Simplified Chinese, Traditional Chinese, English, Russian, Korean, Japanese, French, German, Italian, Spanish, Portuguese, Arabic).
Technical Specifications:
Card Reading:
Supports AVI, MXF, MP4, FLV, MKV, ASF, DAT, RM, RMVB, AMV, F4V, M4V, H.265MP4, VOB, ISO, M2TS, 3GP, 3G2, M2V, MOV, MPG, WMV, MTV, OGV, TS, WEBM, DV formats for video;
MP3, FLAC, APE, WAV, WMA, DTS, AAC, M4R, MKA, MP2, AMR, WV, M4A, AC3, AU, AIFF, M4B for audio;
JPG, BMP, JPEG, and GIF for images.
Storage: SD/USB device up to 2 TB.

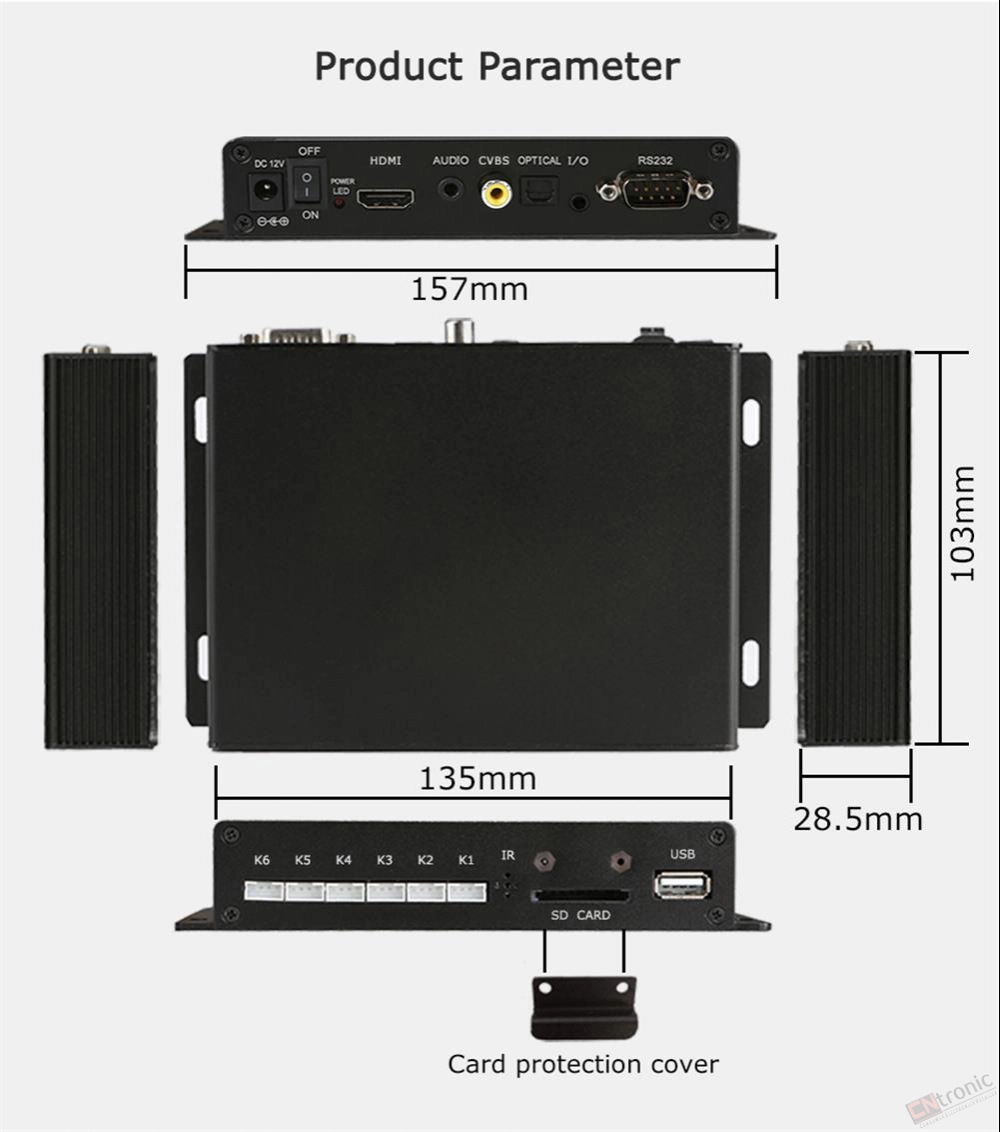

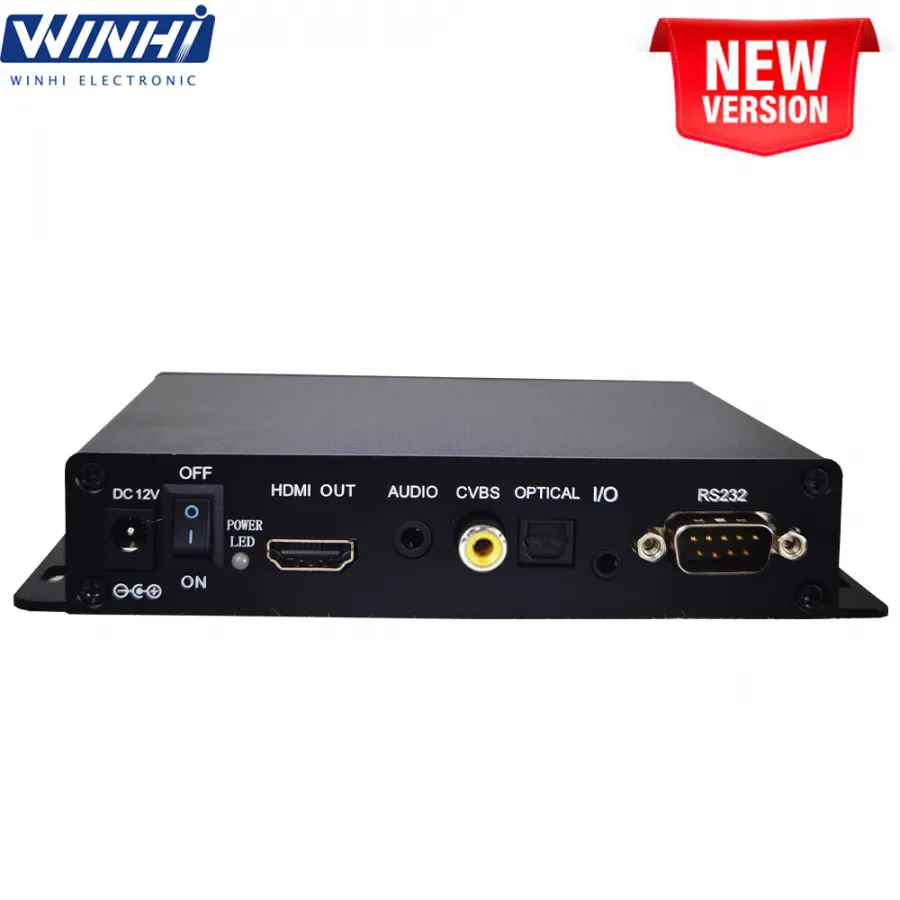

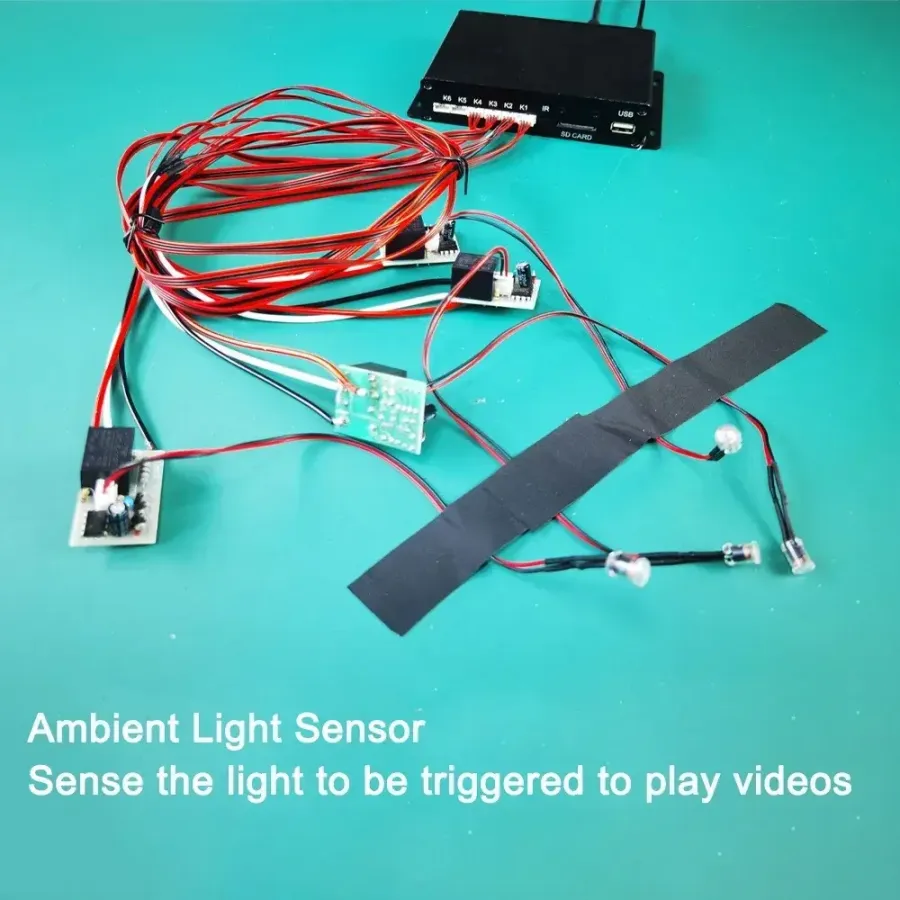

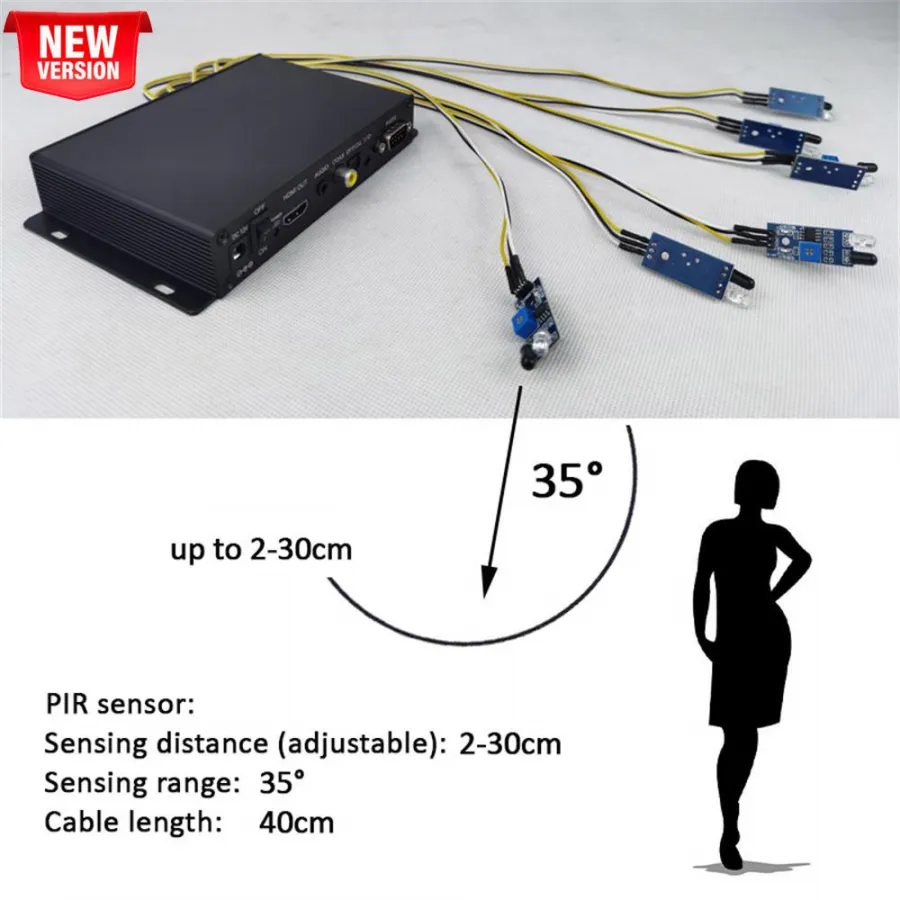

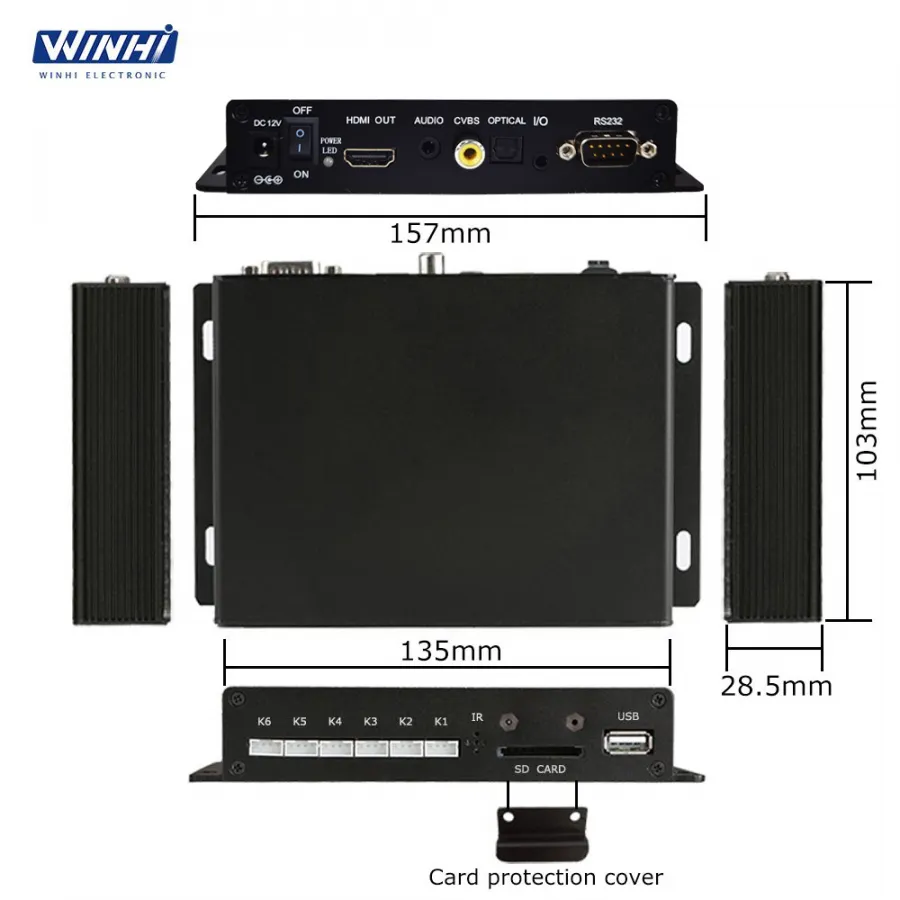

Interfaces: HD-MI (3840x2160), CVBS (NTSC), Optical Audio, 3.5mm Audio Jack, RS232, USB 2.0, SD Card Slot, I/O port for motion sensor connection, button interface (K1-K6), IR receiver, ON/OFF switch.
Power Supply: DC 12V/1.5A.
Working Temperature: 0°C to 40°C (32°F to 104°F).
Enclosure: Black metal casing.

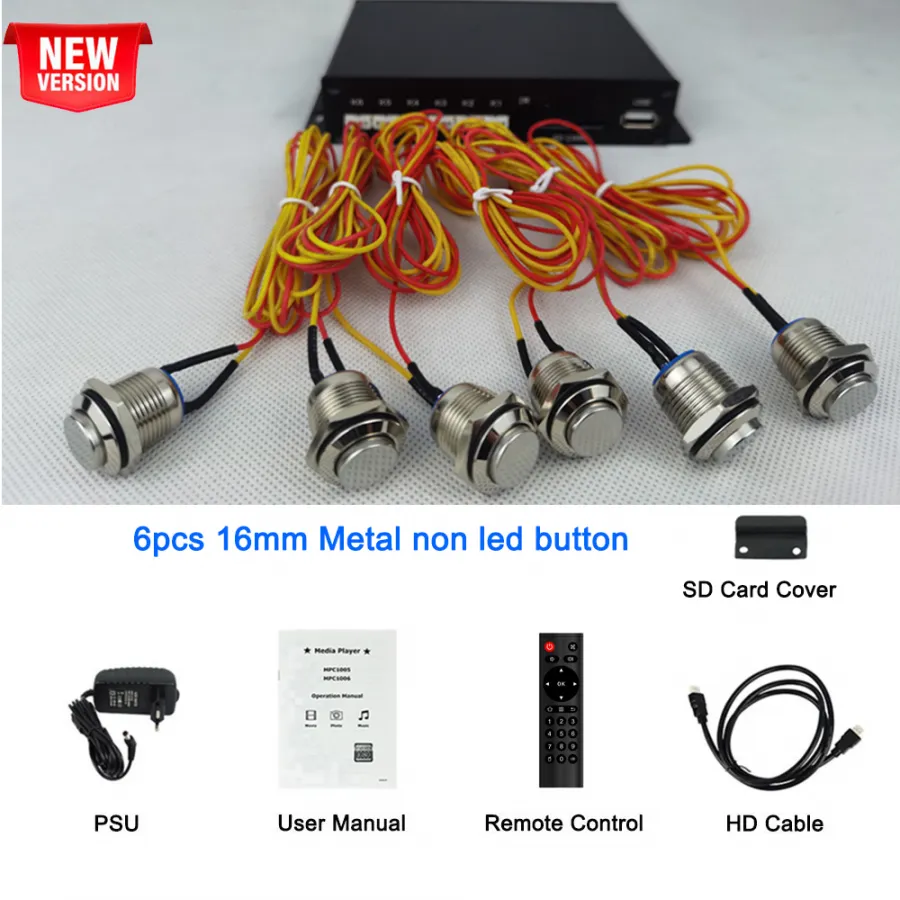

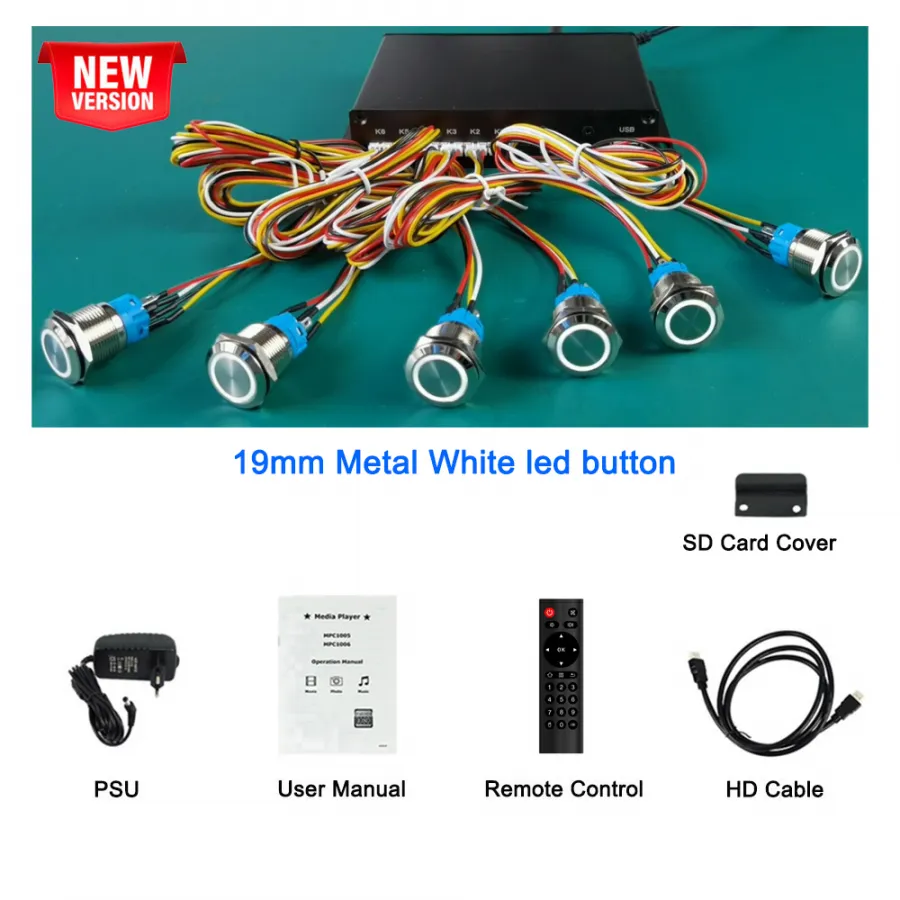

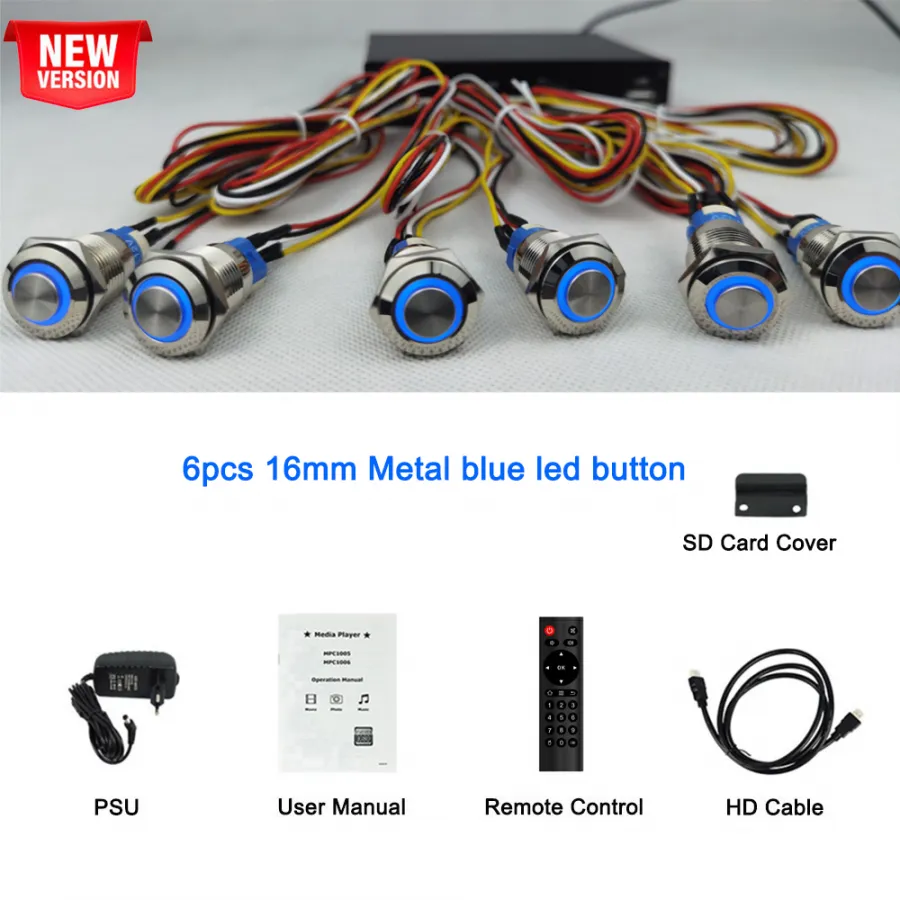

Accessories Included: Power adapter, remote control, HD-MI cable.
Applications: Ideal for interactive demonstrations and product displays in retail stores, shopping malls, museums, airports, hotels, etc., suitable for promoting products through audio and video content and event introductions.
Product Description
Packaging Details
- Unit Type:
- Package Weight: 1.500
- Package Size: 17x9x27
- Brand Name: Lanmade
- Origin: Mainland China
- Power Source: DC
- Power Source: DC
- Hign-concerned Chemical: None
- Inbox adaptor: Yes
- Hard Disk Capacity: < 100GB
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Certification: UL
- Certification: pse
- Model Number: MPC1005-N
- Decode Ability: 1080P (Full-HD)
- Recording: No
- Connectors: USB
- Operating System: Microsoft Windows
- Resolution: 1920*1080P
- Remote Control: Included
- Plug Type: US Plug
- Supported Formats: MKV
- Type: High Definition
