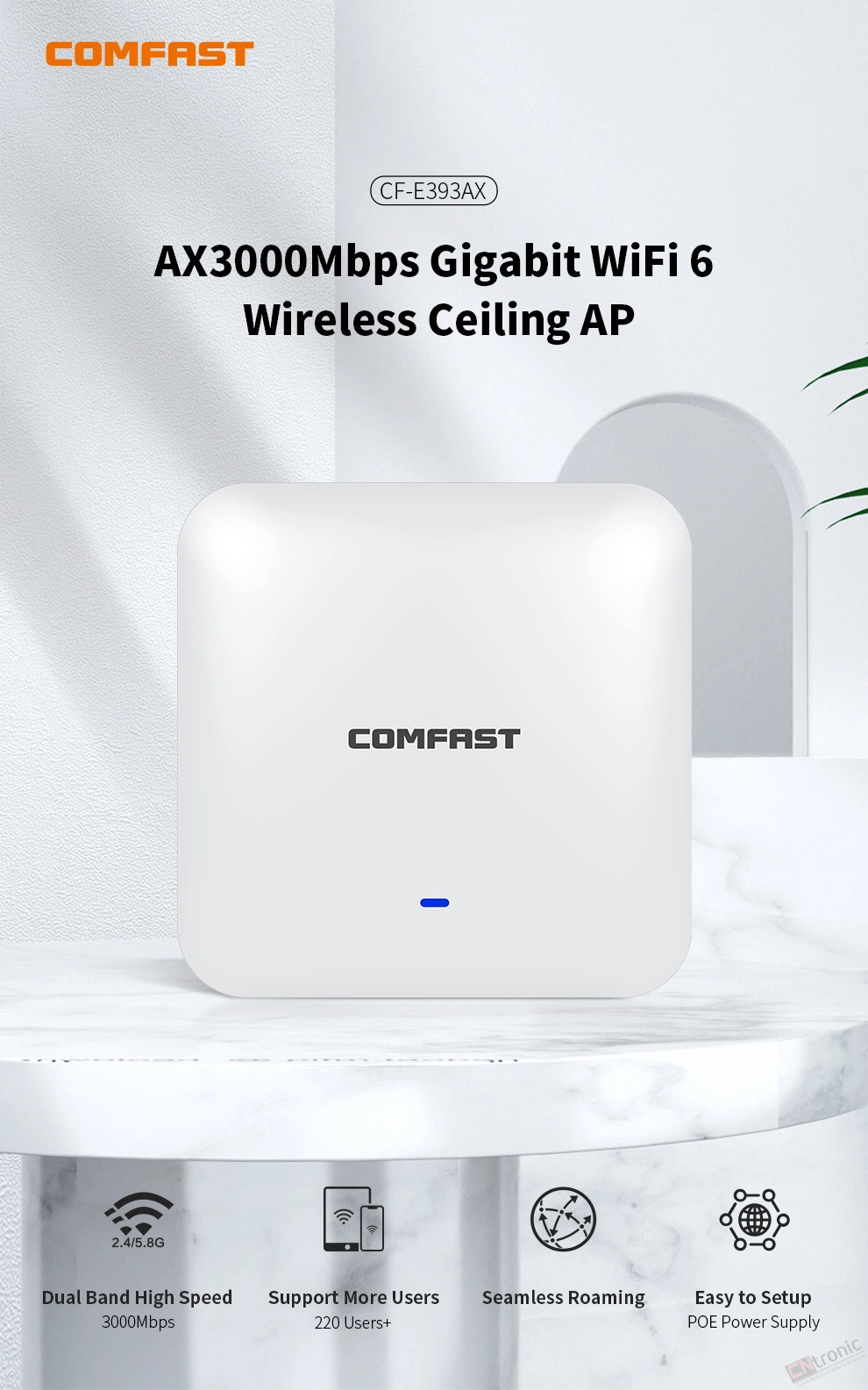

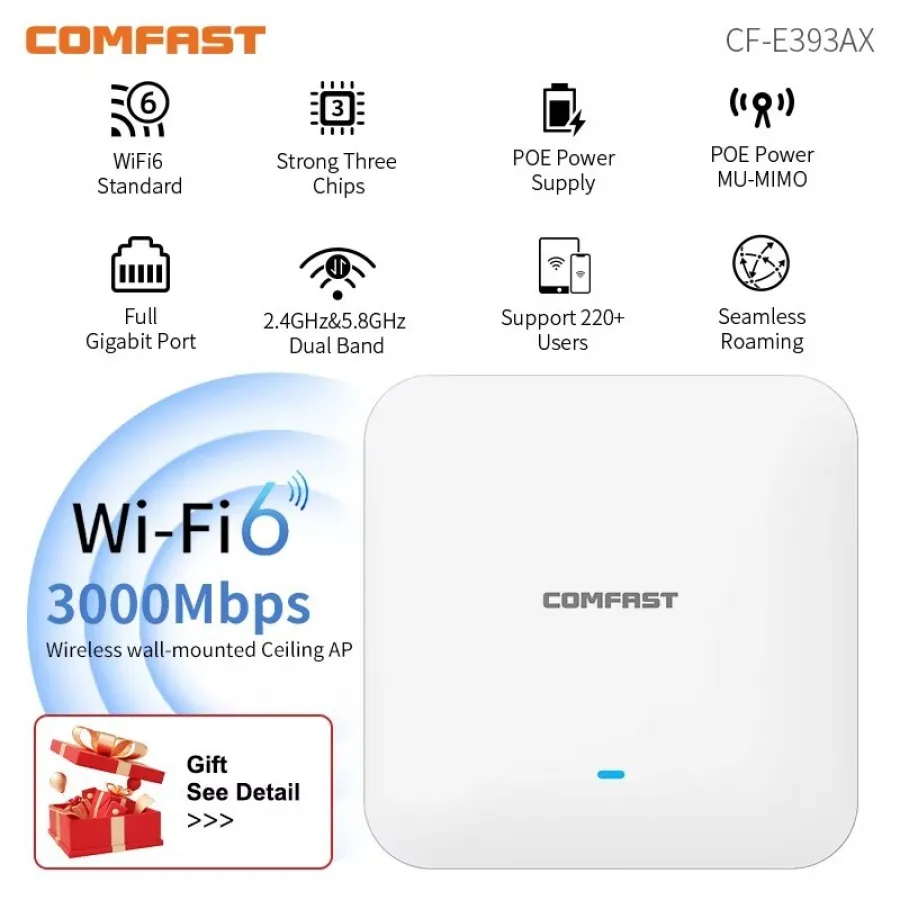

COMFAST WiFi6 High Power Ceiling AP AX3000 Gigabit Wireless Cover Access Point 2.4G 5Ghz 802.11AX Wi-Fi POE MU-MIMO CF-E393AX

5.0 (1 votes) | 4 orders
Price:
US $ 229.63
Quantity



WiFi6 High Power Ceiling AP AX3000 Gigabit Wireless Cover Access Point Router 2.4G 5Ghz 802.11AX Wi-Fi POE MU-MIMO CF-E393AX






Surprise!!

1、As long as you place an order, we will send you gift.

2、Store coupons: $39-1; $69-2; $99-3.

3、Store - 2% coins discount is waiting for you to collect.

4、We support Drop shipping.

5、Shipped within 24 hours.


Any questions, keep in touch.

Come and place your order and go crazy shopping!!




Description:

This is an enterprise-grade Wifi6 ceiling wireless AP with PoE and high gain antennas, ensure a stable connection in indoor high-density wireless coverage environment.


It operates at 2.4GHz and 5.8GHz dual band, adopts new generation Wi-Fi 6(802.11ax) technologies and comply with IEEE 802.11a/b/g/n/ac/ax standards, the Wi-Fi data rate is up to 3000Mbps.


It supports ULMU-MIMO, OFDMA and 1024QAM technology. It provides a cost-effective solution for indoor wireless network applications like villa, office, hotel, restaurants, shopping mall, stores, schools etc.


Using a powerful intelligent three-chip solution, the performance is guaranteed, and more stable long-term operation.




Main Features:

1、Comply with IEEE 802.11a/b/g/n/ac/ax standards, the Wi-Fi data rate is up to 3000Mbps.

2、High RF power and high gain antennas design significantly enhance the stability of wireless signal and extends wireless range to reduce dead spots.

3、Advanced RF optimization with automatic channel, power level selection to reduce interference. AP can recognize various channels being used and automatically switch to the best available channel to provide best experience for the users.

4、1* 10/100/1000Mbps LAN ports;1* 10/100/1000Mbps WAN ports

5、PoE power supply by combining your power and data connection into a single cable makes outdoor deployment simple and fast.

6、Full gigabit network port transmission, stronger signal, no fear of multi-wall barriers, extended signal without weakening, wider coverage, 360° all-round elimination of WiFi dead spots

7、 Seamless roaming

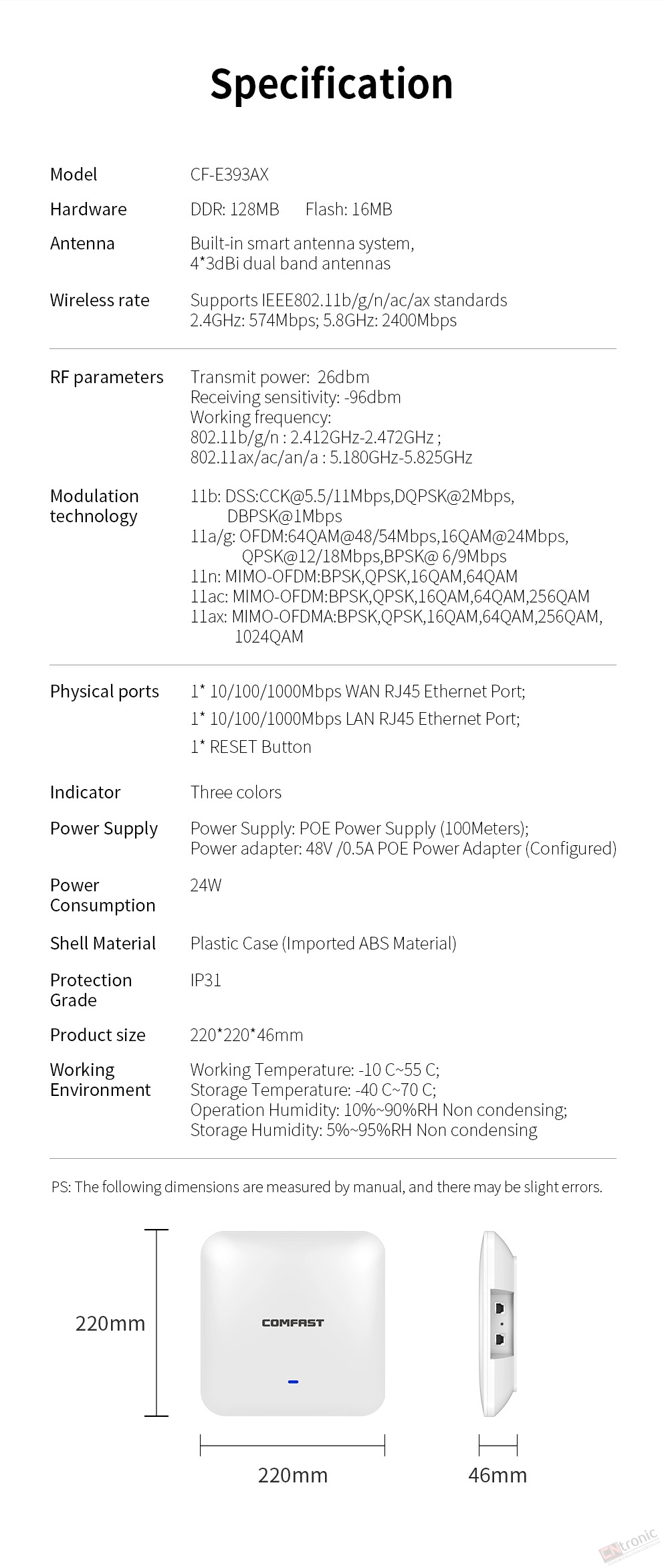

Hardware Specification:

Color:White

Chipset: MT7981A+MT7976D+MT7531AE

Memory: 128MB; Flash: 16MB

Output Power (Max): 26dBm;Receiving Sensitivity (Max): -96dBm;

Protocols Comply 802.11b/g/n : 2.412GHz-2.472GHz ;802.11ax/ac/an/a : 5.180GHz-5.825GHz

2.4GHz WiFi: 574Mbps, 2.412 GHz ~ 2.472 GHz

5GHz WiFi: 2400Mbps, 5.180 GHz ~ 5.850 GHz

Ethernet Ports :1x 10/100/1000Mbps WAN;1x 10/100/1000Mbps LAN

Power Supply: 802.3af/802.3at POE Power Supply(0-100m)

48V 0.5A POE power supply(We send 48V POE power adapter)

Reset Button 1x Reset button, Restore factory default settings

Antenna :Internal 4*3dBi

Working Temperature: -10℃~55℃;

Storage Temperature: -40℃~70℃;

Operation Humidity: 10%~90%RH Non condensing;

Storage Humidity: 5%~95%RH Non condensing




Package Included:

1x 11ax WiFi6 Ceiling Access Point

1x 48V POE Power adapter

1x Ethernet LAN Cable

1x User ManualPerformance Upgrade High Speed

Wifi 6 full signal coverage , enjoy seamless roaming freedom.One-click deployment , enjoy enterprise-level Wifi treatment .Innovation Wifi6 Smart Choice

Compared with Wifi5 , faster speed and higher capacity ,meet the high-speed Internet needs in multi-user and high-bandwidth scenarios


Higher Speed

Through 10240AM modulation , higher number of subcarriers and 60MHZ bandwidth technology , the unlimited rate is increased to 2976mbps


Larger Capacity

802.11ax adopts OFDMA and DL/ULMU-MIMO technology , which increases the network capacity by 4 times compared with 802 .11ac ;TWT technology , AP can uniformly schedule terminal wake-up and sleep activities to meet the access needs of a large number of terminal devices

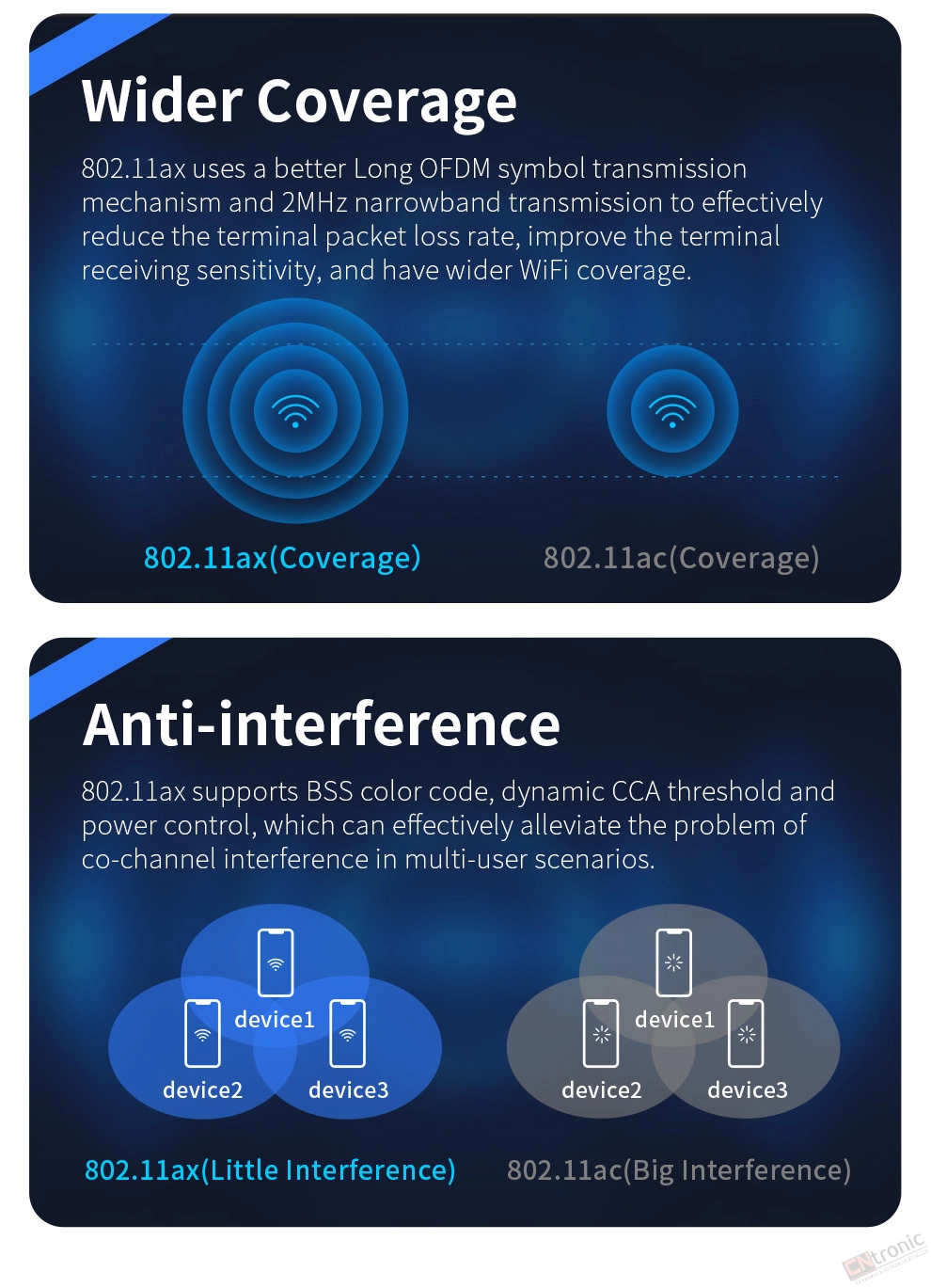

Wider Coverage

802.11ax uses a better Long OFDM symbol transmission mechanism and 2MHZ narrowband transmission to effectively reduce the terminal packet loss rate , improve the terminal receiving sensitivity , and have wider Wifi coverage

Anti-interference

802.11ax supports BSS color code , dynamic CCA threshold and power control , which can effectively alleviate the problem of co-channel interference in multi-user scenariosWifi Range Full Signal Coverage

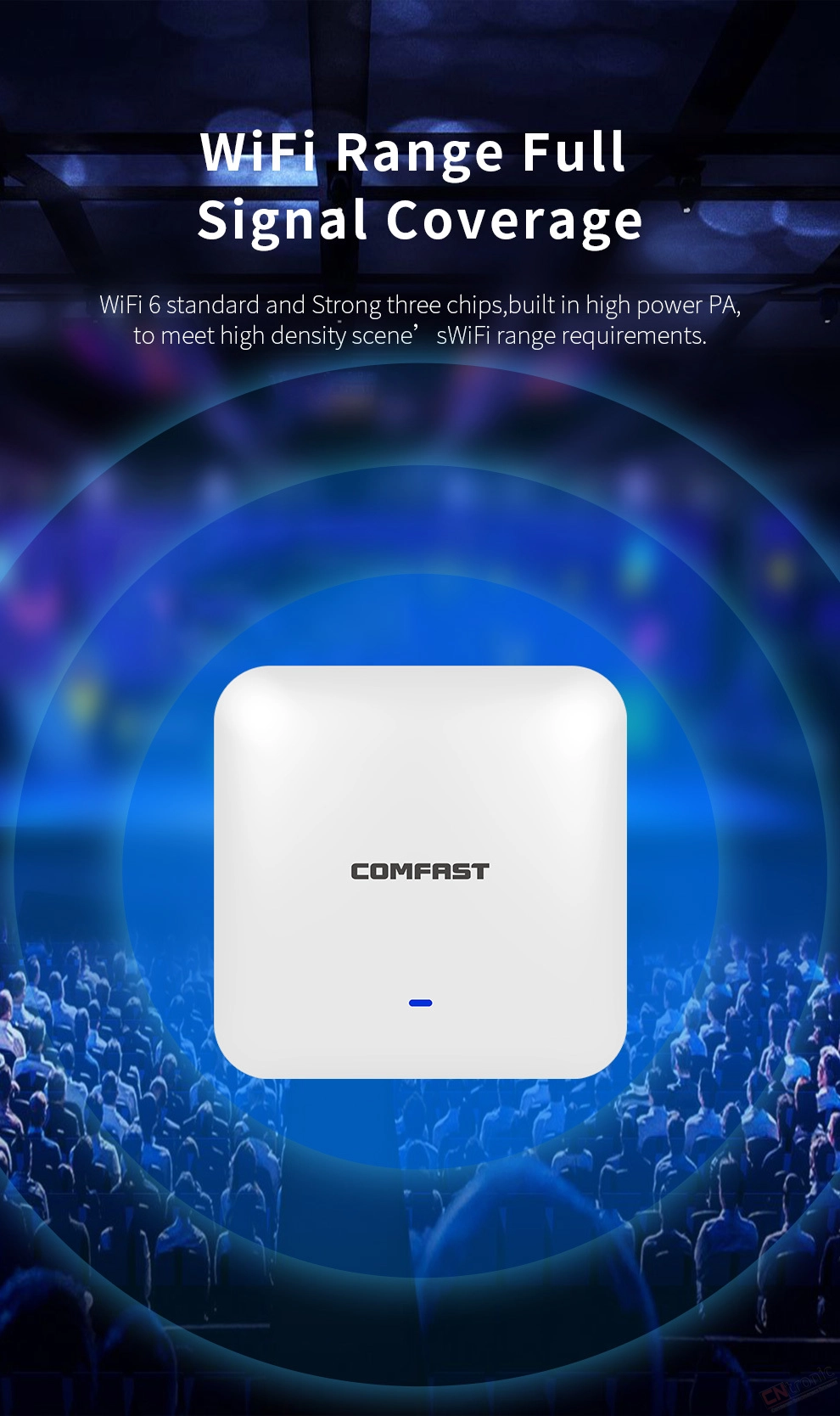

Wifi 6 standard and Strong three chips , built in high power PA ,to meet high density scenes wifi range requirementsGigabit Ethernet Port ,Satisfied Your Higher Demands

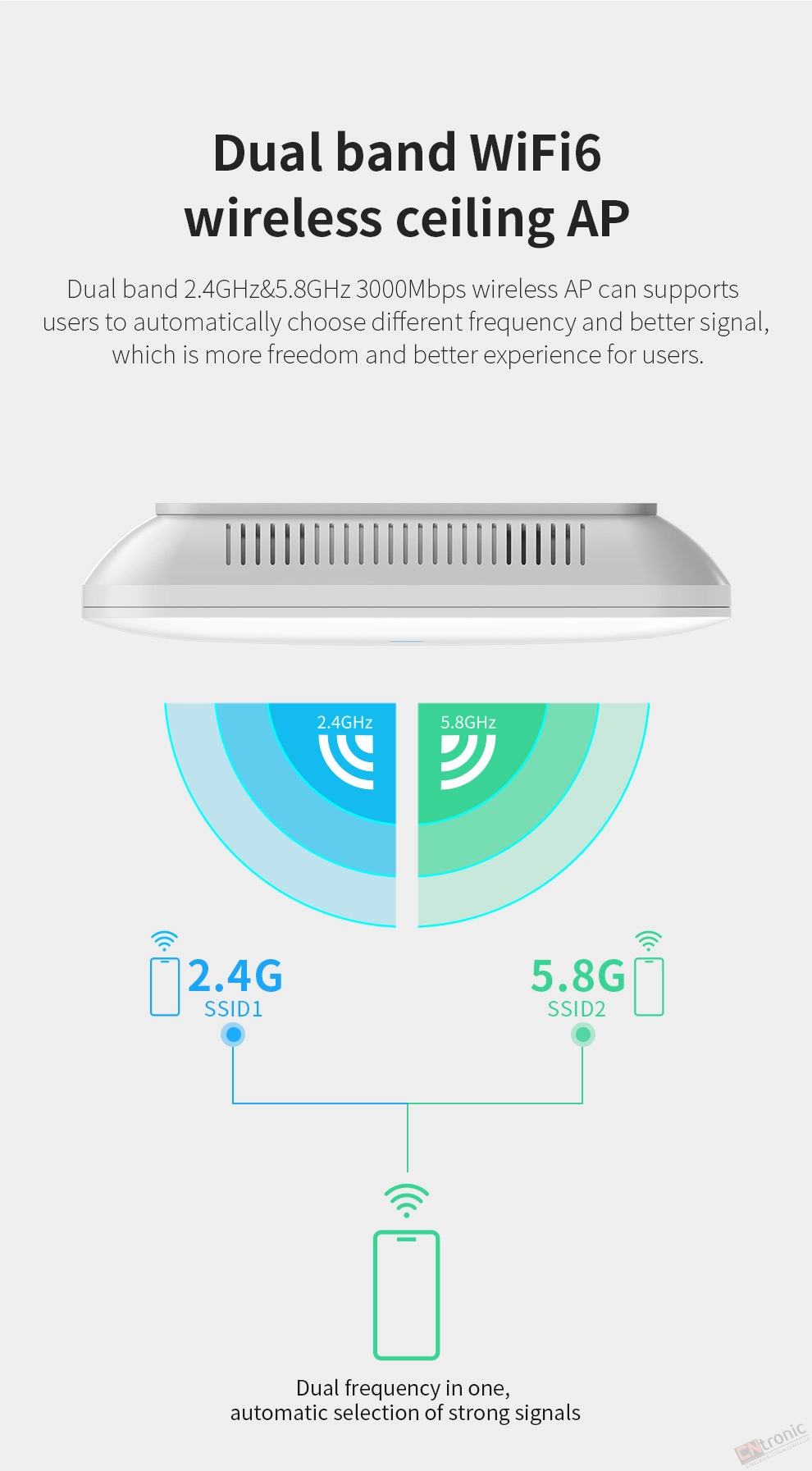

Wired transmission rate much fasterDual band Wifi wireless ceiling AP

Dual band 2.4GHZ & 5.8GHZ 3000mbps wireless AP can supports users to automatically choose different frequency and better signal which is more freedom and better experience for users

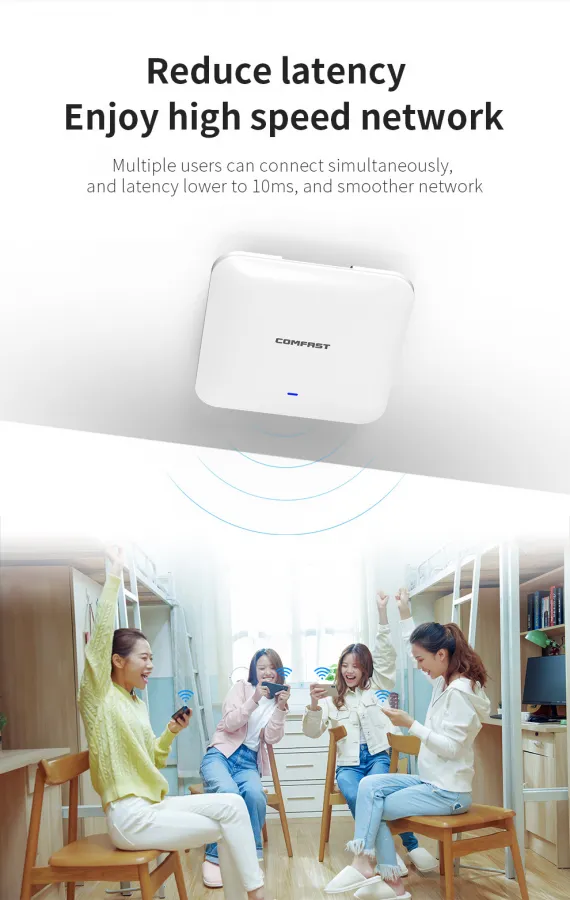

Reduce latency Enjoy high speed network

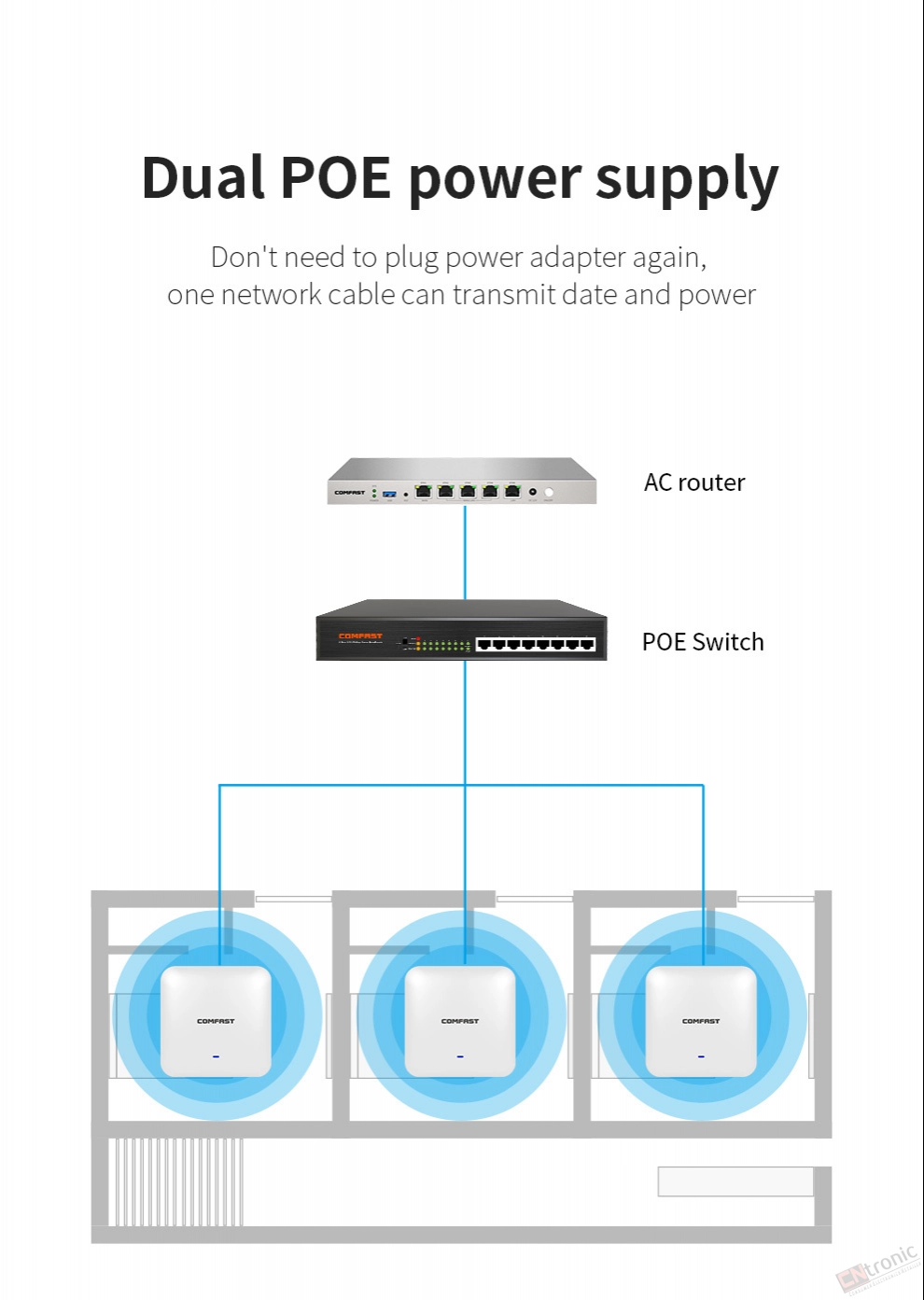

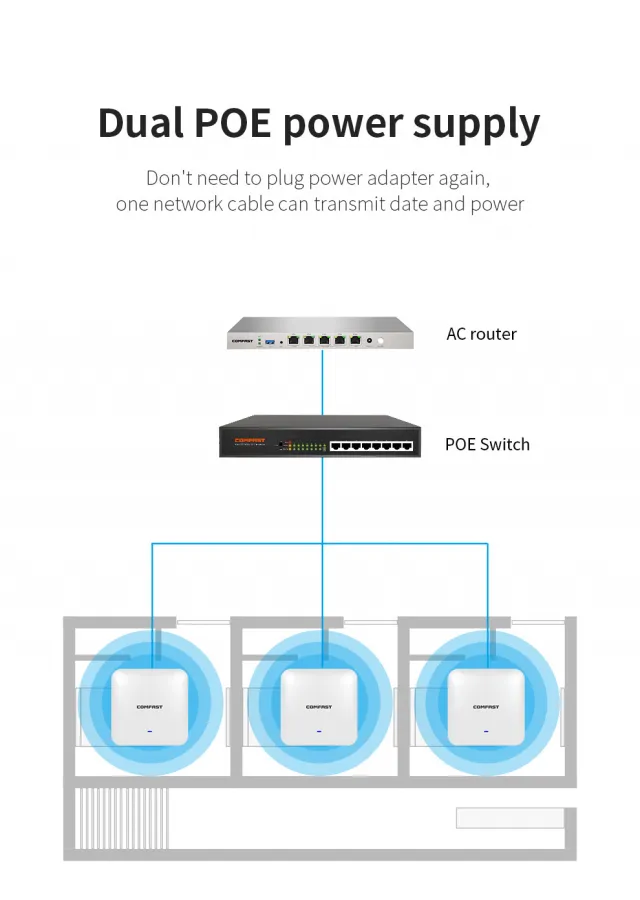

Multiple users can connect simultaneously and latency lower to 10ms , and smoother networkDual POE power supply

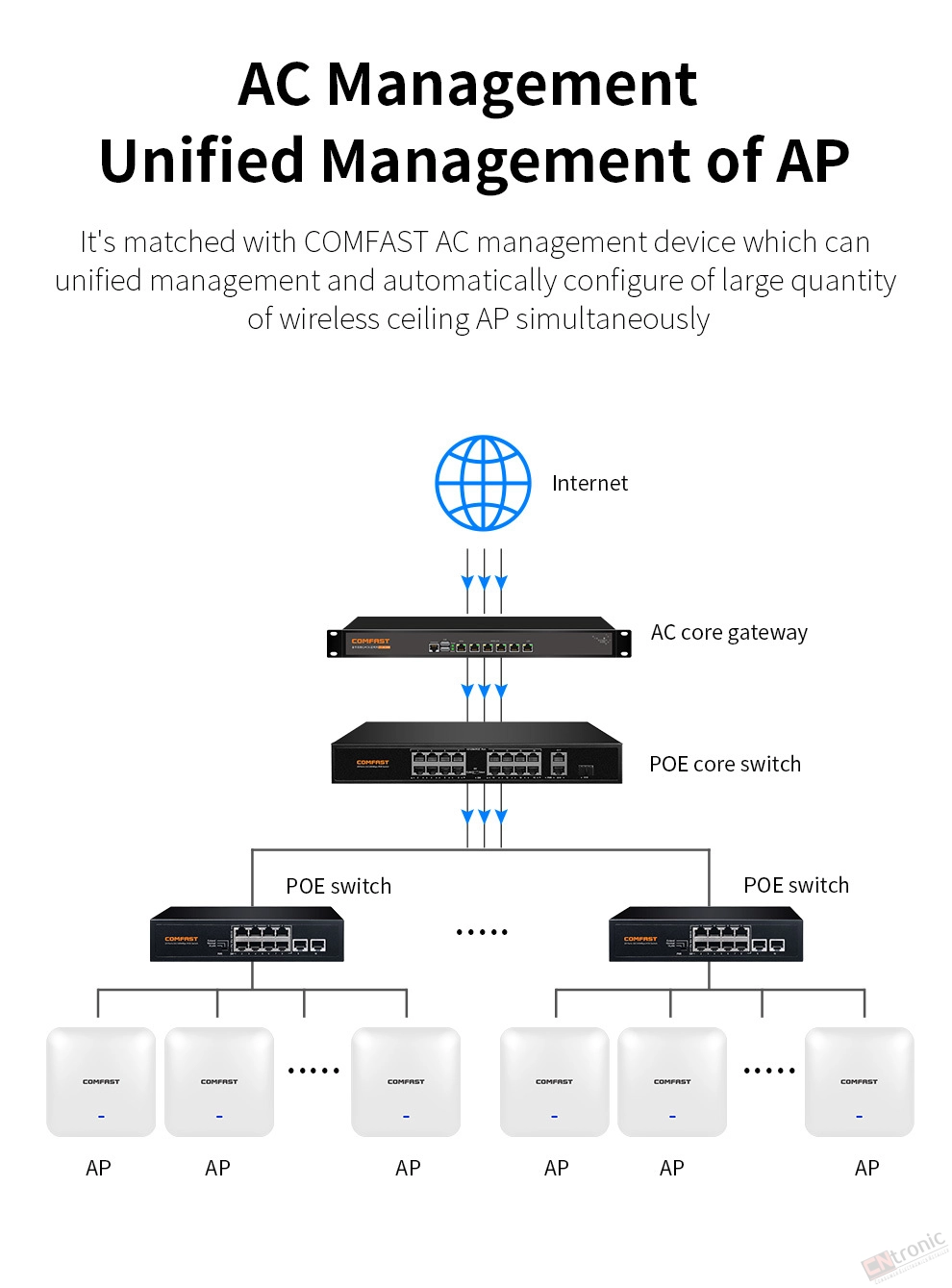

Don't need to plug power adapter again,one network cable can transmit date and powerAC Management Unified Management of AP

It's matched with COMFAST AC management device which can unified management and automatically configure of large quantity of wireless ceiling AP simultaneouslySeamless roaming FunctionInstallation Diagram

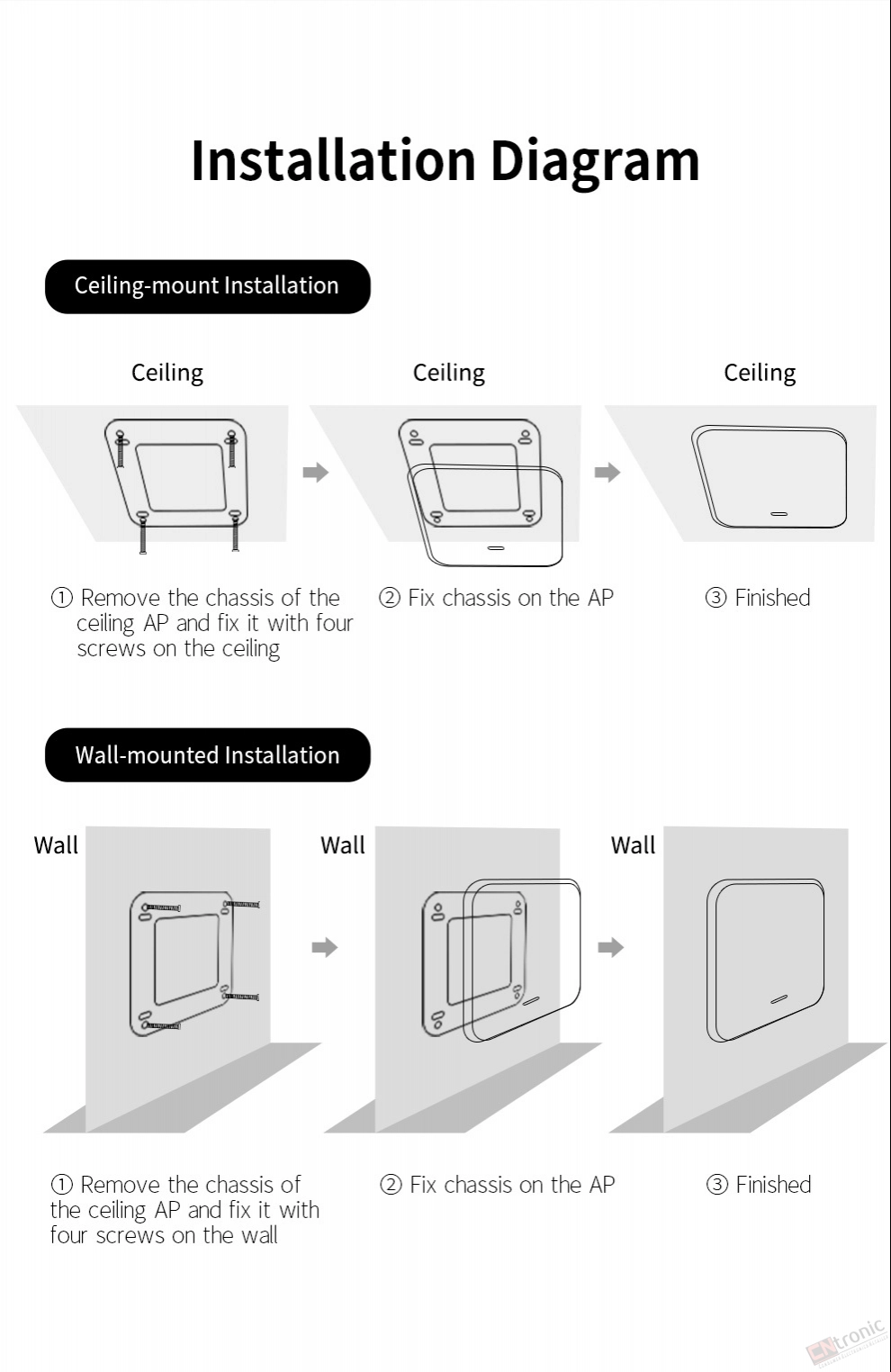

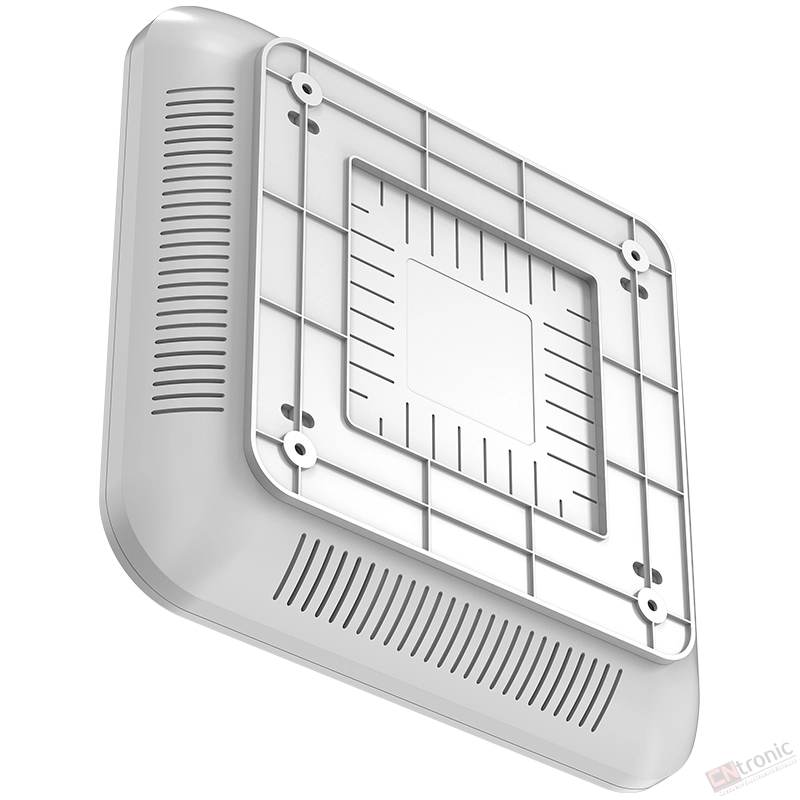

Ceiling-mount Installation

1.Remove the chassis of the ceiling AP and fix it with four screws on the ceiling

2.Fix chassis on the AP

3.finished


Wall-mounted Installation

1.Remove the chassis of the ceiling AP and fix it with four screws on the wall

2.Fix chassis on the AP

3.finishedApplication multi-scenes

Provide Wifi coverage and marketing solution for varieties of scenesacess point wifi 6 comfast ap router comfast access point 802 11ac access point wifi 6 access point access point comfast wifi6 access point wifi 6 poe access point wifi 6 access point wifi 6 access point poe poe wifi 6 access point




Q&A
Q1.How long the range of the Access Point ?

A:This indoor access point , as for no obstacles environment, it can cover 200-500square.


Q2.How Many pieces included in the package ?Does it included poe adapter?

A:The package included the 1pcs access point and 1pcs 48V poe adapter and 1pcs network cable and accessories Screws ,Install guide,  Warranty Card;



Q3. What is the firmware language ?What language can i change to ?

A: The access Point support English and Chinese ,generally you can choose English when setting ;



Q4.How many users can connected at the same time ?

A:This Access Point support 80-160 users at the same time as no obstacles environment


Q5.Does the access point support openwrt ddwrt ?

A:The access Point support openwrt and ddwrt firmware ,but this need you udpate by yourself.If you have experience, you can udpate ,We not suggest you udpate,if you have no experience .



Q6.How many ssid can be set in this access point ?

A:The access Point can set 16 ssid



Q7.Does the access point support 48V poe switch?

A: Yes,the access point can connected with 48V poe switch as power supply.



Q8.Does it work as a WiFi repeater?

A:The access point support AP/Router/Repeater/Bridge mode

can set as repeater mode , just repeater mode will have signal loss , generally we suggest set access point connected with router by network cable as AP mode



Q9:Does it support 5G?

A: This is 3000Mbps Dual Band Access Point , Support 2.4G and 5G

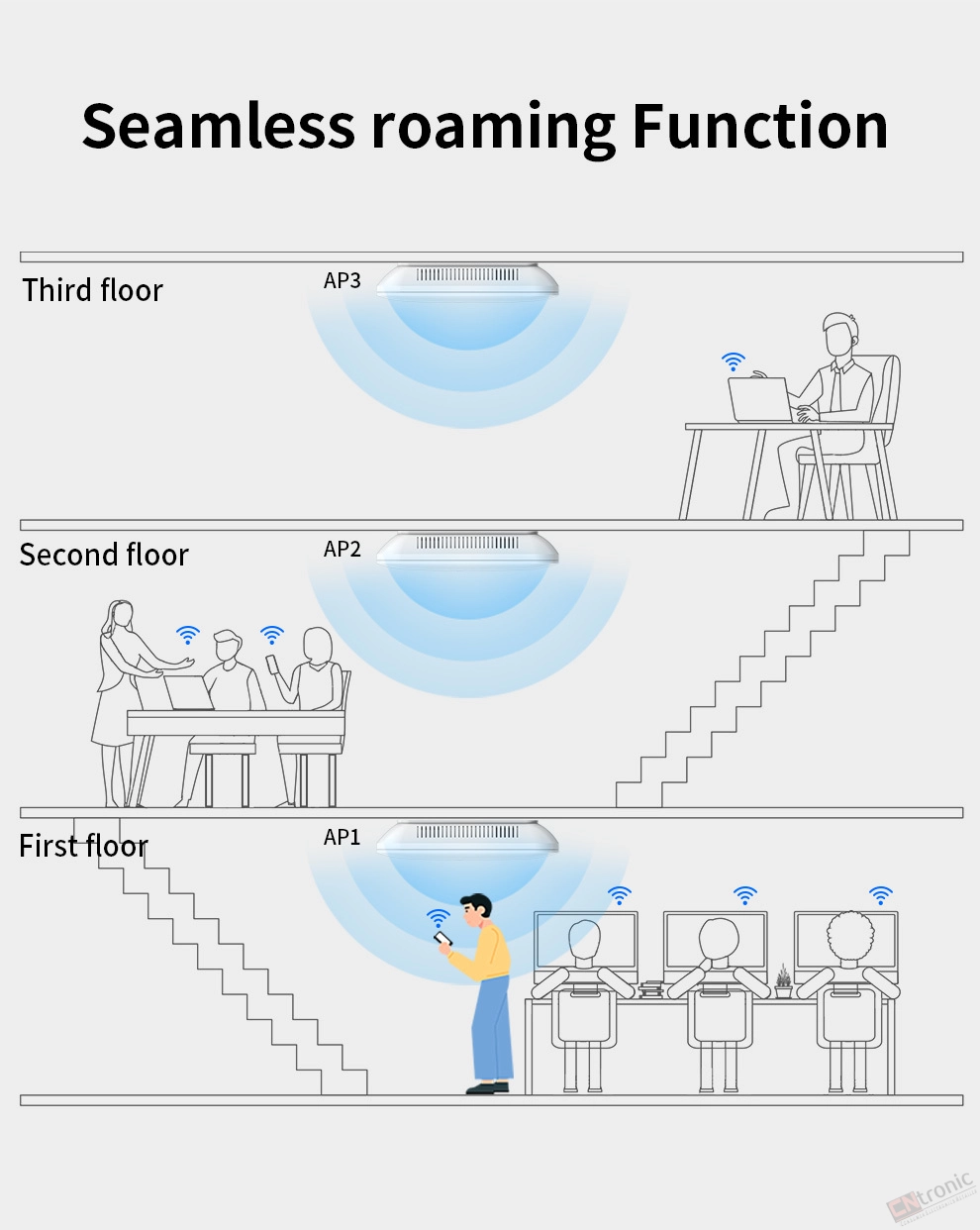

Q10:Does it support wireless seamless roaming funciton?

A:yes, Support seamless roaming function,AC router work with access point ,AC Router set the same ssid ,easy make managment and check the access point working condition.


If you need AC router for managment ,please have a check this link CF-AC101


Packaging Details

  • Unit Type:
  • Package Weight: 1.300
  • Package Size: 10x11x9

  • Brand Name: comfast
  • Origin: Mainland China
  • Hign-concerned Chemical: None
  • Certification: CE
  • Certification: FCC
  • Package: Yes
  • Model Number: CF-E393AX
  • Wireless Protocol: 802.11n
  • 3000Mbps WiFi6 Wireless Wall-mounted AP Color: White
  • 3000Mbps Wifi Ceiling AP DDR: 128MB
  • Wifi 6 Ceiling AP Flash: 16MB
  • Wall-mounted Ceiling AP Chipset: MT7981A+MT7976D+MT7531AE
  • 3000Mbps wifi6 AP Antenna: Built in 4*3dBiAntennas
  • wifi 6 Access Point 2.4GHz: 574Mbps
  • WiFi Coverage AP 5GHz: 2400Mbps
  • Ceiling-mounted AP Output Power (Max): 26dBm
  • wifi 6 access point Receiving Sensitivity (Max): -96dBm
  • gigabit access point 802.11ax/ac/n/a Frequency: 5.18Ghz-5.825Ghz
  • wifi 6 access point poe 802.11b/g/n Frequency: 802.11b/g/n: 2.412GHz-2.4835GHz
  • wifi 6 ax access point MIMO-OFDM (11n): MCS 0-15
  • route wifi 6 MIMO-OFDM (11ac): MCS 0-9
  • wifi 6 range extenders MIMO-OFDMA (11ac): MCS 0-11
  • wifi 6 access points WAN RJ45 Ethernet Port: 1* 10/100/1000Mbps
  • wifi 6 ceiling ap LAN RJ45 Ethernet Port: 1* 10/100/1000Mbps
  • wifi 6 access point 5ghz Power Supply: 802.3af/802.3at POE Power Supply(0-100m)
  • 802 11ax comfast access point Power Adapter: 48V 0.5A POE PowerAdapter(Configured)
  • wifi 6 access point 5ghz Installation Way: Ceiling-mounted, Wall-mounted
