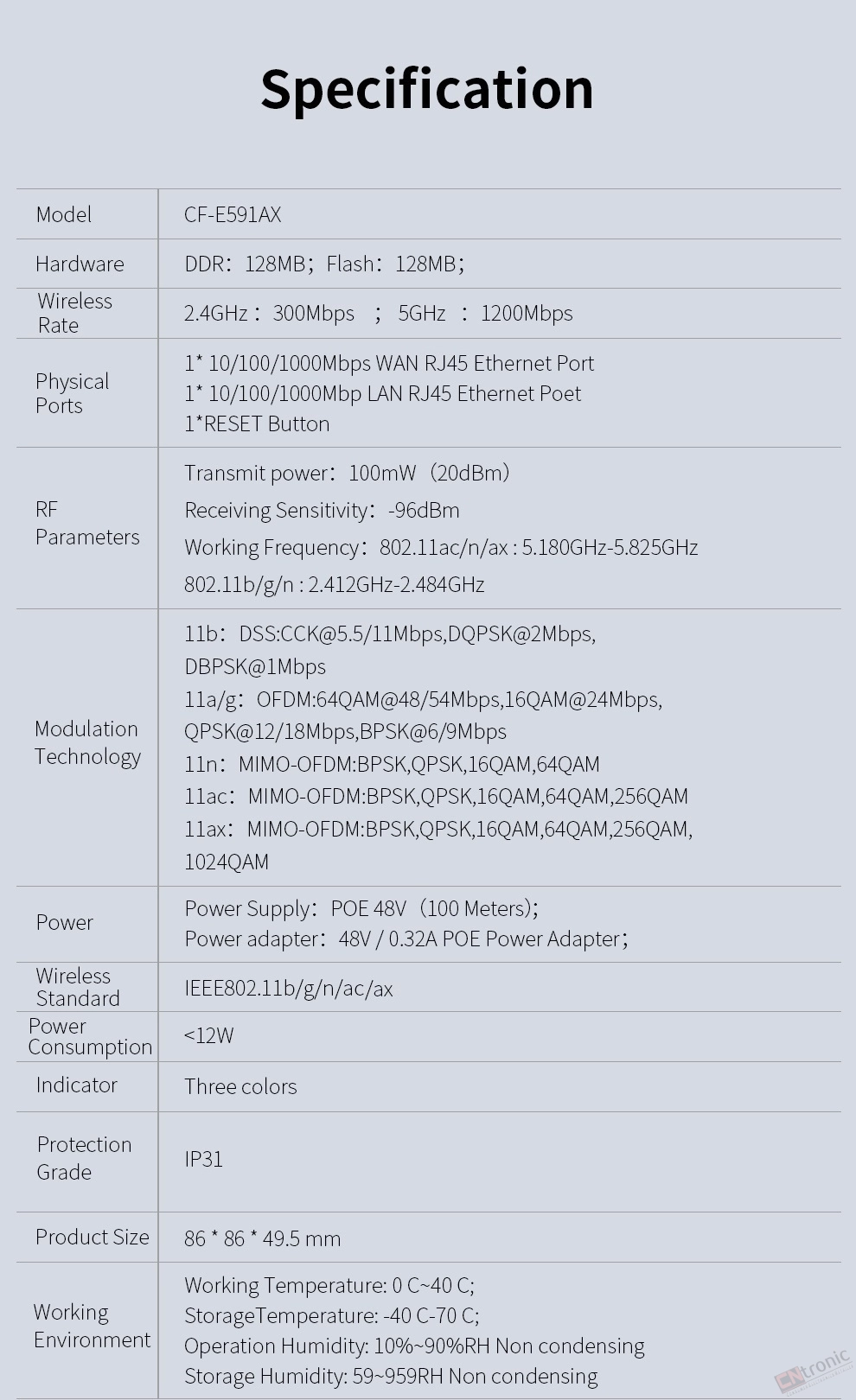

Specification:

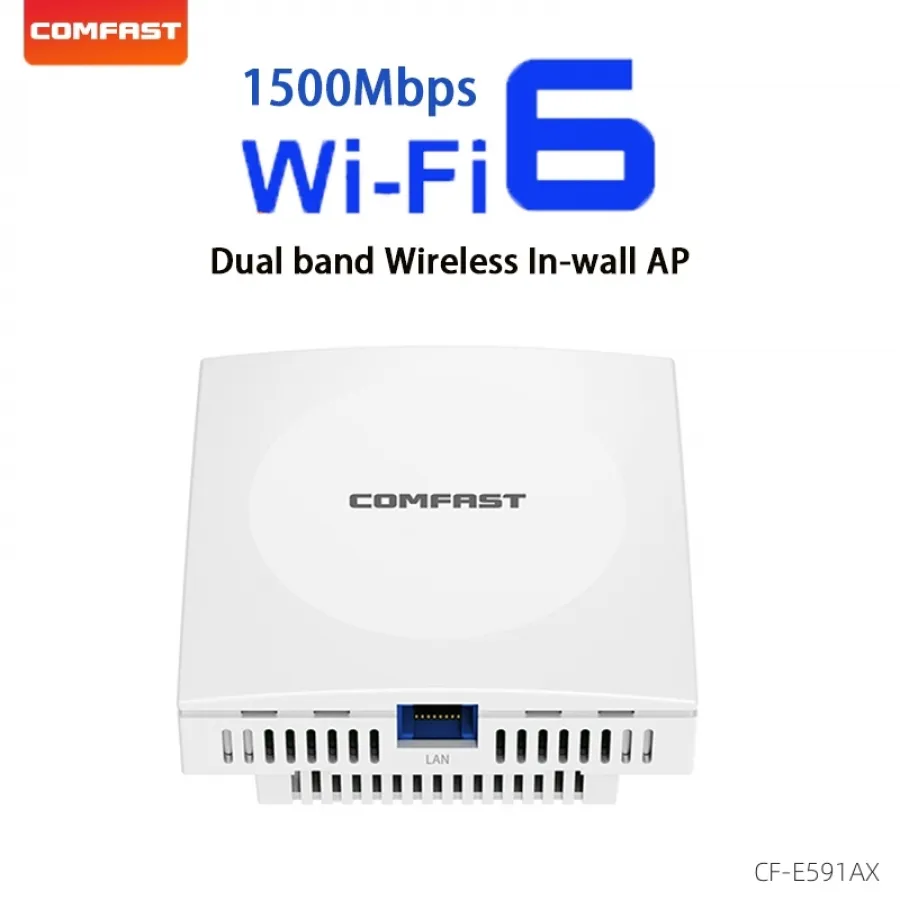

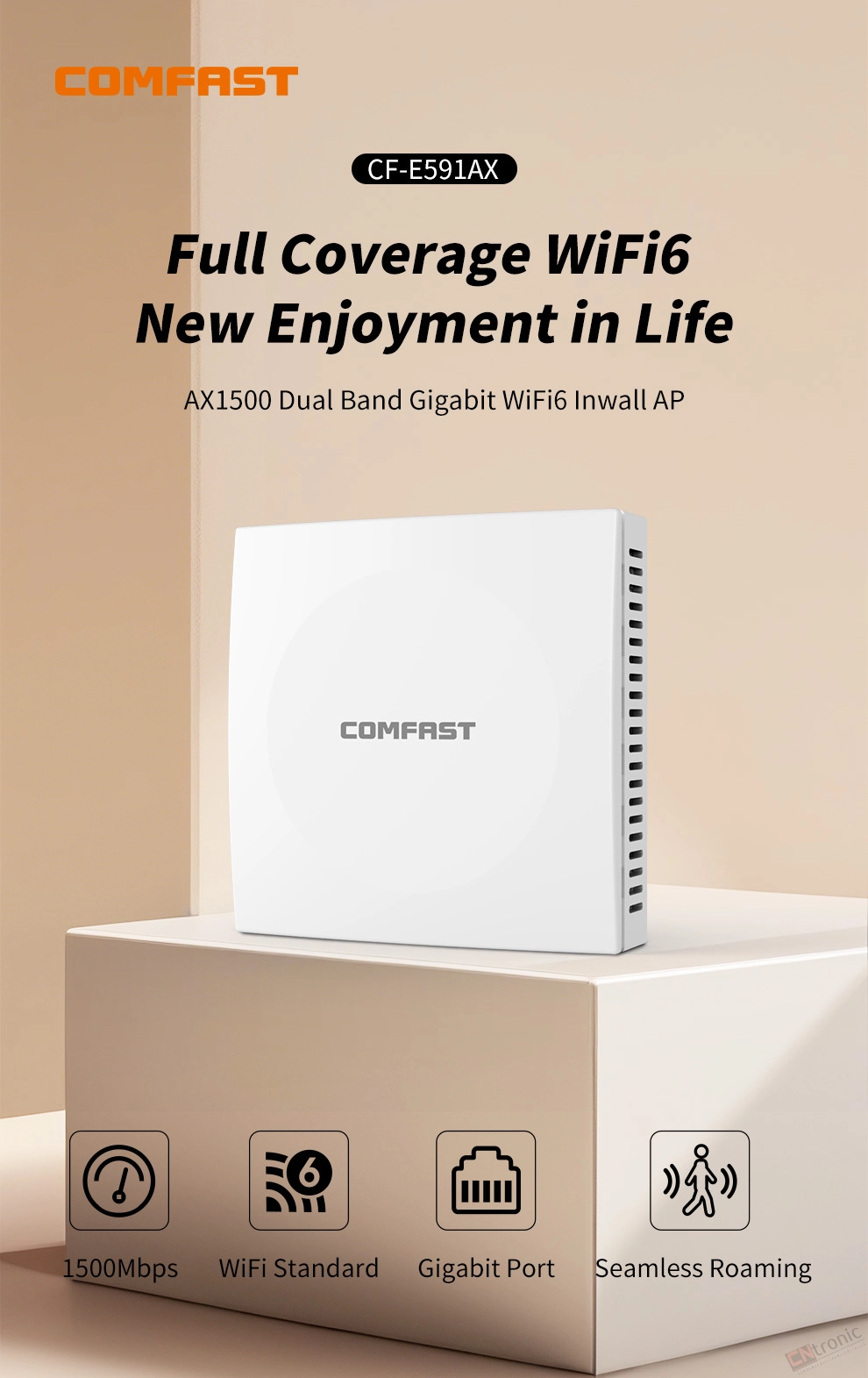

CF-E591AX is a 1500Mbps dual-band WiFi6 panel AP with wide-area coverage and seamless roaming.

●CF-E591AX adopts the new generation WiFi6 standard and supports 1500Mbps wireless rate.

●2.4GHz&5.8GHz dual-band, more enjoyable

●Support wireless roaming, unified management of COMFAST AC

●Built-in 2 * 3dBi, strong signal through the wall

●Support 802.11a/b/g/n/ac/ax protocol standards

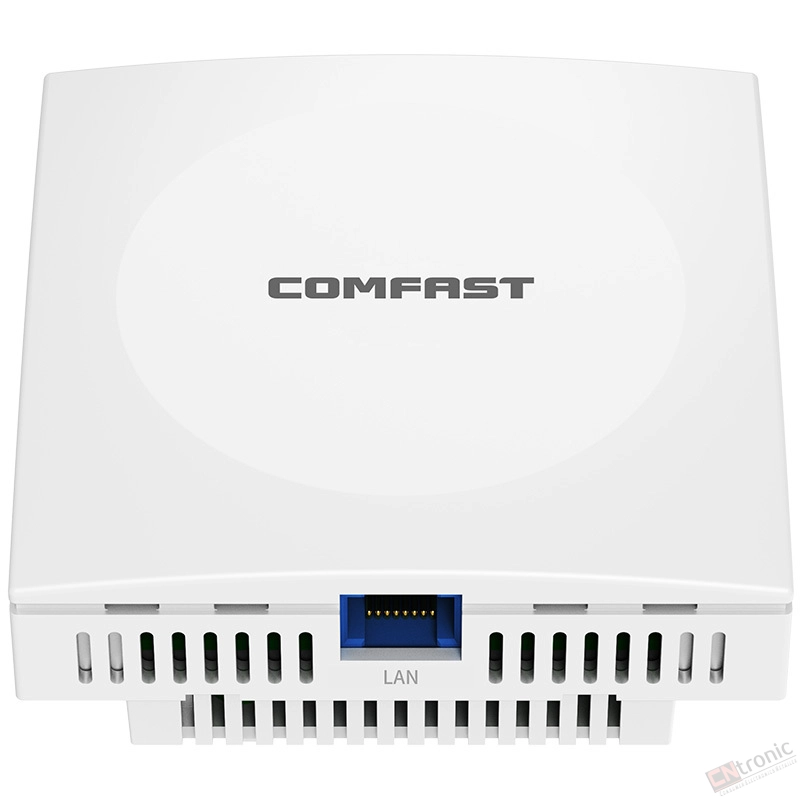

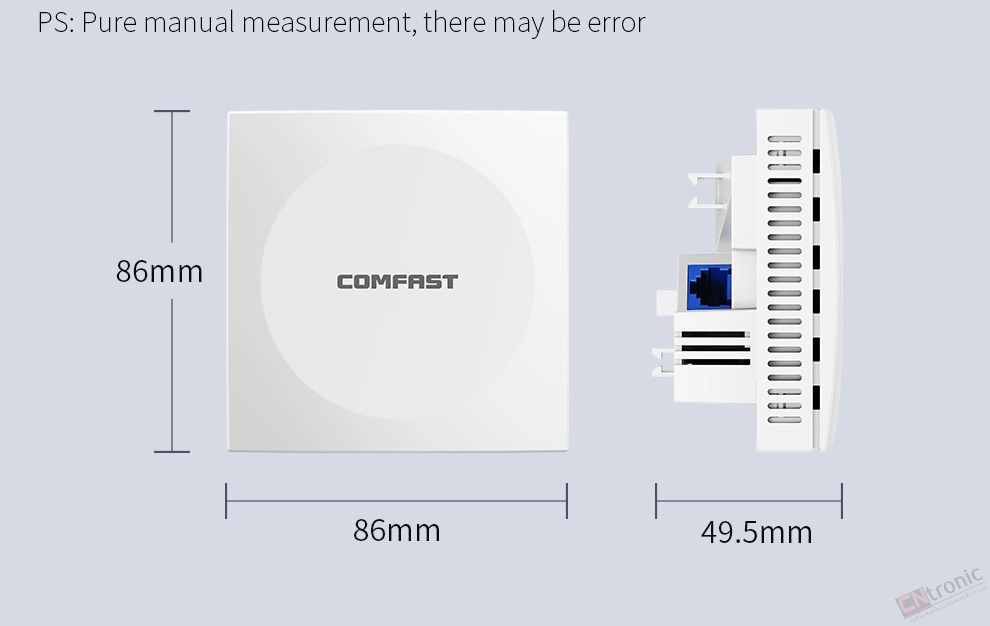

● Standard 86-type panel AP, Gigabit network port

●Support ULMU-MIMO, OFDMA, TWT, technology

●Supports 48V/0.32A POE power adapter, but not included in the package

(Not equipped with POE power supply,If you do not have a POE power supply, you need to purchase a POE power module or use it with a POE power supply.)

1*In-wall AP

1*Warranty Card

2* Screws

Efficient Coverage Enjoy Wifi

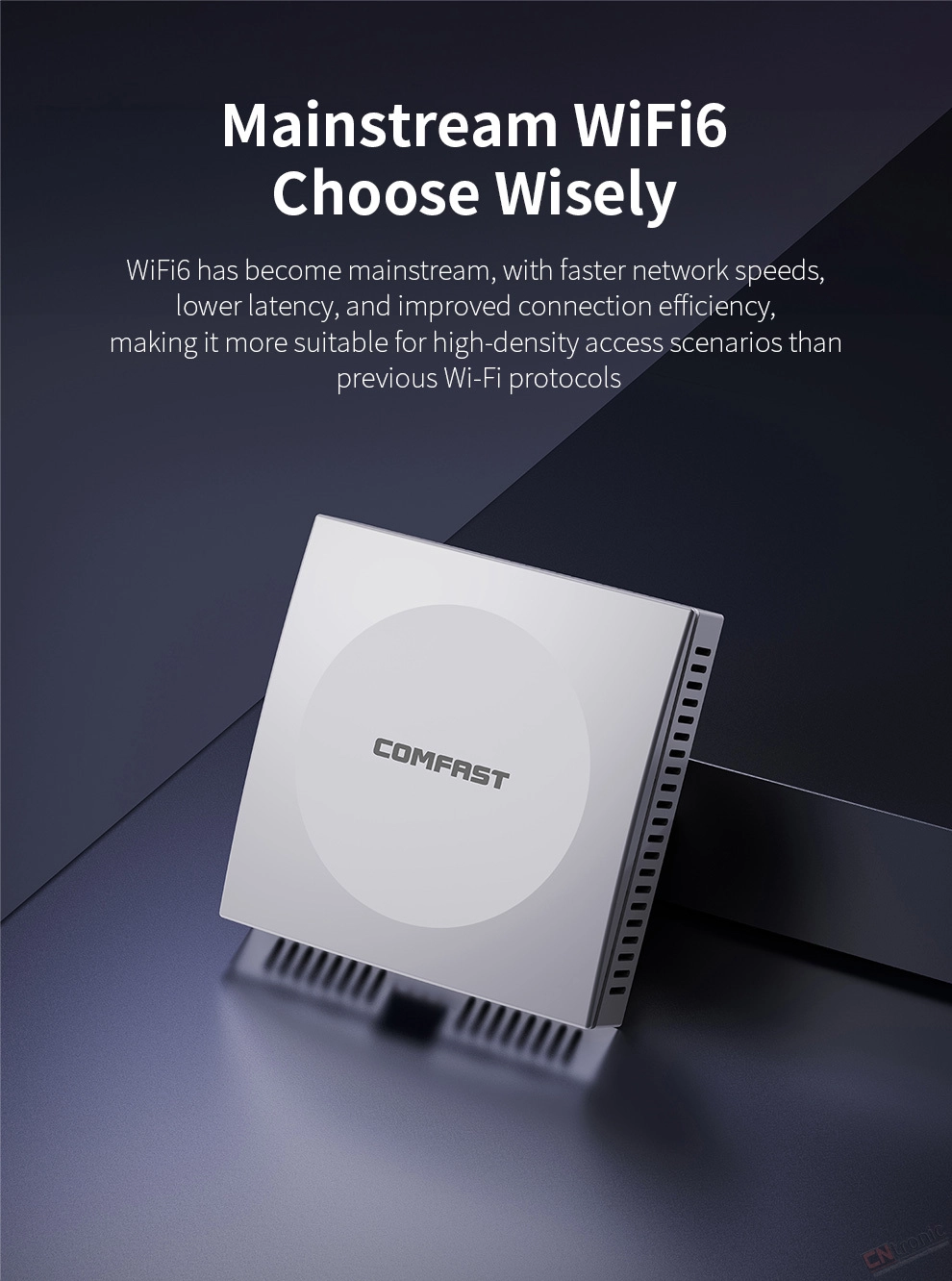

New generation of wifi technology ,stronger performance , better experienceMainstream WIFI6 Choose Wisely

WIFI6 has become mainstream , with faster network speed slower latency , and improved connection efficiency ,making it more suitable for high-density access scenarios than previous Wi-fi protocolsPowerful Tri-core Power Engine

Branded triple-core CPU program , the performance of each enhancement ,high-speed processing of data transmission and forwarding , full of power ,to maintain the network from the beginning to the end of the stableDual Band Prioritized 5G

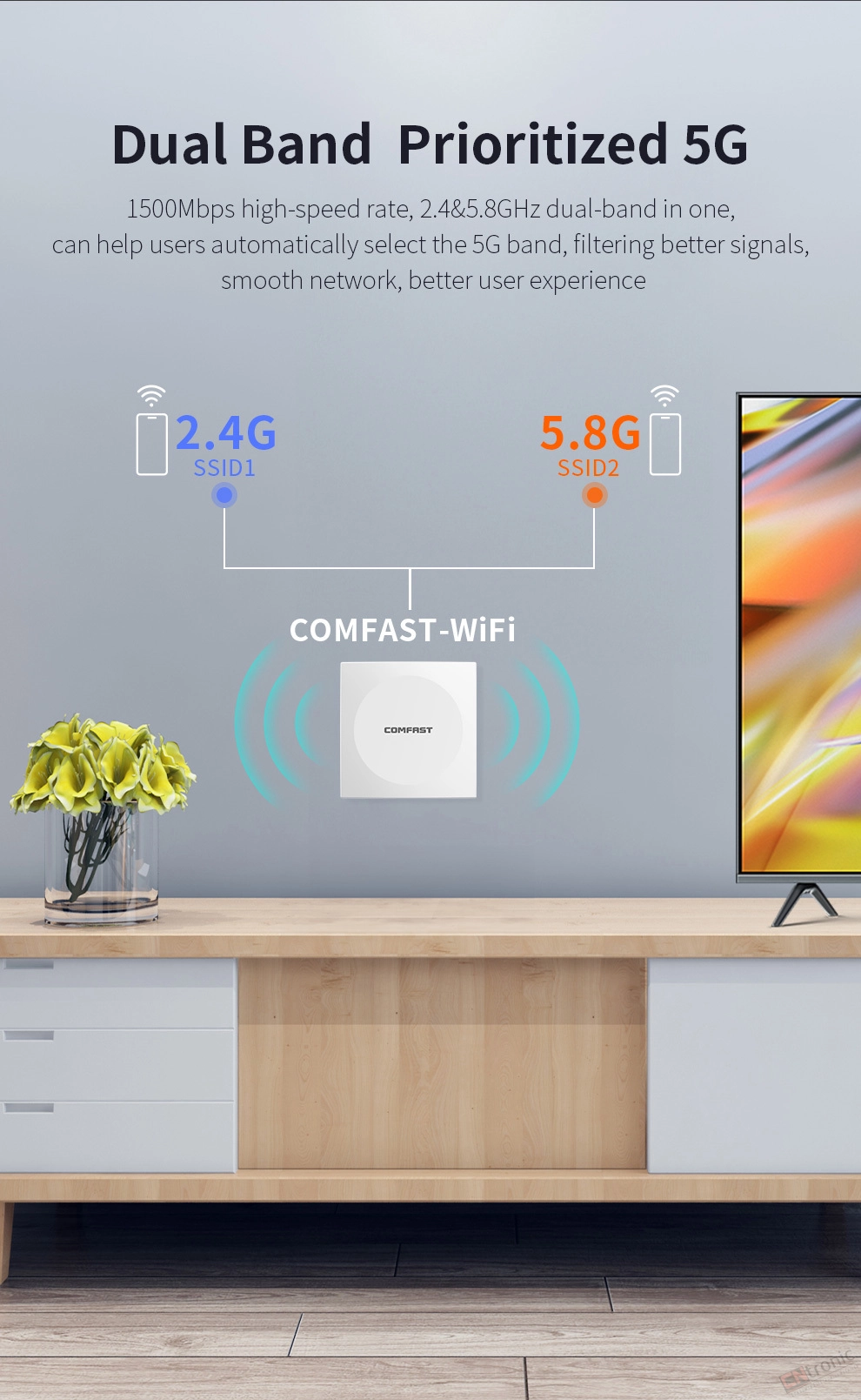

1500mbps high-speed rate , 2.4 & 5.8GHZ dual-band in one can help users automatically select the 5G band , filtering better signals ,smooth network better user experienceFull Gigabit Ethernet port Full Performance

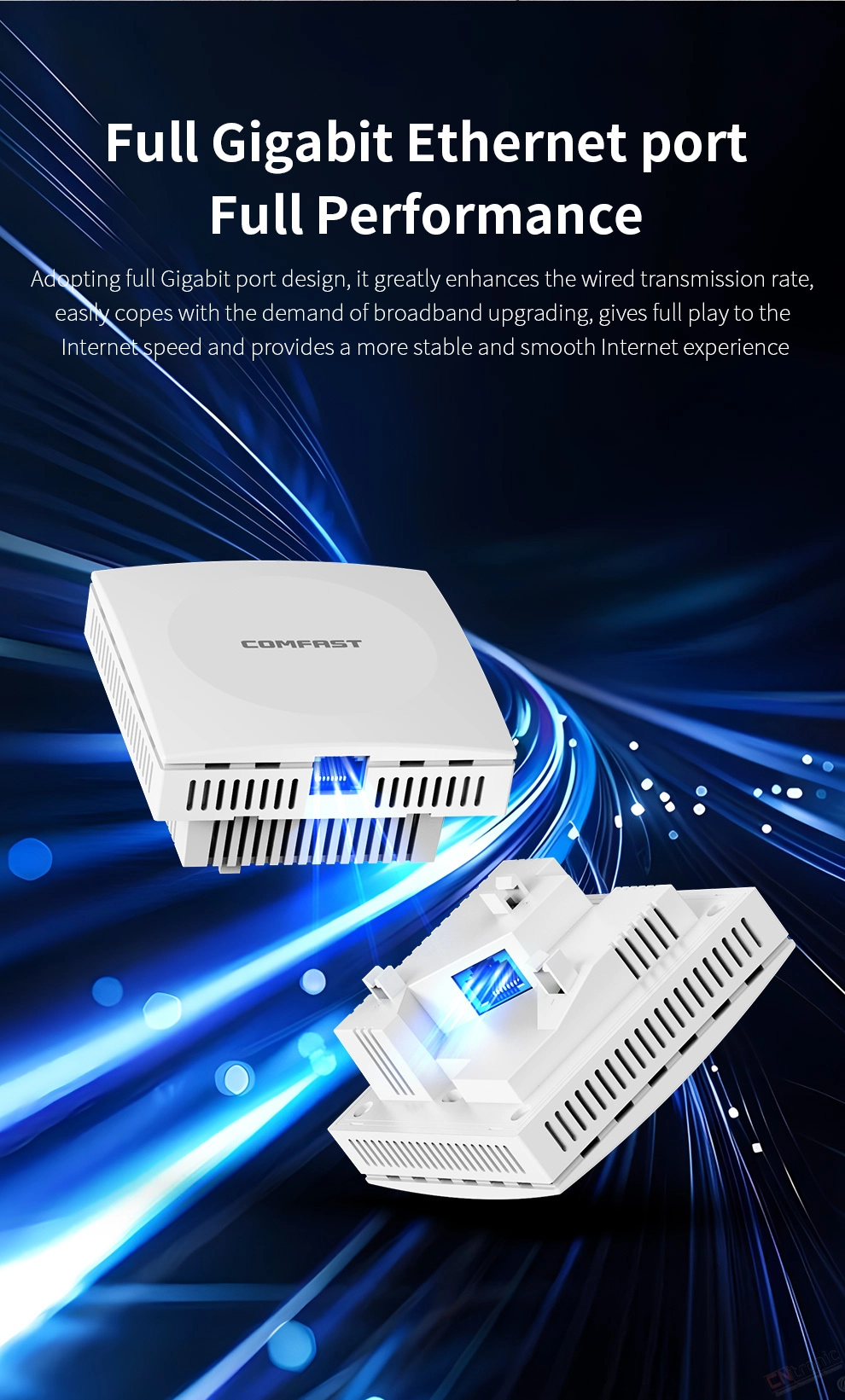

Adapting full Gigabit port design , it greatly enhances the wired transmission rate ,easy . copes with the demand of broadband upgrading , gives full play to the Internet speed and provides a more stable and smooth Internet experiencePOE power supply Need only one network cable

Supports 48V standard POE power supply , each AP only needs a network cable to transmit data and power at the same time,easy to constructIn-wall Design Free from clutter

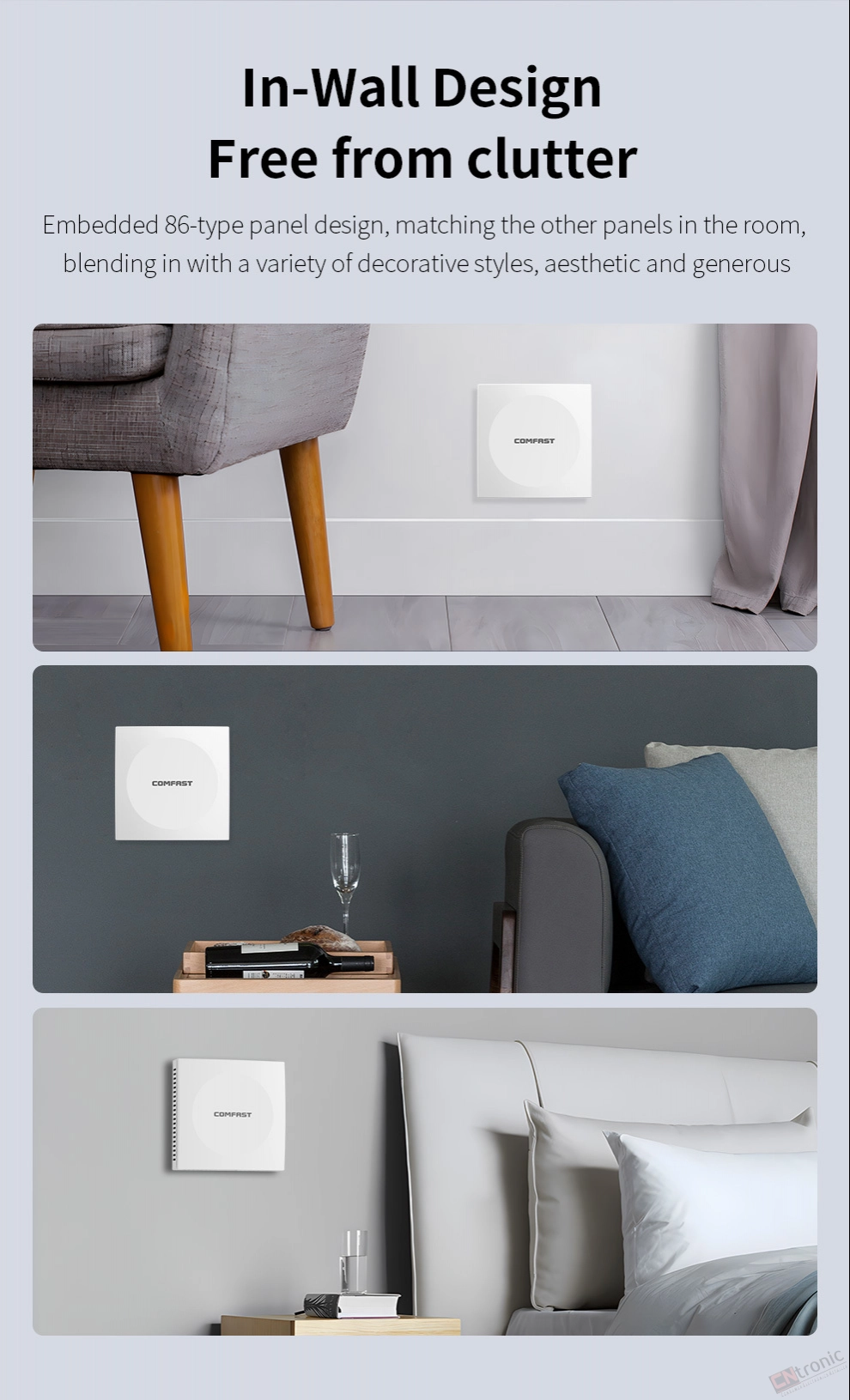

Embedded 86-type panel design , matching the other panels in the room ,blending in with a variety of decorative styles , aesthetic and generousReduce Latency Network Soaring

The combination of OFDMA + MU-MIMO technology improves each interfering with each other , user's network scenarios without interfering with each other, with latency as low as 10ms for a smoother networkTWT Technology Energy saving

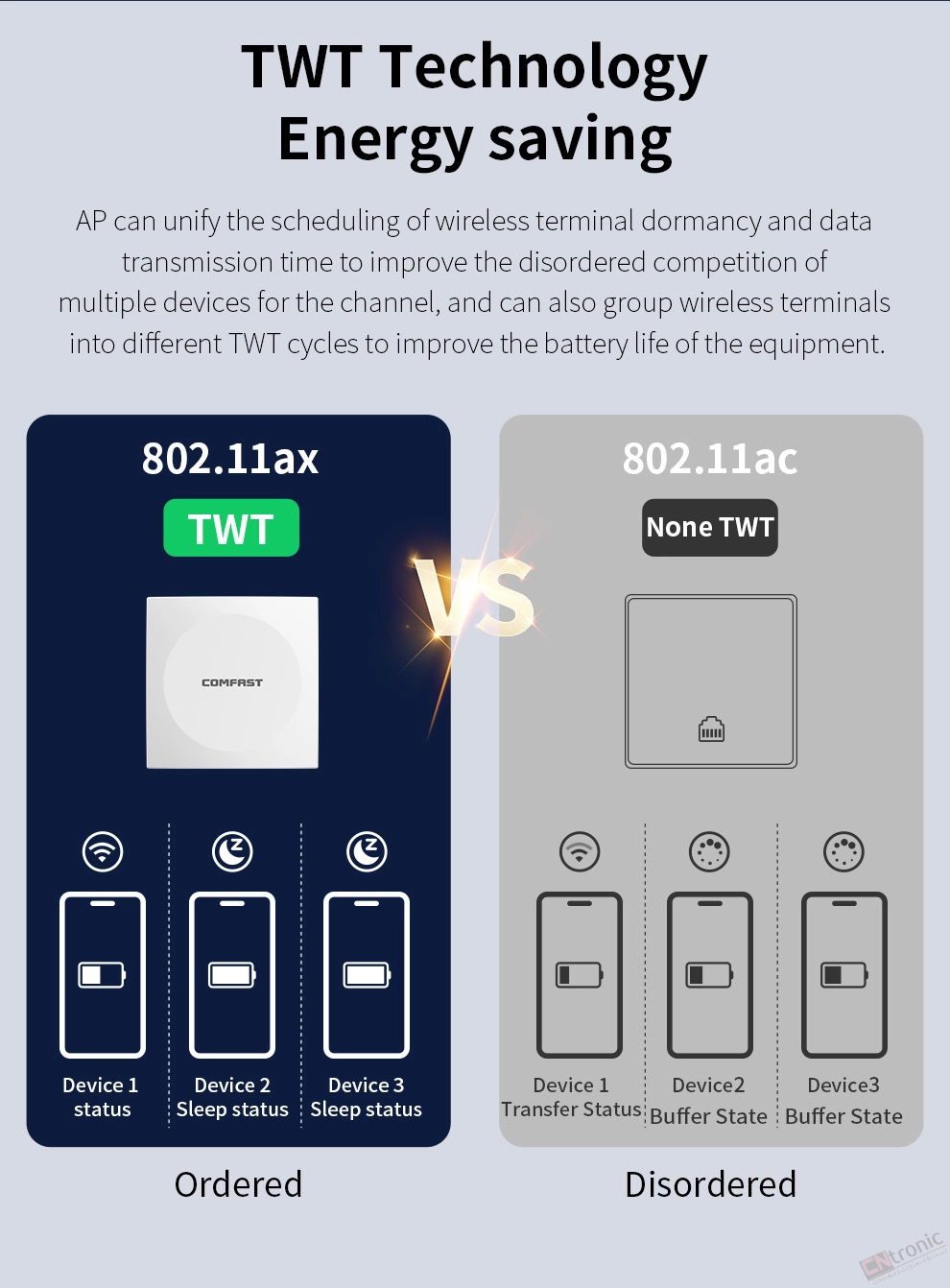

AP can unify the scheduling of wireless terminal dormancy and data transmission time to improve the disordered competition of multiple devices for the channel , and can also group wireless terminals into different TWT cycles to improve the battery life of the equipmentAutomatic RF tuning Optimize overall performance

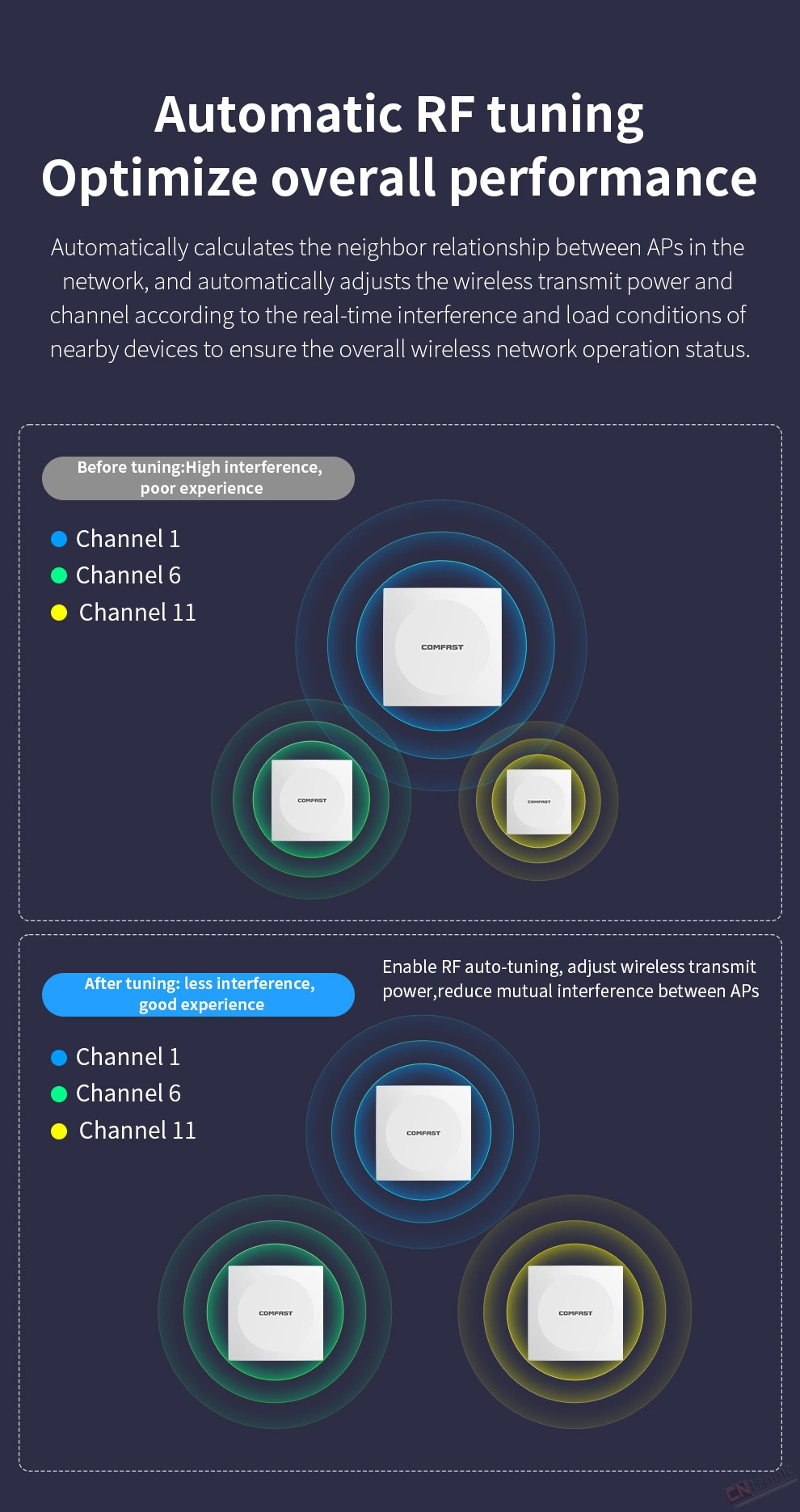

Automatically calculates the neighbor relationship between Aps in the network , and automatically adjusts the wireless transmit power and channel according to the real-time interference and load conditions of nearby devices to ensure the overall wireless network operation statusRemote Management Convenient maintenance

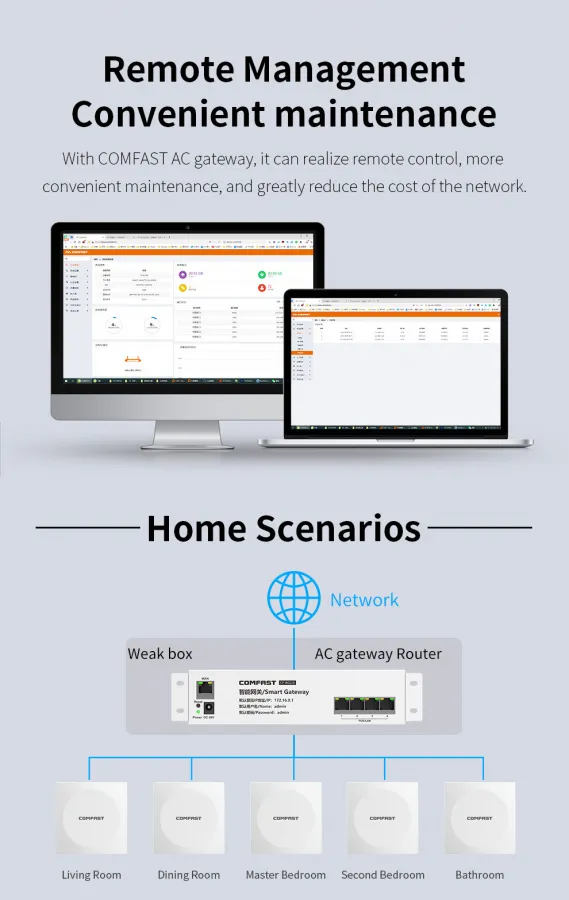

With COMFAST AC gateway , it can realize remote control , more convenient maintenance , and greatly reduce the cost of the networkSeamless roaming Easy switching

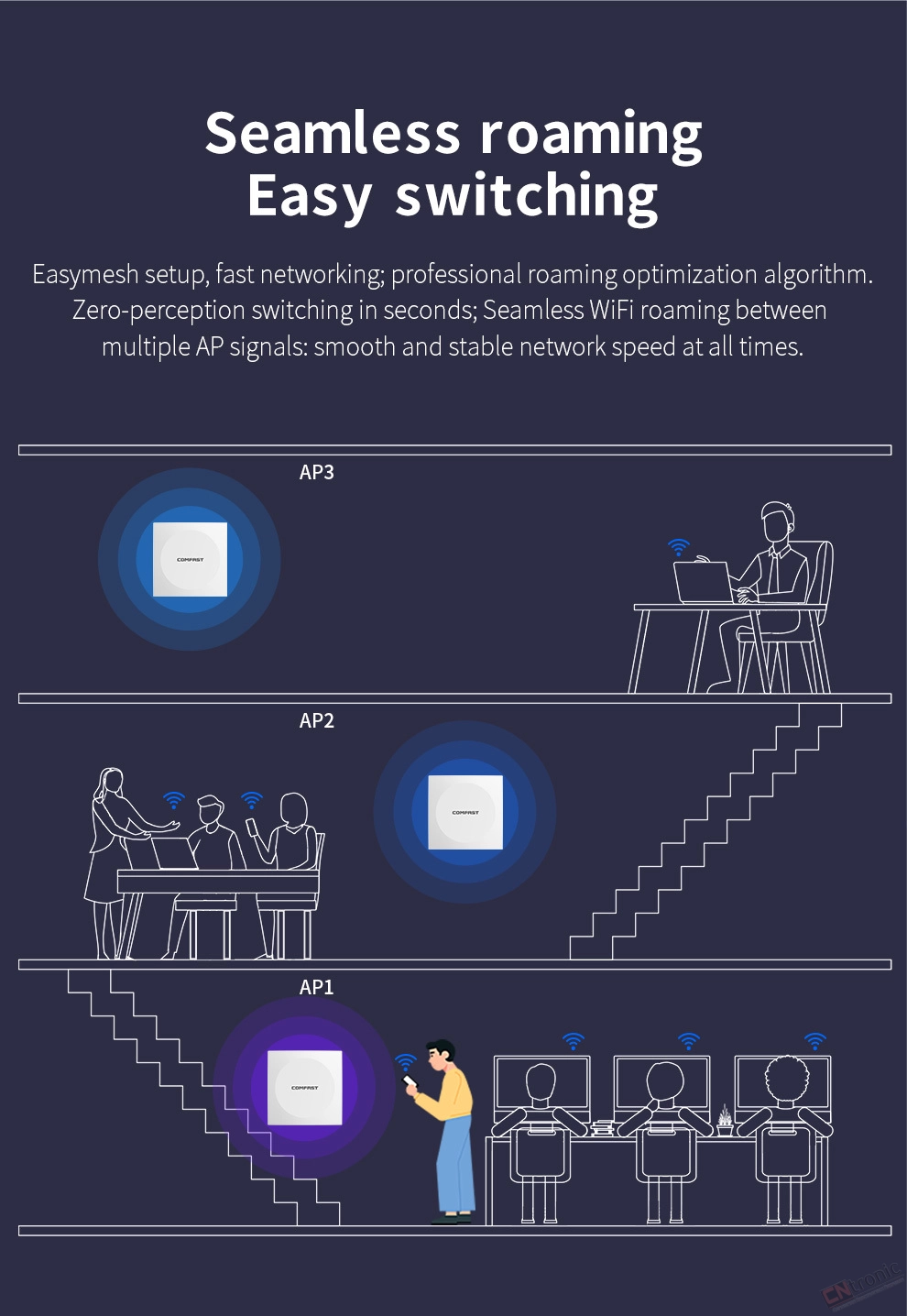

Easy mesh setup , fast networking ; professional roaming optimization algorithm Zero-perception switching in seconds ; Seamless Wifi roaming between multiple AP signals : smooth and stable network speed at all timesApplication multi-scenes

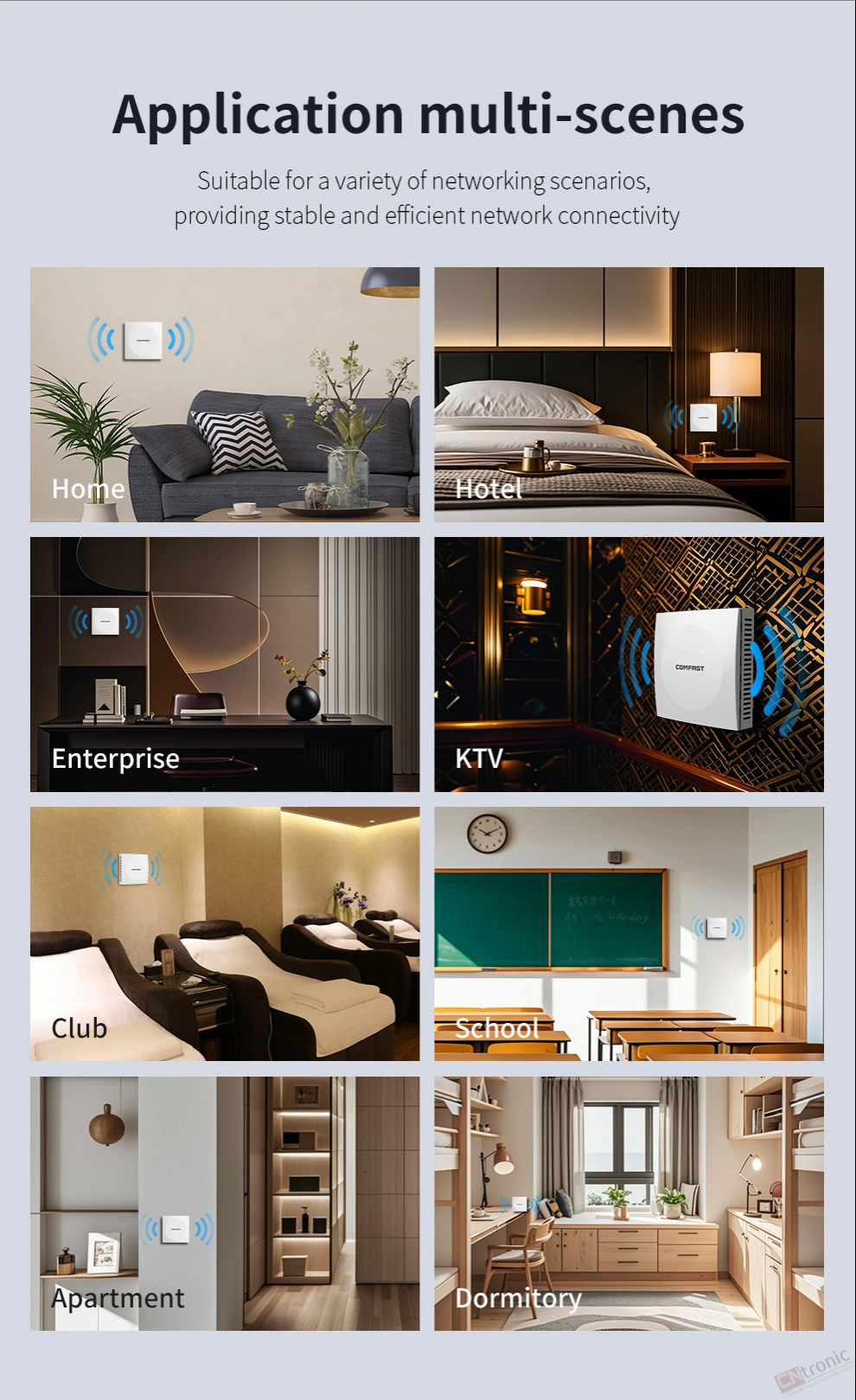

Suitable for a variety of networking scenarios ,providing stable and efficient network connectivity

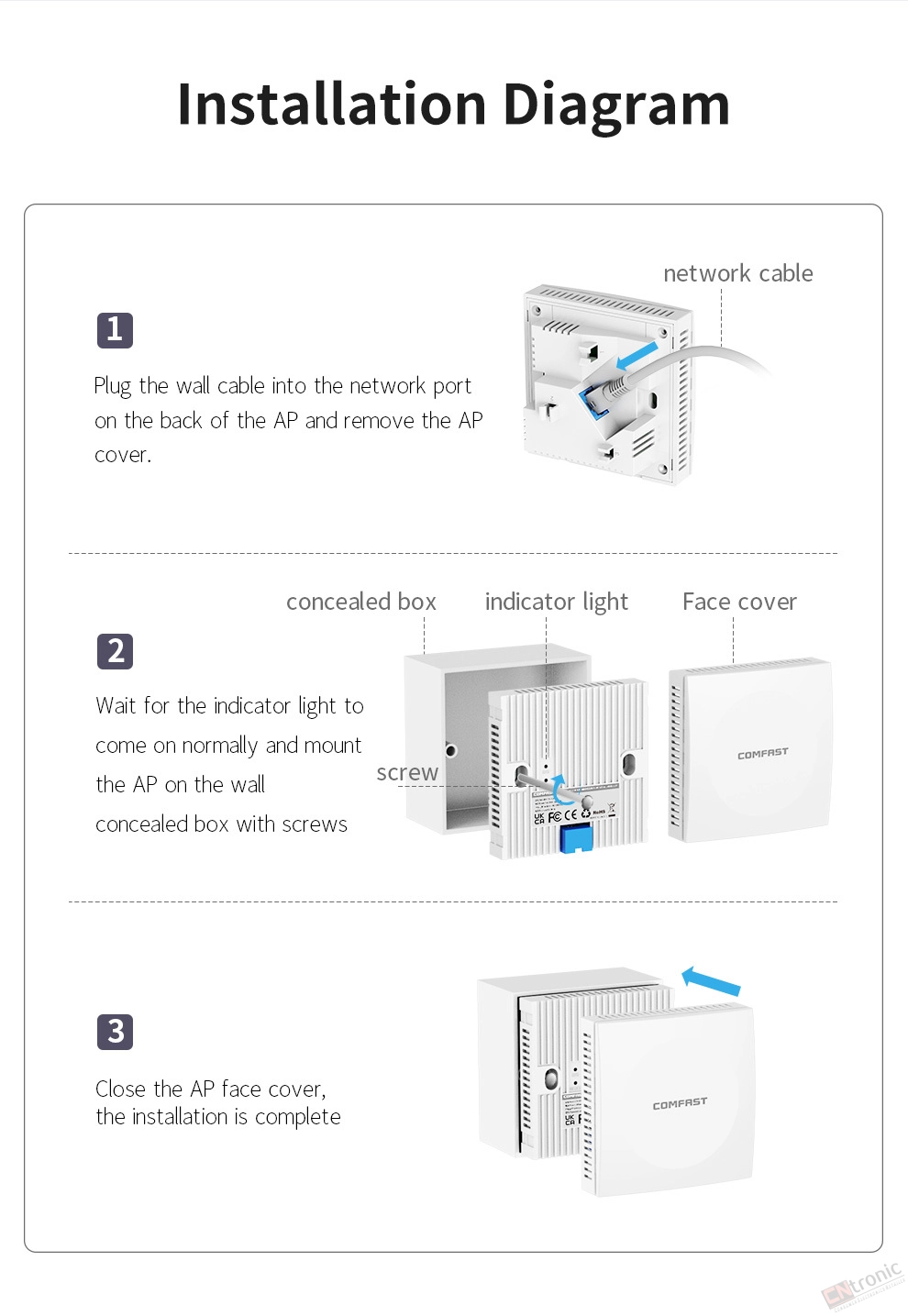

Installation Diagram

1.Plug the wall cable into the network port on the back of the AP and remove the AP cover

2.Wait for the indicator light to come on normally and mount the AP on the wall concealed box with screws

3.Close the AP face cover the installation is complete
