8MP Auto Tracking 12X Zoom IP POE 4K HDMI USB SDI PTZ Camera for Video Conferencing&Telemedicine
0.0 ( votes)
Price:
US $1908.70
Discount Price:
US $
1240.66
-35%
8MP Auto Tracking 12X Zoom IP POE 4K HDMI USB SDI PTZ Camera for Video Conferencing&Telemedicine

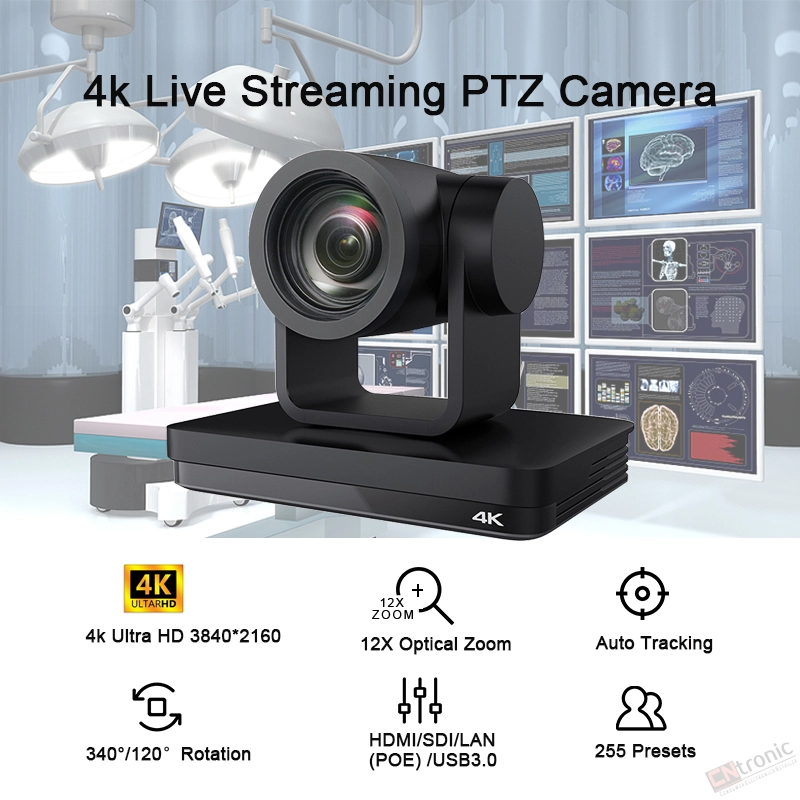

Main Features:
4K UHD Resolution: 8.29M megapixel high quality SONY CMOS sensor. Resolution is up to 4K (3840×2160) with frame rate up to 30fps.
Optical Zoom Lens: 12X optical zoom lens and 70° wide angle lens.
Leading Auto Focus Technology: Fast, accurate and stable auto focusing technology.
Low Noise and High SNR: Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
Multiple Video Output Interfaces: Support HDMI, SDI, USB3.0, wired LAN interface; support POE power, USB3.0 support dual stream.
Multiple Audio/Video Compression Standards: Support YUY2, MJPEG, H.264, H.265, NV12 video encoding formats, MJPEG, H.264, H.265 support up to 3840×2160 resolution 30 frames per second compression; support AAC, MP3, G.711A audio compression.
Audio Input Interface: Support AAC, MP3, G.711A audio coding, AAC, MP3 coding support 16000, 32000, 44100, 48000 sampling frequency.
Built In Gravity Sensor: Built in gravity sensor, support PTZ auto flip, convenient for engineers to set up.

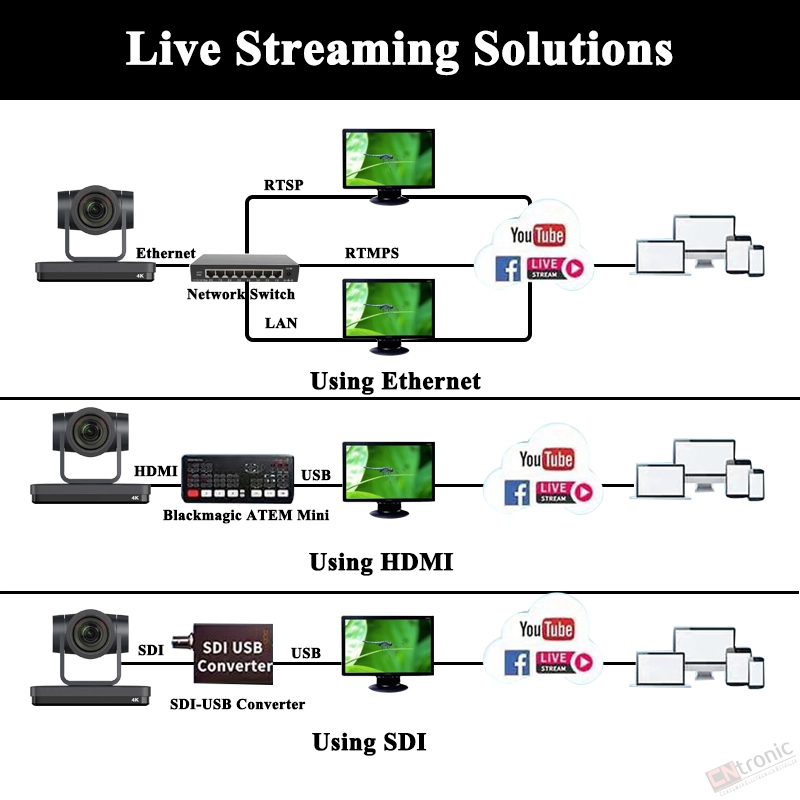

Multiple Network Protocol: Support ONVIF, GB/T28181, RTSP, RTMP, VISCA Over IP, IP VISCA, RTMPS, SRT protocols; Support RTMP push mode, easy to be connected to streaming server (Wowza, FMS); Support RTP multicast mode; Support network full command VISCA control protocol.

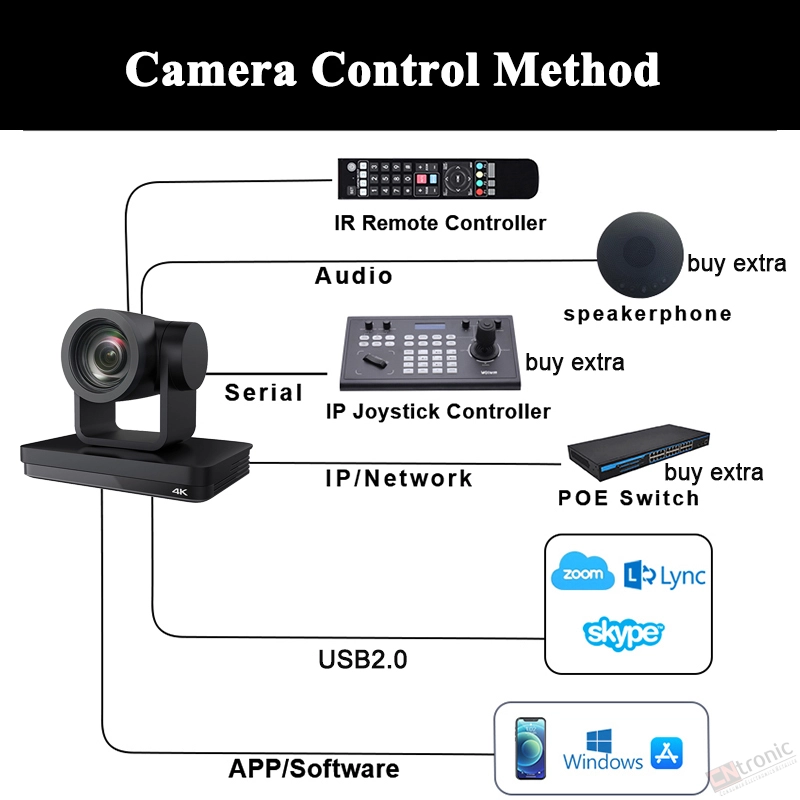

Control Interface: RS422 input(compatible with RS485), RS232 input/output, RS232 (cascade connection)
Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
Quiet Pan / Tilt Movement: With high accuracy step driving motor, camera can pan / tilt extremely quiet and smooth.

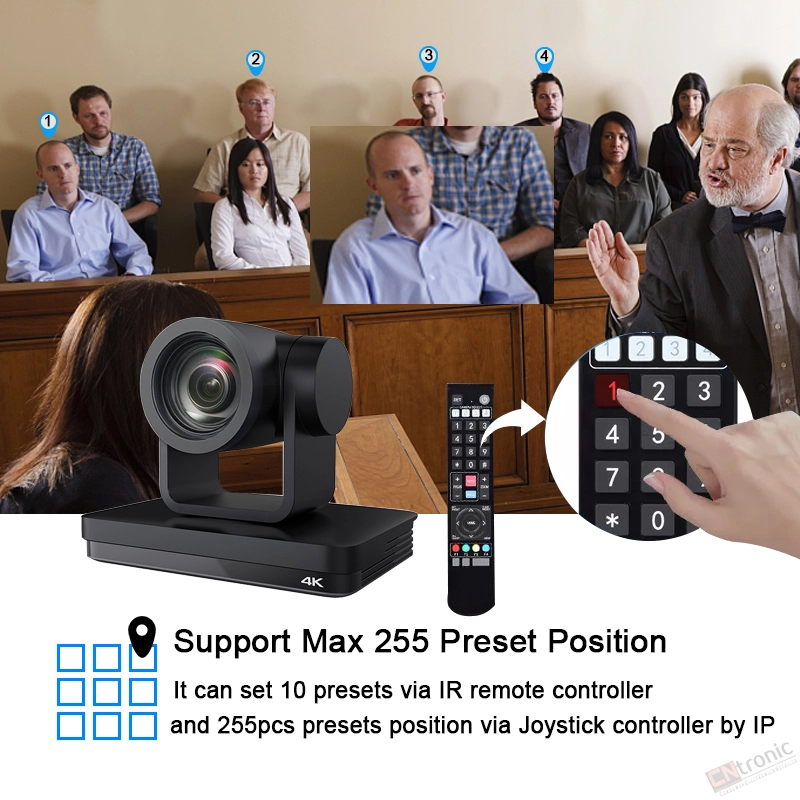

Multiple presets: Up to 255 presets (10 presets via remote control).
AI Tracking: Built in high speed processor and advanced image processing and analysis algorithm. Users can select real-time tracking or zone tracking based on their actual requirement.
Multiple Application: Online-education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc. The tracking target can be changed via clicking the target’s frame on the webpage.
Technical Parameter:
Model | FLA-UHD212 |
Optical Zoom | 12X Focal Length:3.9～46.8 mm ±5% |

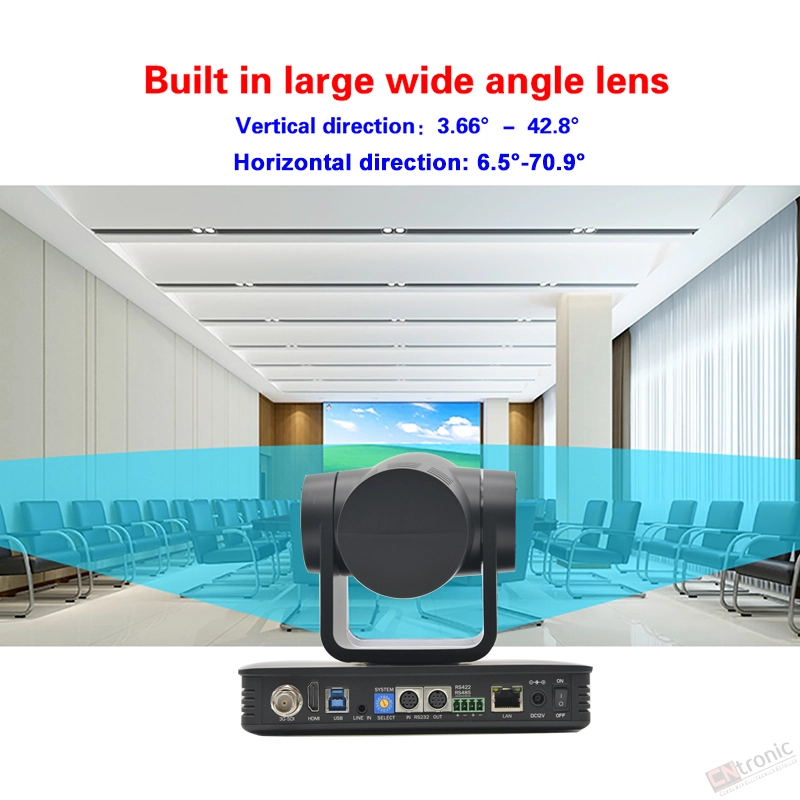

FOV | Horizontal:6.5˚(tele)~70.9˚(wide) vertical:3.66˚(tele)~42.8˚(wide) |
Aperture | F1.6-F2.8±5% |
Image Sensor | 1/2.8 Inch SONY CMOS Sensor |
Effective pixels | 8.51M; 16:9 |
Video Format | HDMI： 4KP30、4KP25、1080P60、1080P50、1080P30、1080P25、 720P60、720P50、1080P59.94、1080P29.97、720P59.94 SDI 1080P60、1080P50、1080P30、1080P25、720P60、720P50、 1080P59.94、1080P29.97、720P59.94 USB3.0 Main Stream：YUY2/NV12: 1920×1080@10/5fps;1280×720@25/20/15/10/5fps; 1024×576/800×600/800×448/640×360/480×270 /320×180@30/25/20/15/10/5fps; MJPG/H264: 3840*2160/2560×1440/1920×1080/1600×896/1280×720/1024×576 /960×540/800×600/800×448/720×576/720×480/640×360/640×480 /480×270/352×288/320×240@30/25/20/15/10/5fps; Sub Stream：YUY2/NV12: 1280×720/1024×576/800×600/800×448/640×360/640×480 /480×270/320×180@30/25/20/15/10/5fps; MJPG/H264: 1920×1080/1600×896/1280×720/1024×576/960×540/800×600 /800×448/720×576/720×480/640×360/640×480 /480×270/352×288/320×240@30/25/20/15/10/5fps; |
Minimum Illumination | 0.05Lux (F1.8, AGC ON) |
DNR | 2D&3D DNR |
White Balance | Auto / Manual/ One Push/ Specified Color Temperature |
Focus | Auto / Manual/ One Push |
exposure mode | Auto/ Manual / Shutter Priority / Aperture Priority / Brightness priority |
Aperture | F1.8-F11, CLOSE |
shutter speed | 1/25-1/10000 |
BLC | OFF/ON |
Dynamic range | OFF/ Dynamic Level Adjustment |
Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
SNR | ≥50dB |
Interface Features | |

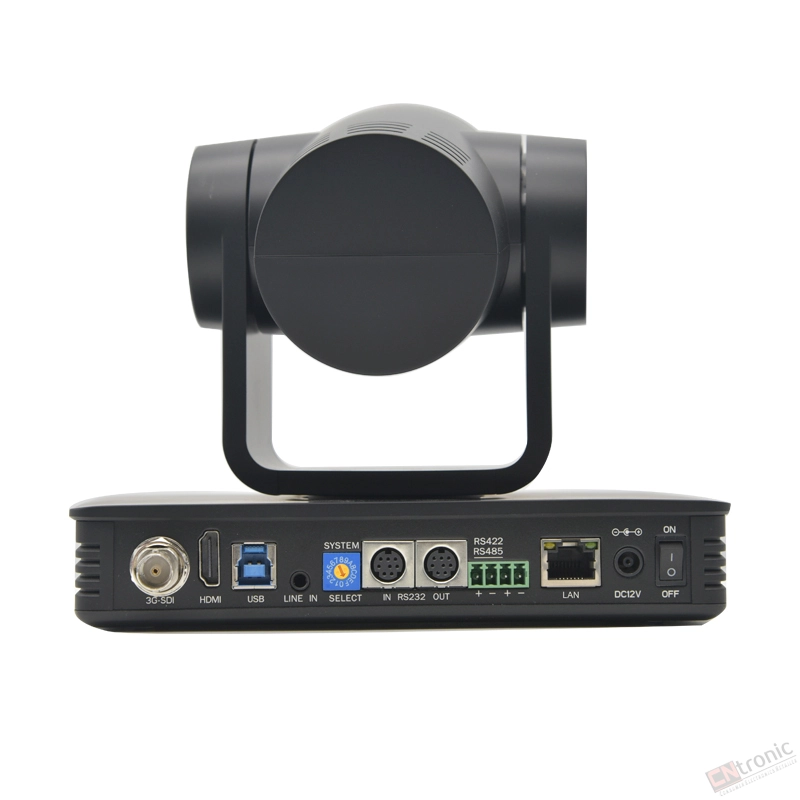

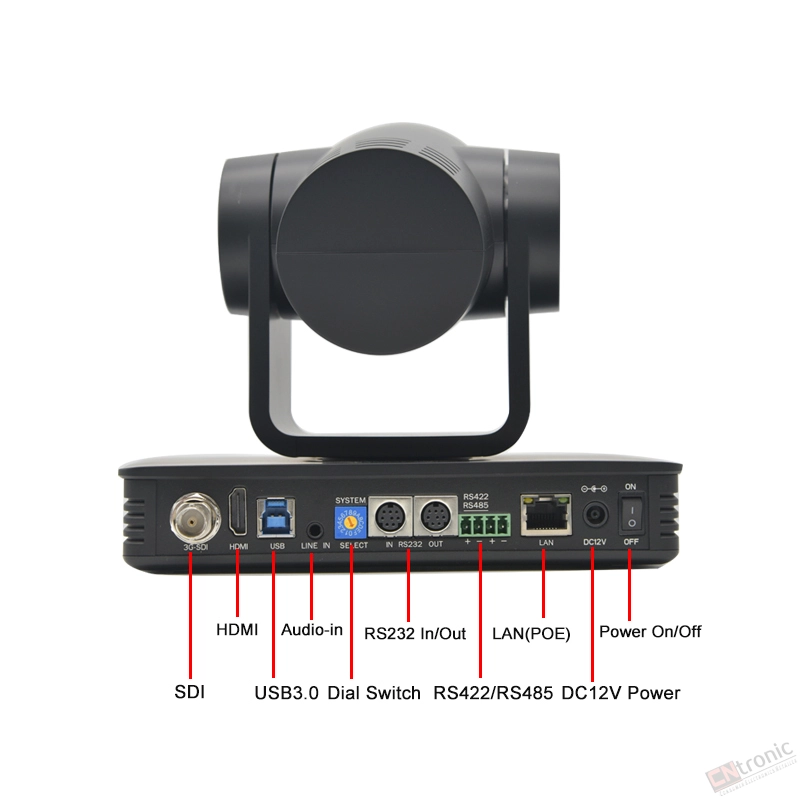

Interfaces | HDMI, SDI, LAN(POE), USB3.0(Type B, compatible with USB2.0), A-IN, RS232-in & out; RS422(Compatible with RS485), Dial switch, DC12V, Power Switch |
Video Compression | LAN: H.264, H.265 USB 3.0: MJPG, H264, YUY2, NV12 |
Audio-in Interface | Double track 3.5mm linear Input |
Audio out | HDMI, SDI,LAN, USB3.0 |
Audio Compression | AAC, MP3, G.711A |
LAN | 10M/100M/1000M adaptive Ethernet port, support POE and audio/video output |
Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset |
Control Interface | RS232-IN, RS232-OUT, RS422 (RS485) |
Serial Protocol | VISCA/ Pelco-D / Pelco-P; Baud rare: 115200/38400/9600/4800/2400 |
USB Communication Protocol | UVC(video),UAC(audio) |
Power Interface | HEC3800 (DC12V) |
Power Adapter | In: AC110V-AC220V ; Out: DC12V/2.5A |
Input Voltage | DC12V±10% |
Input Current | <1A |
Power Consumption | <12W |
PTZ Parameters | |

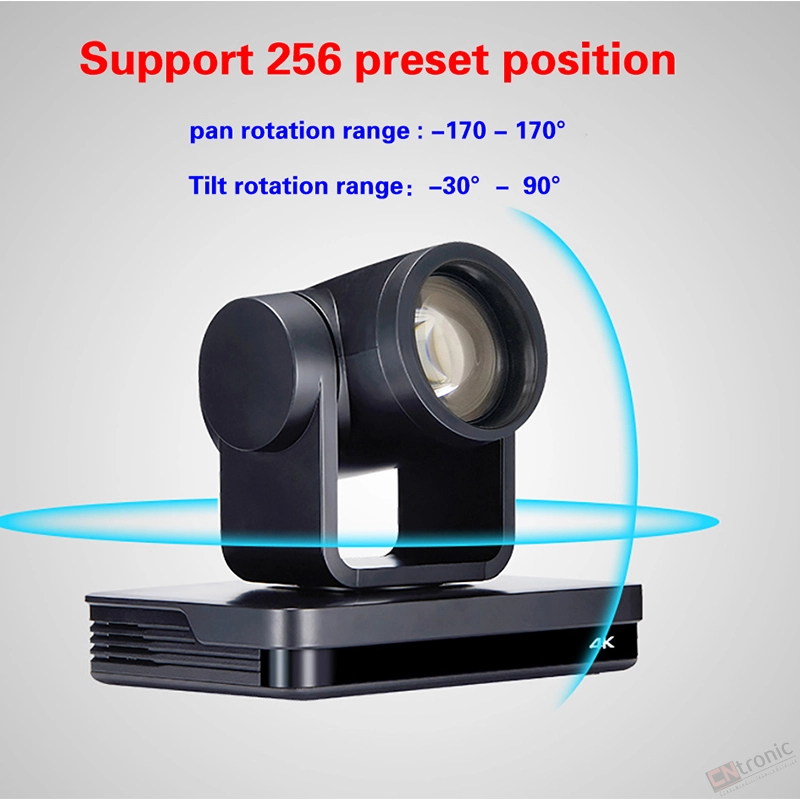

Pan Rotation | -170°~+170° |
Tilt Rotation | -30°~+90° |
Pan/Tilt Control Speed | 0.1°/s~60°/s, 0.1°/s~45°/s |
Preset Speed | Pan: 60°/s,Tilt: 45°/s |
AI Function | Real-time Tracking The longest tracking distance of up to 6 to 7 meters, can support the speaker to walk at 3 to 4 mph Zone Tracking Support setting 4 tracking areas, and the areas is set within -170°～+170°in horizontal and -30°～+90°in vertical. Select Tracking Target Select and frame tracking target through clicks and dragging with mouse on web page |
Preset Number | 255 Presets (10 presets by remote control) |
Other Parameters | |
Storage Temperature | -10℃~+60℃ |
Storage Humidity | 20%~95% |
Working Temperature | -10℃~+50℃ |
Working Humidity | 20%~80% |
Dimension | 181(L)mm × 115mm(W)× 149mm(H) |
Usage | 1.15 kg |
Storage Temperature | Indoor |
Accessories | |

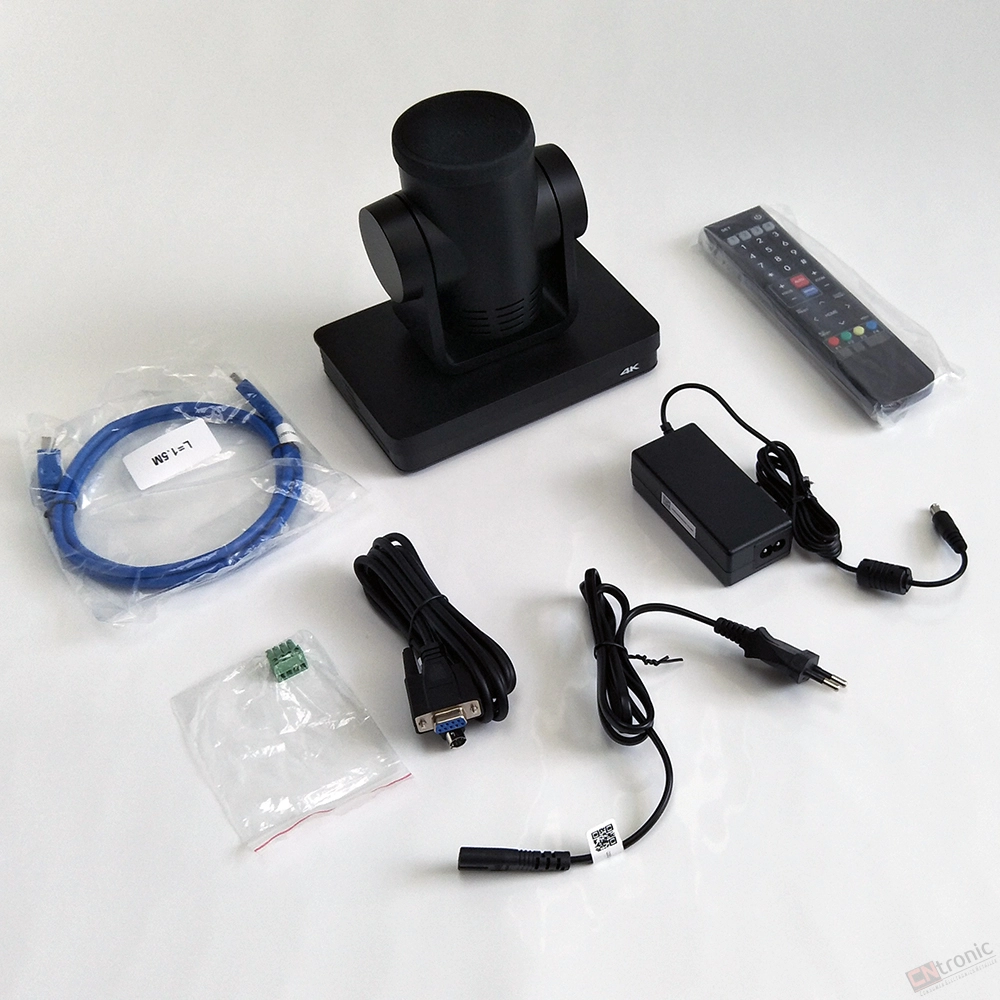

Standard | Power supply and adapter,RS232 Cable, USB3.0 Cable, IR remote control, User Manual |

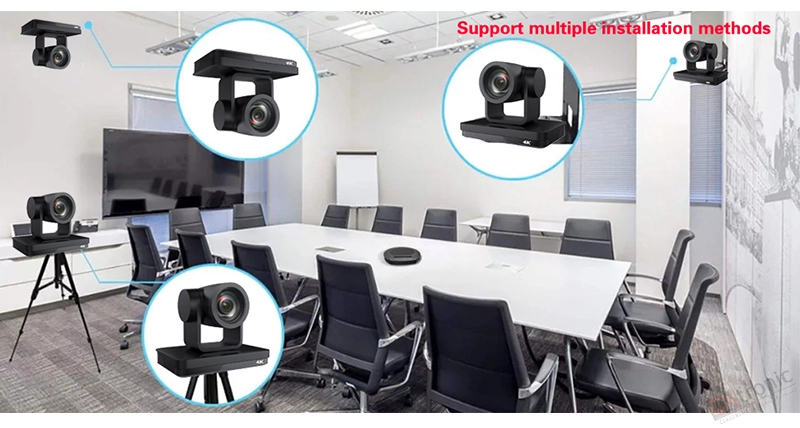

Optional | Wall / Ceiling Mount |

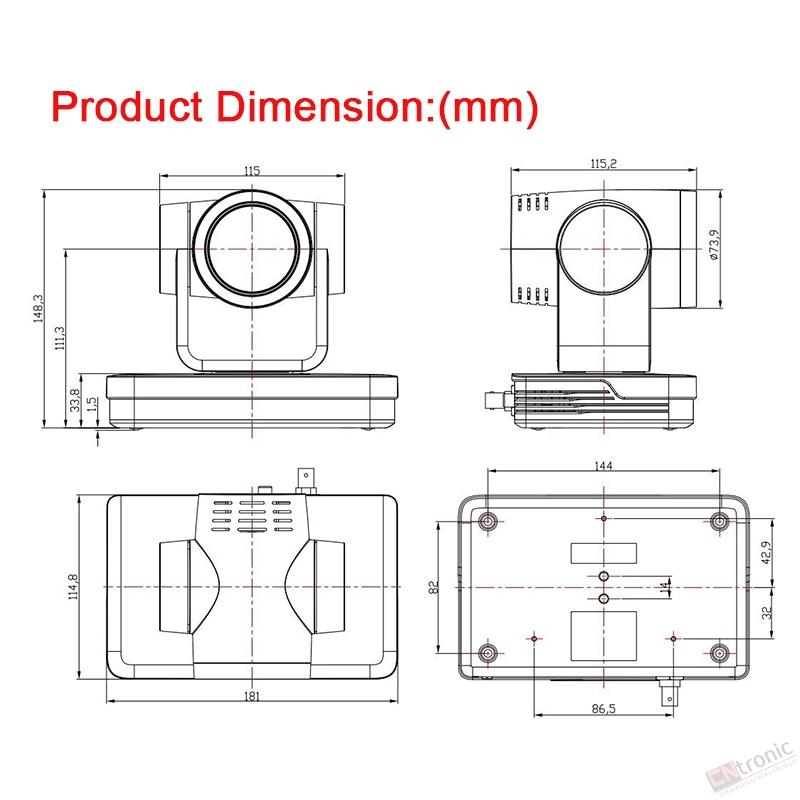

Product Dimension:

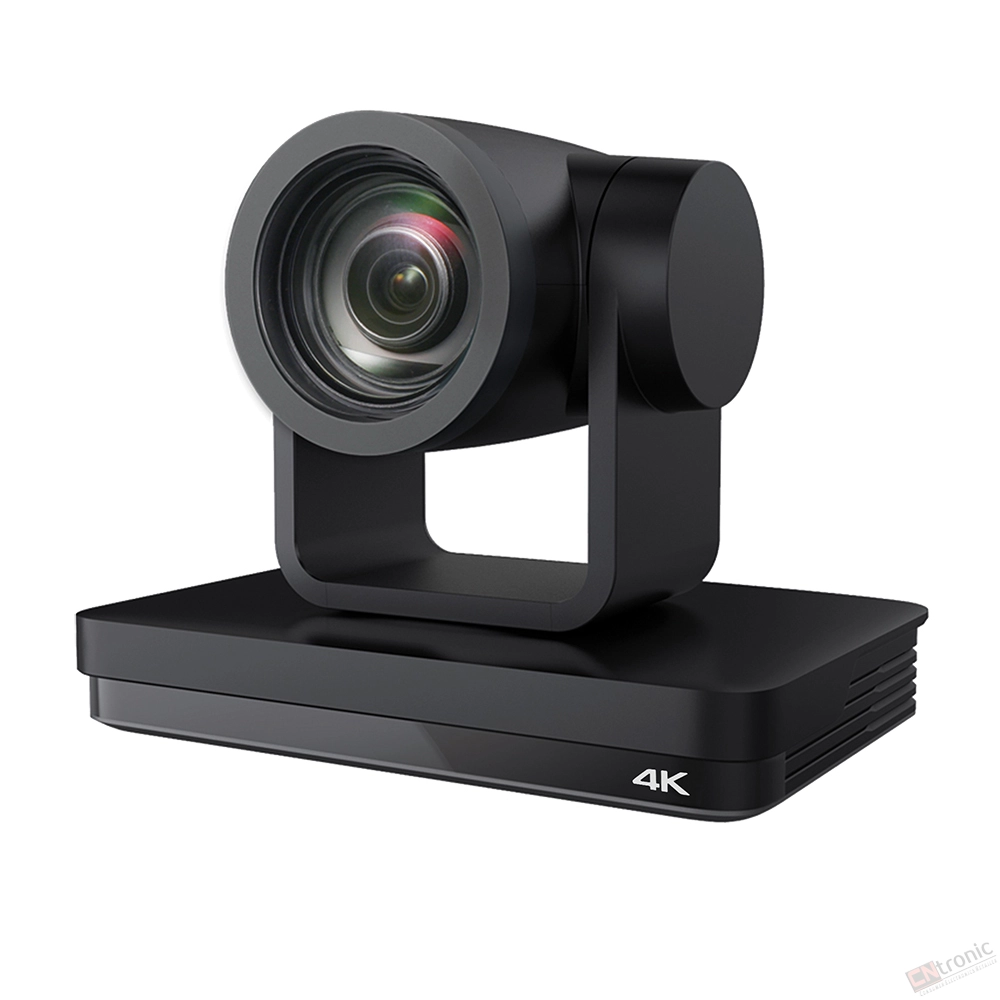

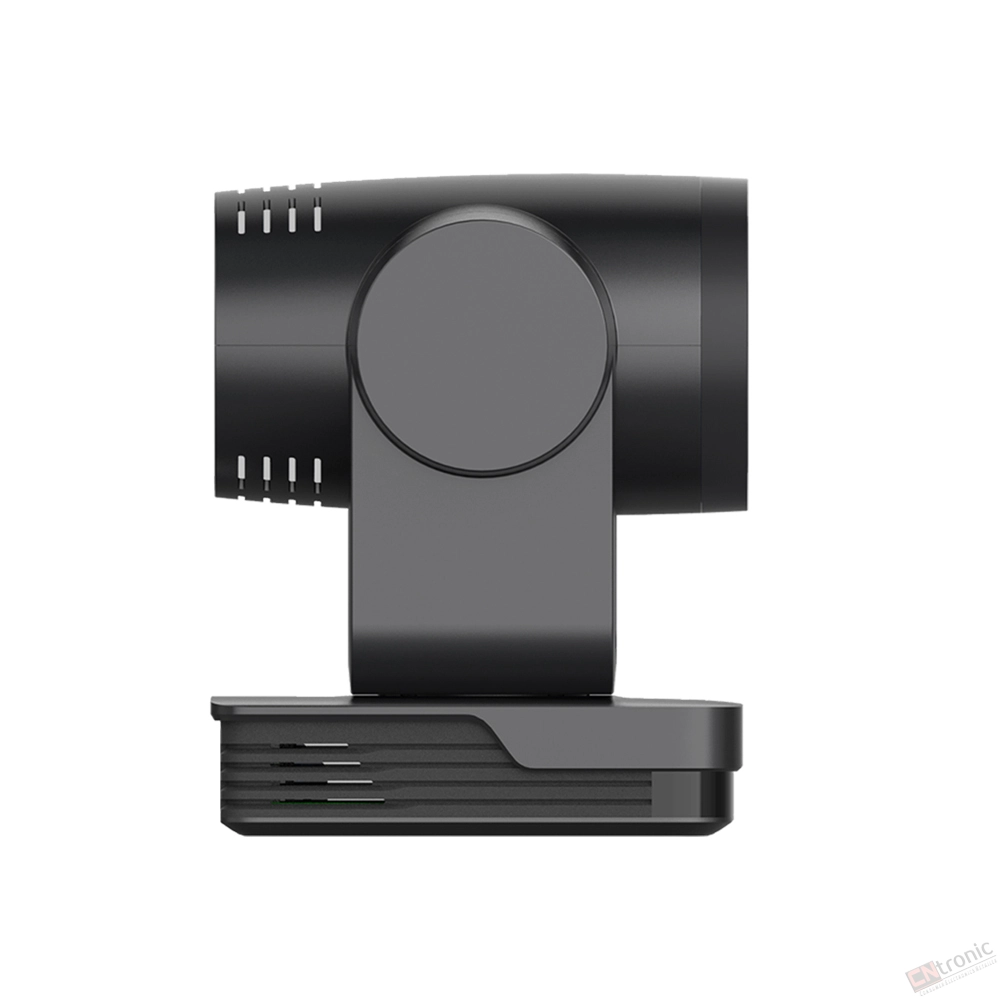

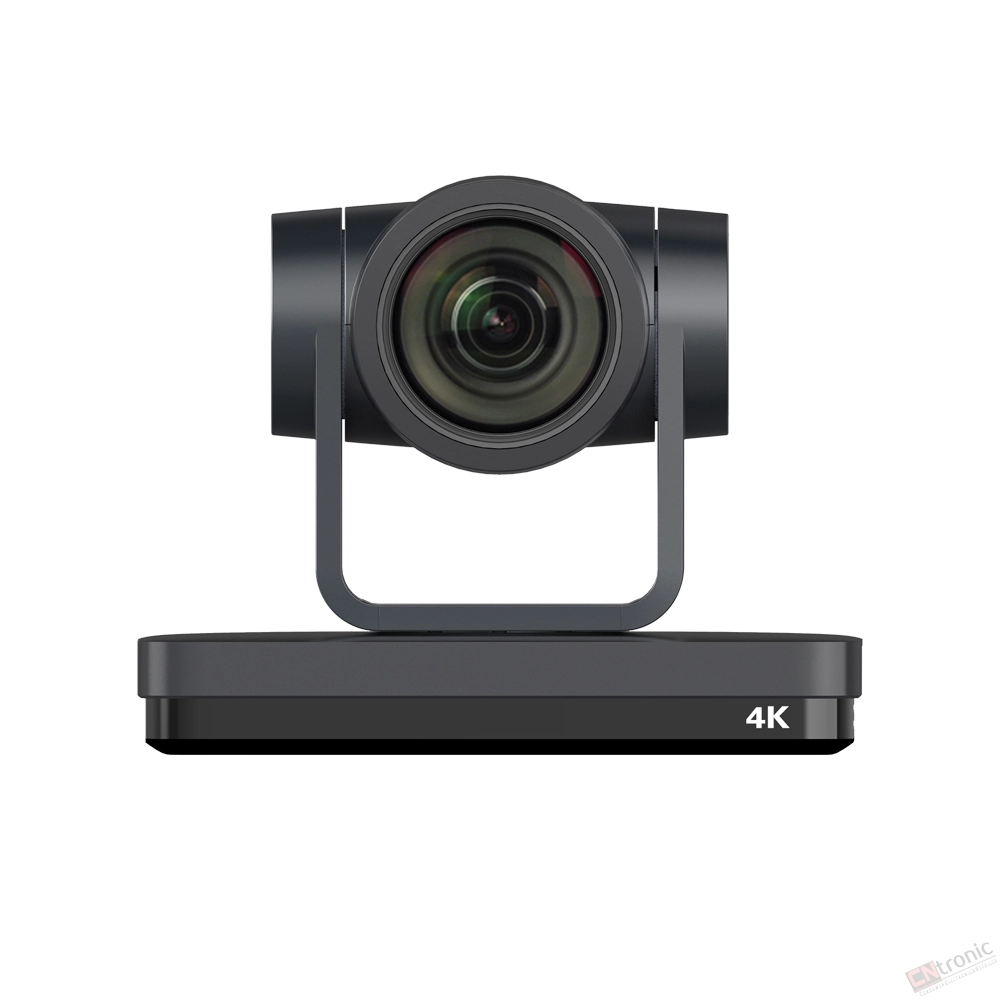

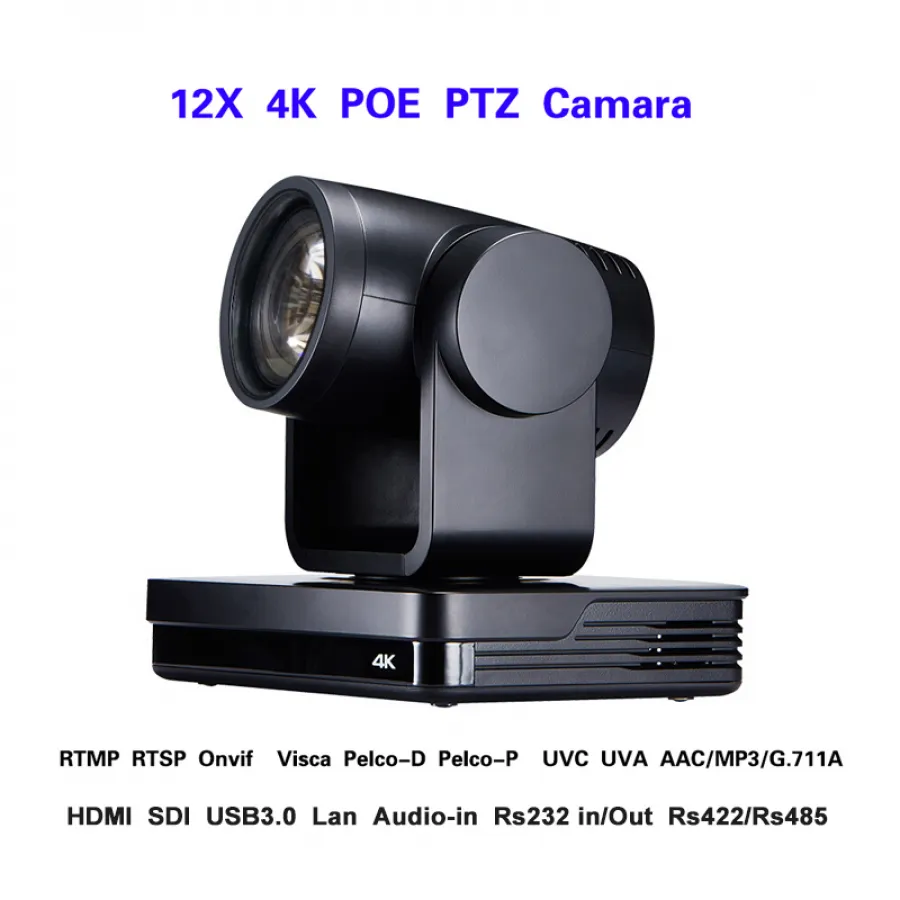

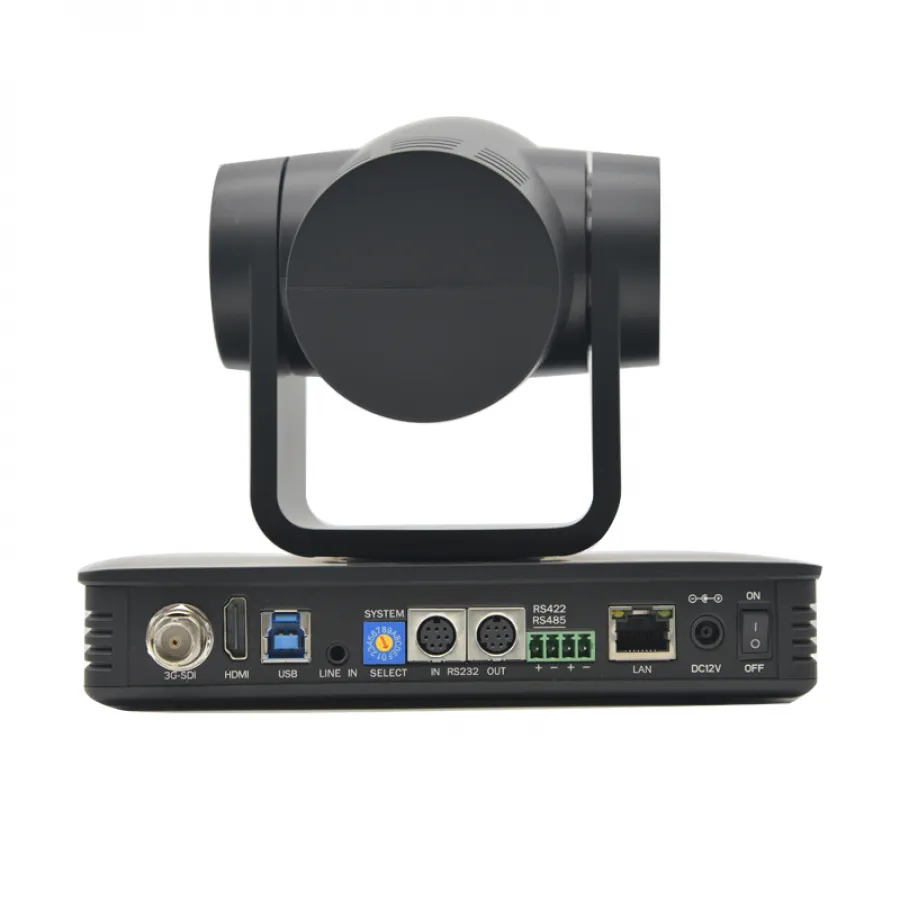

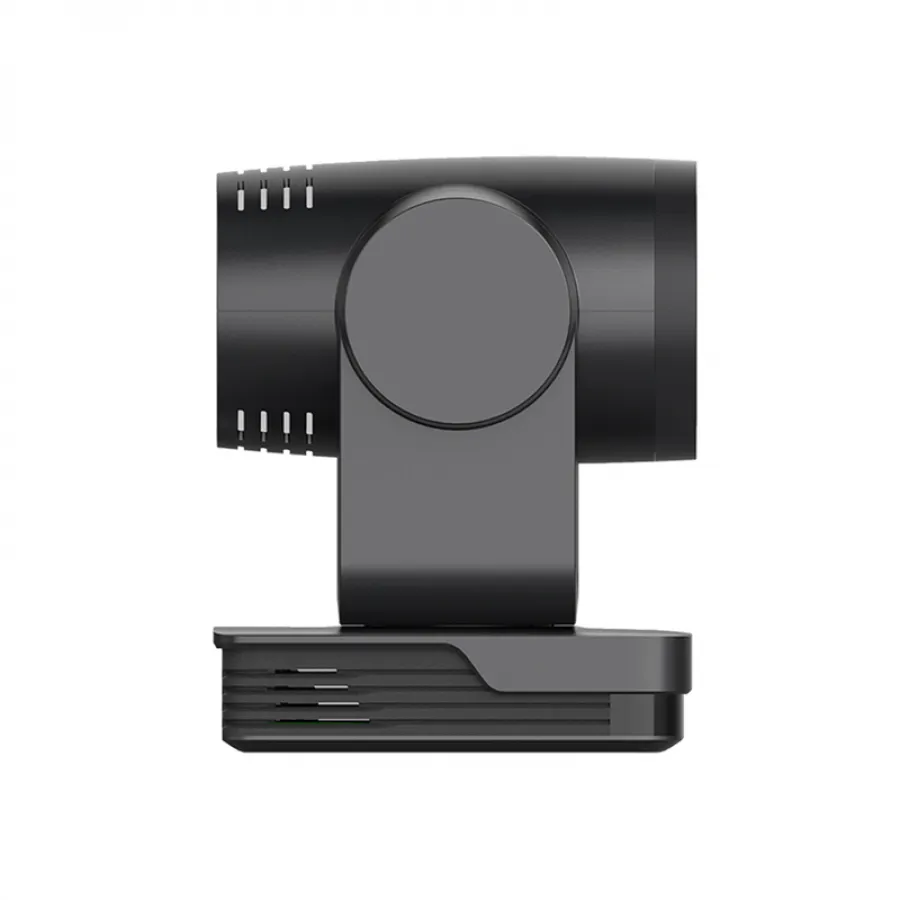

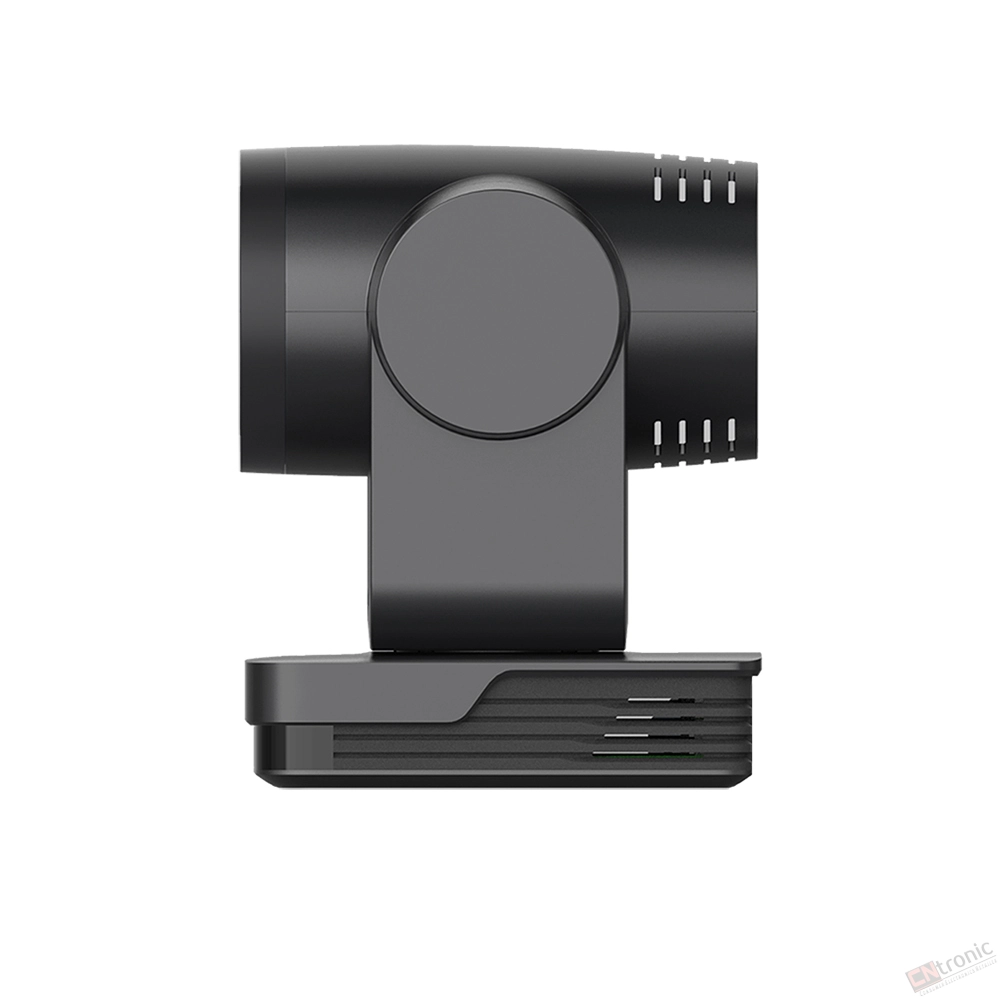

Product Photos:
The Product Warranty of our products is ONE year.
We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly ways:
1. If it is quality problem, buyer must provide photos or video or other evidences to seller for evaluation and identification.
2. Man-made damaged, buyers should take full responsibility.
3. Product quality processing program:
The buyer return the goods to us and responsible for returned shipping costs. After we receive the goods, we will send a new product to buyer and pay for the resend shipping cost.
Remarks
1. Please contact us before leaving any negative or neutral feedback. We will reply with you to solve problems as sooner as possible.
2.Product quality processing program:
The buyer return the goods to us and responsible for returned shipping costs. After we receive the goods, we will send a new product to buyer and pay for the resend shipping cost.
3. Any import charges or fees are the buyer's responsibility.
4. Seller is not responsible for delays caused by the customs department in buyer's country.
5. Additional costs or delays may occur during international trade. We sincerely hope that you do not use additional import costs or customs clearance delays as a reason for requesting refunds or leaving negative feedback.
If you are satisfied, please give us a five-star review⭐⭐⭐⭐⭐
If you have any doubts, please contact us~
Contact us
Sales Manager: 0086 13530601567 Jenia Liu
Skype: jenia_liu
WhatsApp: +0086 13530601567
QQ: 3778090113
WeChat: +0086 13530601567
Packaging Details
- Unit Type:
- Package Weight: 4.500
- Package Size: 26x20x34
- Brand Name: FLA
- Hign-concerned Chemical: None
- Signal Connection Type: Infrared Remote Control
- Origin: Mainland China
- Model Number: FLA-UHD212
- Product Name: 4K Video Audio IP Conference Camera
- Resolution: 4K30FPS
- Effective pixels: 8.51MP
- Image Sensor: 1/2.8 Inch SONY CMOS Sensor
- Interface: HDMI+SDI+USB3.0+IP(poe)+RS232/RS422+Audio in
- PAN/TILT: 340°/120°degree
- Dimension: 181(L)mm * 115mm(W)*149mm(H)
- Optical Zoom: 12x Zoom

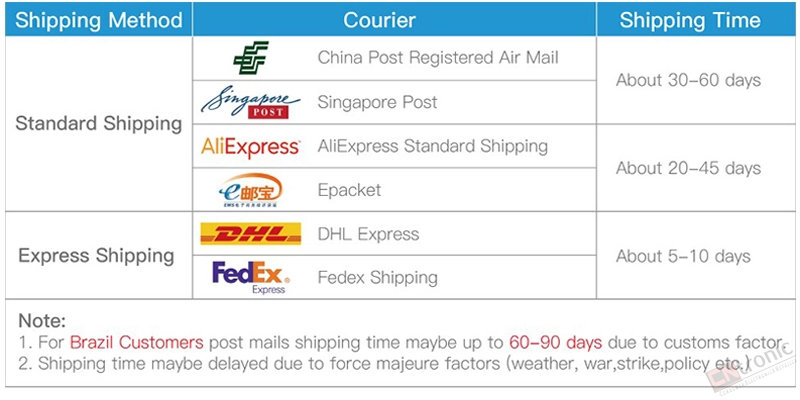

SHIPPING AND DELIVERY
