500m long distance 10/100Mbps Ethernet repeater converter over Twisted Pair 2-wire PoE extender for IP Camera
4.6 (5 votes) | 49 orders
Price:
US $
166.09
- Color

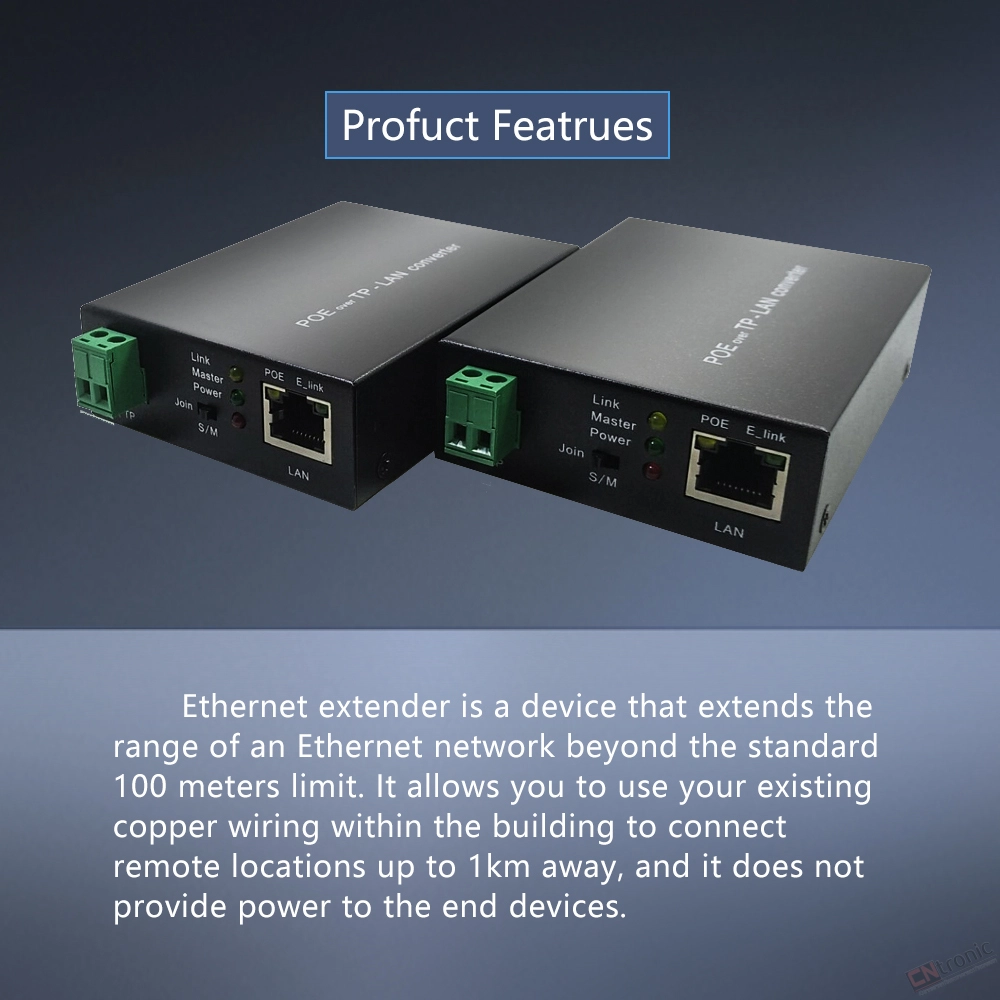

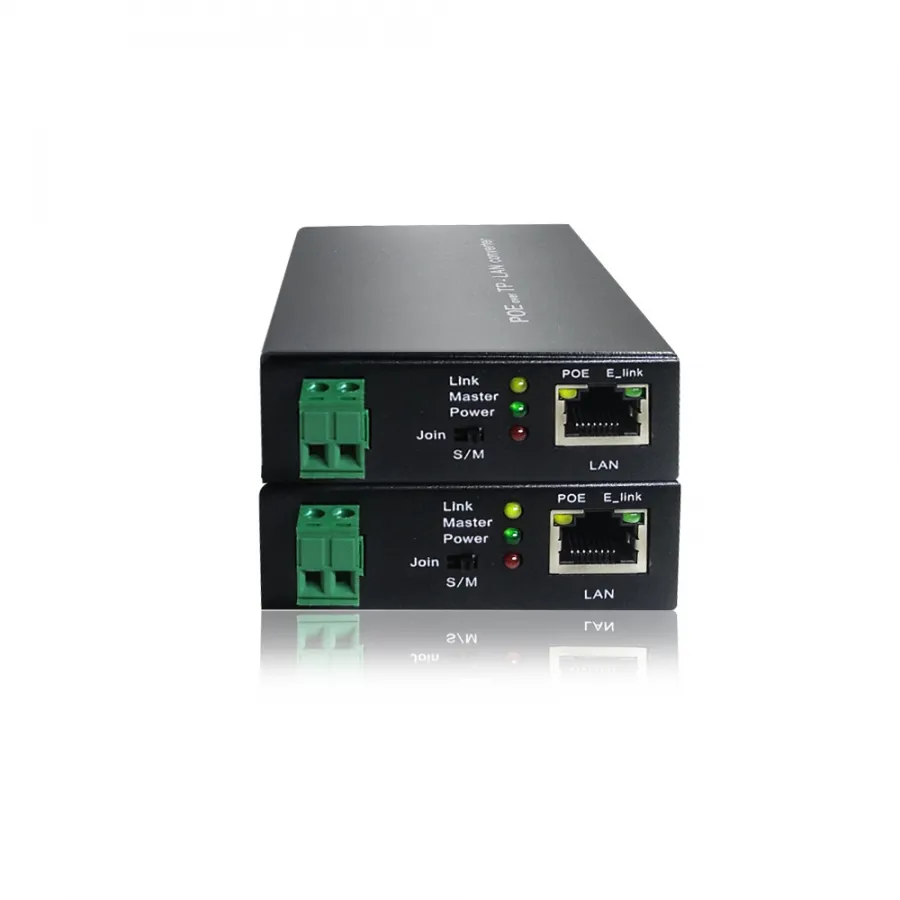

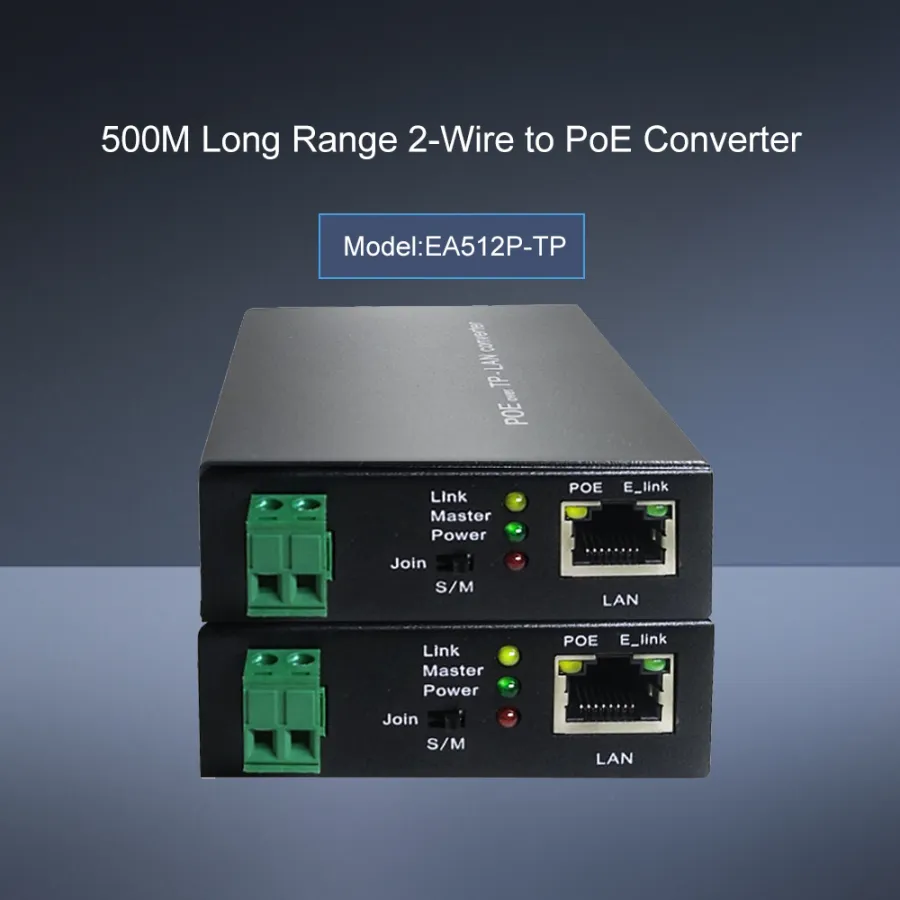

500M POE Ethernet Extender Digital Video Signal Transmitter POC converter switch
ITEM NO:EA512P-TP
Type | Category | Parameter |
Power | Input | DC48-56V /2A |
Output | POE30W | |
Transfer | Transmission Media | Coaxial cable,twisted pair,telephone line,RVV line |
Transmission distance (2×0.75 square millimeter RVV line) | 500 M | |
Maximum throughput | 45Mbps | |
Multicast | Support IGMP multicast protocol | |

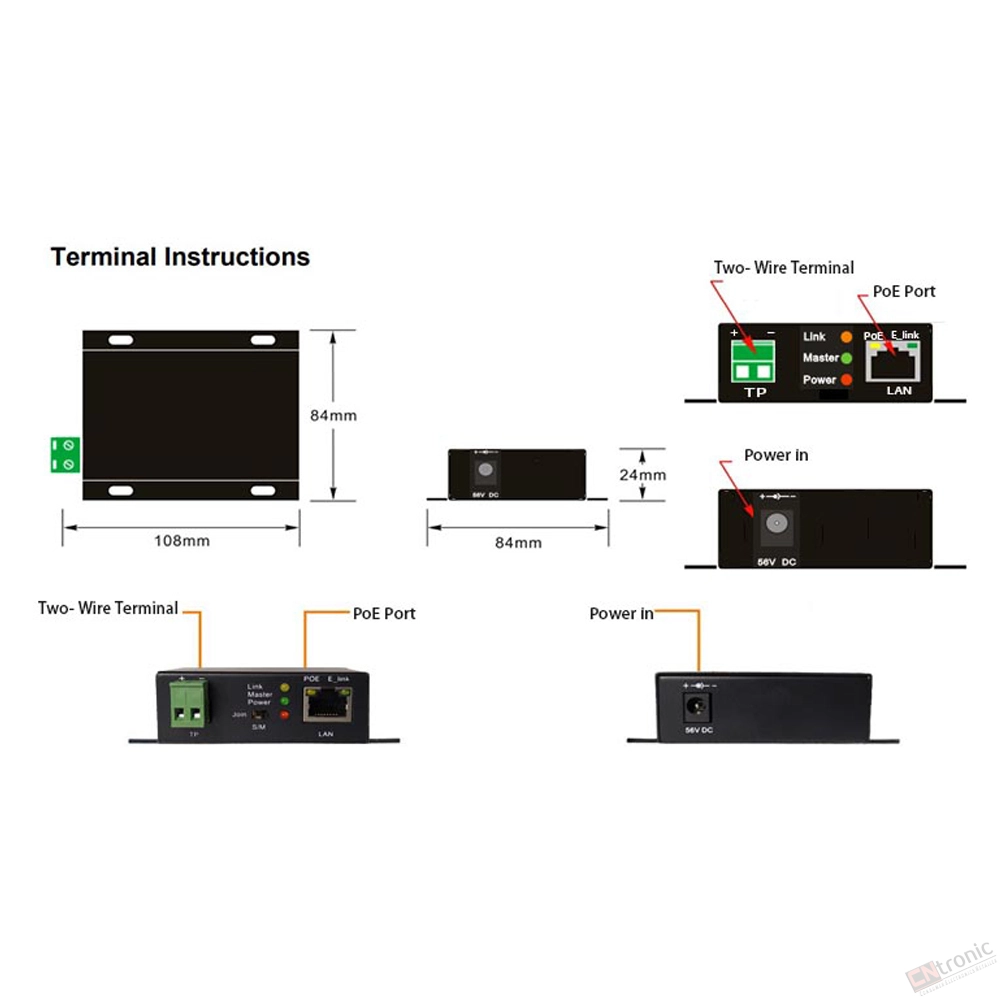

Connector | Power input(DC_ IN) | 2.1-5.5m DC socket |
Power output(DC_OUT) | RJ45(30W:1,2,3,6) | |
Ethernet (data) | RJ45(1,2and3,6） | |
Twisted pair signal input and output (TP) | 5.08mm x 2 | |
Ground wire | ||
Indicator Line | Master | The indicator light of the host, it is on when |
Link | The signal connection light is on when the TP signal is connected, and | |
Power | The power indicator light is always on after power on. | |
RJ45Green | Network communication indicator light flashes when | |
RJ45Yellow | POE indicator, on when POE open, flashing when overload or undervoltage. | |

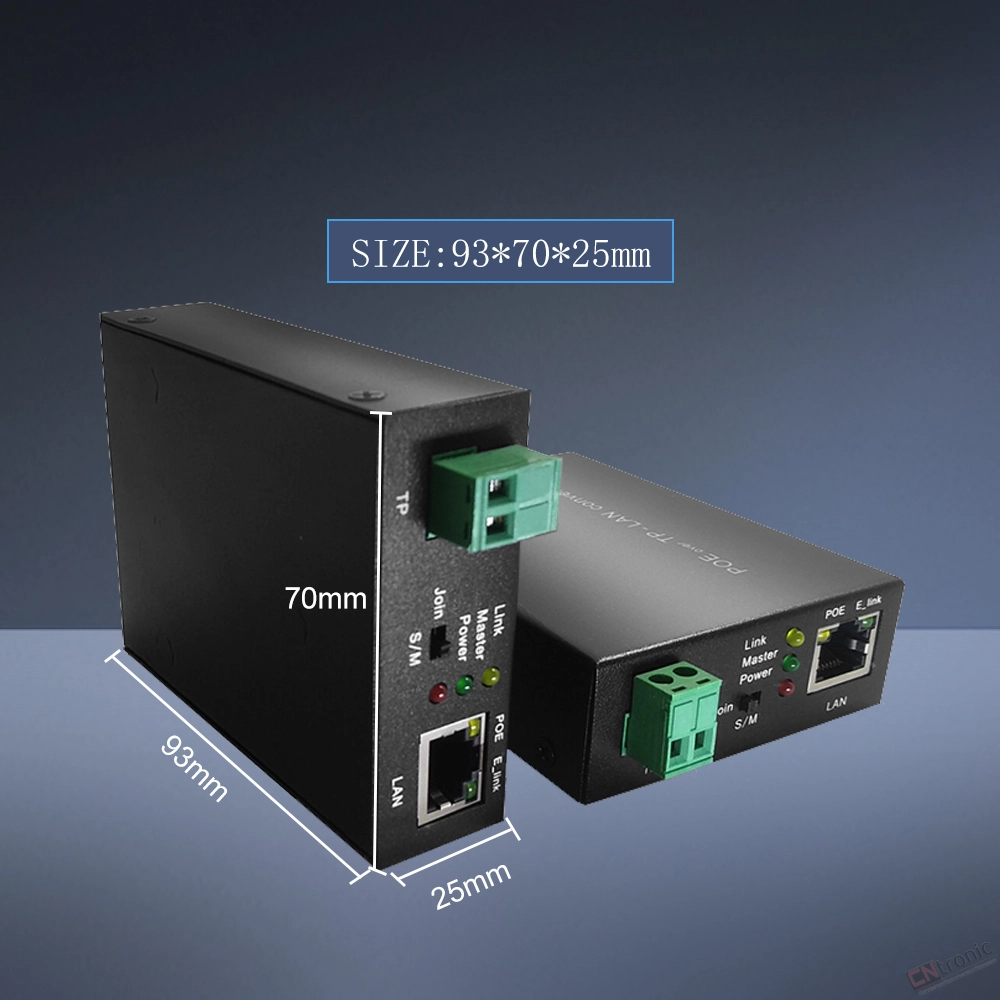

Appearance | Size | 94x71.4x26 mm |
Color | Black | |
Net Weight | 190g | |
Environment Requirement | Working Temperature | -20℃~55℃ |
Humidity | 0-95% | |
Storage humidity | -40℃~85℃ |
Packaging Details
- Unit Type:
- Package Weight: 1.000
- Package Size: 15x4x20
- Brand Name: gdpoenet
- Item Type: POE
- Wireless function: No
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: EA512P-TP
- Certification: CE
- Certification: FCC
- Choice: yes
- semi_Choice: yes
