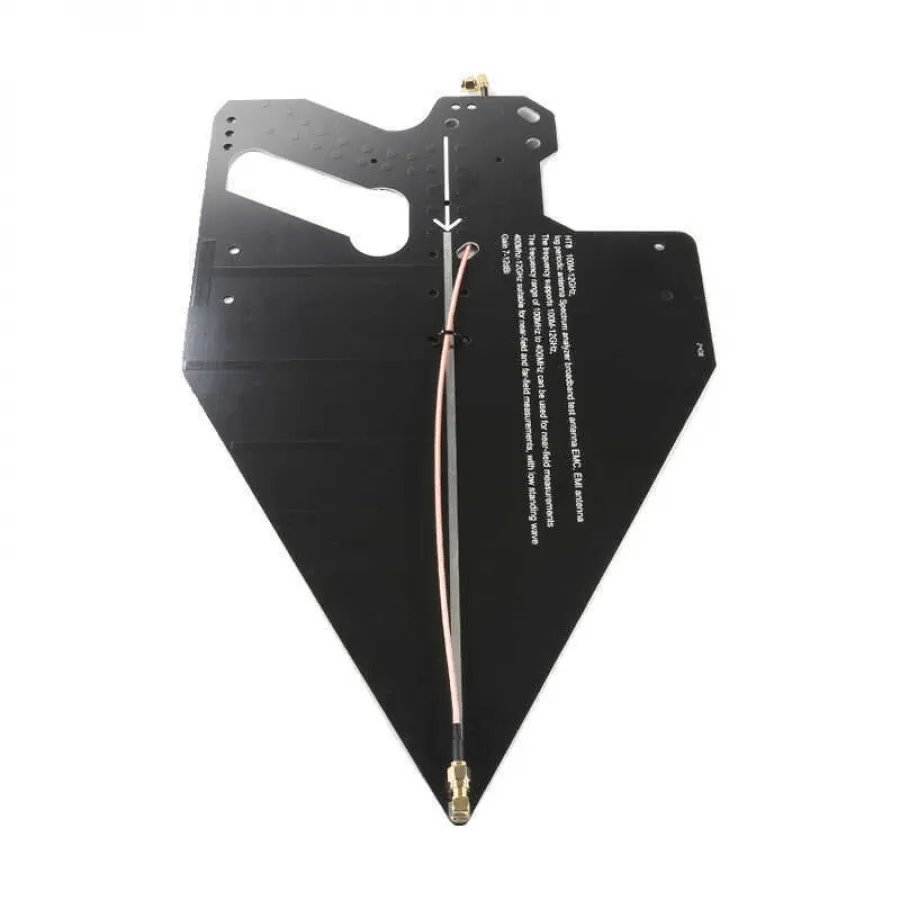

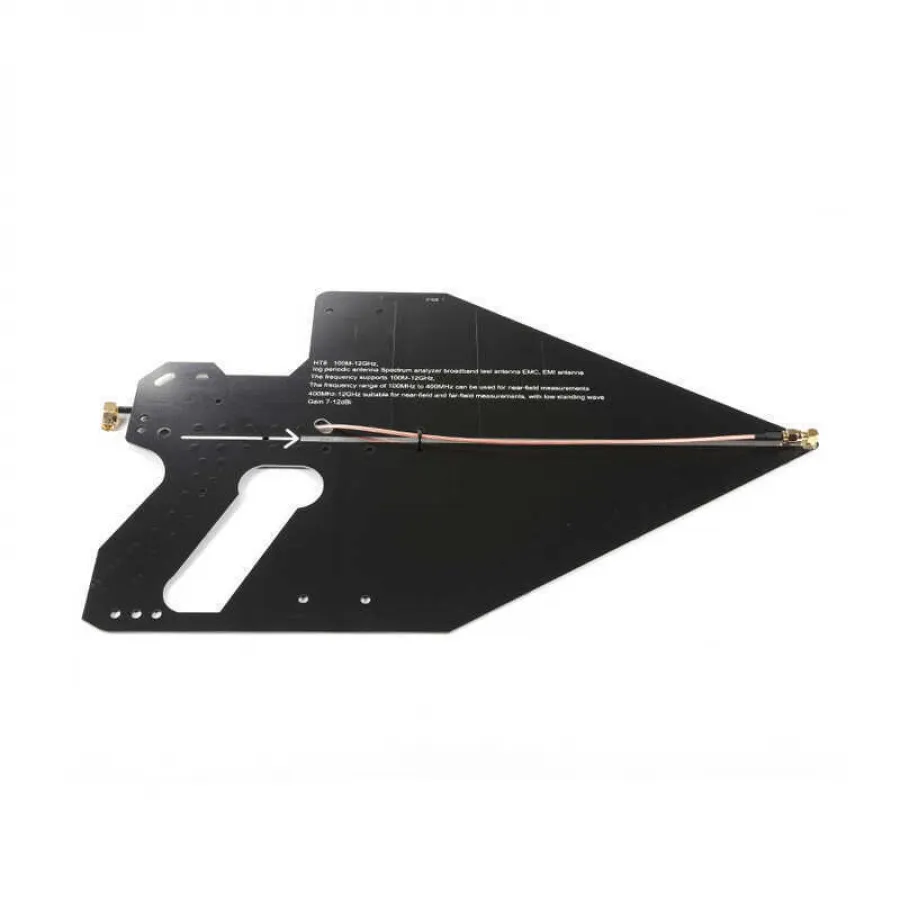

HT8 Log Periodic Antenna
HT8 Log Periodic Antenna is a wide band antenna. It is characterized by maintaining a more stable performance over a wide frequency band. The functions of log-periodic antenna include the following aspects:
1. Wide frequency range: 0.1-12GHz The log periodic antenna is suitable for a wide range of frequencies and can cover signals from 0.1GHz to 12GHz.
2. Multi-band use: the antenna can work on different frequency bands at the same time or alternately, so it can meet the needs of multi-band communication.
3. Wide angle transmission: The logarithmic periodic antenna has a large radiation angle, which can realize wide angle signal receiving and transmitting.
4. high gain and good directionality: log periodic antenna has relatively high gain in its effective frequency band, which can provide longer distance communication ability, and has good directionality, which can concentrate energy transmission.
5. Low VSWR: When log-periodic antenna is properly designed, it can obtain low VSWR to improve the efficiency of signal transmission.
In conclusion, 0.1-12GHz logarithmic periodic antenna has a wide frequency range, multi-band use, wide angle transmission, high gain and good directionality, etc. It is suitable for a variety of communication and radio applications.
Application Scenario
1. Communication system: logarithmic periodic antenna can be used in wireless communication system, such as mobile communication, satellite communication and radar system. It can provide stable signal reception and transmission performance, and effectively extend the communication distance and coverage.
2. radio and television: log-periodic antenna can be used in radio and television transmission. It can help optimize signal reception and provide better signal quality and coverage.
3. scientific research: Because of its broadband performance and high gain characteristics, the log-periodic antenna is also widely used in the field of scientific research. For example, astronomers use this antenna for radio observation to explore various signals and phenomena in the universe.
In summary, the HT8 log-periodic antenna functions to provide high gain and broadband performance over a wide frequency range. Its main uses include communication systems, radio and television transmission, and scientific research.
Product Parameters
(1) Spectral range: 100MHz - 12GHz
(2) Polarization: Horizontal Polarization / Vertical Polarization
(3) Directional gain: 7-12dBi
(4) Voltage VSWR: ≤2
(5) Antenna size: 40.5*25.5cm / 15.94*10.04inch
(6) Weight: 205g
(7) Output Connector: SMA
(8) Output Impedance: 50Ω
1.There are two packages here
-- [ Only HT8 No Handle ] :This package does not include a handle.

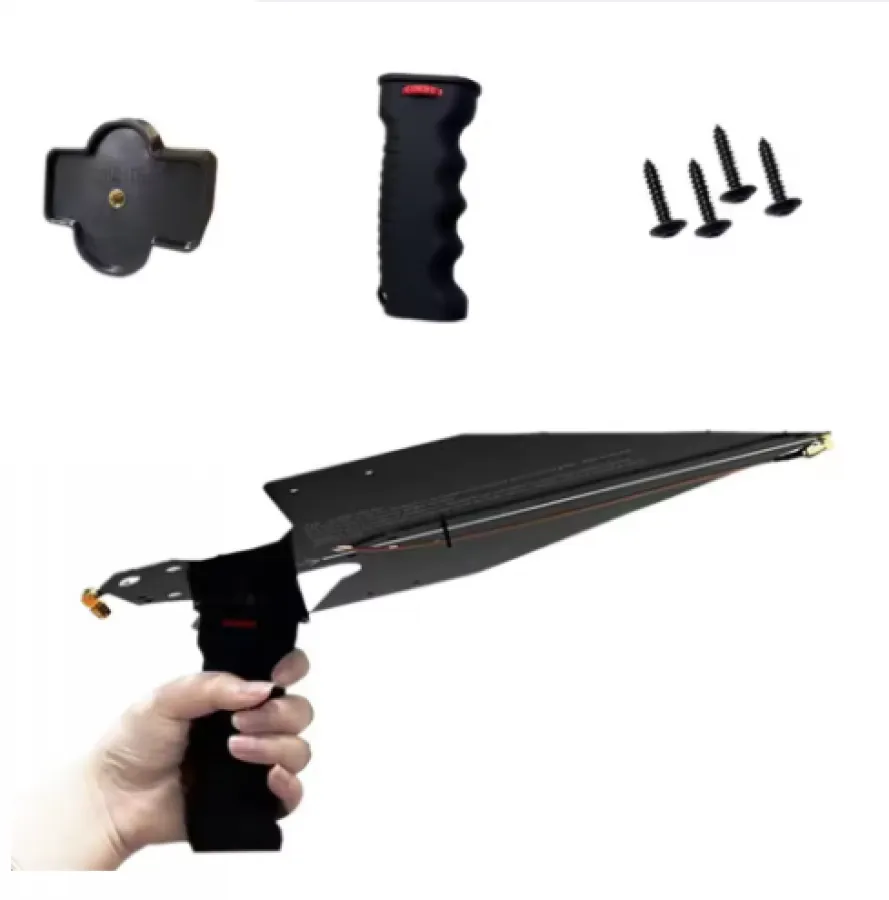

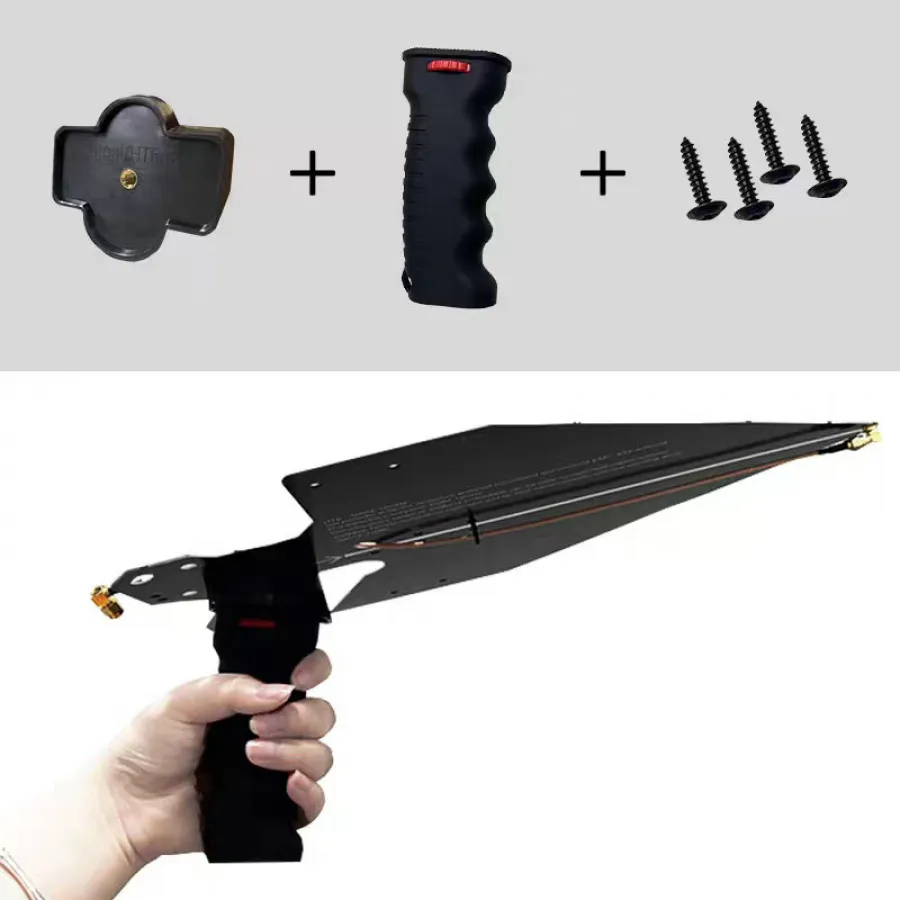

-- [ HT8 with Handle ] :Antenna and handle are included in the package
