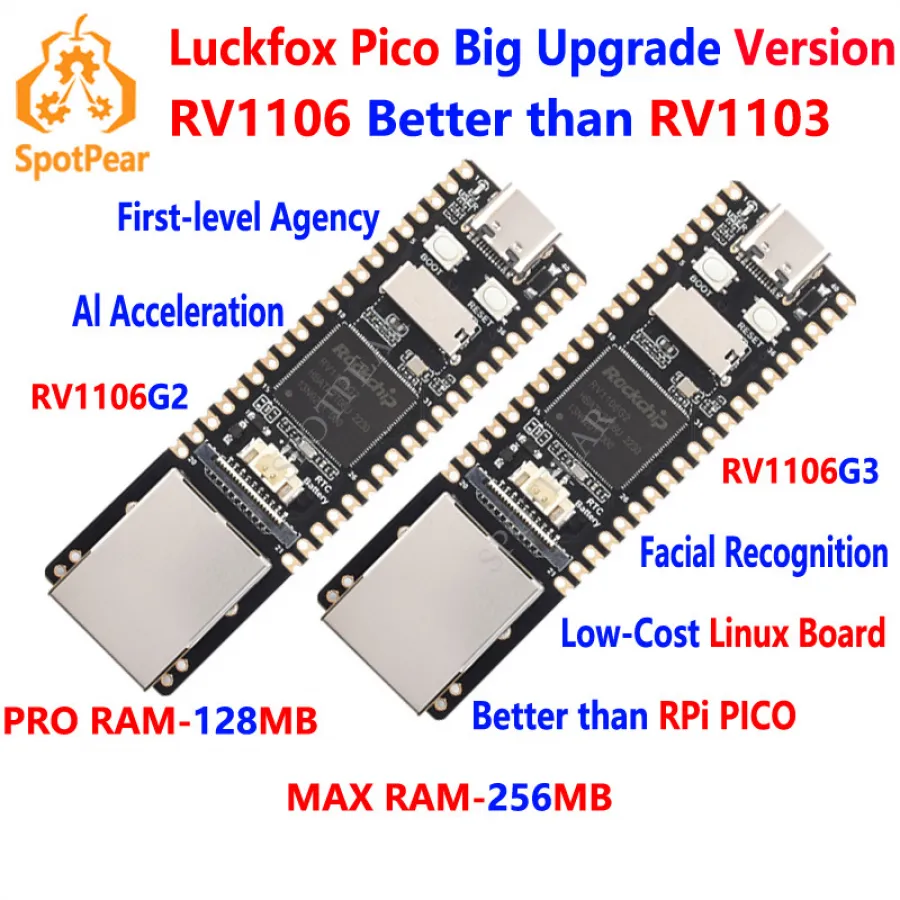

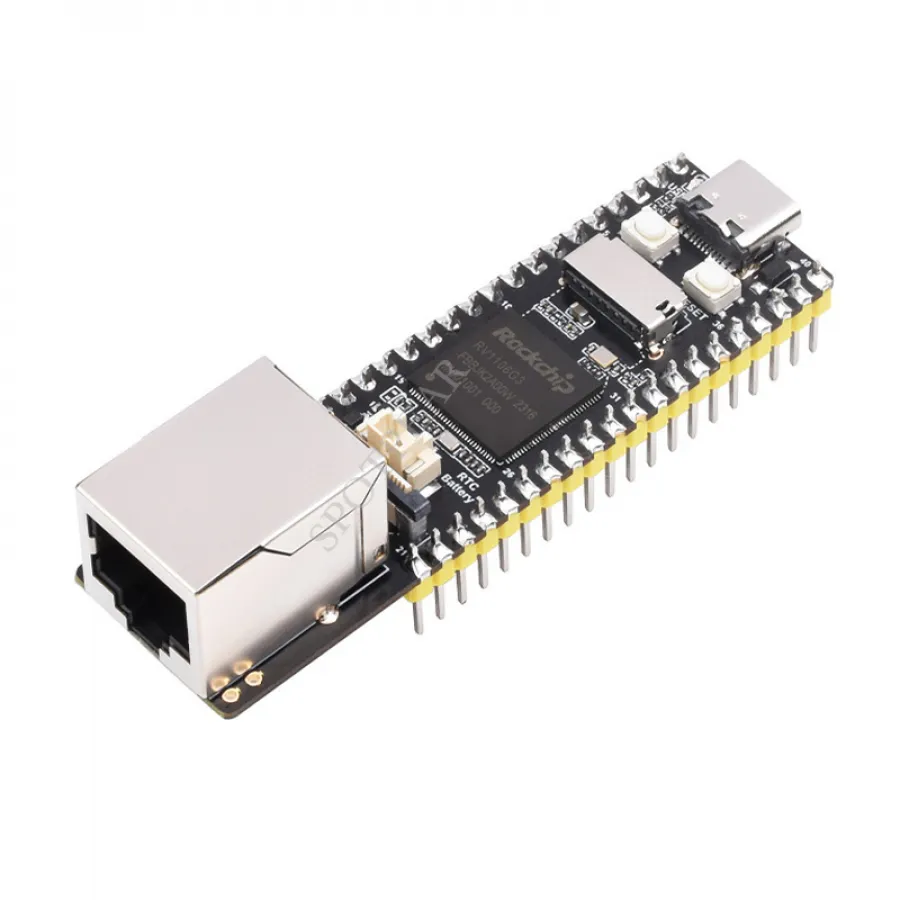

【Authorized Agency】 Luckfox Pico Pro Max Linux RV1106 Rockchip AI Board ARM Cortex-A7/RISC-V better than Raspberry Pi Pico
ID: 126865

【Authorized Agency】 Luckfox Pico Pro Max Linux RV1106 Rockchip AI Board ARM Cortex-A7/RISC-V better than Raspberry Pi Pico

4.9 (104 votes) | 500 orders
Price: US $39.50 - 43.51
Discount Price:
US $ 36.10 - 39.41
-9%
Bundle
Quantity

Buy Now
Add to Cart


【Luckfox Pico Recommend】



【First-level Authorized Agency Certificate】


【Note】

[] Do not include Camera and Battery


【Overview】

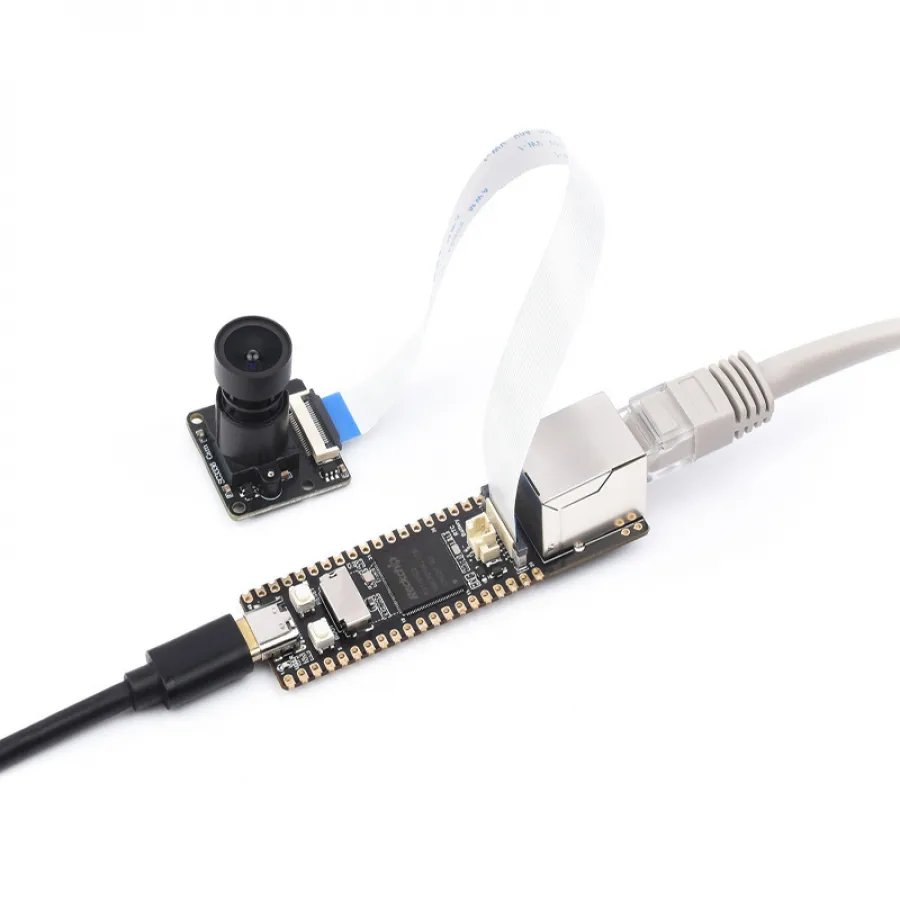

[] LuckFox Pico Pro/Max is a cost-effective Linux micro developmentboard,based on the Rockchip RV1106 chip to provide a simple andefficient development platform for developers; Supports a variety of interfaces including MIPI CSI,GPIO, UART,SPI, 12C, USB, etc.,which is convenient for developing and debugging quickly.


【Specifications】

[] Processor : Cortex A7@1.2GHz

[] NPU : 0.5TOPS, supports int4, int8 and int16

[] ISP : Input 5M @30fps (Max)

[] Memory : Pro: 128MB DDR2

[] Max : 256MB DDR2

[] USB : USB 2.0 Host/Device

[] Camera : MIPI CSI 2-lane

[] GPIO : 26 × GPIO pins

[] Ethernet port : 10/100M Ethernet controller and embedded PHY

[] Default Storage : SPI NAND FLASH (256MB)

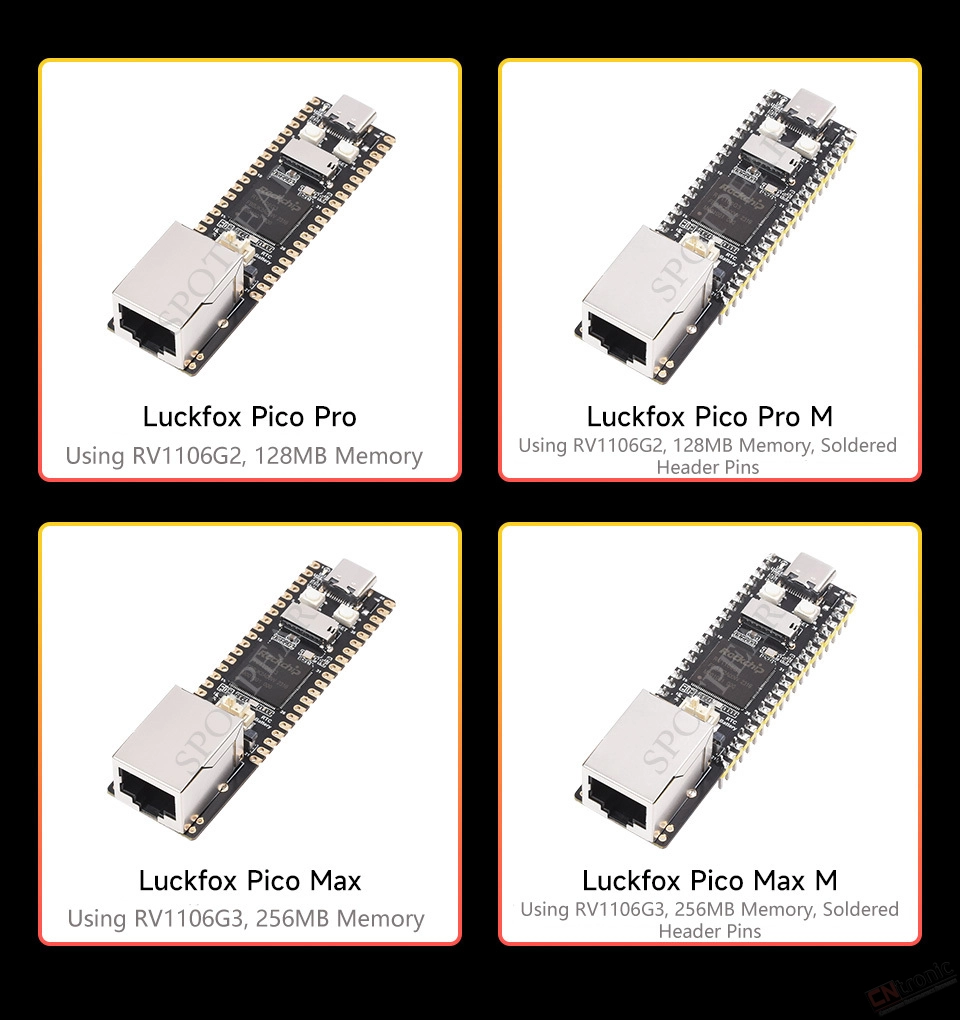

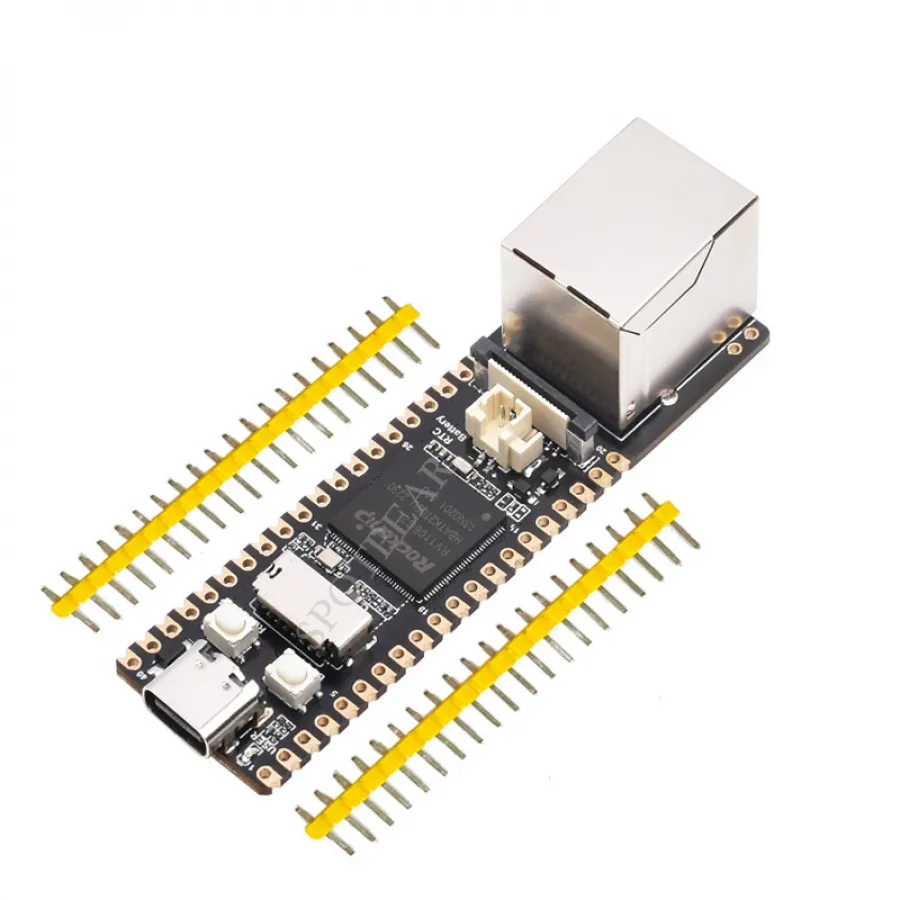

【Version And Pinheader Options】


【Highly Integrated And Powerful Performance】

[] Integrates CPU, NPU, ISP And Other Processors

[] Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU

[] Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4

[] Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.

[] Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space

[] Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths

[] Integrated with built-in POR, audio codec and MAC PHY

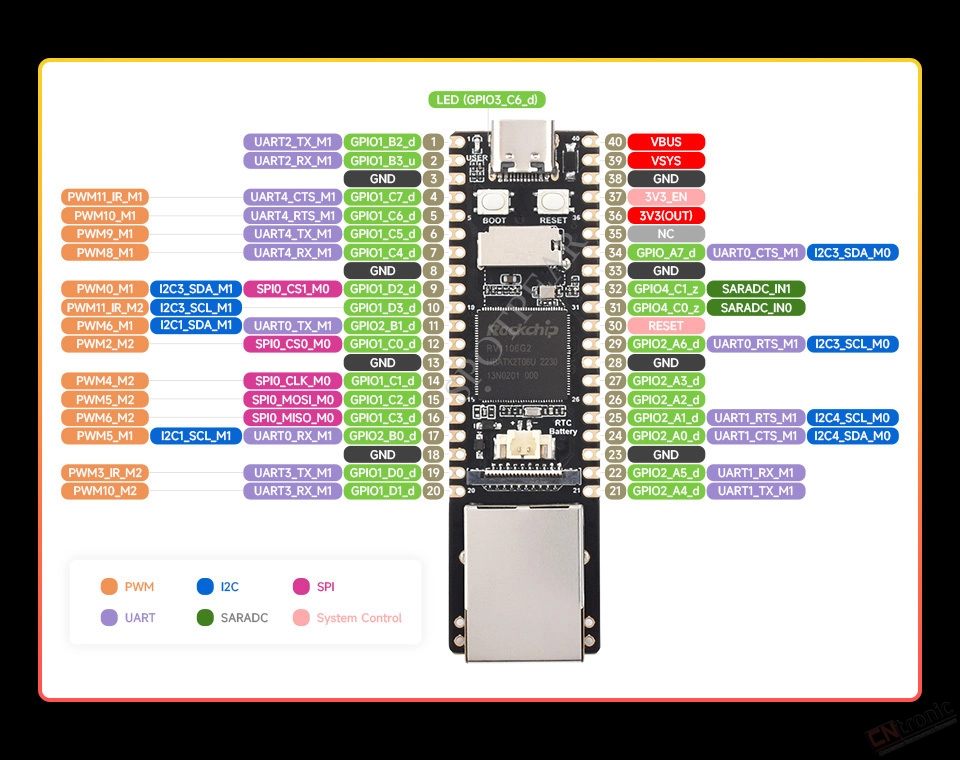

【Pin Definition】

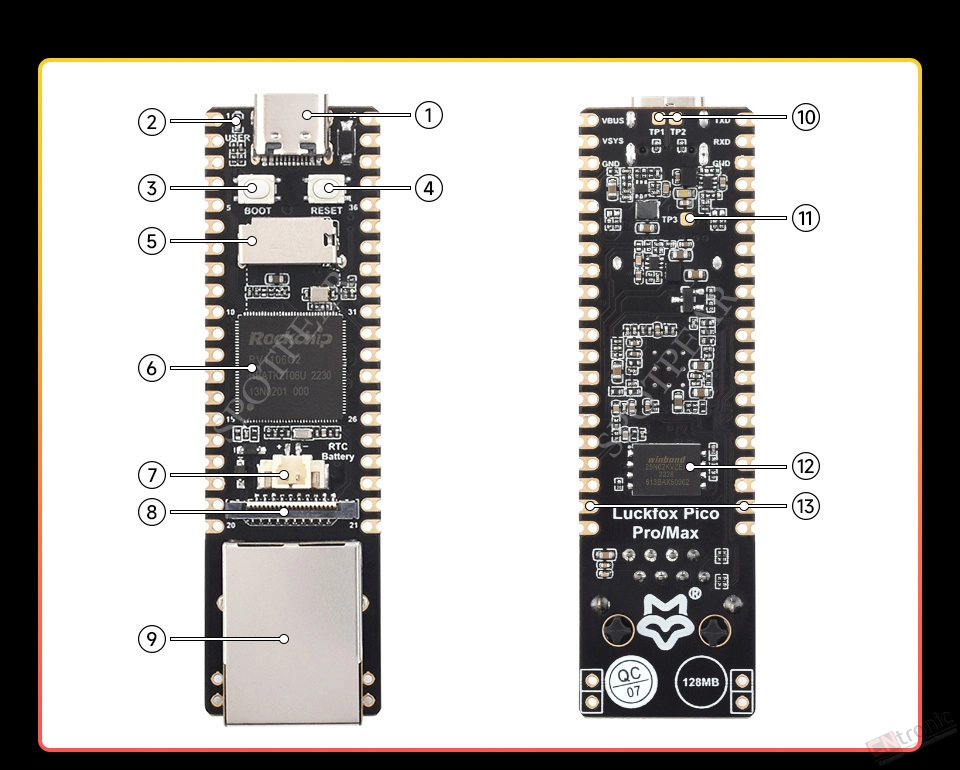

【What's On Board】

1. USB Type-C connector

2. ACT-LED

3. BOOT button : Press it when powering on to enter download mode

4. RESET button

5. TF card slot

6. RV1106 : Vision processor SoC with built-in ARM Cortex-A7 core (RV1106G2 for Pro version, RV1106G3 for Max version)

7. RTC battery header : MX1.25 connector, for connecting RTC battery

8. CSI camera interface : MIPI CSI 2-lane

9. RJ45 Ethernet port

10. USB test pads

11. BOOT test pad

12. W25N02KV : 256MB SLC NAND FLASH

13. GPIO header

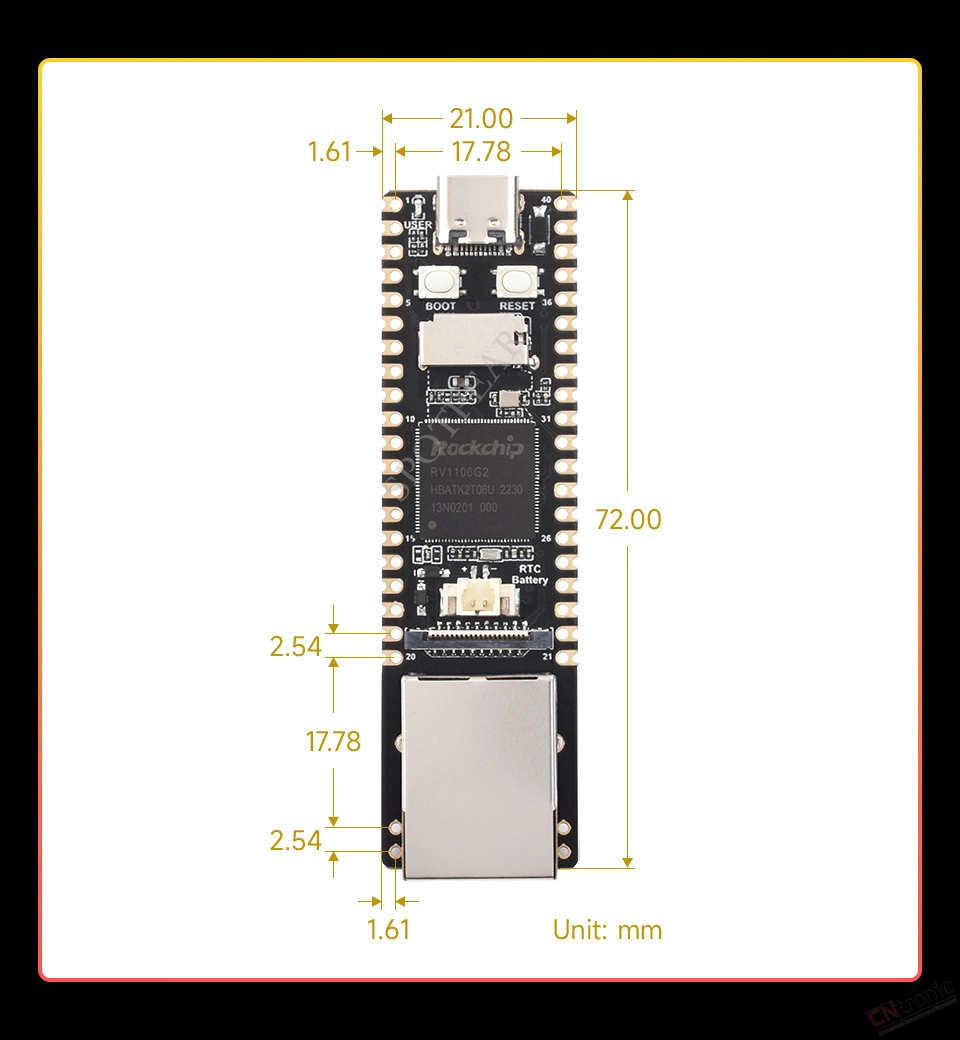

【Outline Dimensions】

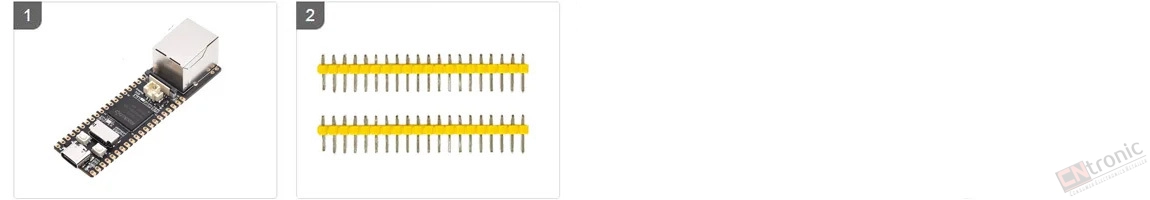

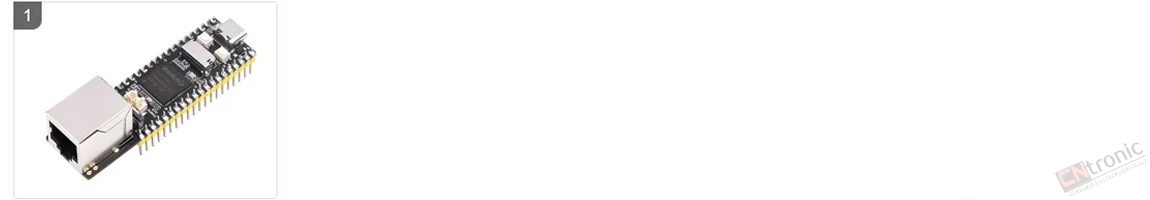

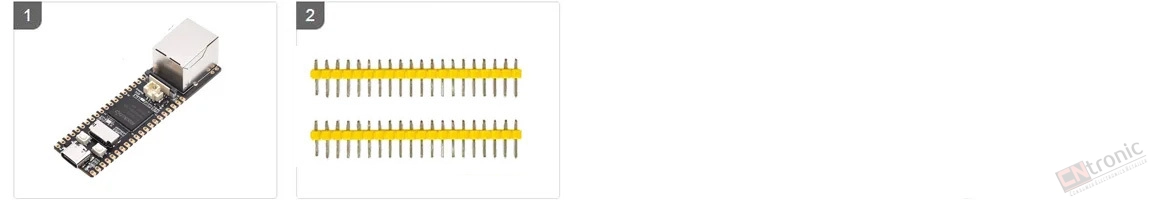

Package Contains

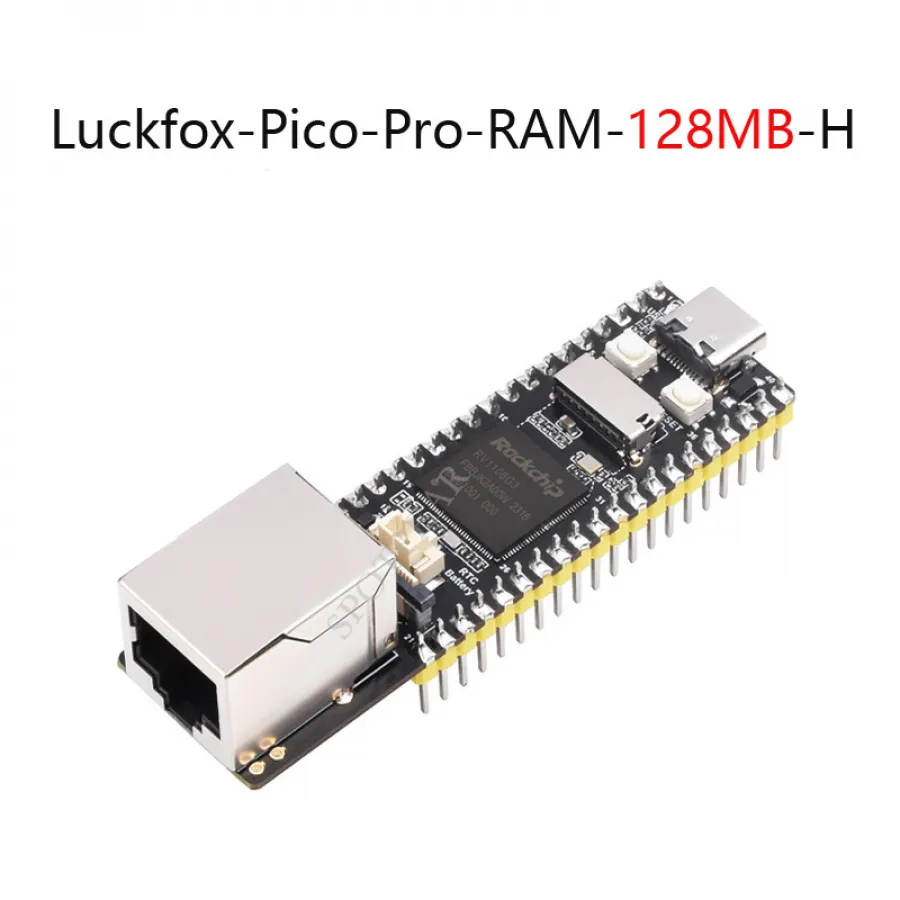

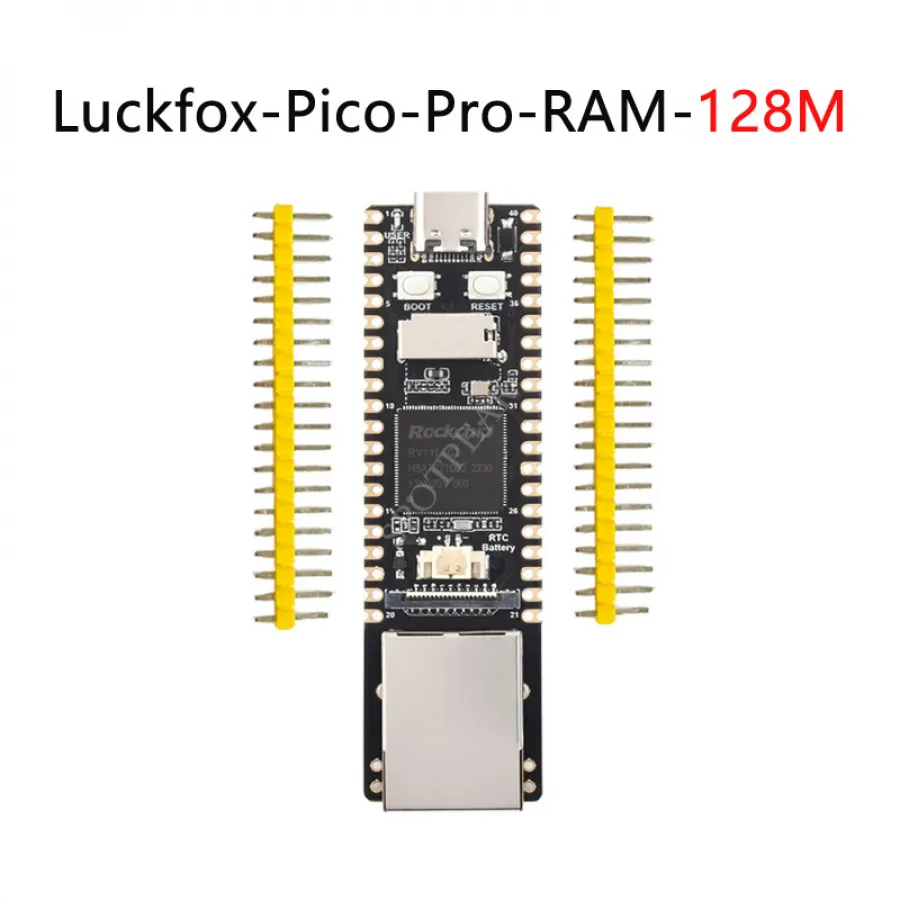

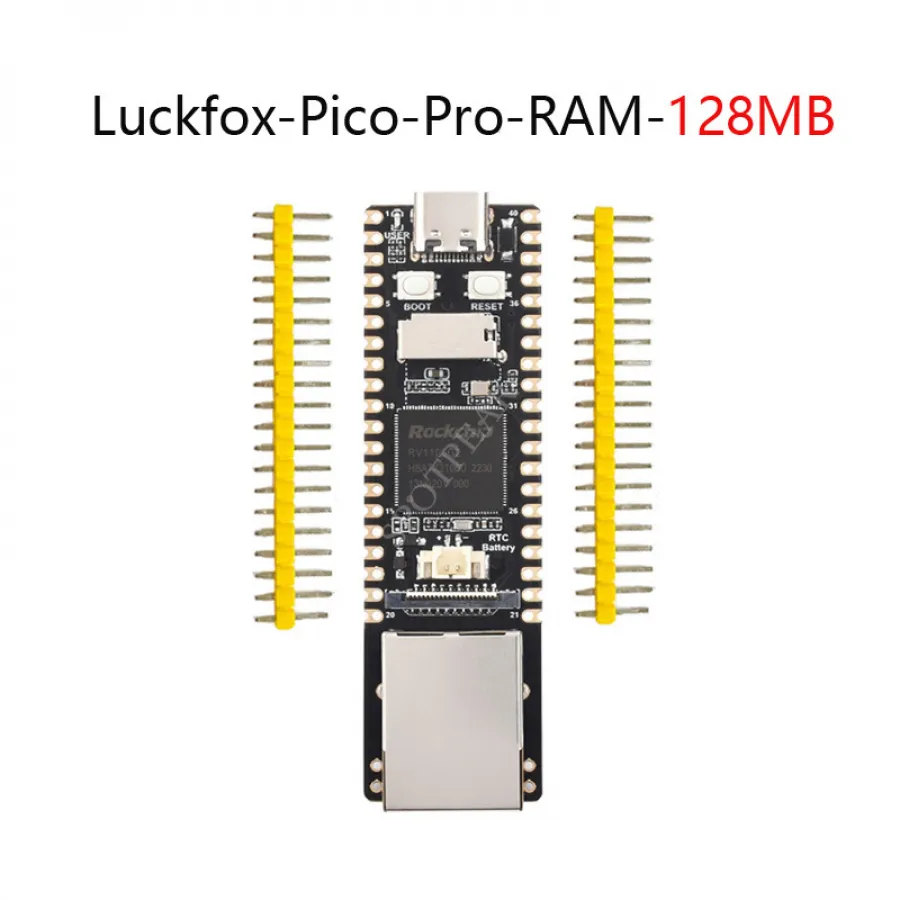

[] Luckfox Pico Pro-RAM-128MB

[] Luckfox Pico Pro M-RAM-128MB

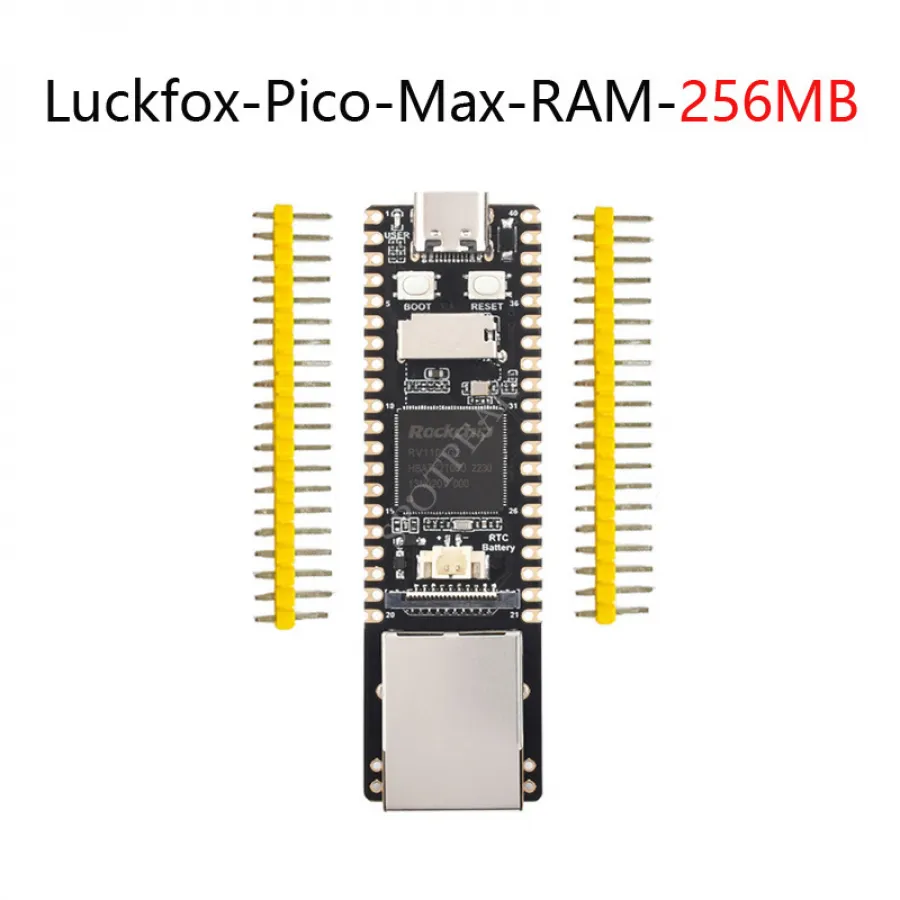

[] Luckfox Pico Max-RAM-256MB

[] Luckfox Pico Max M-RAM-256MB
