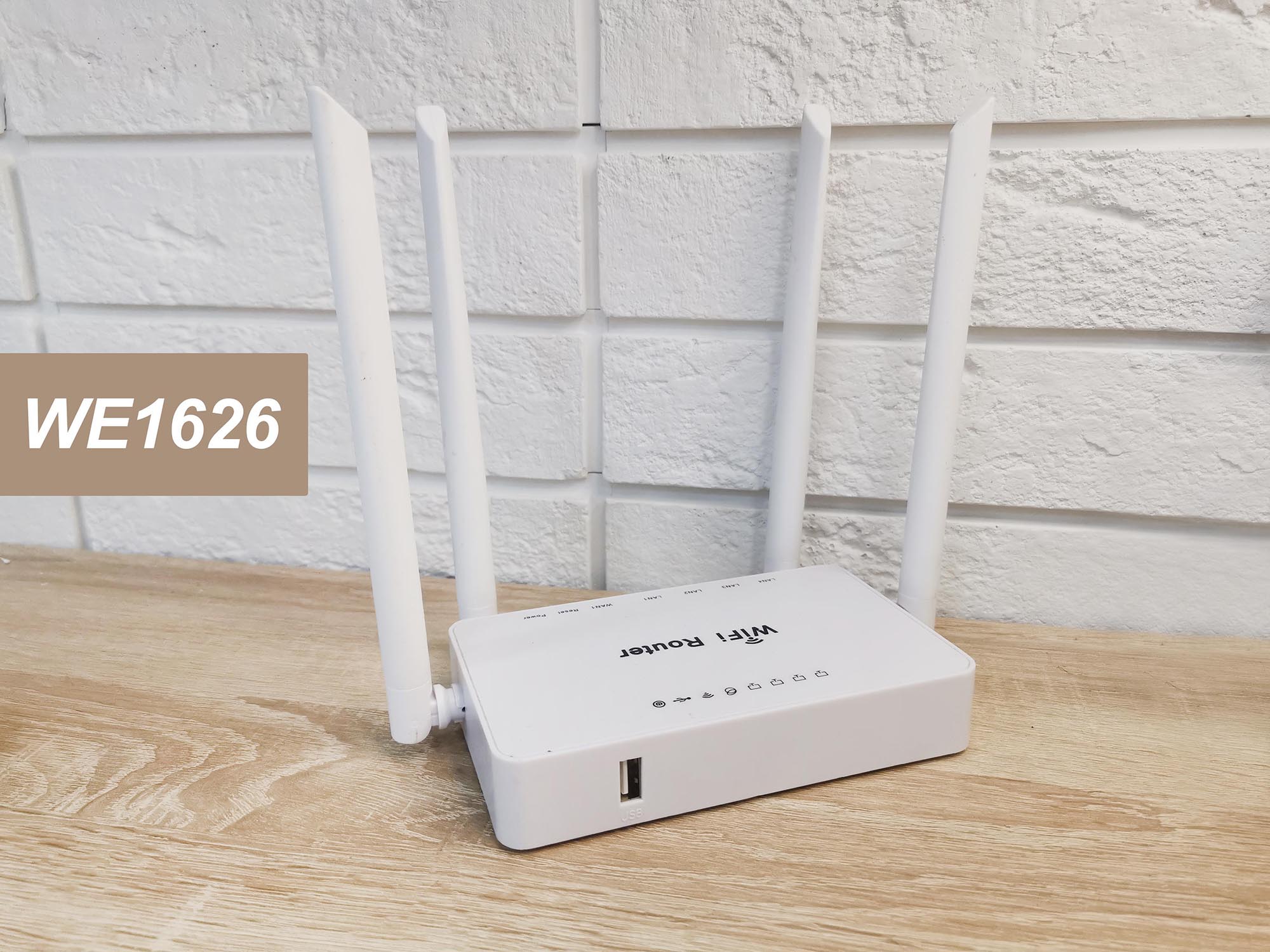

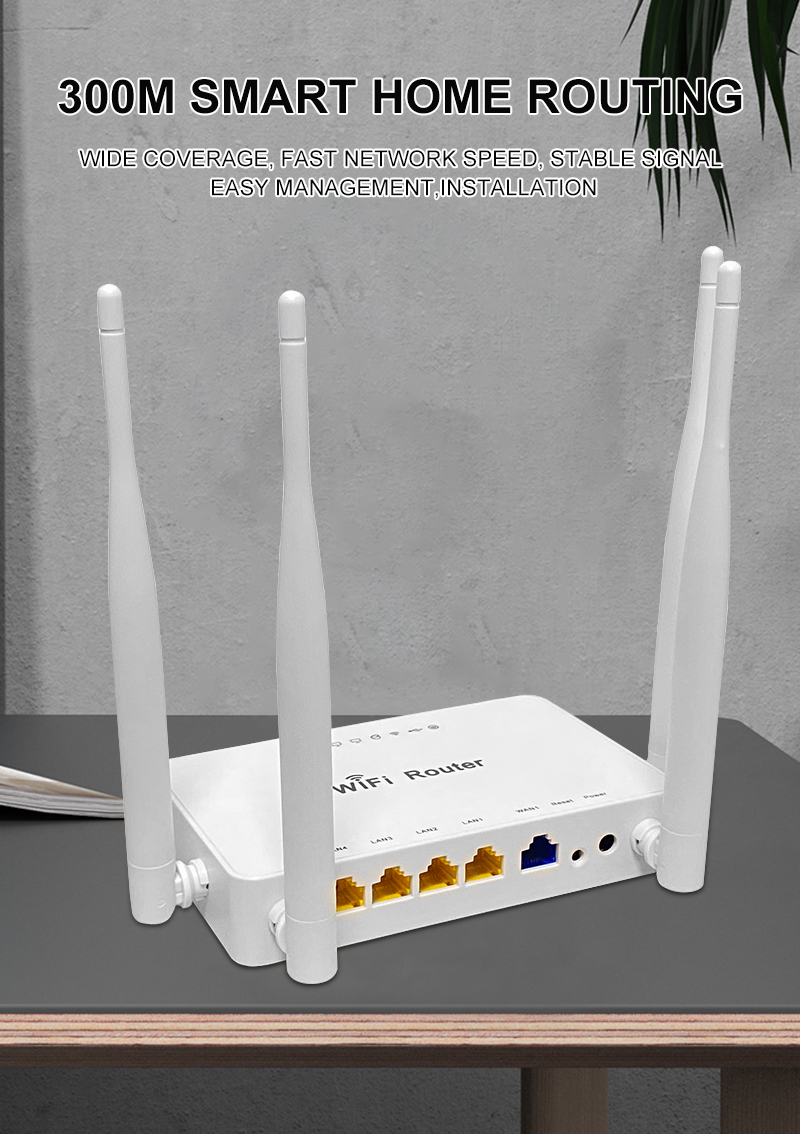

ZBT Omni II Wireless WiFi Router WE1626 For USB 4G Modem With 4 External Antennas 300Mbps 4-LAN USB2.0 Access Point
SALE
NEW
ID: 11339

ZBT Omni II Wireless WiFi Router WE1626 For USB 4G Modem With 4 External Antennas 300Mbps 4-LAN USB2.0 Access Point

5.0 (6 votes) | 7 orders
Price: US $86.44 - 93.96 / piece
Discount Price:
US $ 56.18 - 59.42 / piece
-35%
Color
Bundle
Quantity





Только для российских покупателей мы будем предустанавливать прошивку Omni II для маршрутизаторов, это русскоязычная версия.



Please note:

You choose 9V 0.6A or 12V 1A adapter, the lable on bottom of the router is : 9V 0.6A.

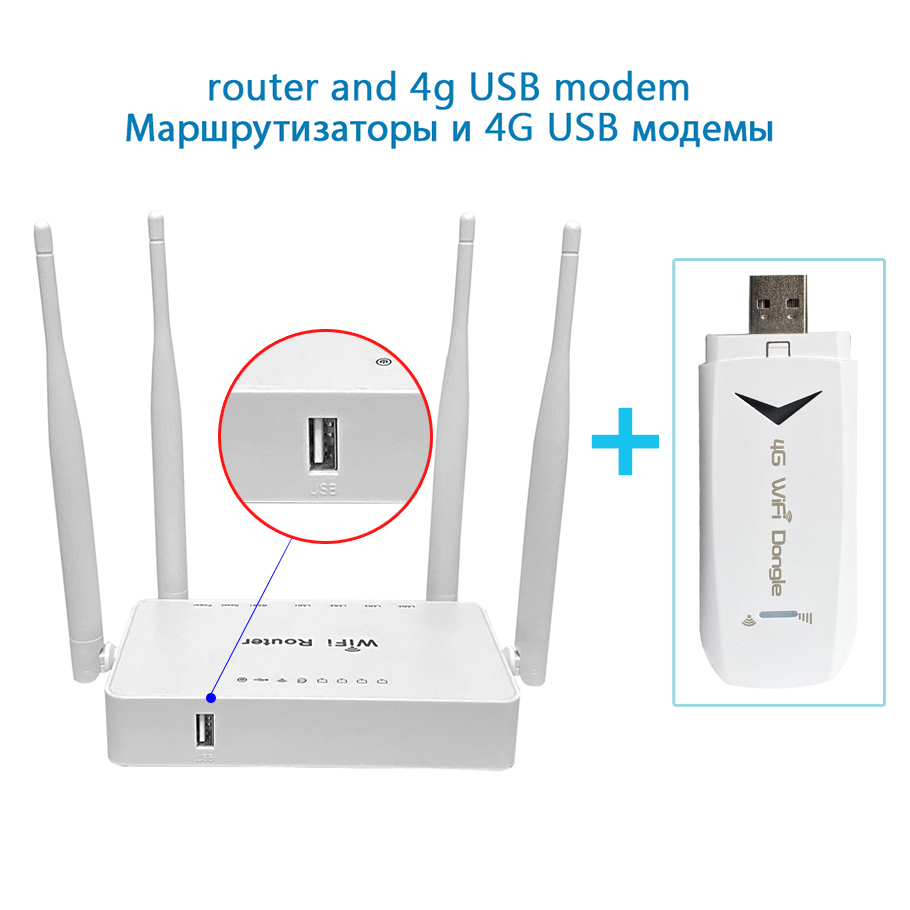

12V 1A Version ---- it's for 3G 4G USB Modem. IF you want to install USB module, pls must be order 12V 1A.

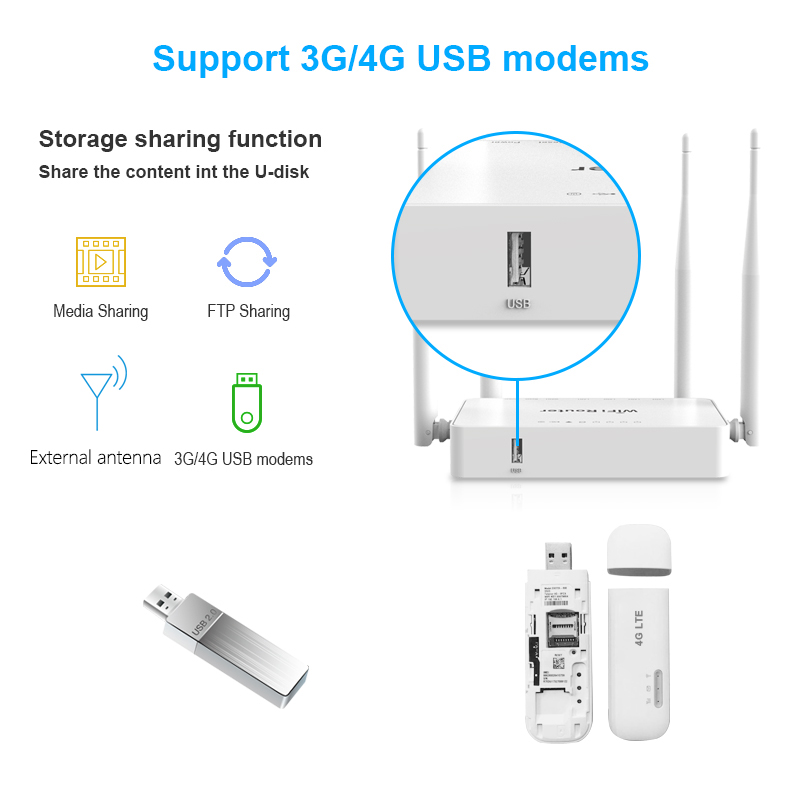

Please choose Huawei E3372, 8372 or E303 Hilink 3G/4G USB Modem , the others may not compatible.



Simple Introduction:
Hardware

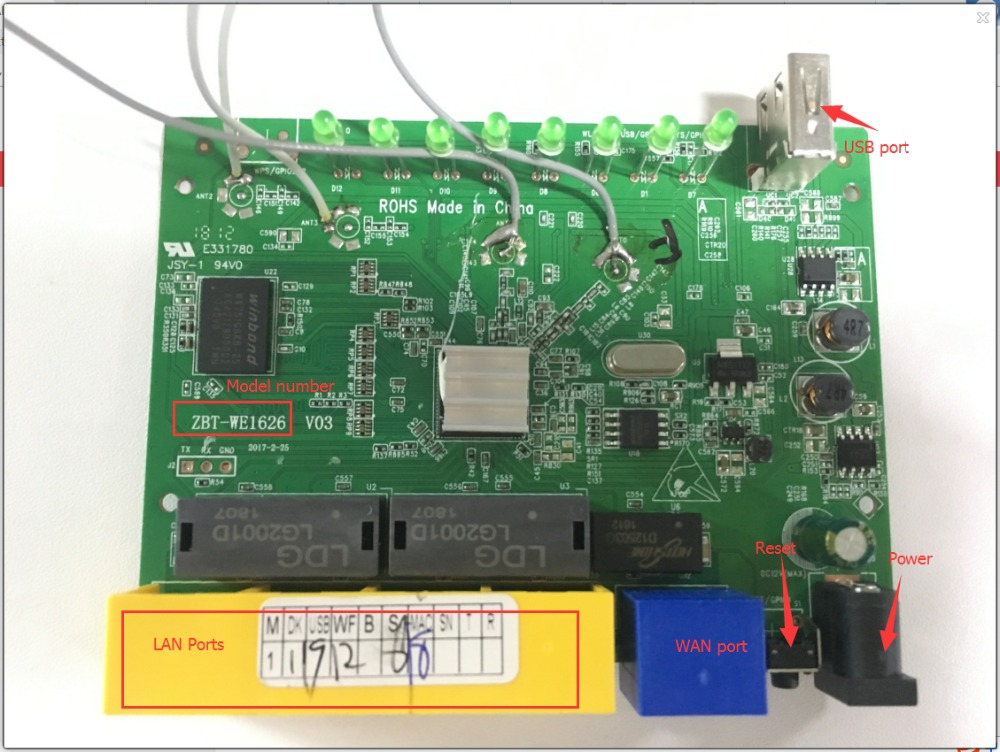

WE1626 used the MT7620N, CPU up to 580Mhz, installed the large capacity SDRAM and the high speed SPI FLASH, provide 5 10/100Mbps Auto MDI/MDIX port and 2.4Ghz wireless network, could meet many kinds of wireless application, much better cost-performance.

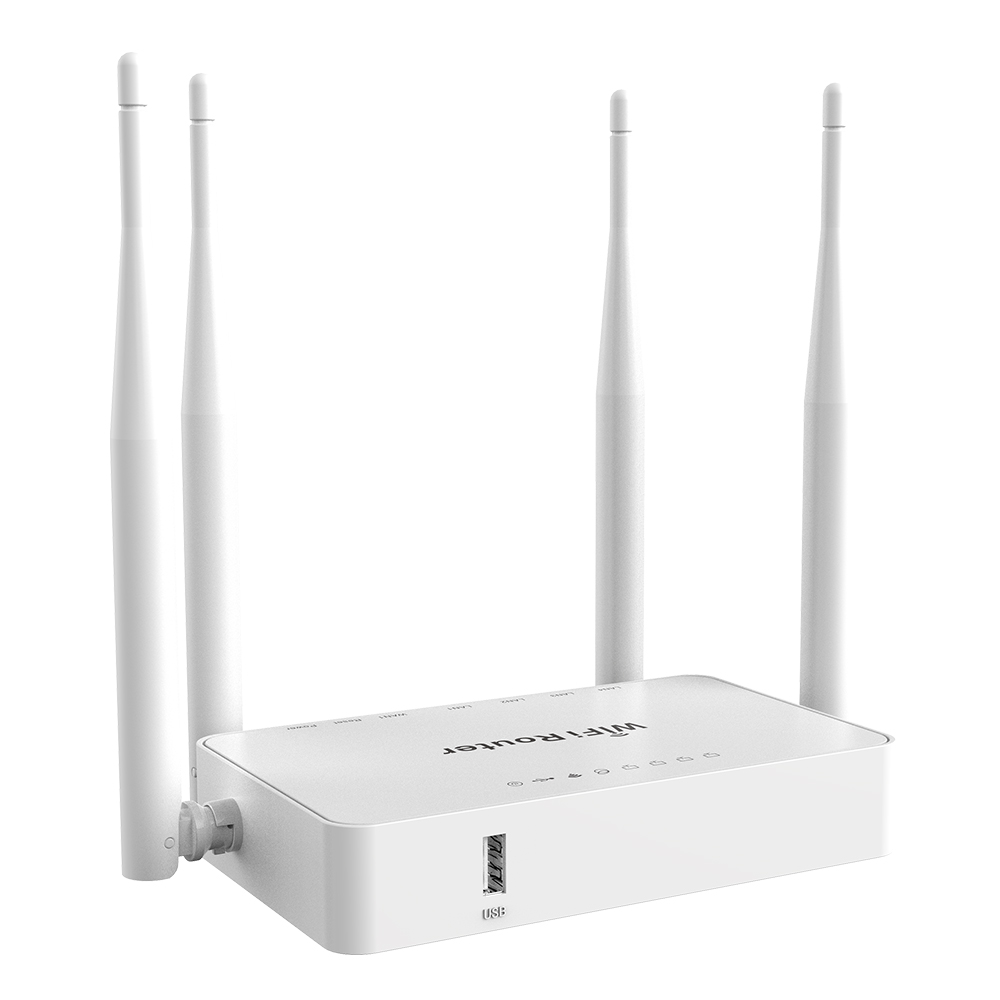

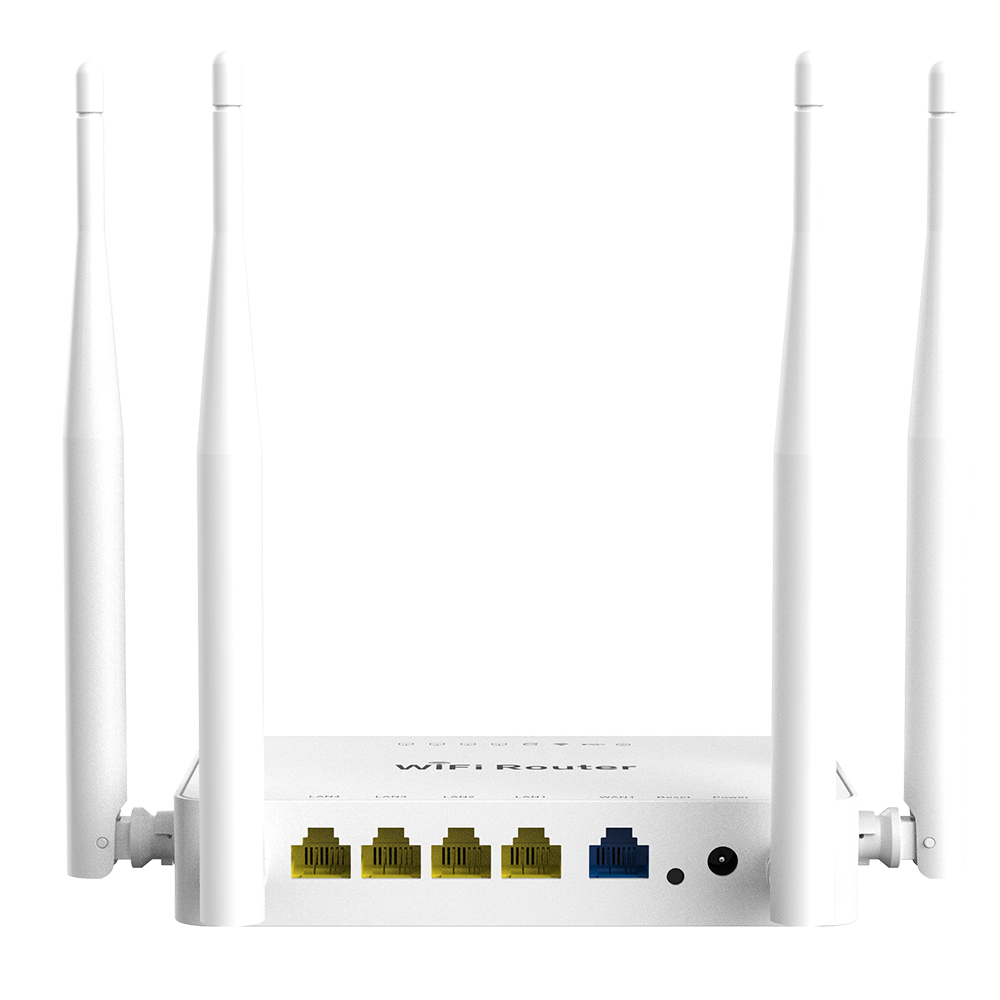

Wireless: Support 802.11b/g/n network protocol, transmission rate up to 300Mbps, 4 external antennas, cover a larger area.


Product Feature:


-- MT7620N CPU, 580Mhz, powerful performance and work stably
-- Support IEEE 802.11b, IEEE 802.11g, IEEE 802.11n wireless network protocol
-- Support IEEE 802.3, IEEE 802.3u standard
-- 1*10/100Mbps Auto-MDI/MDIX WAN port, 4 10/100Mbps Auto-MDI/MDIX LAN port.
-- Wireless rate up to 300Mbps
-- One push to rest mode
-- Support several encryption mode, such as WEP, WPA, WPA2 and so on.

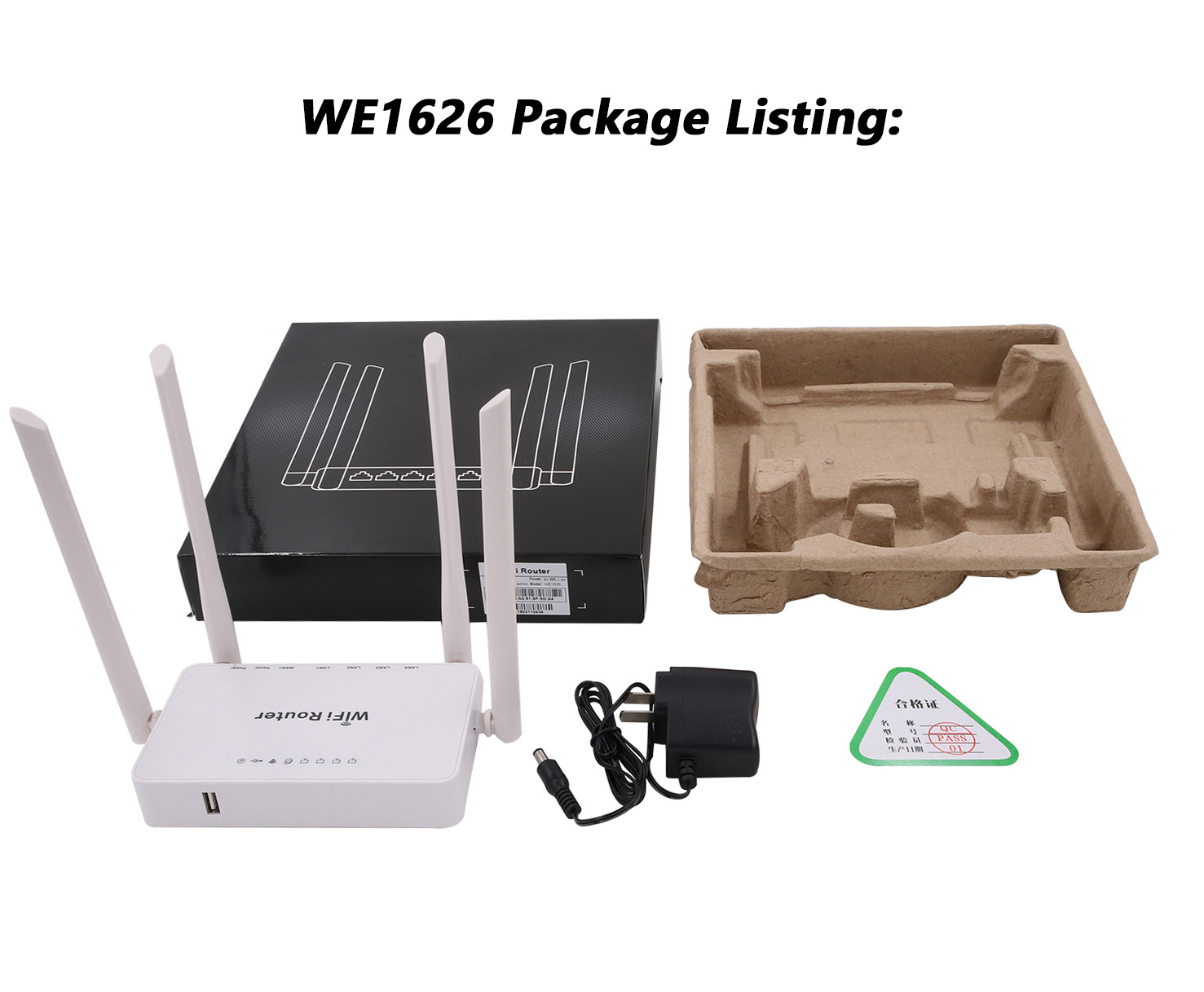

Package Listing:


1 X WE1626 Router

1 X Power Adapter

1 X User Manual

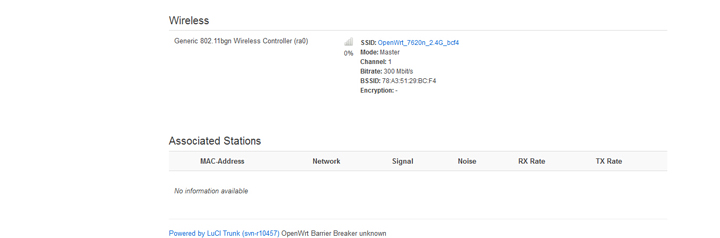

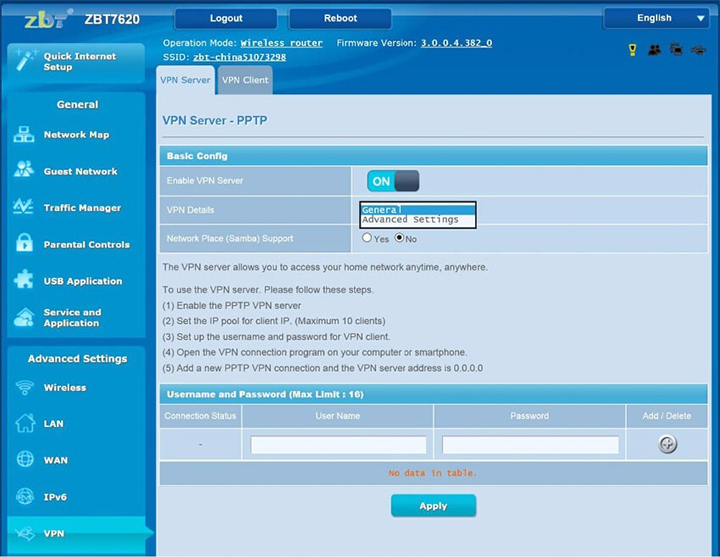

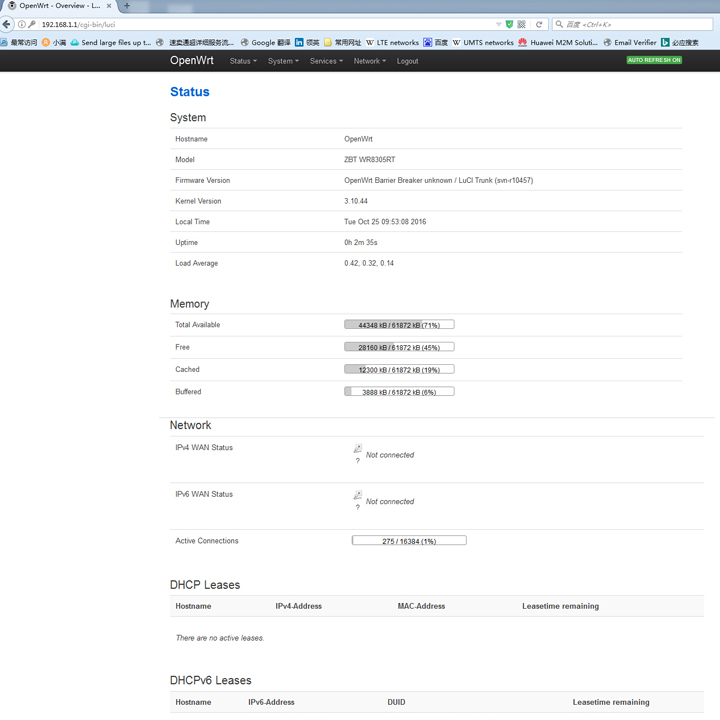

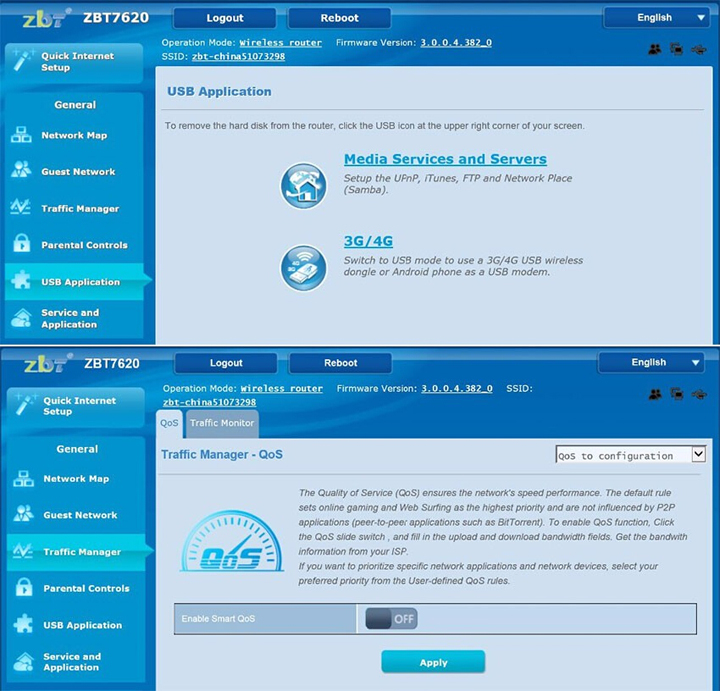

Firmware Information(openWRT)

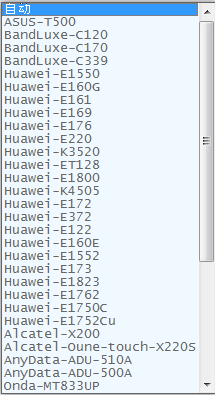

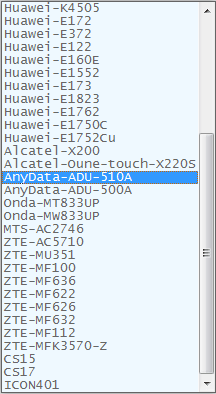

Or if you want to use below usb modem, please leave your message on you order,then i will upload ZBT firmware into the router.






PRODUCT SPECIFICATION



Main CPU

MT7620N/600MHZ

RAM

DDR2 64MB

FLASH

SPI 8MB

Protocol

IEEE802.11n/802.11g/802.11b/802.3/802.3u

WiFi Rate

Max 300Mbps

Work

Frequency

2.4GHZ

RT Power

11N: 15dBmplusmn2dBm

11G: 15dBmplusmn2dBm

11B: 18dBmplusmn2dBm

Reception

Sensitivity

11N: -68dBm

11G: -70dBm

11B: -82dBm

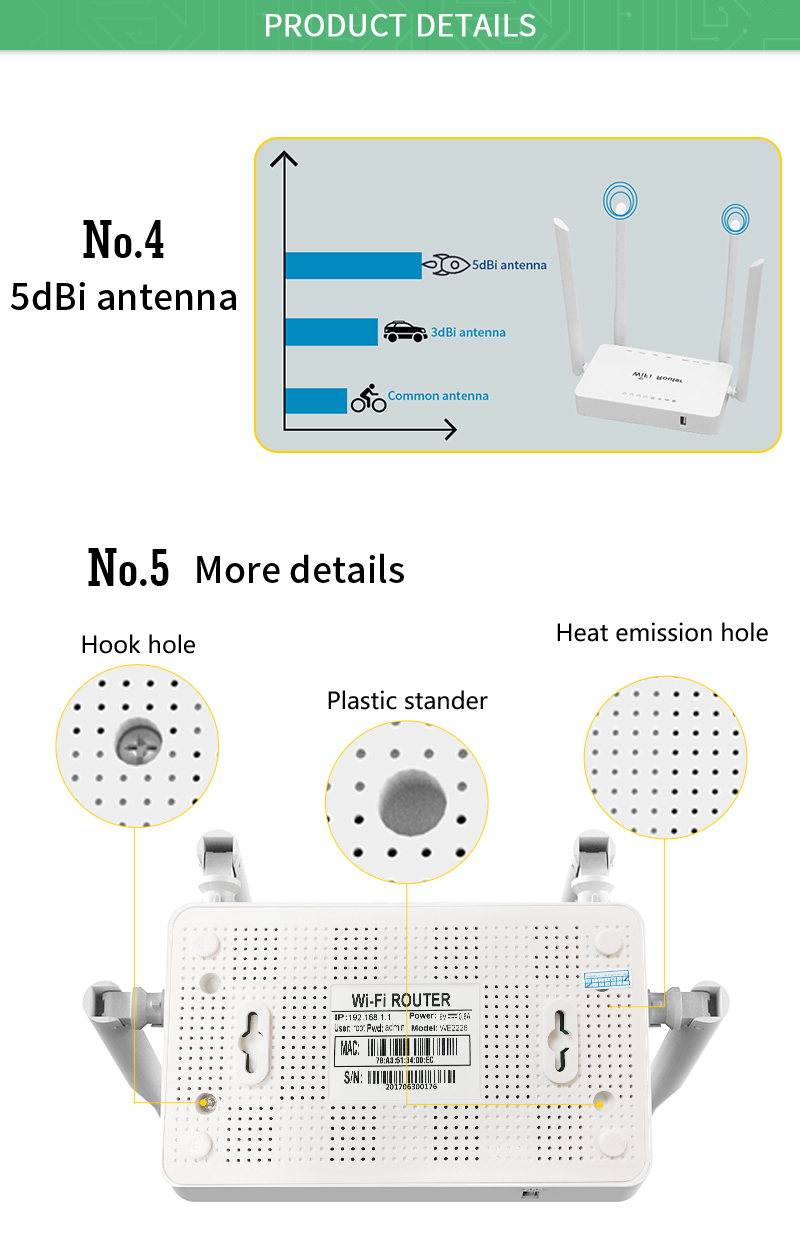

Antenna

2*5dbi omnidirectional antenna, 2*auxiliary antenna

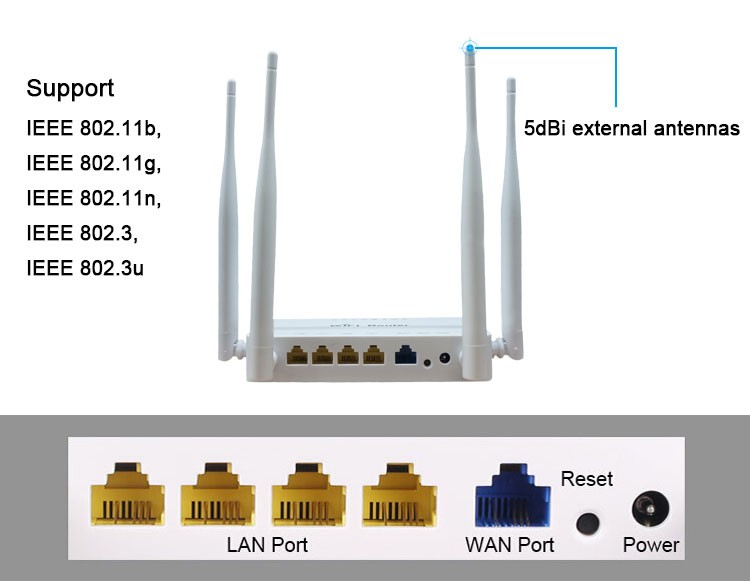

Interface

1* 10/100M Auto-MDI/MDIX WAN port,

4* 10/100M Auto-MDI/MDIX LAN port;

1*USB 2.0 Port

LED

power/USB/WLAN/WAN/LAN1/LNA2/LNA3/LNA4

Button

Reset

POE power supply

No

Max

consumption

< 9W

Demension(L*W*H)and color

Size:141*85*26MM

Color:Plastic white

Factory default setting

IP Address:192.168.18.1

Password:admin/admin

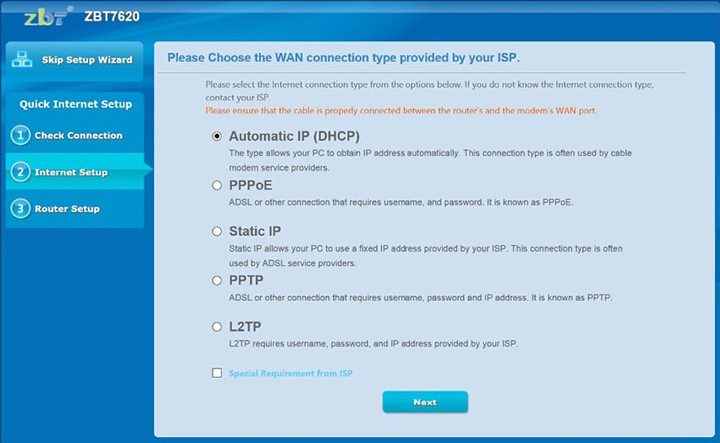

WAN Type

PPPoE,Dynamic IP, Static IP

Work Mode

AP;ROUTER;

DHCP

Server; DHCP Client List;Address Reservation

Port

Forwarding

Port Triggering, DMZ

Support System

Original SDK,openwrt, eCos

Security Setting

Client Filter, MAC Address Filter, URL Filter, Remote WEB management

DDNS

Support

WEB Style

Change

Support

Static Router

Support

System Log

Support

Other

Function

Mac clone

NTP Synchronize

Web firmware upgrade

Work

Environments

Operating Temperature:0℃ ~ 40℃;

Storage Temperature:-40℃~ 70℃;

Operating Humidity:10%~90% non-condensing

Storage Humidity:10%~90% non-condensing

Accessories


Adapter*1PCS(National standard 9V/12V )

Certificates

3C

Package

265*246*46MM

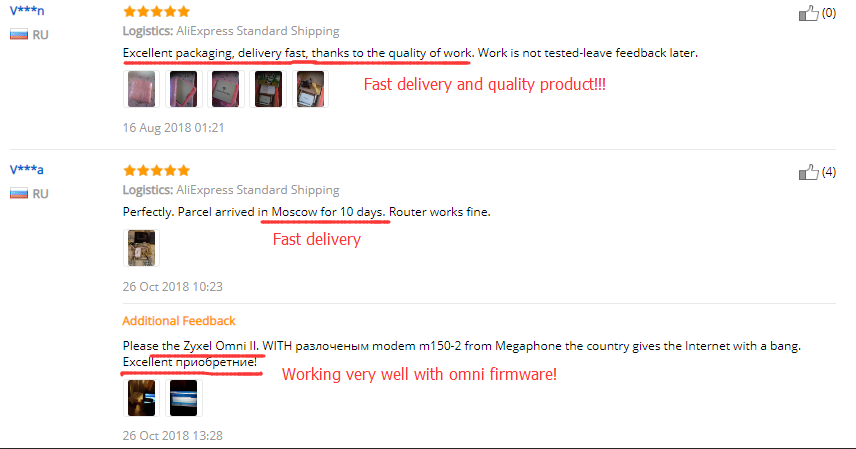

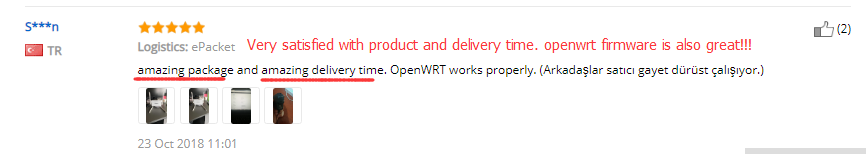

All 5 star feedback from our customers











Packaging Details

  • Unit Type: piece
  • Package Weight: 0.450
  • Package Size: 15x15x20

  • Brand Name: ZbT
  • With Modem Function: No
  • Recommended Uses: Home
  • Wireless Communication Standard: 802.11.a
  • Origin: Mainland China
  • Frequency Band Class: Single-Band
  • Frequency: 2.4 GHz
  • Antenna Type: Internal
  • Wireless transmission rate: 150m
  • Hign-concerned Chemical: None
  • Type: Wireless
  • Support Mesh: Support
  • WAN Ports: 1 x10/100Mbps
  • Wi-Fi Supported Frequency: 2.4G
  • 5G Wi-Fi Transmission Rate: None
  • 2.4G Wi-Fi Transmission Rate: 300 Mbps
  • Function: Firewall
  • Function: QoS
  • Certification: CE
  • Certification: FCC
  • Number of USB Interfaces: 1 x USB 2.0
  • Max. LAN Data Rate: 100Mbps
  • Standards And Protocols: Wi-Fi 802.11g
  • Standards And Protocols: Wi-Fi 802.11b
  • Standards And Protocols: Wi-Fi 802.11n
  • Wi-Fi Transmission Standard: 802.11b
  • Wired Transfer Rate: 10/100Mbps
  • Package: Yes
  • Supports WDS: Yes
  • LAN Ports: 4
  • Supports WPS: Yes
  • Application: Home
  • Model: WE1626
  • Chipset: MT7620N
  • Flash/RAM: 8MB Flash + 64MB Ram
  • Firmware: Omni II, OS, Openwrt
  • Antennna: 4*5dbi external antennas
  • Protocol: IEEE 802.11n/b/g, IEEE 802.3, IEEE 802.3u
  • Wireless rate: 300Mbps MAX
  • Ethernet: 4*lan + 1*wan
  • USB Interface: 1 port
  • Adapter: DC 9V 0.6A / 12V 1A
  • Language: Russian, English
  • USB 4g router: Support
  • Feature: ZBT router
  • Feature 2: router wifi
  • Feature 3: wifi router
  • Feature 4: wireless router
  • Feature 5: usb router
  • Feature 6: 300mbps router
  • Feature 7: Omni 2 router
  • Feature 8: 2.4ghz router
  • Feature 9: lan router
  • Feature 10: wan router
  • Feature 11: WE1626 router
  • Feature 12: Omni II router
  • Feature 13: USB router
  • Feature 14: 12V router
  • Feature 15: MT7620N router
  • Feature 16: wi fi router
  • Feature 17: wireless wifi router
  • Feature 18: home router
  • Feature 19: Firmware router
  • Feature 20: router for usb dongle
