1000mm width Solar EVA Film For Soar Panel encapsulation CE and TUV Top quality EVA Film Free shipping
SALE
ID: 48157

1000mm width Solar EVA Film For Soar Panel encapsulation CE and TUV Top quality EVA Film Free shipping

4.9 (14 votes) | 36 orders
Price: US $26.58 / Meter
Discount Price:
US $ 24.88 / Meter
-6%
Quantity

Description:

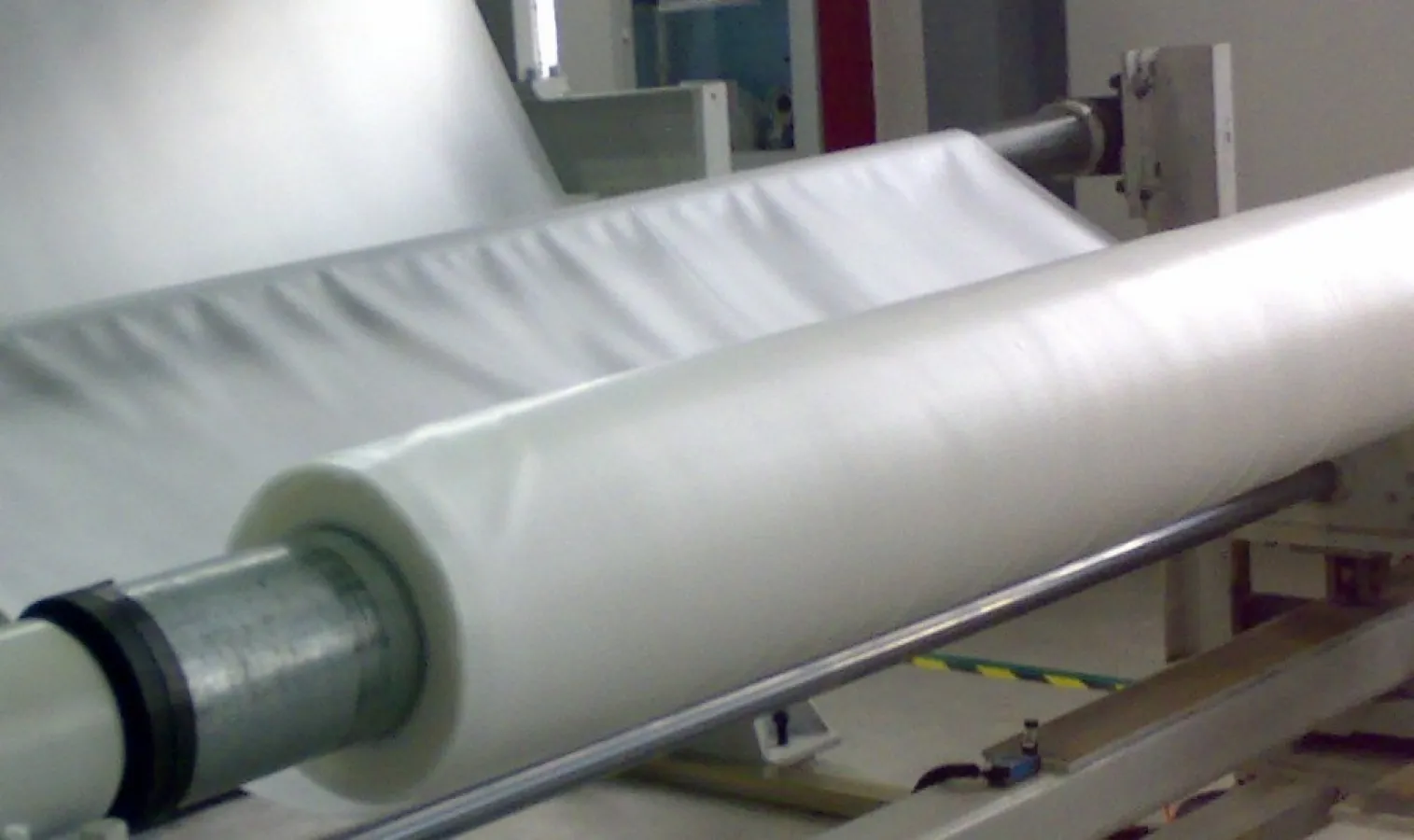

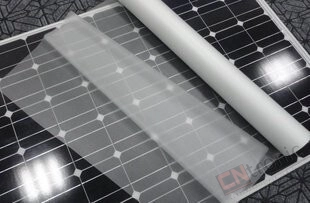

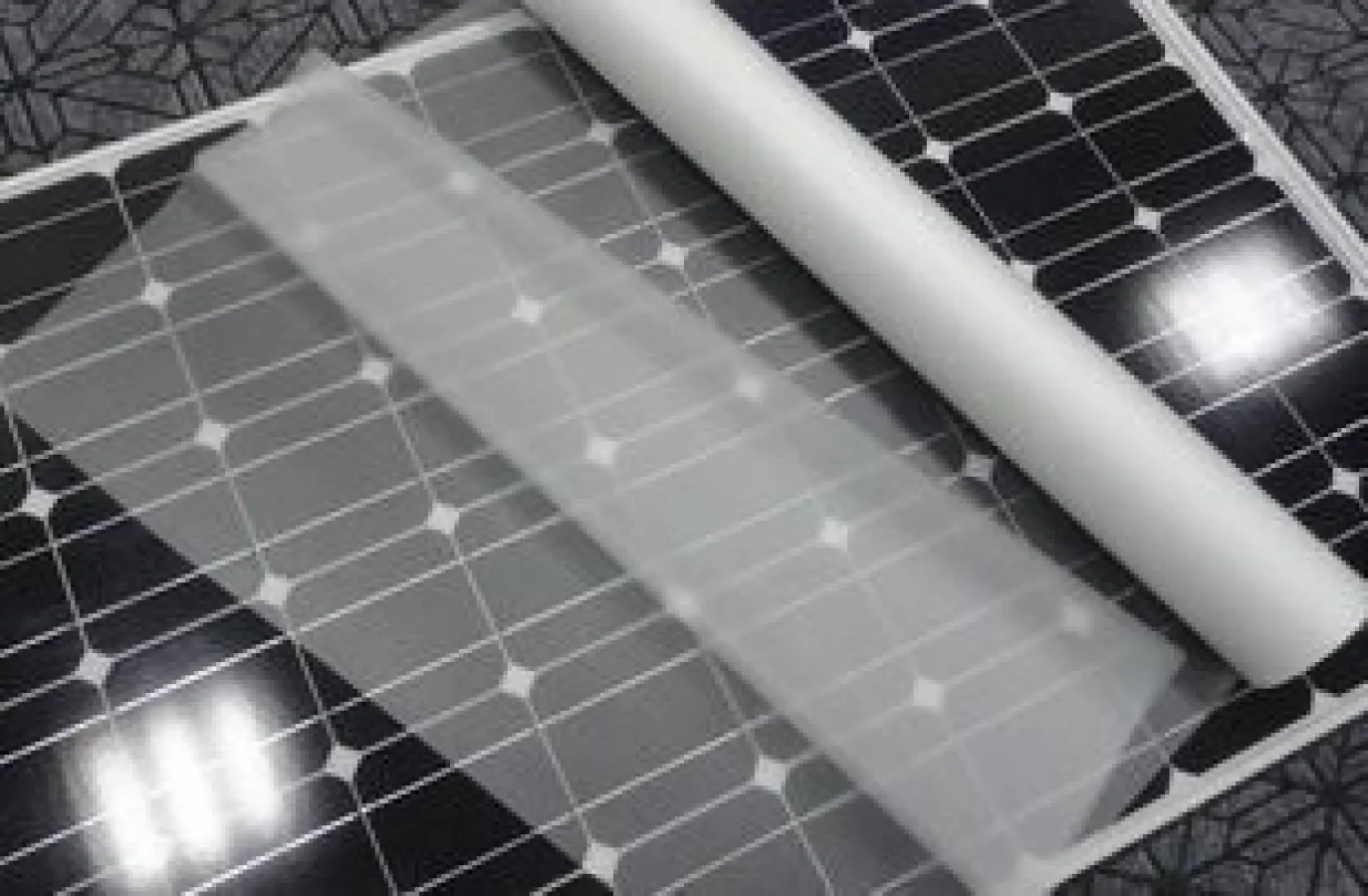

 Solar EVA Film



 SIZE:1000m width

The price is for the length 1Meter .(If you need more we  could be cutted according to customers requirement.)



EVA Adhesive film Feature:

  • Superior durability - 20 years resistance against weather, high temperature and high humidity
  • Excellent adhesion - 60 N/cm when applied to glass for TPT film.
  • >90% light transmission
  • Excellent encapsulating properties
  • Film is not adhesive at room temperature to ease manufacturing operations
  • Cross linking and enhanced bonding are achieved when the film is heated and pressed.

1. EVA film

ITEM

UNIT

FAST CURING

VA content

%

33

Melting point(Before cross-linking)

degree

65

Density

g/cm3

0.96

Transmittance

%

≥91

Refractive index

1.48

Tensile strength

Mpa

16

Elongation ratio

%

420

Shrinkage ratio(120degree,3min)

%

3

Completely Gel content(150degree,15min)

%

≥75

Peeling strength

Glass/EVA

N/cm

≥60

TPT/EVA

N/cm

≥50

UV aging resistance

No cracks, no discoloration

Temperature resistance(85degree/-40degree)

No thermal expansion and contraction

EVA film lamination and curing

CONDITIONS

FAST CURING

Lamination

Laminating machine heat board(degree)

100-120

135-140

145

Vacuumzing time(min)

5-8

5

3

Pressure time(min)

2-3

15-20

12-15

Curing

Curing oven temperaturedegree

135-140

Curing time(min)

15-20

Remark

Two steps

One step

One step

Laminating Steps

Laminating: laminate the glass, EVA film, connected silicon cells, EVA film, TPT backsheet foil in sequence.

Vacuum pumping: Place above laminated pieces into the lower room of the double-vacuum press.  Then the upper room and the lower room are vacuumed synchronously about 6min.

Heating: the upper room and the lower room are kept vacuum, meanwhile heat the laminated pieces.

Press: Laminated pieces are heated under 135°C-140°C conditions, the upper room cancel vacuum and get back to atmospheric pressure.  At that time the lower room is still kept vacuum, that is to say, the upper room press on the laminated pieces of the lower room.

Curing: Isothermal curing under the curing temperature.

Cooling and framing: After isothermal curing, cancel the vacuum of the lower room, open the top of the press, and take out the laminated modules.  Then cut off the extra EVA of composite lamination edge.  Moreover seal frame and equip the termainal box, assemble PV modules at last.



1

389015137_283



Packing List: 1Meters 1000width EVA



Shipping

(1) All our items will be shipped to buyer's address registered on Cntronic, please confirm your address on Cntronic before you bid.



(2) We will not be responsible for any delay during delivery including but not limited to customs package checking, strike, force majeure ect.

(3 In order to ensure you receive your ordered items with less import tax , we will declare it with lower values, which does not reflect the total price you paid or the market value of the product. It may not apply to countries with different tariff rules. We do not responsible for any custom duty or import tax.



Payment

  • Payment methods available on Cntronic as below.

 PAYMENT METHODS

The shipment will be done after the verification of your payment.





Warrantey and Return Policies

By buying from us, you have agreed that you have read and understood our polices as below.

1. We are your trusted partner for long term business. We are responsible for the quality of our products.

2. Returns for exchange are permitted and must be initiated by the buyer within 4 days of receipt. All return items must be in their original condition. Return shipping and handling charge will be at the buyer's expense, unless the goods are returned due to manufacturing defects. Please do contact with us by leaving me message, or by trademanager, or by telephones or by mails   for return address and details and any other issues.

3.In case there is problem with your order, make sure CONTACT US before leaving negative feedback. Leaving negative feedback without communication is a violation of feedback policy.








  • Brand Name: ALLMEJORES
  • Origin: CN(Origin)
  • Foldable Solar Panel: No
  • Number of Panels: 0
  • Flexible Solar Panel: No
  • Type: Solar Panel
  • Nominal Capacity: /
  • Size: 1000mm
  • Model Number: 1000mm
  • is_customized: Yes
  • Number of Cells: /
  • Material: EVA
  • Max. Power: /
