220V Heating Incubator Heater Element Plate For Eggs Incubator Accessories
15.97 12.62 $
ID: 136467
Quantity
220V 300W Surface Insulated Thermostatic PTC incubator heater ceramic air heater Electric heating element AC/DC 76A2 120*50mm
0.0 ( votes) | 2 orders
Price:
US $
51.02
100% Brand new and high quality
Item Description
Rated Power:300W
Rated Voltage:220V(the power line does not distinguish between positive and negative)

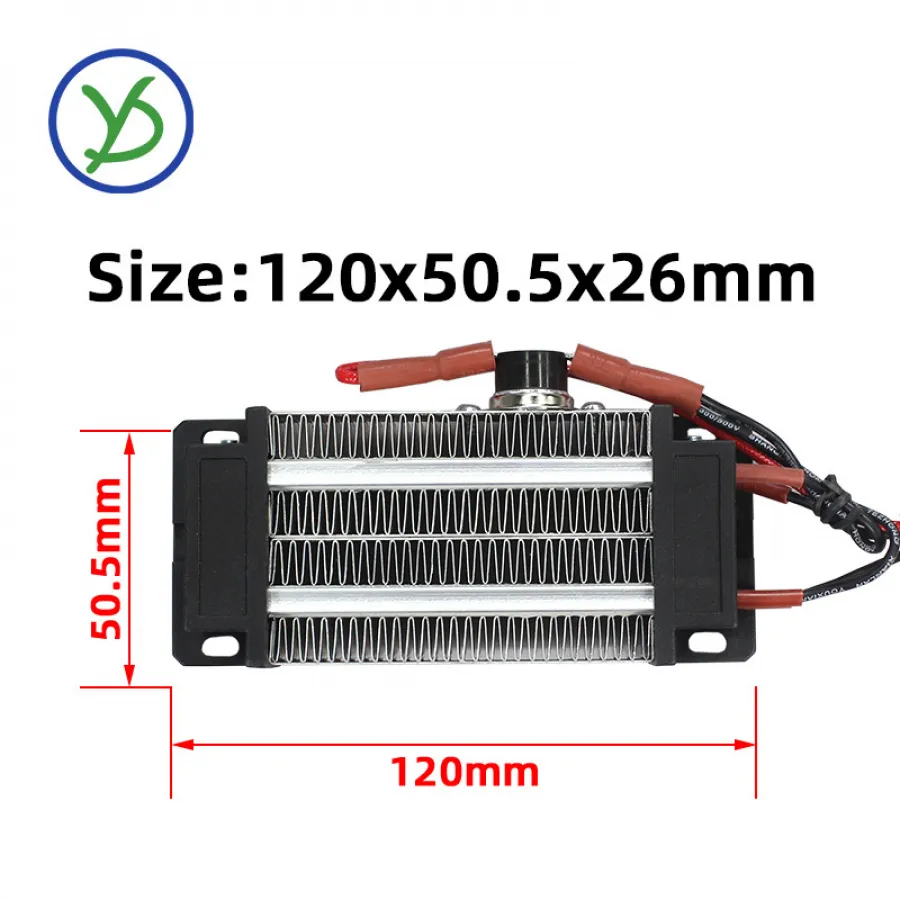

Dimension(L*W*H):120 x 50.5 x 26mm
Mounting Pitch:100 x 43mm
Mounting Hole Size：8 x 4mm
Heat material: PTC Thermistor
Heat methods:heat radiation by air flow
Lead wire: silicone high temperature line
The length of lead wires : 200mm
The length of bare wires : 10mm

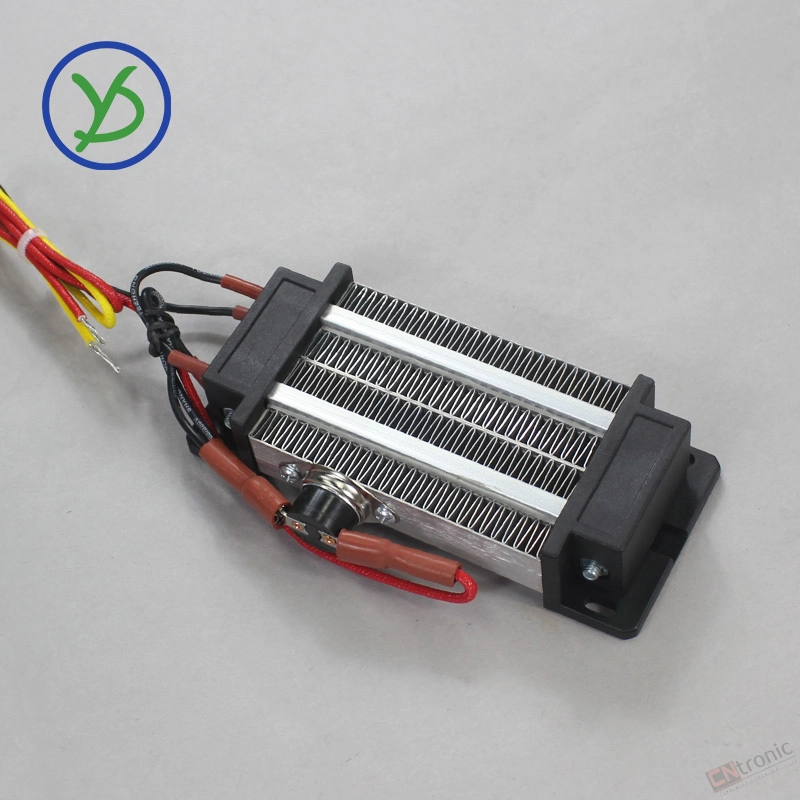

Remarks:with 150 degrees normally closed thermostat protector

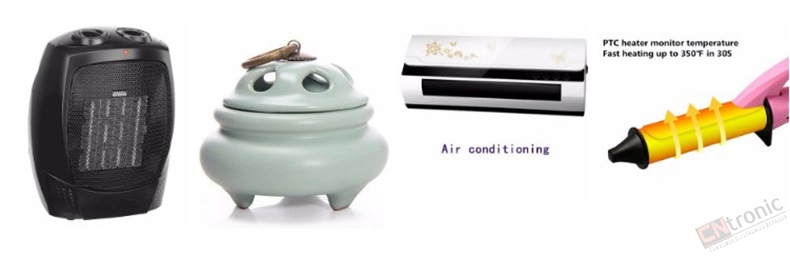

Mainly used in:Electric Heater / Air Conditioner / equipment / Humidifier / Air Purifier / Clothes Dryer / Dehumidifier
Item Size

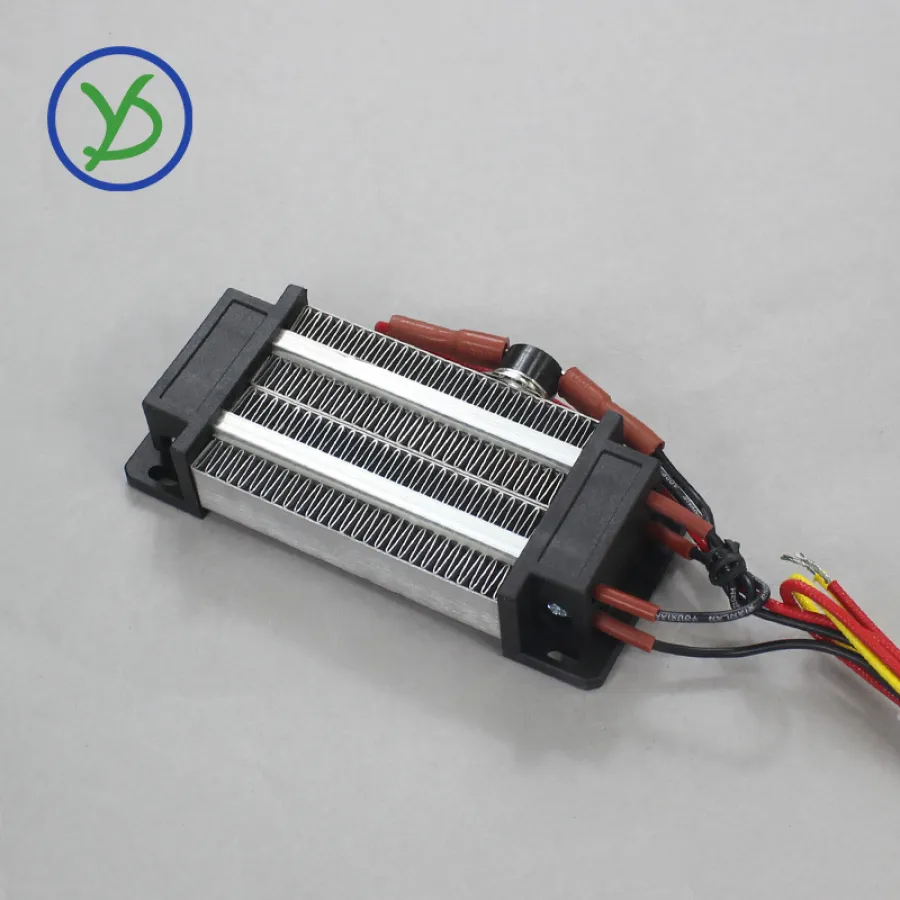

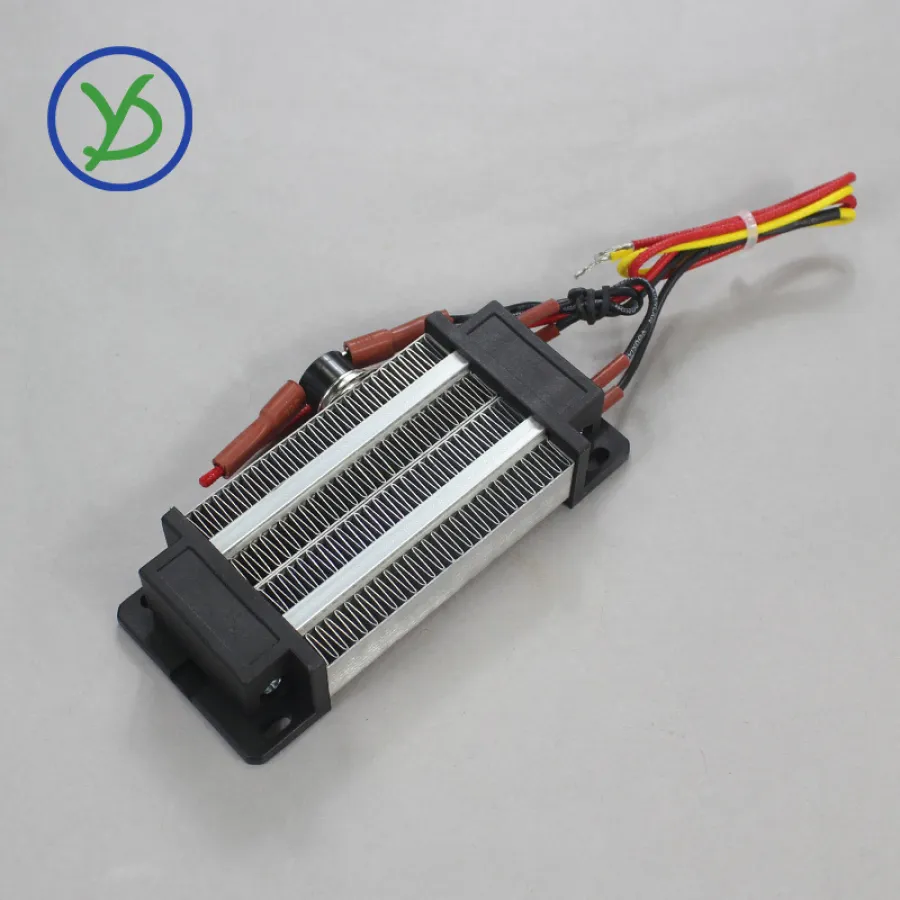

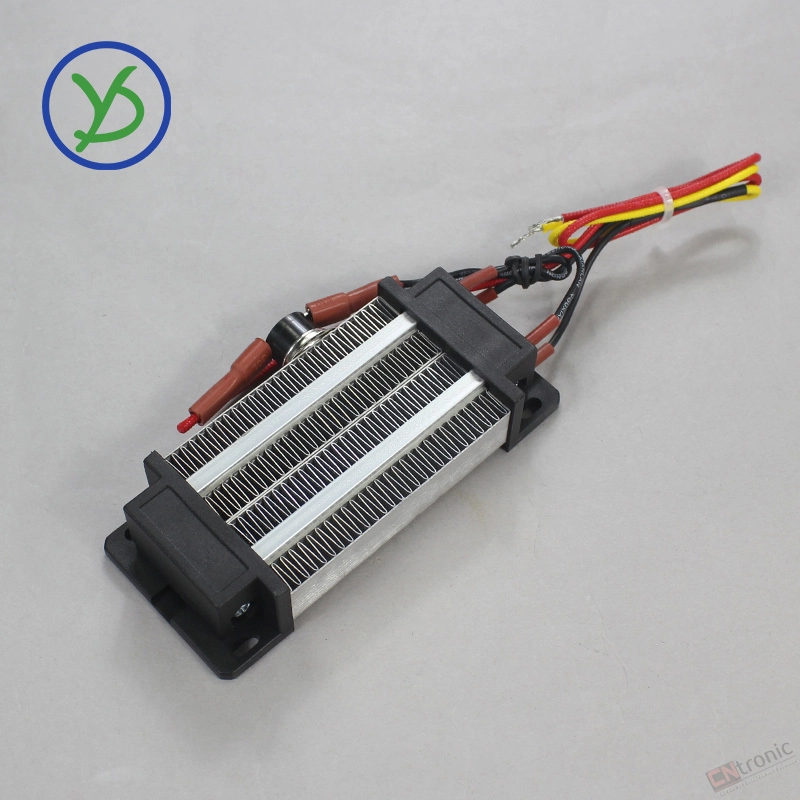

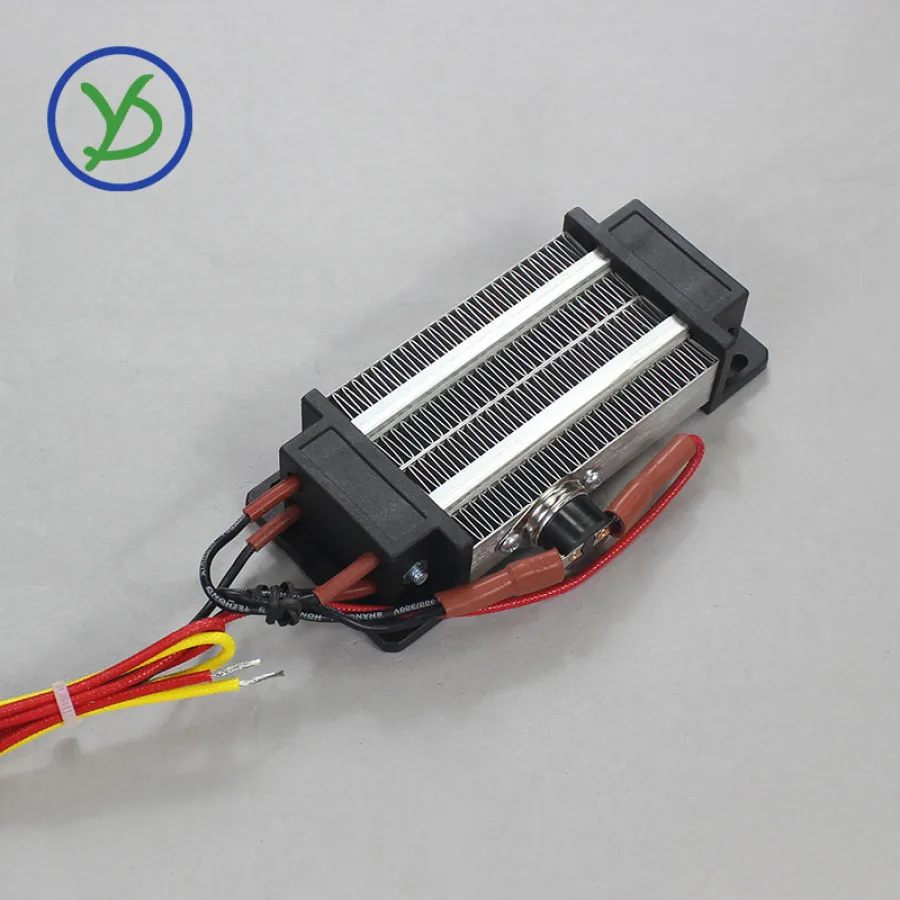

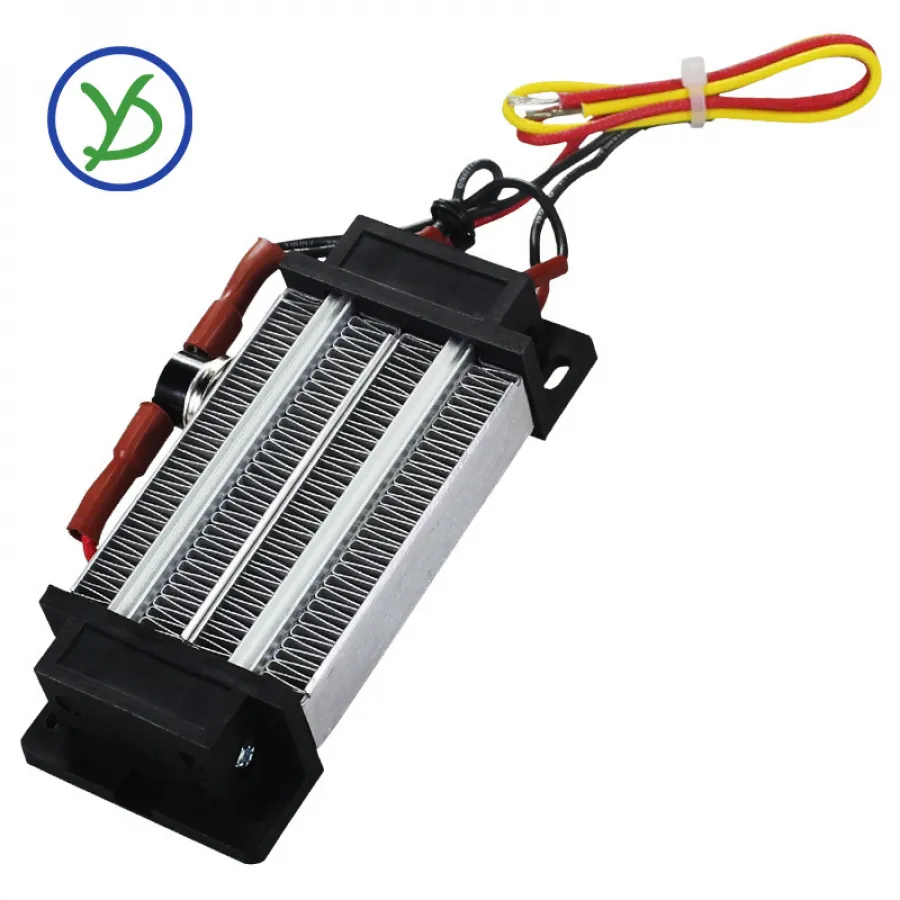

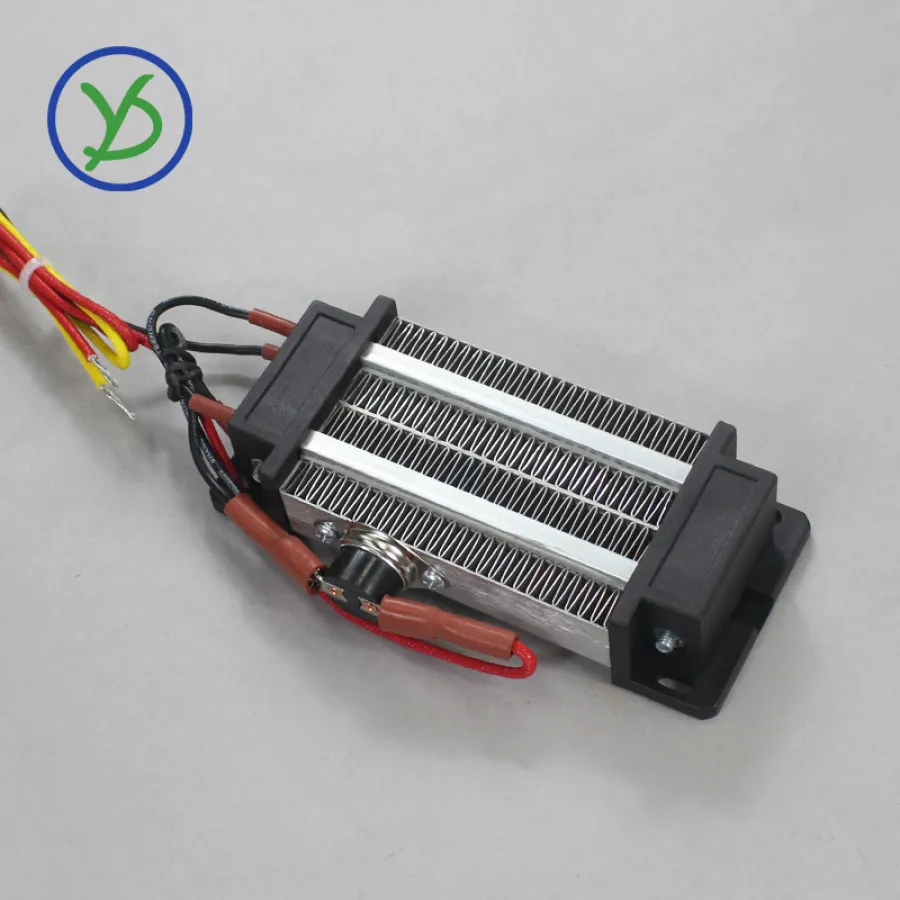

Item Show
Advantage:
Safety, surface insulation
Heat up quickly, long service life
Self-control temperature
Small sound
Instruction manual(PTC Air Heater 300W 220V):
1. The power line does not distinguish between positive and negative, you can freely link power 220V.
2. When the heater is dry, low thermal efficiency, it is recommended to use with the fan.
3. Can be placed under a wet environment, but can not be placed in water.
4. For the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.
5. Built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.
6. Both ends of the product wearing bracket (PA66 high temperature nylon)
7. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 50-60 degrees Celsius.
8. Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!
9. Life: about: 3--5 years.

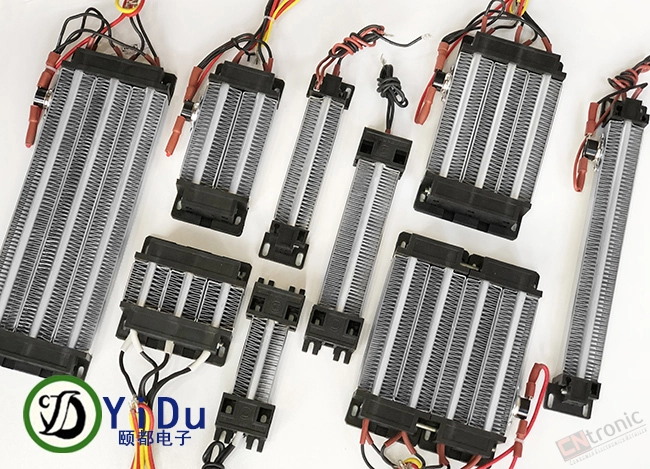

we have different power and size to choose

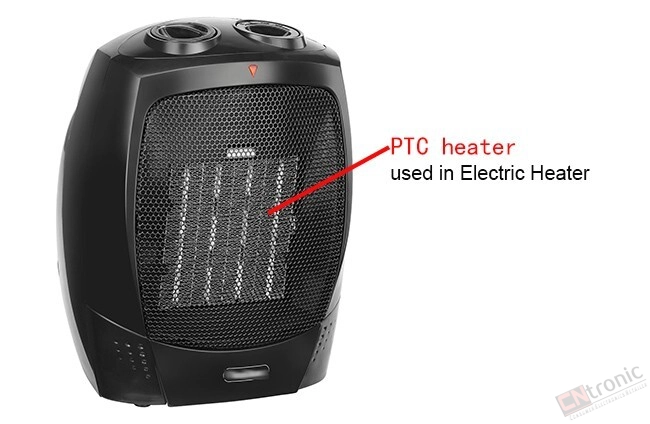

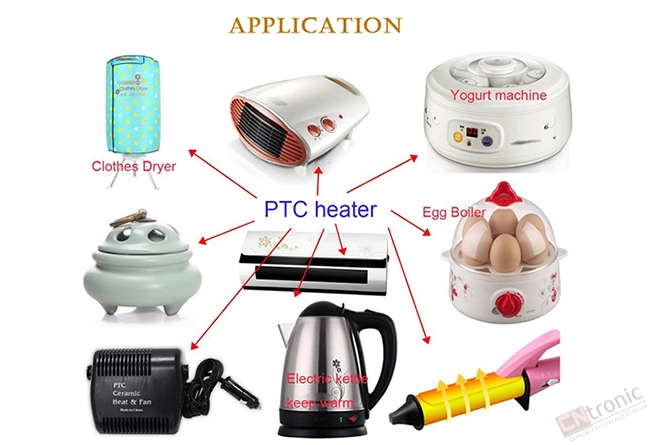

Application
Our Company
Shanghai Yidu Electronic Co., Ltd is the professional manufacturer of PTC products. We are specializing in the production of PTC air heaters, PTC fan heaters and PTC liquid heaters.Our most popular products are the insulated air heaters.Widely used in new air conditioners, air conditioners, incubators, car assisted heating, ticket collection systems, beauty salons and all kinds of household appliances.

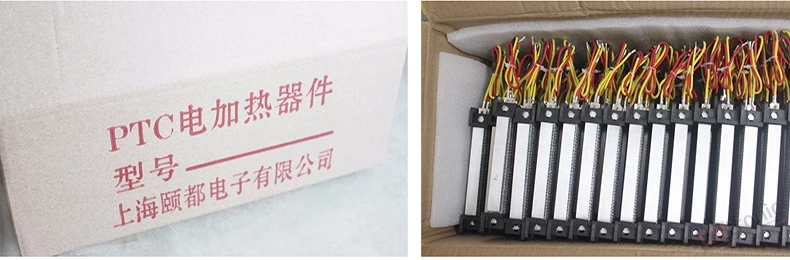

Packing & Delivery
Packing Details : Packing, 50pcs/carton
Delivery Details : 1-3 days after order
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional PTC factory.
Q: Can you customize different requirements products?
A: Sure, we have a professional R & D team, so we can customize different sizes, power, voltage... according to your specific requirements.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 50% T/T in advance ,balance before shippment.If you have another question,please send us your RFQ.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you have another question,please send us your RFQ.
Packaging Details
- Unit Type:
- Package Weight: 0.210
- Package Size: 8x8x14
- Brand Name: PTCYIDU
- Hign-concerned Chemical: None
- Origin: Mainland China
- Type: Electric Heater Parts
- Model Number: JQ-76A2-220V-300W-CK
- Power Source: Electric
- Material: Alumina
