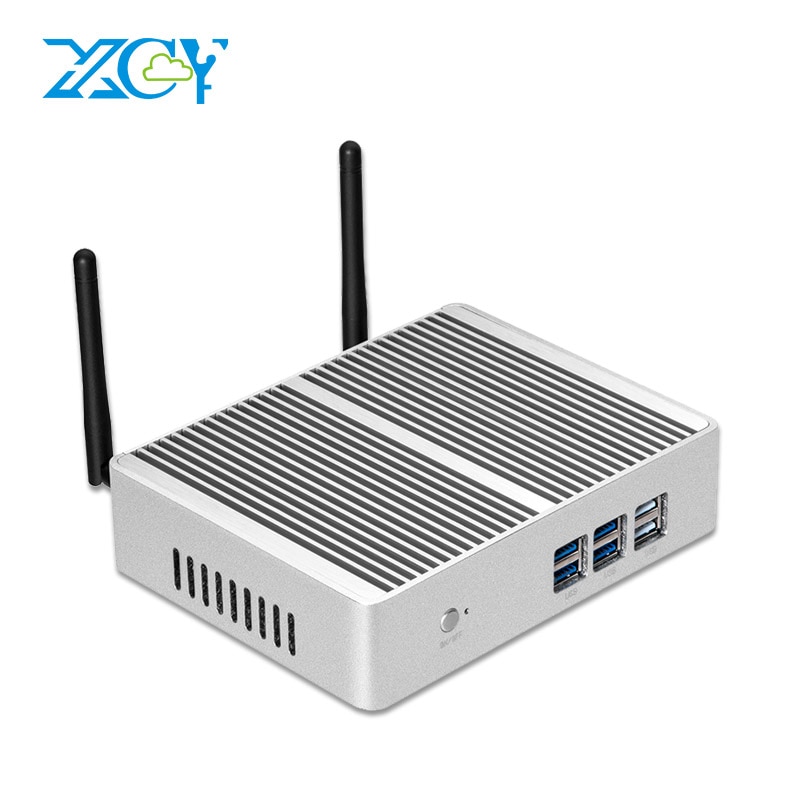

XCY Fanless Mini PC Intel Core i7 4500U i5 4200U i3 4010U Windows 10 HDMI VGA Display 300Mbps Wi-Fi Gigabit Ethernet Linux HTPC

5.0 (5 votes) | 5 orders
Price: US $436.78 - 699.98 / piece
Discount Price:
US $ 297.90 - 477.73 / piece
-32%
Quantity


Processors

Intel Core i7-4500U, 2 cores 4 threads, 4M cache, 1.80GHz, up to 3.0GHz

Intel Core i5-4200U, 2 cores 4 threads, 3M cache, 1.60GHz, up to 2.60GHz

Intel Core i5-5200U, 2 cores 4 threads, 3M cache, 2.20GHZ, up to 2.70GHz

Intel Core i3-7100U, 2 cores 4 threads, 3M cache, 2.40GHz

Intel Core i3-4005U, 2 cores 4 threads, 3M cache, 1.70GHz

Intel Core i3-4010U, 2 cores 4 threads, 3M Cache. 1.70Ghz

Intel Core i3-4010Y, 2 cores 4 threads, 3M cache, 1.30GHz

Intel Core i3-5005U, 2 cores 4 threads, 3M Cache, 2.0GHz

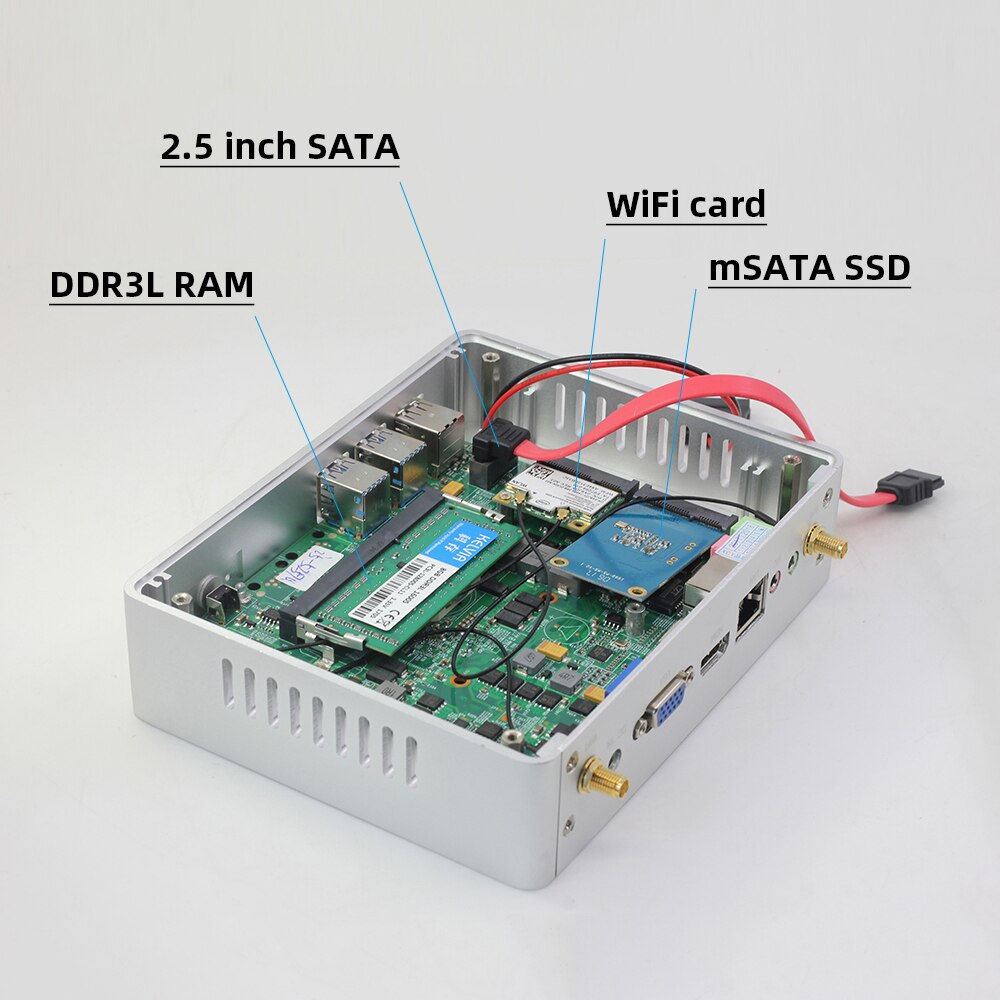

Memory

SODIMM DDR3L 1333/1600MHz

max support 1x 8GB RAM

Storage

Support 1x mSATA SSD ( we pre-install this type hard drive in mini PC )

Support 1x 2.5 inch HDD/SSD

Graphics

Processor graphics

i7-4500U /i5-4200U/i3-4010Ui3-4005U: Intel HD Graphics 4400

i3-4010Y Intel HD Graphics 4000

i3-5005U/i5-5200U: Intel HD Graphics 5500

i3-7100U : intel HD Graphics 620

Network Interfaces

GbE RJ45 Realtek 8111E

Expansion

1x Mini PCI-E for WiFi/Bluetooth module ( half height size )

OS Support

Windows 7/8.1/10, Linux, Ubuntu

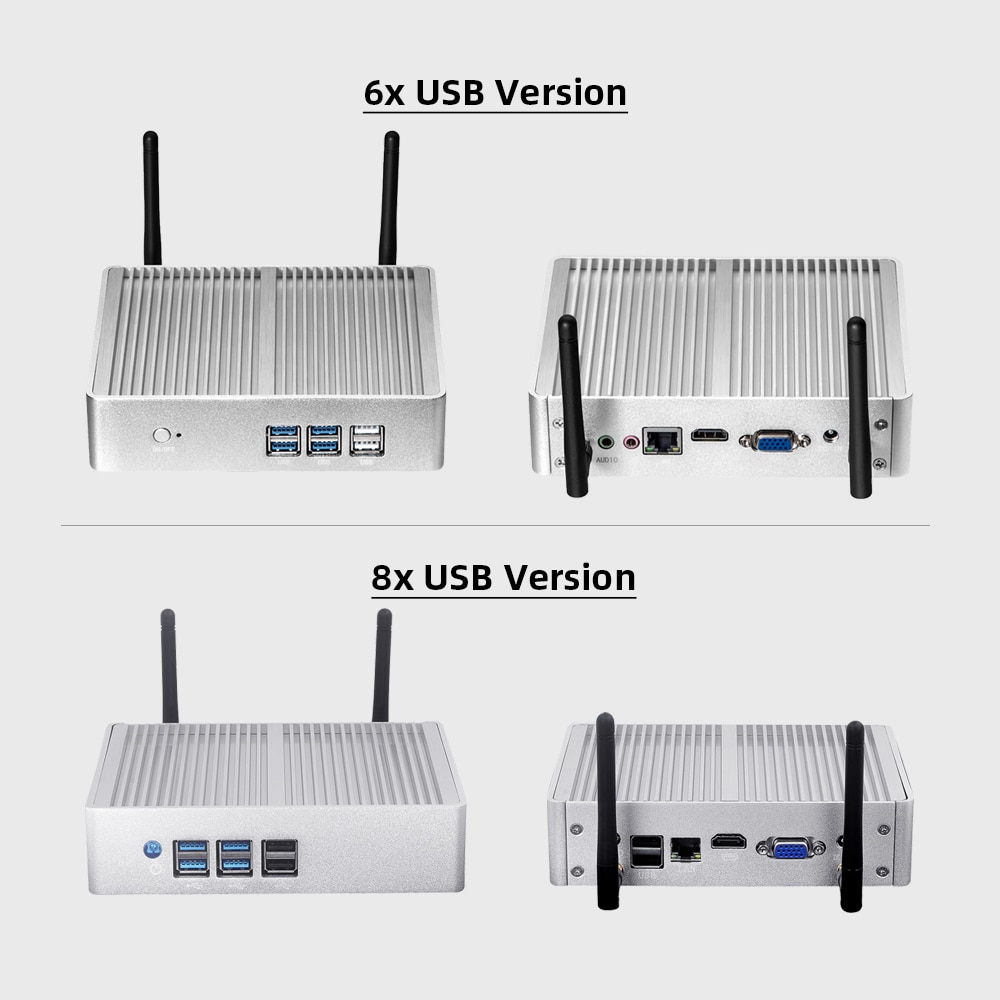

USB Ports

4x USB3.0, 2x USB2.0 ( or 4x USB2.0 )

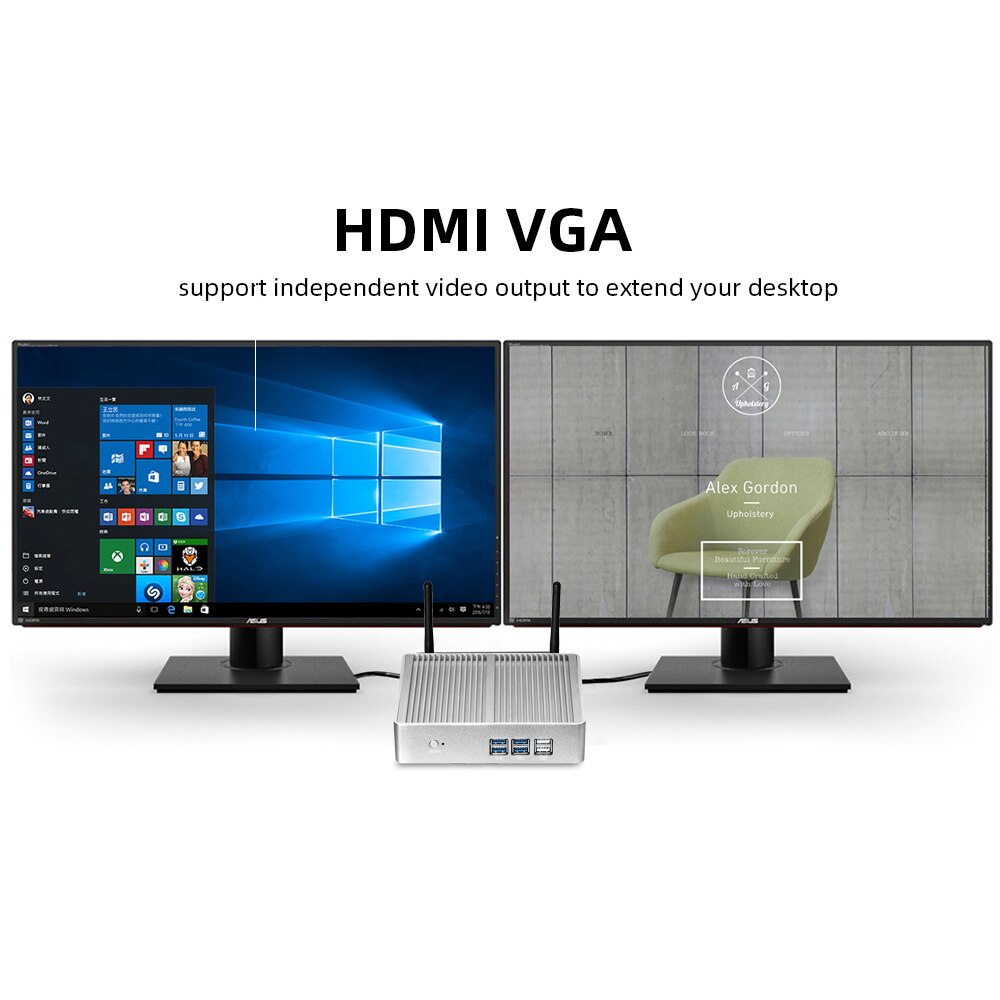

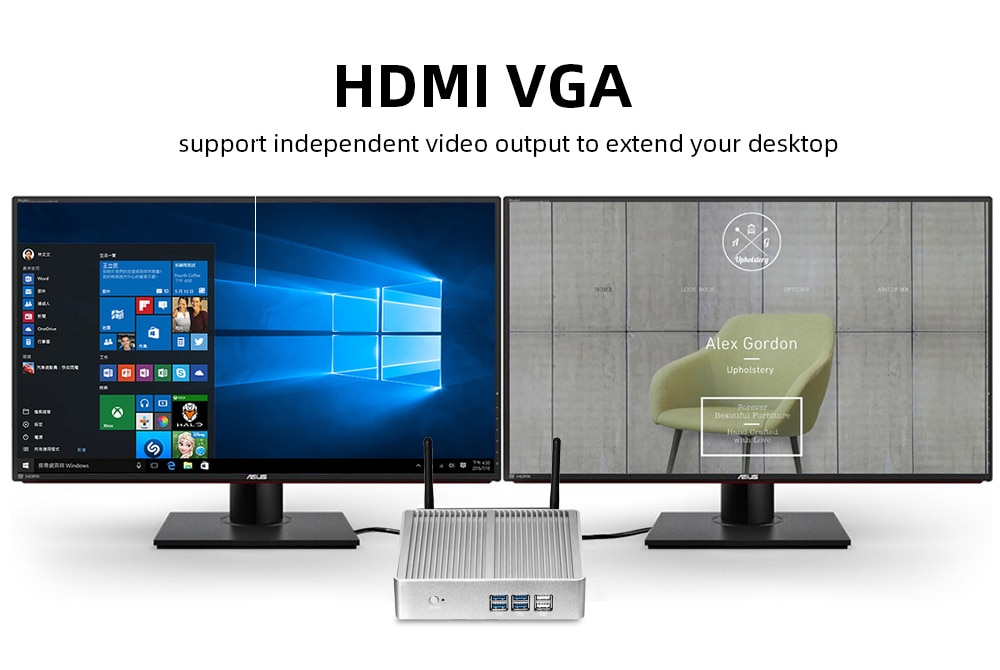

Display Port

1x VGA

1x HDMI

Features

Support WOL, PXE, Automatically power on when power restored after a sudden power loss

Audio Ports

1x SPK, 1x MIC audio jack

Construction

Fanless passive cooling

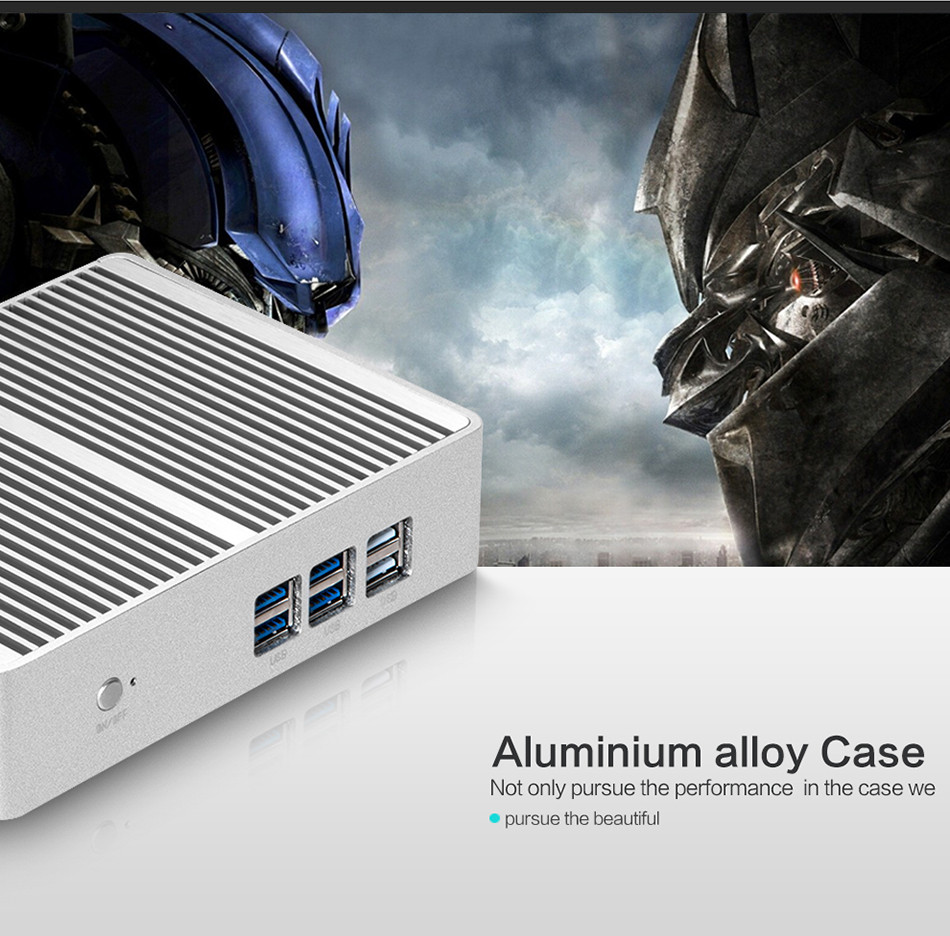

Case

Aluminum Case

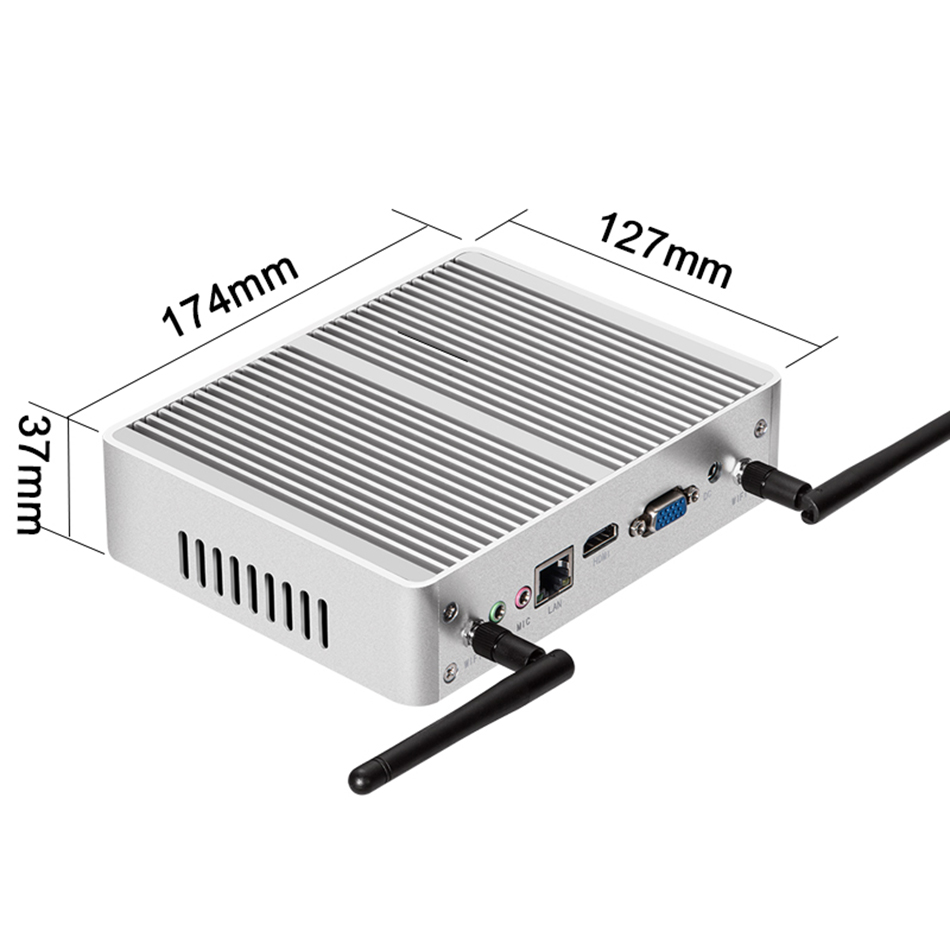

Dimension

174x127x35mm

Netweight

0.85Kg

Operating Temperature

-20℃ to +60℃

RH

5%~90% @30℃,Non-condensing

Power Adapter

Input AC100-240V, Output DC12V-5A/3A

Package List

1x Mini PC

1x AC Adapter

1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )

1x SATA data  cable

1x SATA power cable

1x User manual







  • Use: Household
  • Memory Capacity: 8GB
  • Hard Drive Capacity: 128GB
  • Model Number: XCY-X32-W
  • Processor Brand: Intel
  • Processor Model: i7-4500U, i5-4200U, i3-4010U
  • Type: Mini Desktop
  • Graphics Card Type: Integrated Card
  • Brand Name: XCY
  • Origin: Mainland China
  • Certification: CE,FCC,RoHS
  • Type: MINI PC
  • Memory Types: DDR3L 1333/1600MHz
  • Hard Drive: mSATA SSD
  • OS Support: Windows 10, Windows 8.1, Windows 7, Linux
  • LAN: 10/100/1000Mbps Gigabit Ethernet

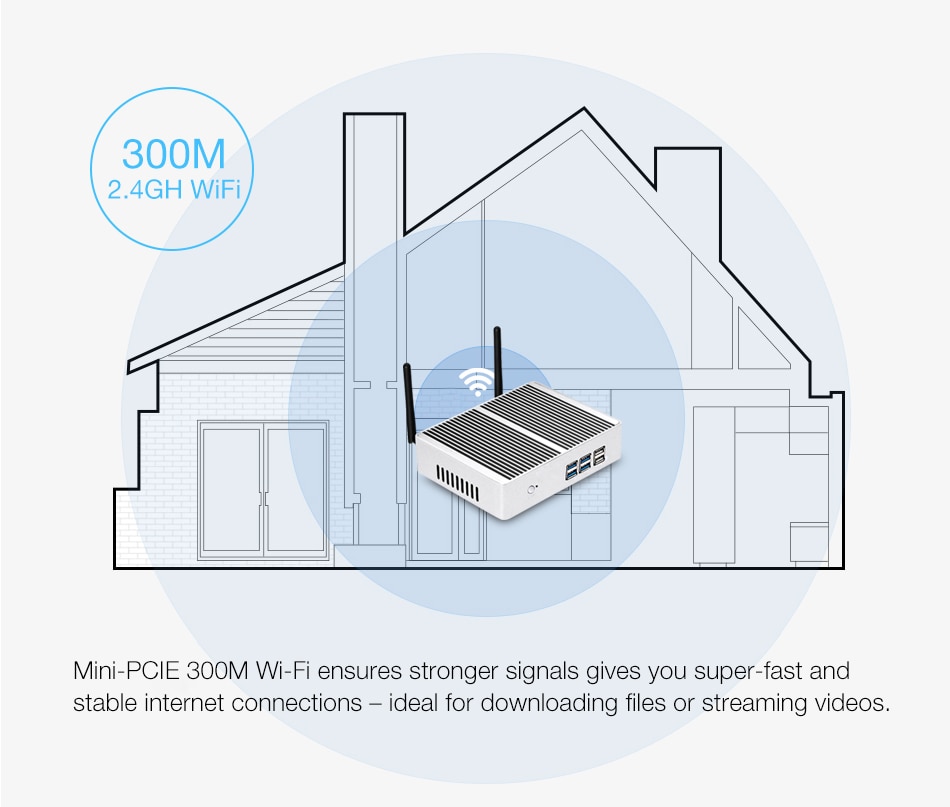

  • WiFi: 300Mbps, 2.4G
  • Video Output: 1x HDMI, 1x VGA
  • USB Ports: 4x USB 3.0, 2x USB 2.0
  • Audio Ports: 1x MIC, 1x SPK, 3.5mm jack
  • Construction: Fanless Passive Cooling
  • Case Material: Aluminum Alloy
  • N.Weight: 1.2kg
  • Dimension: 174x127x34mm
  • Working Voltage: DC12V-5A/3A
