Vicsign HSQ630 Vinyl Cutter Plotter 24" Machine Servo Motor High Precision Automatic Contour Sign Paper Sticker Cutting Plotter

0.0 ( votes)
Price:
US $ 2441.58 / Set
color
Quantity

Vicsign HSQ630 Vinyl Cutter Plotter 24" Machine Servo Motor High Precision Automatic Contour Sign Paper Sticker Cutting Plotter

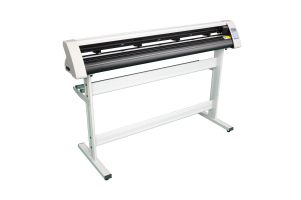

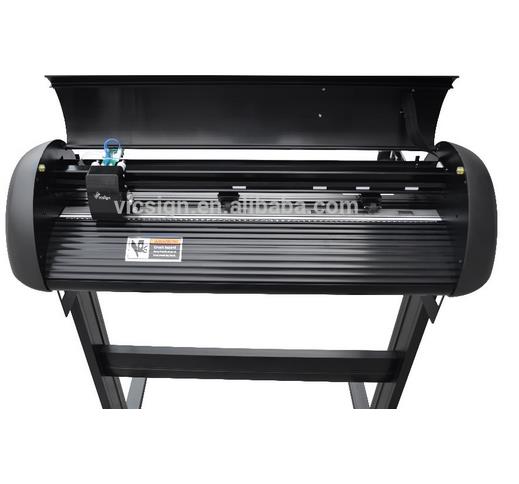

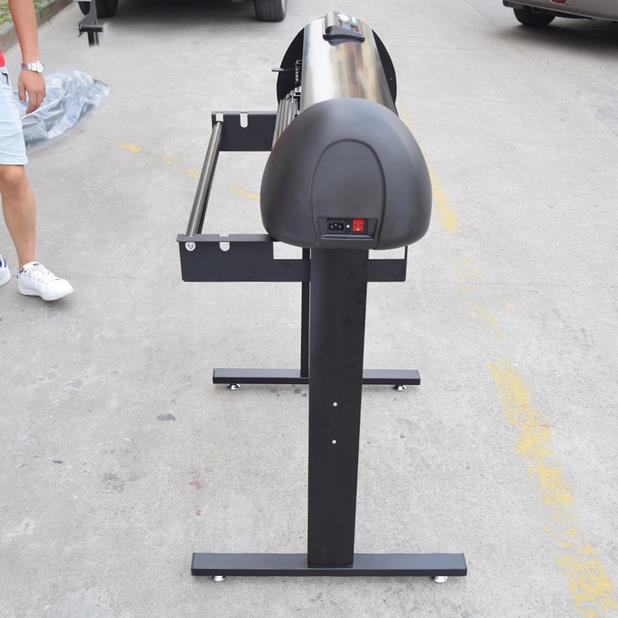

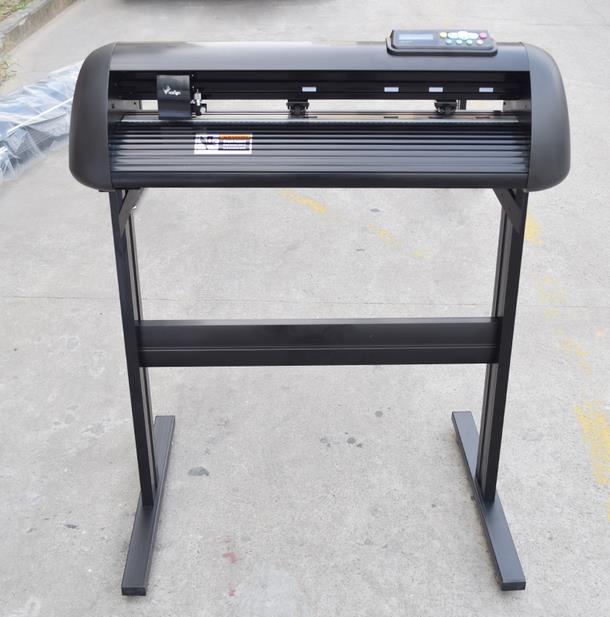

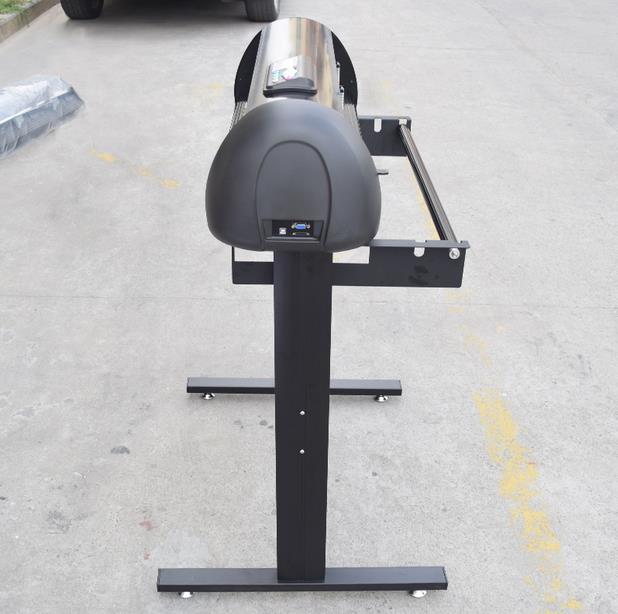

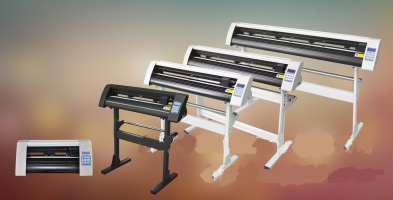

plotter picture

234520170228173643234520170228173651234520170228173658234520170228175231

 SPECIFICATION ADVANTAGE:



 1.The specification and data sheet may vary with different materials used.

 2.In order to obtain the best output quality,

 3.please maintain the machine regularly and properly.

 4.VICSIGN reserves the right to change the specifications at any time without notice.

 5.The above listed specification values are effective only when operated with media certified by      VICSIGN.

 6.Support Coreldraw Software X2 X3 X4 X5 X6 X7 X8 image output

 7.Compatible with WINDOWS 10 software



It is also a High-precision cutter, able to cut small words and intricate details 2mm thick.
The form factor and features make it ideal for contour cutting around stickers/decals, t-shirt transfers, craft card, and more.

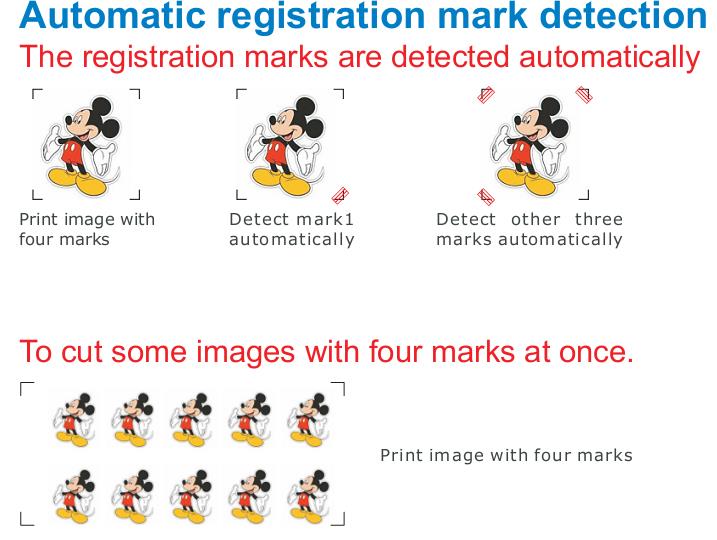

The HSQ is equipped with ARMS (Automatic Registration Mark Sensor) technology which allows for automatic contour cutting.
In conjunction with proper software this allows the machine to scan media, align with registration marks automatically,
and then contour cut around the design.,hereby list picture for your clear fully understand this function:
HWQF series is equipped with ARMS (Automatic Registration Mark Sensor) technology which allows for automatic contour cutting.
In conjunction with proper software this allows the machine to scan media, align with registration marks automatically,
and then contour cut around the design.,hereby list picture for your clear fully understand this function:
234520170301142147
Section Cutting

Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. HWQF series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.







Model

HSQ630

Operation Method

Roller-Type

Max.Cutting Width

630mm

Max Feeding Width

730mm

Max.Cutting Length

20meter-79inch

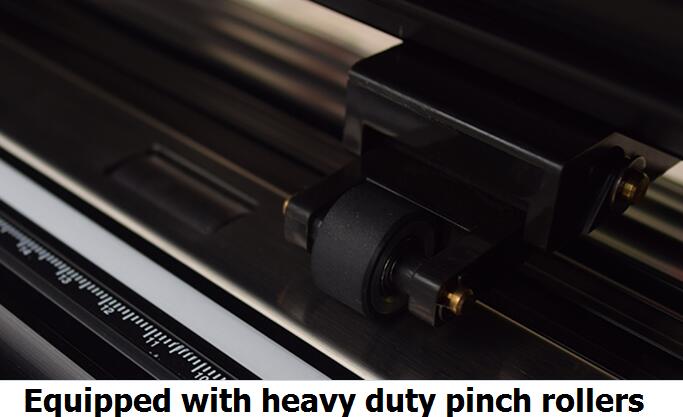

Number of Pinch Rollers

3Piece

Acceptable Material Thickness

0.8mm (0.03" -  Paper and cardboard 350g)

Drive Motor

servo motor

Cutting Force

10-1000g adjustable

Max.Cutting Speed

850mm/sec

Offset

1.00mm(with an increase of 0.025mm)

Memory Buffer

2MB

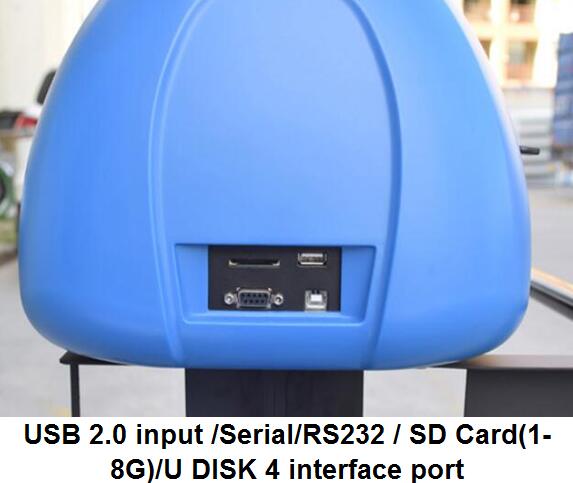

Interfaces

USB 2.0 input /Serial/RS232 / SD Card(1-8G)/U Disk

Type of Command

HP-GL HP-GL/2

Mechnical Resolution

0.05mm

Software Resolution

0.025mm

Repeatability

±0.1mm

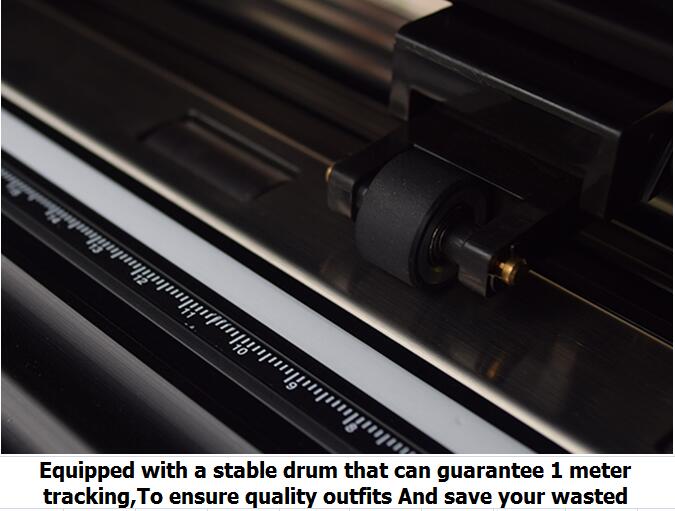

Guaranteed Tracking

1M

Curve & Arc Smoothing

Yes

Test Cut capability

Yes

Diameter of Blade

2.5 mm

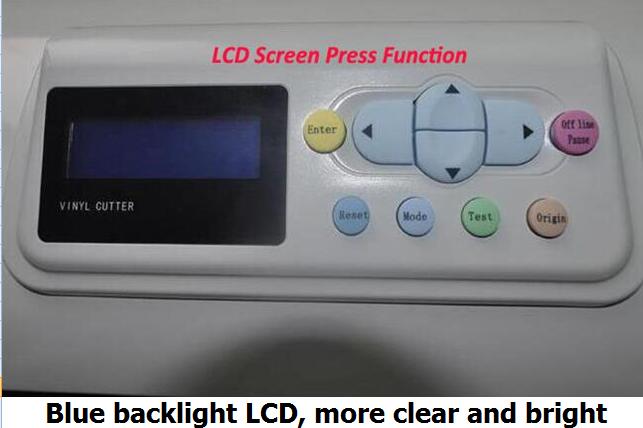

Control Keys

10 Control keys and 2 LED

Power Supply

AC110v/220v ±10% 50Hz/60Hz

Power Consumption

65.5 watts




















SOFTWARE




YOUTUBE LINK:

(1) Installation link:  https://www.youtube.com/watch?v=USJ6bEWgvNM

(2) Signmaster operation: https://www.youtube.com/watch?v=lLqgu2QTkx4

(3)no need to set original point:https://www.youtube.com/watch?v=KzqSxeIJQ3A

(4) Cut thicker material :https://www.youtube.com/watch?v=-wFIPSiHc88

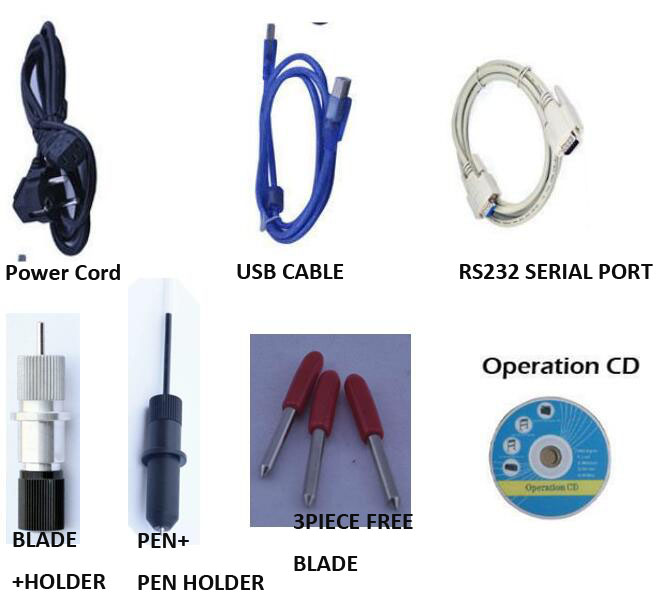

ACCESSORIES:

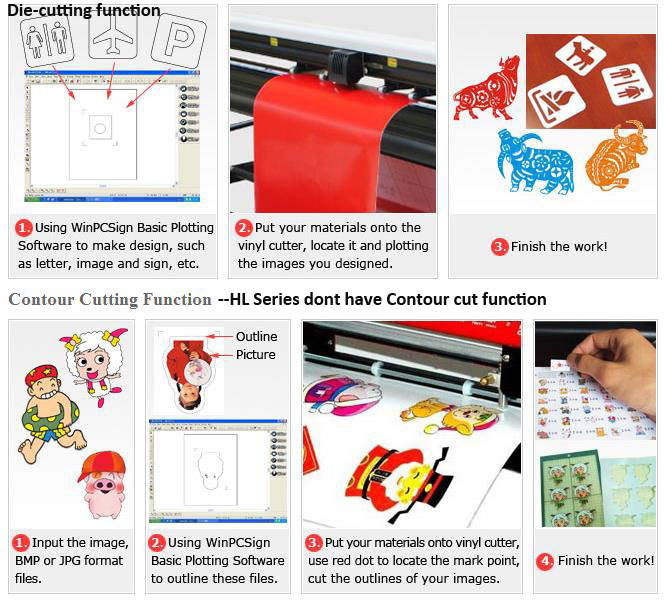

PLOTTER FUNCTION

common cutting function2.jpg





APPLICATION USAGE:






OUR SERVICES:

(1) two year warranty on whole machine/parts.

(2) Professional service before and after sale.

(3) Supply training video and user's manual in English.

(4) Lifetime detailed technical services (include online training and technology solution)

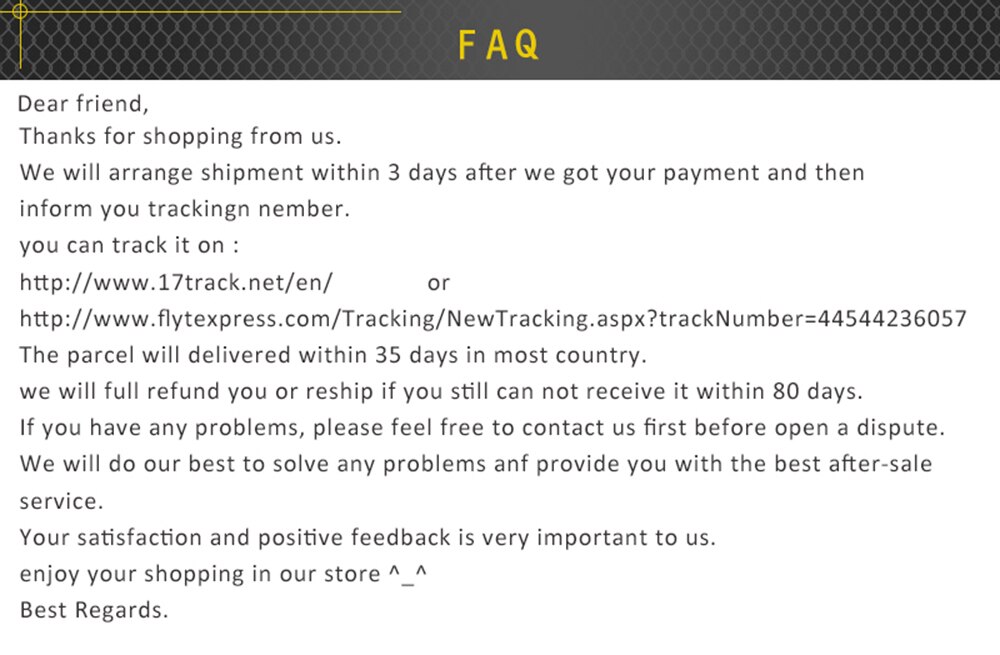

Spare Parts100% 好服务FAQLogistic and DeliveryOur FactoryPackage BoxReturn ProcessShipping Process

客服联系方式五星好评





  • Paper Feed Width: 730MM
  • Repeat Cutting: Yes
  • Driver: digital servo motor
  • Cutting Width: 630MM
  • Voltage: AC110V 220V 10% 50HZ/60HZ
  • Size: 24"
  • Cutting Length: 20000mm
  • Cutting Speed: 800mm/second
  • Cutter Pressure: 0 to 1000g(digital adjustment)
  • Cache Capacity: 64MB
  • Max Paper Siz: 730MM
  • Interface Type: USB
  • Type: Laser
  • Model Number: HSQ630
  • Brand Name: Vicsign

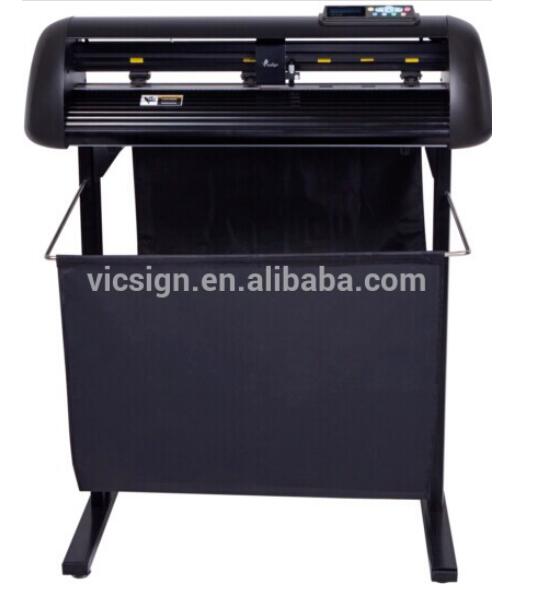

  • Support and Paper Feed: with stand and basket

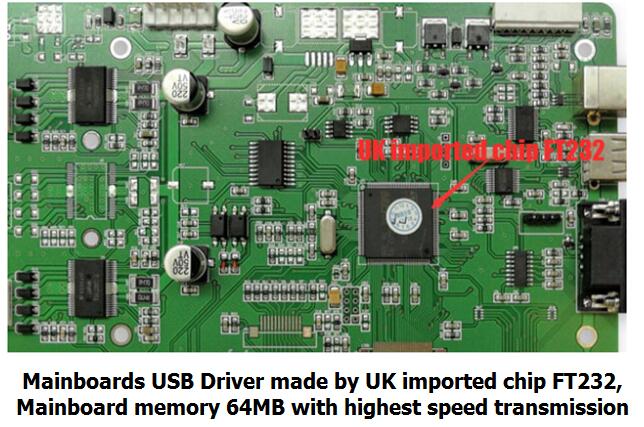

  • Vinyl Cutter Main Board: High-performance&intelligent ARM 32 CPU
  • Positioning Mode: precision electronic bounded system,random original point setting
  • Vinyl cutter Mechanical Precision: <+-0.05mm
  • Vinyl cutter blade material: steel cutter blade
  • Vinyl cutter power consumption: <50w
  • Carton Packaging: 982*342*385MM
  • Mechanical Precision: 0.05mm
  • Include: Automatic contour software Flexi+Tools accessories
  • Support software: signmaster

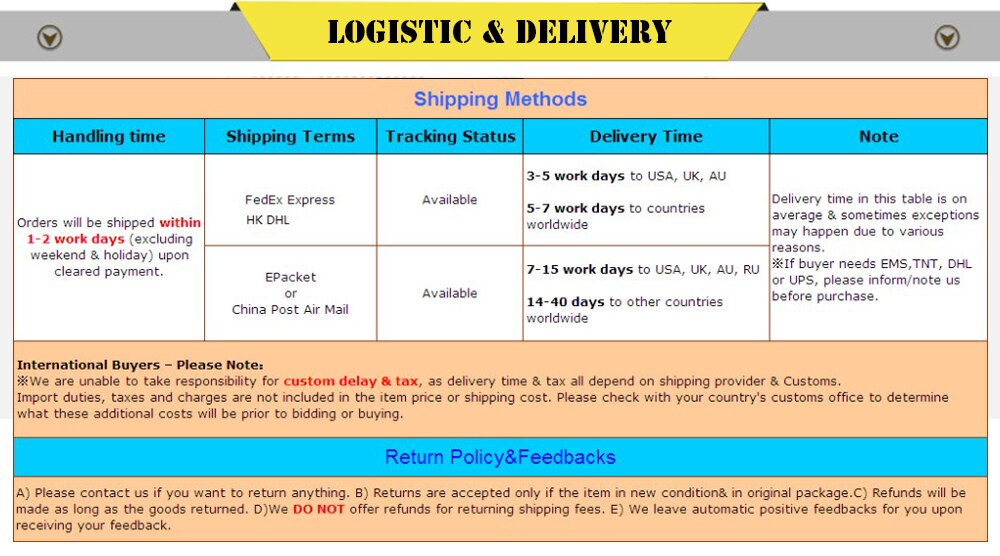

SHIPPING AND DELIVERY
