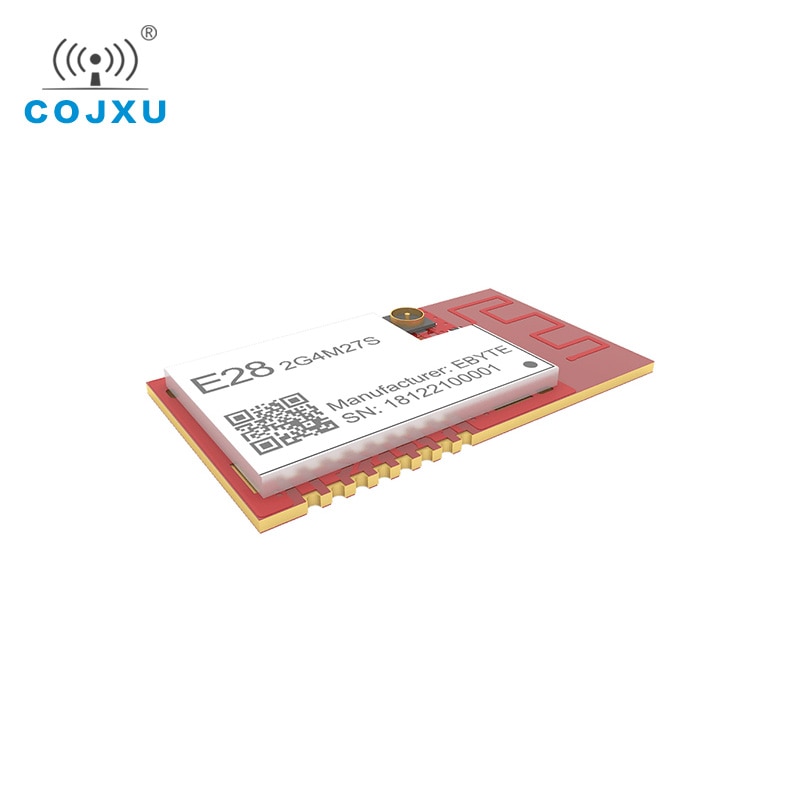

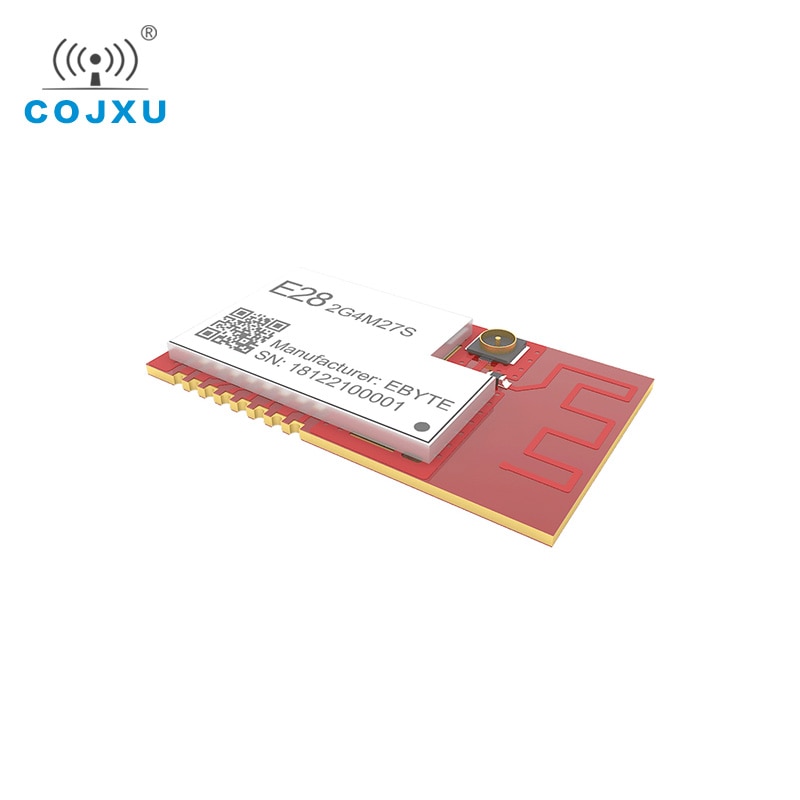

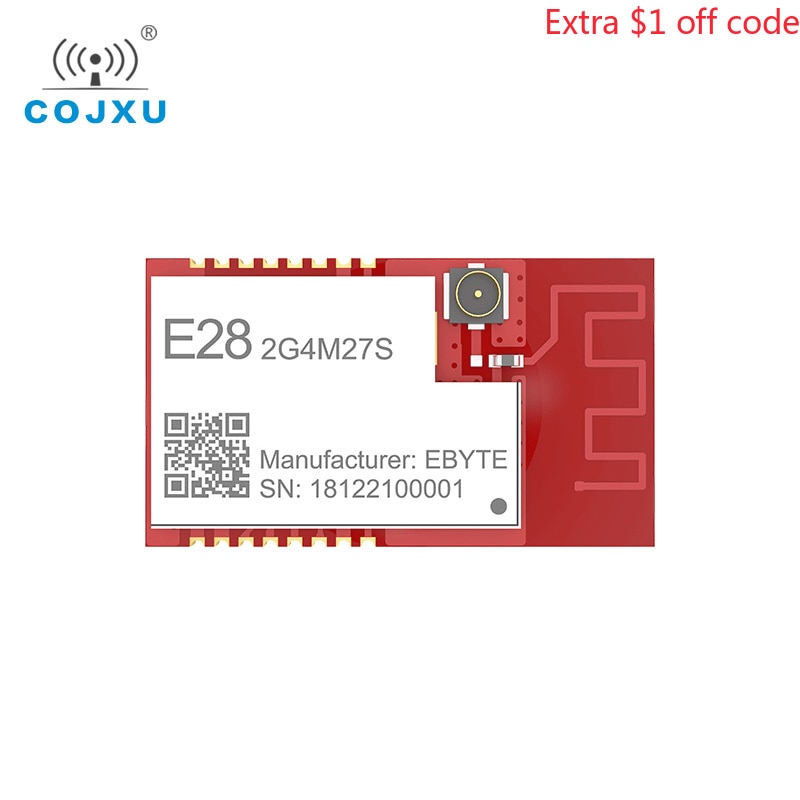

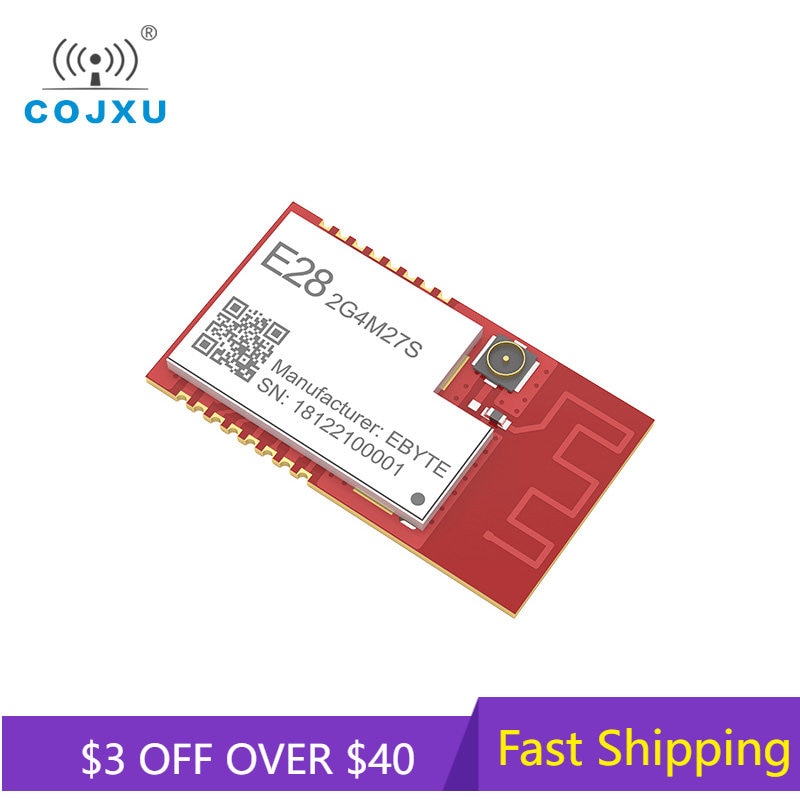

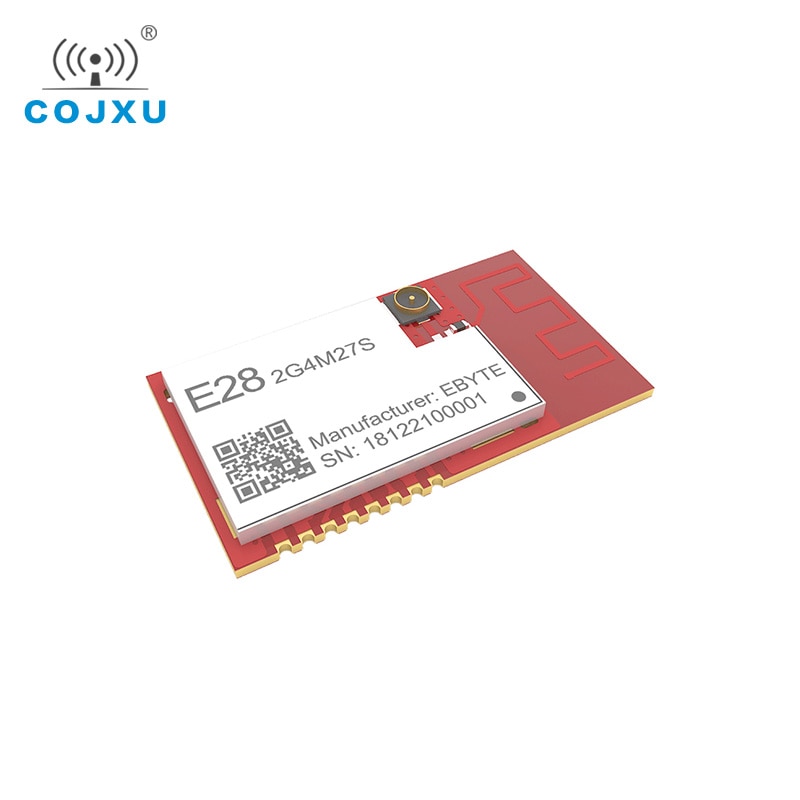

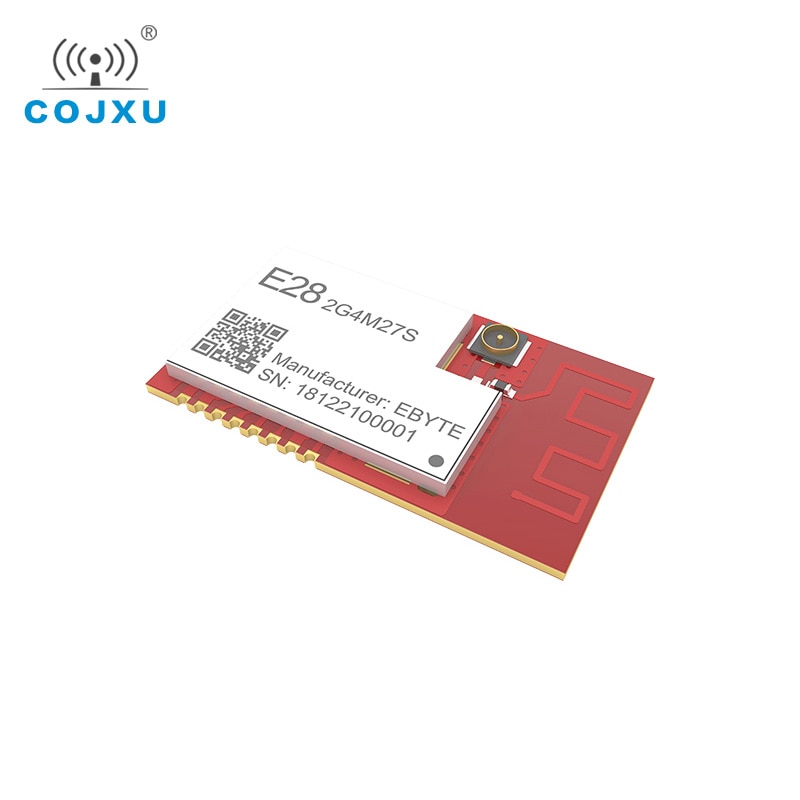

SX1280 Wireless LoRa Module BLE 2.4G 27dBm SPI Long Range 8000m IPEX/PCB SMD E28-2G4M27S Ranging Engine Wireless Rf Transceiver

5.0 (15 votes) | 76 orders
Price: US $22.52 / piece
Discount Price:
US $ 22.29 / piece
-1%
Ships From
Quantity

RF Parameter

Value

Remark

Working frequency

2400~2500 MHz

ISM band

Transmitting power

27 dBm

About 500mW

Receiving sensitivity

-132 dBm

Air data rate: 595kbps

Air data rate

LoRa(bps):0.595k~253.9k

FLRC(bps):260k~1.3M

GFSK(bps):125k~2M

Defined by user via programming

Test distance

8000m

Test condition:clear and open area, antenna gain: 5dBi,

antenna height: 2.5m,air data rate: 1kbps

Hardware Parameter

Value

Remark

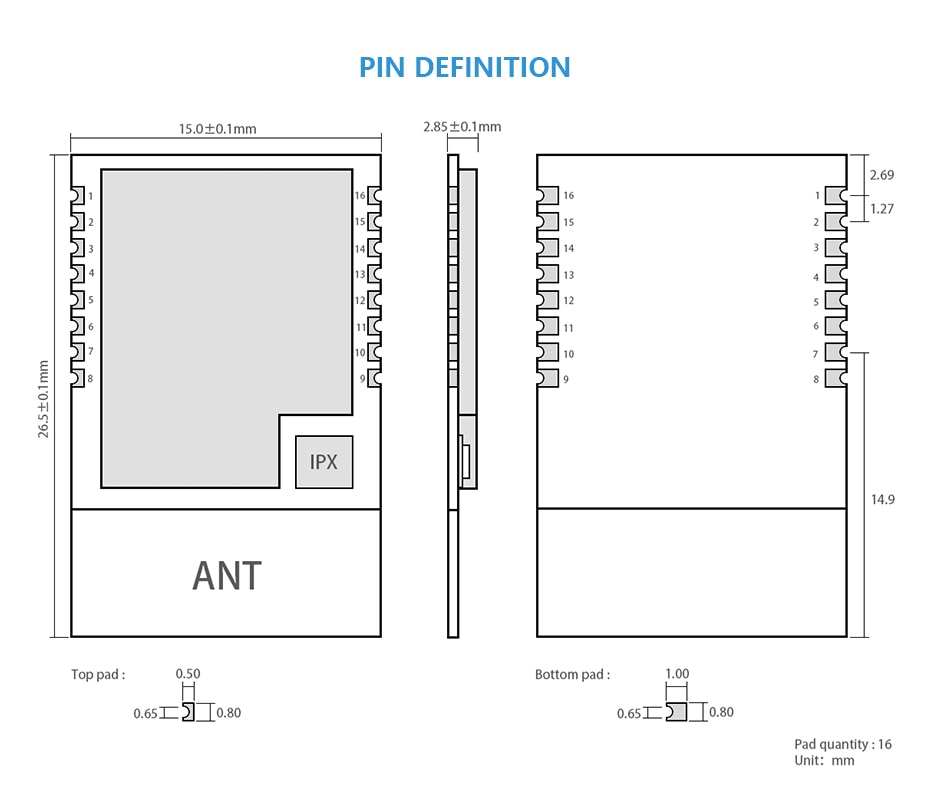

Size

26.5 * 15 mm

-

Antenna type

IPEX / PCB

50Ω Impedance

Communication interface

SPI

0~10Mbps

Package

SMD

-

Electronic parameter

Min.

Typ.

Max.

Unit

Condition

Power supply

2.5

3.3

3.6

V

≥3.3 V ensures output power

Communication level

-

3.3

-

V

For 5V TTL, it may be at risk of burning down

Transmitting current

-

580

-

mA

Instant power consumption

Receiving current

-

14.5

-

mA

-

Sleep current

-

2.0

-

μA

Software is shut down

Operating temperature

-40

20

+85

-

Operating humidity

10

60

90

%

-

Storage temperature

-40

20

+125

-







  • Model Number: E28-2G4M27S
  • Port Number: 1
  • Working Frequency: 2.4GHz
  • Brand Name: cojxu
  • Origin: Mainland China
  • Certification: NONE

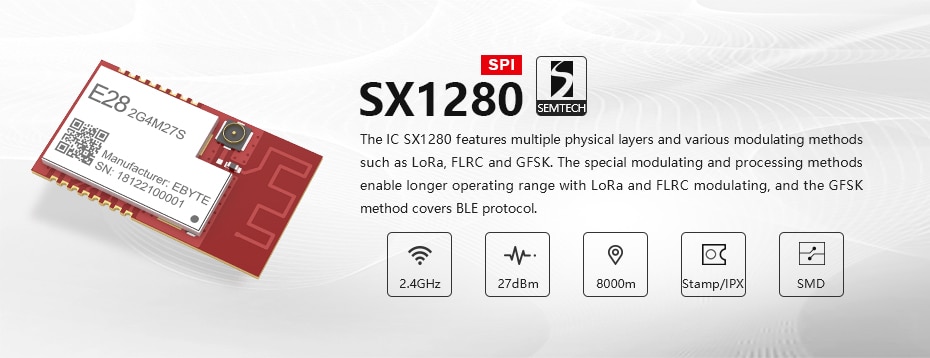

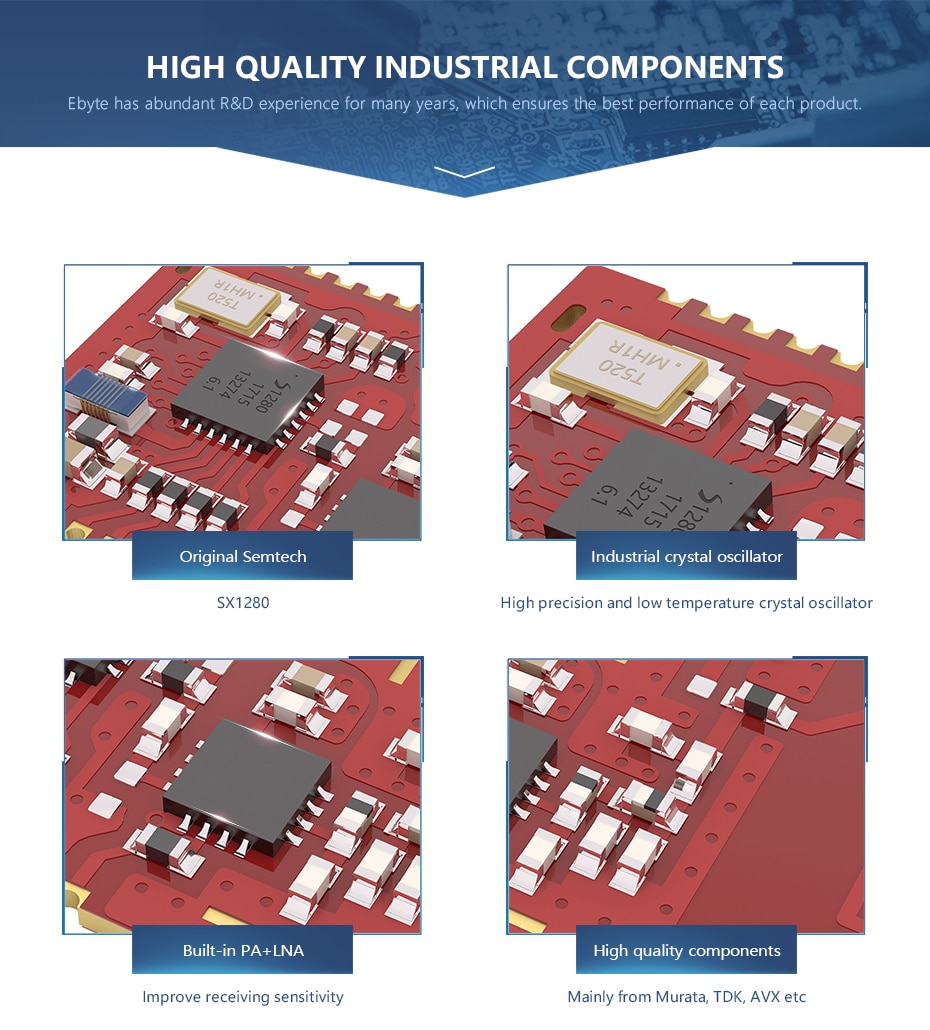

  • RF IC: SX1280
  • Working Frequency: 2.4GHz
  • Power: Maximum 27dBm
  • Antenna type: IPEX / PCB
  • Size: 26.5 * 15 mm
  • Communication interface: SPI
  • Is_customized: Yes
  • Test distance: 8000m
  • Is-customized: Yes
  • Place of origin: CN
