Superbat Car RV GPS Navigation Antenna for Mercedes Command Alpine GT5-1S HRS GT5-1S Male 1575.42MHz Aerial Siganal Booster 3M
0.0 (1 votes) | 1 orders
Price:
US $19.48
/ piece
Discount Price:
US $
16.56
/ piece
-15%

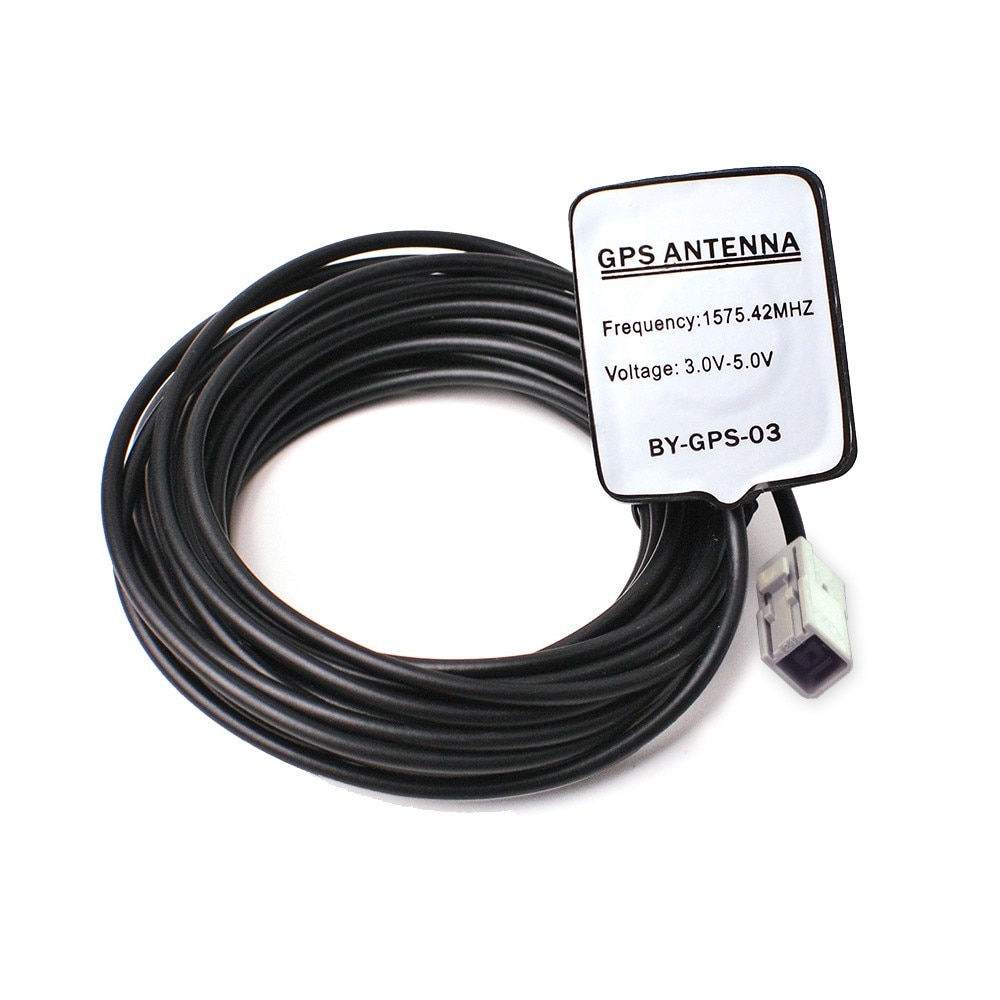

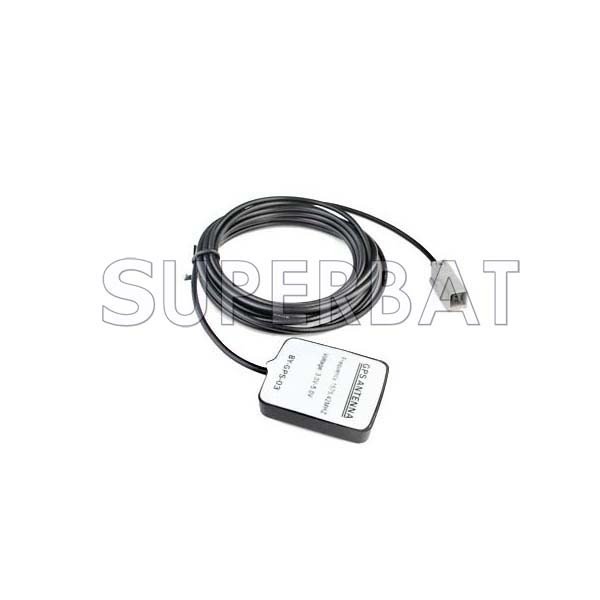

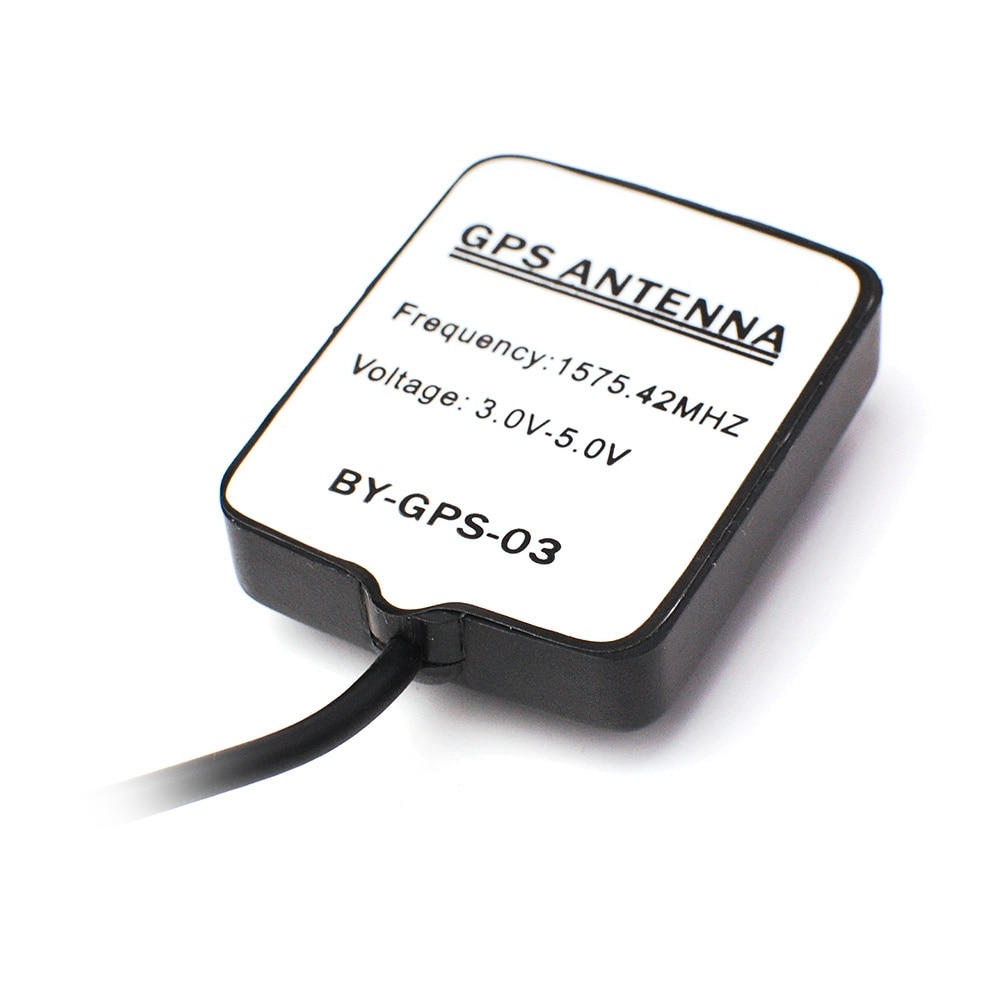

Superbat GPS Navigation Antenna for Mercedes Command Alpine GT5-1S Car HRS GT5-1S Male 1575.42MHz Aerial Siganal Booster 3M Cable
Characteristic:
(i)Dieletric Antenna
Center Frequency:1575.42MHz±3 MHz
V.S.W.R:1.5:1
Band Width: ±5 MHz
Impendence: 50 ohm
Peak Gain: >3dBic Based on 7×7cm ground plane
Gain Coverage: >-4dBic at –90°<0 Polarization RHCP
(ii)LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
(iii)Mechanical
Weight <100gram
Size :45x36x14mm
Cable :RG1743 meter/ Contact us for other length
Connector:HRS GT5-1S Plug default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!

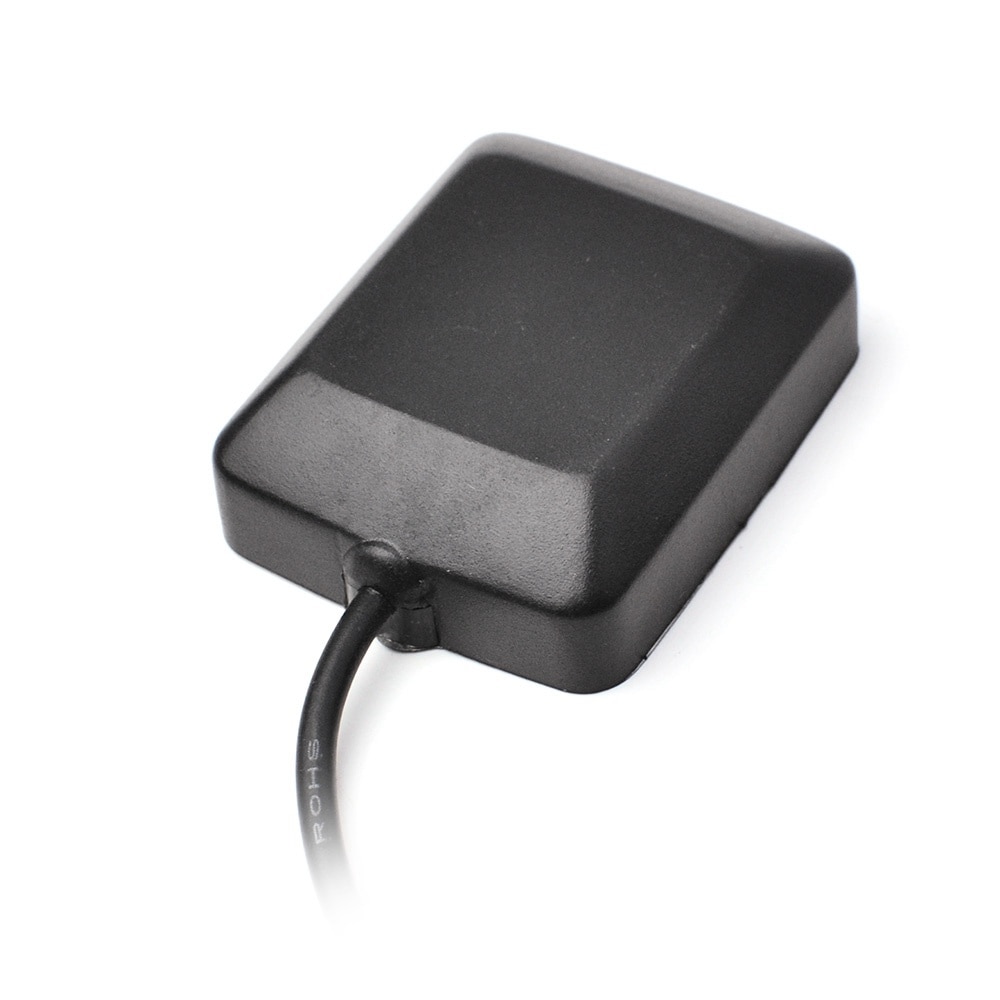

Mounting Magnetic base
Housing Black
(iv)Environmental
Working Temp -40°C~+85°C
Storage Temp. -45°C~+100°C
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V)FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity
(VI)APPLICATIONS:
Automobile GPS
Bluetooth Receiver
Vehicles /Car Tracking Navigation System
AVL / Fleet Management Systems
External Antenna for Handheld GPS
External Antenna for PDA Navigation
GPS Antenna with HRS GT5-1S Compatibility:
Alpine Navigations system (Not for Alpine nve-871a)
Acura Navigation
Alpine Navigation
Clarion Navigation
Ford 9000 VNR Navi
Ford Denso 7 Zoll Touchscreen Navi
Grundig Navigation
Honda Navigation
Magnetic
Marelli
Mercedes Comand Serie ( A 203, 208, 210, 230, 220, 820, 463 )
Nissan XANAVI
Panasonic
Pioneer ( AVIC 505 )
Suzuki Navigation
Volvo Hu 1205
Kenwood DDX5022
Kenwood DDX5032
Kenwood DDX7032
Kenwood DDX812
Kenwood DNX5120
Kenwood DNX7120
Kenwood DNX7220
Kenwood DNX7320
Kenwood DNX8120
Payment
1) We accept payment by Alipay,credit cards,Bank Transfer and other Payment that Cntronic support.
2) Payment must be made within 5 business days of order.
3) Please list your requests when you make payment,or contact us ASAP.
4)Pls include your phone number along wiht your payment if possible, since it is help for you to get your parcel.
Shipping Terms
1) The parts from us are sure to have quality warranty, and they are double tested before shipping.
2) Item are shipped within 3 business days once full payment is settled.
3) The items can be sent within China Post Registered Air Mail/DHL/EMS/ePacket/Fedex IP/Fedex IE/TNT.
Delivery Time ( Units: Working Days ) And Probability
Country | First Delivery | Second Delivery | Delay | Delivery ≥ 50 Days |
United States | 6-10 (90%) | 10-25 (9%) | ≥25 (1%) | Refund |
British | 8-15 (80%) | 15-30 (19%) | ≥30 (1%) | Refund |
Australia | 8-15 (75%) | 15-30 (24%) | ≥30 (1%) | Refund |
Germany | 8-15 (75%) | 15-30 (24%) | ≥30 (1%) | Refund |
TheFrench | 10-18 (80%) | 18-30 (19%) | ≥30 (1%) | Refund |
Russia | 10-18 (85%) | 18-25 (14%) | ≥25 (1%) | Refund |
Italy | 10-20 (80%) | 20-35 (19%) | ≥35 (1%) | Refund |
Israel | 10-20 (75%) | 20-35 (24%) | ≥35 (1%) | Refund |
Spain | 12-20 (75%) | 20-35 (24%) | ≥35 (1%) | Refund |
Japan | 7-12 (90%) | 10-25 (9%) | ≥25 (1%) | Refund |
Canada | 10-20 (Most) | The local post office do not issue tracking information. | ||
Warranty & Return
1)Any problem about item pls contact us within 14 days after receiving.
2)Reture item should include original packing and all components.
3)Exchange item is allowed, and repalcement will be shipped after receving item from customer.
4)We pay the shipping fee of resending, while buyer pay the postal Cost.
About us
We are professional supplier and manufacturer of Radio frequency (RF) products including RF Connectors, RF Adapters, RF Custom Cable Assemblies (Path Leads),GSM/GPR/3G/4G LTE Antennas, Wifi Antennas, GPS Antennas, Aluminum Boxes & Plastic Boxes, and other Ham radio Antennas & Accessories etc.
Which are widely popular used for a range f applications including 3G data card and USB modems, machine to machine communications (M2M), wireless LAN,GPS,WIFI and ISM frequency bands.
Any problem (not receive or item problem),Pls contact us before leaving the Negative or Neutral feedback, we will try our best to slove it.
- Cable Length: 300cm
- Specification: 3M
- Gain(dB): 3dBic
- Model Number: GA03-300-GT5SJ
- Brand Name: Superbat
- Origin: Mainland China
- Certification: RoHS
- Product: Car GPS/GSM Antenna
- Antenna Color: Black
- Connector type: HRS GT5-1S Plug/Male
- Cable Length: 3M
- Cable: RG174
- Center Frequency: 1575.42MHz
- Impendence: 50 Ohm
- V.S.W.R: 1.5:1
