Ship in 1 day  DS.D3663LUA.A81.2.PA Pair 3463A LCD LED TV V29 V56 V59 DJ2 Driver Board Baffle Iron Metal Stand Send in 1 day
SALE
ID: 29852

Ship in 1 day DS.D3663LUA.A81.2.PA Pair 3463A LCD LED TV V29 V56 V59 DJ2 Driver Board Baffle Iron Metal Stand Send in 1 day

5.0 (4 votes) | 9 orders
Price: US $14.63 / piece
Discount Price:
US $ 10.08 / piece
-31%
Quantity







Ship  in 1 day!!!













Instead of Z.VST.3463.A1 perfectly

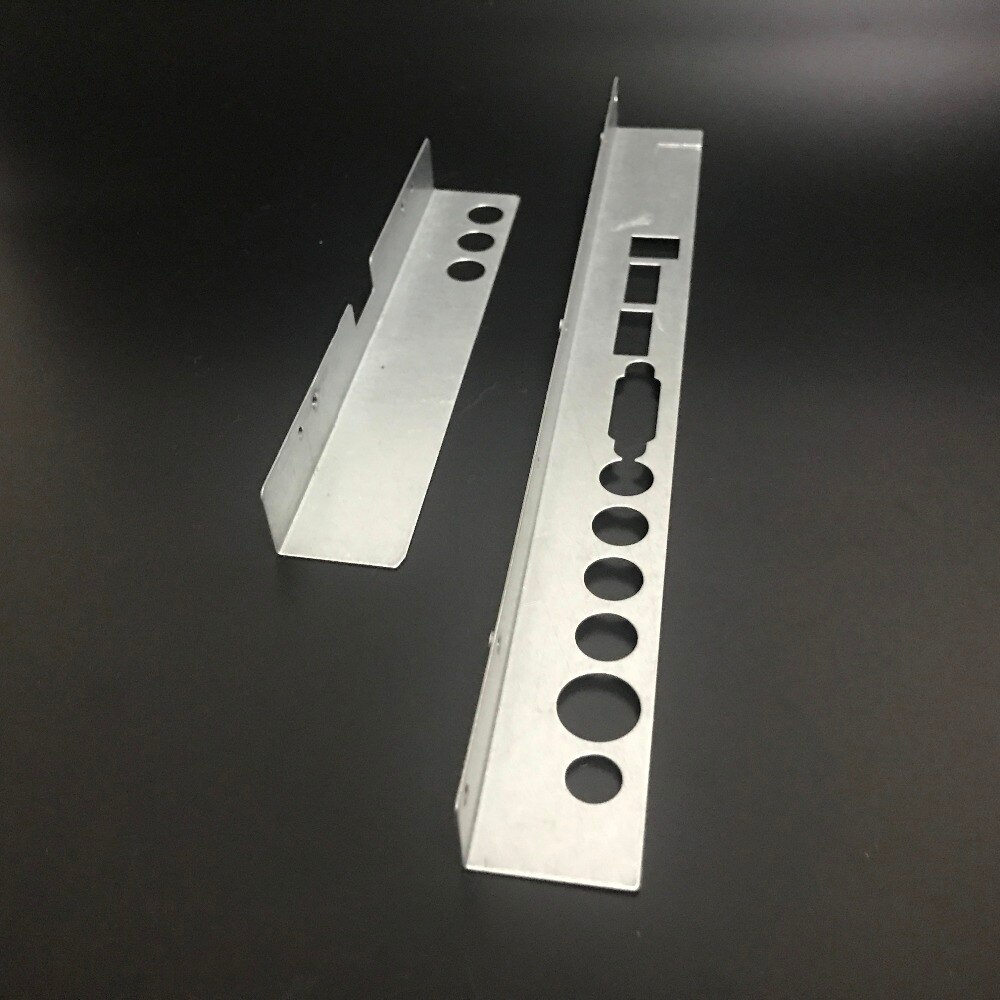

Package:

1 Pair Iron Shell

(Long & Short)



Product Description:
This model is universal Controller 3663 gives the opportunity to build on the base of the laptop or monitor matrix full multimedia TV C T-2 tuner on board without depriving themselves of the opportunity of using it as a monitor.

Controller 3663 has on board analog-to-digital Touraine Rafael R842 with support for T-2, DVB-T, DVB-C, ATV, by just saying support for more digital signal cable, teletext and radio TV. As main chip has allowed not only to exploit the full potential of the TV chip, but not deprived of the possibility of reproducing a photo, video, audio files from a USB drive. All the innovations introduced in this model is made possible by the use of a more powerful master chip.

Suitable for Europe, Africa, The five Central Asian countries, the Middle East, Russia, Thailand, Myanmar, Kenya, Portugal, Malta, Uganda and other countries or regions.

Feature:
Support Digital Signal and Russian
Controller chip: LUA63A82
TV tuner chip: Rafael R842
OSD Language: Russian, English, Czech, France, Magyar, Polski, Dansk, Espanol, Hrvatski, Nederlands, Deutsch, Italliano, Norsk, Portugues, Suomi, Svenska, Arabic, etc. (more pls check the video)
Power Input: DC 12V 4A
Chip Audio:
Audio output power: 2x8W
Consumption: operating mode -> = 6W
                       simple - <0.3W
Video input: TV: DVB-T / T2, DVB-C, ANALOG TV (ATV)
                           HDMI
                           VGA
                           AV IN
                           YPbPr

Additional inputs outputs: audio mini jack 3.5mm USB

USB slot can be used for updating software and playing multimedia, such as Movie, MP3 and JPEG.
Doesn't support audio AC3 720P, If the sound doesn't play via USB, You can recode the audio track.

How to know if your panel suitable for this board?
Step 1: Find your LCD model's resolution (you can check the resolution from this link:  http://www.panelook.com/index.php)
Step 2: Leave a message when you order ,so we can send the firmware to you.


Supported resolutions:
1024 X 600 6 bit 1 channel
1024 X 768 6-bit 2 channel

1024 X 768 8-bit 2 channel

1024 X 768 6-bit 1 channel

1024 X 768 8-bit 1 channel

1280 X 768 8-bit 1 channel

1280 X 800 6-bit 1 channel

1280 X 1024 8-bit 2 channel

1366 X 768 8-bit 2 channel
1366 X 768 8-bit 1 channel

1400 X 1050 6 bit 2 channel

1440 X 900 8 bit 2 channel

1600 X 900 8-bit 2 channel
1600 X 1200 6-bit 2 channel
1680 X 1050 8-bit 2 channel
1920 X 1080 8-bit 2 channel
1920 X 1080 6-bit 2 channel



Step of USB upgrade :

1.Put the firmware of "3463GU_A.bin" in formatted USB flash disk ,then insert the USB disk and the 7KEY-Button to the board
2.After turn on the power ,the light of the 7key button will be Red then flash red and blue.after about 1 minute, the light stop flashing ,it means upgrade has finished.(Note that write programs do not power outages, crashing won't be able to use)

How to into Factory setting?
Press"Input" button then press"2 5 8 0"

If you need LVDS Cable,
If you need 7Key button,
If you need DC 12v 4A power supply,
If you need Speaker Amplifier,
If you need Baffle Stand,
If you need 3663 Board,
If you need 3463 Board,
If you need V56(can't support DVB-T2) Board,
If you need V53(can't support DVB-T2) Board,
If you need MSD338(support Android & can't support DVB-T2) Board,



If you have any questions,

Please contact us.

I will provide the BEST service for you.





IMG_7744


  • Model Number: 3663
  • Brand Name: FGHGF
