OEM manufacturer direct sell cheap wired distribution box 8-port router modules OEM wired router module 192.168.0.1
48.83 41.99 $
ID: 4951
Quantity

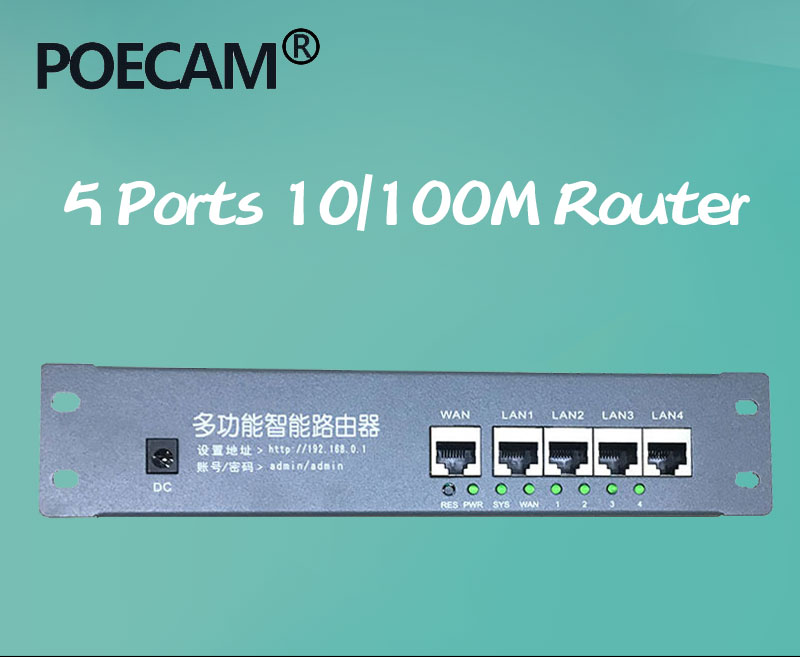

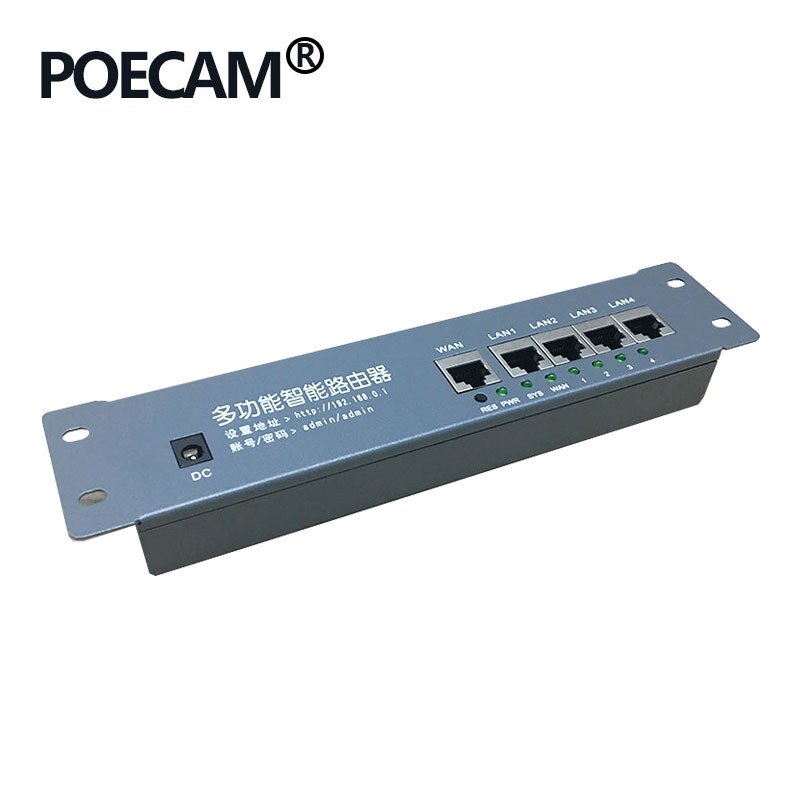

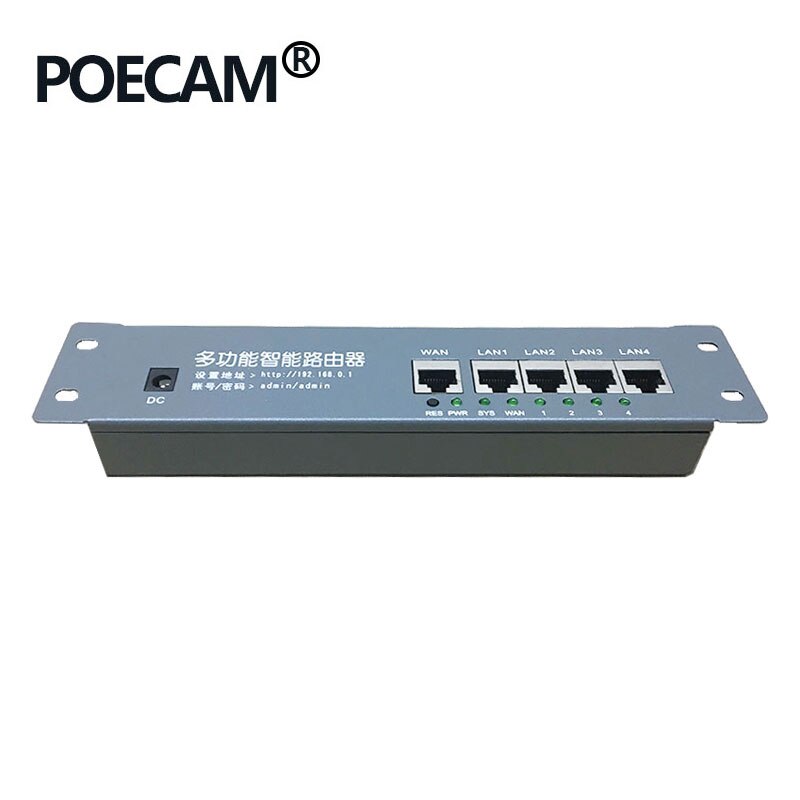

Shenzhen supplier direct sell OEM Mini Metal case intelligent wired distribution box 5-port router wire router IP 192.168.0.1
0.0 ( votes)
Price:
US $
75.46
/ piece
Specifications
intelligent home terminal distribution system
1,1 wan 4 lan
2,10/100m lan ports 5
3,exclusive broadband
4, 1 year warranty
4 port router module for home multimedia distribution systemPL-ES504
Description:
ThePL-ES504Multifunctional Broadband Router is specially designed for small enterprise, office and SOHO(Small Office/Home Office) to access the Internet. It features strong functions, high performance, and easy configuration router. ThePL-ES5041provides many management functions, including system, DHCP server, virtual server , DMZ host, firewall, and static routing table.
ThePL-ES5041router provides flexible access control, limiting staff or children to browse selected sites. It connects to the Internet automatically or on demand and disconnects when idle to save on network costs. Quick Setup Wizard is supported and friendly help pages are provided for every step.
Features
Complies with IEEE 802.3, IEEE 802.3u standards
1 10/100Mbps Auto-Negotiation WAN RJ45 port,
4 10/100Mbps Auto-Negotiation LAN ports,
supporting Auto-MDI/MDIX
Shares data and Internet access for Stations, connecting Internet through PPPoE on demand and disconnecting when idle
Supports TCP/IP, PPPoE, DHCP, ICMP, NAT
Built-in NAT and DHCP server
supporting static IP address distributing
supporting IP address filtering, Domain Name filtering
Supports connecting/disconnecting Internet on a specified time of day
Built-in Firewall supporting Domain Name filtering, and MAC address filtering
Supports Virtual Server, Special Application, and DMZ host
Supports firmware upgrade,
Supports Remote and Web management
Application
SOHO broadband routers are widely used in smart home wire distribution box system, the SME Internet use and others.
Specifications:
Specifications
Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3x flow control |
protocol | CSMA/CD |
Fibering and Transmitting speed | Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port |

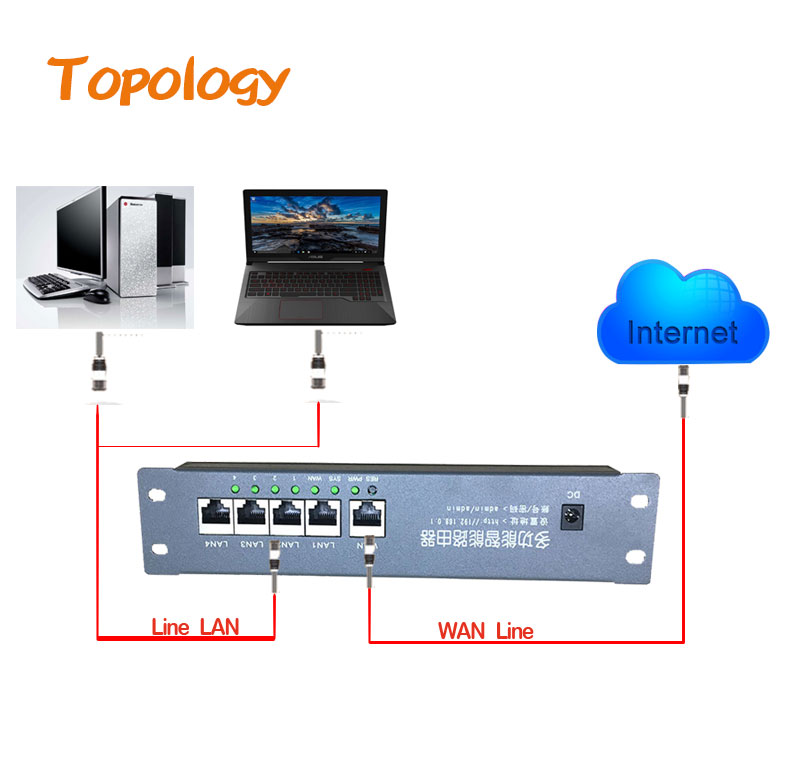

Topology | Star |
Network Medium | 10Base-T:Cat 3 or above Cat.3 UTP( Less than 100m)
|
Number of Ports | 1 WAN and 8 10/100M LAN RJ45 ports |
UPLINK | 4 LAN ports(support Auto-MDI/MDIX function) |
Transmits Method | Store-and-Forward |
Temperature | Operating Temperature 0 ~40 Celsius (32 F~104 F) Storage Temperature -40 ~70 Celsius (-40 F~158 F) |
Humidity | Operating Humidity 10 ~90 percent non-condensing Storage humidity 5 ~95 percent non-condensing |
Switch capacity | 1.6G |

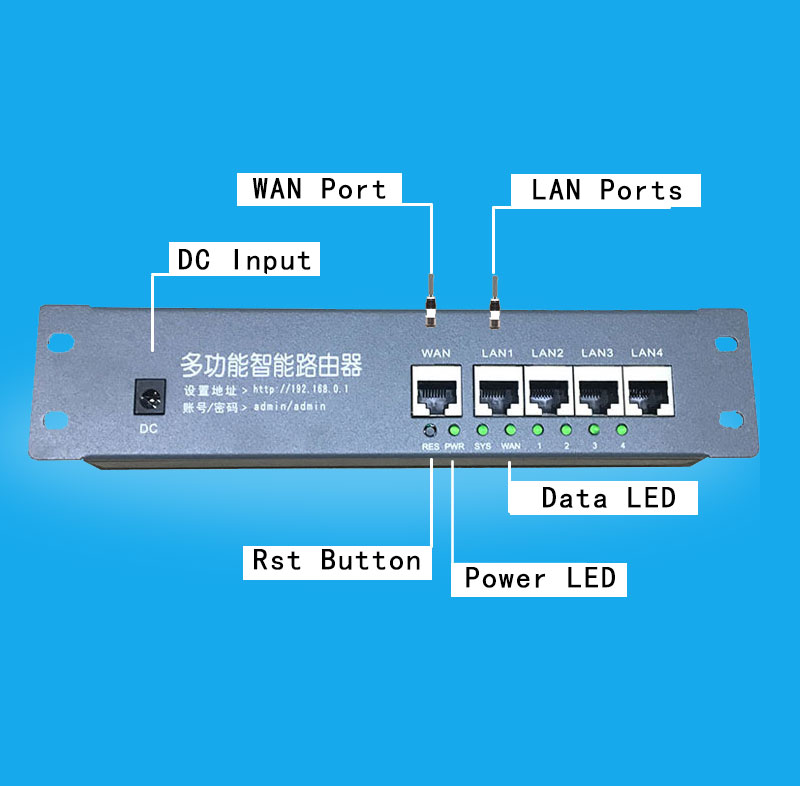

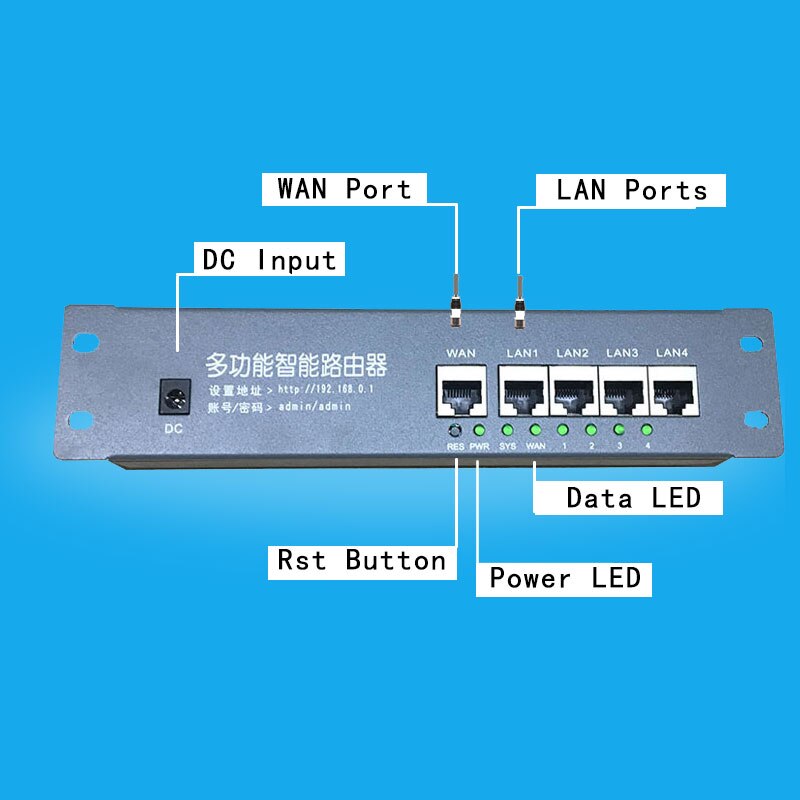

LED Indications | 1* power LED(Power: Green) 4* port LEDs(Link/Act: Green) |

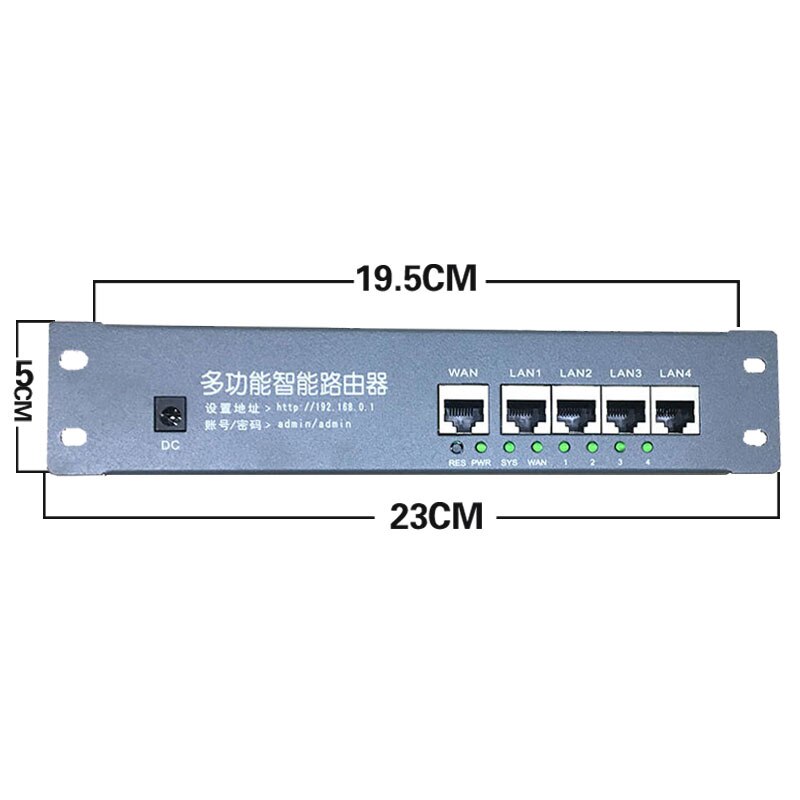

Dimension(W x H x D) | 230x50x20mm |
Power Supply | External Supply power adapter DC 5V2A or 12V1A |
Case Material | no |
certificate | CE RoHS |
Setup Setps

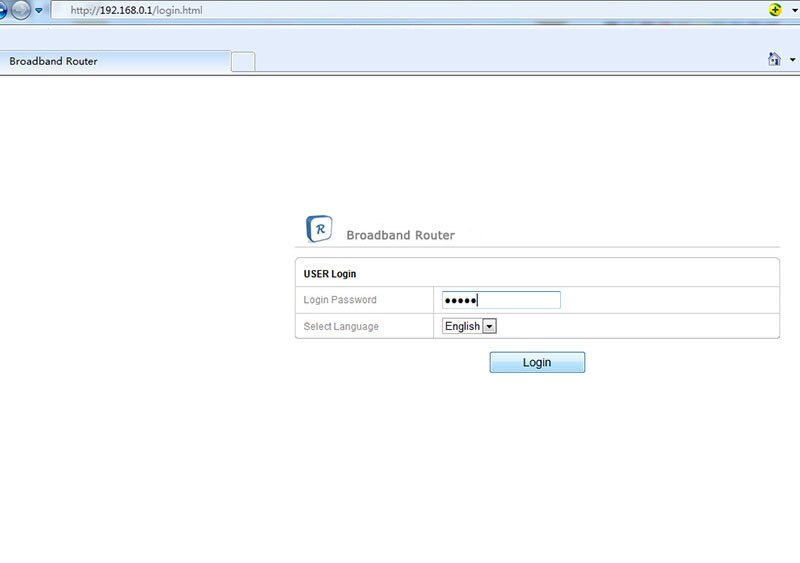

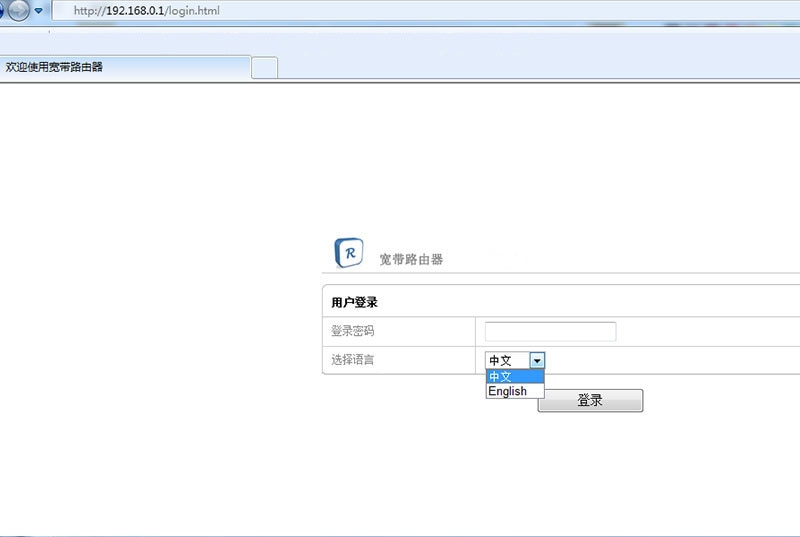

1 Open IE Browser,Input IP Address: 192.168.0.1 Enter
2 Input Login password: admin

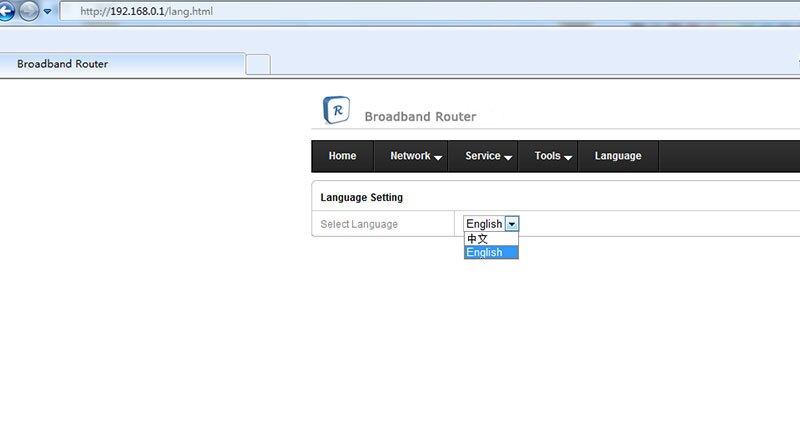

if your Router is Chinese management interface, please you will go to select language change thelanguage for English

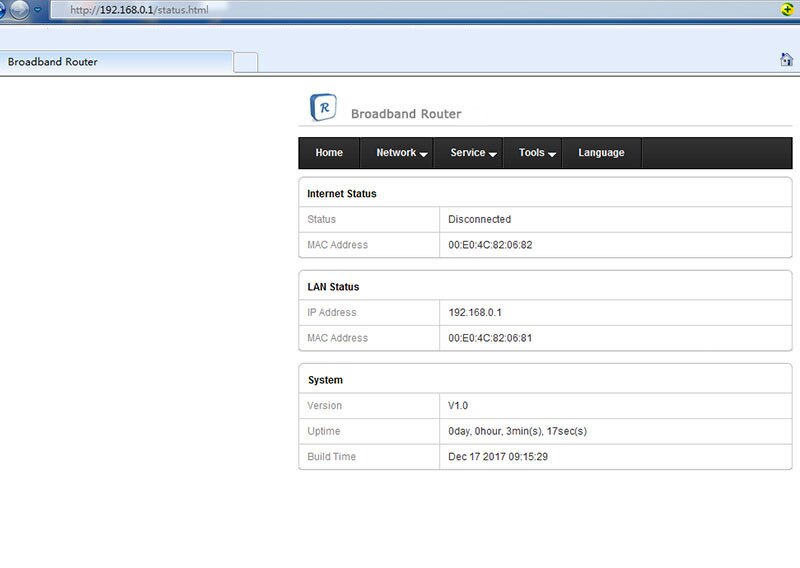

3 you can change the settings as needed
4 If you forget to change the language, you can also open the language management interface to change the language.

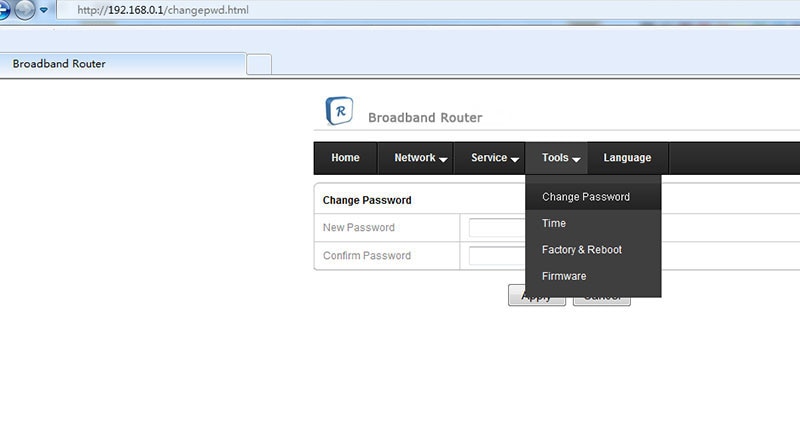

5If you hope to change the password, you can also open the Tools management interface to change the password.
- Wired Transfer Rate: 10/100Mbps
- Wi-Fi Transmission Standard: 802.11n
- Wi-Fi Supported Frequency: 2.4G
- Supports WPS: No
- Supports WDS: No
- LAN Ports: 4
- Function: Firewall
- Application: Soho
- Package: No
- Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n
- Max. LAN Data Rate: 100Mbps
- With Modem Function: No
- Type: WIRED
- Brand Name: XTDP－Link
- Origin: Mainland China
- Certification: CE
- Model Number: wl-dgmk300
- DC Power: 5-12V / 600mA-1A
- Router: wire router module
- dimension: 23*5*2cm
- material: metal case
- OEM: offer
- WAN Ports: 1
- Firewall: Yes
- Number of USB Interfaces: No Support
- 2.4G Wi-Fi Transmission Rate: None
- Optional with adapter or no adapter: yes
