SFR1M44-U100K 3.5" 1.44MB 1000 Floppy Disk Drive to USB Emulator Simulation For Musical Keyboard 34pin Floppy Driver Interface

4.8 (4 votes)
Price: US $55.44 / piece
Discount Price:
US $ 37.58 / piece
-32%
Color
Quantity

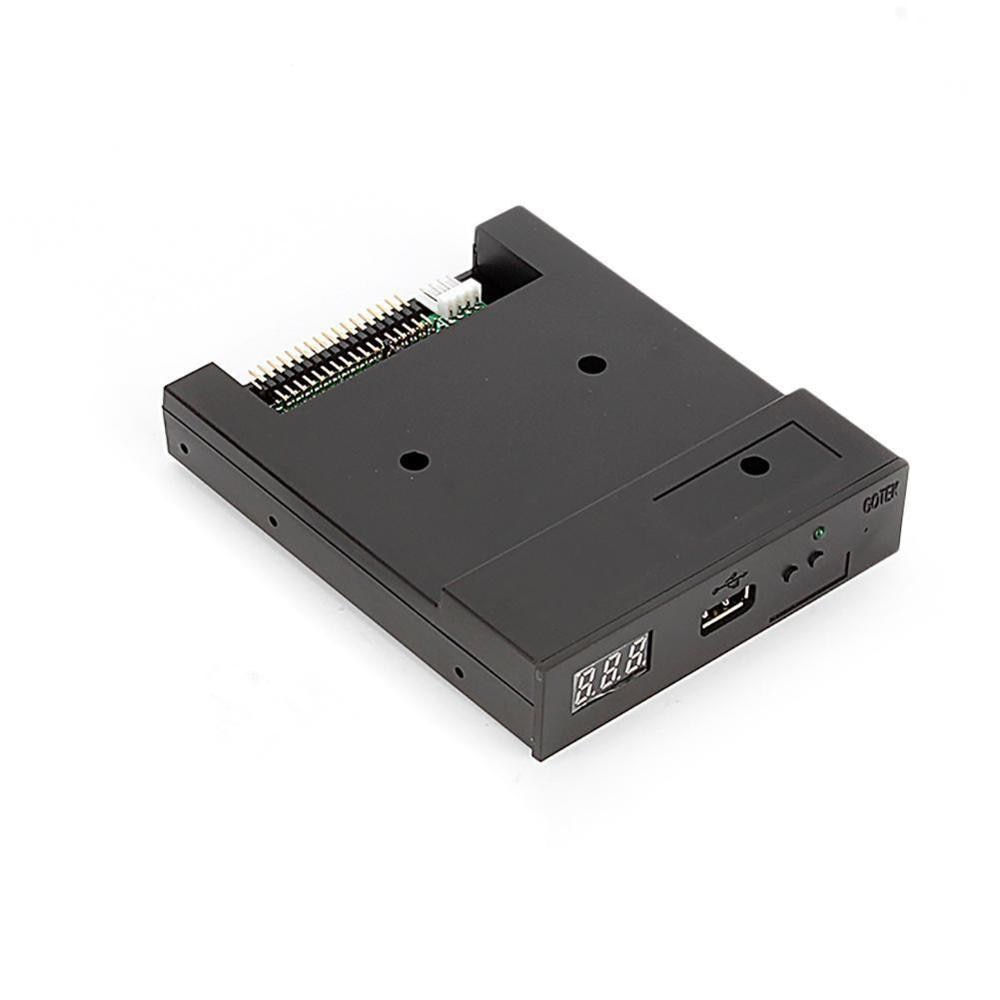

New 3.5" 1000 Floppy Disk Drive to USB Emulator Simulation For Musical Keyboard 34pin Floppy Driver Interface

Product Features:
100% Brand New
Item's color might be different from the picture because of the aberration.
This floppy drive emulator is great for electronic organ
Housing Material:ABS
Color:Black
Floppy driver with below function needed:
Floppy driver with 34pin interface,and 5V DC power plug
Use 2HD flpppy disk with 1.44MB capacity
Format of disk:Cylinders:80
Tracks:160 Sectors/Track
18 Bytes/Sector:512 Data
Transfer rate:500 kbps
Encoding method:MFM

Features:
Use normal usb flash drive as the medium for transfer design.

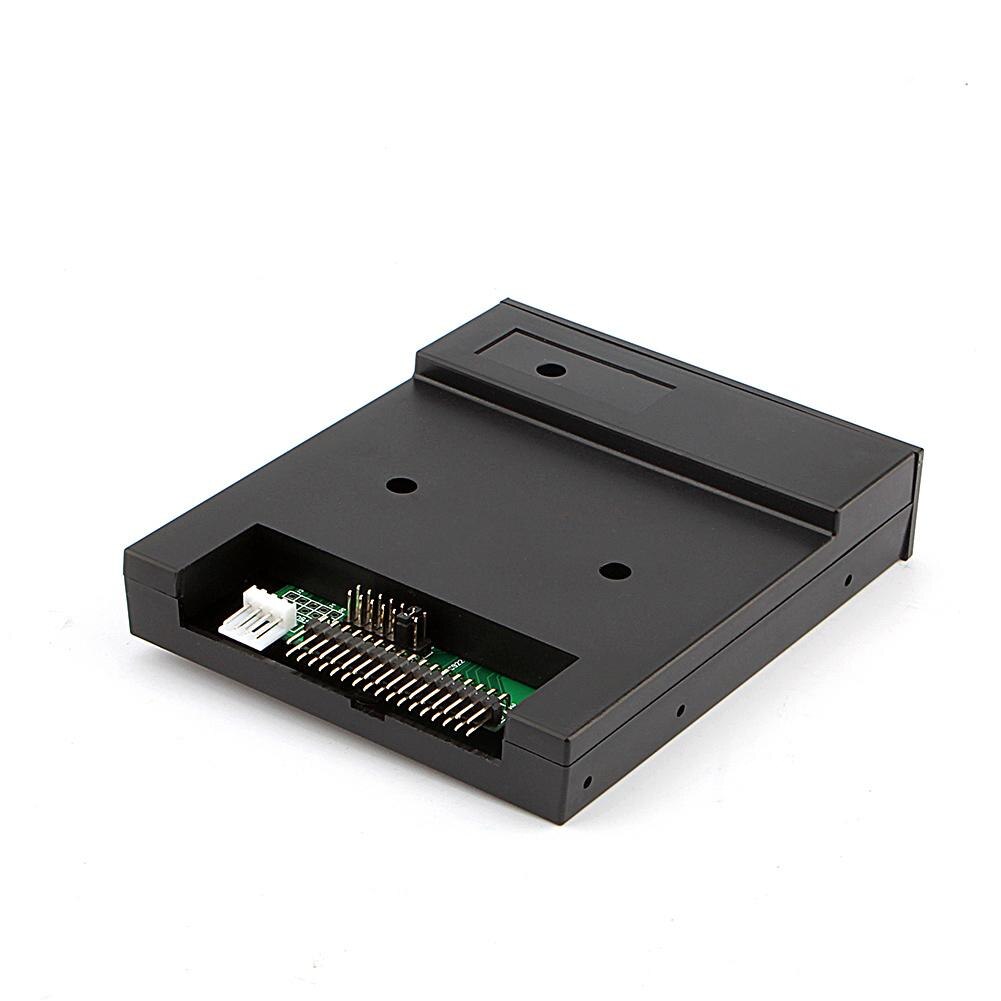

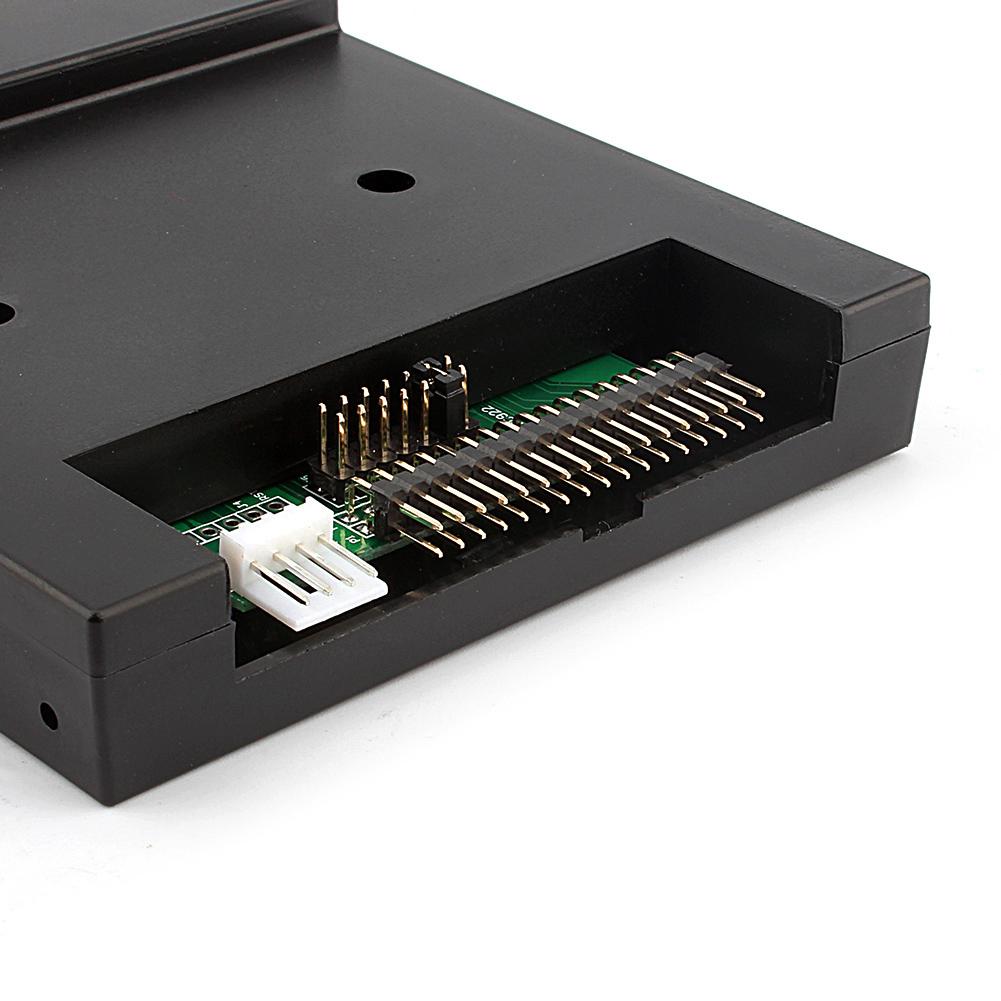

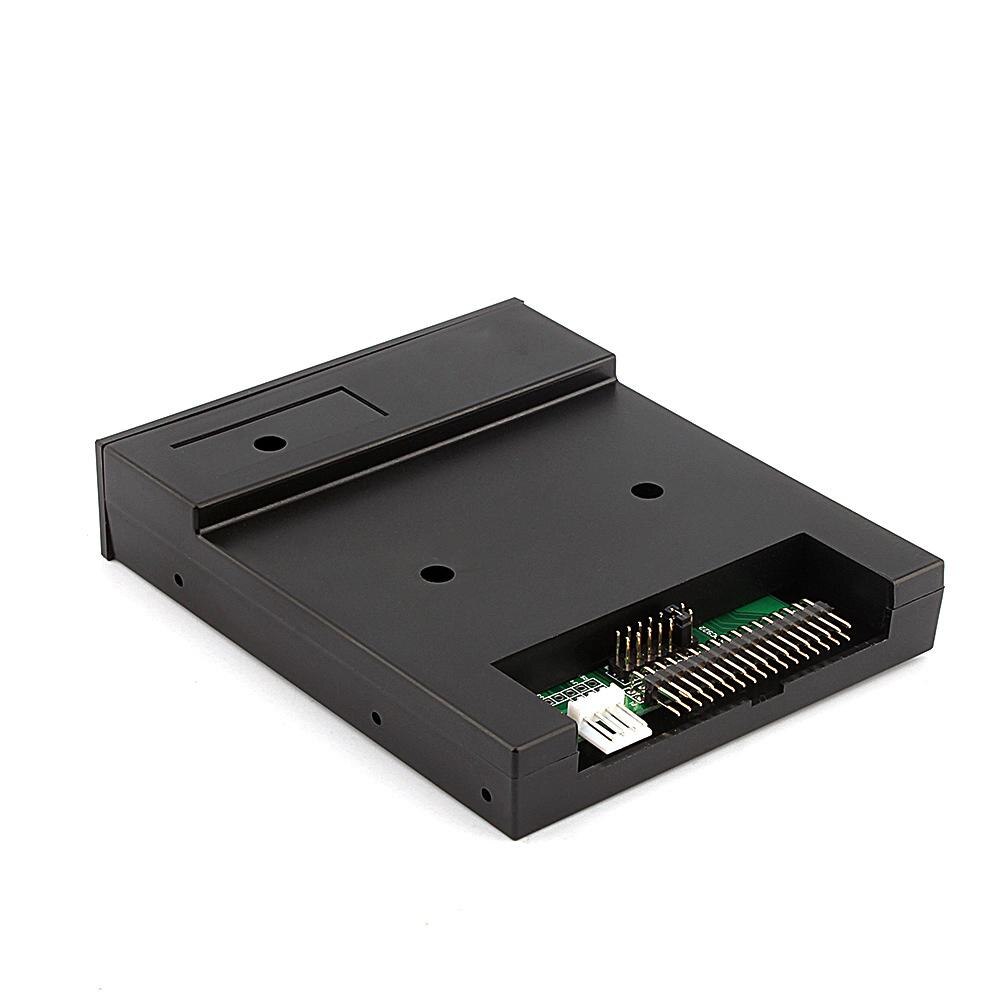

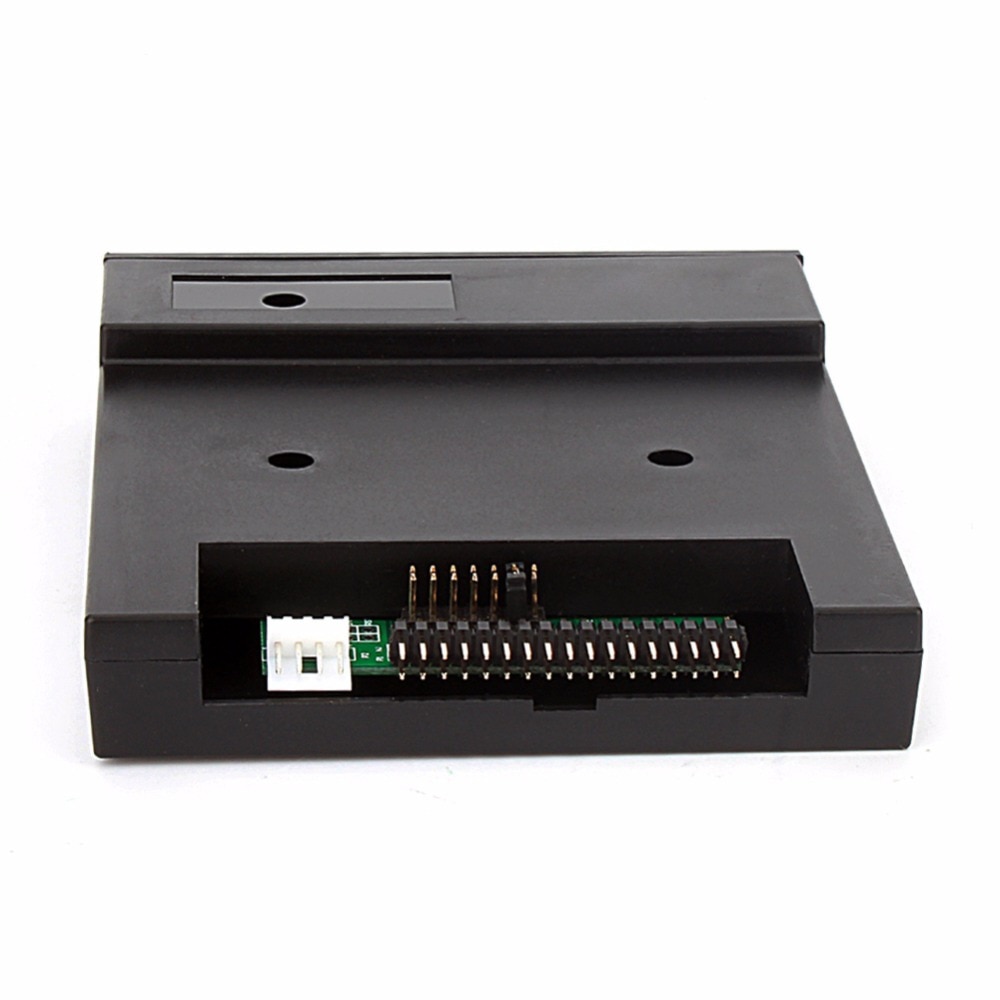

34pin floppy driver interface,5V DC power supply,easy to install.
Capacity:1.44MB 2HD Cylinders:80 Tracks:160 Sectors/Track: 18 Bytes/Sector:512 Data
Transfer rate:500 kbps
Encoding method:MFM.
1000pcs partitions in usb flash drive can be used.
Built-in self-format function.(read relevant documents to use this function)
Jumpers with function for different machines(SFR1M44-U100K not support jumpers).

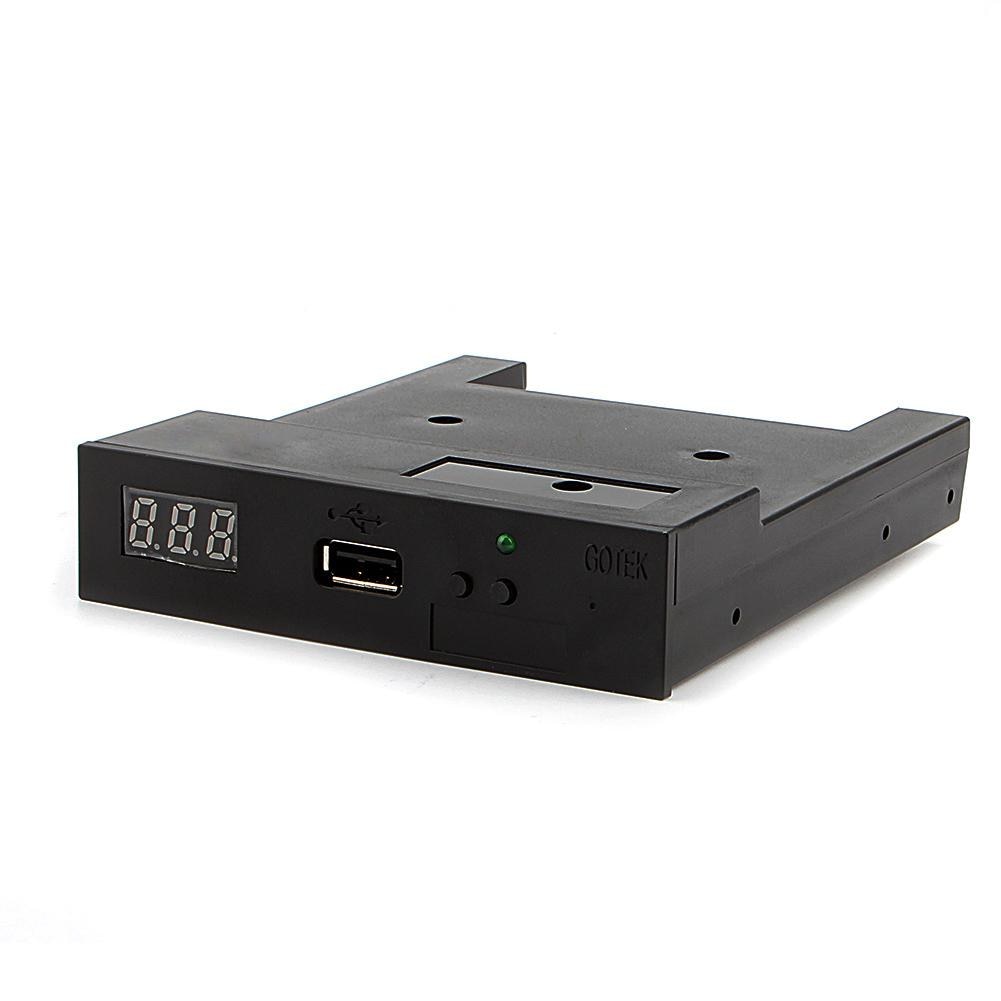

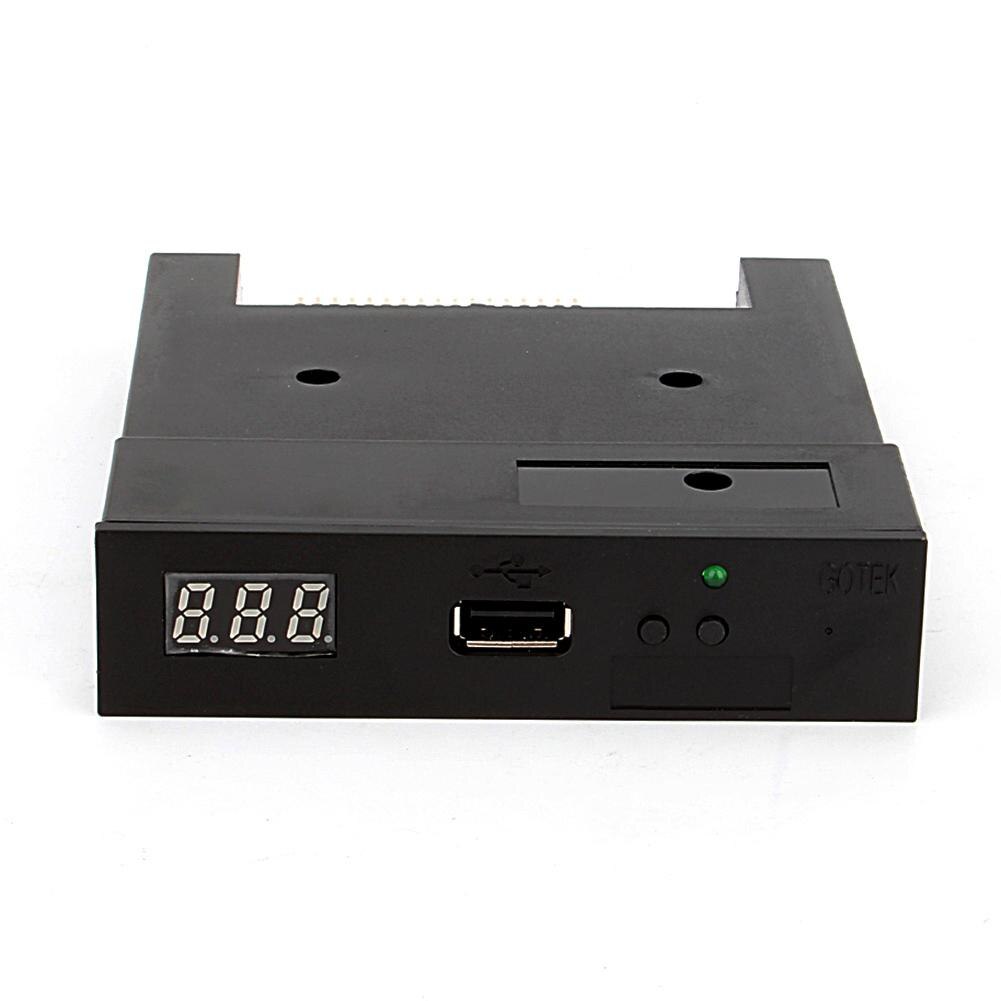

Panel:
8segment numbers:represent partitions number
Green led:status of read and write operation
USB port:connect usb flash drive

Button:
Left button used to rise ten-digit,right botton used to rise single-digit,press 2 button together to
rise hundred-digit

Operation :
Format usb flash drive.
1.use built-in self-format function to format usb flash drive into 1000pcs partitions
2.install an emulator on computer,and format every partitions by operate driver A.
3.use emulator UFA1M44-100,plug usb flash drive on it,
connect to computer,it will recognized as removabe driver A or B under WINDOWS XP/2000/7,format every partitions.
UFA1M44-100 also built in self-format function.
Read and write data.
1.install emulator on machine
2.install emulator on computer
3.connect usb flash drive on computer,read and write data directory by software, under WINDOWS XP/2000
4.use emulator UFA1M44-100,plug usb flash drive on it, connect to computer,read and write data under WINDOWS XP/2000/7.

Package Include:
1x USB Emulator


03EDS86108-803EDS86108-903EDS86108-6

Youthink

1

4



  • Package: Yes
  • Model Number: SFR1M44-U100K
  • Interface Type: USB
  • Type: External
  • Application: 1.44MB Floppy Drives,Emulator
  • Brand Name: YOUTHINK
  • Certification: NONE
  • Origin: Mainland China
  • Feature 1: USB Emulator
  • Feature 2: Floppy Disk Drive
  • Feature 4: USB Emulator Simulation For Musical Keyboard
  • Feature 5: 1000 Floppy Disk Drive
