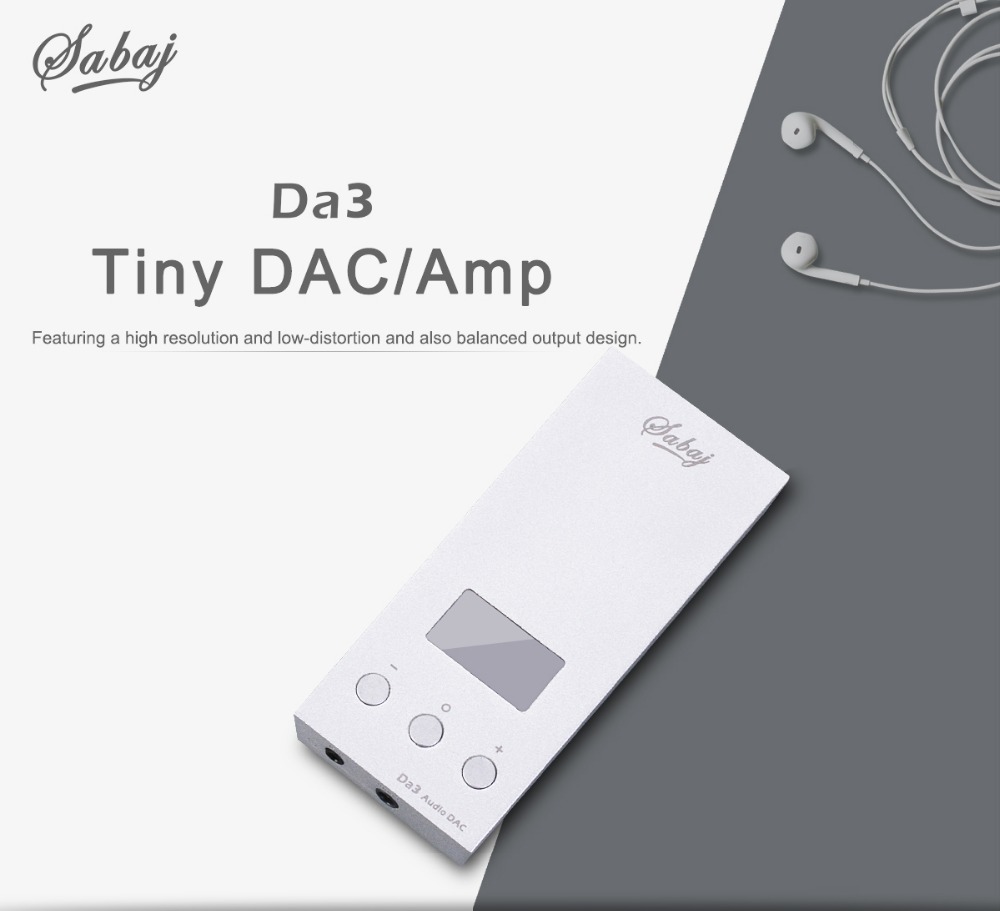

Sabaj Da3 Portable Audio DAC/Headphone Amplifier Audio Native DSD512 Hifi HI-Res High Resolution Balanced Output 32bit/768kHz
ID: 3198

Sabaj Da3 Portable Audio DAC/Headphone Amplifier Audio Native DSD512 Hifi HI-Res High Resolution Balanced Output 32bit/768kHz

5.0 (5 votes) | 10 orders
Price:
US $ 140.58 / piece
Ships From
Color
Quantity

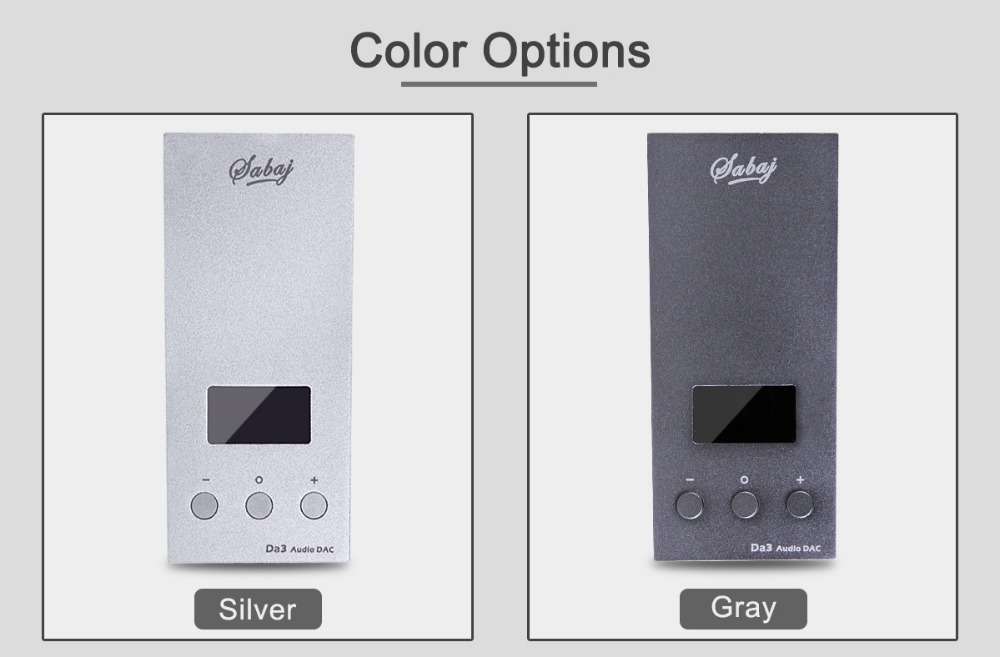

Due to the lighting problem when taking pictures, it will cause some color difference. The actual gray will be closer to the silver on the picture, and the actual silver will be closer to white. I hope you can understand it, thank you!

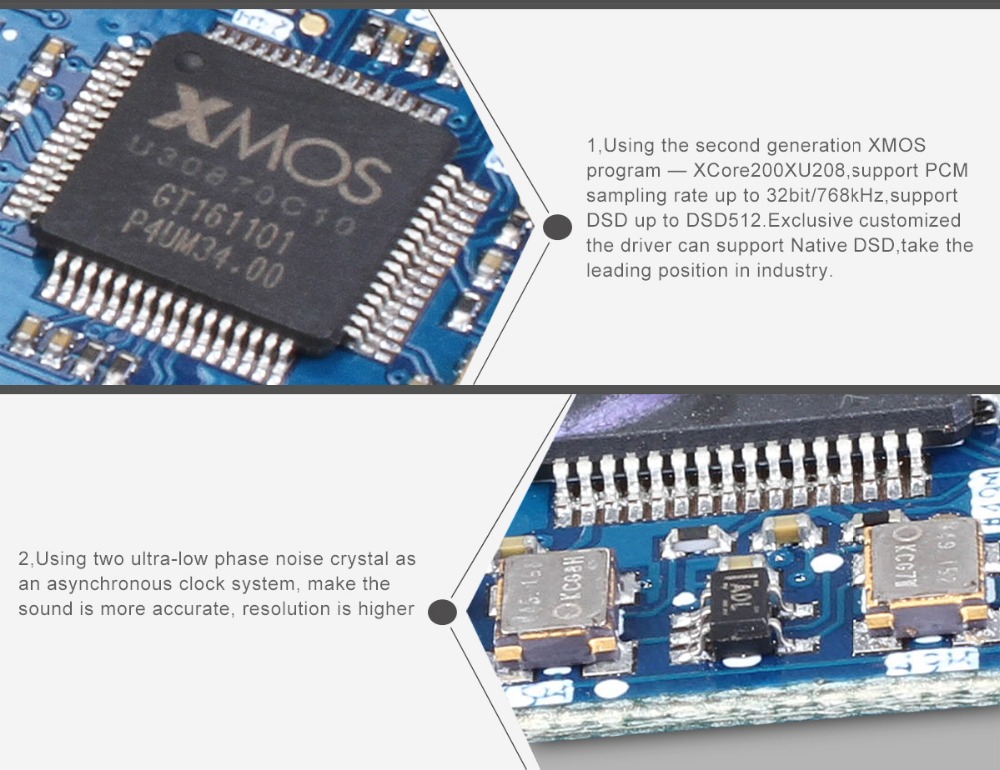

  • Sabaj Da3 HI-Res amplifier using the second generation XMOS USB Audio solution - XCore200XU208.PCM sampling rate support up to 32bit/768kHz, and up to DSD512 supported.Exclusive customized driver supported native DSD which is very advanced in audio range.

  • Using two pieces of ultra-low phase noise crystal as an asynchronous clock system, make the sound is more accurate, resolution is higher.

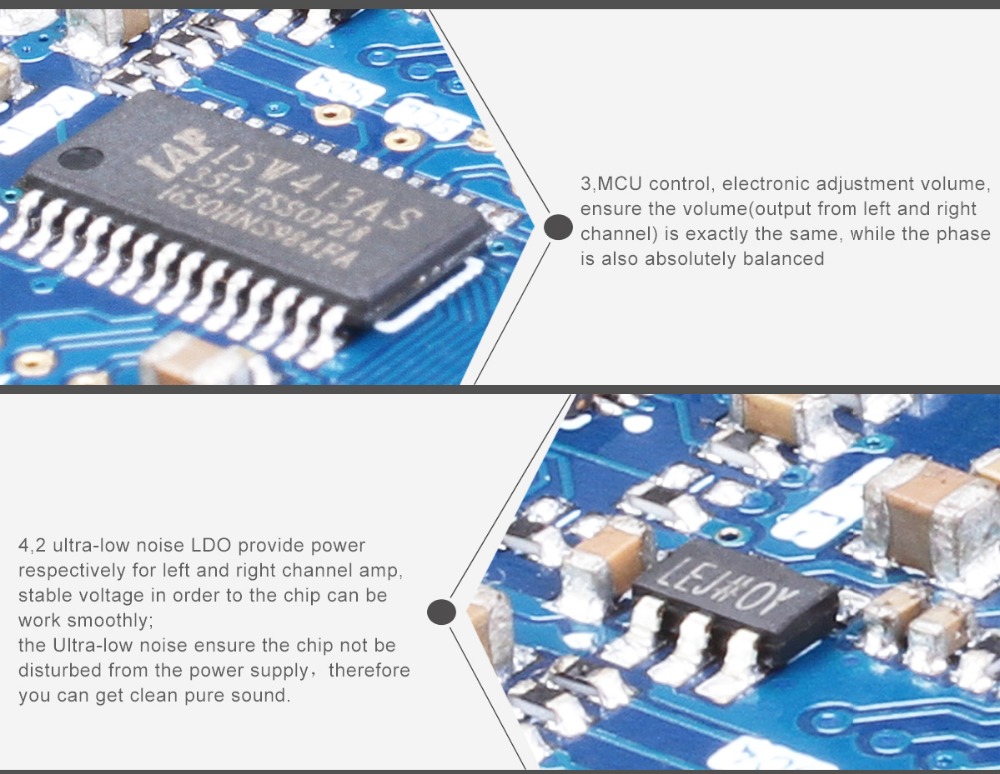

  • MCU control and electronic volume control ensures two channels output volume is exactly same, while the phase is also absolutely balanced.

  • Two ultra-low noise LDO power respectively and independently for left and right channel amp.Stable voltage enables amp chip works and act it's stable function;the Ultra-low noise ensure the chip out of interfered from the power supply for purer sound.

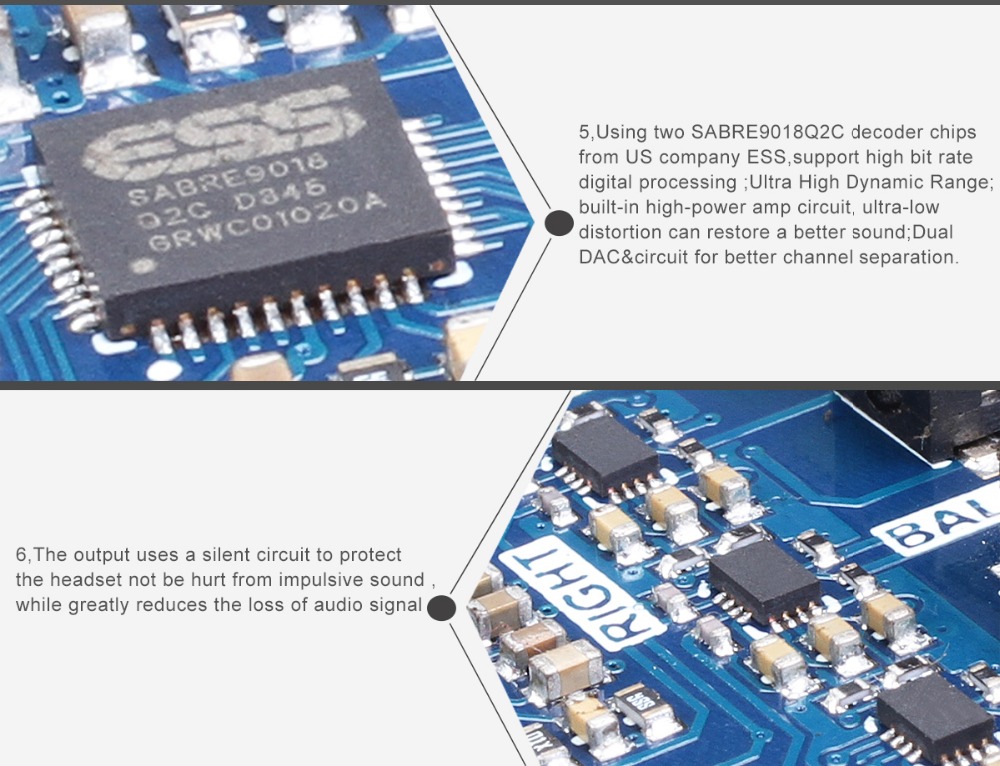

  • Full balanced design and Using two SABRE9018Q2C decoding chips from ESS company in USA.Support high bit rate digital processing;Ultra High Dynamic Range;built-in big-power amp circuit, ultra-low distortion can restore a better sound;Dual DAC&circuit for better channel separation.

  • The output uses a silent circuit to protect the headset from impulsive sound distory ,while greatly reduces the loss of audio signal.

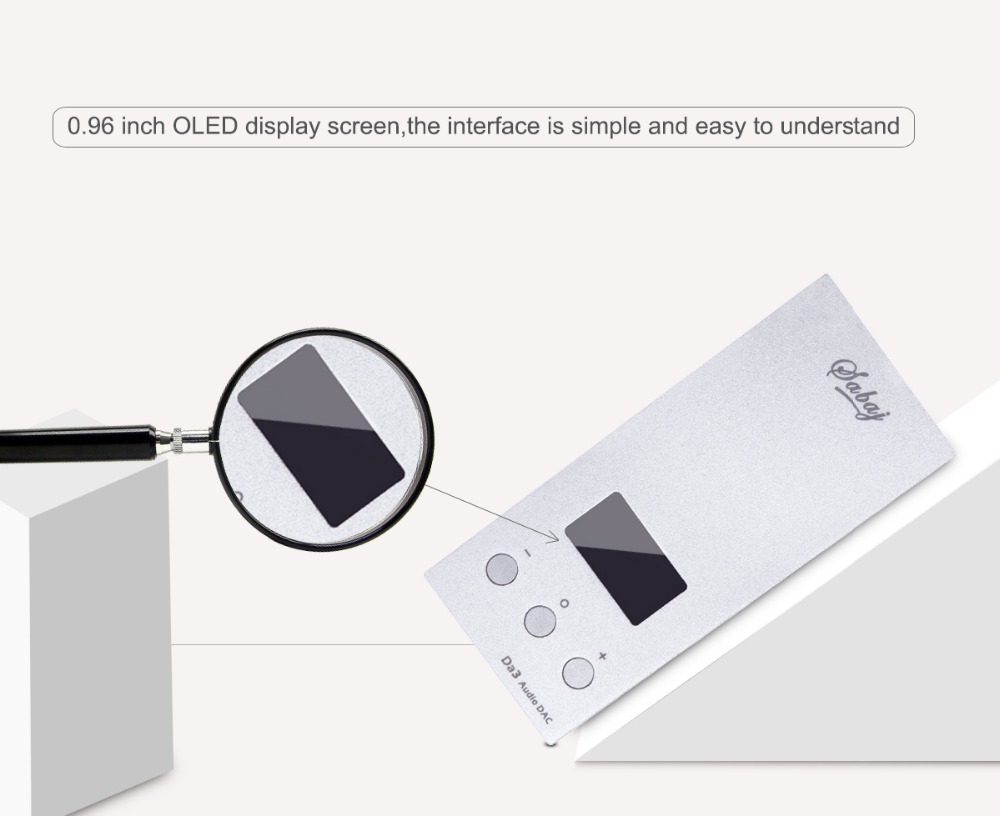

  • 0.96 inch OLED display screen,the interface is simple and easy to operate.

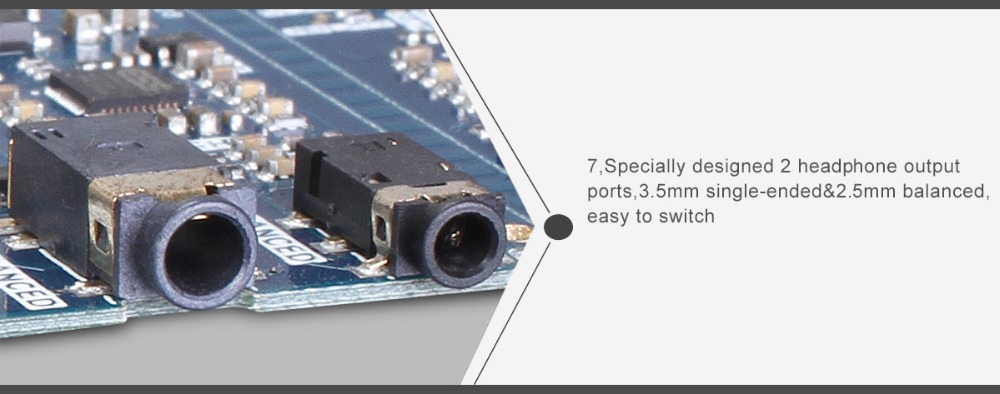

  • Specially designed 2 headphone output jacks,3.5mm UNBAL&2.BAL.


NOTE:We do not recommend DA3 connected mobile phone use, because DA3's power consumption is designed by the computer, if the phone's load capacity is not enough, it can not be used, if the phone is not protected, there is even the possibility of damage to the phone!



Specification
Dynamic range: 125dB

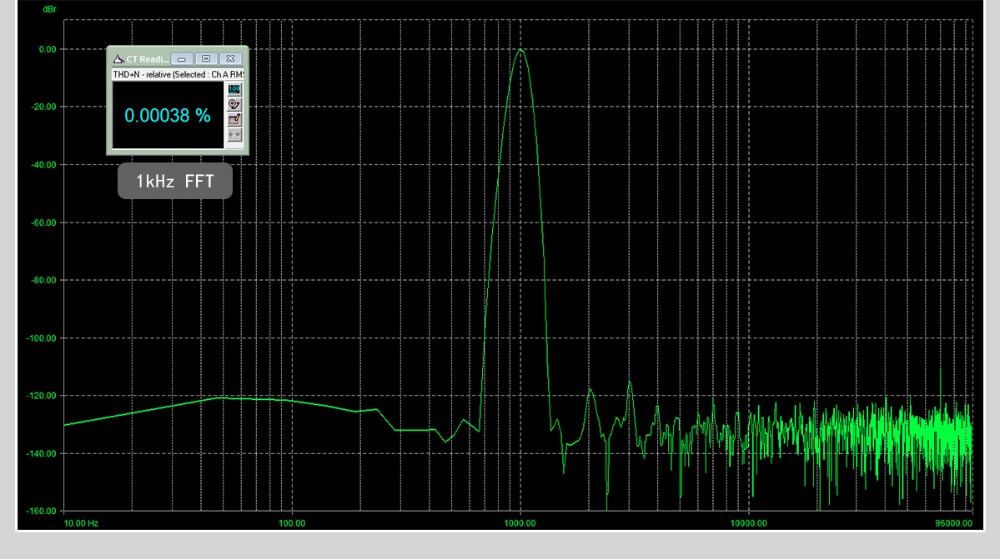

THD: 0.0004%
SNR: 118dB
Bit depth: 16bit, 24bit, 32bit, 1bit
Sampling rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz DSD64, DSD128, DSD256, DSD512
Consumption power: 0.8W
Output power: Balanced 32Ohm  111mW 64Ohm  111mW 300Ohm 52mW
Output power: Unbalanced 32Ohm 56mW 64Ohm 43mW 300Ohm 13mW
Impedance range:16~300Ohm

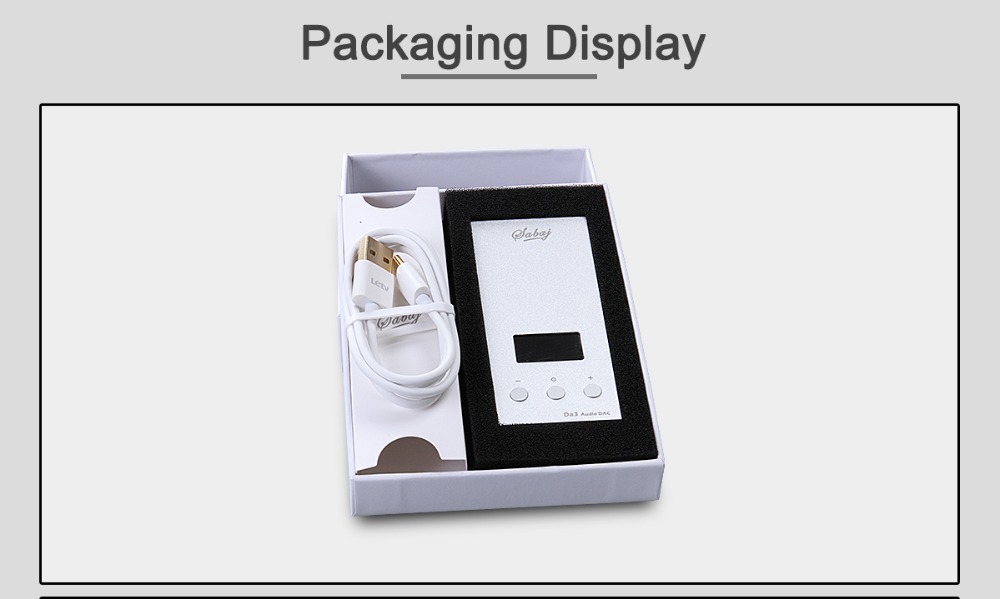

Packaging Details

  • Unit Type: piece
  • Package Weight: 0.2kg (0.44lb.)
  • Package Size: 15cm x 10cm x 5cm (5.91in x 3.94in x 1.97in)

  • Brand Name: Sabaj
  • Built-in Battery: No
  • Certification: CE
  • Recommended Headphone Maximum Impedance: 251-300 Ohm
  • Output Type: LINE OUT (AUDIO OUT)
  • Origin: CN(Origin)
  • Input Type: Micro-USB
  • Body Material: Aluminum
  • Package: yes
  • Channels: 2 (2.0)
  • Output Power: 0.1w

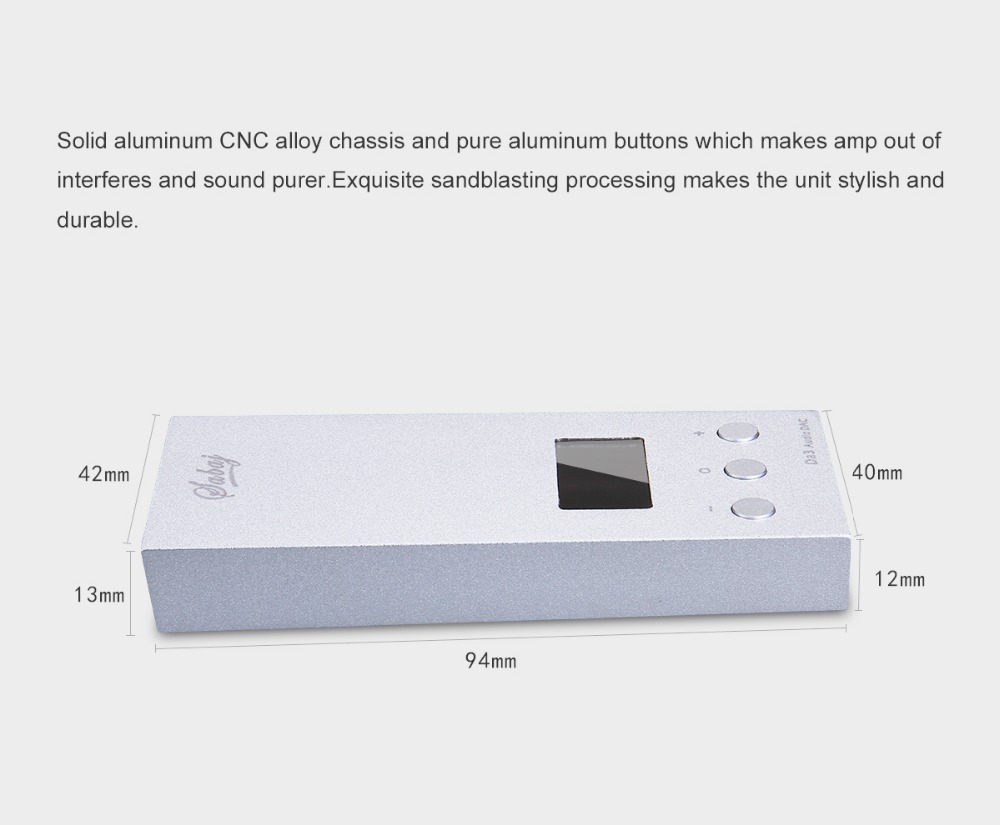

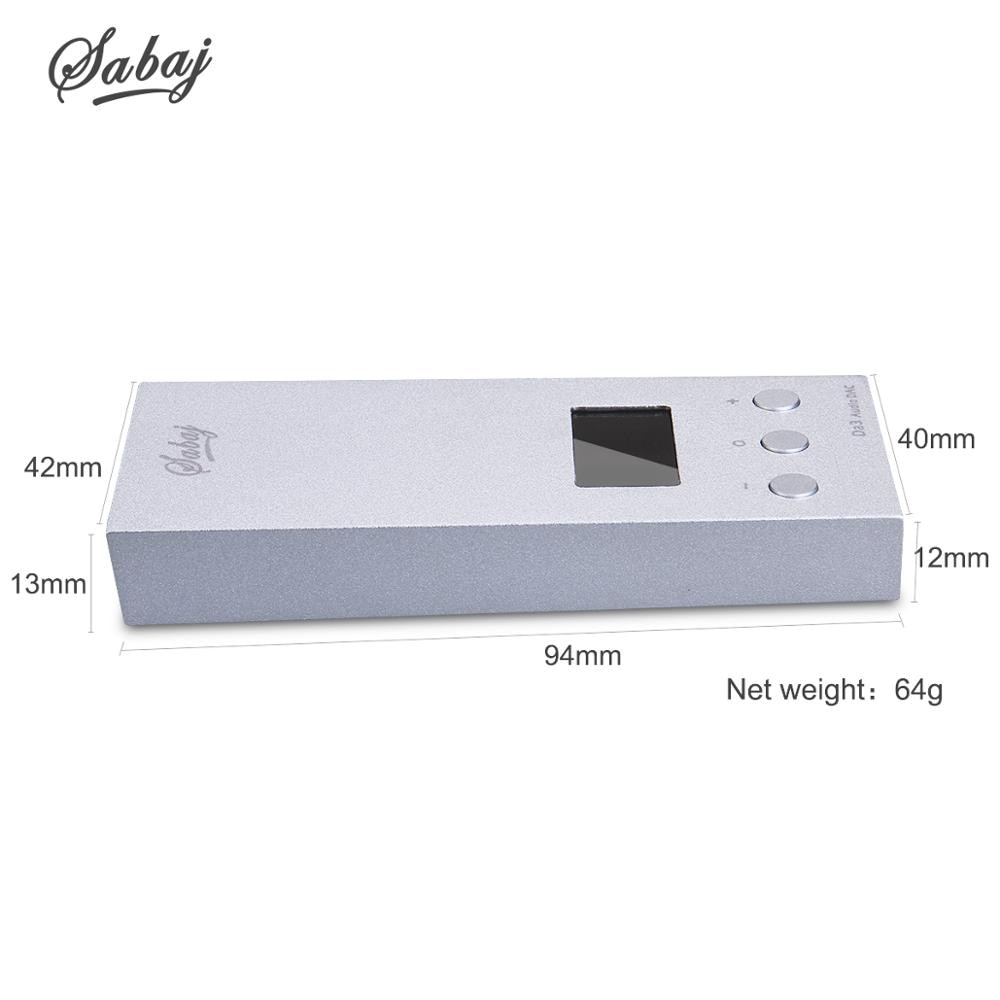

  • Dimensions (WxHxD): 54*17*6mm
  • Model Number: Sabaj Da3
  • Operational Amplifier Chips Model: amplifier
  • Signal To Noise Ratio: 108
  • PCM: No
  • Bluetooth: No
  • DAC Model: ES9018Q2C
  • Type: Home Amplifier
  • WIFI: No
  • Dynamic range: 125dB
  • THD: 0.0004%
  • Bit depth: 16bit, 24bit, 32bit, 1bit
  • Sampling rate: 44.1kHz-768kHz
  • Consumption power: 0.8W
  • Output power (Balanced): 32Ohm 111mW , 64Ohm 111mW, 300Ohm 52mW
  • Output power ( Unbalanced): 32Ohm 56mW, 64Ohm 43mW, 300Ohm 13mW
  • Impedance range: 16-300Ohm
