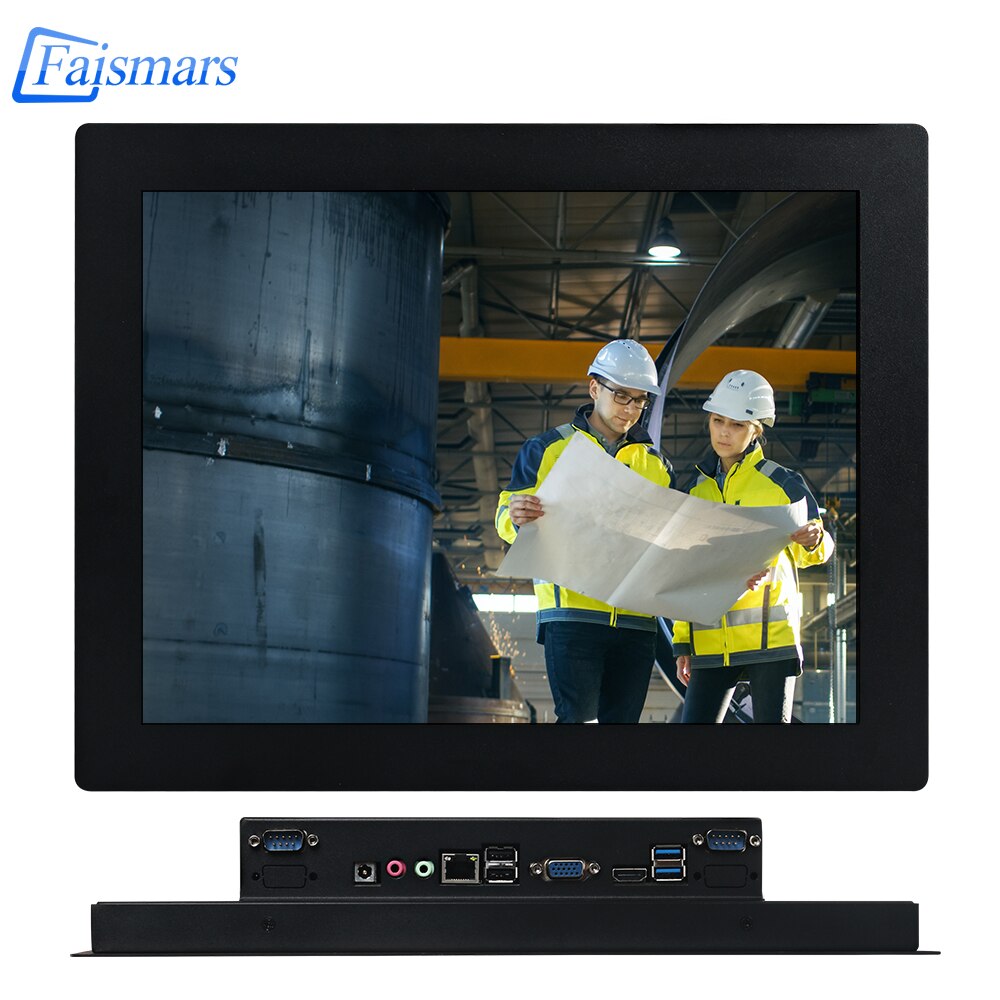

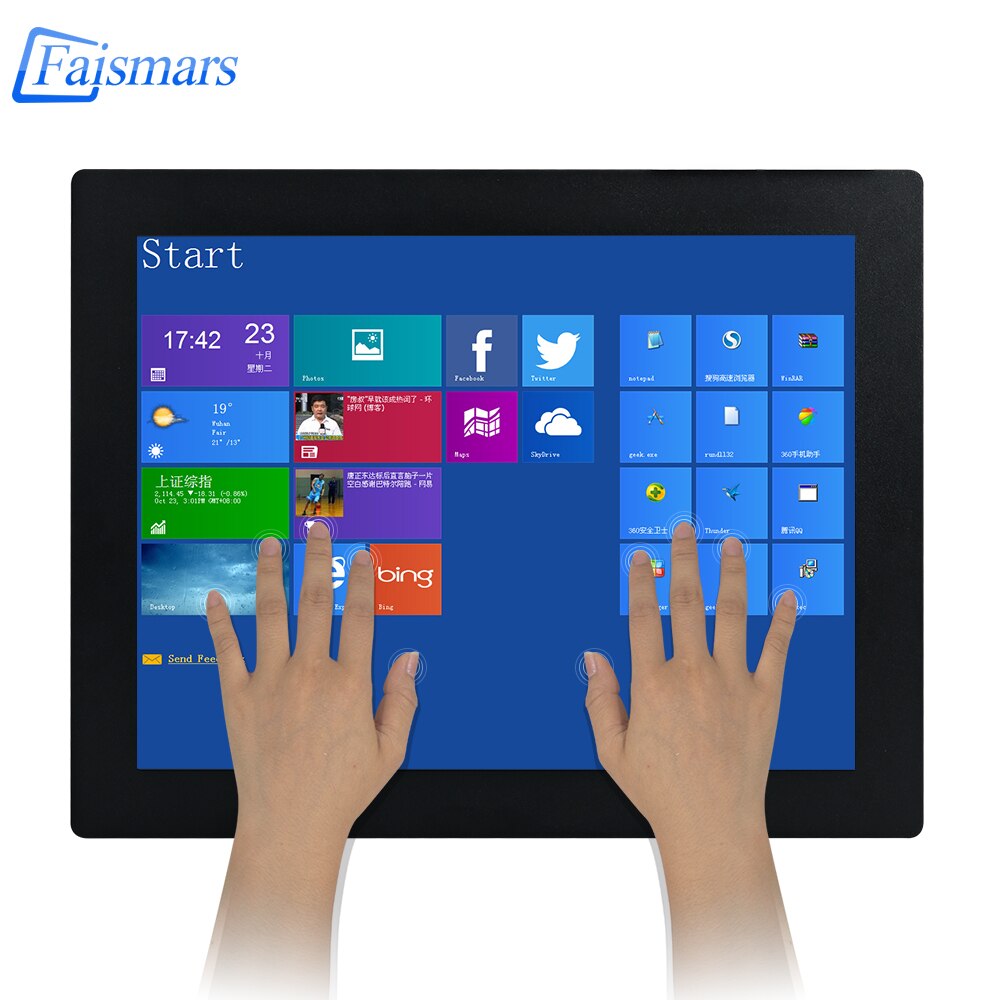

Rugged Industrial All In One PC Intel J1900 Gigabit Ethernet Desktop Computer 17.3 Inch Capacitive Touch Screen For Windows 10

0.0 ( votes) | 1 orders
Price: US $1102.90 - 1928.90 / piece
Discount Price:
US $ 1067.70 - 1860.66 / piece
-3%
Quantity


Rugged Industrial All In One PC Intel J1900 Gigabit Ethernet Desktop Computer 17.3 Inch Capacitive Touch Screen For Windows 10

Features

17.3 inch AM TFT Flat Panel display (1920 x 1080)

Resistive touchscreen works with gloves or stylus

Intel Celeron Quad-Core J1900 2.0 GHz processor

4 GB DDR3 RAM

One Gigabit Ethernet ports

Compact Flash socket

RS-232/422/485 serial ports

USB 2.0/3.0 ports

12~24V DC wide input voltage range(12V DC-in )


Products number

M173AIO

Display


Panel Type

Industrial TFT LCD panel A grade

Max. Resolution

1920 x 1080

Max. Colors

16.7M(8-bit)

Contrast

800:1

Luminance(cd/m2)

300nits, custom up to 1000nits

Backlight lifetime

50,000 hrs

Touch Screen

10-point capacitive touch (resistive touch/non-touch)

PC Configuration


CPU

Onboard Intel celeron J1900 processor(quad-core, 2M Cache, 2.0GHz) Customized: i3/i5/i7

Graphic Card

Integrated Intel HD Graphics

Memory(RAM)

2GB/4GB/8GB/16GB DDR3L SODIMM(Socketed)

Storage

64GB SSD (32GB/128gb/256gb SSD, 500gb HDD customized)

Expansion Slot

2 x Mini-PCIE slot, support SSD, WIFI, 3G module

Internet

1 x RTL811E Gigabit network card

Operating System

Windows 7/8/10 pro, Linux, Windows 10 IoT ENT LTSB

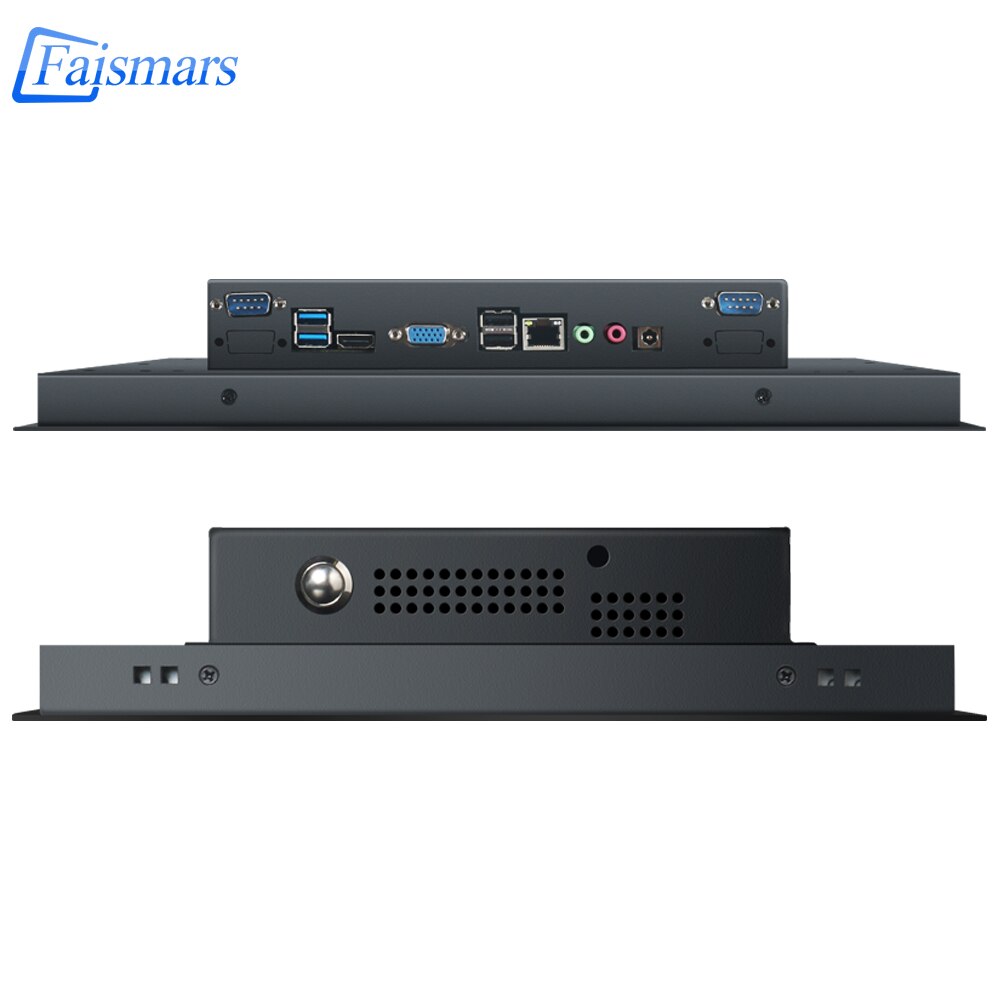

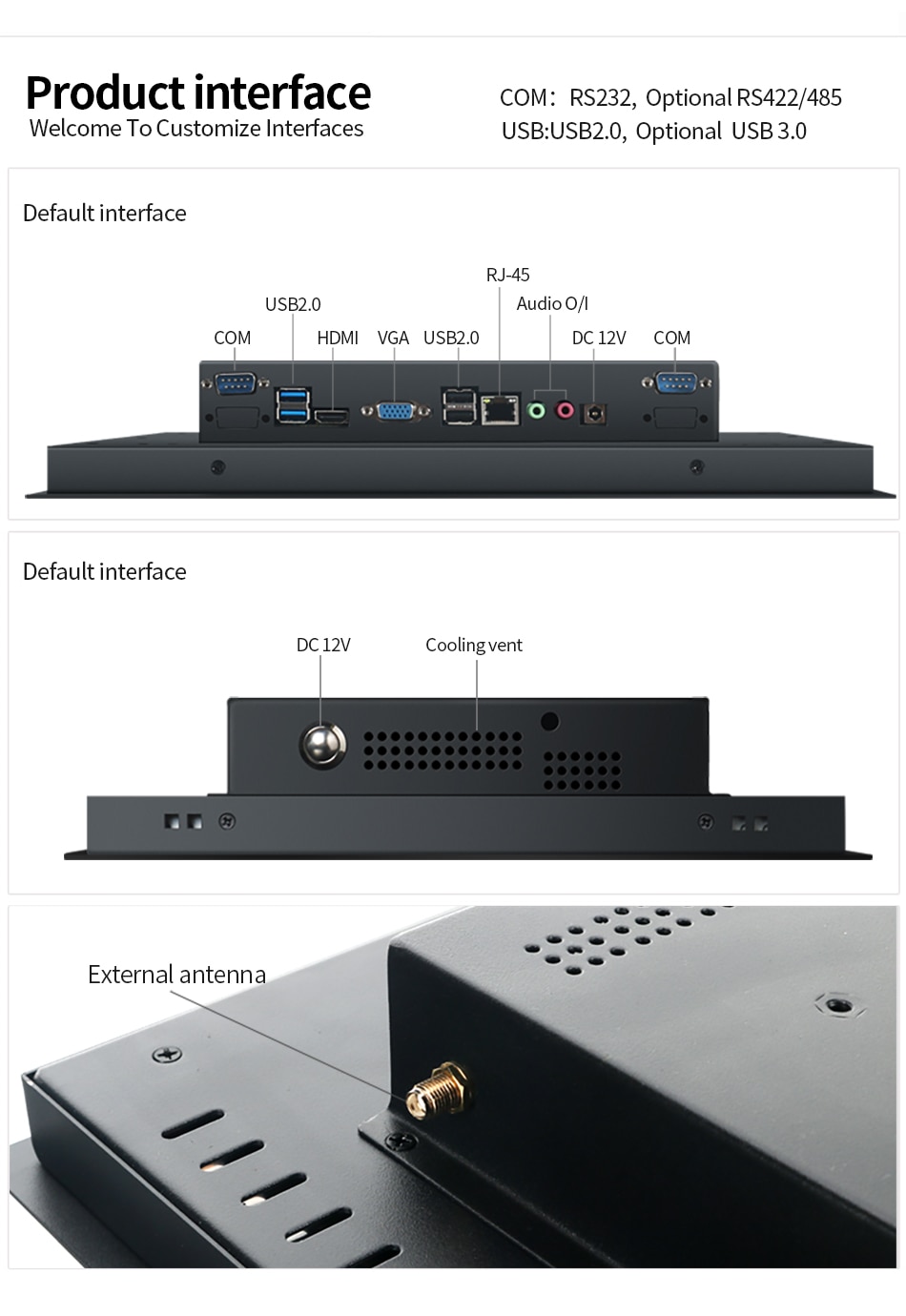

l/O Ports


USB

2 x USB 2.0 Type A

Serial/ Parallel

1 x RS-232/422/485 DB-9, default RS-232(COM1)

1 x RS-232 DB-9(COM2)

LAN

1 x GbE LAN RJ-45 (2*LAN optional)

Audio

1 x Realtek HD Line Ͳ Out

Power

1 x 3-pin DC Power input terminal

1 x 2-pin connector for power on/off button

Power Input

12V DC-IN (24V optional)

Mechanical


Construction

Metal Iron frame (Aluminum alloy optional)

Mounting

Panel Mount, VESA mount 75 x 75

Dimensions

444 x 278 x 61 mm

Net Weight

3.5 kg

Operating/StorageTemperature

-10°C-60°C / -30°C-60°C

Operating/Storage Humidity

10%-80%/ 10%-90%

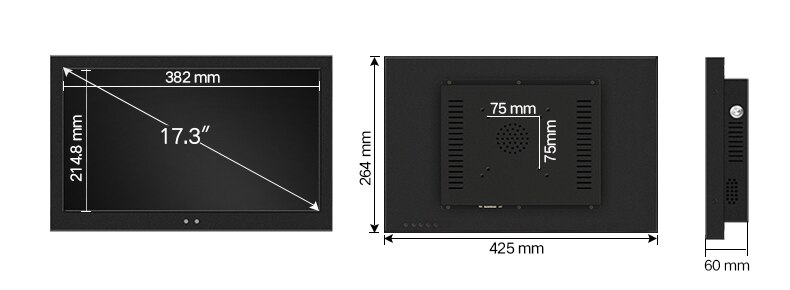

Dimensions of 17.3 inch Full HD Industrial Embedded All In One Computers

Dimensions of 17.3 inch Full HD Industrial Panel Mount All In One Computers

Dimensions of 17.3 inch Full HD Capacitive Touch Industrial Embedded All In One Computers

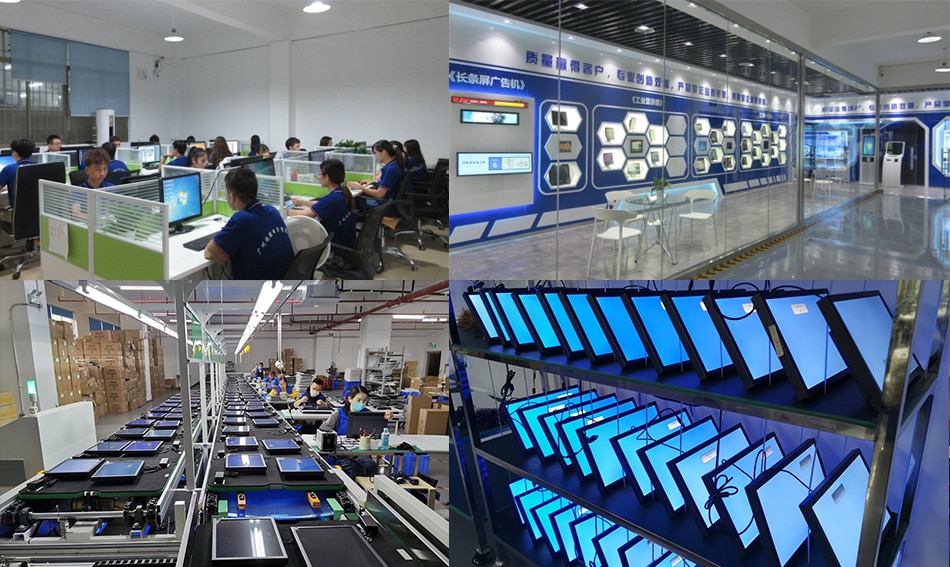

Faismars is professional manufacturer in Touch All in one PC, Industrial Computer, LCD display, MINI PC and so on. We have many years industry experience and own professional R&D, experienced sales team, with well-equipped testing facilities and strong technical force. It has won the praise and support of many customers with excellent quality and perfect after-sales service. Providing high quality,produscts, reasonable price and best service to all partners is our promise. Faismars is committed to building the world's leading industrial intelligent touch control equipment brand.


Visiting our factory is warmly welcomed at any time. We look forward to cooperating with you and supporting your growth in your market.



Free Operating System: Default installed our trial OEM windows 10/8/7 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install.  Other systems we can install free are like Linux Ubuntu etc if you need. Seller is not responsible for trial OEM system.

Accessories as RAM, SSD, we use famous brand:  samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison, Longsys etc, What brand we use depends on our test and our stock.




1. We send to the Buyer's address specified on Cntronic. Please check your address/city/ post code, making sure it's matched with your shipping address.


2. We can't control the delivery time because it is processed by Third-party service. If the parcel has not arrived within expected time, please contact us, we will extend the delivery date before opening dispute.


3. Normally we ship for free by faster delivery mode such as DHL, EMS, Fedex, our express agent special line, etc. It depends on different countries and different cases. But for those remote areas, we have to ship for free by registered postal mail, it will be slower than EMS, DHL, Fedex, etc. You can also add extra fees for DHL, EMS, Fedex, etc. faster shipment ways, thanks for understanding. All goods will be packed well to make sure they arrive in high condition.


1. Normally we declare item as "ALL IN ONE PC" or "PANEL PC" with real value, the Buyers are fully responsible for paying fees involving such as dispatching fees, storage costs, brokerage, taxes or VAT etc.


2. If you have special requirement of the value, please leave a message to us after you make order.


3. Due to the tax problem, the Buyer refuse to receive the goods, the Buyer need to be fully responsible for the freight back and forth.Thank you for your cooperation.




  • Max Boost Speed: 2.41GHz
  • Weight: 6KG
  • Bundle: Bundle 1
  • Mouse & Keyboard: No
  • Video Memory Type: GDDR3
  • Display resolution: 1920x1080
  • Processor Core: Quad Core
  • RAM Type: DDR3
  • Power: 15w
  • Operating System: Windows7/8/10
  • Memory Capacity: 2 GB
  • HDD Rotation Speed: SSD
  • Chipset Type: J1900
  • Graphics Card Chipset: HD Graphics
  • Drive Type: No CD ROM
  • Dispaly Ratio: 16:9
  • Processor Main Frequency: 2
  • Display Size: 17.3"
  • Graphics Card Type: Integrated Card
  • Display Type: Touch Screen
  • Model Number: M173H-AC01
  • Port: VGA RJ-45 COM USB HDMI
  • Processor Model Number: Intel Celeron J1900
  • Type: All-In-One
  • Memory Capacity: 4GB
  • Hard Drive Capacity: 32GB
  • Brand Name: Faismars
  • Certification: CE
  • Origin: Mainland China
  • Name: 17.3 inch All in one Touch screen PC
  • Working temperature: -10~70 ℃
  • Advantage: Cheap price/new parts/OEM

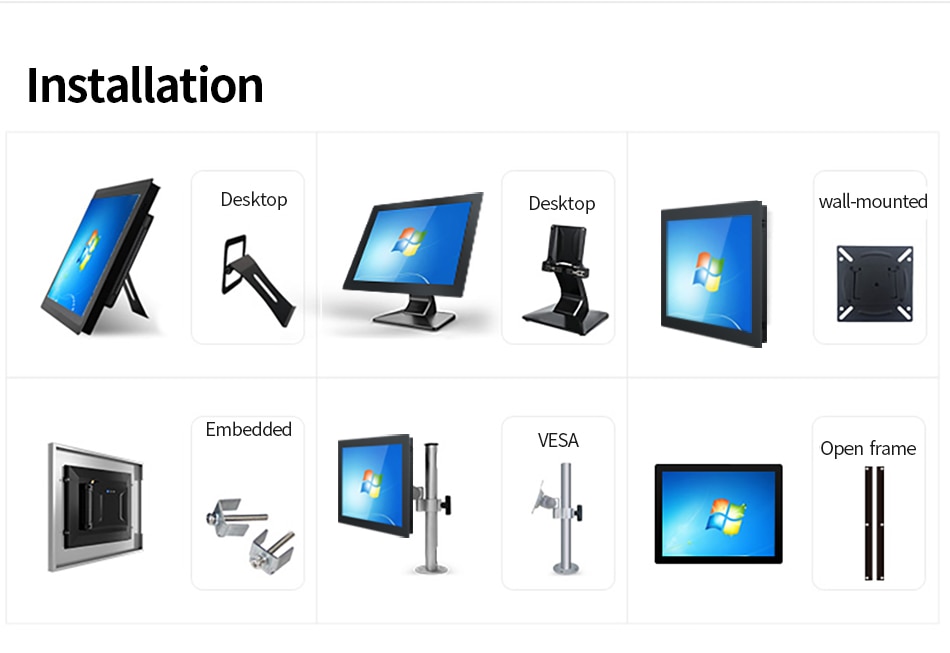

  • Installation: desktop/wall hanging/embedded/ Rack Mount
  • CPU: intel Celeron J1900 2.0GHz
  • Availability of product: Stocked
  • Packing: individual package
  • Material: Aluminum frame(Capacitive)/ Metal Frame(Resistive)
  • Touch type: Capacitive touch/ Resistive Touch
  • Warranty: 1 year
