ID: 110232

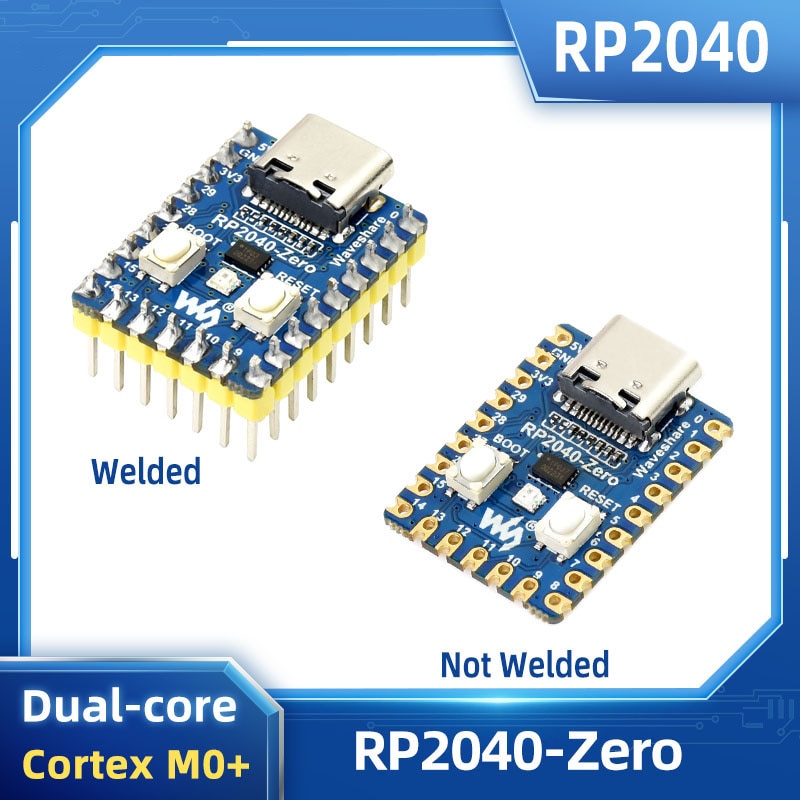

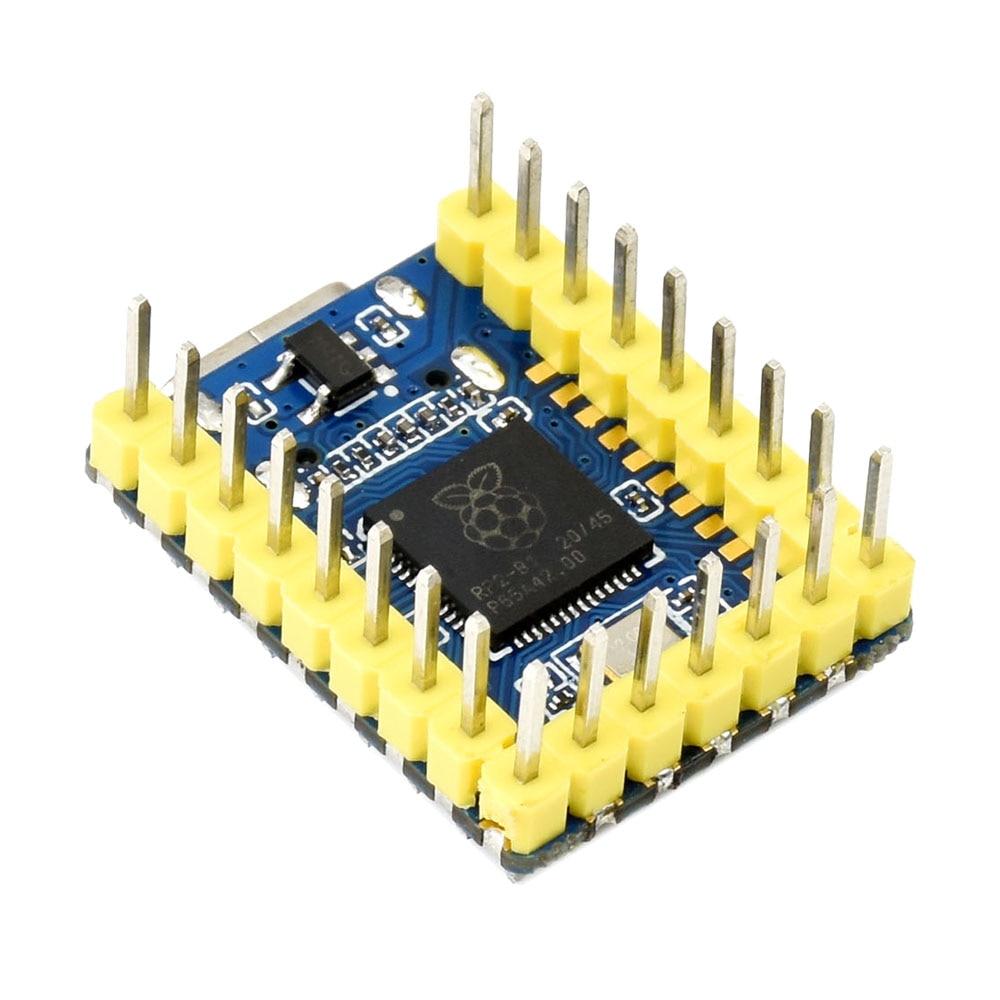

Original RP2040-Zero Pico-like MCU Board Base On Raspberry Pi Pico Dual-core Arm Cortex M0+ Microcontroller USB-C Connector

4.9 (34 votes)
Price: US $18.35 - 22.72 / piece
Discount Price:
US $ 13.05 - 15.44 / piece
-29%
Ships From
Bundle
Color
Quantity


RP2040-Zero, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040
RP2040 MCU BoardZero

a Pico-like MCU board based on Raspberry Pi RP2040

Castellated Module, Suitable For SMD Applications

Board Specifications
  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

  • 264KB of SRAM, and 2MB of on-board Flash memory

  • USB-C connector, keeps it up to date, easier to use

  • Castellated module allows soldering direct to carrier boards

  • USB 1.1 with device and host support

  • Low-power sleep and dormant modes

  • Drag-and-drop programming using mass storage over USB

  • 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)

  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels

  • Accurate clock and timer on-chip

  • Temperature sensor

  • Accelerated floating-point libraries on-chip

  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

Pinheader Options
C/C++,MicroPython Support

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Dual-Core Arm Processor

Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

29 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

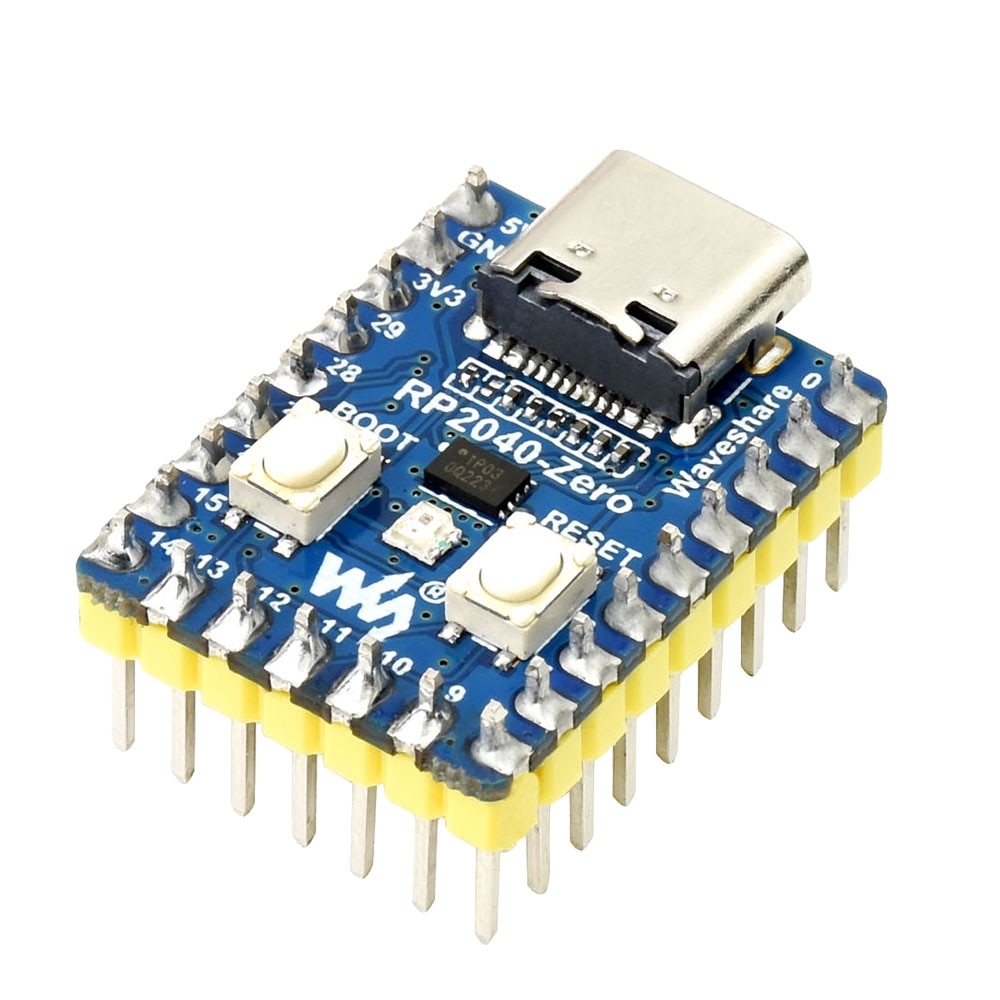

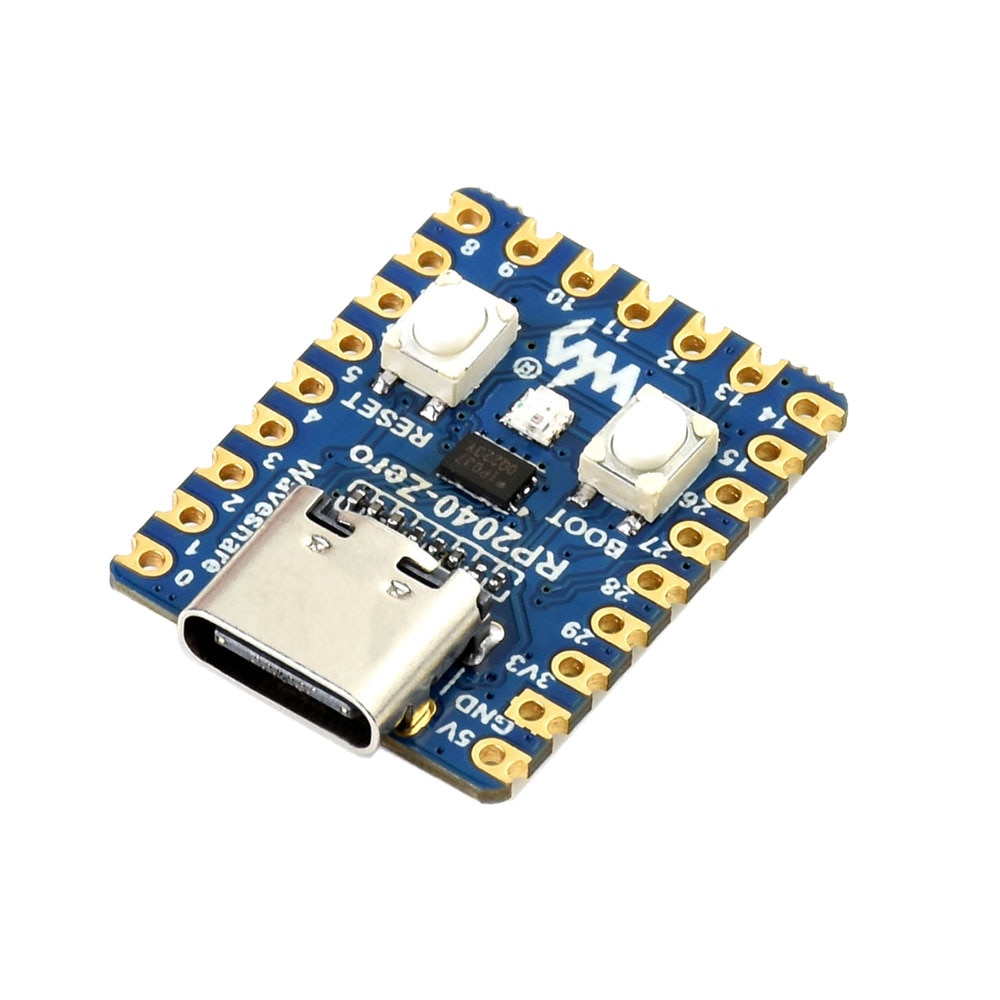

What's On Board
  1. USB Type-C connector

  2. W25Q16JVUXIQ
    2MB NOR-Flash

  3. BOOT button
    press it when resetting to enter download mode

  4. RESET button

  5. WS2812
    cool RGB LED

6. ME621
low dropout LDO, max current 800MA

7. RP2040
dual-core processor, up to 133MHz operating frequency

8. RP2040 pins
10x solder points, 9 of which are for GPIO

Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/RP2040-Zero

Selection Guide

BRAND

Raspberry Pi

Waveshare

PRODUCT


Original


Mini ver


LCD ver


Plus ver

PROCESSOR

Raspberry Pi official RP2040 microcontroller

REGULATOR

RT6150 (DC-DC, 800mA)

ME6217 (LDO, 800mA)

TPS63000 (DC-DC, 1800mA)

USB

Micro USB

Type-C

FLASH

2MB

4MB

BATTERY HEADER

N/A

Yes(concurrent recharging and powering)

INTEGRATED LCD

N/A

0.96inch IPS LCD

N/A


PACKAGE CONTENT



Weight:0.002 kg

RP2040-Zero ( Not welded)

  1. RP2040-Zero x1


RP2040-Zero-M (Welded)

  1. RP2040-Zero with pre-soldered header x1




  • ROM Capacity: None
  • Model Number: RP2040-Zero
  • Demo Board Type: ARM
  • Brand Name: SHCHV
  • Origin: Mainland China
  • Certification: NONE
  • Feature1: Low-Cost & High-Performance
