nRF51822 Ble 4.2 Low Power Wireless Module PCB IPX Antenna Interface CDSENET E73-2G4M04S1D 4dBm Blue-tooth Transmitter Receiver
5.0 (1 votes) | 5 orders
Price:
US $11.31
/ piece
Discount Price:
US $
10.24
/ piece
-9%
Download:
PCB:https://www.cdebyte.com/Uploadfiles/Files/2022-1-11/20221111149202533.rar
User Manual: https://www.cdebyte.com/pdf-down.aspx?id=558

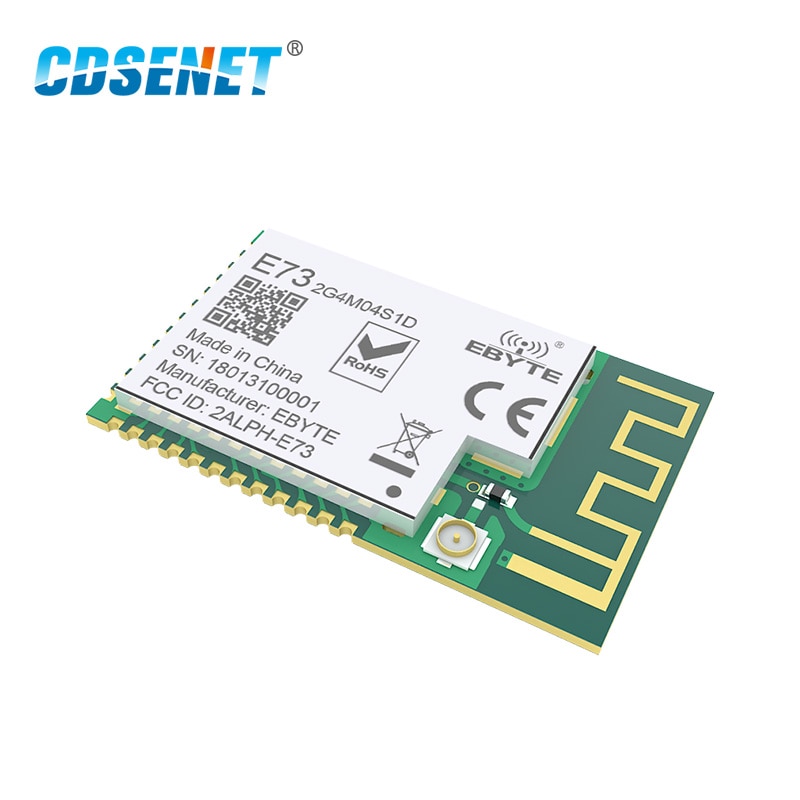

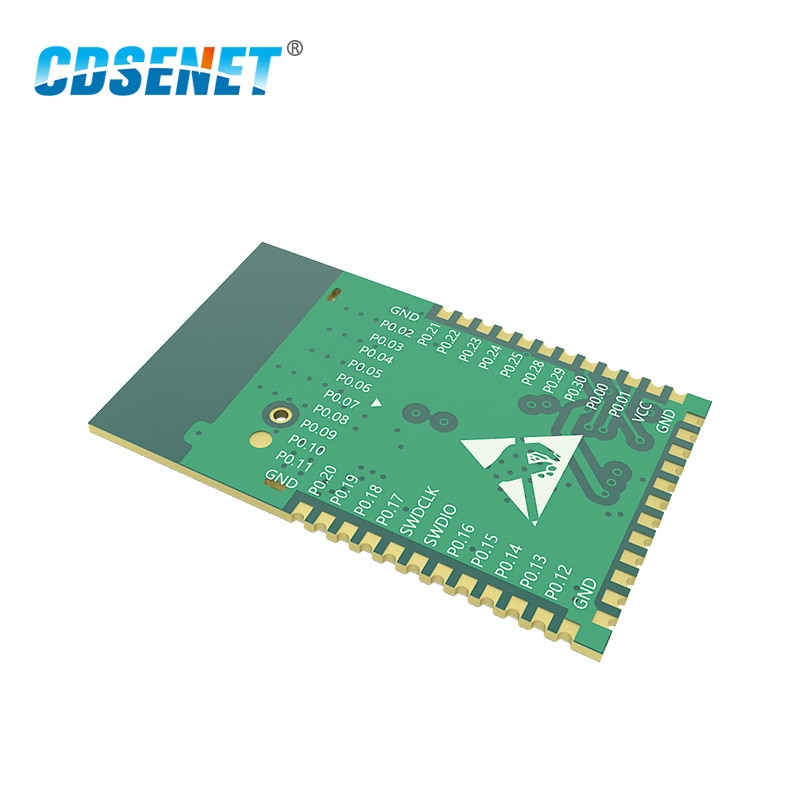

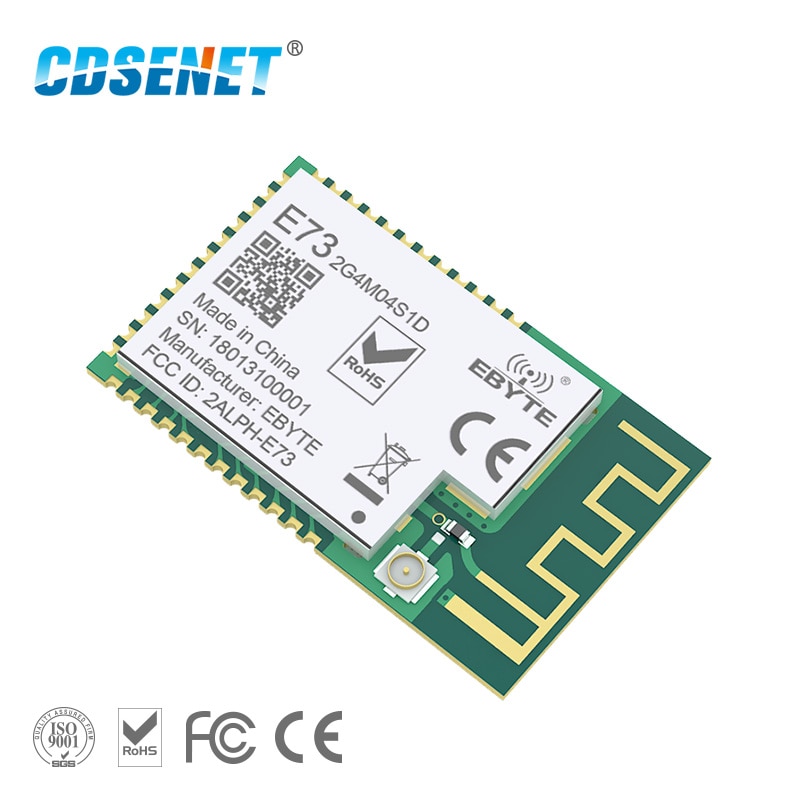

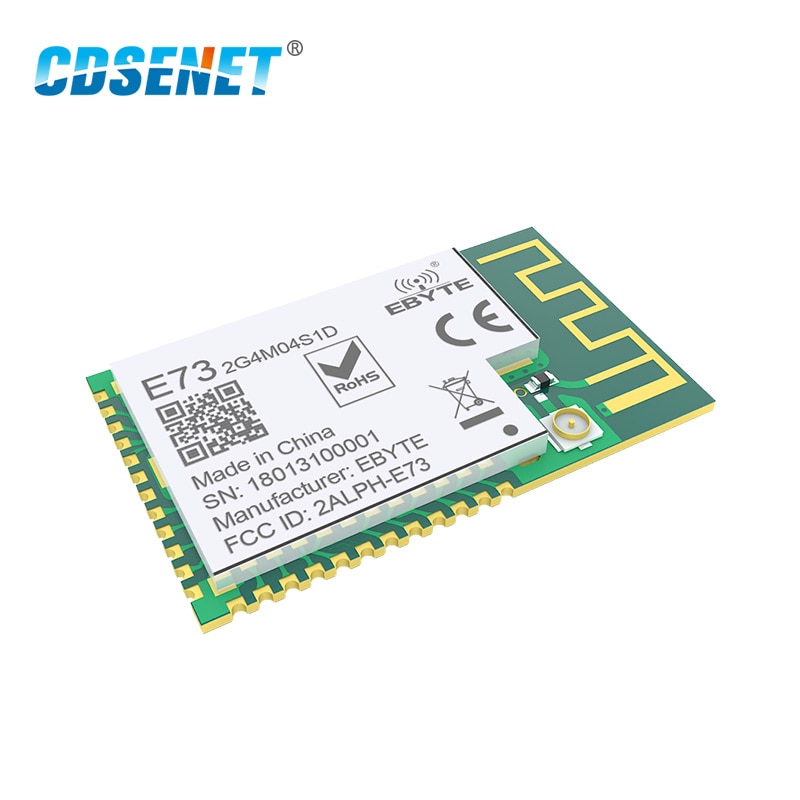

nRF51822 Ble 4.2 Low Power Wireless Module PCB IPX Antenna Interface CDSENET E73-2G4M04S1D 4dBm Bluetooth Transmitter Receiver
RF Parameter | Value | Remark |
Working frequency | 2379~2496 MHz | Default: 2.4GHz (16MHz oscillator) |
Transmitting power | 4 dBm | About 2.5mW |
Receiving sensitivity | -96 dBm | Air data rate: 250kbps |
Air data rate | 250kbps, 1Mbps, 2Mbps | Default: 250kbps |
Test distance | 110m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |
Hardware Parameter | Value | Remark |

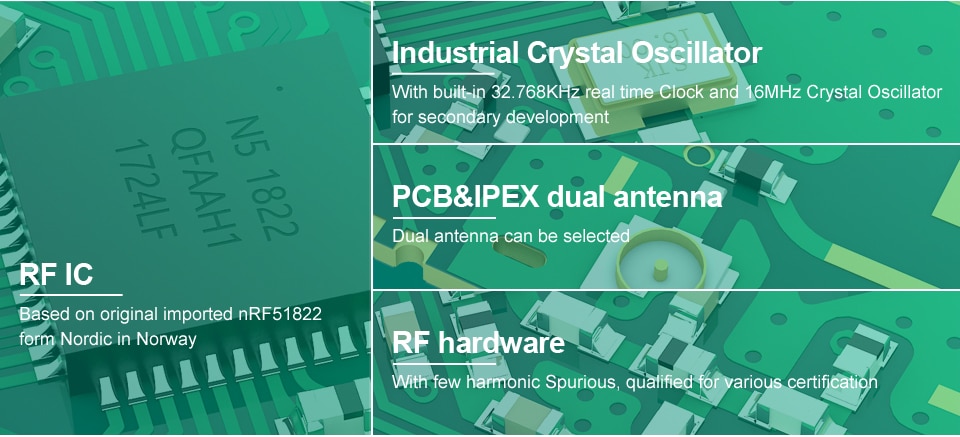

IC | nRF51822-QFAA/QFN48 | - |
FLASH | 256 KB | - |
RAM | 16 KB | - |
Core | ARM® Cortex™ M0 | - |

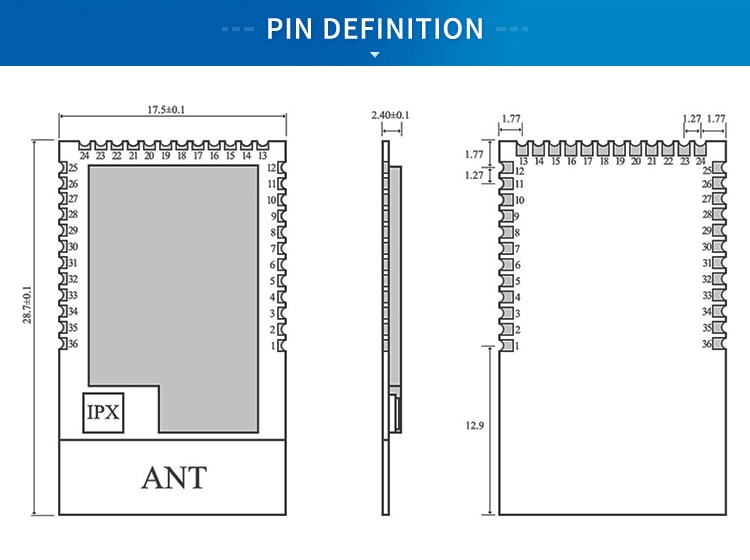

Size | 17.5 * 28.7 mm | - |
Antenna type | PCB / IPEX | - |
Communication interface | I/O | - |
Package | SMD | - |
Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
Power supply | 2.1 | 3.3 | 3.6 | V | |
Communication level | 2.1 | 3.3 | 3.6 | V | |
Transmitting current | 13 | 14 | 15 | mA | 4dBm（2.5mW） |
Receiving current | 11.3 | 12.6 | 13.8 | mA | |
Sleep current | 0.5 | 1.0 | 2.5 | μA | |
Operating temperature | -40 | 20 | +85 | ℃ | |
Operating humidity | 10 | 60 | 90 | % | |
Storage temperature | -40 | 20 | +125 | ℃ |
- Type: Wireless Module
- Model Number: E73-2G4M04S1D
- Port Number: 1
- Working Frequency: 2.4ghz
- Brand Name: CDSENET
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Working Frequency: 2.4ghz
- Transmitting Distance: 100m
- RF connector: SMD
- Suppy Voltage: 2.1~ 3.6V DC
- Is_customized: yes
- Place of origin: CN
- Condition: New
- Application: Computer other
- Size: 17.5 * 28.7mm
