Mini router OEM manufacturer direct sell cheap wired distribution box 8-port router modules OEM wired router module 192.168.0.1

0.0 ( votes)
Price: US $37.24 - 48.64 / piece
Discount Price:
US $ 32.49 - 41.84 / piece
-13%
Bundle
Quantity

Specifications

intelligent home terminal distribution system8port-Router-module-B_028port-Router-module-B_038port-Router-module-B_048port-Router-module-B_05
1,1 wan 8 lan
2,10/100m lan ports 8
3,exclusive broadband
4, 1 year warranty

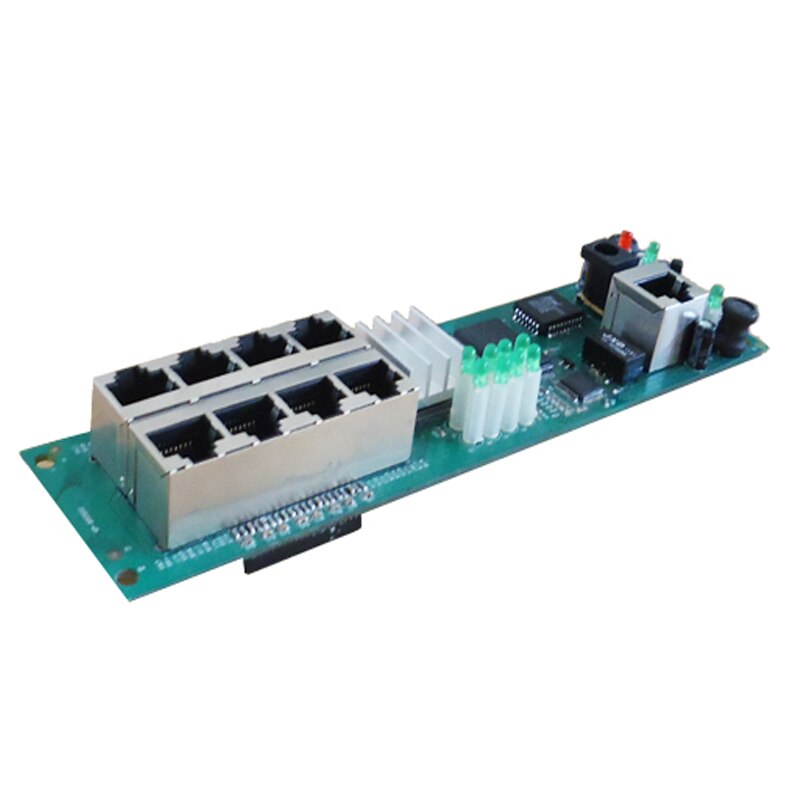

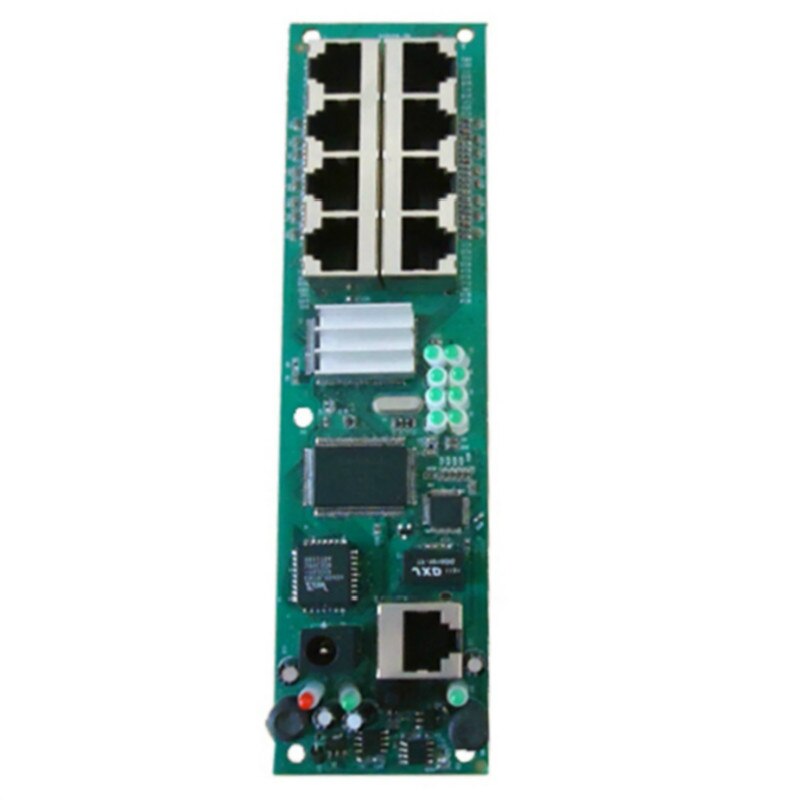

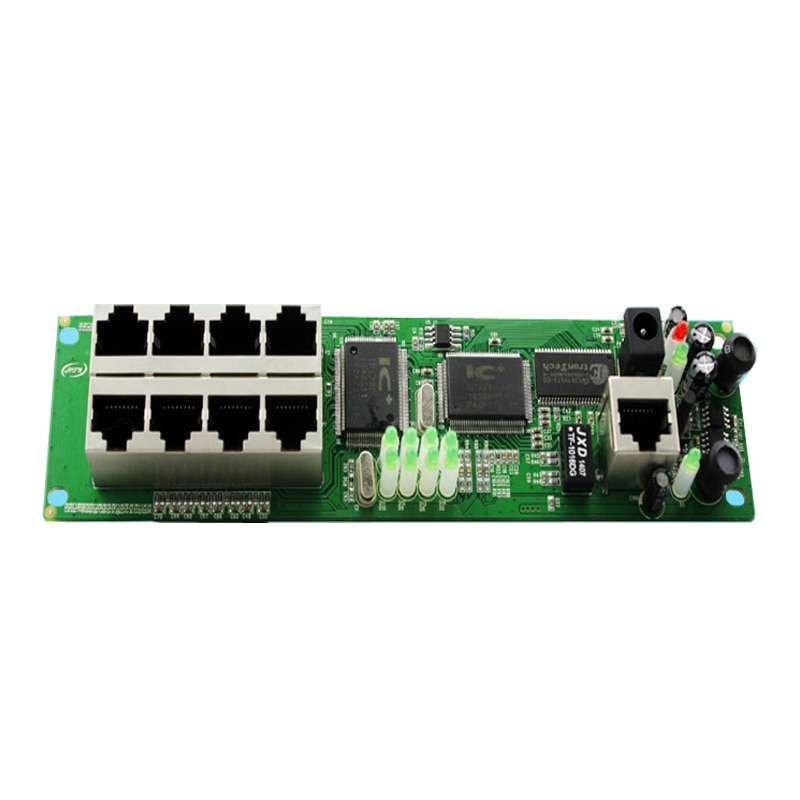

8 port router module for home multimedia distribution system   PL-ER508I-D1









Features

         Complies with IEEE 802.3, IEEE 802.3u standards

         1 10/100Mbps Auto-Negotiation WAN RJ45 port,

         8 10/100Mbps Auto-Negotiation LAN ports,

         supporting Auto-MDI/MDIX

         Shares data and Internet access for Stations, connecting Internet through PPPoE on demand and disconnecting when idle

         Supports TCP/IP, PPPoE, DHCP, ICMP, NAT

         Built-in NAT and DHCP server

         supporting static IP address distributing

         supporting IP address filtering, Domain Name filtering

         Supports connecting/disconnecting Internet on a specified time of day

         Built-in Firewall supporting Domain Name filtering, and MAC address filtering

         Supports Virtual Server, Special Application, and DMZ host

         Supports firmware upgrade,

         Supports Remote and Web management



Application

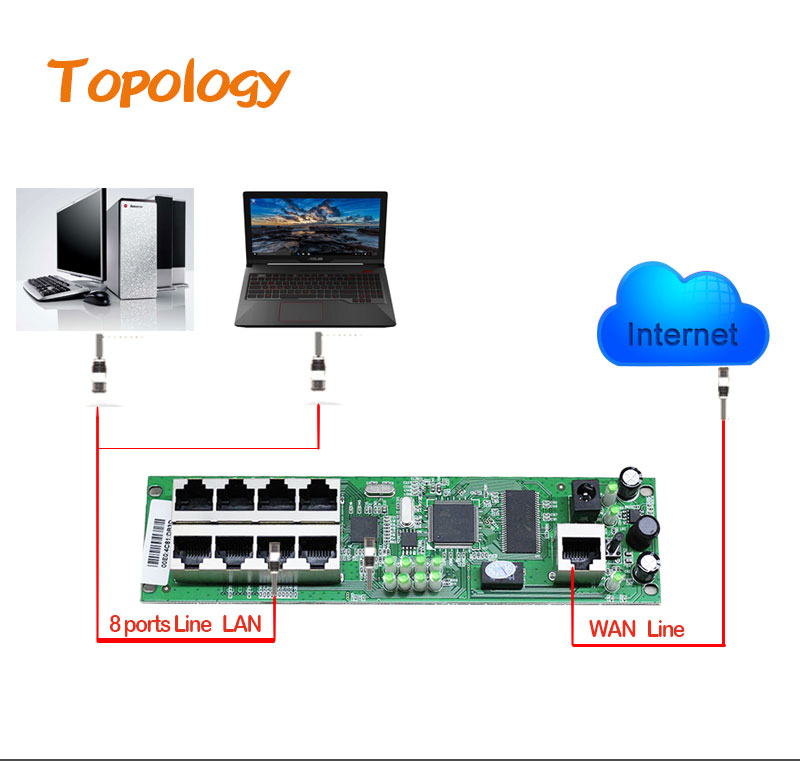

SOHO broadband routers are widely used in smart home wire distribution box system, the SME Internet use and others.



Specifications:

Standards

 IEEE 802.3; IEEE 802.3u

Ethernet Protocol

 CSMA/CD

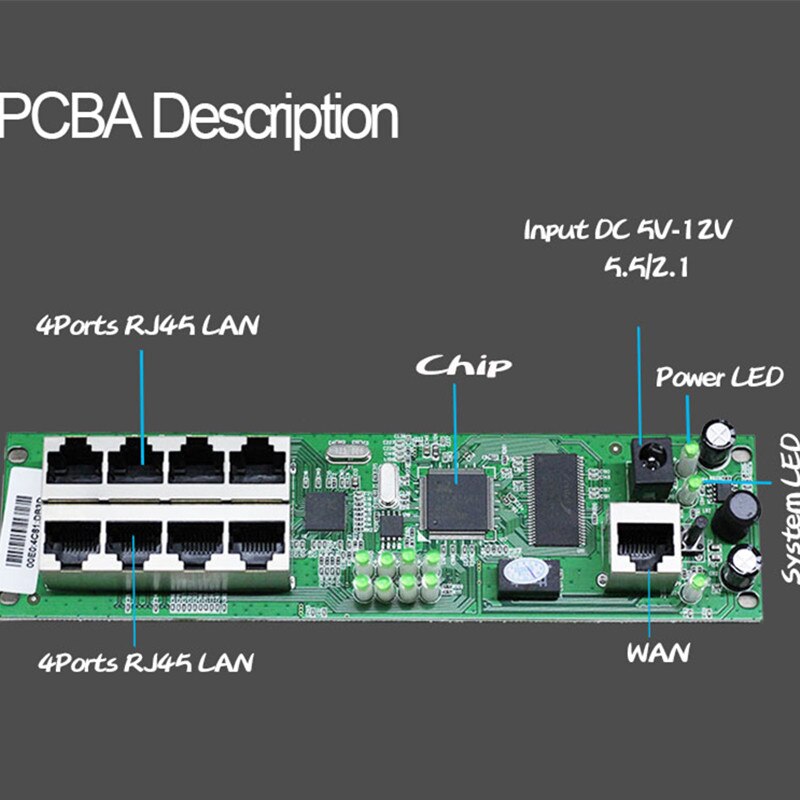

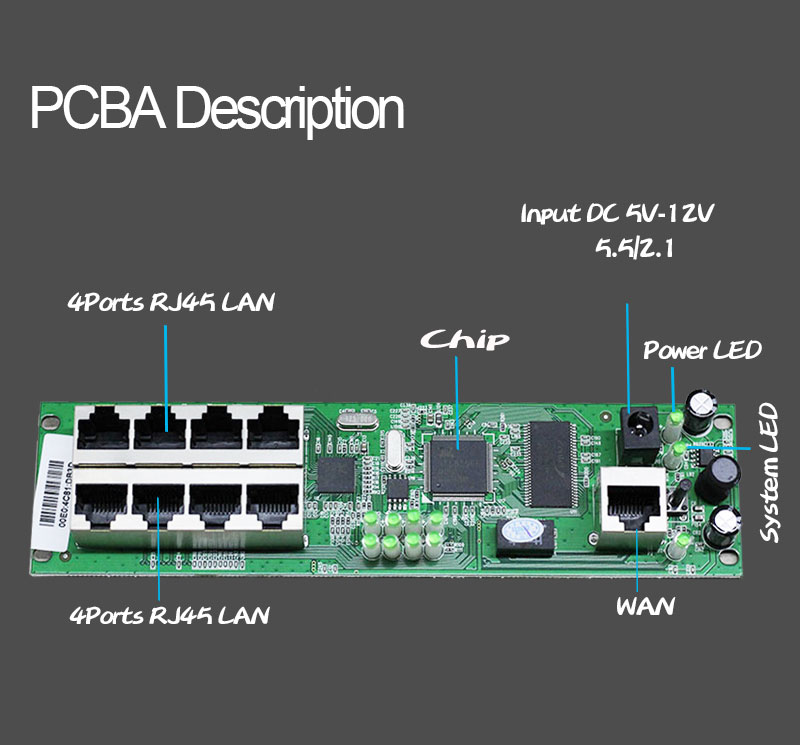

Ports

 WAN: 1 10/100 Auto-MDI/MDIX RJ-45 Port

 LAN:8 10/100 Auto-MDI/MDIX RJ-45 Ports

Application Protocols

TCP/IP, PPPoE, DHCP, NAT

Flow Control

IEEE 802.3x for Full duplex

Backpressure for Half duplex

LEDs

Power

WAN: Link/Act

LAN: Link/Act

Power

External, 7.5V~ 1A

Operating Temp.

 0ºC ~ 70ºC

Operating Humidity

 5% ~ 90%RH, Non-Condensing

Safety & Emission

ROSH, CE,FCC

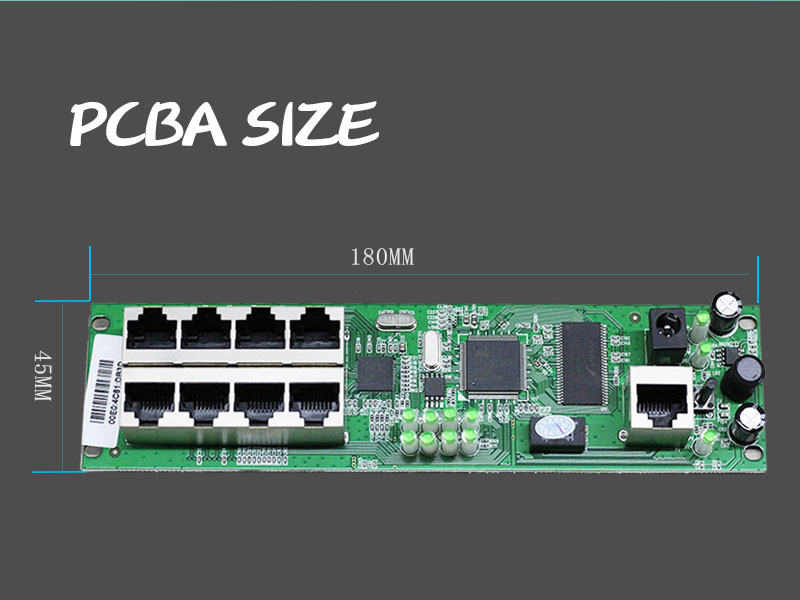

Dimension

180*45*18MM




  • Wired Transfer Rate: 10/100Mbps
  • Wi-Fi Supported Frequency: No
  • Supports WPS: Yes
  • Supports WDS: Yes
  • Number of USB Interfaces: None
  • WAN Ports: 1 x10/100Mbps
  • LAN Ports: 8
  • Function: Firewall
  • Application: Broadband
  • Package: Yes
  • Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac
  • Max. LAN Data Rate: 100Mbps
  • With Modem Function: Yes
  • Type: WIRED
  • Brand Name: ANDDEAR
  • Origin: Mainland China
  • Certification: CE
  • Model Number: ANDDEAR-R-009
