KuWFi 48V POE Switch 4/8/16Port Ethernet Switch 10/100Mbps IEEE 802.3 af/at For IP Camera/Wireless AP/CCTV Security Camera Syst

Product description

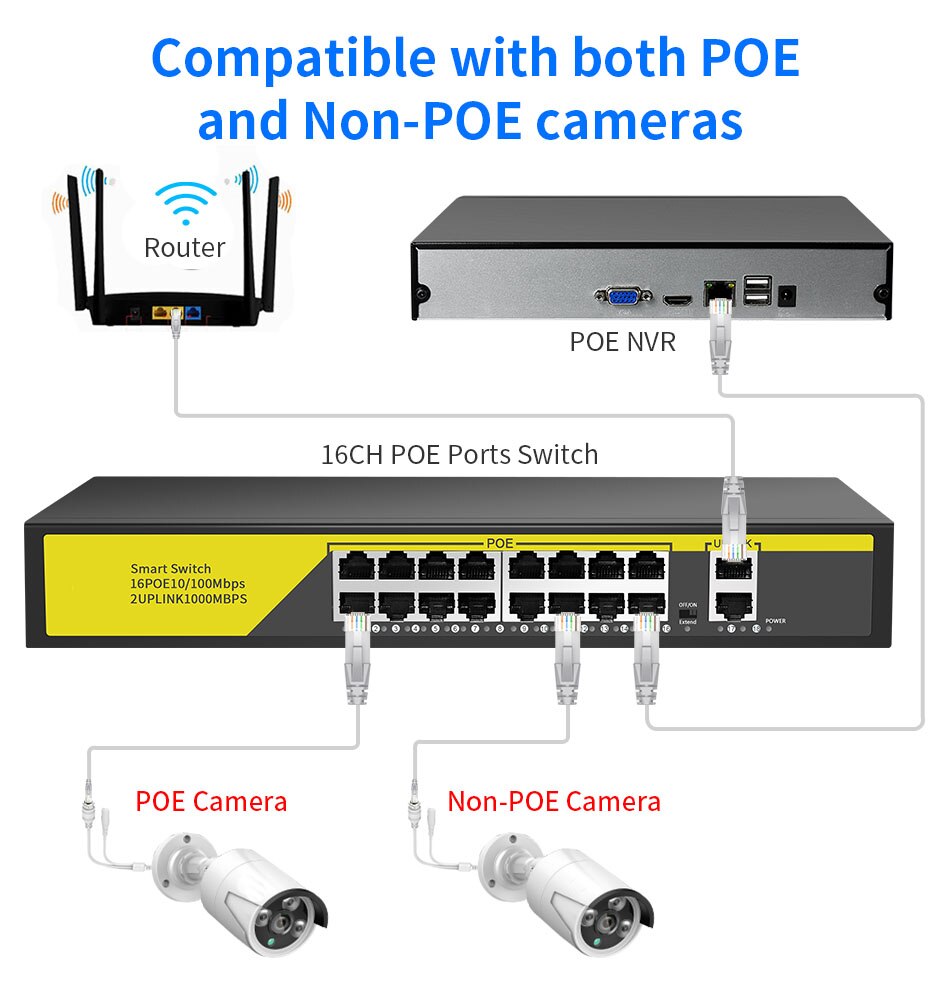

1. 48V POE switch 4/8/16 x 10/100 Mbps PoE ports for Security IP Camera Connection +2 x 10/100Mbps fast Ethernet Uplink ports for Router/NVR connection, Plug & Play. (16 Ports Switch UPLINK Port x 100/1000Mbps)

2. 48V POE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable.

3. Seitch can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power.

4. Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

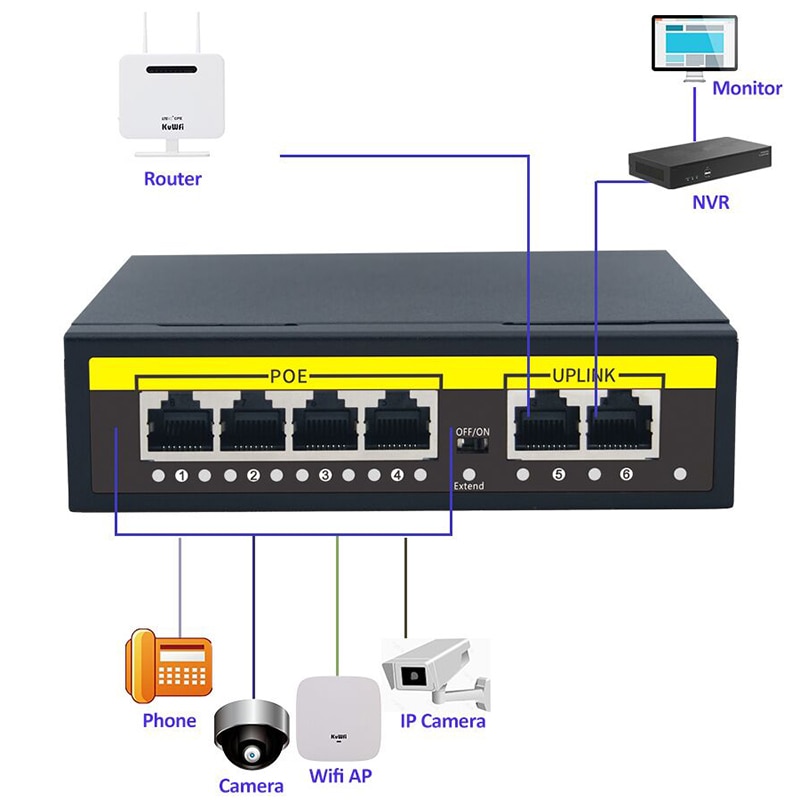

5. PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.
roduct Detail

Product Detail

Product Name:MINI 4 Port 10/100M ACTIVE POE Switch(4+2)

Data Pin:1/2+,3/6-

Power Supply Type:Build in, 1/2+,3/6-

PoE Output Power:15.4W/30W

Connector:4*10/100mbps POE port,2*10/100mbps uplink port

Network Medium Cat5 (UTP) or more

Network Standards:IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet

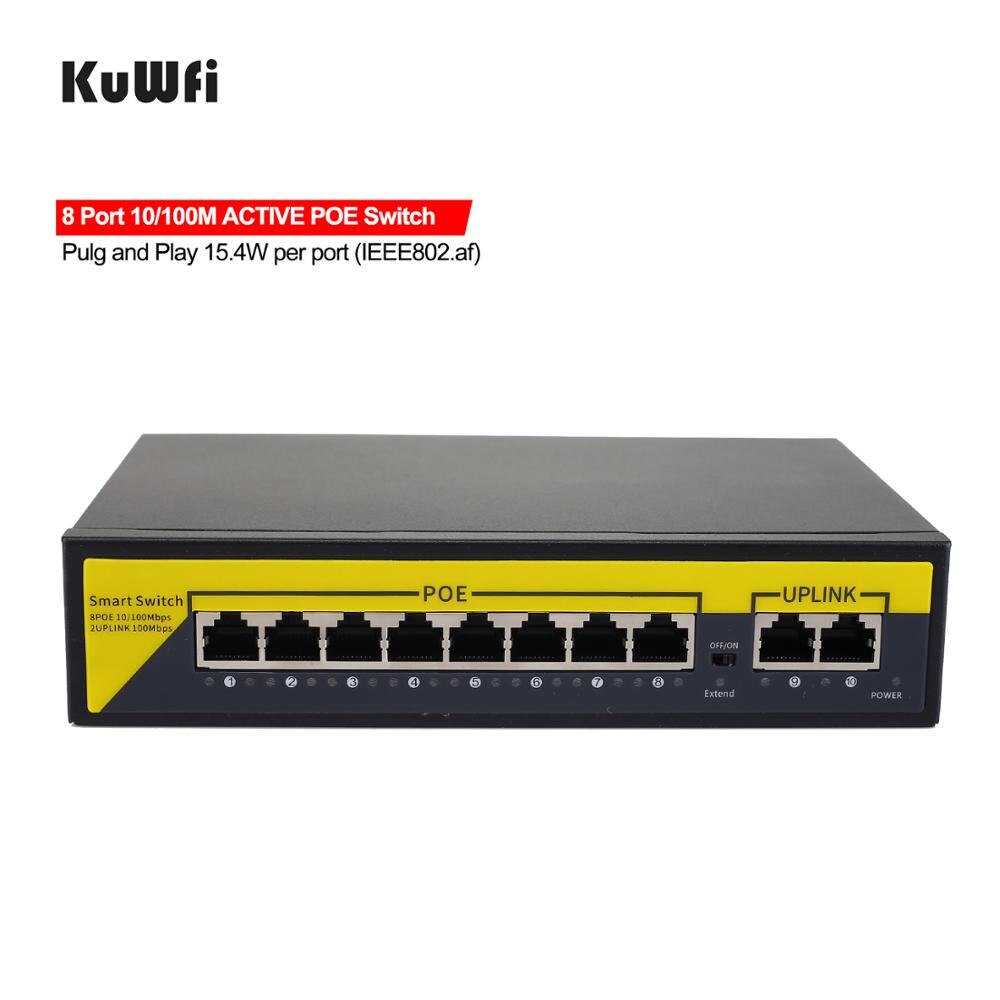

PoE power:15.4W per port(IEEE802.3af).

Wiring: Data & power provided over pairs 1/2 and 3/6

Half-duplex back pressure and IEEE 802.3x full-duplex flow control

Buffer memory:48Kb embedded memory per unit

Backboard Bandwidth :1 .2G

Network Latency:Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission

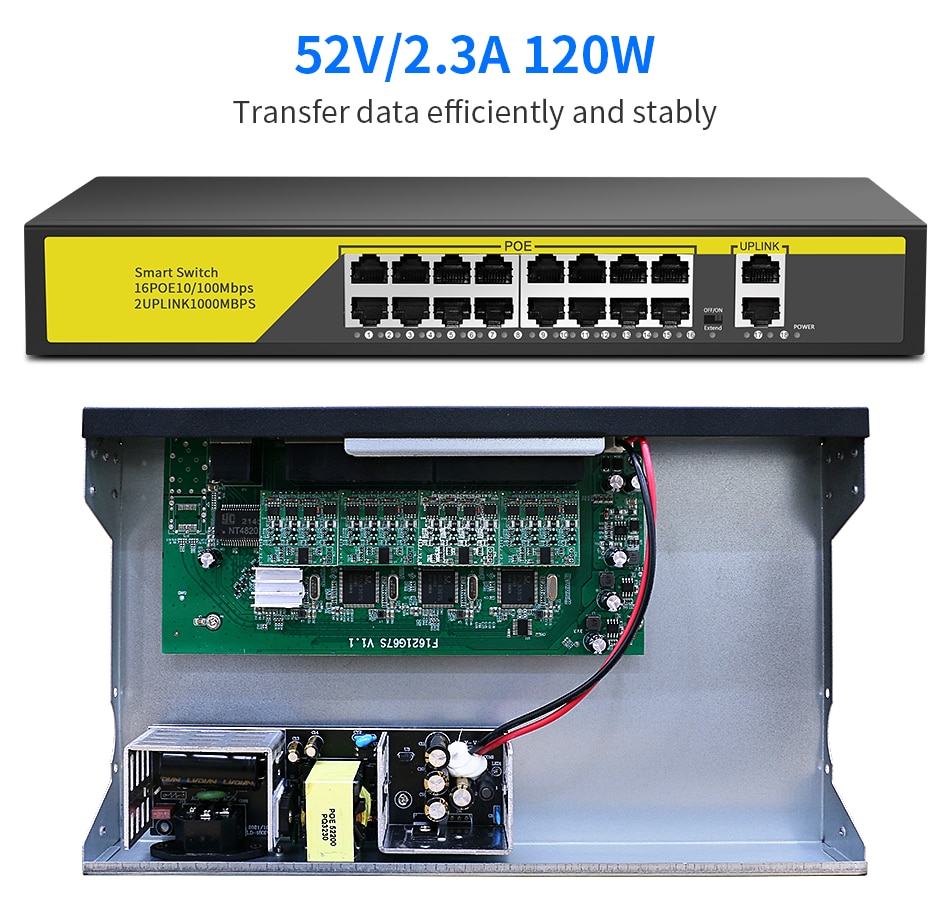

PowerInput:52V DC input

PoE power consumption:15.4W per port(IEEE802.af)

LED Indicators System: Power, PoE Maximum power

Per port: Link, Activity, Speed, PoE active, PoE error

Environment specification

Operating temperature -10-55℃(32-104℉)

Storage temperature -40-70℃(14-158℉)

Operating humidity 90% maximum relative humidity, non-condensing

Storage humidity 95% maximum relative humidity, non-condensing

Application

Urban network ,such as telecommunication ,cable TV ,operator of network system integration, etc

Appreciative network : Finance ,government ,oil company ,railway.public security network, traffic, education, etc

Multimedia transmission: image, voice, data integrated transmission suitable for remote teaching, teleconference, video TV and other applications

Real-time monitoring: control the transmitting of signals, images and data in real-time

Resistant to harsh environment: suitable for strong electromagnetic interference, networking in harsh environments and long distances

FAQ:

Q: After the computer is directly connected to the router, the Internet can be accessed normally, but the computer cannot access the Internet when it is connected to the router through the network switch?

A: After connecting to the network switch, the computer cannot access the Internet. The reasons for this may include: unstable physical connection, improper computer settings, etc. Please follow the steps below to eliminate:

1) Replace the network cable between the computer and the switch to ensure that the corresponding indicator light of the switch is on and the local connection is stable. Checking method: Connect two computers to the switch and set them on the same network segment. If they can ping each other, the connection between the computers and the switch is stable.

2) Set the computer's local connection to obtain IP automatically (provided that the front-end router enables the DHCP server), right-click the local connection properties, select Internet Protocol (TCP/IP), and click the Properties button.

3) Check "Obtain an IP address automatically", then OK.

4) When the computer obtains the IP normally, it can surf the Internet normally.

5) If you still cannot access the Internet after obtaining it normally, please check the relevant settings of the front-end router to see if the computer is blocked from accessing the Internet.

6) If the IP address cannot be obtained normally, replace the network cable between the switch and the router.

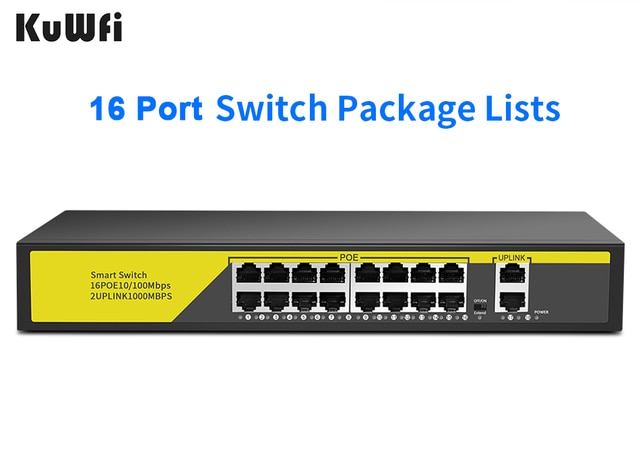

Package

1 x PoE switch

1 x Power cable

1 x User Manual

About after-sales and service

1.After paid ,we will send the orders within 48hours

2.If our product have any question ,Please do NOT give us 1 star feedback in a hurry firstly. please contact with our customer service online ,we will reply within 24hours

3.Our wanrranty is 1 years ,if have any question within wanrranty ,please return it to us ,we will resend a new to you ,thanks(we do not offer the return fee )

4.If you do not receive the goods you buy or the package is delayed, please do not give us 1 star. Because of global COVID-19 epidemic, the internation shipping is not stable and slow. We are also a sufferer as a international seller. Please contact us firstly, we will help to solve the problem. Thanks for kindly understanding.

Shipping time and tracking:

We use safe trackable shipping methods to ship parcels ,below is estimated delivery time for different countries :

Asian countries 7-10 days .

European countries 10-15 days .

United States 10-25 days .

American countries 15-25 days .

Brazil 15-40 days .
