KIT Fit B156XW02 V.0/V.1/V.2/V.3/V.4/V.6/V.7 40Pin VGA+AV+USB LCD Screen LVDS Keypad+Remote 1366*768 TV Control Drive Board
4.0 (1 votes) | 9 orders
Price:
US $36.80 - 37.01
/ piece
Discount Price:
US $
33.86 -
34.05
/ piece
-8%
PLEASE READ THIS CAREFULLY BERFORE YOU ORDER THE KIT:
Before purchasing, Please make sure your screen model is exactly the same as the model in the list and the screen itself can be displayed normally.
If your screen model is not in our product list. Please tell us the screen model to help confirm what kit is right for you. (This is very important, Wrong purchase may lead to unusable).

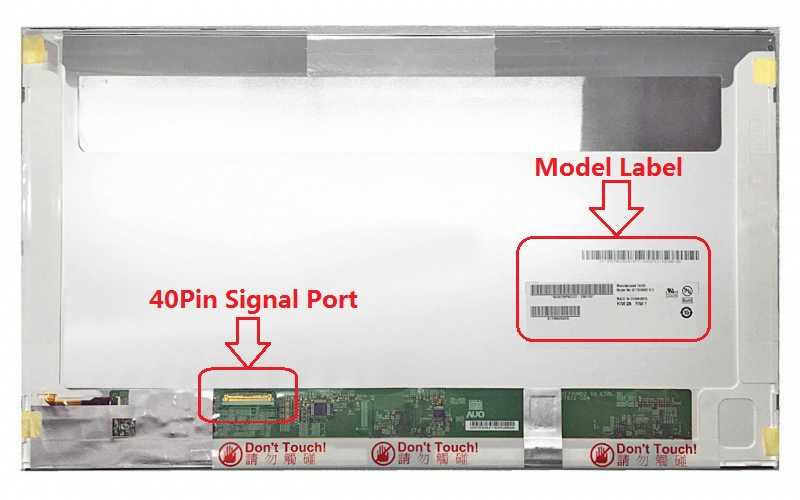

The correct model label can be found on the back of the screen panel. As shown below:

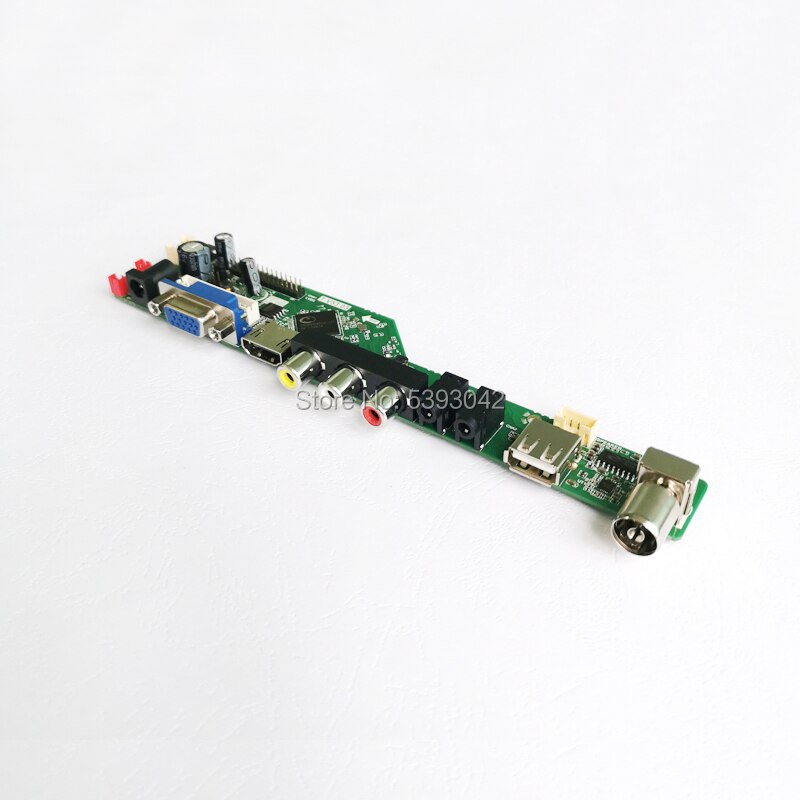

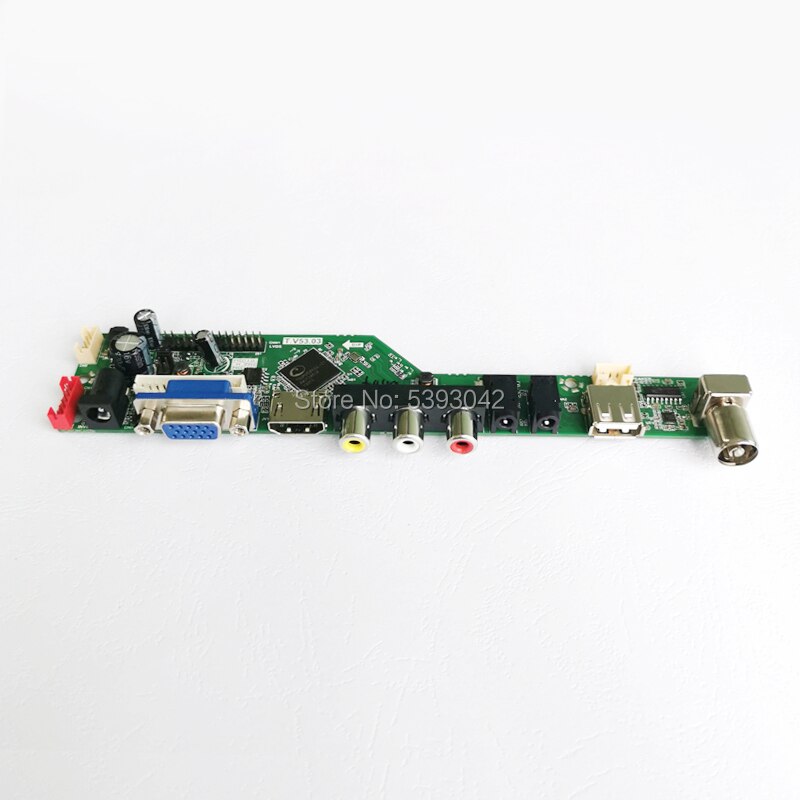

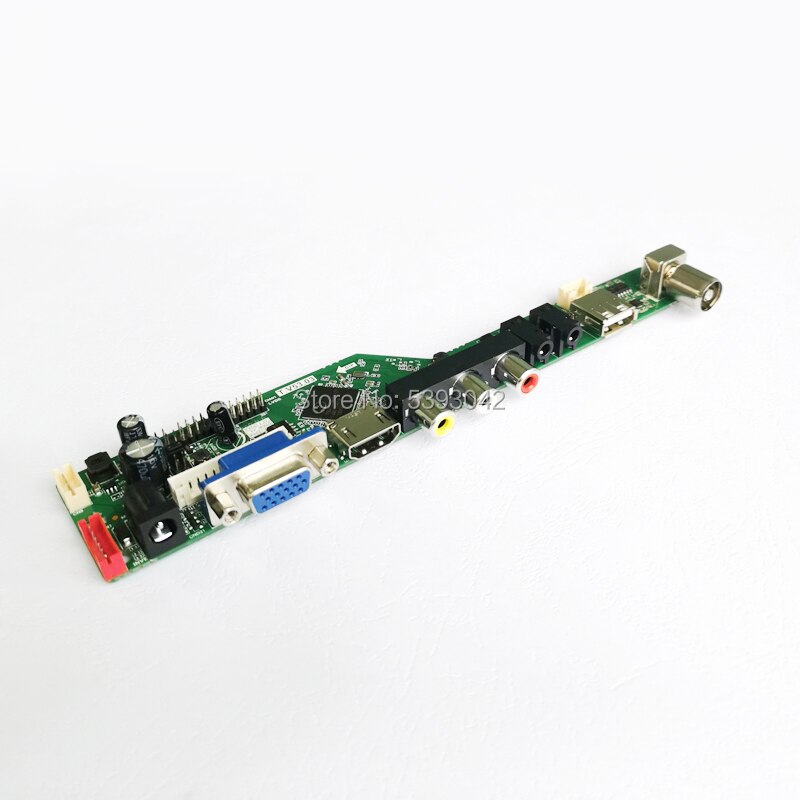

Controller Board Feature:
The controller board Work for LVDS 40 pins interface LCD screen
Input Power Adapter: DC 12V 3A (DC Port: 2.5MM and 5.5MM inner+ outside-)
Special attention: Never use power supply with voltage of more than 12V, otherwise the circuit board will be damaged!!!
Come In Standby Mode When Not Input Signal
Standby Mode <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4 HDCP 1.2
USB support multimedia play, software upgrade (FAT32 format)
AV Compatible With PAL And NTSC
Video Input: VGA HDMI CVBS USB RF (Only support analog signal)
Audio Input: HDMI CVBS PC-Audio
Audio Output: PH2.0 4-Pin Speaker Connector, 3.5mm Earphone
OSD: Brightness Contrast Auto Language And So On
Language: Chinese, English
Board Size: 188mm*37mm
The Package List:
1Pcs x Controller motherboard
1Pcs x LVDS 40 Pin signal cable (Length 25 CM)
1Pcs x IR and Keyboard with cable
1Pcs x Remote control (Battery Not included)
Special Note:
1. In addition to the kit list accessories, you also need to prepare your own power adapter and VGA/DVI/HDMI-compatible signal cable.
If you need to buy power adapter→
If you need to buy LVDS 40 pin screen cable→
If you need to buy PH2.0 4-Pin small speaker→
If you need to buy PH2.0 4-Pin small speaker→
If you need to buy the protective box of this controller board→
2. If your panel model is not in our sales list. Please send us a photo of the model label and signal port on the back of the panel to help confirm. (Please do not place an order blindly to avoid unnecessary disputes).
3. Because we need to prepare a suitable kit for you, and the manufacturer may upgrade or update the product, some accessories will be different from the pictures shown, please refer to the actual product received.
4. We will arrange transportation within 3 working days after receipt of payment verification (excluding weekends and holidays). Before payment, please make sure your receipt information is correct. Once the package is sent, no information can be modified.
5. Our sales price does not include customs duties, VAT and all other hidden charges. Please consult the customs department of your country/region before placing an order to determine these costs.
6. If you have any problems during the operation. Please feel free to contact us. It's best to provide some photos or videos to help us check the problem. Blind negative evaluation does not solve any problem. Hope we can communicate to solve. Thanks in advance.
Controller board kit installation steps:
1. Take away the old screen cable from the LCD panel.
2. Connect the new screen cable to your LCD panel. (Note the connector contact direction)
3. Connect the controller board to the PC with HDMI or VGA signal cable.
4. Input power DC 12V 3A. (Please use the standard LCD screen power supply, other power input may not boot normally)
5. After all finishing the connecting, please do not rush to power on! No metal contact is allowed when powering on the controller board, otherwise short circuit may occur, which may cause unavailability of the controller board.

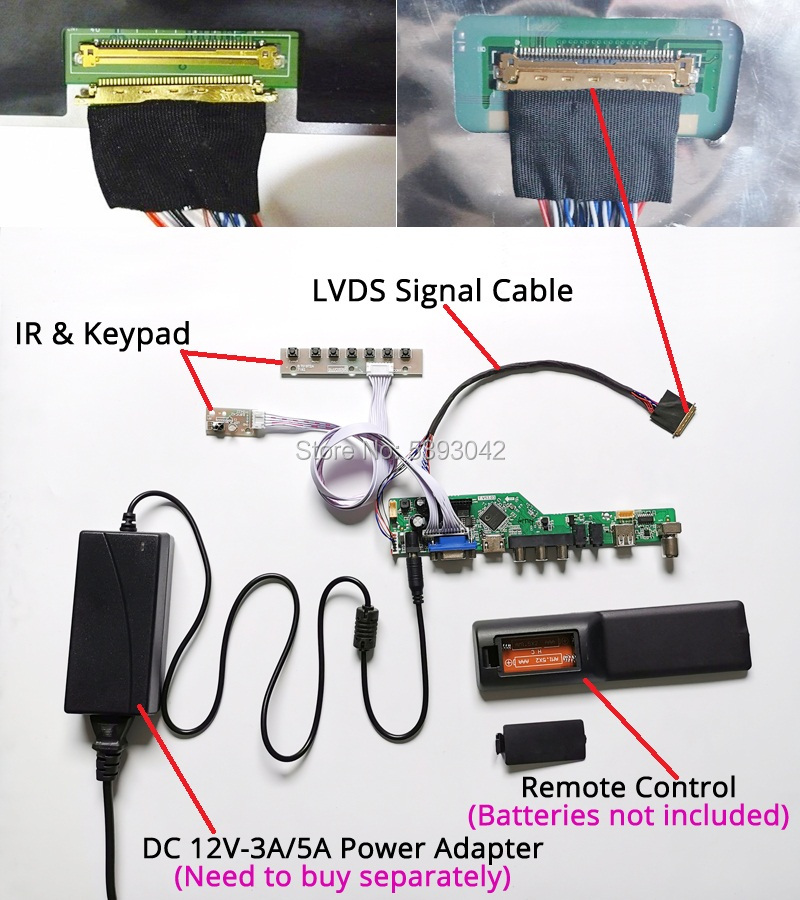

Please refer to the connection diagram below:

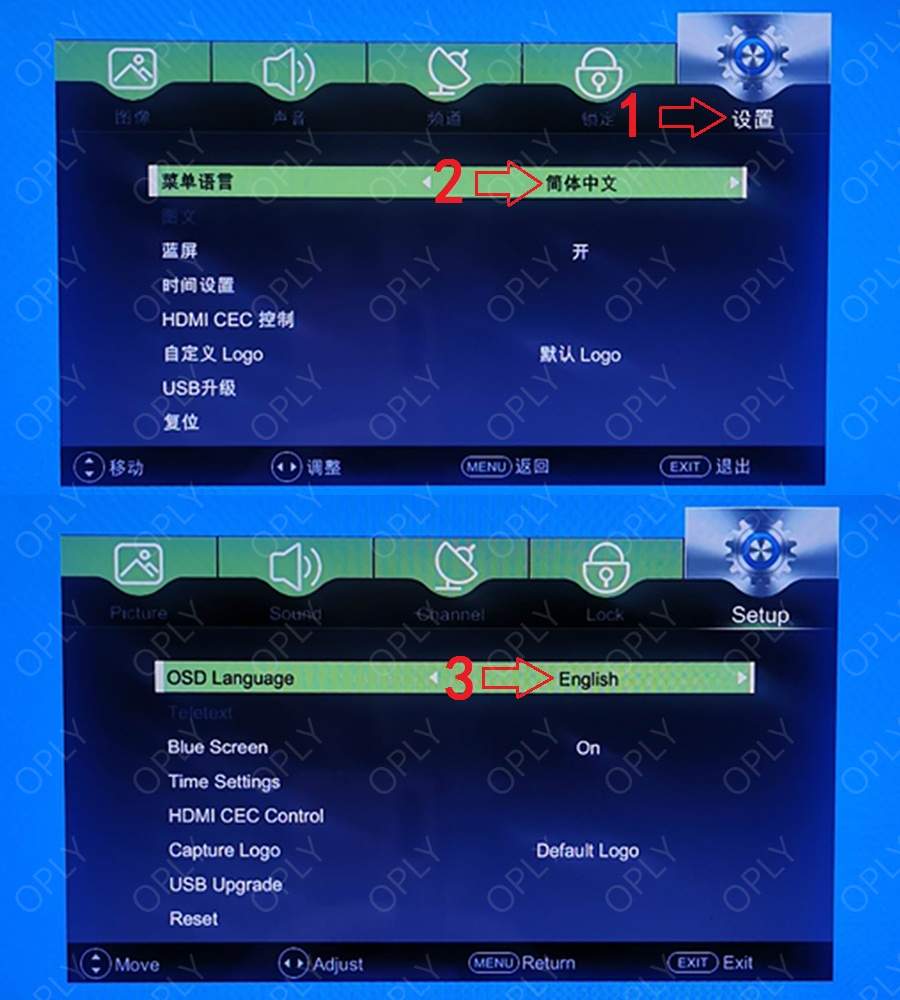

Language Settings:
1. Use "MENU" on the remote control to enter the setup menu.
2. Use the left key or the right key to move to "设置".
3. In the first item "菜单语言", use the left key or the right key to select the language and confirm.
Please refer to the photo below.
- Part Number: S2
- Item Type: Other Notebook Parts
- Compatible Brand: Samsung
- Brand Name: OPLY
- Origin: Mainland China
- Certification: RoHS
