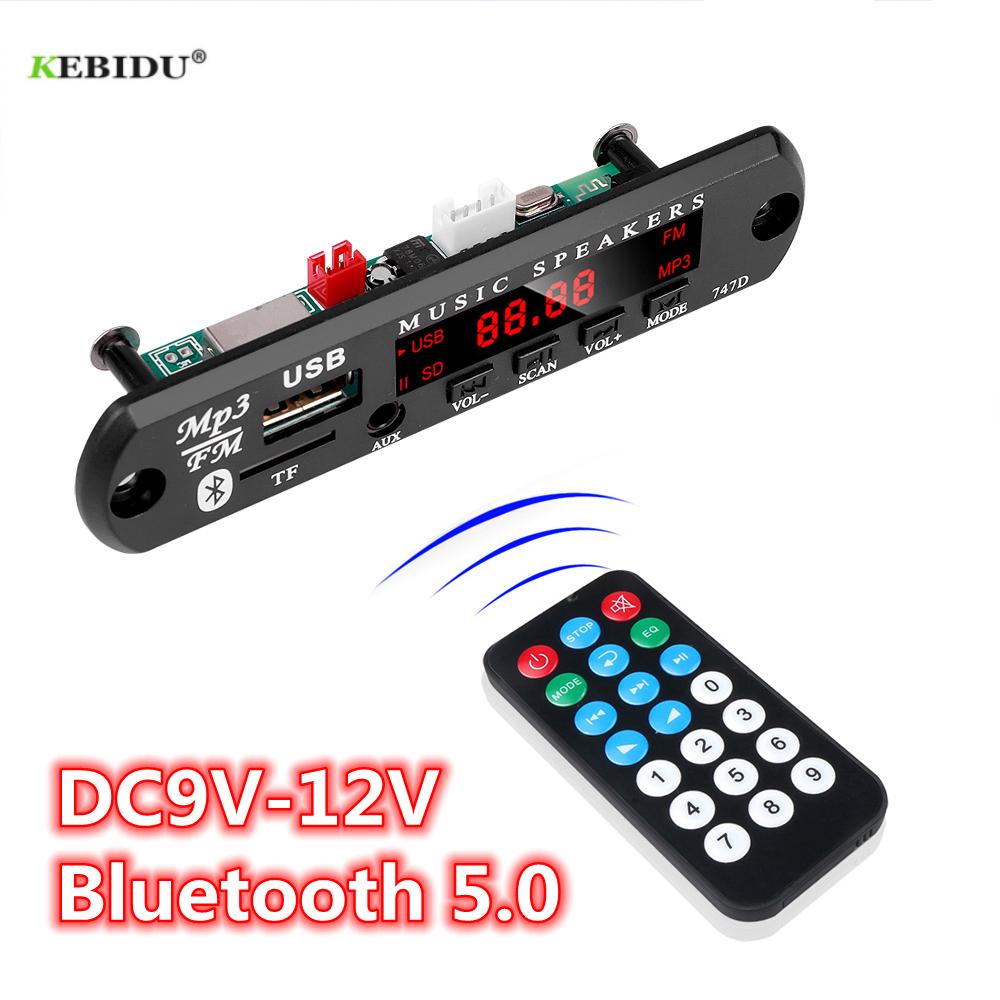

KEBIDU 9V 12V MP3 WMA Decoder Board Audio Module USB TF Radio Bluetooth5.0 Wireless Music Car MP3 Player With Remote Control
SALE
ID: 36939

KEBIDU 9V 12V MP3 WMA Decoder Board Audio Module USB TF Radio Bluetooth5.0 Wireless Music Car MP3 Player With Remote Control

4.8 (1203 votes) | 2357 orders
Price: US $11.44 - 12.19 / piece
Discount Price:
US $ 9.95 - 10.35 / piece
-13%
Color
Quantity

NOTICE:
When you connect the positive and negative poles of MP3 Player, pls contact us.
Avoid WRONG operations, cause MP3 Player to be burned out.
A

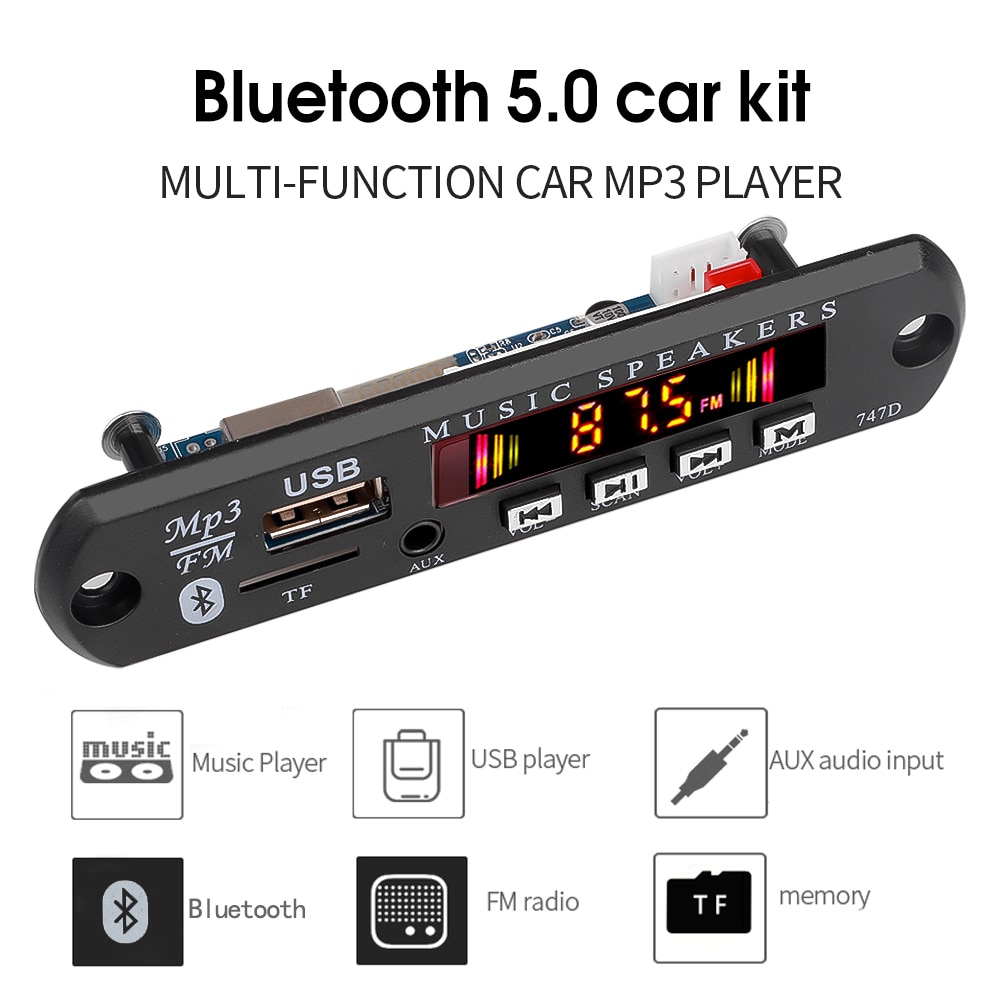

Feature:
1, support MP3 / WMA / WAV

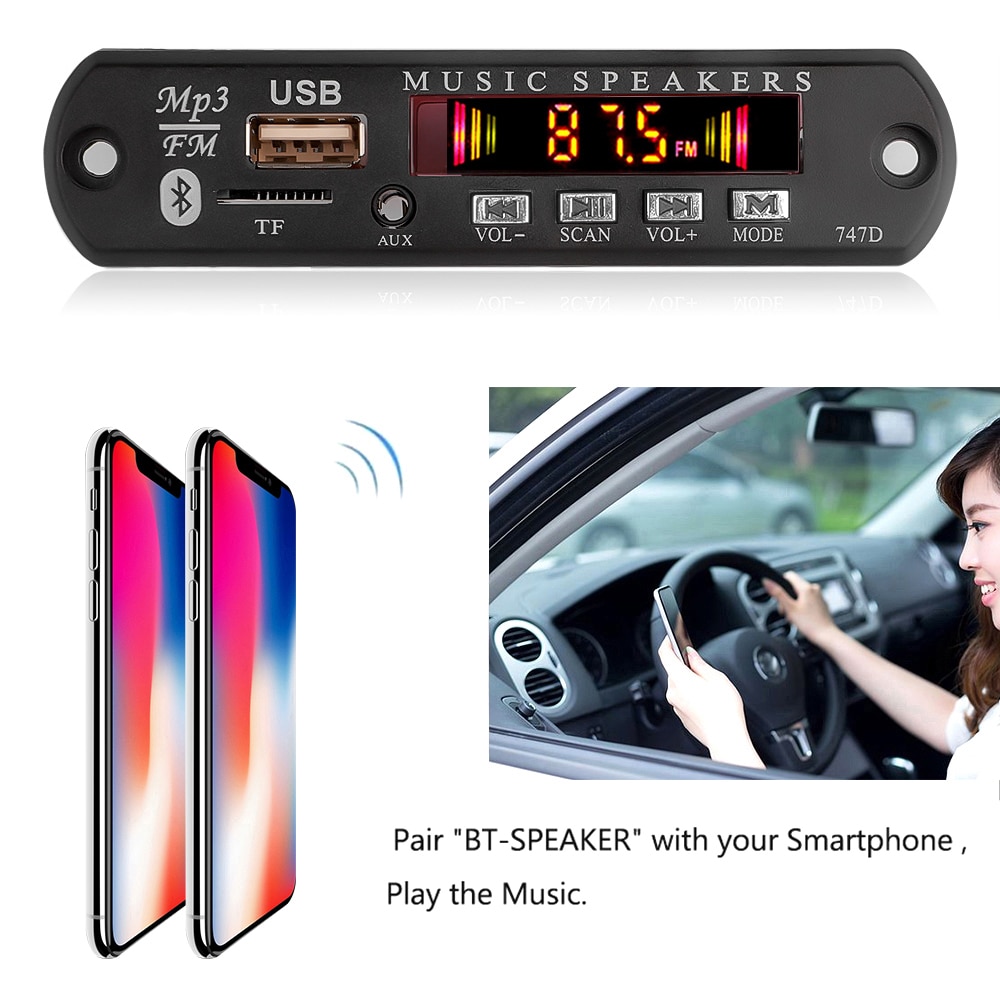

2, support Bluetooth 5.0
3, with digital tube display;
4, support MMC / SD / MMA and other cards, support USB interface (U disk);
5, power failure memory function 24C02;
6, support 5-10 meters distance infrared remote control operation;
7, support external audio input LINE IN (AUX);
8, support radio FM, receiving frequency band (87.5MHZ-108.0MHZ);
9, button: four-button multi-directional control, VOL- / AUTO / VOL + / MODE;
Operation details:
1. VOL-(previous song/volume reduction): In MP3 state, VOL-short press is the previous song, long press is for volume reduction; in FM state, short press to adjust one station number; in Bluetooth Short press under the function is the last song of Bluetooth, long press to decrease the volume.
2. AUTO (play/pause): In the MP3 state, AUTO is short pressed to play/pause; in FM state, short press is play/pause, long press is for automatic receiving and saving; in Bluetooth function, short press to play /time out.
3, VOL + (the next song / volume increase): In the MP3 state, VOL + short press for the next song, long press for the volume to increase; short press in the FM state to adjust a station number; under the Bluetooth function Short press for the next song of Bluetooth, long press for the volume to decrease.
4, MODE : switch between USB/SD/FM/AUX/Bluetooth function
B

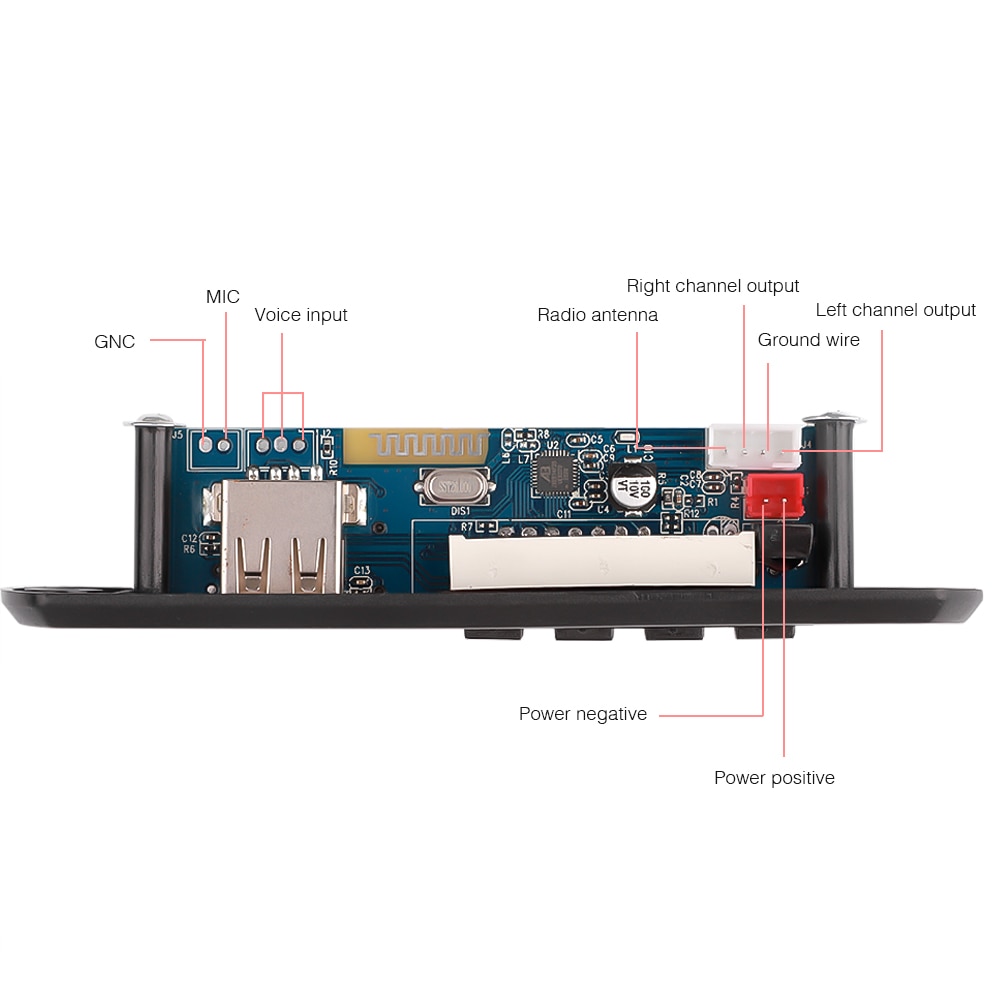

Specifications

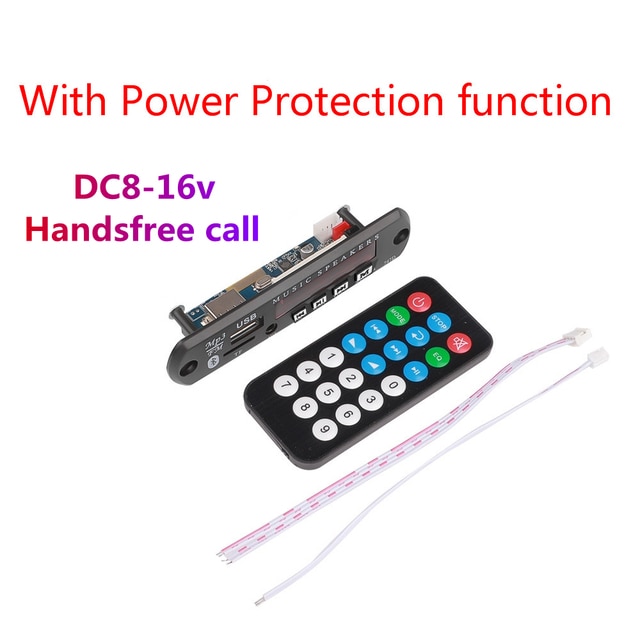

Model: M15B Bluetooth version 5.0. Support lossless music playback, with power protection function(reverse connection will not burn the motherboard and the display will not light up)
Infrared receiving: can match infrared remote control
TF: Card slot connected to TF memory card (maximum support 32GB);
SCREEN: Digital color screen display, red (color screen customization can be supported);
AUX: Audio input interface
USB interface: connect to U disk (maximum support 32GB);
VOL-: Short press the previous song in the USB/SD state; short press the previous station in the FM state, and long press the volume to decrease.
SCAN: Short press to play/pause in the USB/SD state, long press to automatically scan for radio stations in the FM state;
VOL+: Short press a song in the USB/SD state; short press a radio station in the FM state, and long press the volume to increase;
MODE: When there is SD card and U disk: the switching sequence is USB→SD→FM→AUX→USB; when there is only U disk: the switching sequence is USB→FM→AUX→USB; when there is only SD card: the switching sequence is SD→FM →AUX→SD. ;

Main control IC: AB5362B
Bluetooth IC: AB5362B Bluetooth version is 5.0
Music format: MP3 / WMA / WAV and other lossless formats
Radio FM frequency: 87.5-108.0 MHZ
Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 5V or 12V (5v maximum cannot exceed 5v; 12v maximum cannot exceed 16v, theory does not exceed 24v can be customized to choose,)
About the structure: Panel size: 106 * 25 MM, the two sides of the panel are the screw hole positions, the width of the board is 19.8mm, the depth of the board is 24mm



C

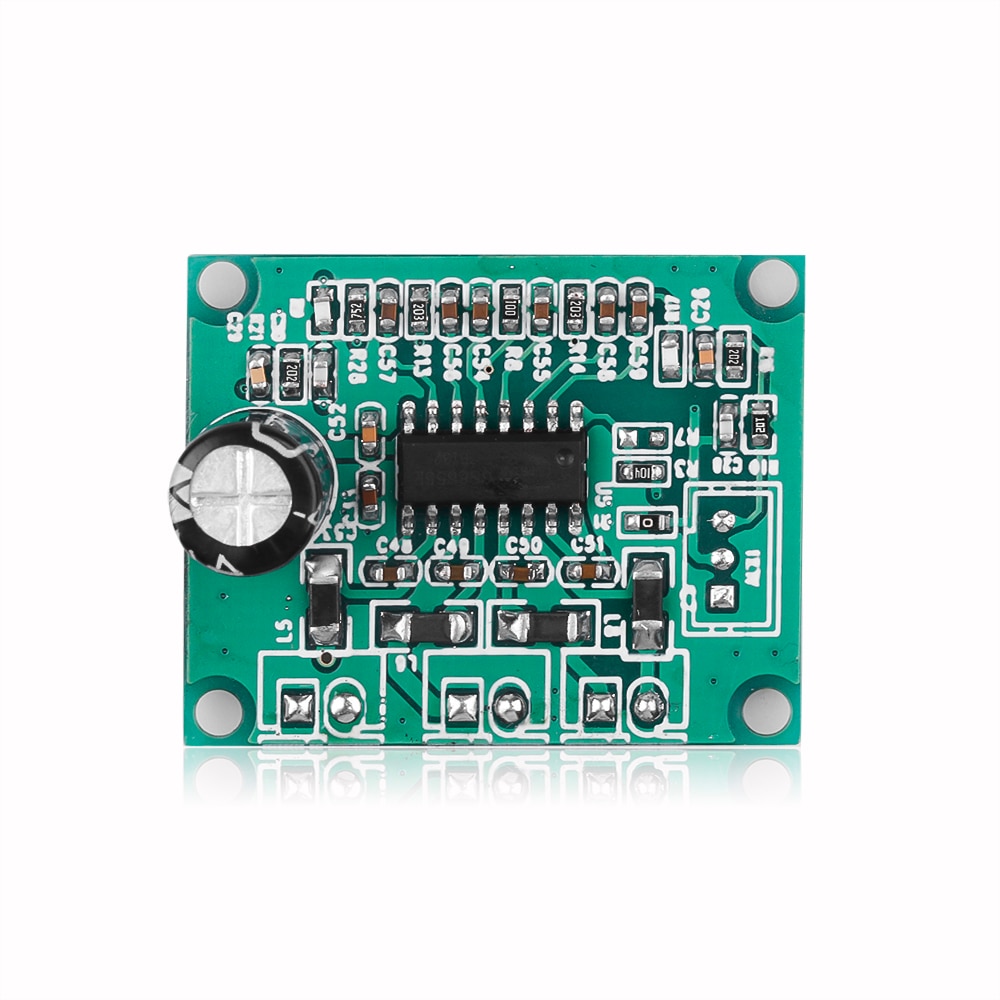

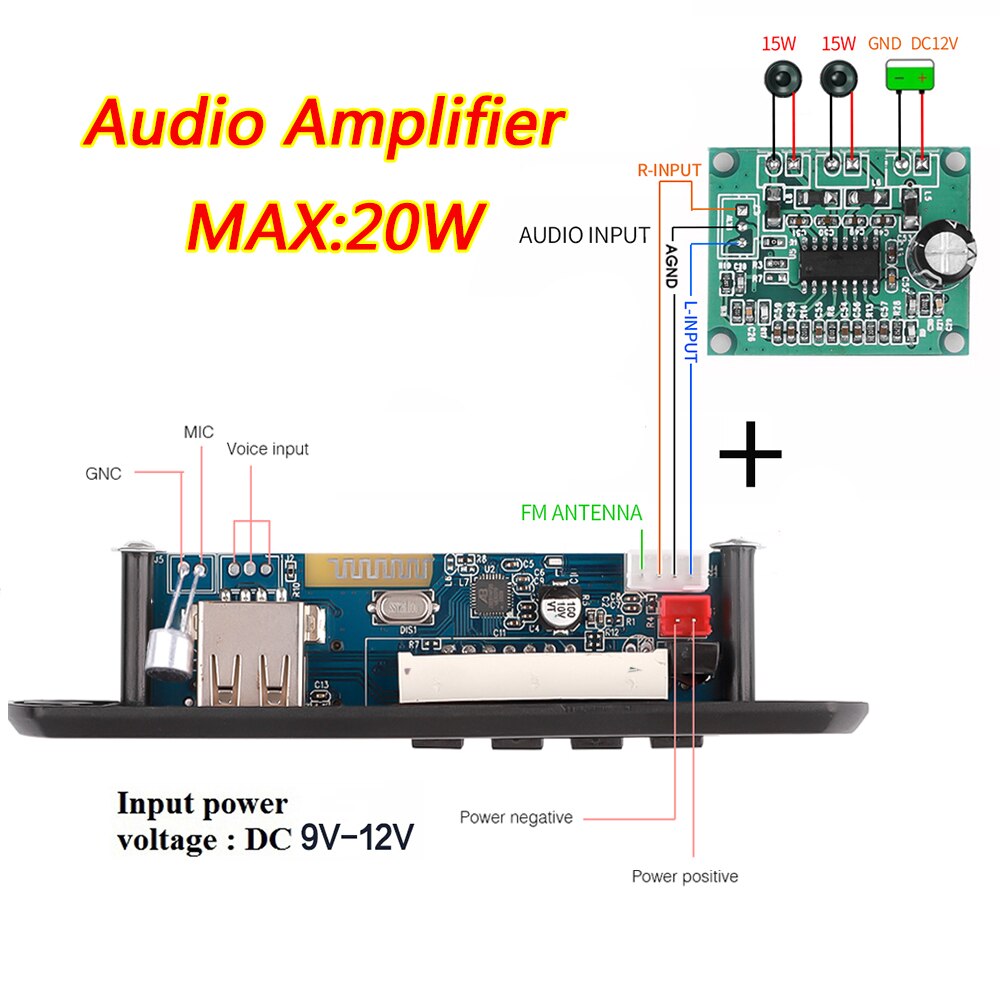

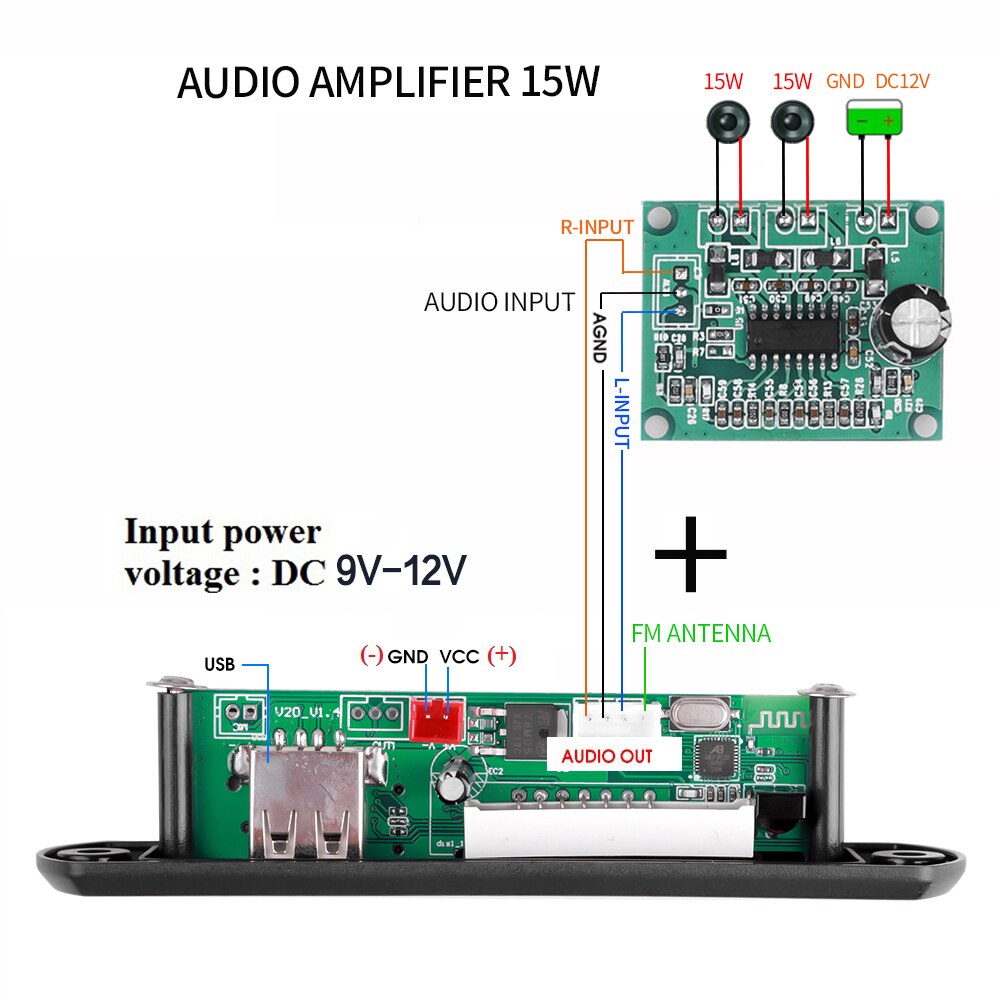

Description

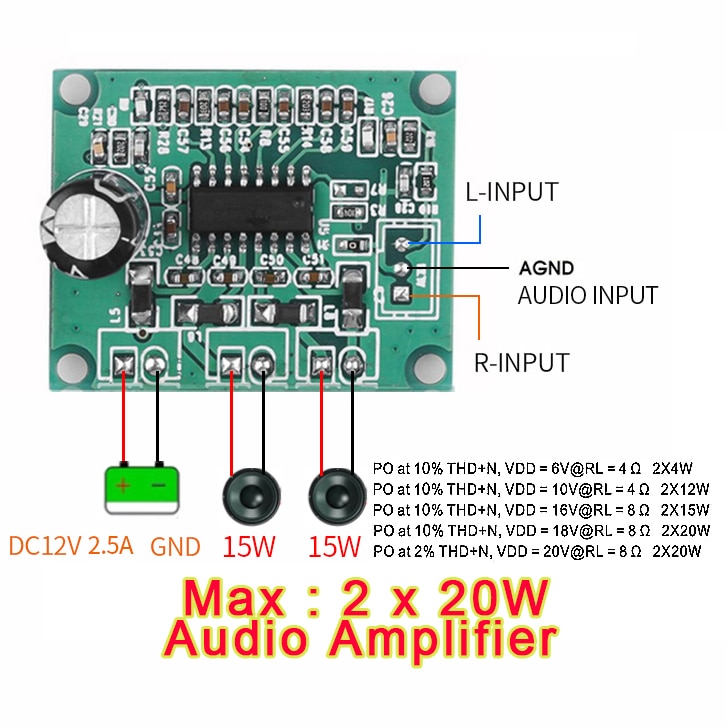

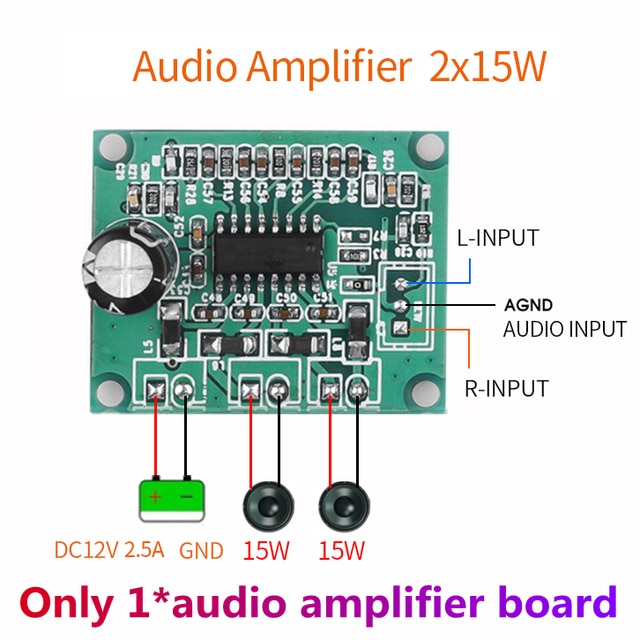

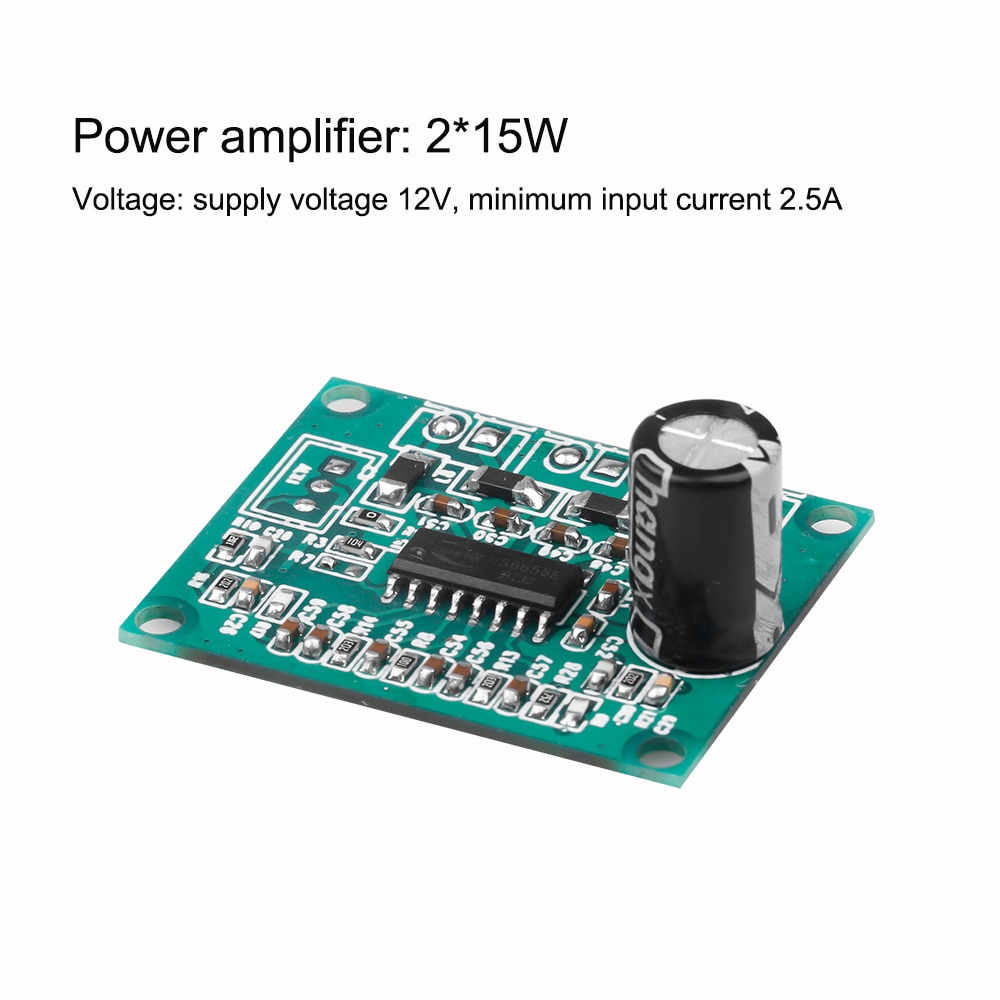

Power amplifier: 2*15W

Voltage: supply voltage 12V, minimum input current 2.5A

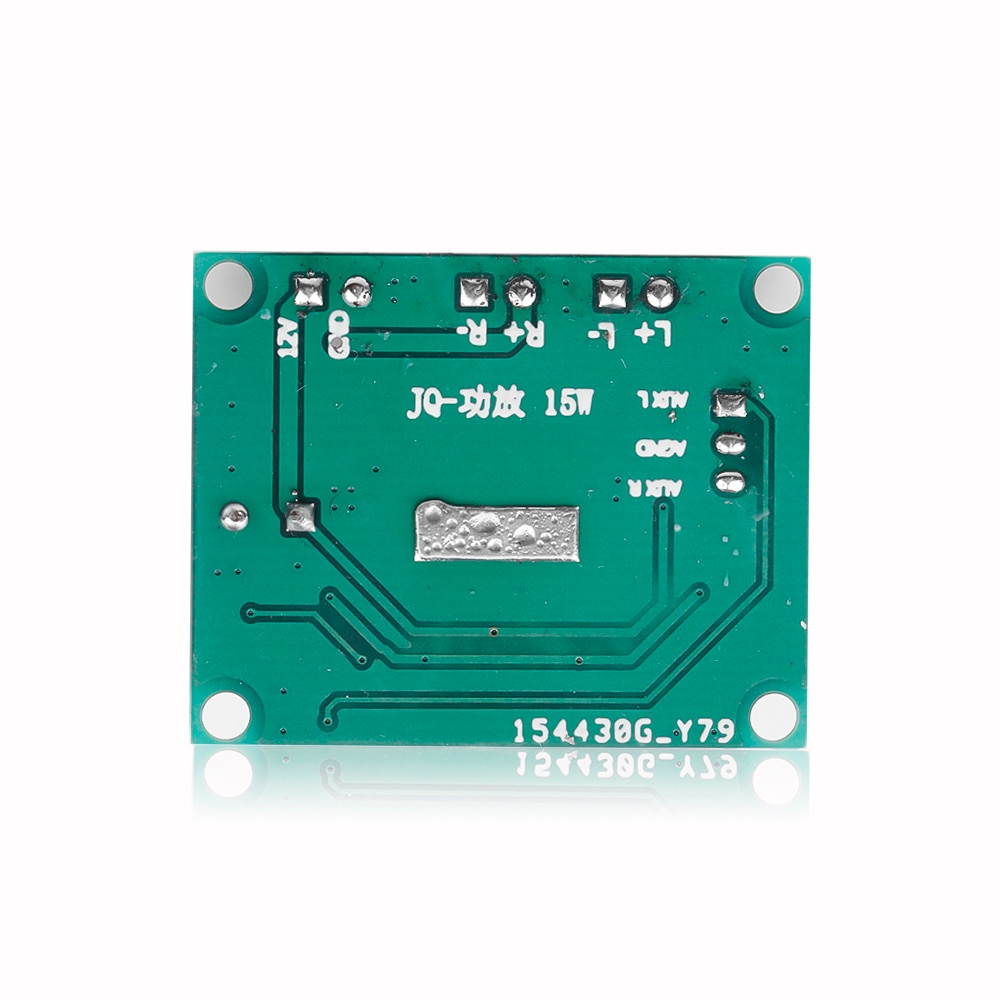

Board size: 26*33MM

Screw hole fixing size: 23*29MM


package included:

1 x audio amplifier board




  • Brand Name: kebidu
  • Origin: CN(Origin)
  • External Memory: Yes
  • Audio Format Support: mp3
  • Audio Format Support: WAV
  • Audio Format Support: WMA
  • Certification: CE
  • Balanced Out: No
  • DSP: -
  • Dimensions (WxHxD): -
  • Have Speakers or not: No
  • Battery Specification: External Power
  • Function: FM Radio
  • Function: bluetooth
  • Bluetooth: Yes
  • Battery Life: > 20 hours
  • Display Size: None
  • Model Number: 12V MP3 WMA Decoder Board
  • WIFI: No
  • Style: Car MP3
  • Operation Mode: Touch Tone
  • Body Material: Plastic
  • Package: No
  • Supports FM: Yes
  • DAC: 108*25.6mm Shell size
  • Supports Recording Function: No
  • Signal Noise Ratio: ≥89dB
  • Screen: Yes
  • Storage Type: Flash Memory
  • Supports EBook Reading: No
  • Battery: no includes
