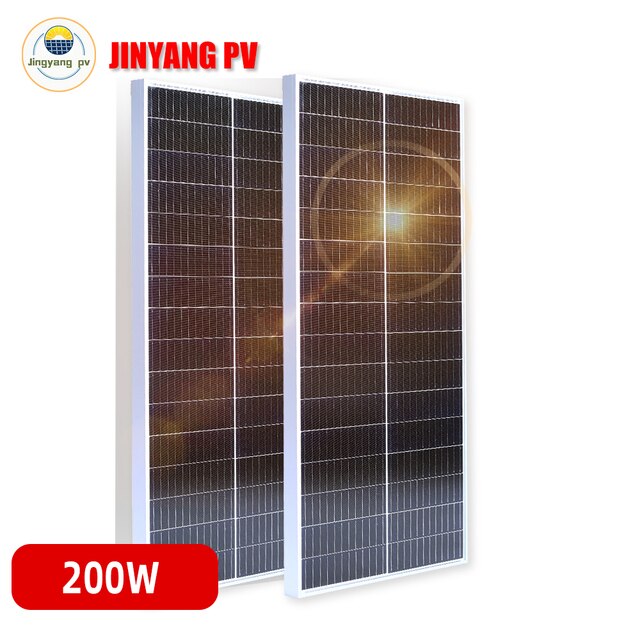

Jingyang Solar Panel 100w 140w 185W 200w 280w 370W 18V Rigid Solar Panels Photovoltaic Monocrystalline Cell 12V Battery Charger
4.8 (30 votes) | 178 orders
Price:
US $787.68 - 1705.68
/ piece
Discount Price:
US $
658.68 -
1117.68
/ piece
-16%
- Ships From
- Color
-
-

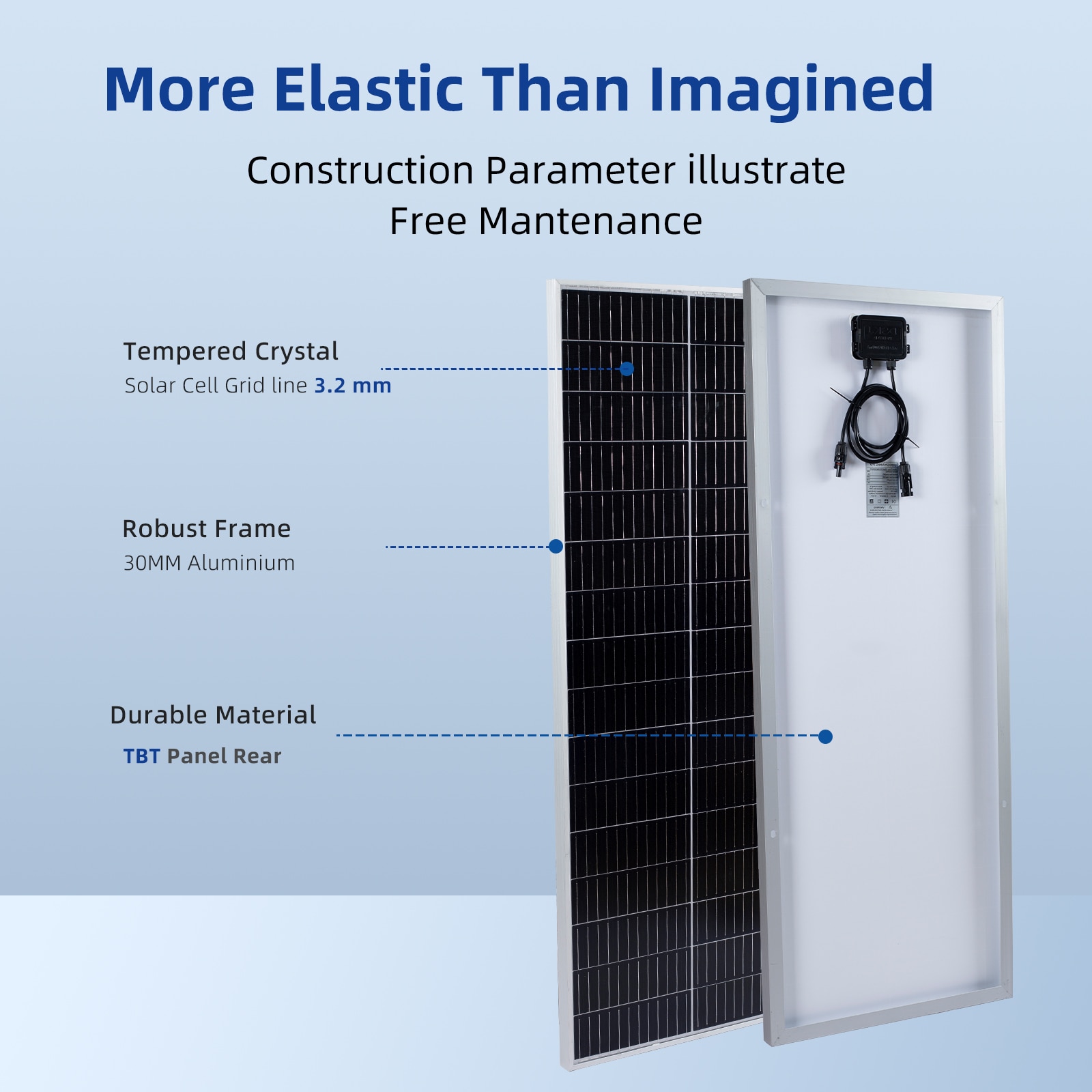

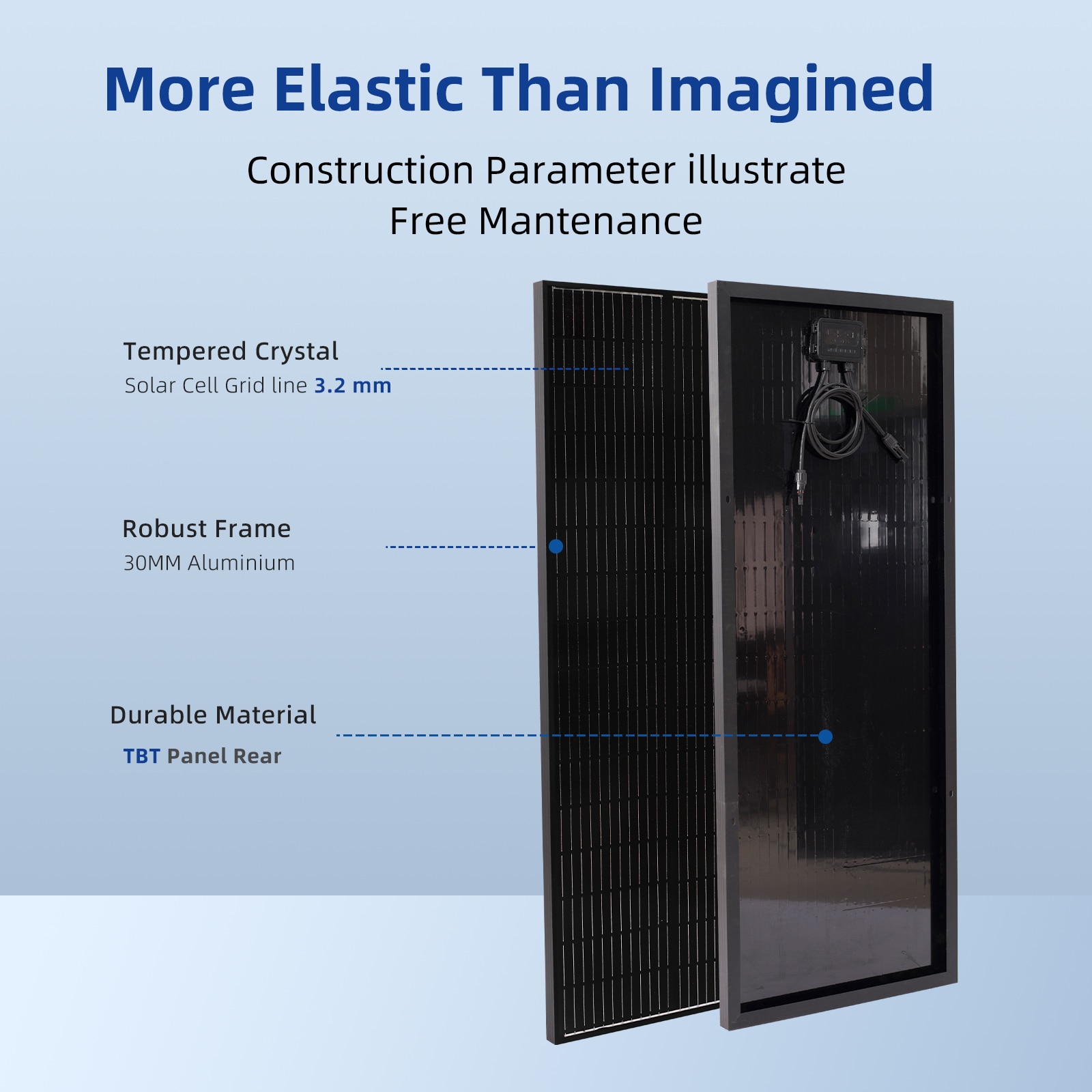

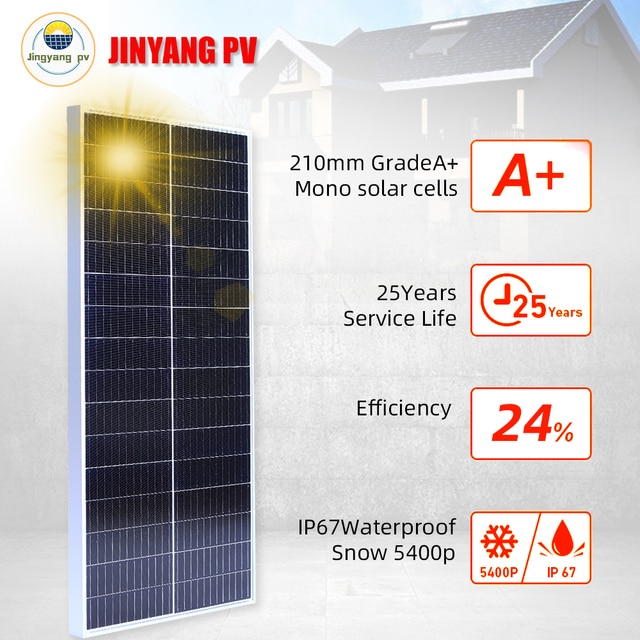

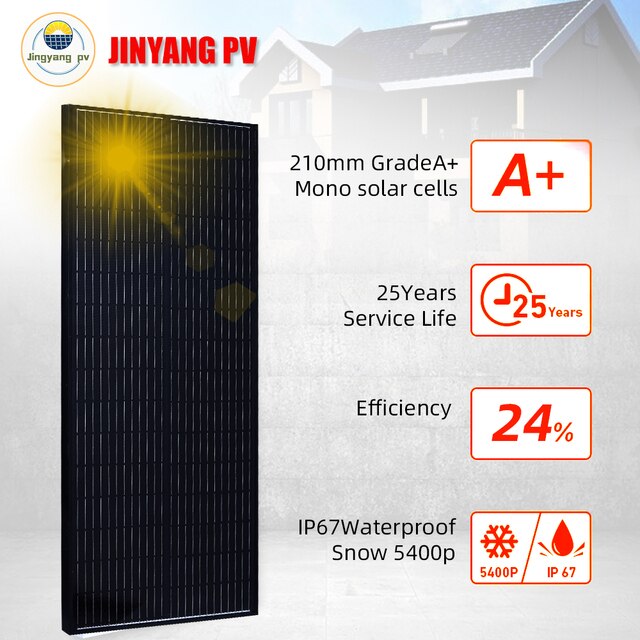

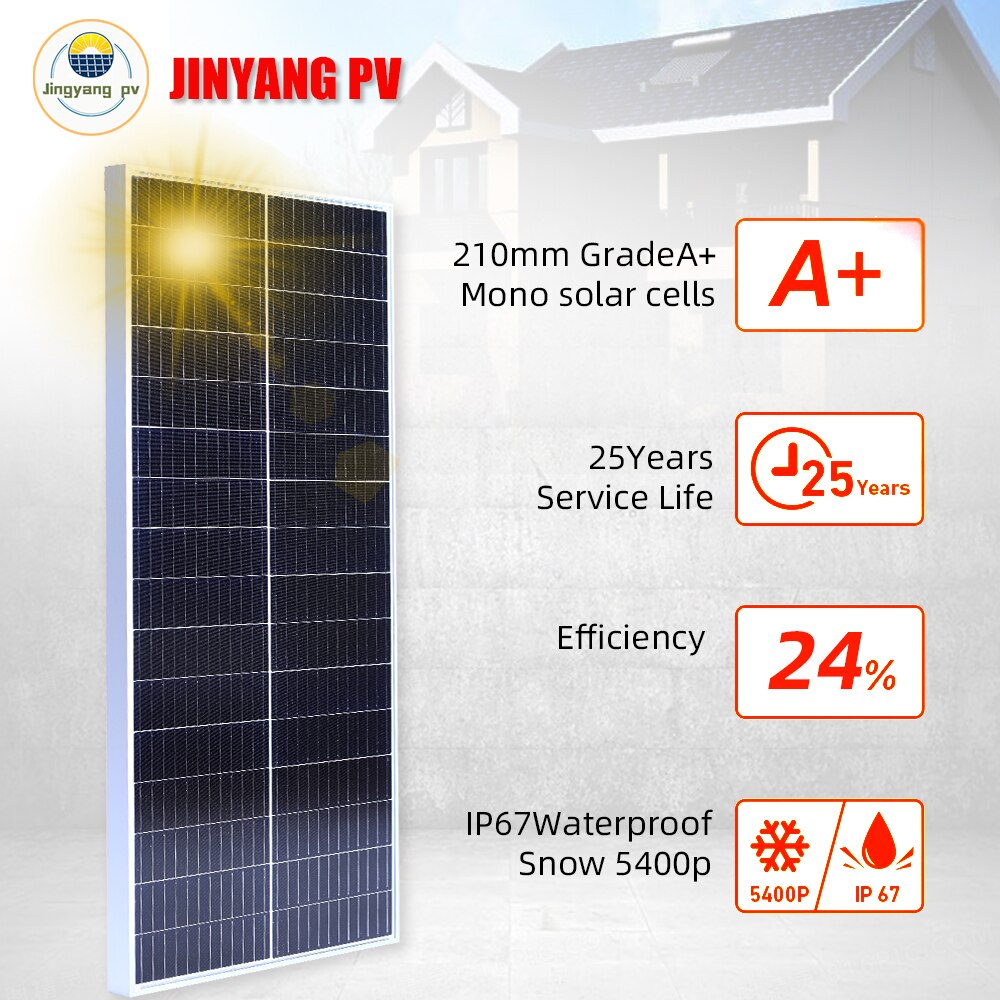

Advantages of JINGYANG Tempered solar panels:

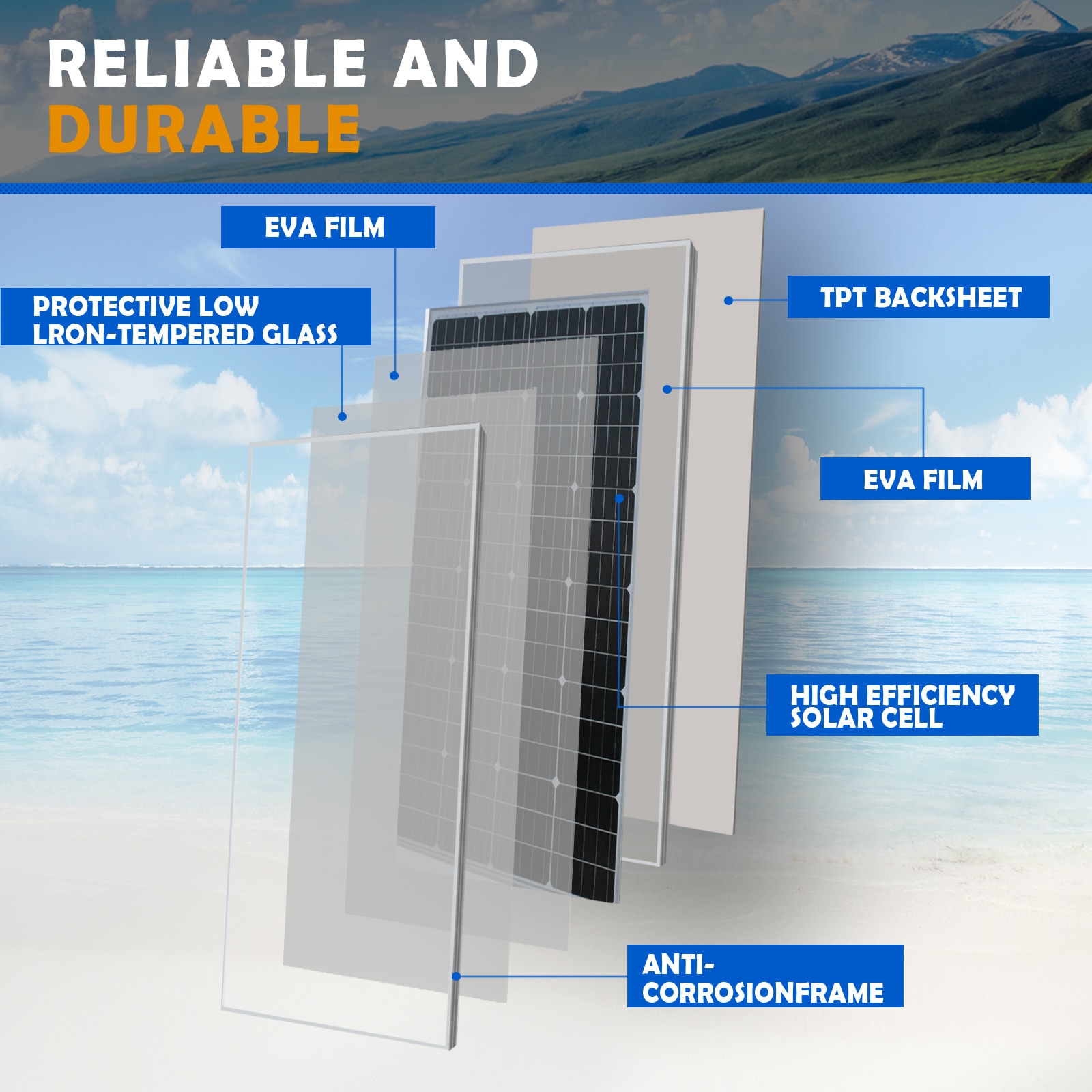

Multi-layer sheet package, sturdy and durable, good heat dissipation. No hot spots will appear.
The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.
With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels. It is the best choice for motorhomes and families. It has a very high cost performance and is the best choice for home energy investment.
Product description:

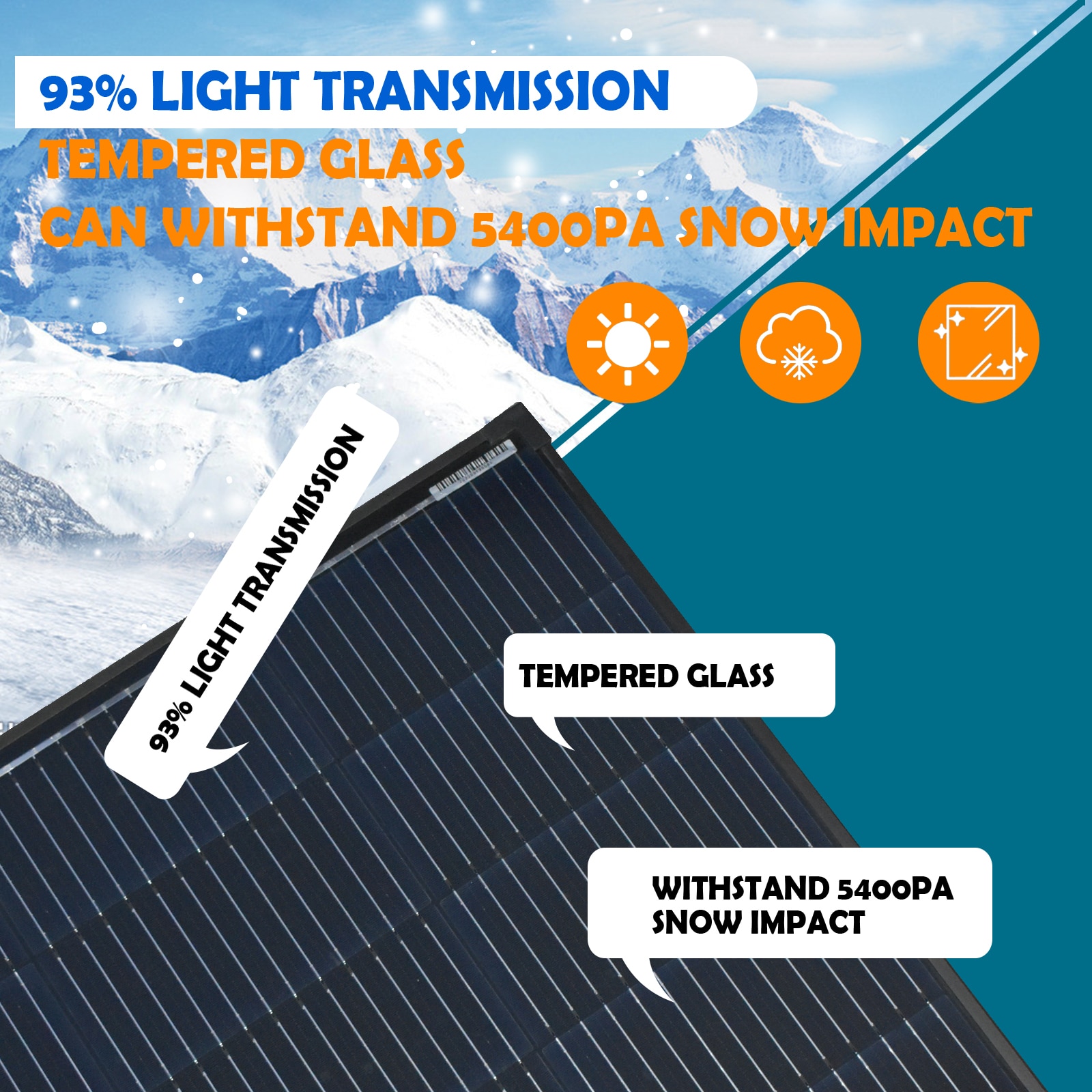

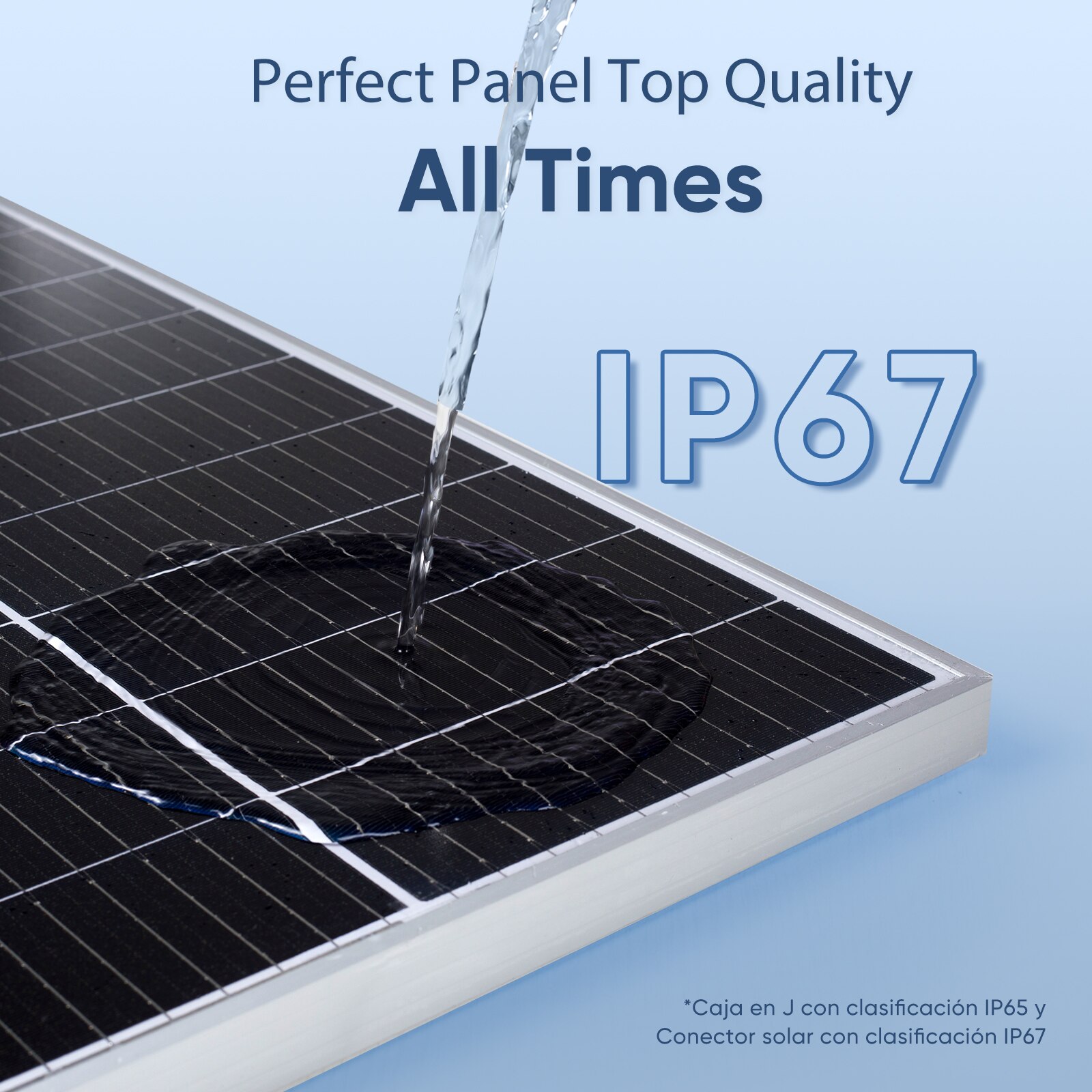

The surface is tempered glass, waterproof, snowproof, resistant to small hail.

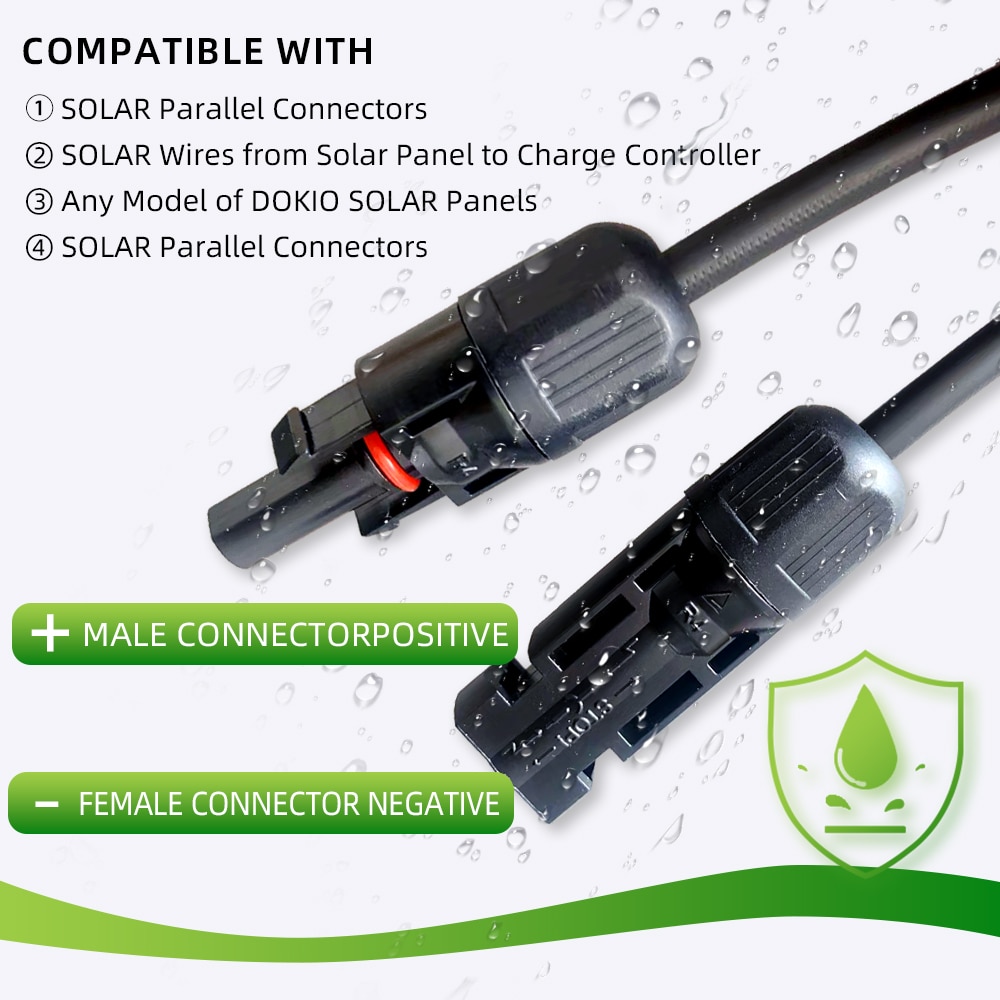

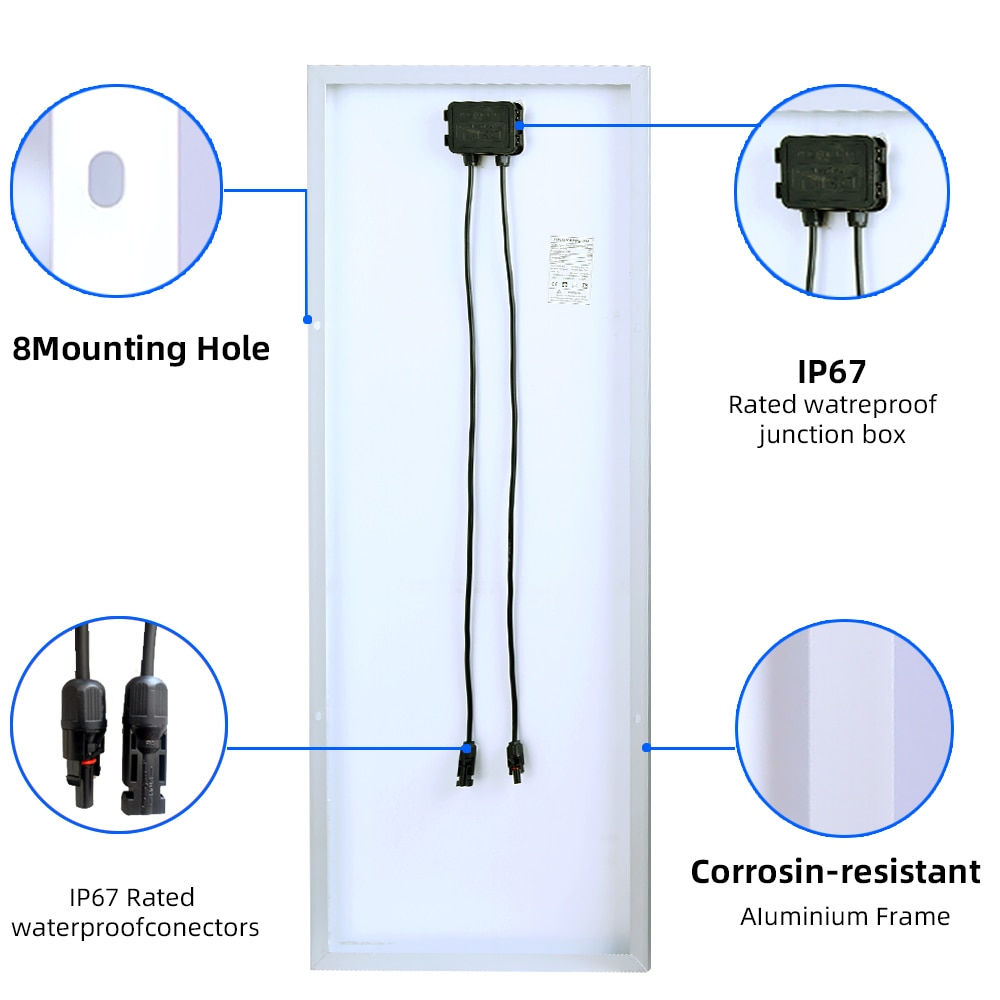

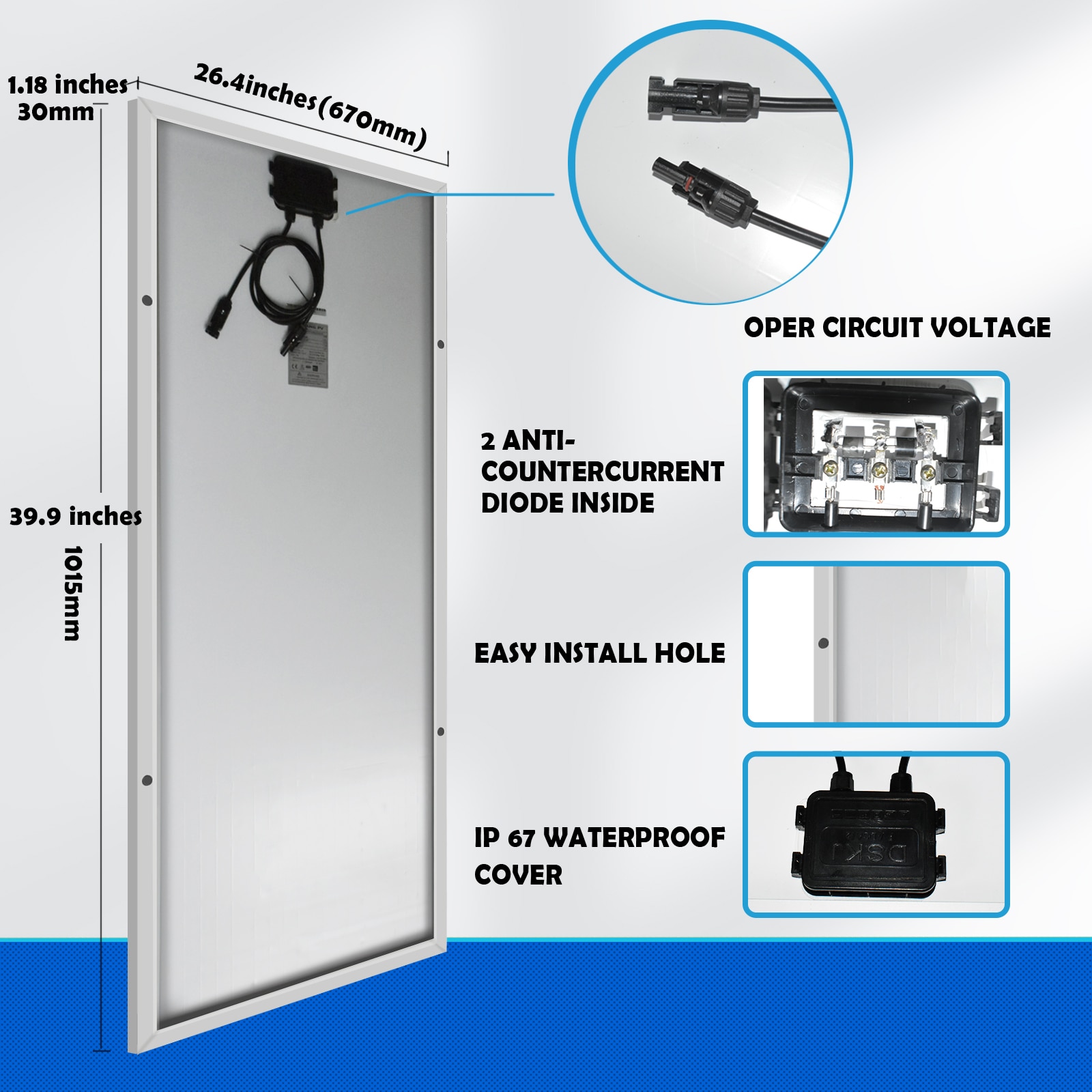

Diodes are pre-installed in junction box and a pair of 24-inches cables with connectors comes with the panel automatically

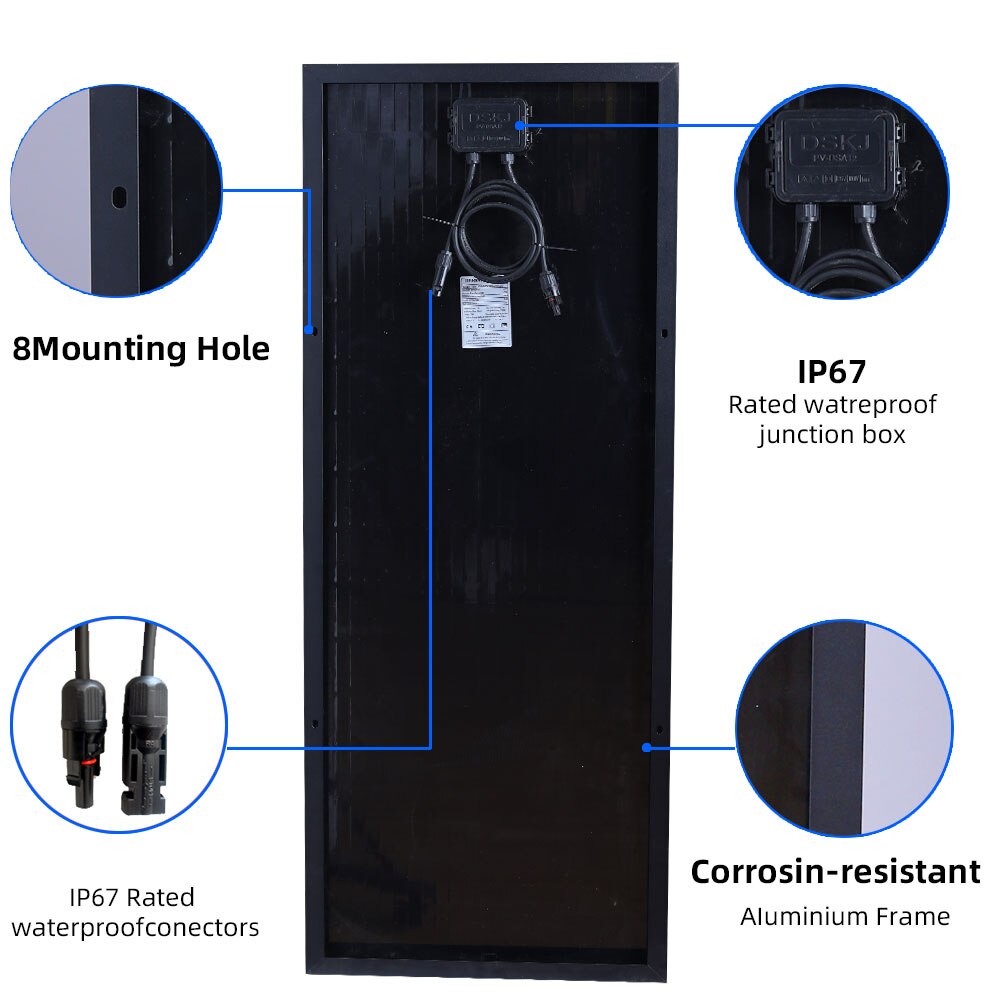

The back has 8 drill hole that can be quickly installed.

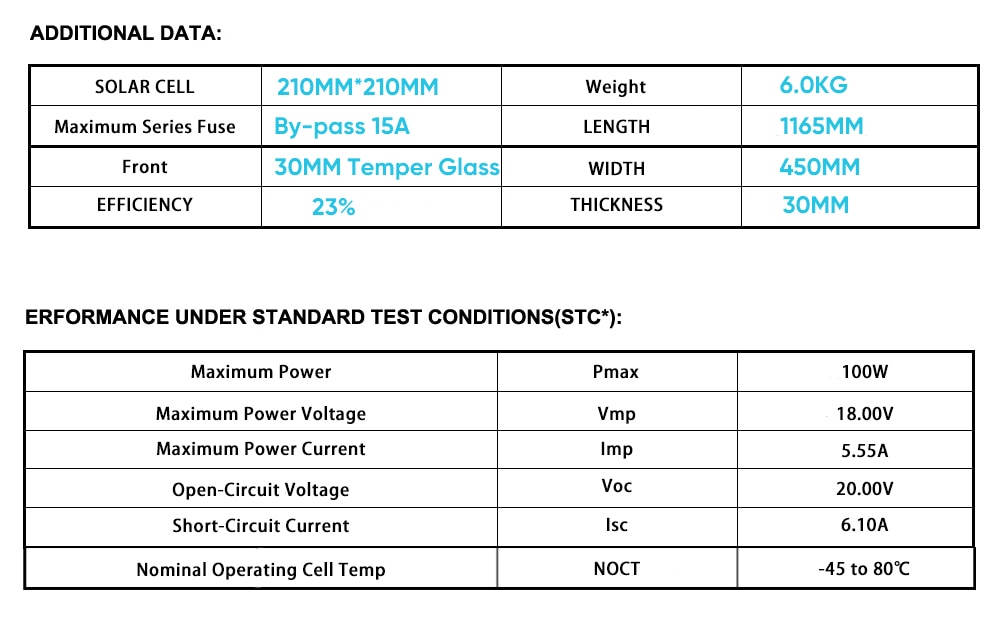

Model:CNMYPV100(32)M210
Material:Monocrystalline silicon
Maximum Power(Pmax):100W(Maximum 120W)
Maximum Power Voltage(Vmp):18.90V
Maximum Power Current (Imp):5.58A
Open-Circuit Voltage (Voc): 22.7V
Short-Circuit Current (Isc):6.11A

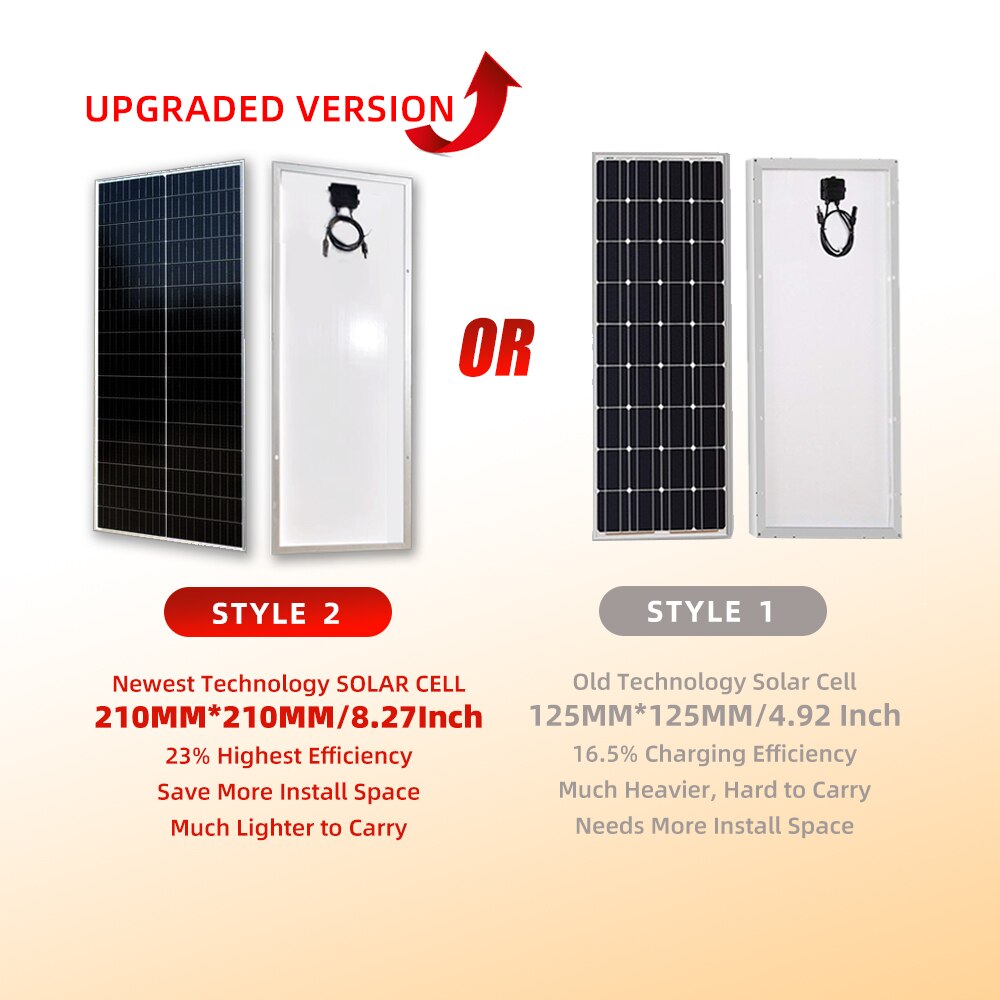

Solar Cell: Newly 210MM*210MM Monocrystalline
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:10A

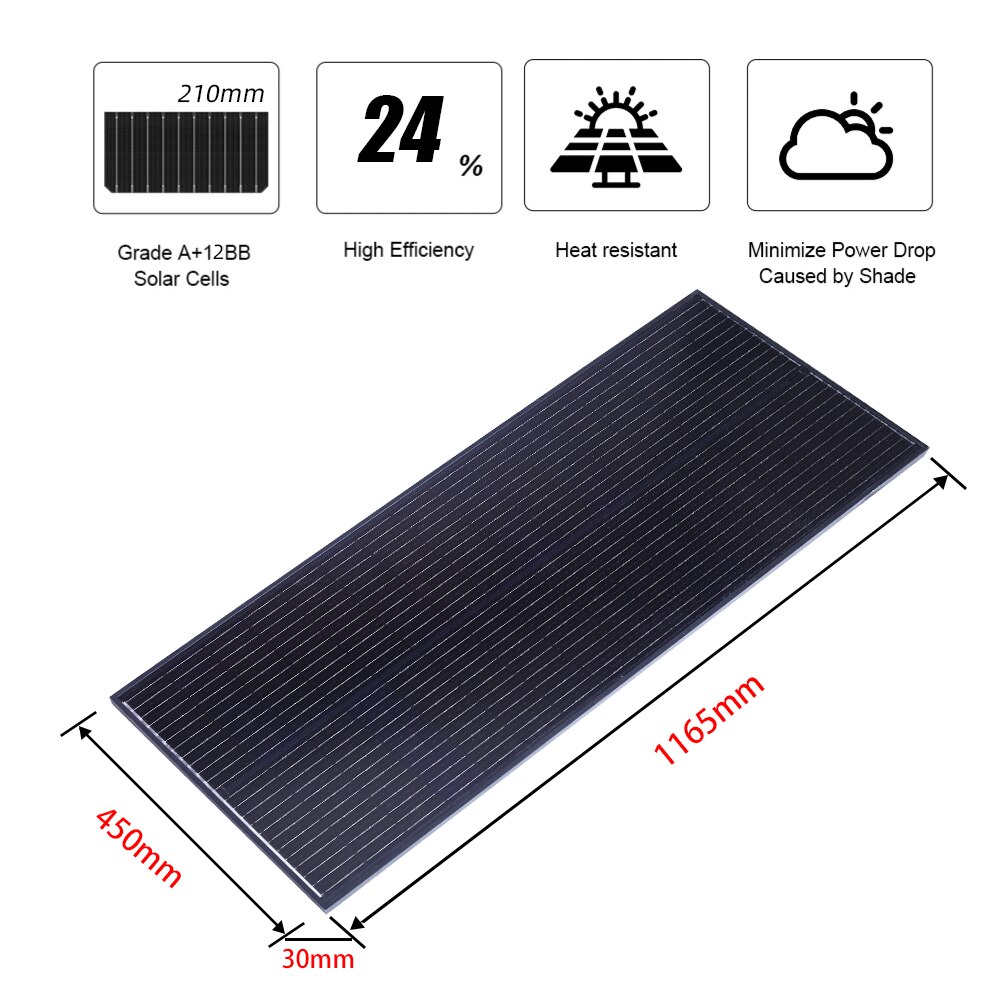

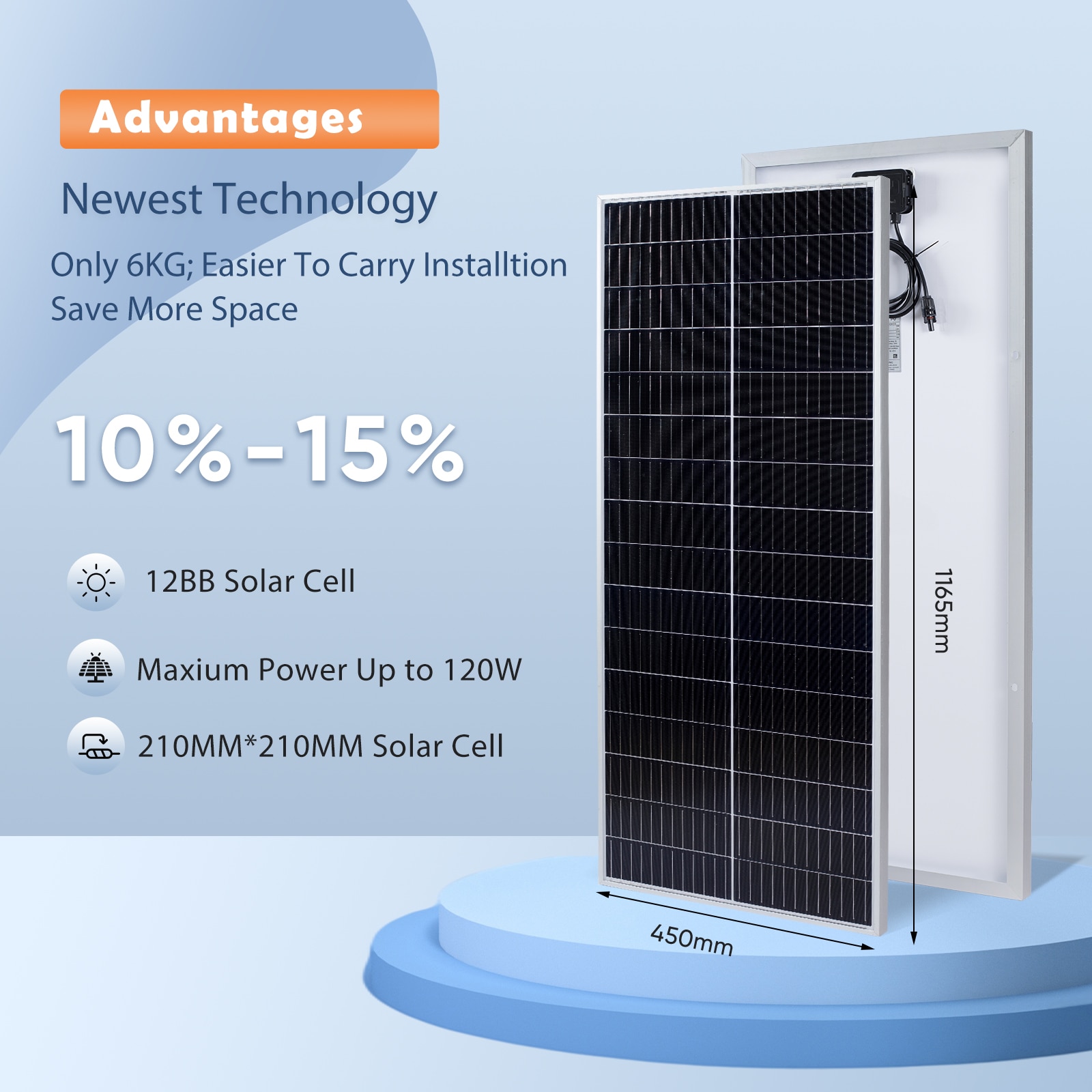

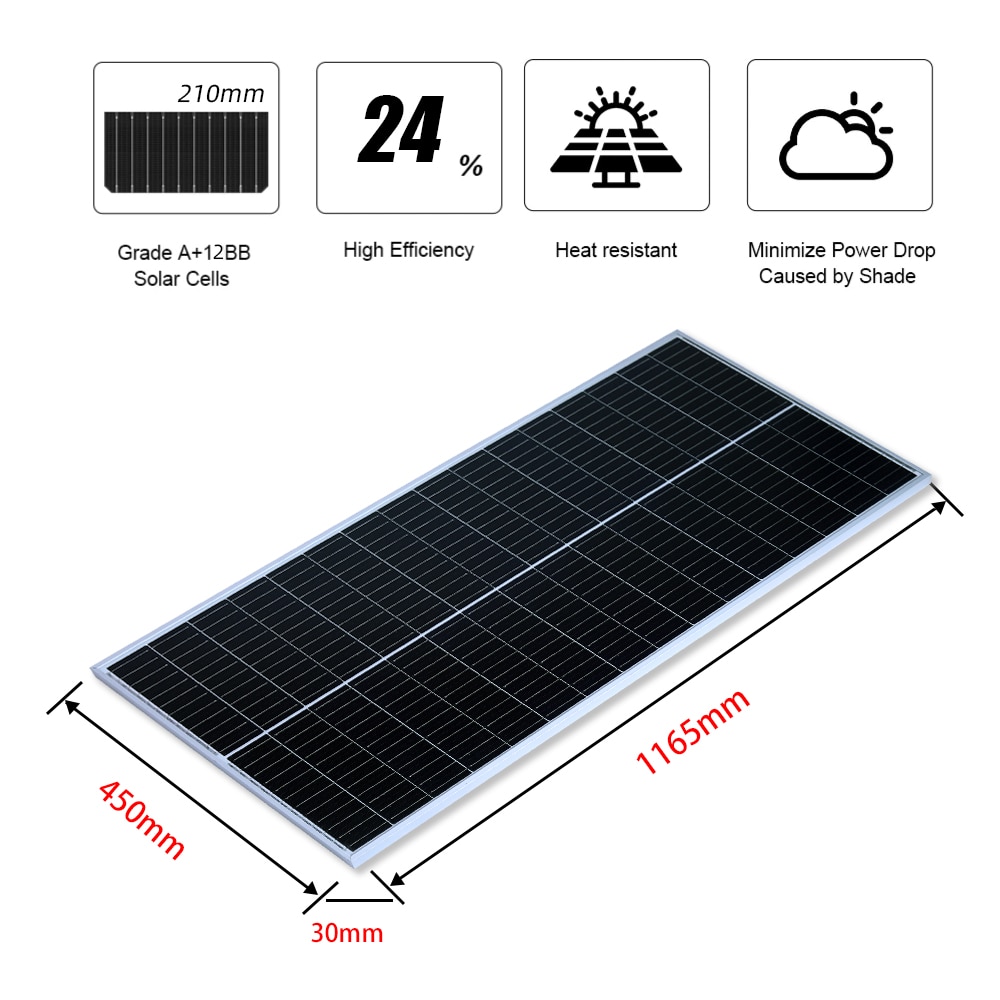

Dimension:1164*450*30mm
Package Weight:7kg
Package Dimension:1190*480*60mm
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）

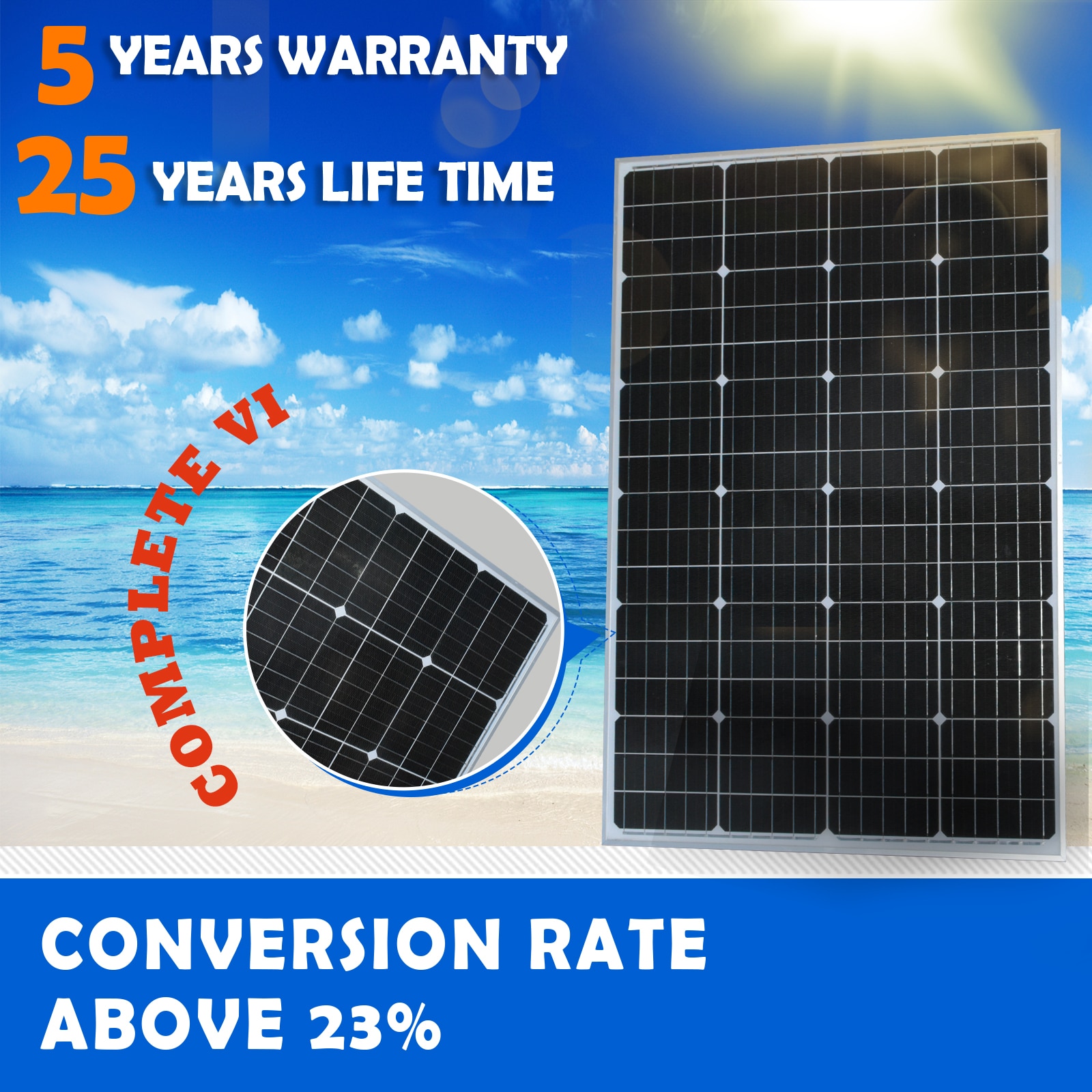

5 Years Warranty, 25 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

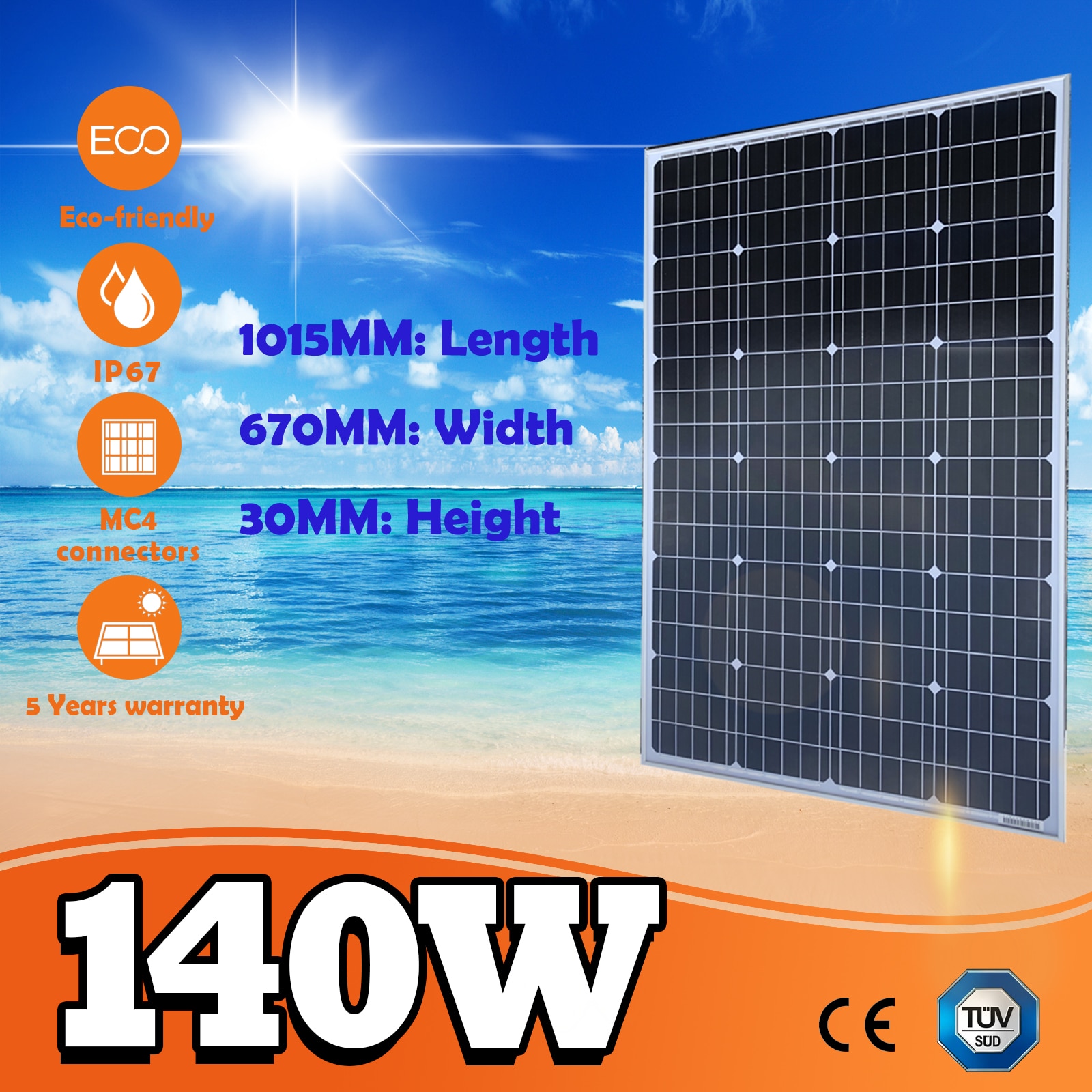

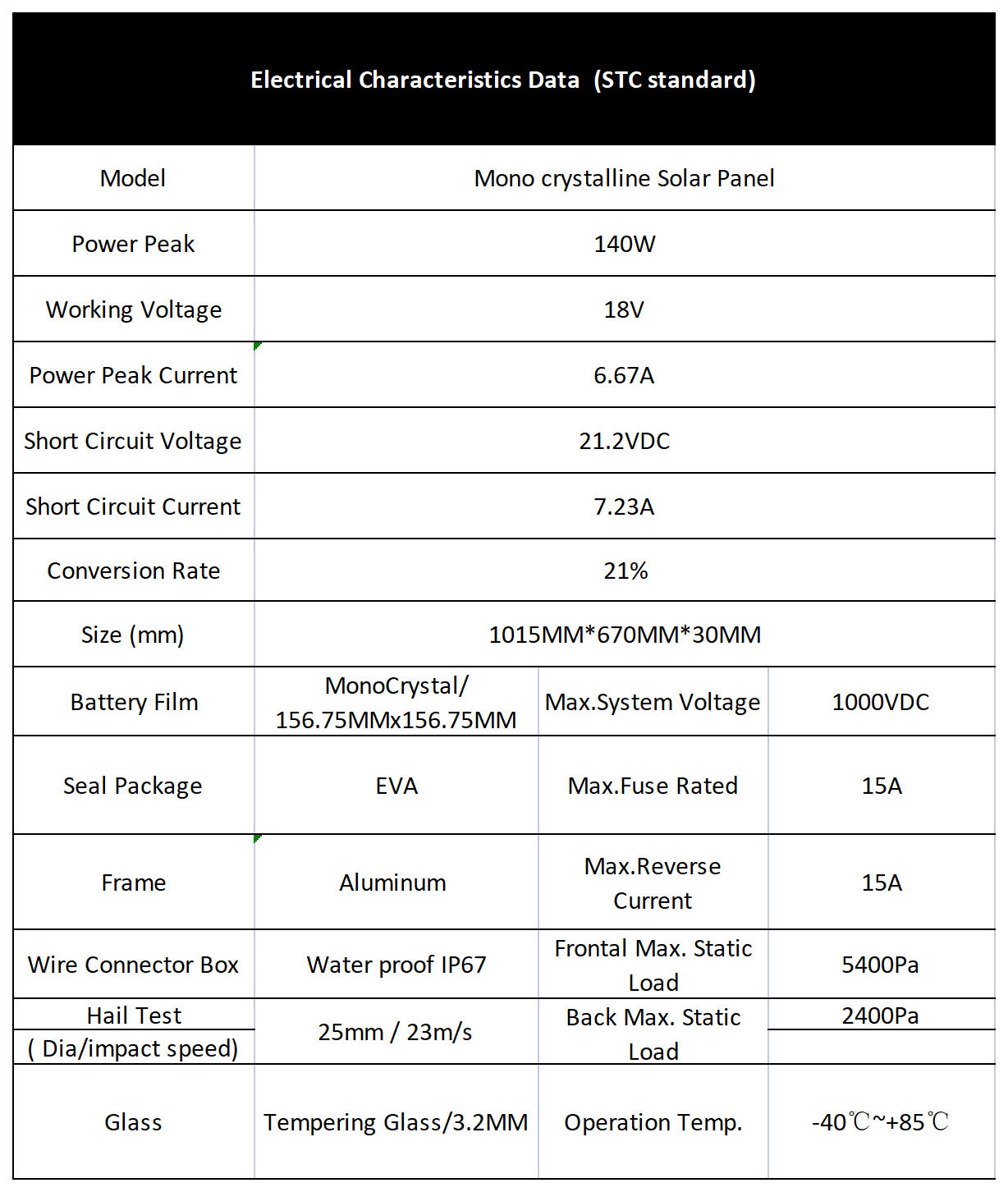

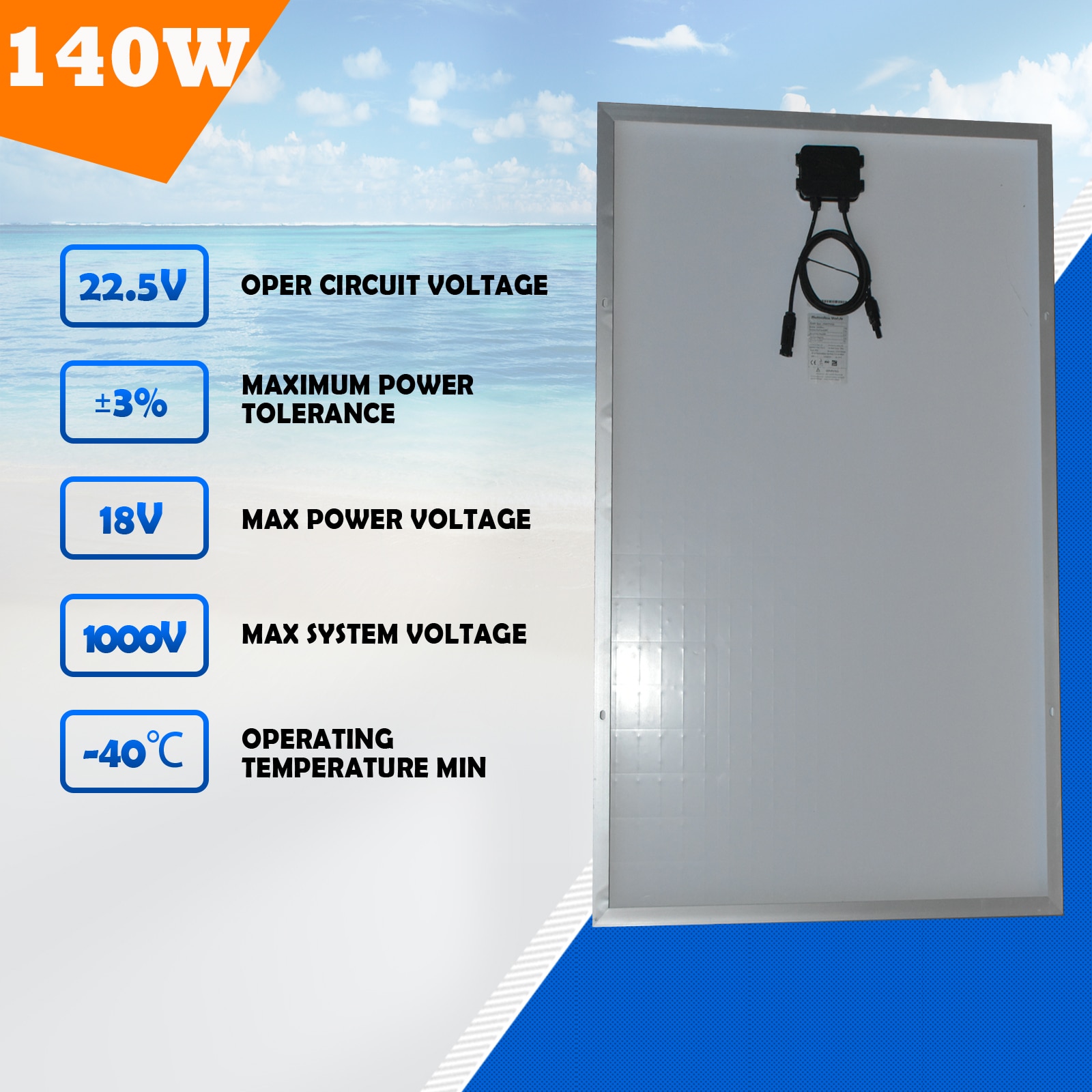

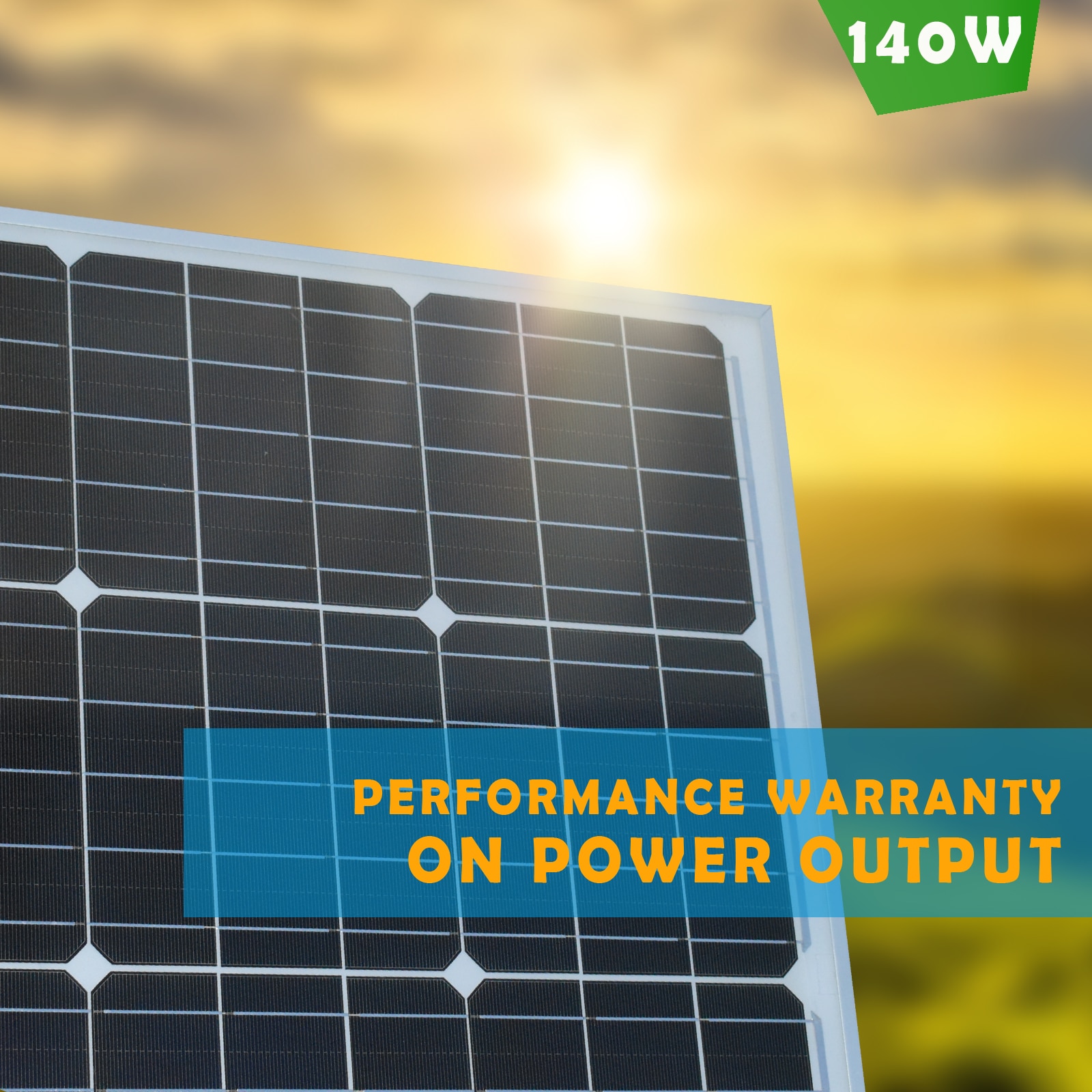

140w Glass Solar Panel
Truly Power of 140W
24PCS 156MM*156MM Solar Cell; 5.85W/PC
100% IP 67 waterproof
Bear Hailstorm
5 Years Warranty, 25 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

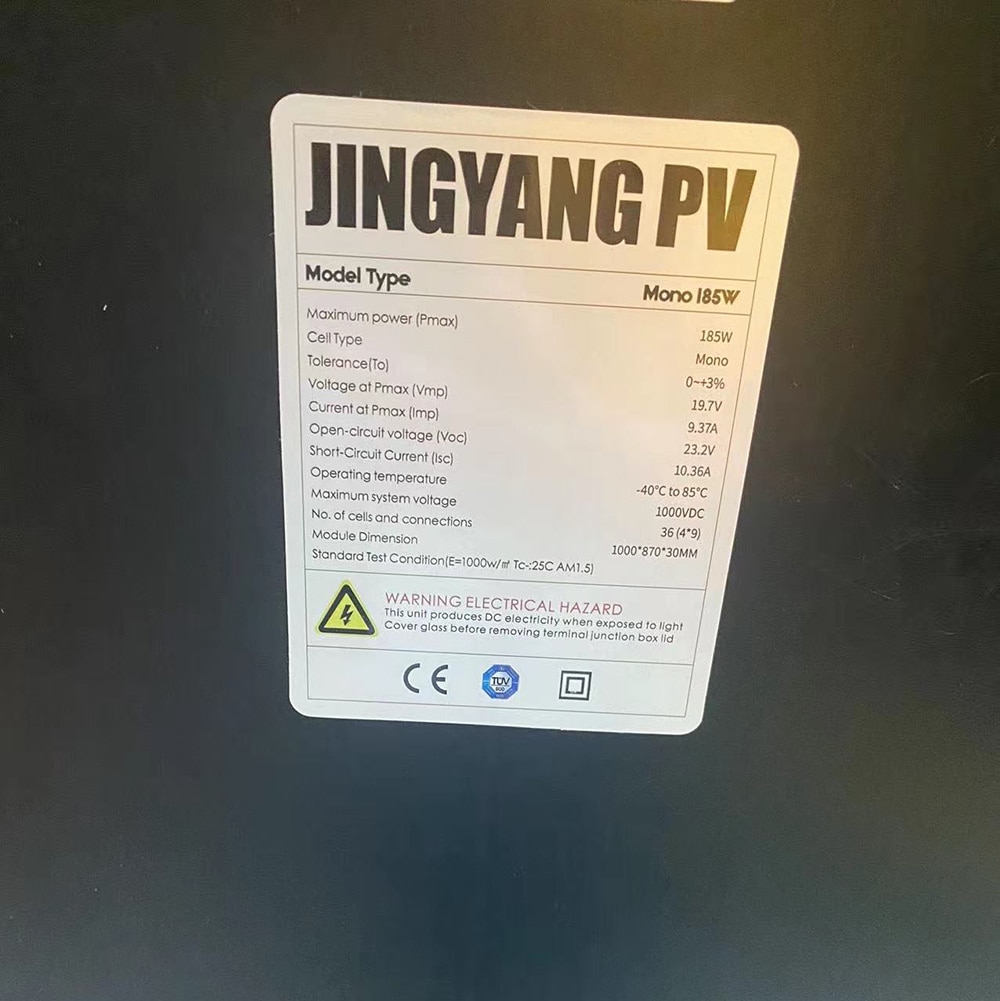

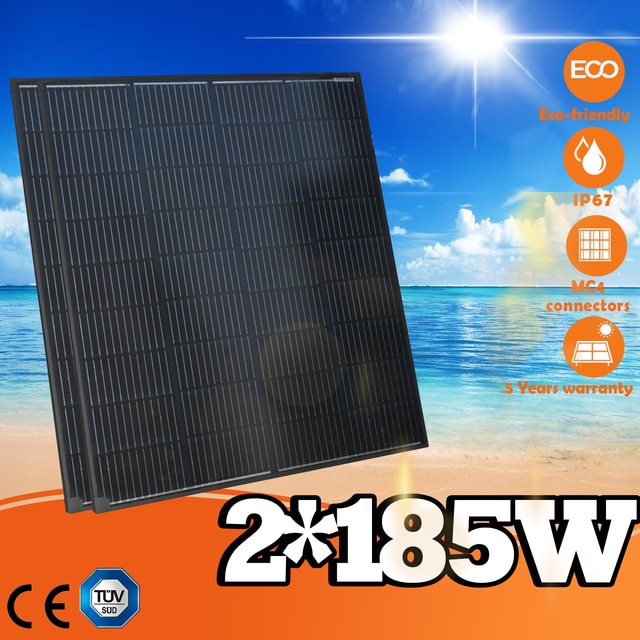

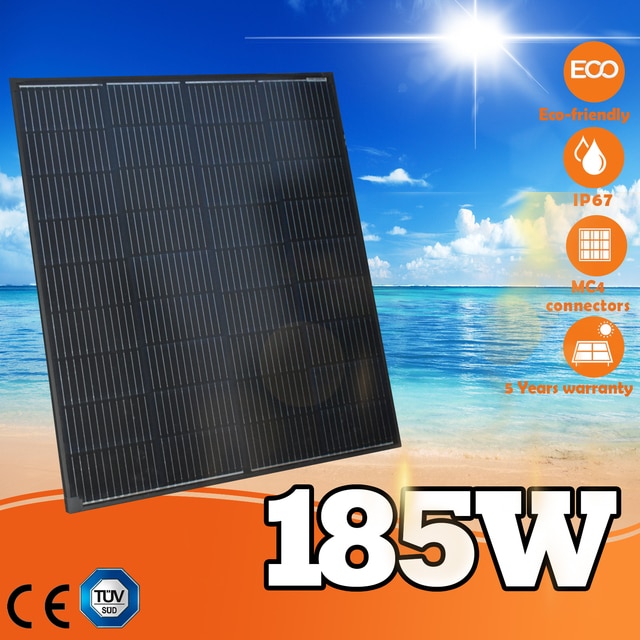

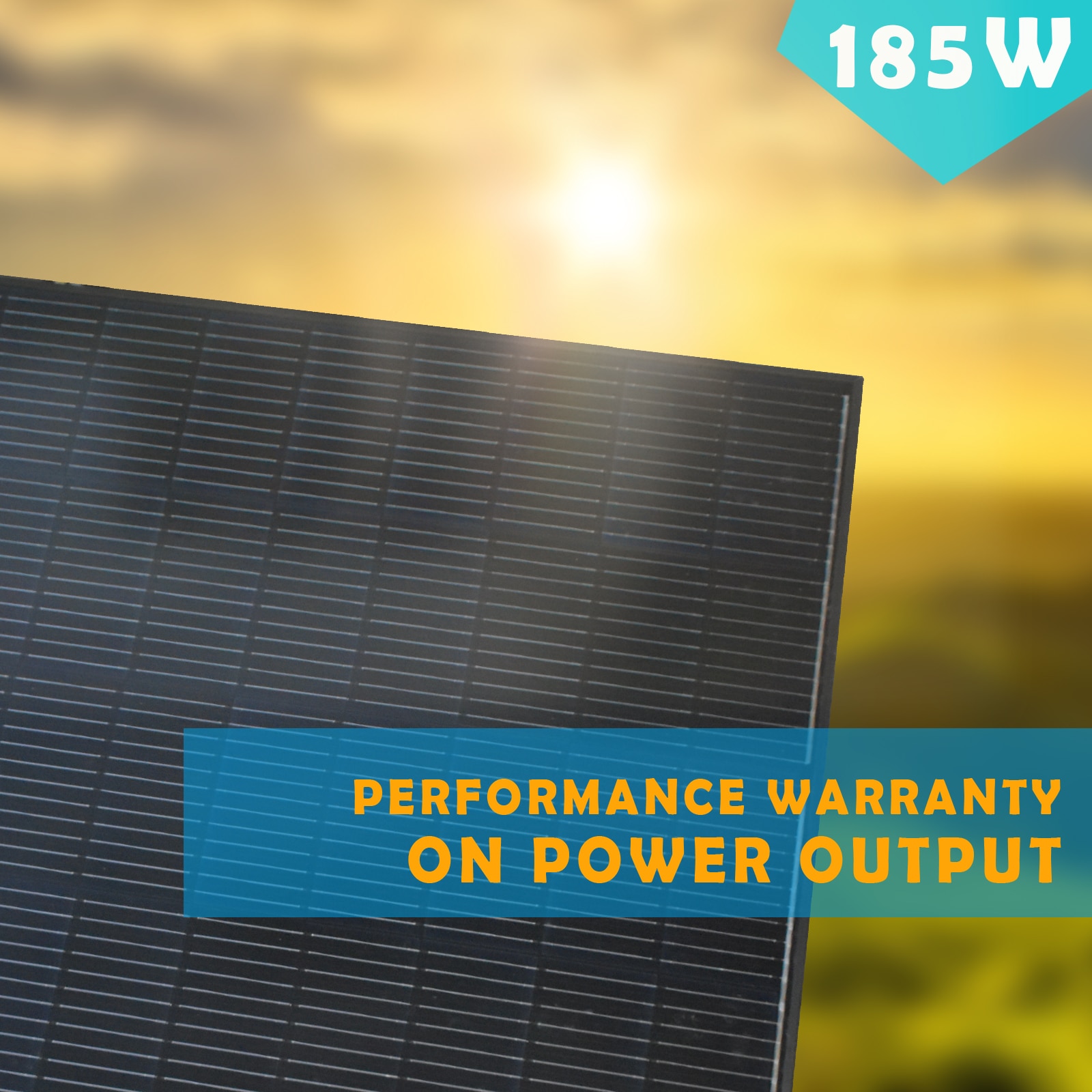

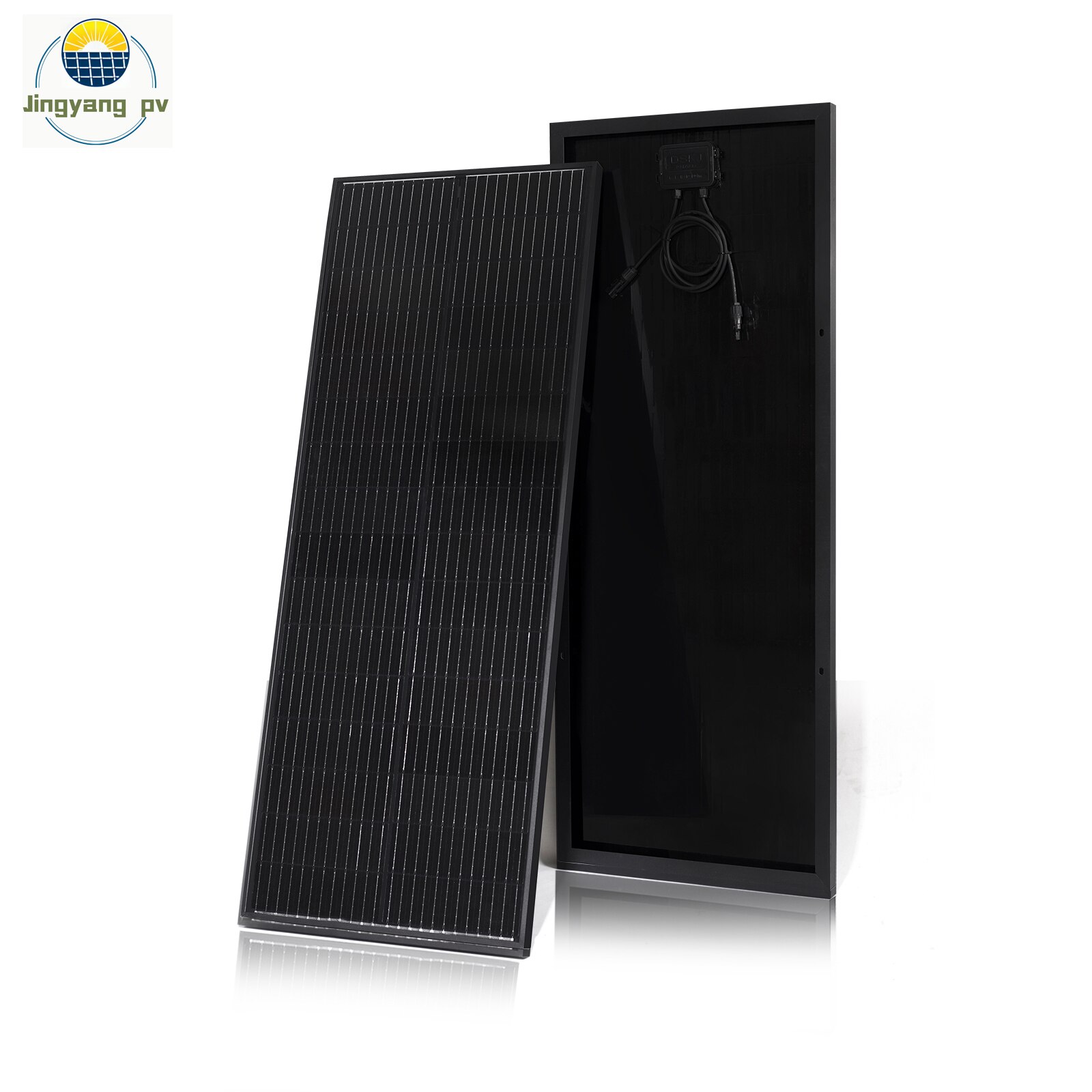

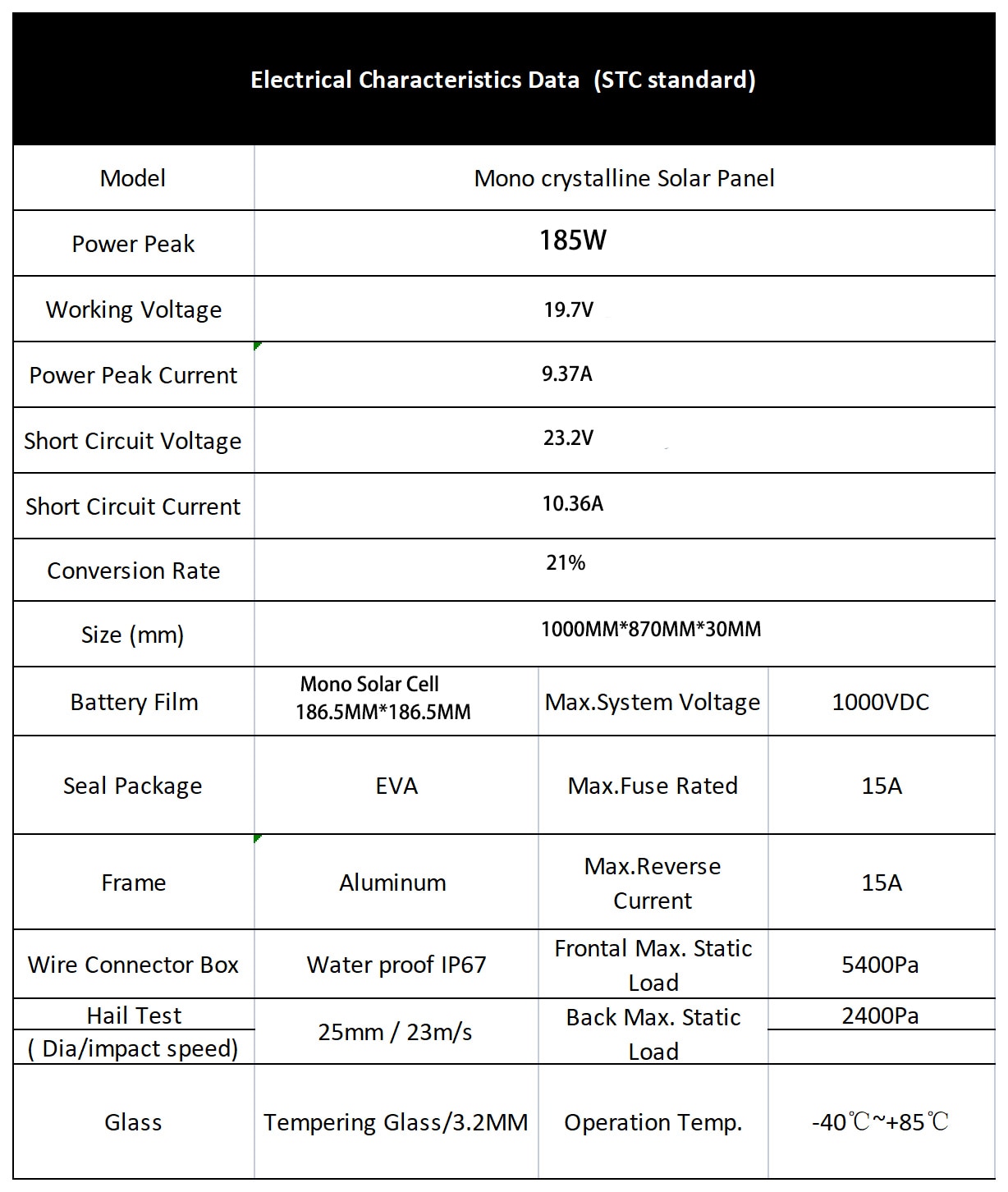

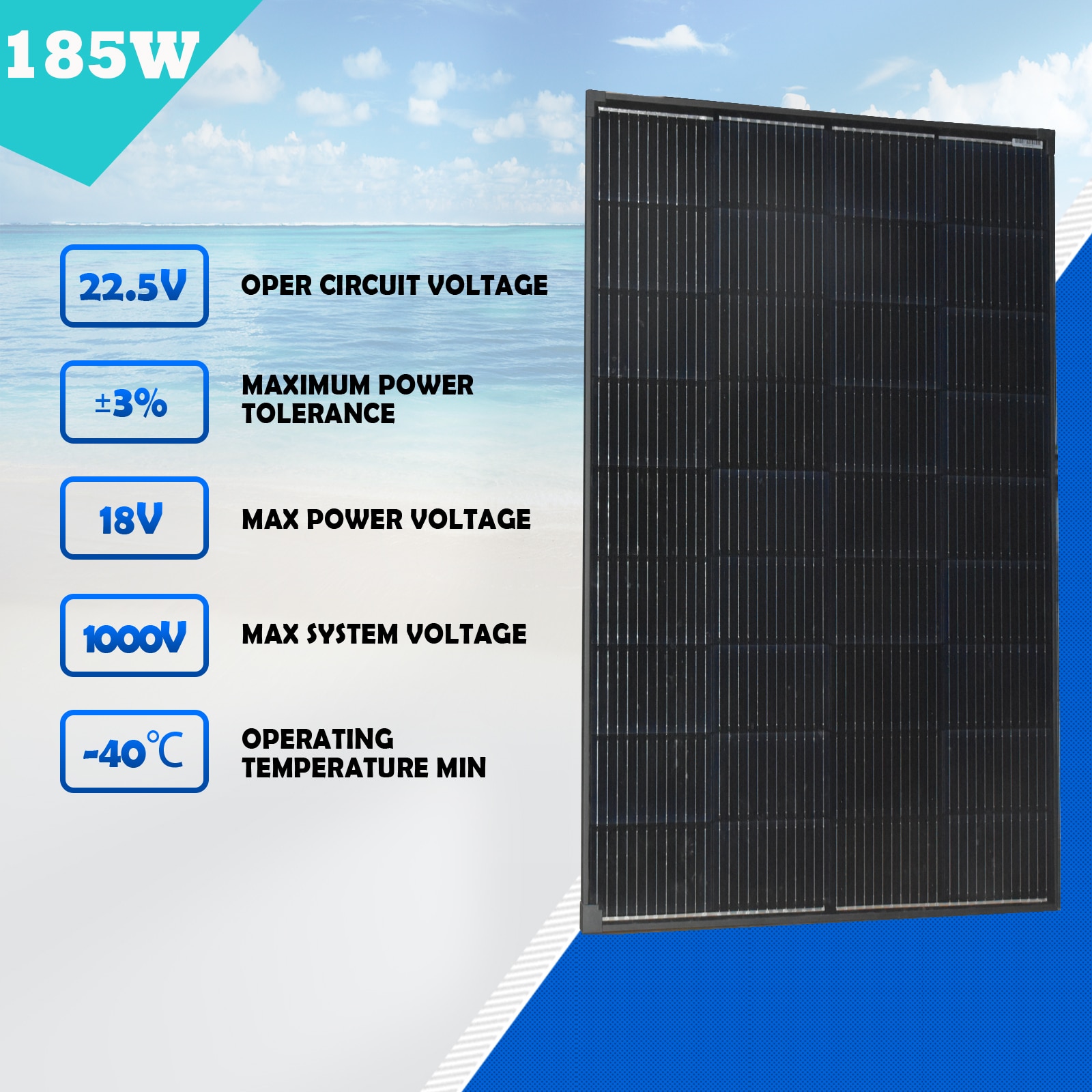

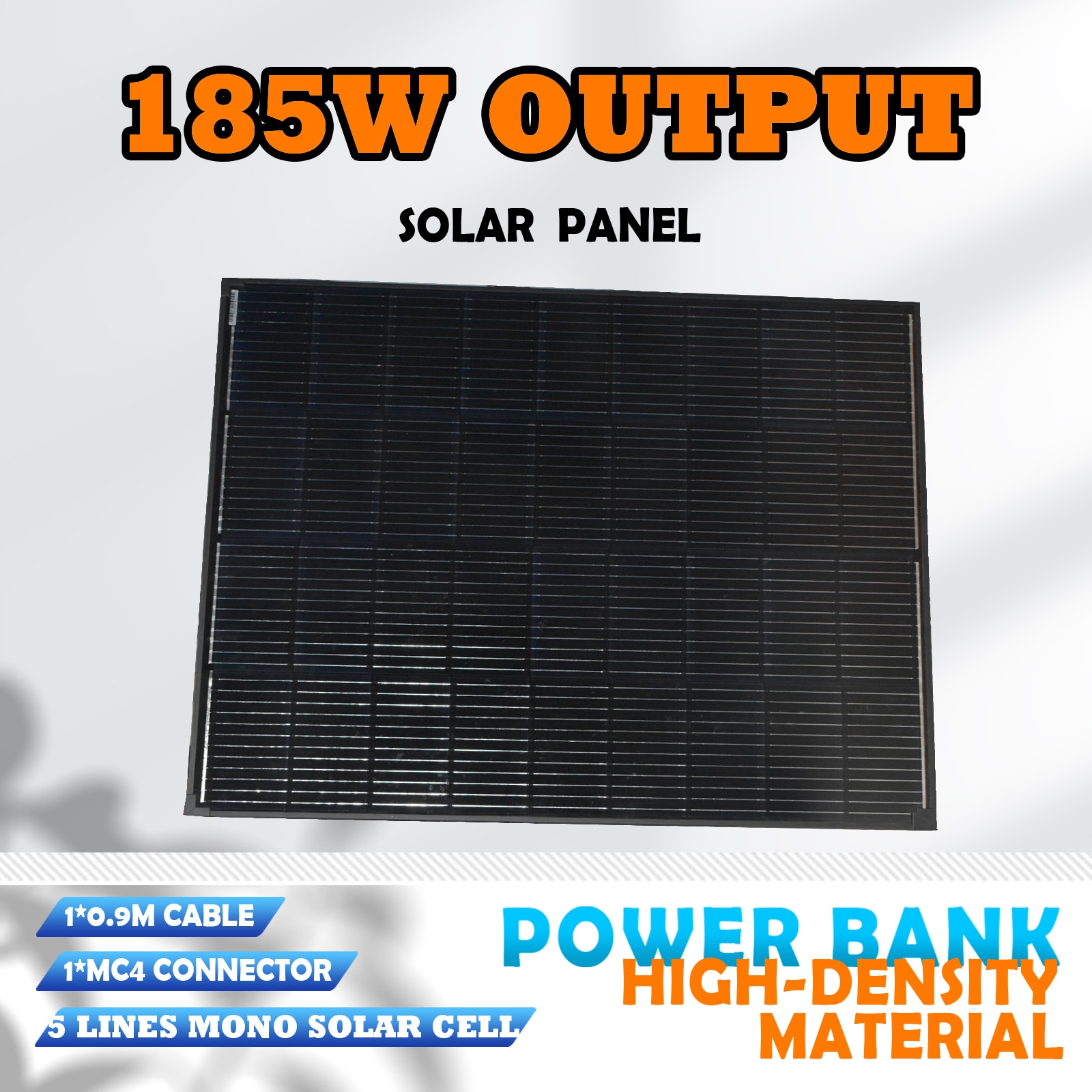

185w Black Solar Panel
Truly Power of 185W
36PCS 210MM*210MM Solar Cell;

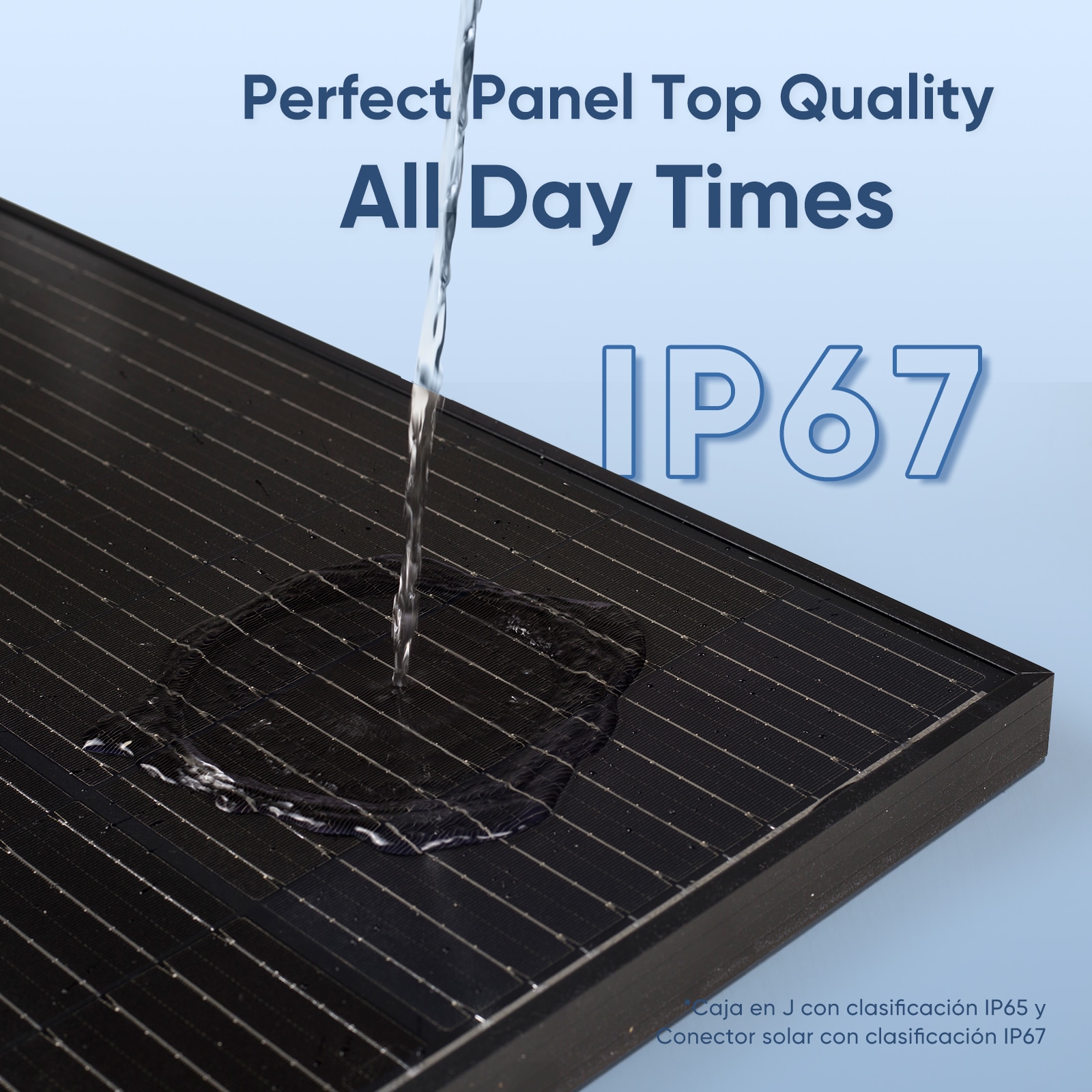

100% IP 67 waterproof
Bear Hailstorm
5 Years Warranty, 25 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

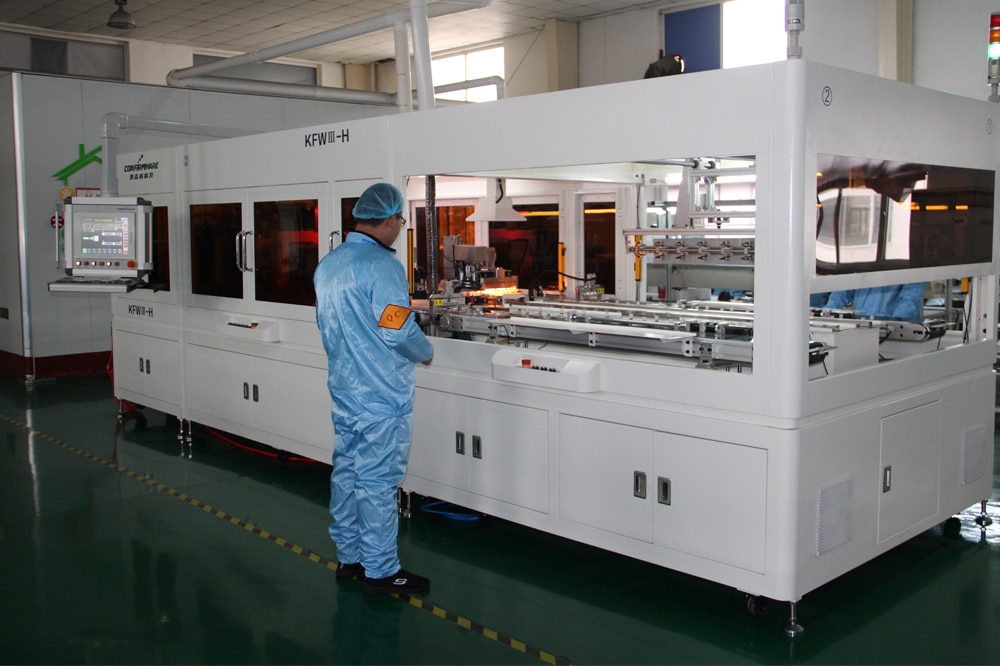

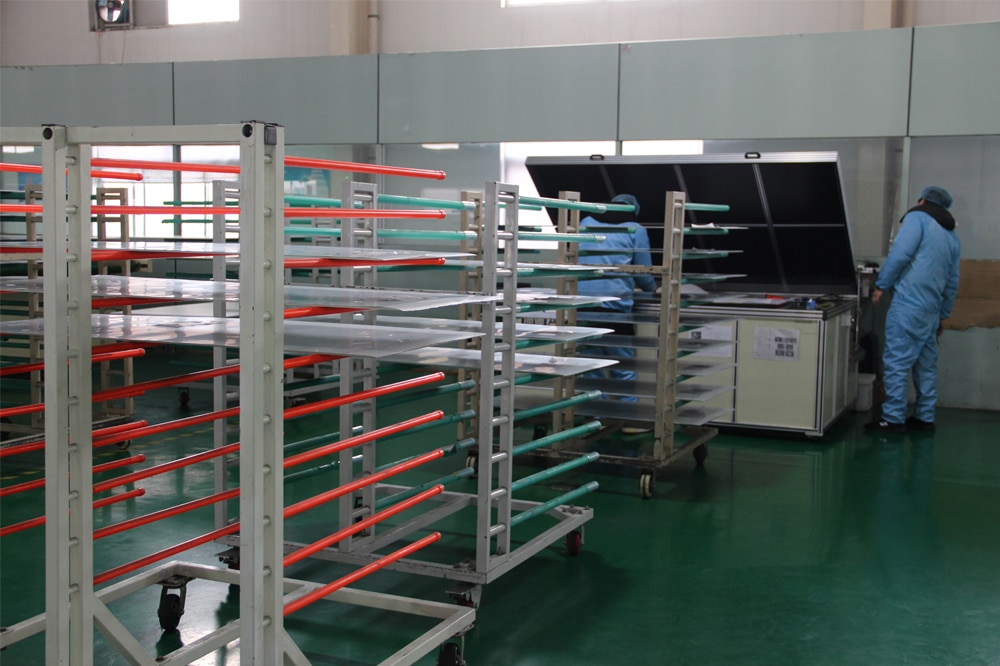

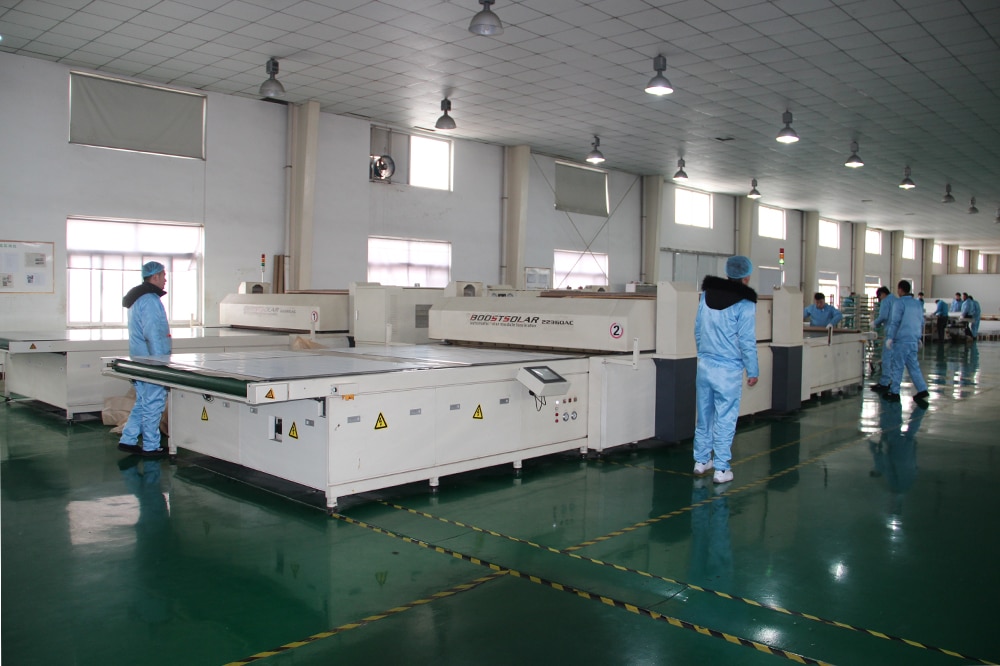

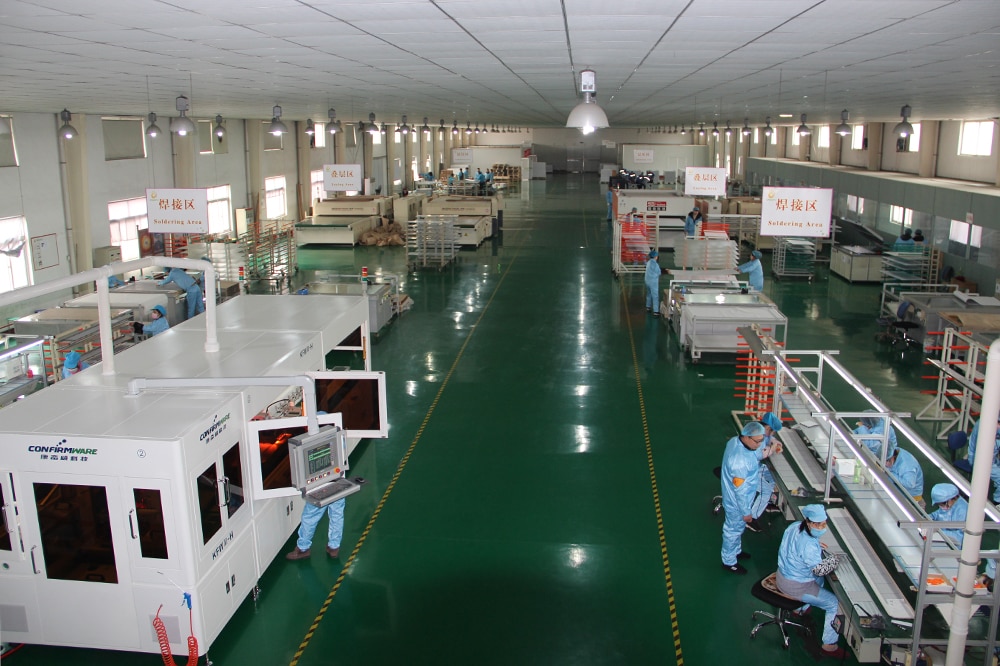

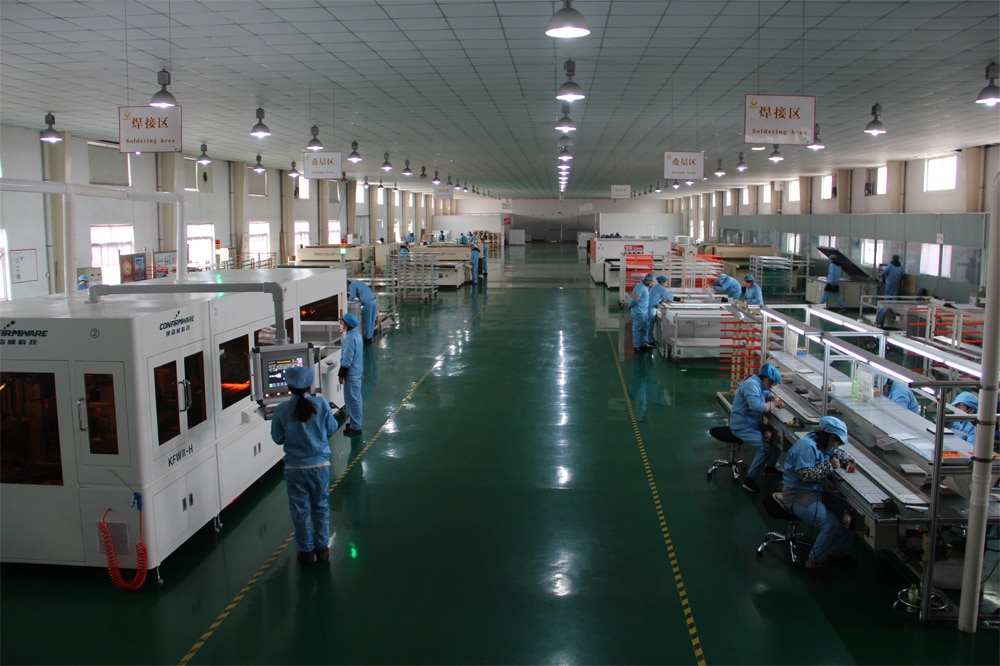

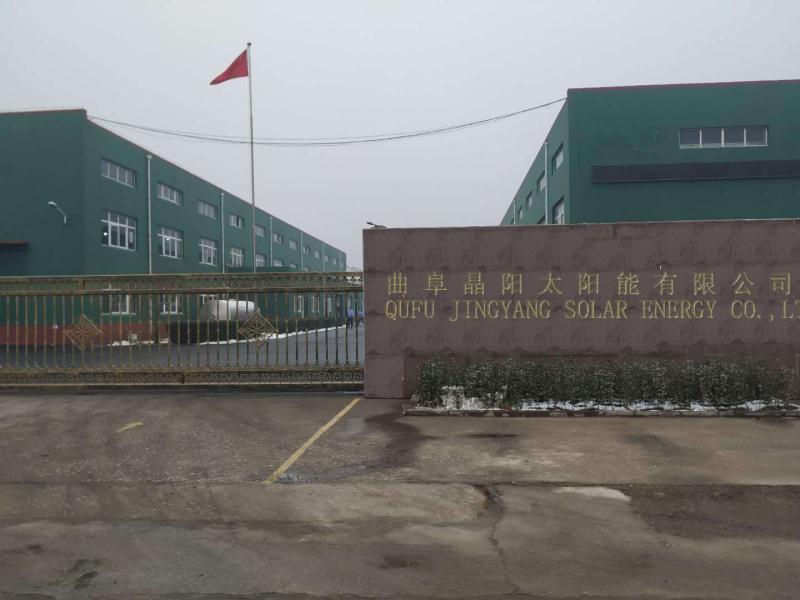

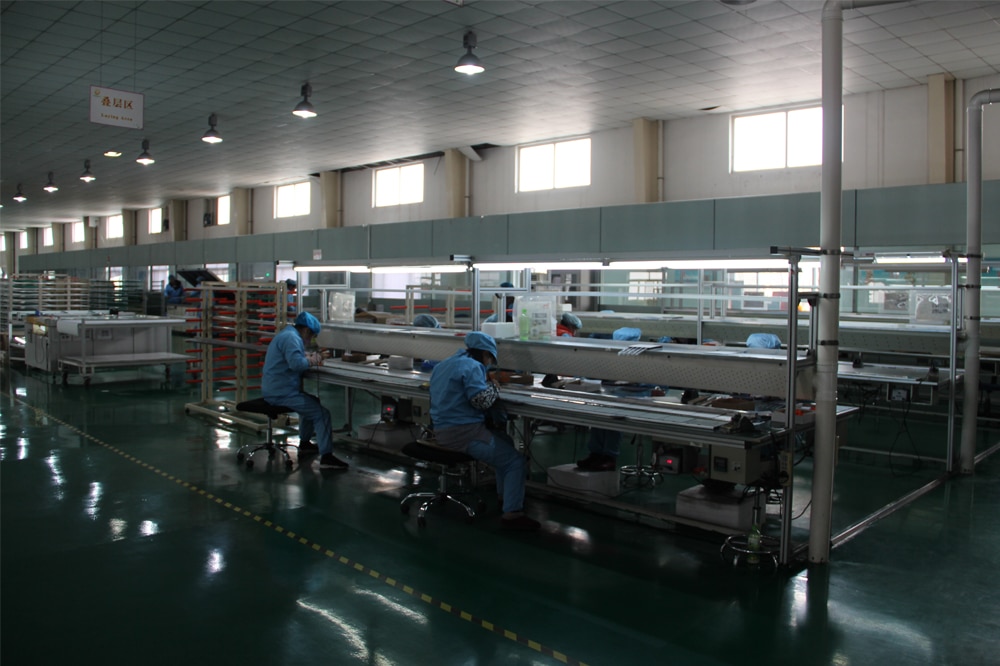

Jingyang Solar Energy is an international high-tech and growing group company, established in 2009, with 10 years’ experience of solar modules manufacturing and PV power generation systems supplying. Our factory covers an area of 10,000 square meters, employing 150 peoples, with an annual production of 500MW, about USD50 million of annual production value.

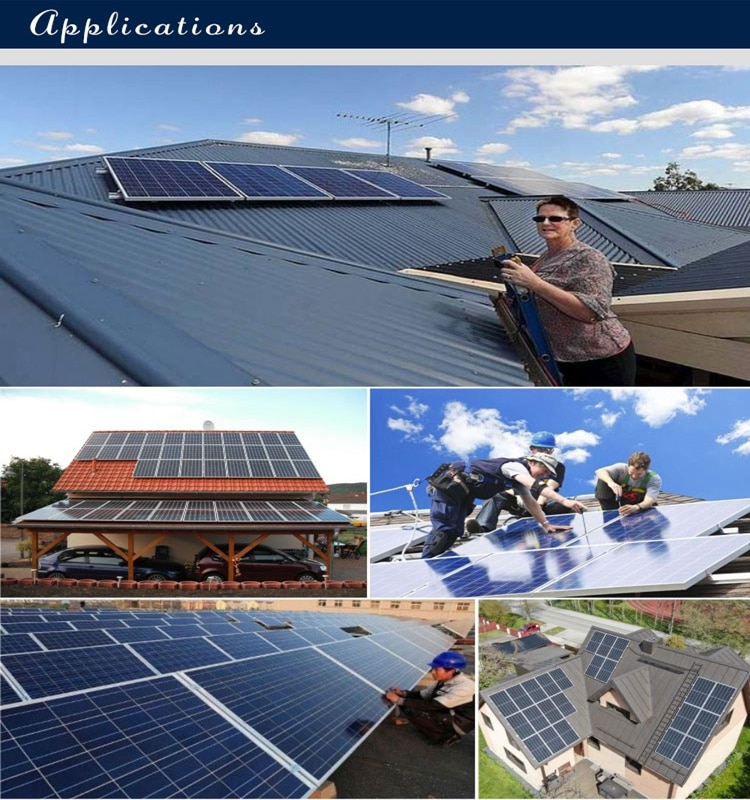

Jingyang Solar Energy is mainly engaged in crystalline silicon solar cells, modules, photovoltaic systems engineering and the research, manufacturing and sales of PV application products. In the past decades, Jingyang Energy built a wide sales network in global market which covers more than 68 countries, our major target markets are Europe, USA, Southeast Asia, America, Australia, Africa, etc, Our overseas projects involves State grid solar power plant, household solar system, outside portable solar system,etc

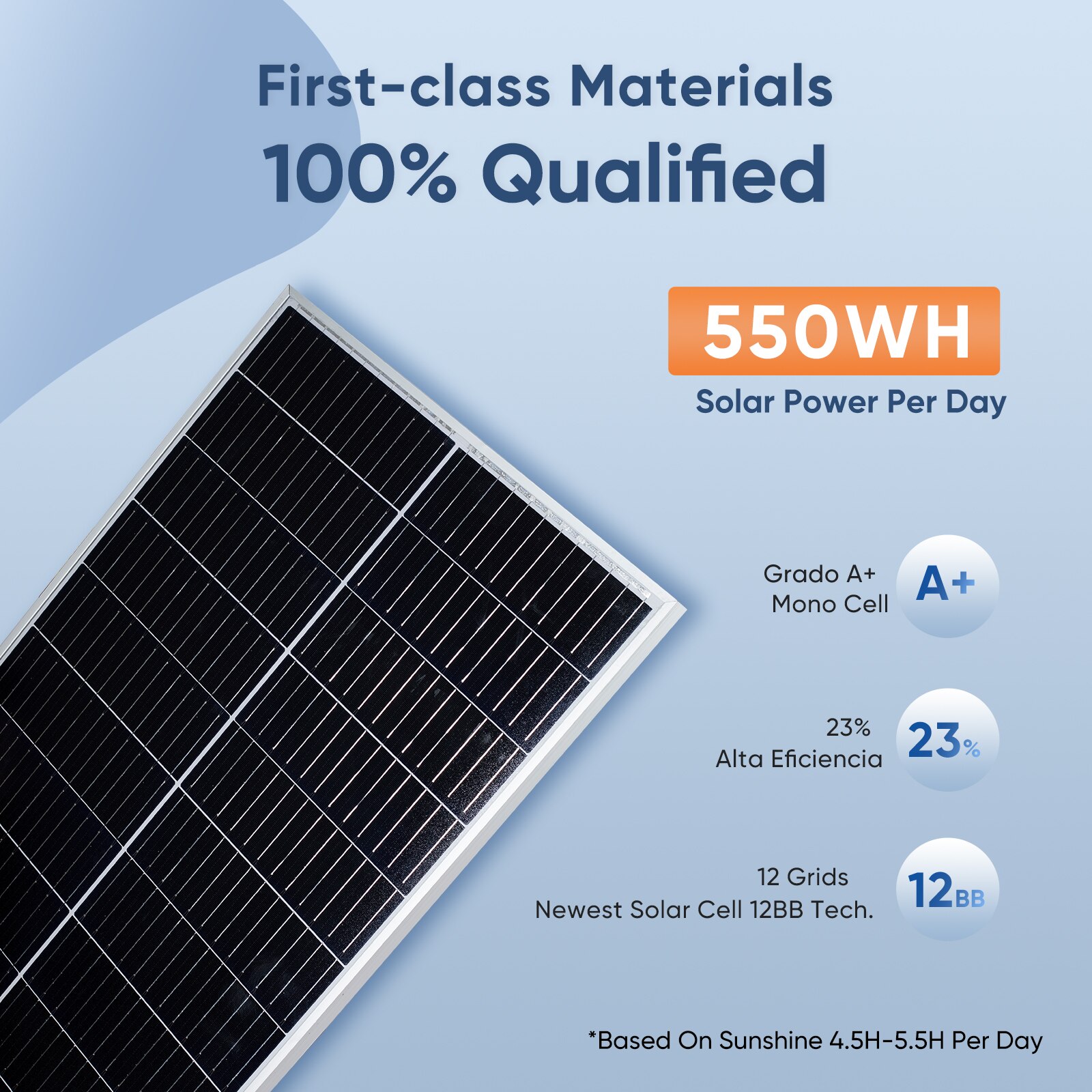

- Module Efficien: 19.1%
- is_customized: Yes
- Max. Power: 120w or 140w or 185w
- Number of Cells: 32PCS or 36PCS OR

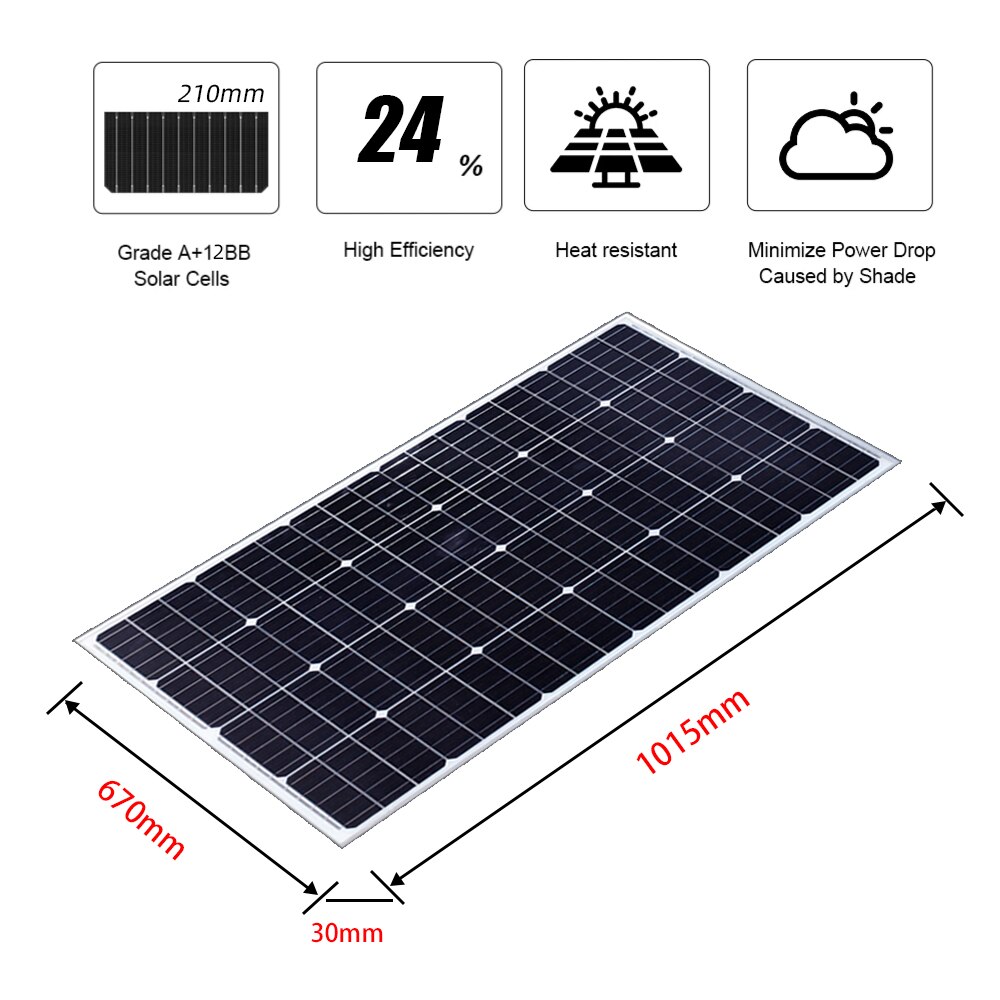

- Size: 1165MM*450MM*30MM or 1025mm*670mm*30mm
- Material: Monocrystalline Silicon
- Model Number: different type
- Nominal Capacity: 100W or 140w or 185w
- Foldable Solar Panel: No
- Flexible Solar Panel: Yes
- Number of Panels: 1
- Type: Solar Cells
- Brand Name: JINGYANGPV
- Origin: Mainland China
- Certification: CE
- Rigid SOLAR PANEL: SOLAR PANEL 12V
- SOLAR PANEL 100w 200W: MONO SOLAR CELL
