Global Version Xiaomi Mesh System AX3000(1/2pcs) WiFi 6 Modem 2976Mbps OFDMA Access Point Mode Signal Amplifier Range Extender
4.6 (15 votes)
Price:
US $139.75 - 274.47
/ piece
Discount Price:
US $
111.80 -
219.58
/ piece
-20%
Specification | |
L×W×H (per unit) | 97mm × 97mm × 222mm |
Product color | Black |
Processor | Qualcomm® IPQ5000 Dual-core A53 1.0GHz CPU |
Network processing unit | Single core 1.0GHz NPU |
Memory | 256MB |
2.4G Wi-Fi | 2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 574Mbps) |
5GHz Wi-Fi | 2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps) |
Antennas | High gain antennas |
Heat dissipation | Natural heat dissipation |
Total ports | 1×10/100/1000Mbps self-adaptive WAN port (Auto MDI/MDIX) 3×10/100/1000Mbps self-adaptive LAN ports (Auto MDI/MDIX) |
LED indicator light | 2 lights, System indicator × 1, Internet indicator × 1 |
System reset button | ×1 |
Mesh networking button | ×1 |
Power input port | ×1 |
Protocol standards | IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab |
Dual-band | 2.4GHz, 5GHz |
Modulation | 11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps) 11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps), 64QAM(48/54Mbps) 11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.tookfun Data rate：MCS0-MCS15 11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM. 11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM. |
Data rates | MCS0-MCS11 (supports 2 streams). |
Operating system | Mi WiFi ROM, a smart router operating system based on OpenWRT |
WiFi Encryption | WPA-PSK/WPA2-PSK/WPA3-SAE encryption, Wireless access control (black and white list), SSID hidden |
Management applications | Supports Web, Android, iOS |
Working environment Temperature | 0-40℃ |
Operating humidity | 10%-90%RH (non-condensing) |
Storage temperature | -40-70℃ |
Storage humidity | 5%-90%RH (non-condensing) |
Package contents | Xiaomi Mesh System AX3000 Instruction Manual Power cord Network cable |
Main Features
● The easy-to-use mesh set is smart and simple to install
● Offers 2.4GHz and 5GHz bands, each with 802.11ax technology.
● 160MHz high-bandwidth for a superb experience
● High-efficiency OFDMA transmission makes Internet access smoother for multiple devices
● Stable online connectivity for 254 devices simultaneously
● Target Wake Time technology only connects when a transmit signal is received, otherwise remaining in sleep mode.
● A simpler, smarter user experience
● Concealed dual-band high-performance antennas, tower-type thermal architecture, large channel convection
● Combines into a mesh network that provides Wi-Fi 6 coverage throughout the home, covering up to 4,000 square feet of space.
● When a failed node is detected, the entire network architecture is re-planned to ensure normal mesh network operation.
Detailed parameters

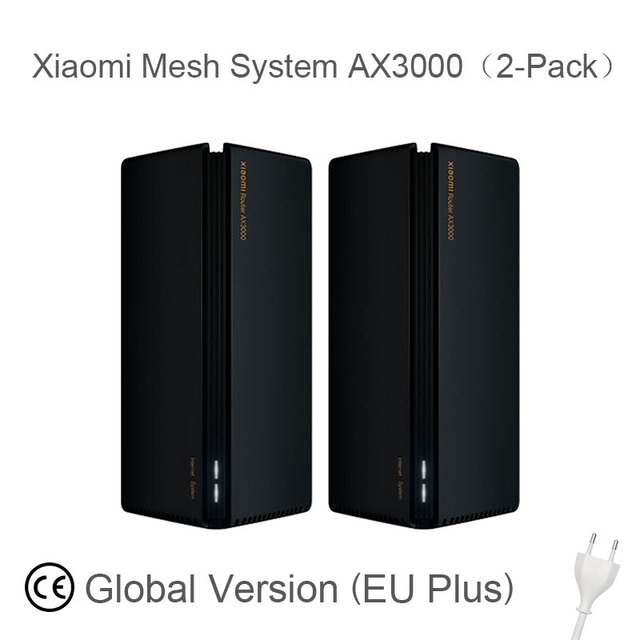

Xiaomi Mesh System AX3000（2-Pack）
Stay connected with Wi-Fi 6
Xiaomi's mesh system provides full coverage for complex home arrangements
Xiaomi Mesh System AX3000 (2-Pack) combines into a mesh network that provides Wi-Fi 6 coverage throughout the home, covering up to 4,000 square feet of space. The signal roams between different routers automatically and seamlessly, allowing you to play as you go.
Mesh system with self-repairing* capabilities
In a mesh network created using Xiaomi Mesh System AX3000, when a failed node is detected, the entire network architecture is re-planned to ensure normal mesh network operation.
The easy-to-use mesh set is smart and simple to install
Xiaomi Mesh System AX3000 (2-Pack) bundle is pre-configured at the factory, so no complicated set-up is required, and it is ready to use*. It's now easy to enter the high-speed Internet era, with no expertise required.
Get started right away and enjoy lightning-fast Wi-Fi 6
Xiaomi Mesh System AX3000 (2-Pack) offers 2.4GHz and 5GHz bands, each with 802.11ax technology. The two bands offer a combined dual-band wireless speed of up to 2976Mbps *. That's nearly twice the speed of a typical AC1200 router. 1024 QAM technology is also faster than Wi-Fi 5's 256 QAM, so you don't have to wait for high-speed Internet access.
160MHz high-bandwidth for a superb experience
If bandwidth is like a highway, conventional 2-lane traffic systems are always congested. With the Xiaomi Mesh System AX3000 (2-Pack), however, the width of every lane, and speeds in the 5GHz band are doubled *. Enjoy an ultimate smooth online experience, even when connecting with multiple devices.
High-efficiency OFDMA transmission makes Internet access smoother for multiple devices*
OFDMA technology allows routers to process data flows from multiple devices simultaneously when large devices require data transmission, effectively reducing network congestion and greatly reducing latency.
Stable online connectivity for 254 devices simultaneously*
The smart home era is bringing an ever increasing number of connected devices into the home. Each Xiaomi Mesh System AX3000 (2-Pack) product comes with 256MB of RAM to cater to occasional complex environments with large numbers of devices such as family gatherings or parties, so that stable connectivity and response is ensured in time.
Not just energy efficient, but more durable
Target Wake Time technology only connects when a transmit signal is received, otherwise remaining in sleep mode. This effectively reduces average power consumption when connecting to Wi-Fi devices, and extends the product life span.
* TWT technologies require to be supported by endpoint devices.

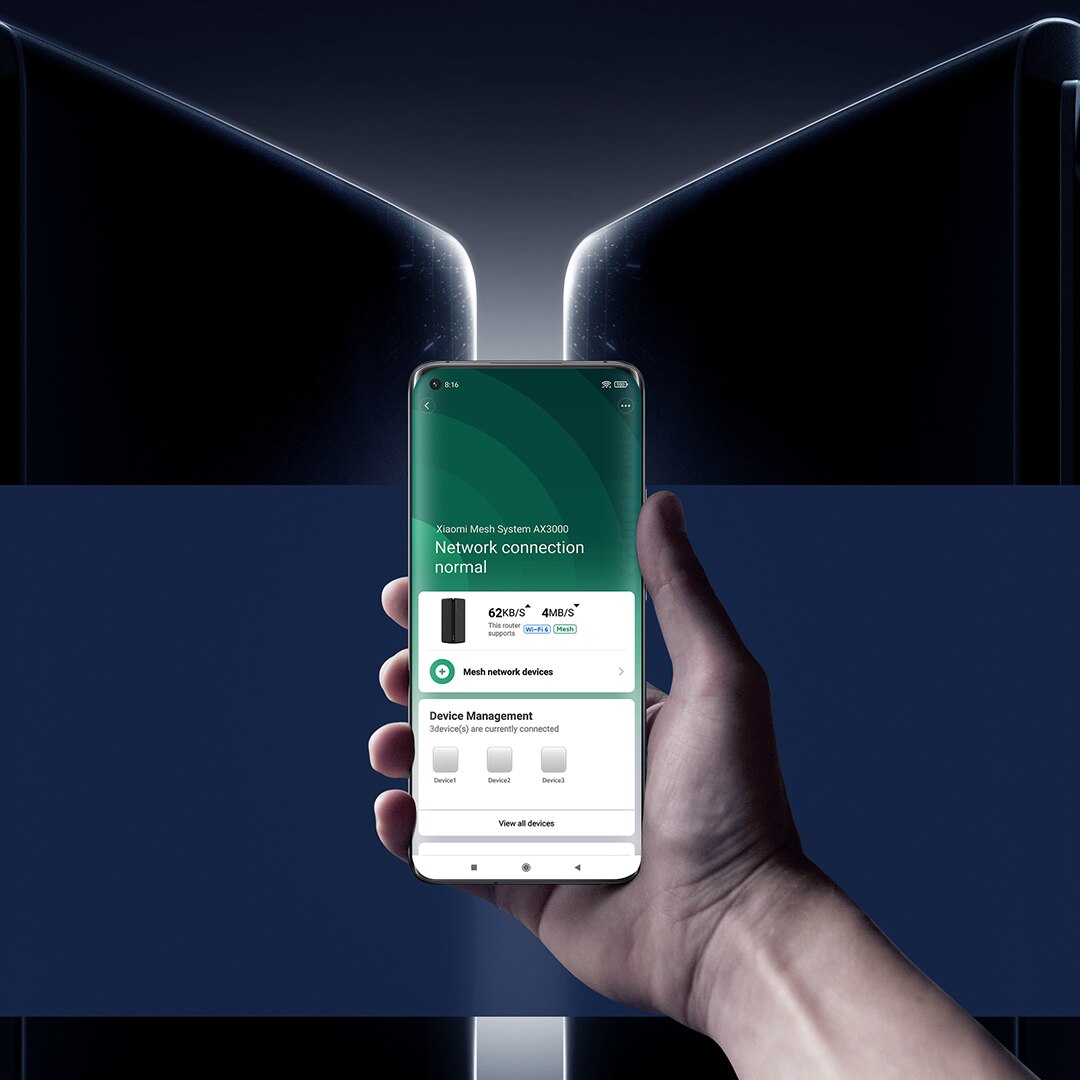

A simpler, smarter user experience
Xiaomi Mesh System AX3000 (2-Pack) supports intelligent control via the Xiaomi Home/Mi Home app, simplifying network configuration so that even novice users can easily access high-speed networks.
One pack, More options
If this package does not meet your needs, we also offer Xiaomi Mesh System AX3000 (1-Pack). Whether you live in a small apartment or a large house with several floors, we have the right on-demand solution for you to create the Internet connectivity you want.Tookfun

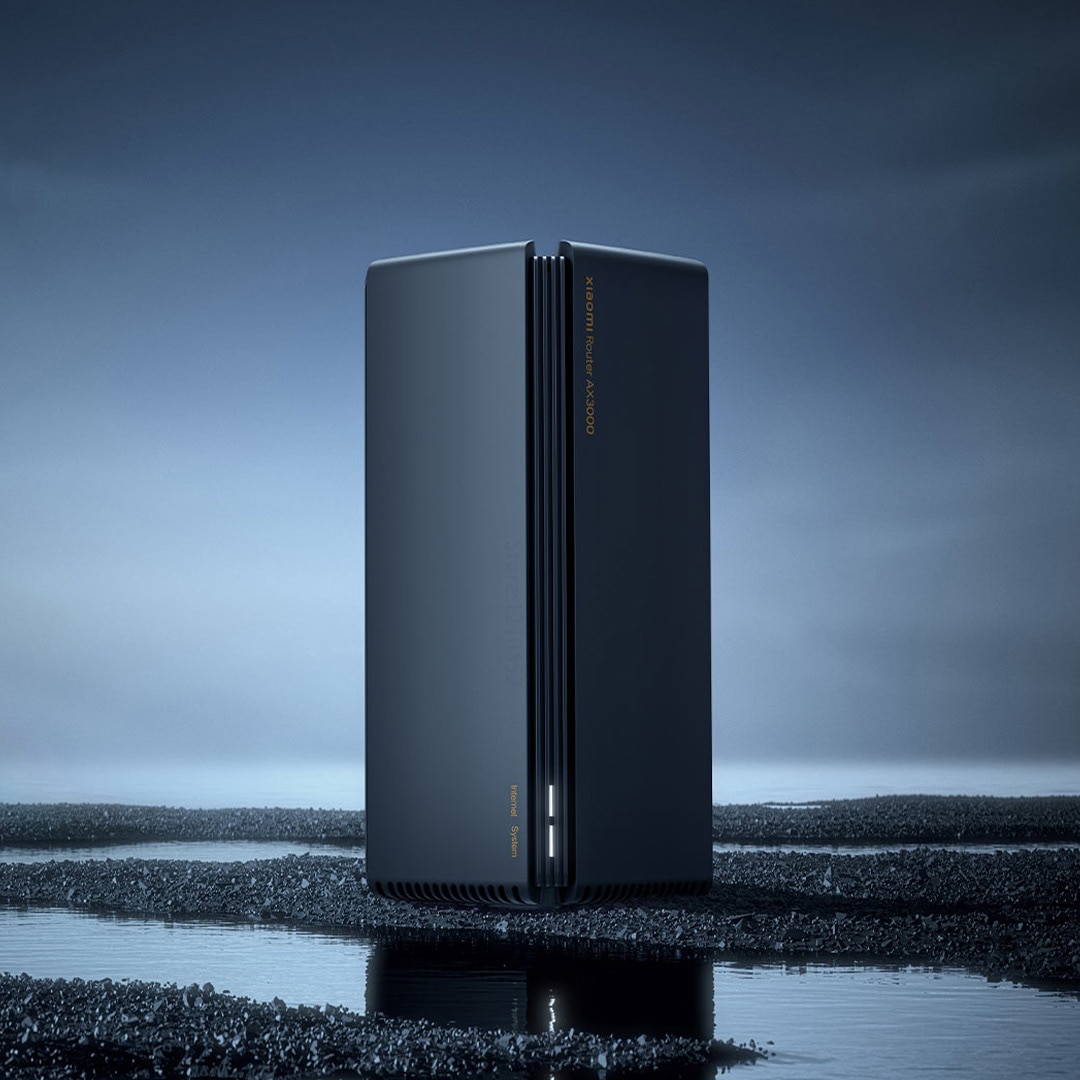

Cool black rectangle cube-shaped design
Concealed dual-band high-performance antennas, tower-type thermal architecture, large channel convection and extra-large metal heat sink ensure stable operability. Tookfun
Greater specialist technology support
Notes:
* Images on this page are illustration and the design of the real product may differ.
* A failure of the first node connected to the ISP will cut off Internet access for the entire network, preventing self-repair. This does not therefore cover the first mesh node used for ISP fibre optic connectivity.
* Only the two Xiaomi Mesh System AX3000 units in the kit are pre-connected to each other at the factory - this is not provided for all Xiaomi's mesh router products.
* 2,976Mbps is the maximum theoretical wireless speed when the 2.4GHz (576Mbps) and 5GHz (2,402Mbps) bands are used concurrently. Actual speeds may vary depending on network conditions and surroundings.
* 254 devices is the total combined 2.4G/5G/LAN connectivity under laboratory conditions.
* Wi-Fi coverage data was tested by Xiaomi's internal lab. Actual Wi-Fi coverage may differ due to network and environmental conditions.
* Use of Wi-Fi 6 (802.11ax), and features including 160Mhz, OFDMA, MU-MIMO, and 1024 QAM require end devices that also support the corresponding features.
We have Europe & Russia & South Korea & United Kingdom & Brazil & United States Local Warehouse:
If you want fast delivery, Please choose "Shipping from Local Warehouse", you will enjoy the local service, This is free shipping.(The goods have passed through customs to the local warehouse, and the store seller has paid customs tax.)
Warranty:
We guarantee that all products are brand original and brand new.
We offer two year official warranty for all electronic product, If there is any damage, You can send the product to the nearest repair center, Or we will send you free parts, you can install them easily by yourself (Please be assured that we will send you the installation video), But if it is damaged by human factors, or if it is destroyed by external forces, you need to pay extra repair fees.
Any after sales service if you need, please contact us via Facebook or VK. @tookfun
Return Policy:
According to the rules, the product has 15 days no reason to return policy, if you don't like the product, please tell us the reason, you can return it and get a full refund.
We guarantee satisfactory service for honest and reasonable buyers.
Shipping Time And Customs From China:
When you choose the goods to be shipped from China, We will use the best shipping method to ship the product, 3-10 days in East Asia, 7-15 days in Europe, 10-15 days in North America, 12-20 days in South America, 7-15 days in Australia.
Buyers are responsible for custom taxes, If you have special requirements for customs declaration value, please contact us and leave a message when you place the order. (For European countries, our store will pay customs tax)
Contact Us & Feedback:
If your product has any problems, broken, quality problems, please don't worry, and please don't leave bad feedback. Please send us an email first, we will reply to you as soon as possible, please allow us to respond within 12 hours.
We understand your mood and will provide the best solution for you, please give us the chance to solve the problem. In any case, please feel free to contact us, we are always here.
Our goal is to make sure you have a happy shopping experience and pleasant shopping with us.
If you are satisfied with our service, please leave us positive feedback and rate the details of the transaction (Detailed Seller Ratings) with a "PERFECT 5 stars". Your recognition will make us more confident to develop business and serve you better.
Look forward to and thank you for your trust.
About TookFun:
TOOKFUN Store is a quality shopping store, Our belief is to adhere to high-quality products, fast and courteous service, best prices, help dear buyers quickly find the ideal product, reduce the difficulty of choosing the product.
We hope to spread health and smart to more families, increase your family's happiness,
enjoy your better life and enjoy your time.
We look forward to your order, this is trust and responsibility, we will defend it.
Thank you very much.
If you like our products, please add our shop to your "My Favorites" list.
- Wi-Fi Supported Frequency: 2.4G & 5G
- WAN Ports: 1 x10/100/1000Mbps
- LAN Ports: 4
- Function: Firewall
- Package: Yes
- Standards And Protocols: Wi-Fi 802.11g
- With Modem Function: Yes
- Type: Wireless
- Brand Name: XIAOMI
- Origin: Mainland China
- Certification: CE
- LxWxH (per unit): 97mm x 97mm x 222mm
- Processor: Qualcomm IPQ5000 Dual-core A53 1.0GHz CPU
- Network processing unit: Single core 1.0GHz NPU
- Memory: 256MB
- Antennas: High gain antennas
- Heat dissipation: Natural heat dissipation
- Protocol standards: IEEE 802.11a/b/g/n/ac/ax,IEEE 802.3/3u/3ab
- Operating system: MiWiFi ROM, a smart router operating system based on OpenWRT
- Management applications: Supports Web, Android, iOS
- Working environment Temperature: 0-40℃
- Operating humidity: 10%-90%RH (non-condensing)
- Storage temperature: -40-70℃
- Storage humidity: 5%-90%RH (non-condensing)
