Freeboss AM-PSM DC 5V Power Supply USB Record Computer Record Sound Card 6 Channel 2 Mono 2 Stereo 16 Effects Audio Mixer
5.0 (4 votes) | 25 orders
Price:
US $81.50 - 102.82
/ piece
Discount Price:
US $
74.99 -
94.59
/ piece
-8%
AM-PSM

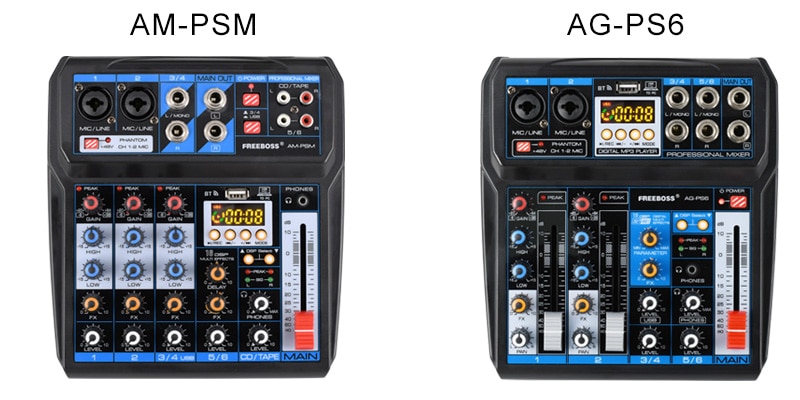

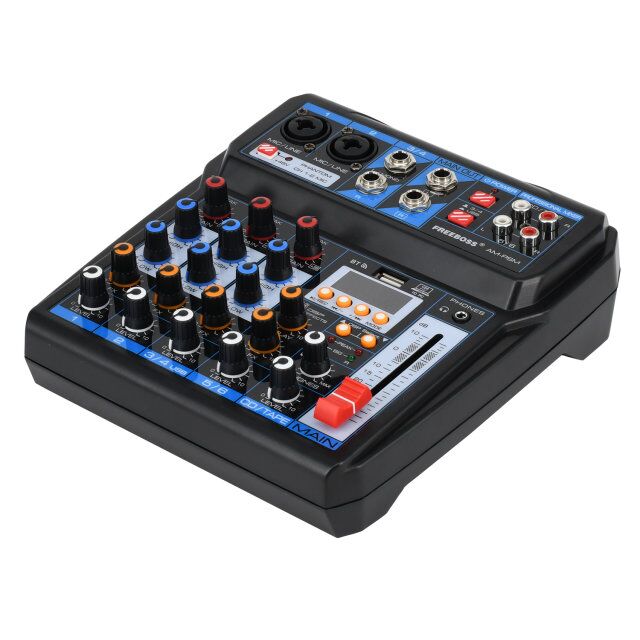

Freeboss AM-PSM DC 5V Power Supply USB Interface 6 Channel 2 Mono 2 Stereo 16 Effects Audio Mixer
****************************************************************************************************************
****************************************************************************************************************

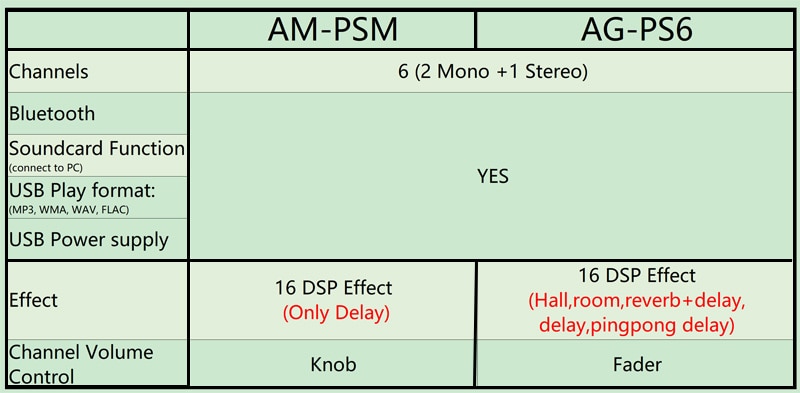

1. AG-PS6 Channel volume control : Fader
2. AG-PS6 Effect:
16 Different effects,
Such as HALL, ROOM, REVERB+DELAY, DELAY, PINGPONG
(For more details, please go to AG-PS6 listing)
****************************************************************************************************************
****************************************************************************************************************
Selling Point
1. Sound card function audio mixer
2. Bluetooth Function
3. USB MP3 Play
4. USB Record
5. Effect:16 effects of delay
6. Portable: plastic body with USB power supply
Features
1. 6 input channels mixer.
2. The network broadcasting karaoke mixer with sound card. They combine
traditionalsound card and mixer function.
3. Built-in Bluetooth, connect with mobile phone and Bluetooth player.
4. Built-in MP3 player to play music in multiple formats and record with LED display.
5. Connect USB to PC to play and record the music.
6. Connect USB to PC or power bank for supplying power, convenience for mobile audioconnectionandoutdoor guitar playing and singing.
7. Exquisite plastic chassis.
8. DC 5V/1A power supply or PC power supply.
General Specification

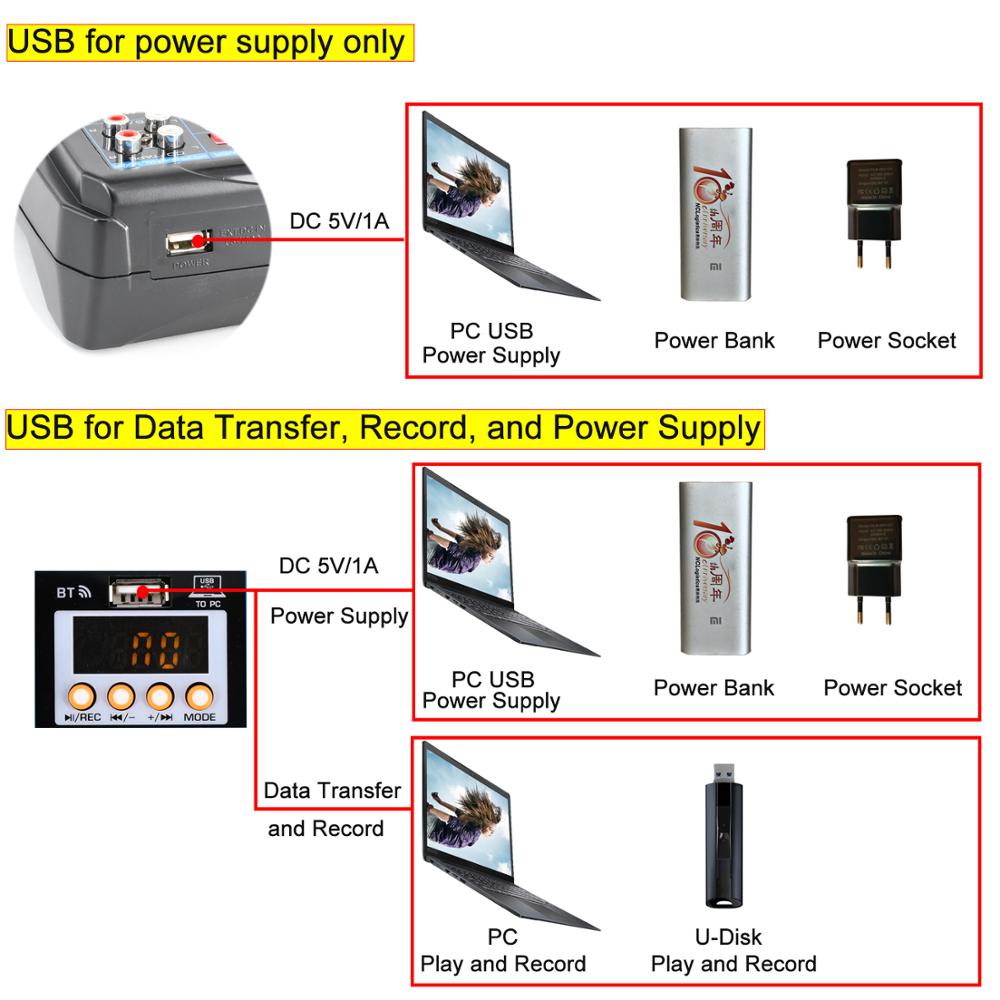

USB Power Supply and Data Transfer
Connected with PC USB port,
Power bank
Power socket
to supply power to mixer.
It must meet the following requirements:
Output voltage: 4.8V to 5.2V
USB and Bluetooth Operating Instructions
1. Button Function:
a) “REC” Button----
Press first time to pause the playing song.
Press again to continue playing.
b) “-“ Button----
Short press to play the previous song.
Long press to reduce the input volume.
c) “+” Button----
Short press to play the next song.
Long press to increase the input volume.

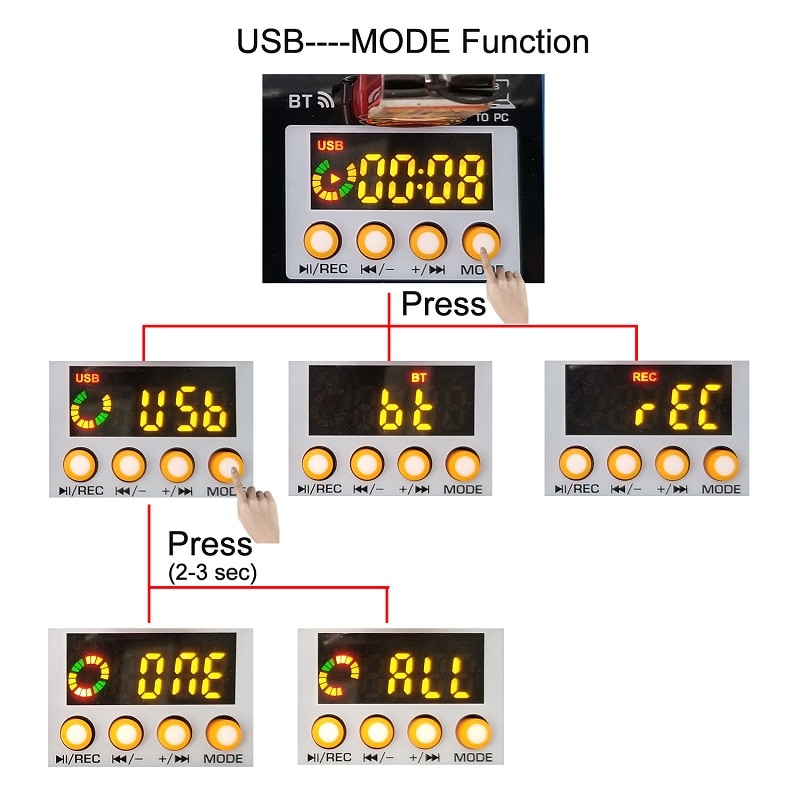

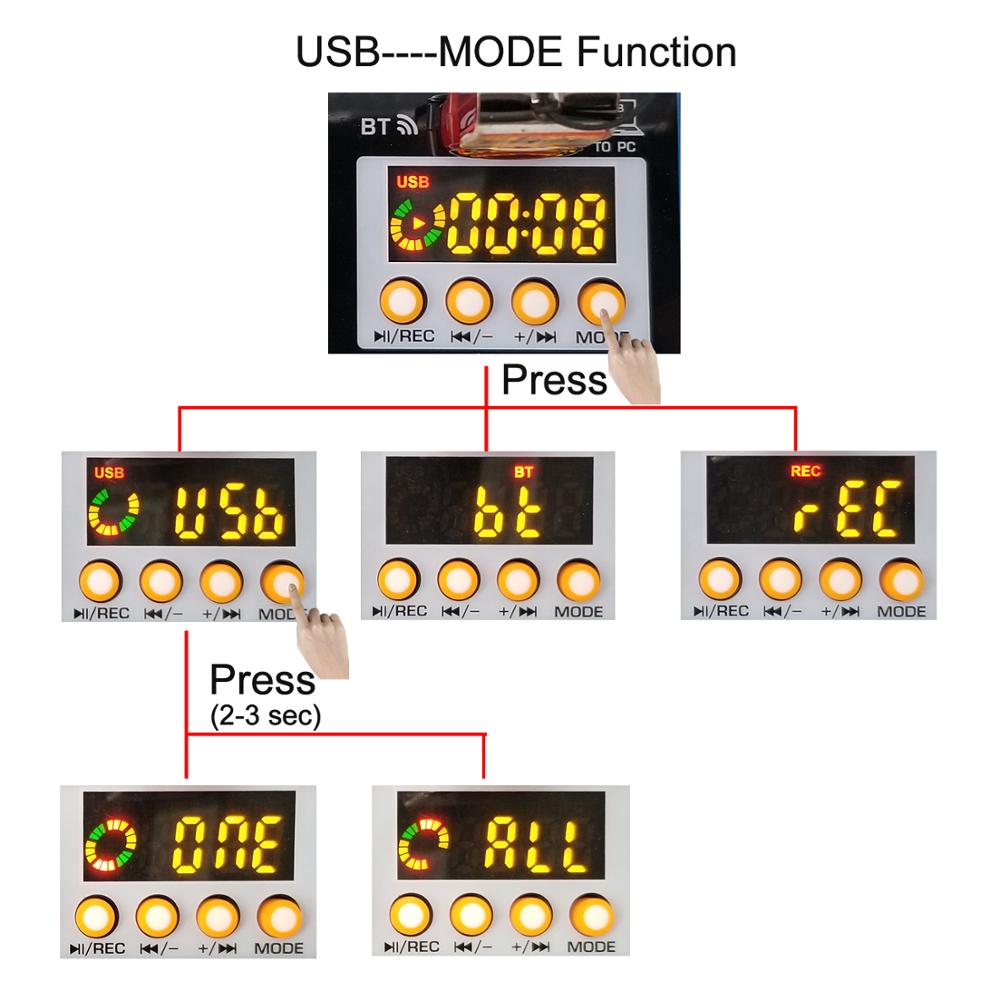

d) "MODE" Button----
Press to switch the functional model.
Select USB, BT, REC in order.
2. Bluetooth Function
a) Press the “MODE” button in order to select the "Bluetooth"mode. After the success of the selection, the Bluetooth icon on display is flashing and display BT.
b) Open the Bluetooth for pairing. After the success of the pairing, there will be a sound prompt.
3. USB Recording operation
a) Press the “MODE” button to select the REC status.
b) Press “REC” button to start recording, the LED screen shows the recording time.
c) Press “REC” button again to pause the recording.
d) Press the “MODE” button back out the recording.

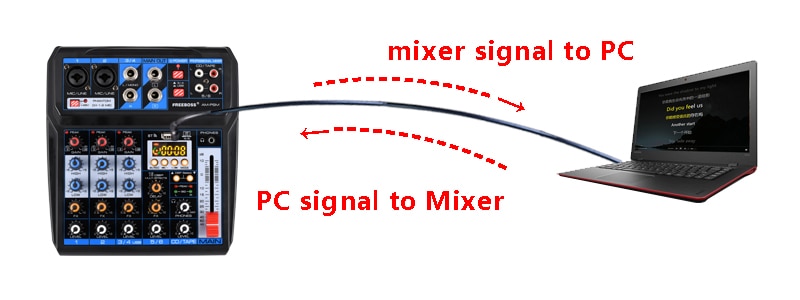

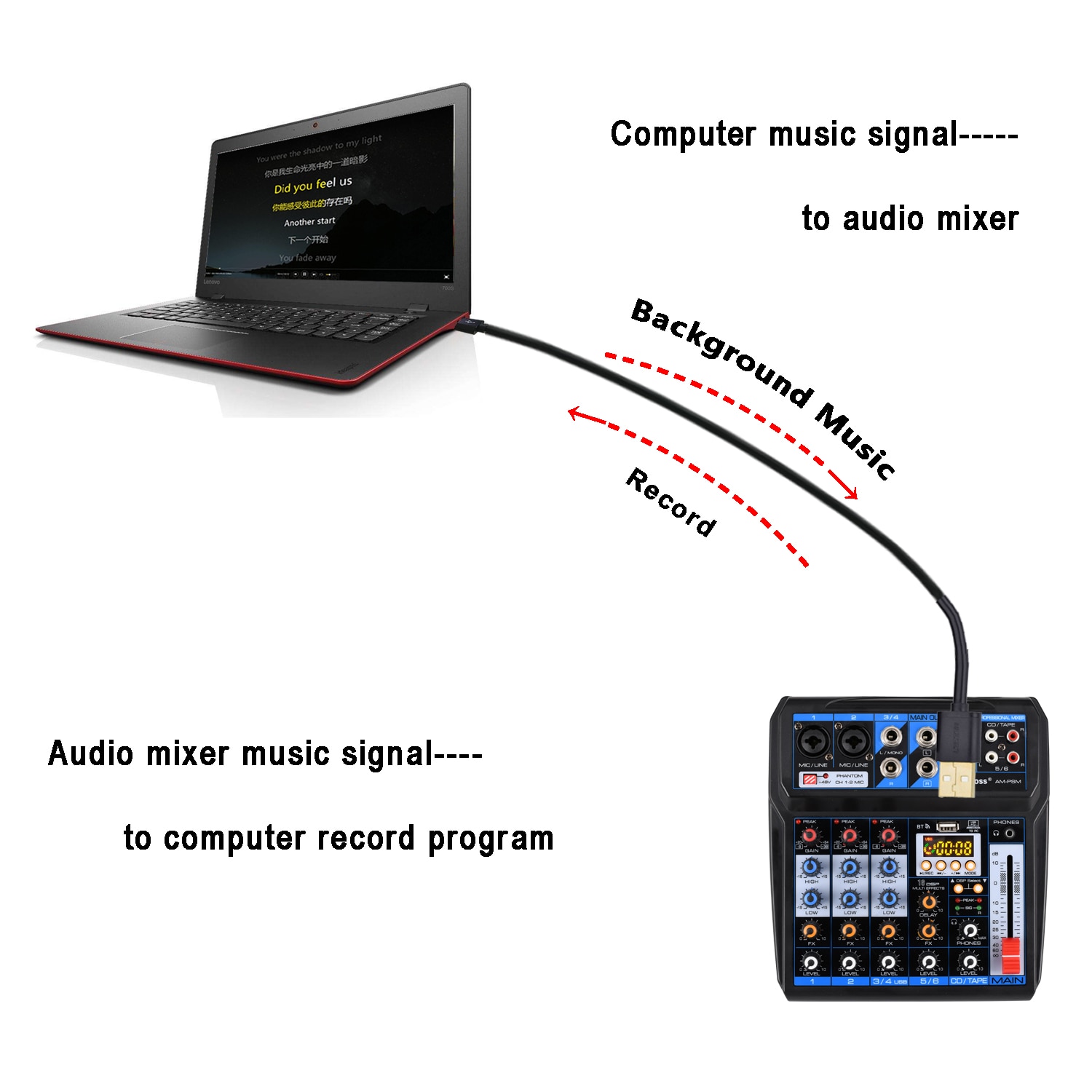

4. Sound Card Function
When connect the computer data cable, it will enter the PC playing states automatically .
(The computer will install the driver automatically at the first connection, need to wait until the installation finish, to play or record)

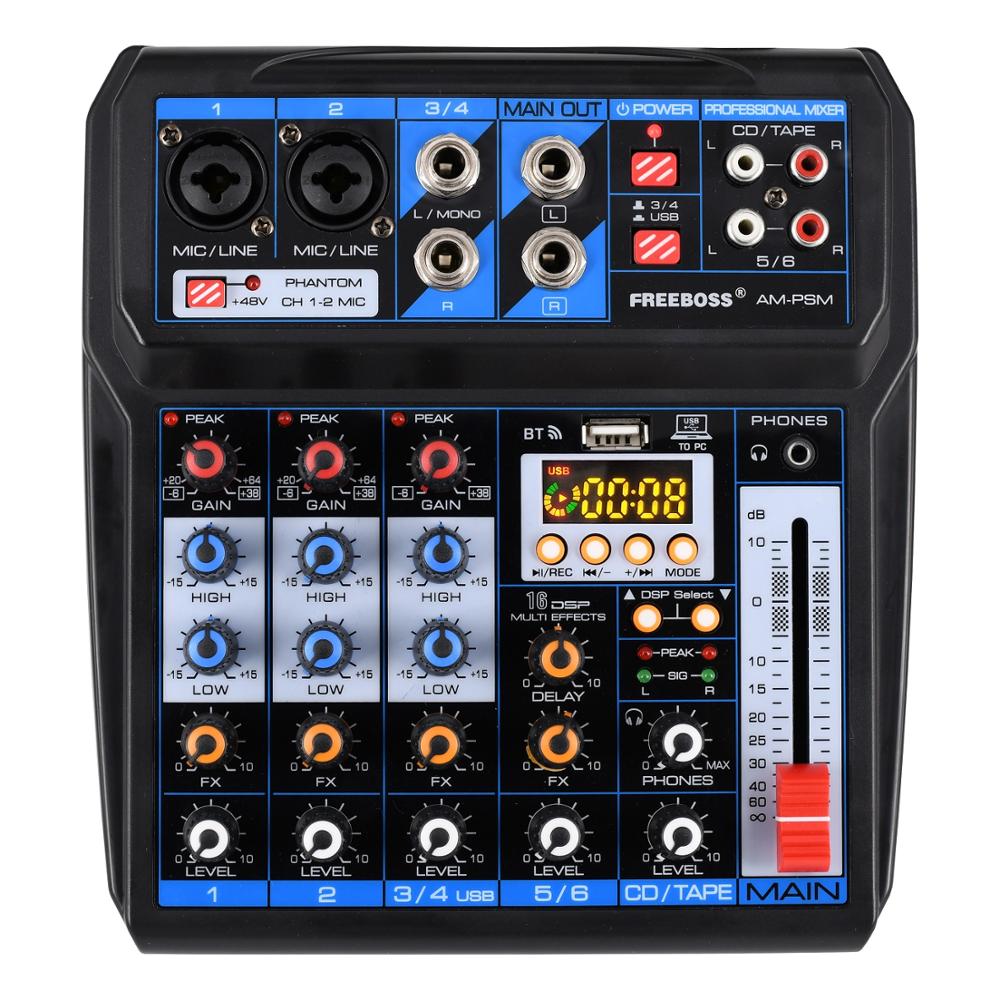

Details
1.[MIC/LINE] MONO input
connect the microphone, musical instrument or audio device (CD player and so on) to the device. The sockets are supporting both XLR and UNBALANCED 1/4” PLUG.
2.Stereo channel input.
If only connect to L/(MONO) socket, the mixer will send out the same mono signal to L and R outputs.
3.[MAIN] Output
connects the active speaker or amplifier.
4.[POWER]
Power controls switch.
5.[TAPE/CD]
TAPE/CD signal input.
6.[UNBAL5/6]
Stereo input
7.[Converting switch]
for “stereo channel” and “USB signal
8.[+48V PHANTOM] Button/LED,
When the button is turned on, the LED light is on, provide DC+48V phantom power to XLR plug on MIC mono input.Please turn on this button when using the condenser microphone which is powered by a phantom power.

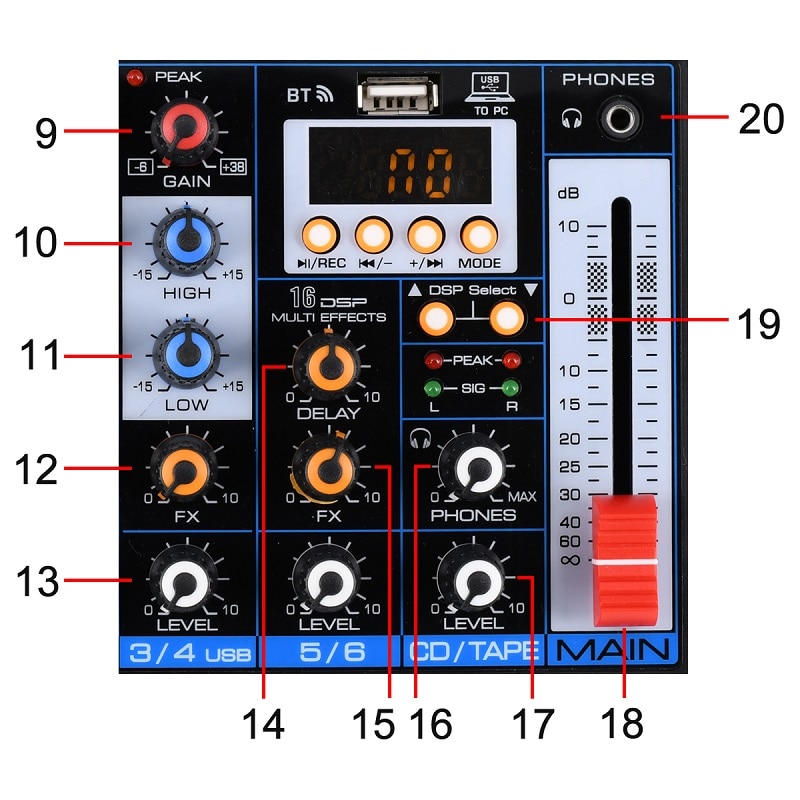

9.[GAIN] Controller
Determine the basic volume of each channel, adjusts them for the maximum volume performance.
When the volume gets too loud, the [PEAK] LED indicator light will keep flashing.
10.[HIGH] Treble tone controller
Adjust the controller to enhance or attenuate for 15db at 12KHz.
11.[LOW] Bass tone controller
Adjust the controller to enhance or attenuate for 15db at 80Hz.
12.[FX] Controller
Adjust the signal level from the channel to the reverberation line.
Please note, the single level will vary with the different setting of the channel attenuator. If using the stereo channel, will mix the signals from L and R channels, then send it to reverberation line.
13. [LEVEL] Controller
Adjust to balance the volume of each channels.
14. [DELAY] Controller
Adjust the depth of the reverberation.
15. [FX LEVEL]
Effects return to level controller and adjust the volume of effect.
16.[PHONES LEVEL] Earphone controller
Adjust the volume of earphone.
17. [CD/TAPE LEVEL] Controller
Adjusts to balance the volume of each channels.
18.[MAIN LEVEL] Fader
Adjust the overall volume from [MAIN] output signal.
19.[DSP SELECT]
Press UP or DOWN button to select from 16DSP.
20.[PHONES] Socket
Connect a 3.5mm earphone.
The socket is supporting stereo phone plug.
Output

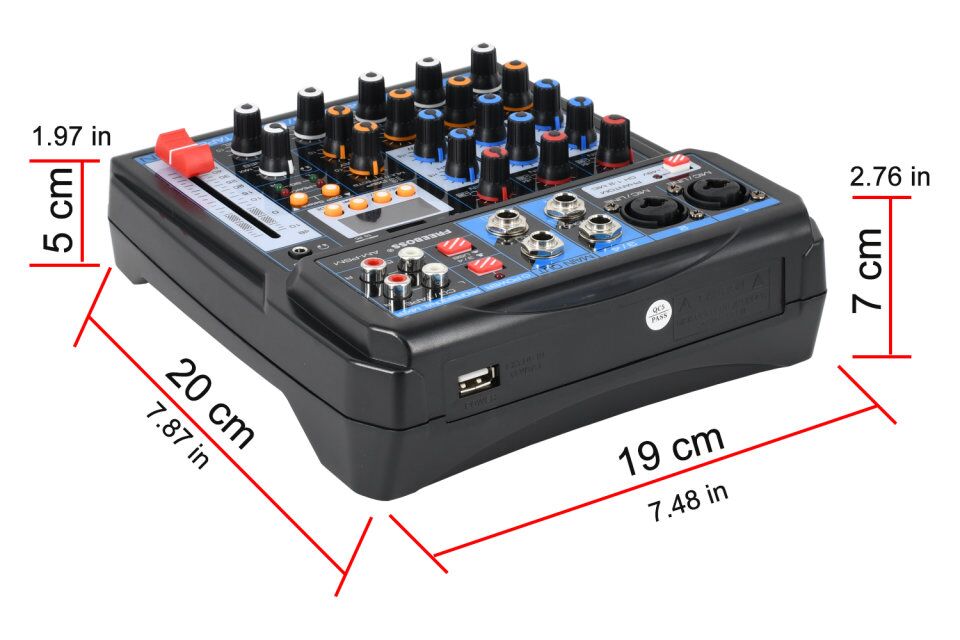

Product Size
20 * 19 * 7 CM
7.87 * 7.47 * 2.76 IN

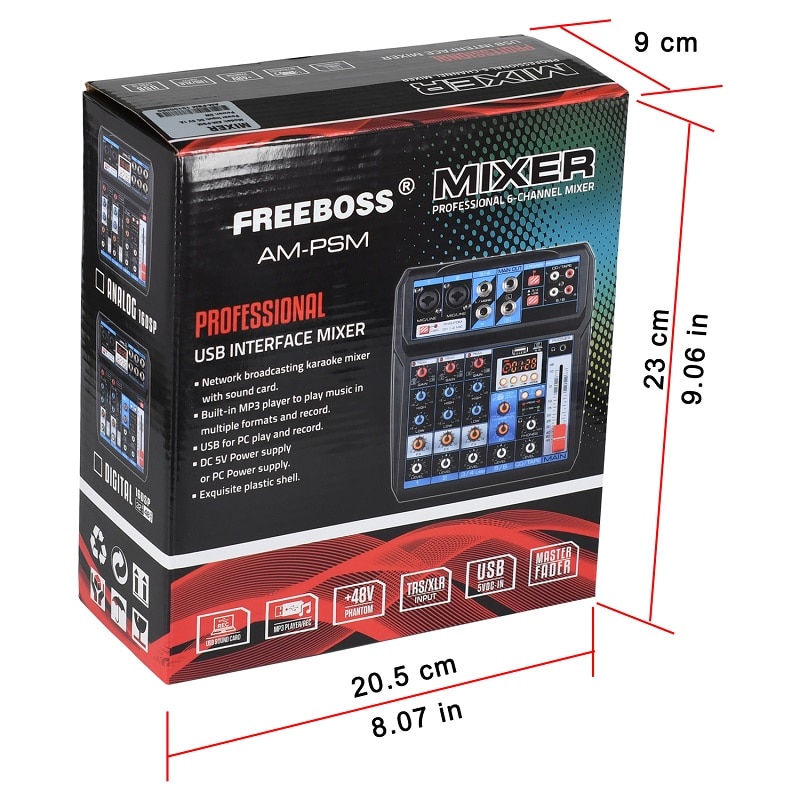

Color box size:
23 * 20.5 * 9 CM
9.06 * 8.07 * 3.55 IN
Packing List:
1 X Mixer
1 X Power Adapter
1 X USD Cable
1 X User Manual (English)
- Bundle: Bundle 1
- Model Number: AM-PSM
- Type: Mixers
- Brand Name: FREEBOSS
- Origin: Mainland China
- Certification: NONE
- Frequency Response: 20Hz-20kHz
- Effect: Analog
- Channel: 6 channel
- Phantom Power Voltage: 48V
- Power Input: EXT.DC IN:5V-1A/2.0Type-A
- USB: record, Mp3 play, power supply
- Bluetooth: YES
- application: dj mixer, audio mixer, party
