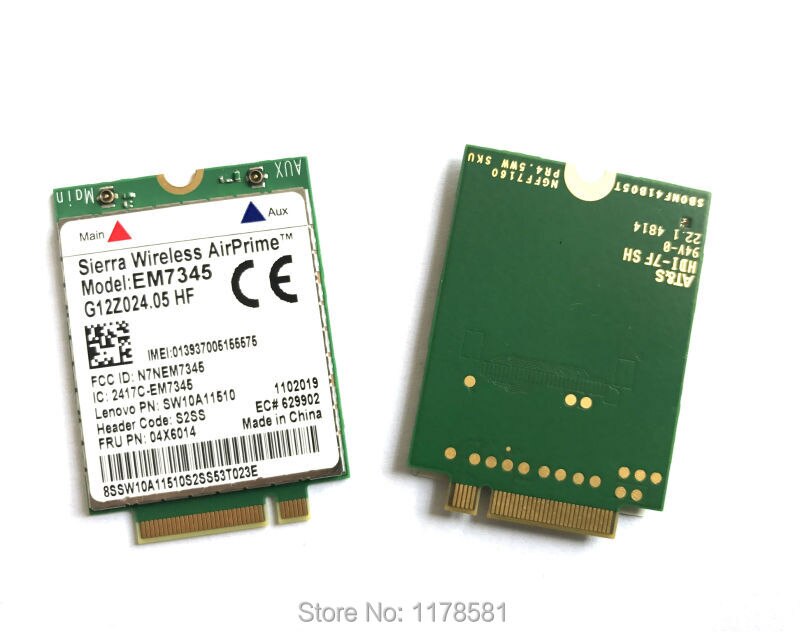

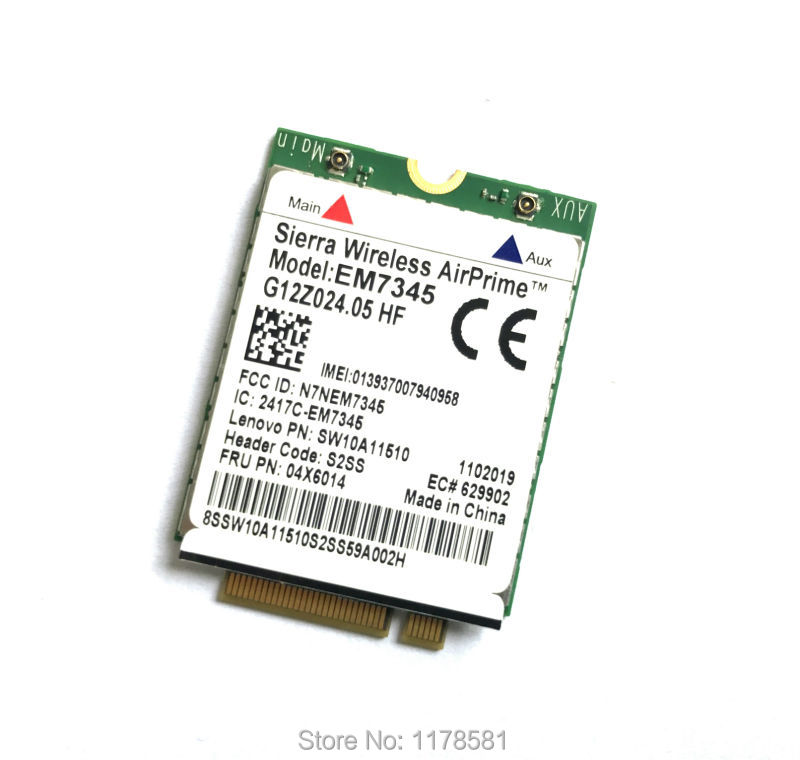

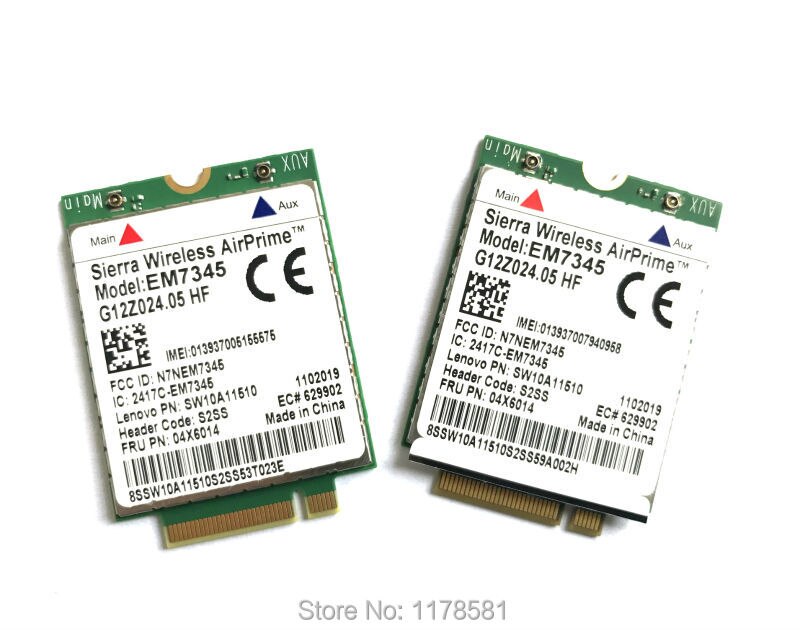

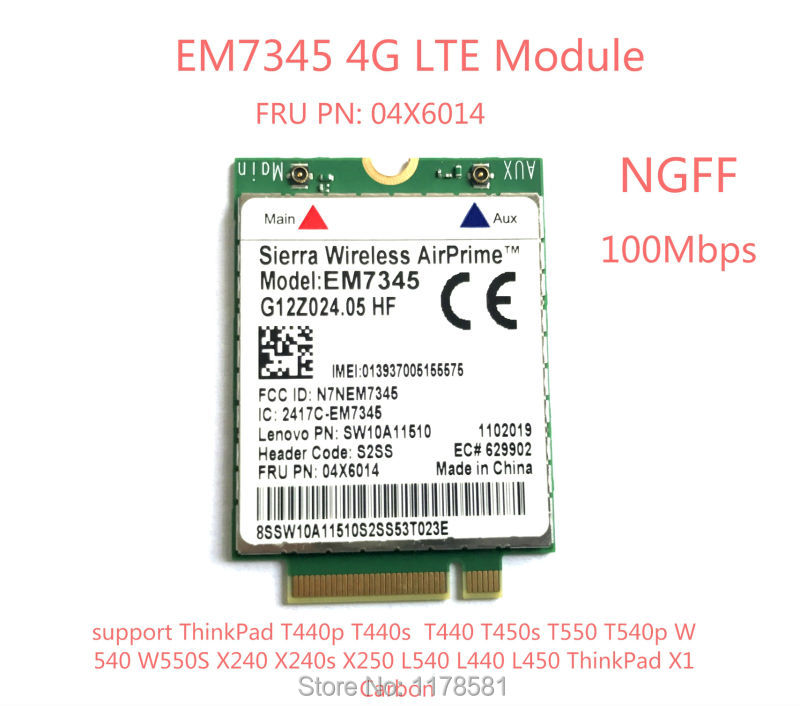

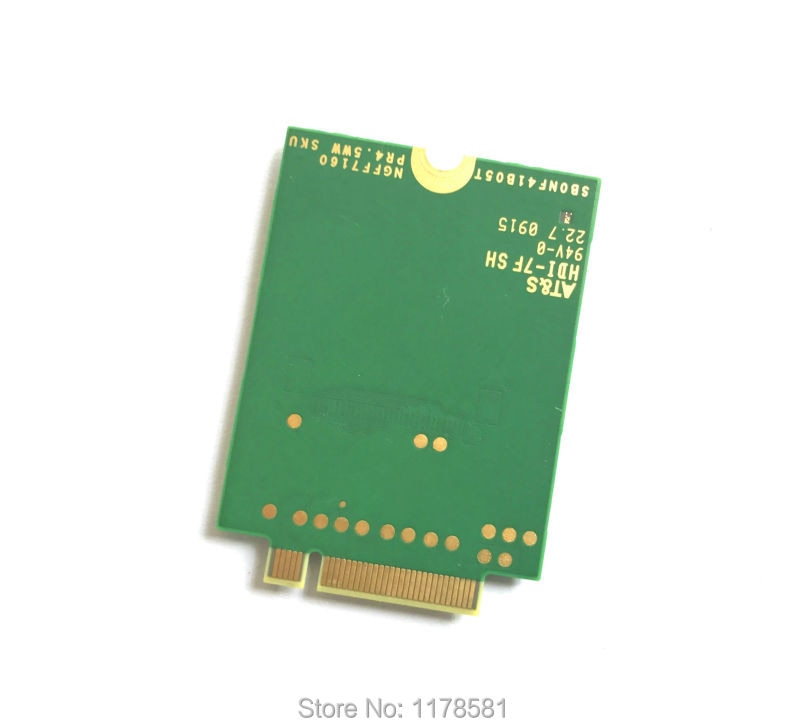

EM7345 4G Card for T440 T540P W540 L440 X240 X1 Carbon 4G Module NGFF M.2 WWAN Card 04X6014 4G LTE/HSPA+ 42Mbps Card

0.0 ( votes) | 2 orders
Price: US $32.45 / piece
Discount Price:
US $ 23.32 / piece
-28%
Quantity

EM7345 4G LTE Mobile Broadband - Overview and Service Parts

FRU PN:04X6014

FRU PN:04X6092

Two number Random shipping

Features and specifications


The  EM7345 4G LTE Mobile Broadband is a wireless WAN-ready option that provides high speed on the go internet access. WWAN is a predictable, cost efficient remote access solution. Instead of managing the setup, use, and payment of multiple connectivity solutions for your remote workers (remote office connectivity, hotel and airport Wi-Fi, and home office access), you can use a single, cost-effective solution with wide national coverage, consistent experience, simple setup, comprehensive support, and predictable cost.

Features and Benefits of ThinkPad EM7345 4G LTE (4XC0F46957):

  • LTE/HSPA+ Support

  • Open SIM

  • Supports EMEA countries, Australia and New Zealand

  • Delivers a true broadband experience to any device, anytime, anywhere.

Technical Information:

  • UMTS(WCDMA)/HSPA+ supported bands:
    • Band 1 (2100MHz)

    • Band 2 (1900MHz)

    • Band 4 (AWS 1700/2100 Mhz)

    • Band 5 (850MHz)

    • Band 8 (900MHz)

  • LTE supported bands:
    • Band 1 (2100MHz)

    • Band 2 (1900MHz)

    • Band 3 (1800MHz)

    • Band 4 (AWS 1700/2100 Mhz)

    • Band 5 (850MHz)

    • Band 7 U:2500 MHz - 2570 MHz D:2620 MHz - 2690 MHz

    • Band 8 U:880 MHz - 915 MHz D:925 MHz - 960 MHz

    • Band 13 (700MHz)

    • Band 17 (700Mhz)

    • Band18 U:815 MHz - 830 MHz D:860 MHz - 875 MHz

    • Band19 U:830 MHz - 845 MHz D:875 MHz - 890 MHz

    • Band 20 U:832 MHz - 862 MHz D:791 MHz - 821 MHz

  • GSM/GPRS/EDGE data at 850 MHz, 900 MHz, 1800 MHz, and 1900 MHz

  • GPS data at 1575.42MHz and 1227.6MHz

  • GLONASS data at 1602Mhz and 1246MHz

Performance Specifications:

  • Supported Voltage range: 3.135 V to 3.6 V

  • Operating Voltage: 3.3V

  • VBAT voltage range: 3.135V to 4.4V

  • Average Standby Power (RF radio off) < 10mW

  • Selective Suspend support (connected to network) <4mW

  • Data Transfer Peak current is 2.5 A

  • HSPA+ data rates downlink up to 42 Mbps and Uplink up to 5.7Mbps

  • GPRS class 33

  • EDGE class 33

  • WCDMA

Operating environment:

  • The module full operating temperature in compliance with 3GPP specification shall be -10 °C to +55 °C.

  • Extreme operating condition: +55 °C to +70 °C

Non operating environment:

  • Temperature: -40 deg to 70 deg (B) (-40 deg to 158 deg (F)

  • Relative humidity: 5% to 95%




  • Card Type Device: 4G Card
  • Application: Laptop
  • Wireless Protocol: LTE
  • Transmission Rate: DL:100M UL:50M
  • Package: Yes
  • Kind: Internal
  • Interface Type: NGFF
  • Type: Wireless
  • Certification: CE,FCC
  • Model Number: EM7345
  • Brand Name: HUASJ
  • Origin: Mainland China
