Eastforfuy LSI00198 9260-8i SGL 8-port 6Gb / s SATA / SAS RAID 5, 6 PCI-Expre W / 512M RAID card 6Gb with accelerated hard KEY

0.0 ( votes)
Price:
US $ 205.09 / piece
Quantity


MegaRAID SAS9260 - 8i and MegaRAID SAS9260DE - 8i

Solution Provided

Eight-port internal SATA+SAS solution for high-density servers and workstations using up to128 drives with the flexibility to

use both SATA and SAS hard drives and solid state drives (SSDs)

Physical Dimensions

MD2 Low profile (6.6” X 2.536”)

Connectors

Two Mini-SAS SFF-8087 internal connectors

Device Support

Up to 128 SATA and/or SAS hard drives and SSDs

Host Bus Type

x8 lane PCI Express 2.0 Compliant

Data Transfer Rates

Up to 6Gb/s per port

I/O Processor/SAS Controller

LSI SAS 2108 RAID-on-Chip (ROC)

Cache Memory

512MB 800MHz DDR II SDRAM

Battery Backup Unit

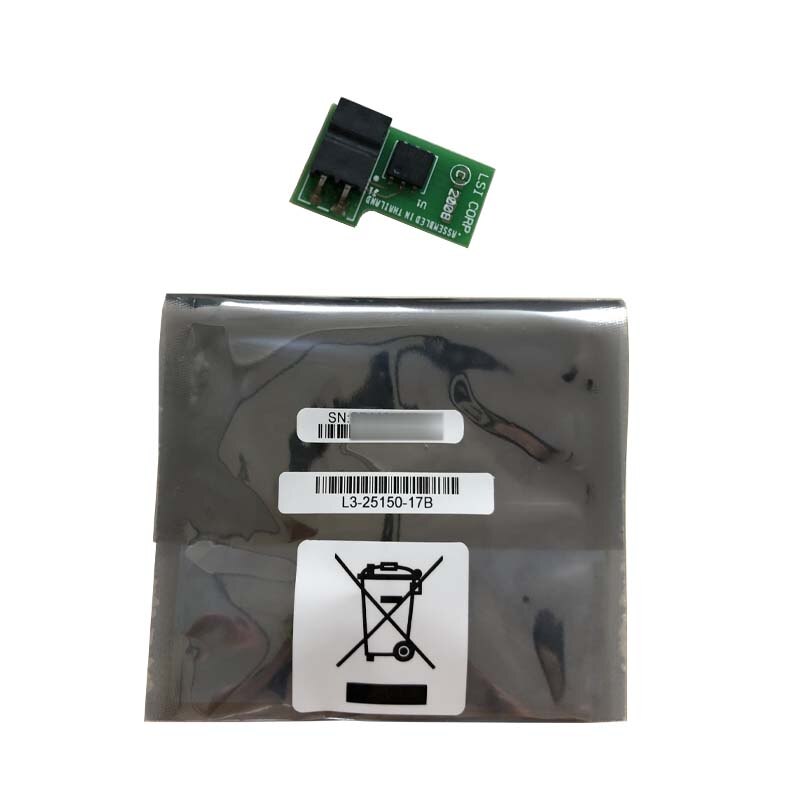

LSIiBBU08, an intelligent battery backup module option that directly connects to the controller

Key RAID Data Protection Features

•    RAID levels 0, 1, 5, and 6

•    RAID spans 10, 50 and 60

•    Online Capacity Expansion (OCE)

•    Online RAID Level Migration (RLM)

•    Auto resume after loss of system power during array rebuild or reconstruction (RLM)

•    Single controller Multipathing (failover)

•    Load Balancing

•    Configurable stripe size up to 1MB

•    Fast initialization for quick array setup

•    Check Consistency for background data integrity

•    SafeStore™ Encryption Services

–Instant Secure Erase

–Local Key Management*

•    SSD Support with SSD Guard™

•    Patrol read for media scanning and repairing

•    64 logical drive support

•    DDF compliant Configuration on Disk (COD)

•    S.M.A.R.T support

•    Global and dedicated Hot Spare with Revertible Hot Spare support

–Automatic rebuild

–Enclosure affinity

–Emergency SATA hot spare for SAS arrays

•    Enclosure management

–SES (inband)

–SGPIO (sideband)

Operating Temperature

Maximum ambient: 60°C (44.5°C w/iBBU)

Operating Voltage

+3.3V

Warranty1

1years

Regulatory Certifications

EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC;BSMI;

RAID Management

MegaRAID Management Suite

– MegaRAID Storage Manager™

– MegaCLI (command-line interface)

– WebBIOS

OS Support

Extensive support includes Microsoft® Windows® Vista/Server 2003, Linux® and more.


  • Model Number: 9260-8i
  • Brand Name: eastforfuy
  • Origin: Mainland China
  • Certification: NONE
