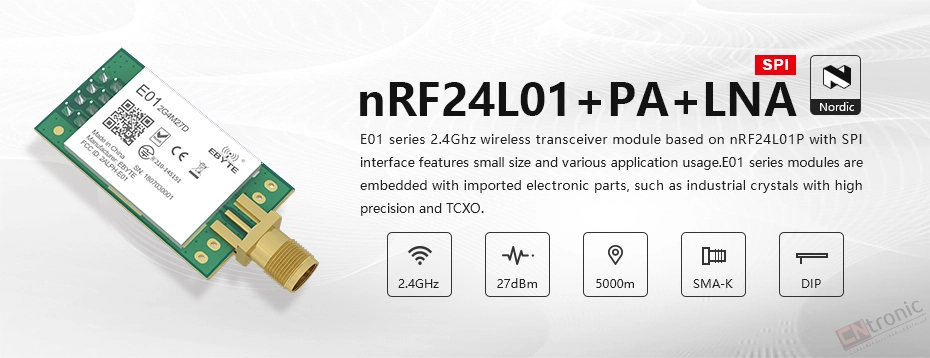

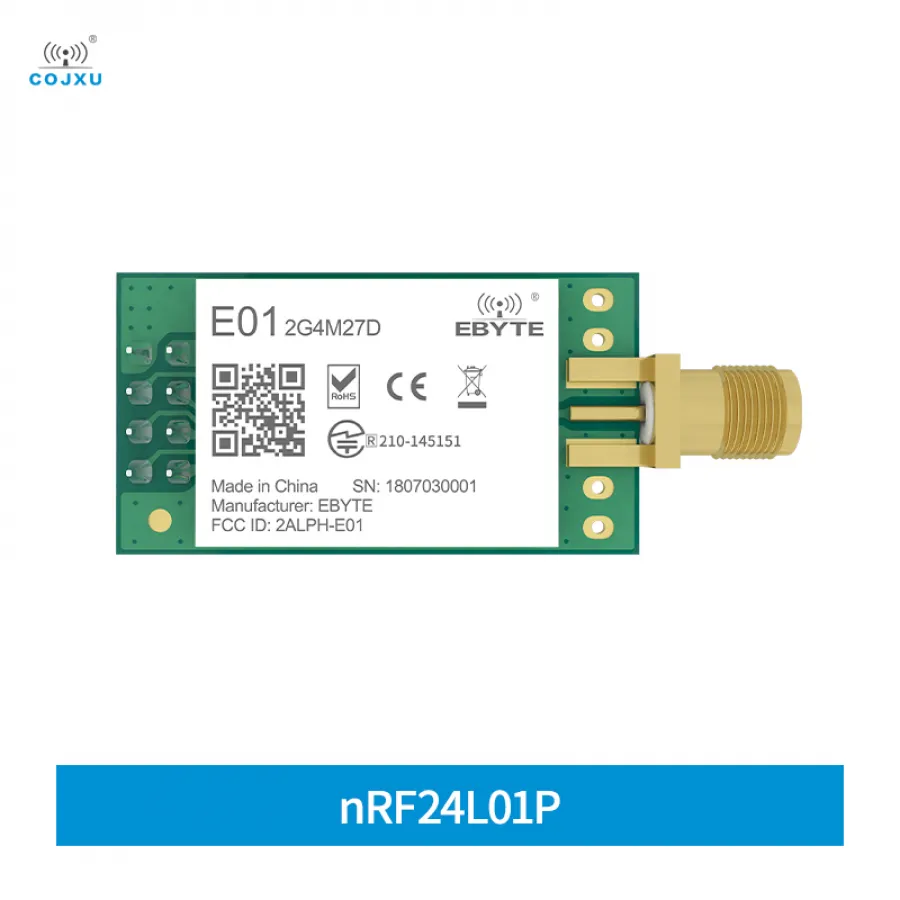

COJXU nRF24L01P 2.4GHz Wireless Module Transmitter and Receiver 27dBm 5km Long Distance E01-2G4M27D SPI Transceiver PA LNA
ID: 133041

COJXU nRF24L01P 2.4GHz Wireless Module Transmitter and Receiver 27dBm 5km Long Distance E01-2G4M27D SPI Transceiver PA LNA

5.0 (8 votes) | 28 orders
Price: US $28.68
Discount Price:
US $ 27.18
-5%
Quantity

Buy Now
Add to Cart

Download Files:
PCB:https://www.cdebyte.com/Uploadfiles/Files/2022-1-11/20221111351244254.zip
DEMO:https://www.cdebyte.com/Uploadfiles/Files/2022-1-11/20221111351291797.zip
User Manual:https://www.cdebyte.com/pdf-down.aspx?id=1712

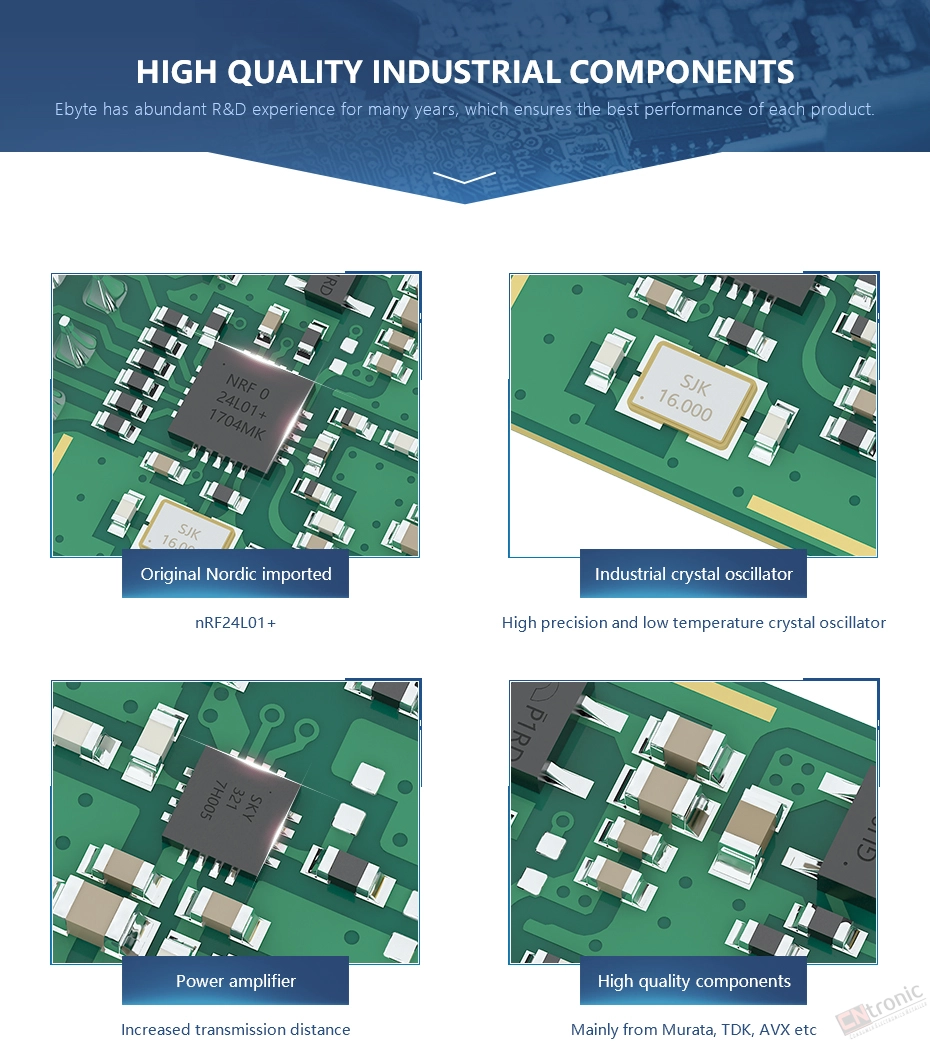

RF Parameter

Value

Remark

Working frequency

2400~2525 MHz

Default:  2.4GHz (16MHz oscillator)

Transmitting power

27 dBm

Max. Power (500mW)

Receiving sensitivity

-99 dBm

Air data rate: 250kbps

Air data rate

250k~2Mbps

Default: 250kbps

Test distance

5000m

In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,

air data rate: 250kbps

Hardware Parameter

Value

Remark

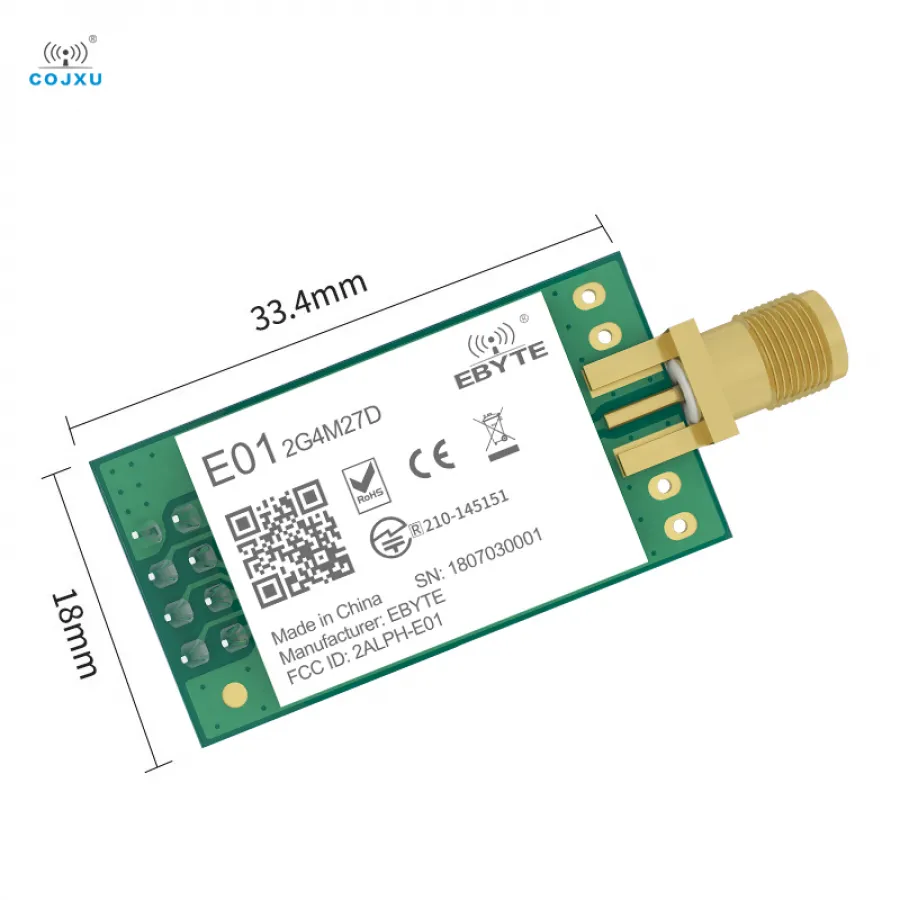

Size

18 * 33.4 mm

Without SMA

Antenna type

SMA-K


Communication interface

SPI


Package

DIP


Electronic parameter

Min.

Typ.

Max.

Unit

Condition

Power supply

2.5

3.3

5.5

V


Communication level

2.0

3.3

3.6

V


Transmitting current

480

490

500

mA

3.3V

Transmitting current

380

390

400

mA

5.0V

Receiving current

22

23

24

mA

3.3V

Receiving current

21

22

23

mA

5.0V







Operating temperature

-40

20

+85

℃


Operating humidity

10

60

90

%


Storage temperature

-40

20

+125

℃

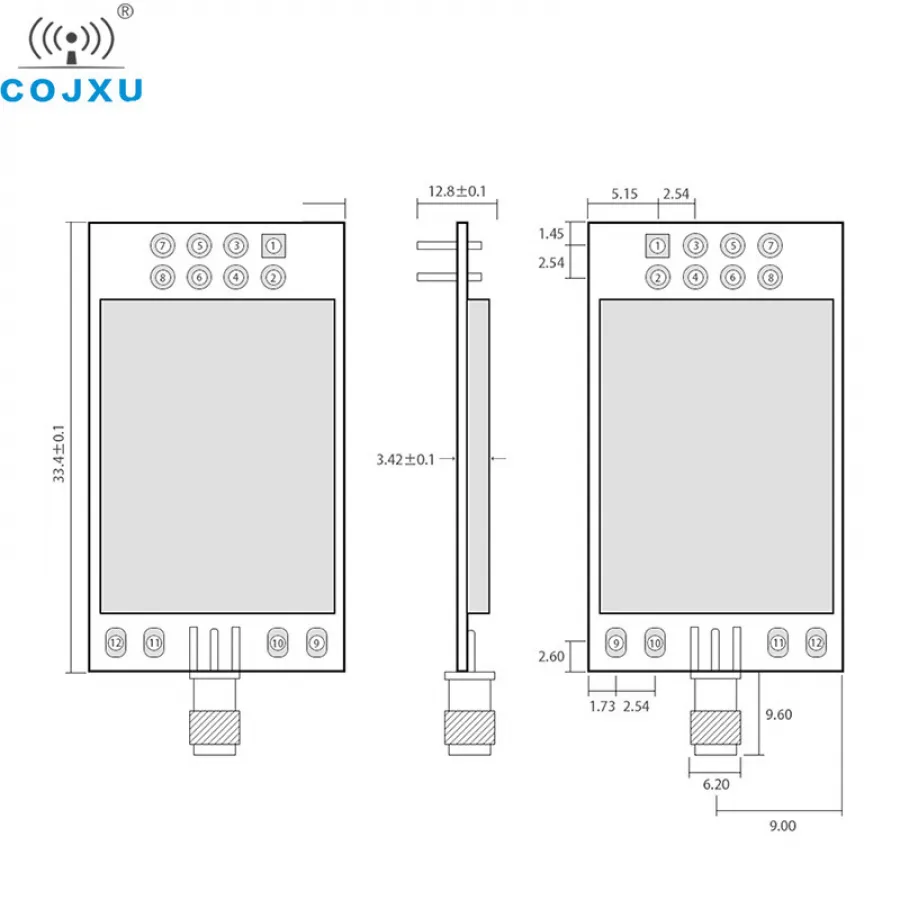

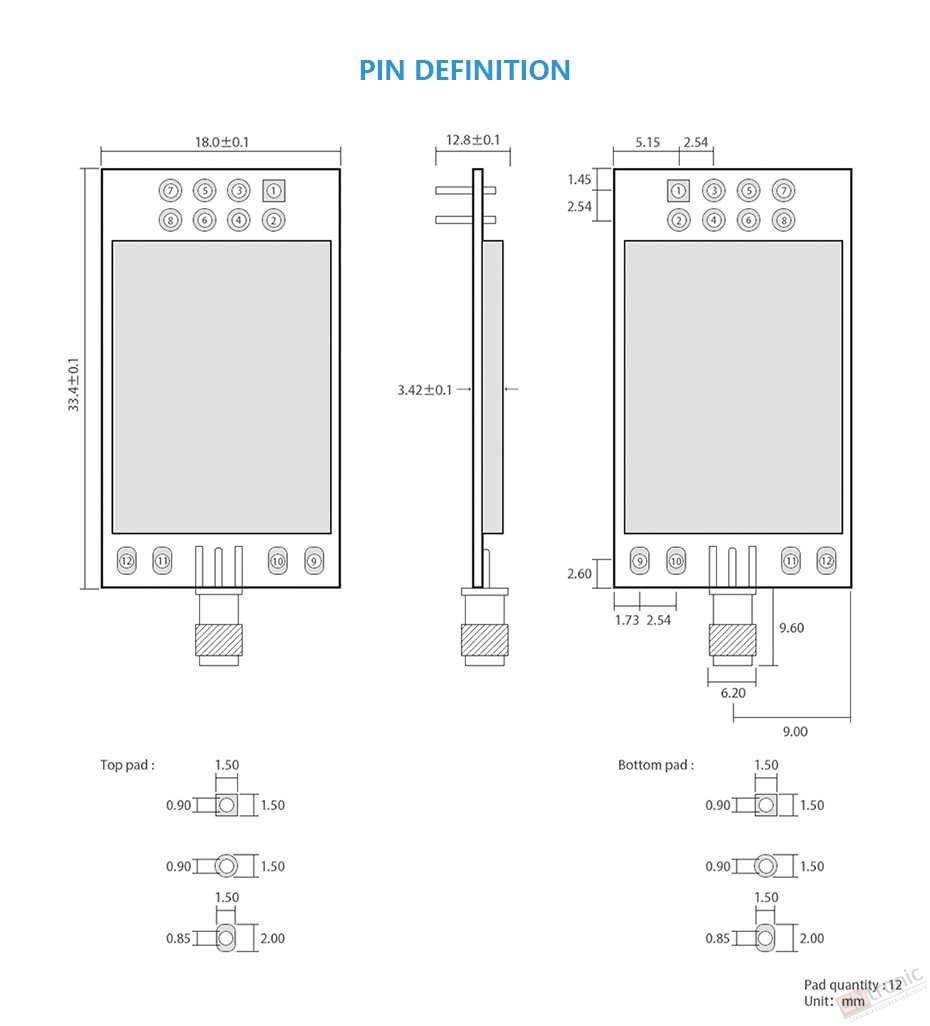

Pin No

Pin item

Pin direction

Pin application

1

GND

-

Ground

2

VCC

-

Powersupply 2.5V~5.5V DC, it's recommended to use 3.3V.

3

CE

Input

Chip enable

4

CSN

Input

SPI chip select

5

SCK

Input

SPI clock

6

MOSI

Input

SPI master output slave input

7

MISO

Output

SPI master input slave output

8

IRQ

Output

Interrupt request, valid in low communication level


Packaging Details

  • Unit Type:
  • Package Weight: 0.001
  • Package Size: 13x6x19

  • Brand Name: cojxu
  • Origin: Mainland China
  • Certification: None
  • Working Frequency: 2400~2525 MHz
  • Port Number: 1
  • Model Number: E01-2G4M27D
  • IC: nRF24L01P
  • Working frequency: 2400~2525 MHz
  • Size: 18 * 33.4 mm
  • Transmitting power: 27 dBm
  • Distance: 5000m
  • Antenna type: SMA-K
  • Communication interface: SPI
  • Is-customized: Yes
  • Place of origin: CN
