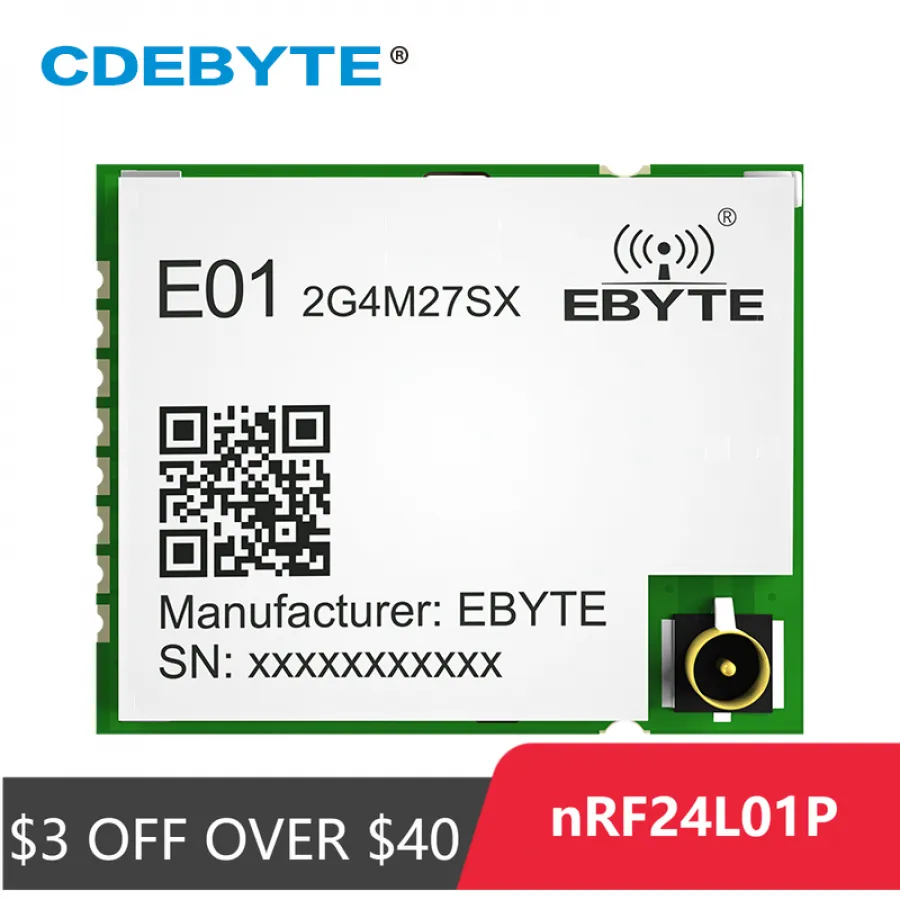

CDEBYTE E01-2G4M27SX nRF24L01P 2.4GHz internal PA LNA 4km SMD 27dbm GFSK SPI wireless module
SALE
NEW
ID: 133017

CDEBYTE E01-2G4M27SX nRF24L01P 2.4GHz internal PA LNA 4km SMD 27dbm GFSK SPI wireless module

4.2 (6 votes) | 49 orders
Price: US $28.86
Discount Price:
US $ 27.22
-6%
Quantity

CDEBYTE E01-2G4M27SX nRF24L01P 2.4GHz internal PA LNA 4km SMD 27dbm GFSK SPI wireless module

[Introduction]:E01-2G4M27SX is a 2.4GHz SMD wireless module with ultra-small size and maximum transmit power of 500mW independently developed based on nRF24L01P produced by Nordic in Norway. The original imported nRF24L01P is used to ensure its compatibility.

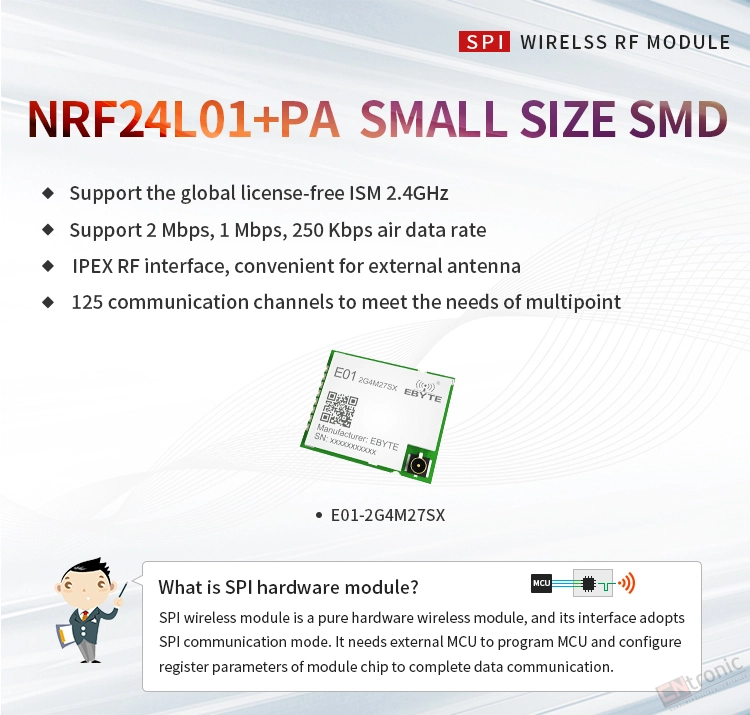

SPI WIRELESS RF MODULE

NRF24L01+PA SMALL SIZE SMD

*Support the global license-free ISM 2.4GHz

*Support 2Mbps,1Mbps,250Kbps air date rate

*IPEX RF interface,convenient for external antenna

*125 communication channels to meet the needs of the multipoint





Features:

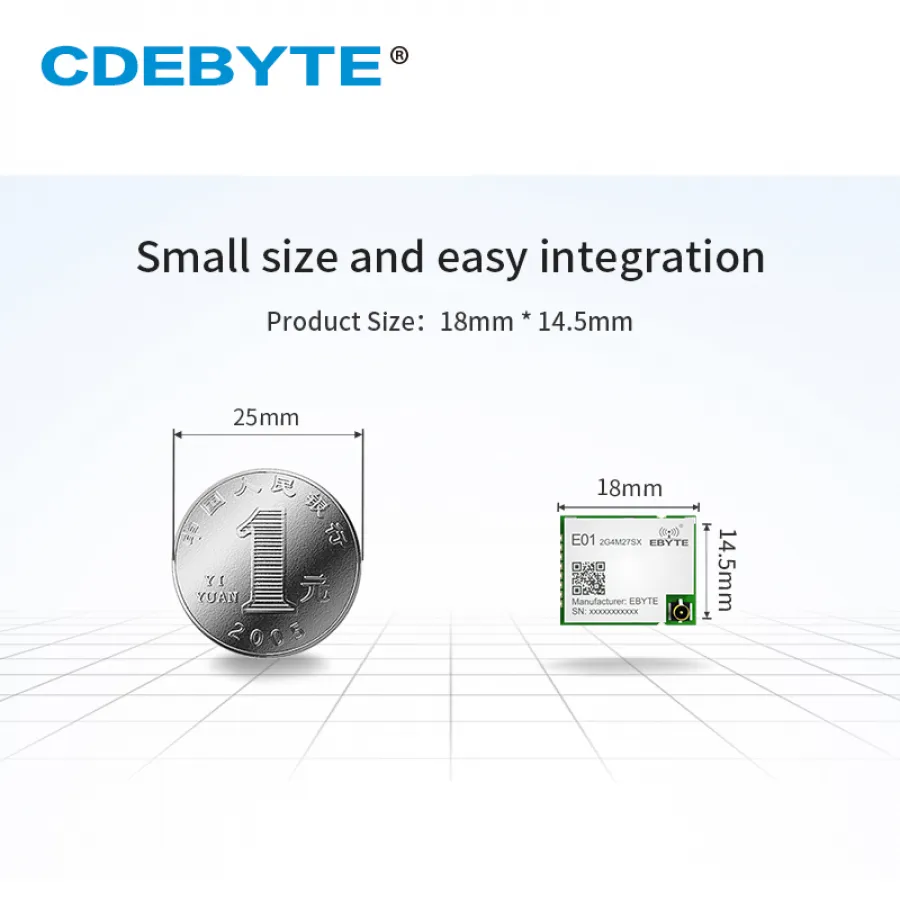

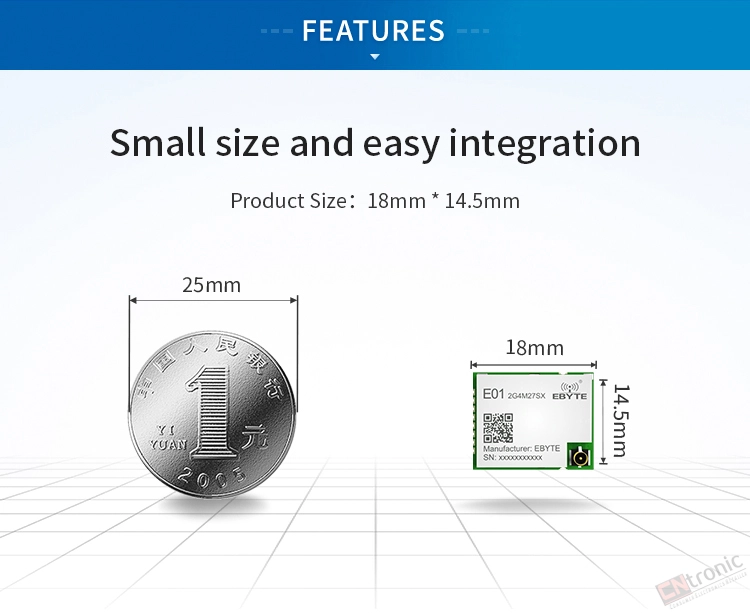

Small size and easy integration

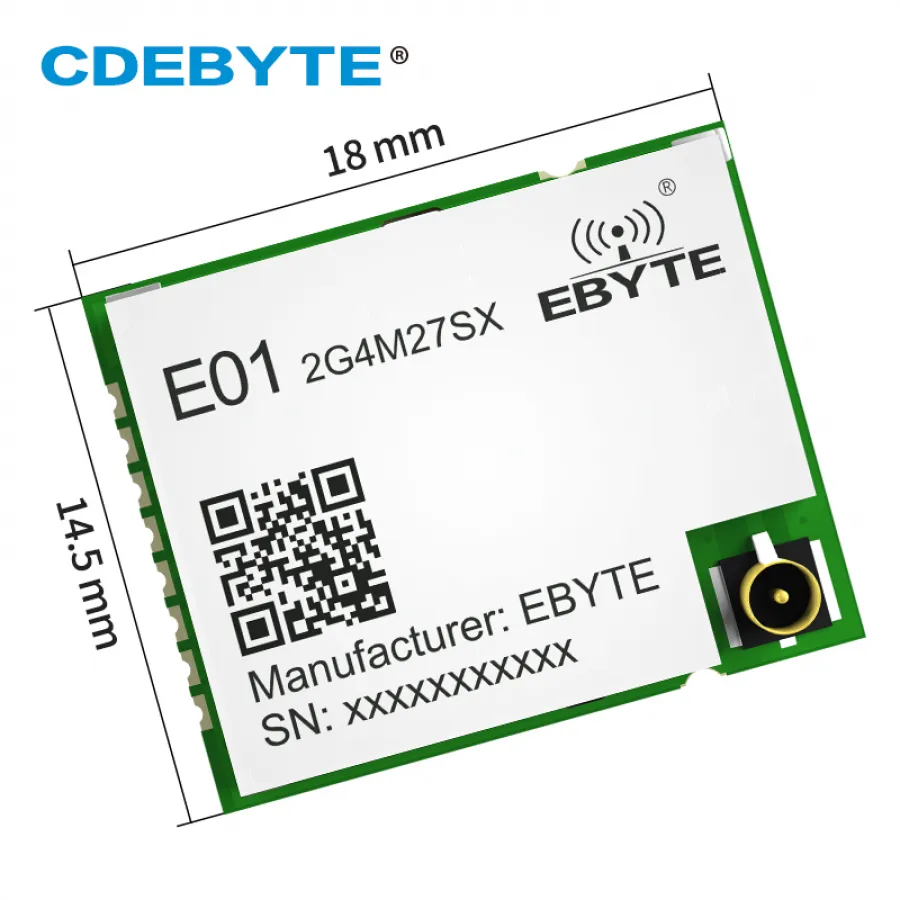

Product Size: 18mm*14.5mm





High power breakthrough distance and obstacle

27dBm(500MW) high power

Ultra long transmission distance meets most date transmission requirements

Let you no longer worry about the transmission distance

The measured communication distance can reach 4KM

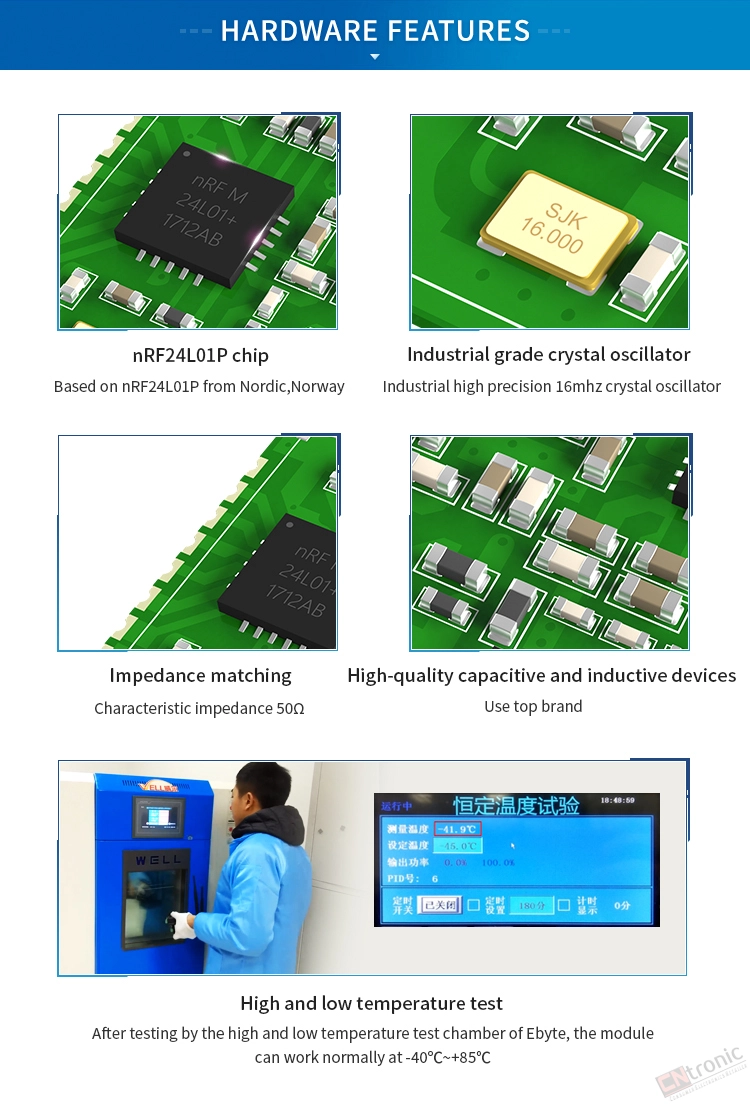

Hardware Features

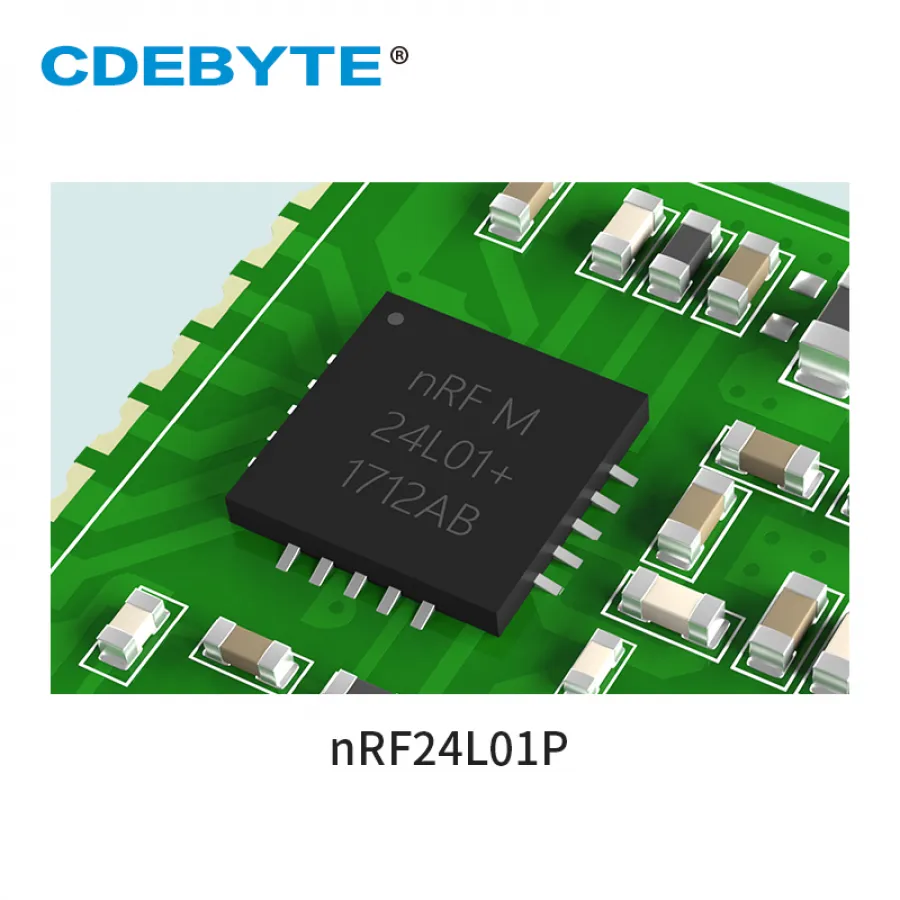

*nRF24L01P Chip

Based on nRF24L01P from Nordic,Norway

*Industrial grade crystal oscillator

Industrial high precision 16mhz crystal oscillator

*Impedance matching

Characteristic impedance 50Ω

*High-quality capacitive and inductive device Use top brand.



High and low temperature test

After testing by the high and low temperature test chamber by ebyte,

the module can work normally at -40℃~+85℃





Application Scenario

Ebyte products have strong hardware and software support,suitable for a variety of IoT applications.

Intelligent Control

Remote Control

Wireless Data Transmission

Smart Home



Limit Parameters

Main Parameters

Value

Remarks

Min.

Max

Power supply(V)

2.3

3.6

Voltage over 3.6 V will cause permanent damage to module

Operating temperature(℃)

-40

+85

Industrial grade



Operating parameter

Main Parameters

Value

Remarks

Min.

Typical

Max

Operating voltage(V)

2.3

3.3

3.6

≥3.3 V ensures output power

Communication level(V)

-

3.3

-

For 5V TTL, it may be at risk of burning down

Operating temperature(℃)

-40

-

+85

Industrial design

Operating frequency(MHz)

2400

-

2525

Support ISM band

TX Current(mA)

-

720

-

Instant power consumption

RX current(mA)

-

23

-

-

Sleep current(μA)

-

-

-

Does not support low power mode

Max Tx power(dBm)

26

27

27

-

Receiving sensitivity(dBm)

-113

-114

-115

Air data rate is 250 kbps

Air data rate(bps)

250 k

-

2 M

Controlled via user's programming



Main parameter

Description

Remarks

Distance for reference

4 km

Test condition:clear and open area, antenna gain: 5dBi,antenna height: 2.5m,air data rate: 250kbps

FIFO

32 Byte

Max length transmitted each time

Crystal frequency

16 MHz

-

Modulation

GFSK

-

Package

SMD

-

Connector

1.27 mm pin

-

Communication interface

SPI

0~10 Mbps

Size

18*14.5 mm

-

RF interface

IPEX

50ohm impedance

Weight

1.0±0.1g

-

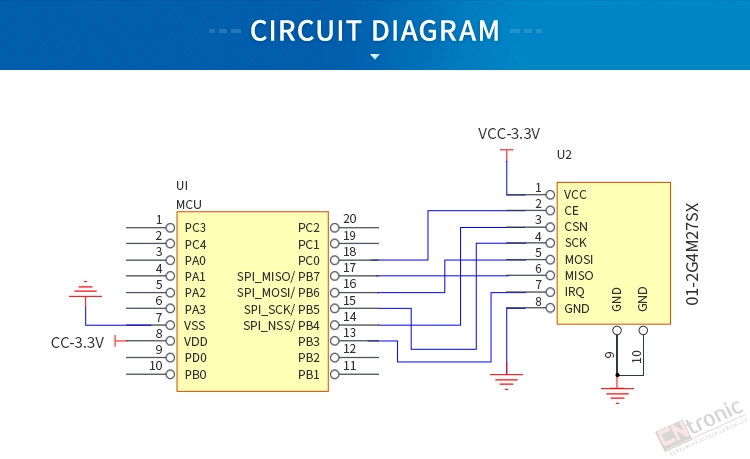

Circuit Diagram





Pin Definition







Packaging Details

  • Unit Type:
  • Package Weight: 0.010
  • Package Size: 13x6x19

  • Brand Name: CDEBYTE
  • Origin: Mainland China
  • Certification: None
  • Working Frequency: 2.4-2.525MHz
  • Model Number: E01-2G4M27SX
  • Type: wireless-module
  • Transmit power: 27dbm
  • Air data rate: 250k-2Mbps
  • Reference distance: 4km
  • Modulation: GFSK
  • Packaging method: SMD
  • Communication interface: SPI
  • RF interface: IPEX
