BLE 2.4GHz SX1280 Wireless SPI RF LoRa Module 500mW 27dbm High Power 8000m Wireless Transmitter Receiver Cojxu E28-2G4M27S
5.0 (12 votes) | 59 orders
Price:
US $36.97
Discount Price:
US $
33.80
-9%
LoRa+BLE 2.4GHz Wireless RF Module 500mW 27dbm SX1280 High Power 8000m Wireless Transmitter Receiver Cojxu E28-2G4M27S

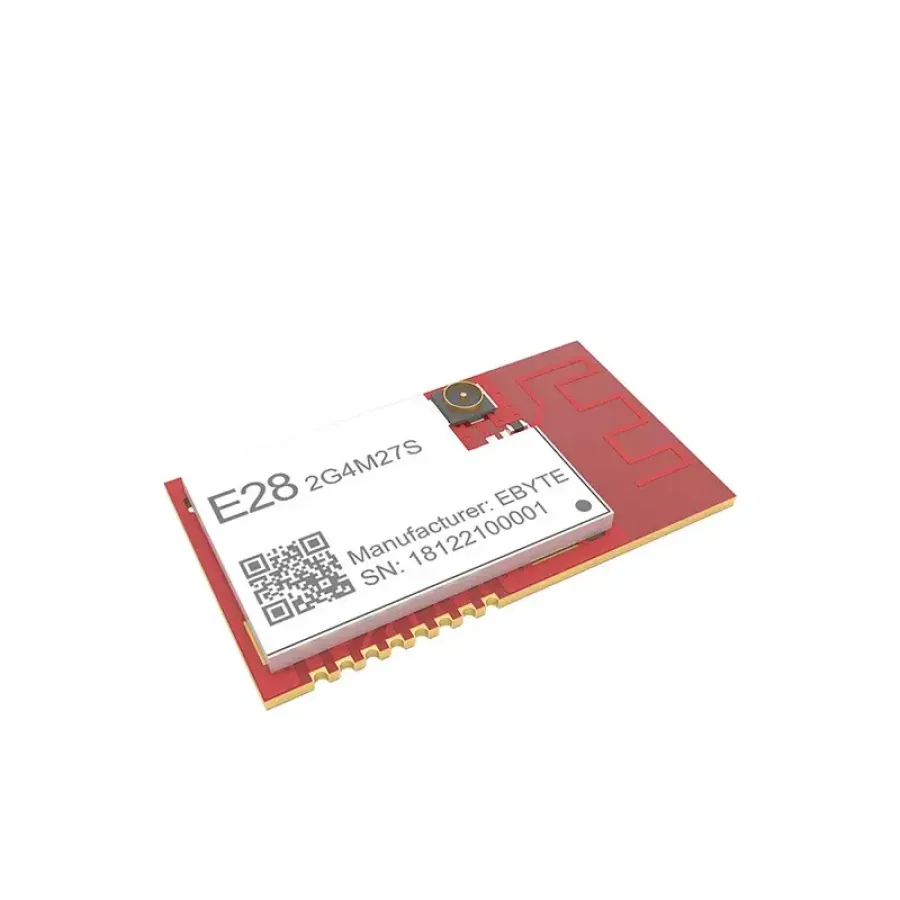

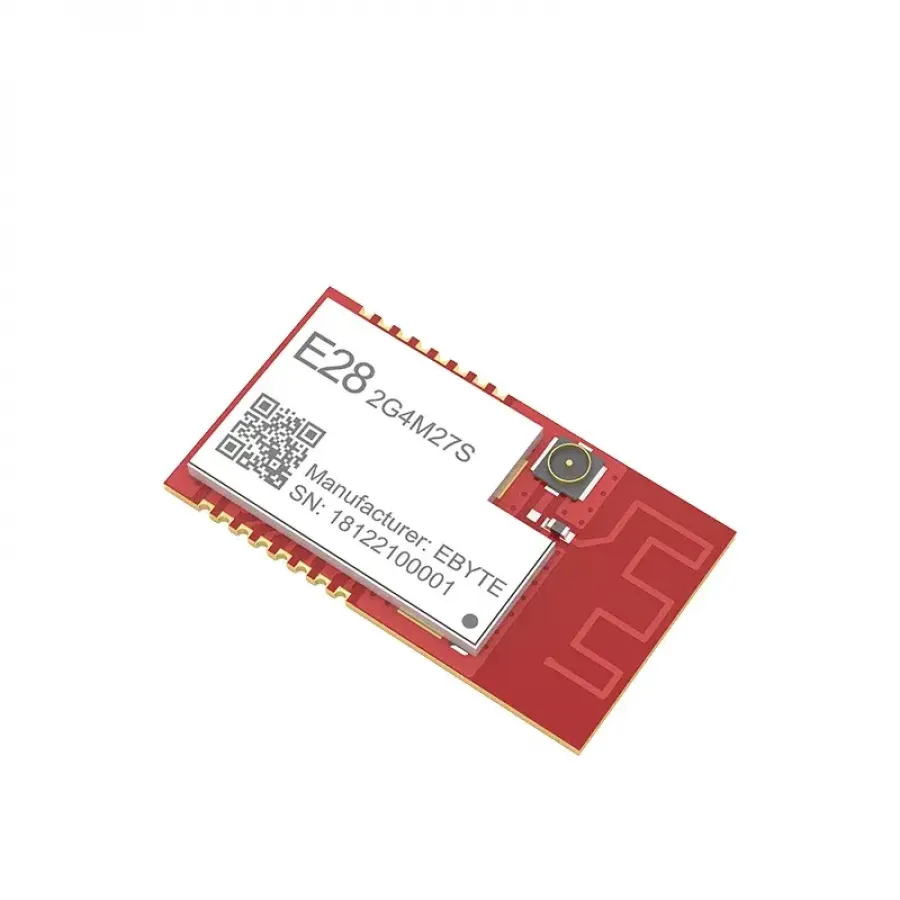

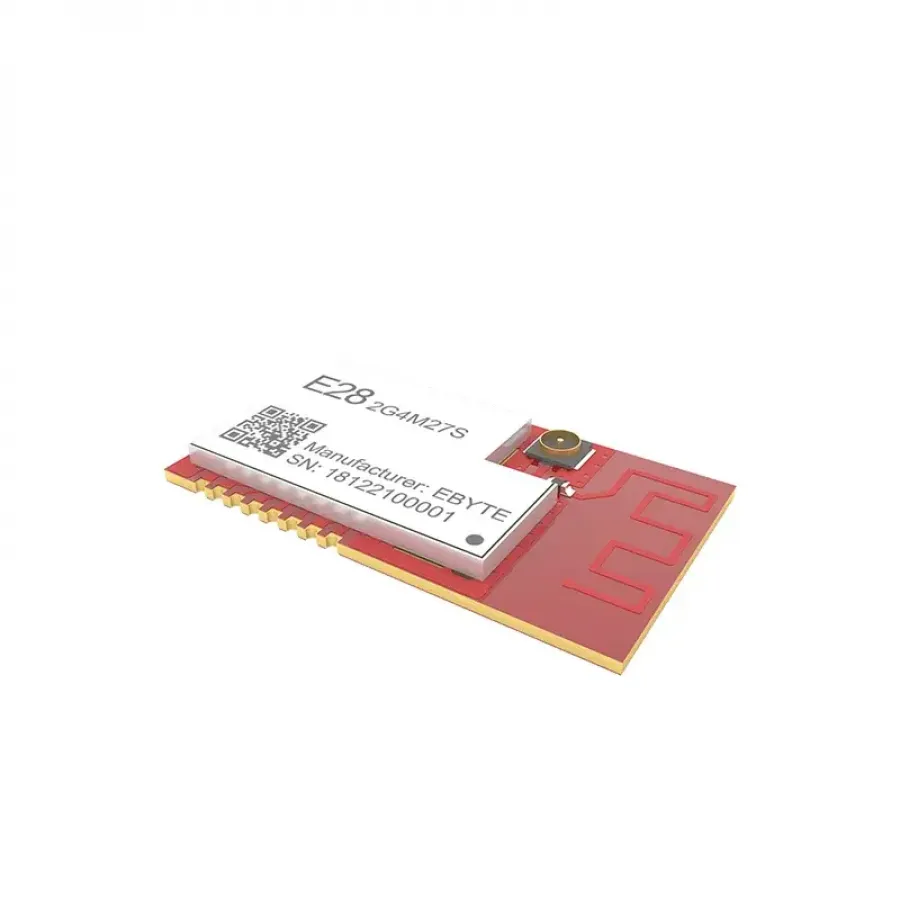

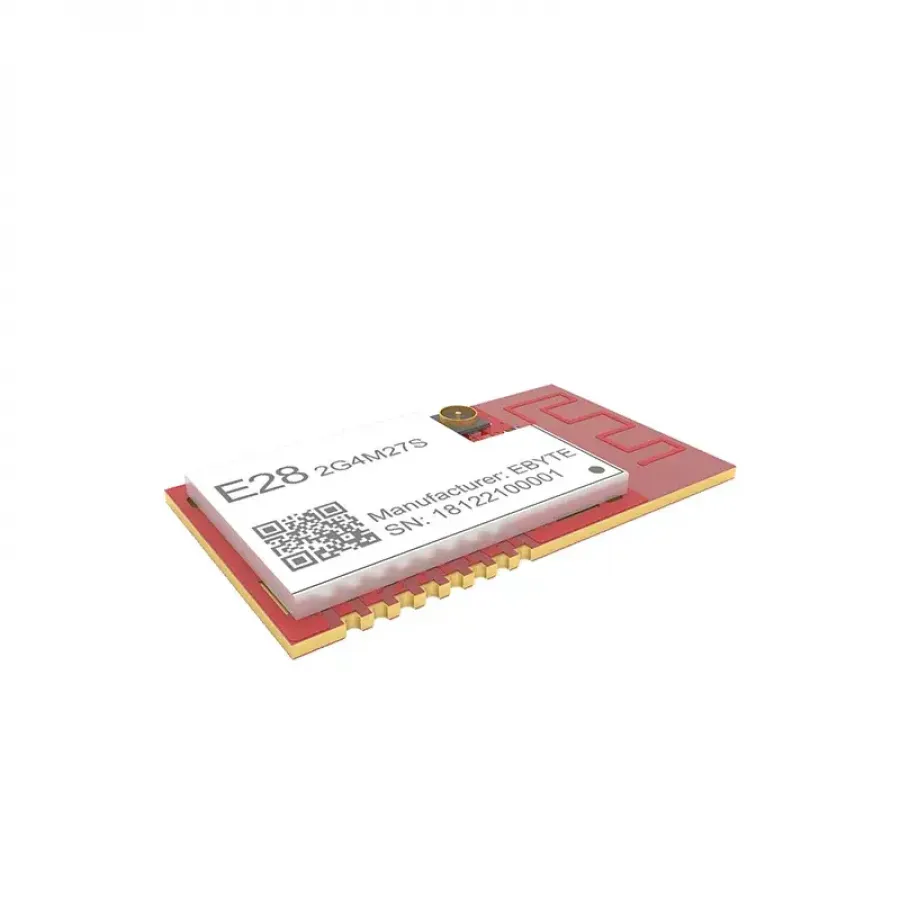

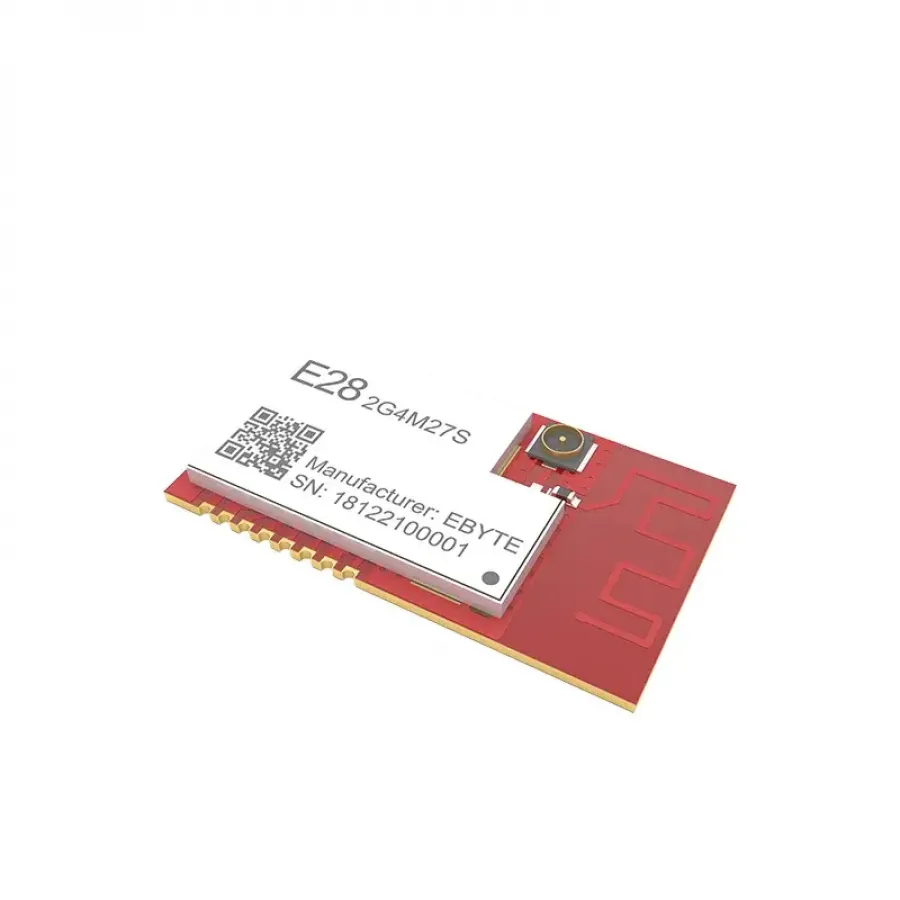

[Introduction]: E28-2G4M27S is a 2.4GHz small SMD module (pin spacing 1.27mm)designed by Chengdu Ebyte. With built-in PCB antenna, SPI interface, it owns TX power of 500mW with power consumption.
Download Files:
User Manual:
https://www.cdebyte.com/pdf-down.aspx?id=2128
DEMO:
|
RF Parameter |
Value |
Remark |
|
Working frequency |
2400~2500 MHz |
ISM band |
|
Transmitting power |
27 dBm |
About 500mW |
|
Receiving sensitivity |
-132 dBm |
Air data rate: 595kbps |
|
Air data rate |
LoRa(bps):0.595k~253.9k FLRC(bps):260k~1.3M GFSK(bps):125k~2M |
Defined by user via programming |
|
Test distance |
8000m |
Test condition:clear and open area, antenna gain: 5dBi, antennaheight: 2.5m,air data rate: 1kbps |
|
Hardware Parameter |
Value |
Remark |
|

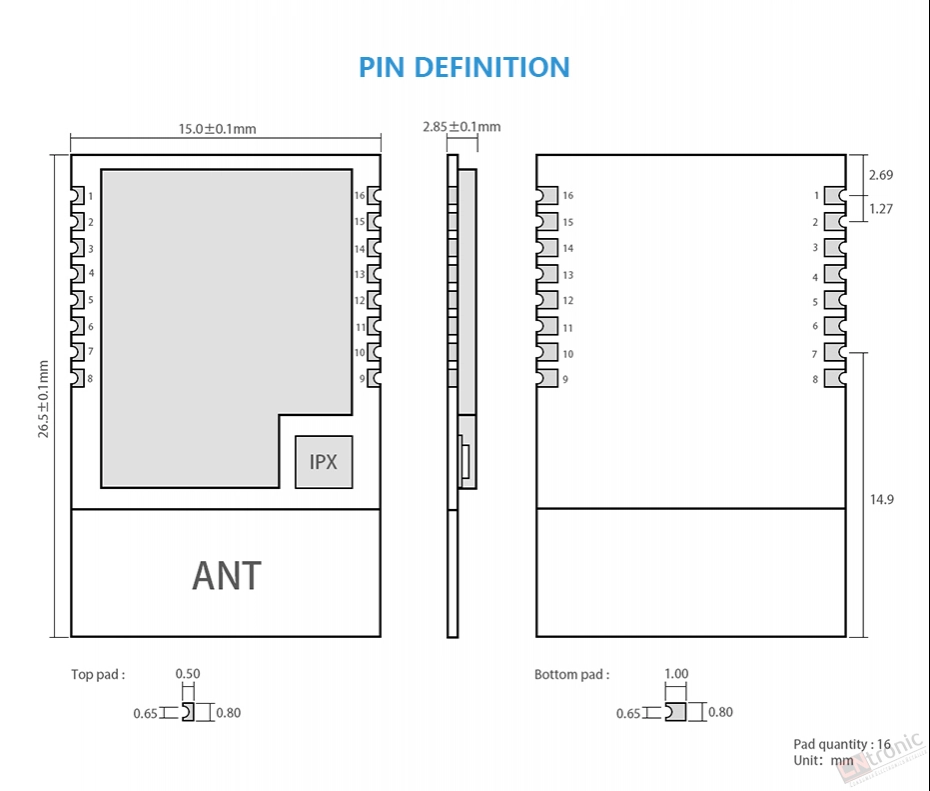

Size |
26.5 * 15mm |
- |
|
Antenna type |
IPEX / PCB |
50Ω Impedance |
|
Communication interface |
SPI |
0～10Mbps |
|
Package |
SMD |
- |
|
Electronic parameter |
Min. |
Typ. |
Max. |
Unit |
Condition |
|
Power supply |
2.5 |
3.3 |
3.6 |
V |
≥3.3 V ensures output power |
|
Communication level |
- |
3.3 |
- |
V |
For 5V TTL, it may be at risk of burning down |
|
Transmitting current |
- |
580 |
- |
mA |
Instant power consumption |
|
Receiving current |
- |
14.5 |
- |
mA |
- |
|
Sleep current |
- |
2.0 |
- |
μA |
Software is shut down |
|
Operating temperature |
-40 |
20 |
+85 |
℃ |
- |
|
Operating humidity |
10 |
60 |
90 |
% |
- |
|
Storage temperature |
-40 |
20 |
+125 |
℃ |
- |
Packaging Details
- Unit Type:
- Package Weight: 0.010
- Package Size: 13x6x19
- Brand Name: cojxu
- Origin: Mainland China
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Working Frequency: 2.4~2.5GHz
- Model Number: E28-2G4M27S

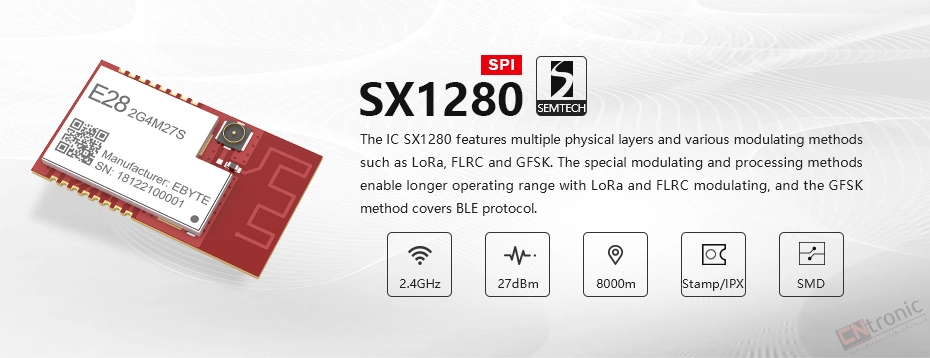

- IC: SX1280
- Power: 27dBm (500mW)
- Distance: 8km
- Size: 26.5 * 15 mm
- Antenna type: IPEX / PCB
