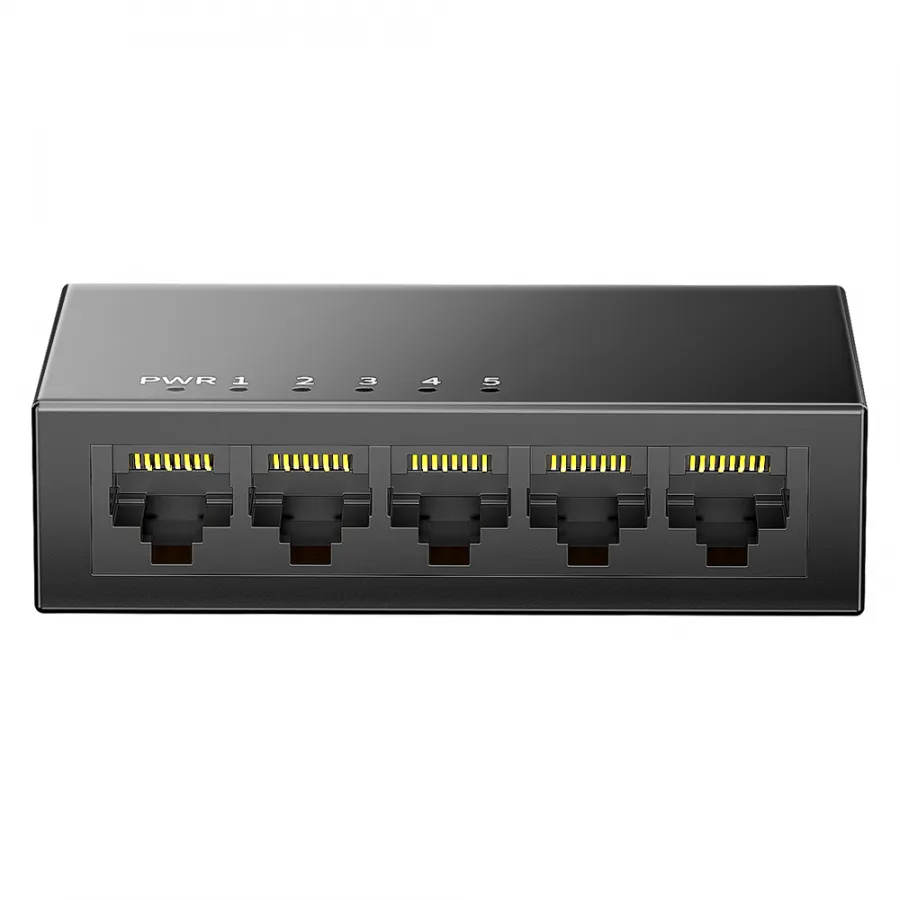

AMPCOM 1000Mbps Gigabit Network Switch 5 8 Port Ethernet Smart Switcher High Performance RJ45 Hub Internet Splitter
4.8 (58 votes) | 300 orders
Price:
US $77.24
Discount Price:
US $
37.22
-52%
- Color
-
-
Product Description
The AMPCOM 5/8-port Gigabit intelligent Ethernet switch adopts high-quality and high-speed network ICs, and this product completely solves the problem of noise of small switches in the office environment through the fanless mute design. This AMPCOM switch has 5/8 Gigabit RJ45 ports, can provide seamless connection for 10/100/1000M Ethernet, the product can be widely used in Security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions.
Main Features
5/8*Gigabit RJ45 Ports
Apply to IEEE802.3、IEEE802.3u、IEEE802.3ab standard
Ethernet ports support 10/100/1000M adaptive
Support Auto MDI/MDIX
Panel indicators to monitor working status and help fault analysis
Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard

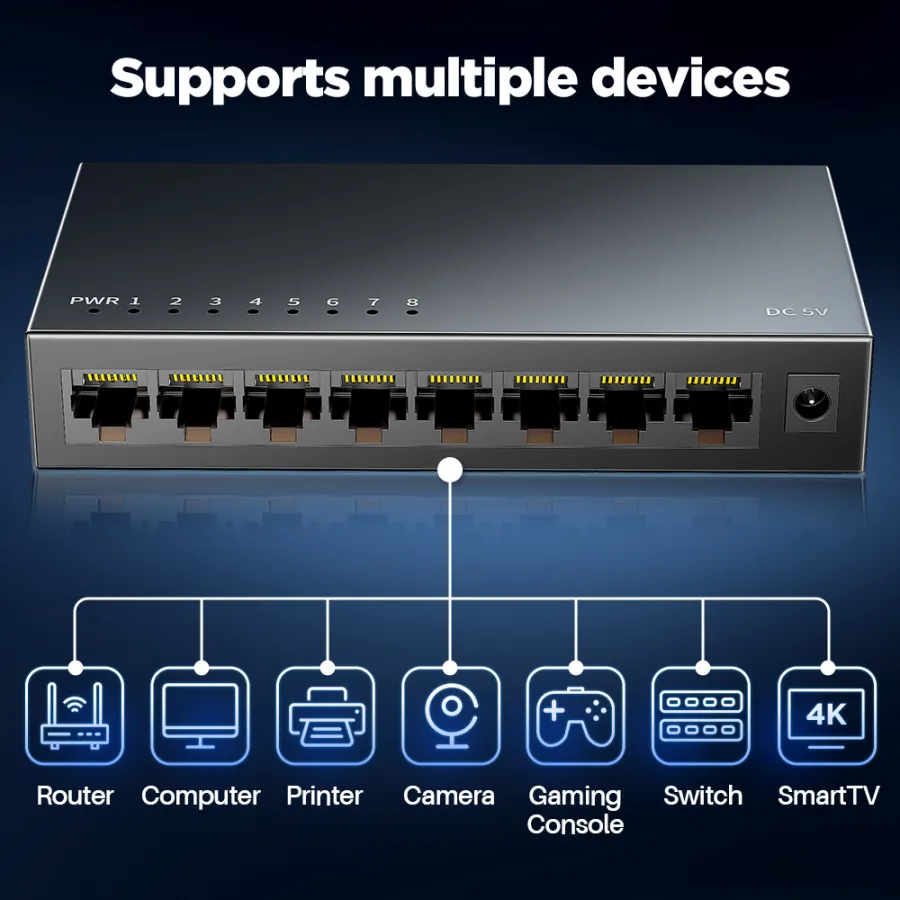

Application Environment
Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
I/O Interface
Power: DC 5V
Ethernet: 5/8*Gigabit RJ45 Ports
Performance
Switching Capacity:16Gbps@8 Ports, 10Gbps@5 Ports
Throughput: 11.90Mpps
Package cache: 4Mbit@8 Ports, 3Mbit@8 Ports
MAC Address: 8K@8 Ports, 2K@8 Ports
Transfer Mode: Store and forward
Network Parameters
Network Protocol: IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-TX), IEEE802.3x (Flow control)
Network Medium
10Base-T : Cat3,4,5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or aboveUTP(≤100m)
Environmental Standards
Working Temperature: -10~50°C
Storage Temperature: -20~70°C
Working Humidity: 10%~90%，non-condensing
Storage Temperature: 5%~95%，non-condensin
Indication
LED Indicators PWR（Power indicator）、Link（Network Link）
PWR On: power on
Off: no power
Link On: 10/100/1000M link connection is normal
Blinking: Data transmission is normal
Off: link failure
Mechanical

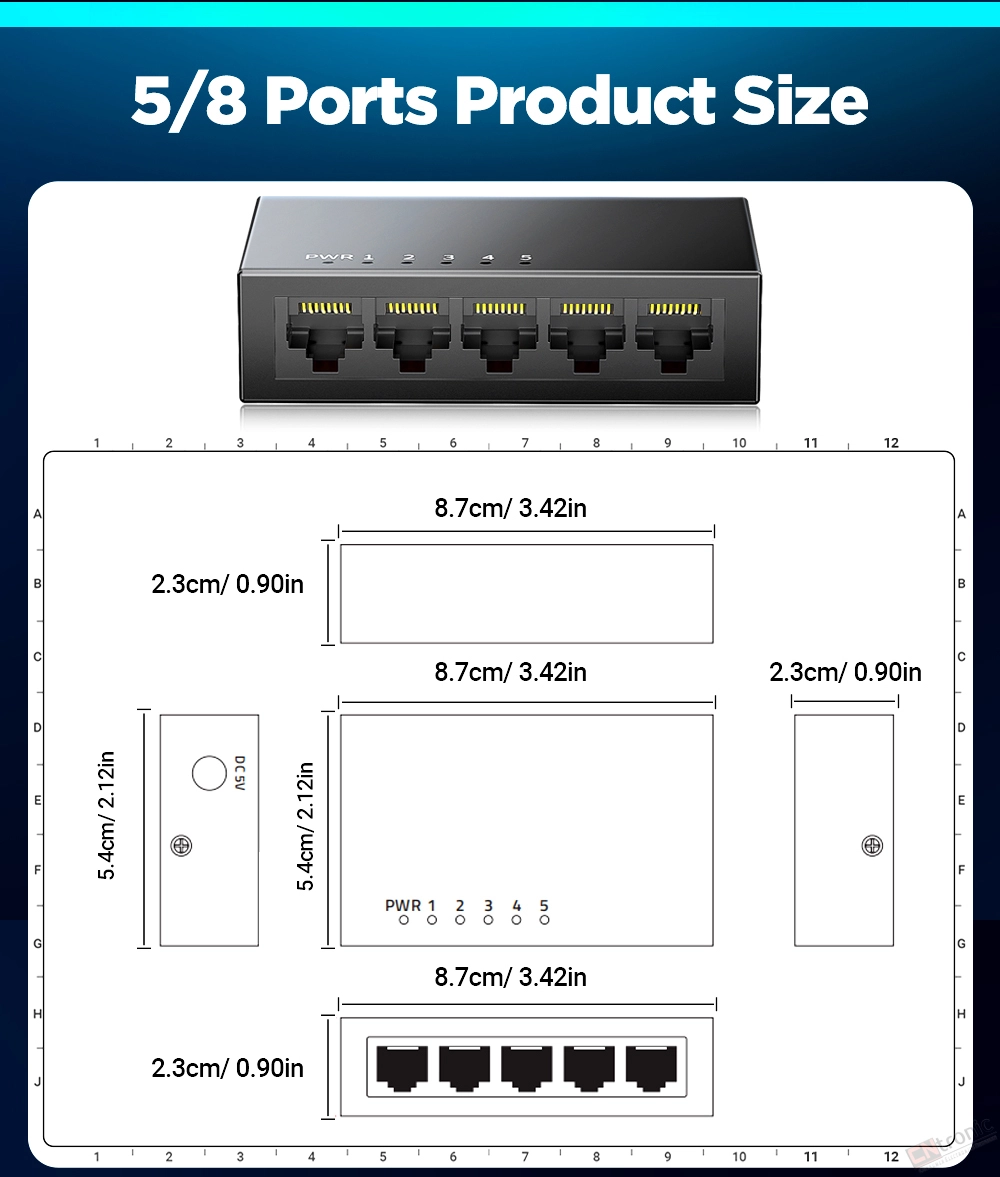

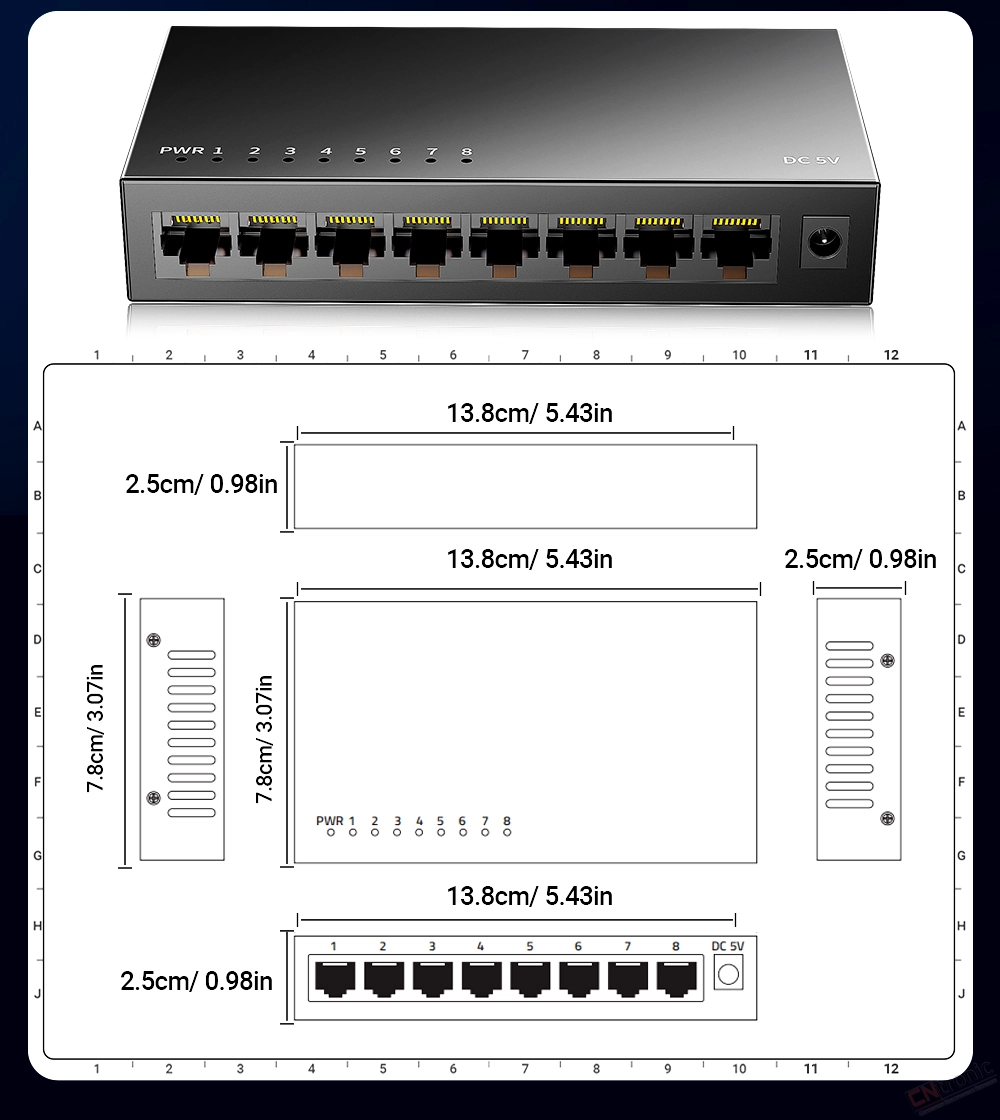

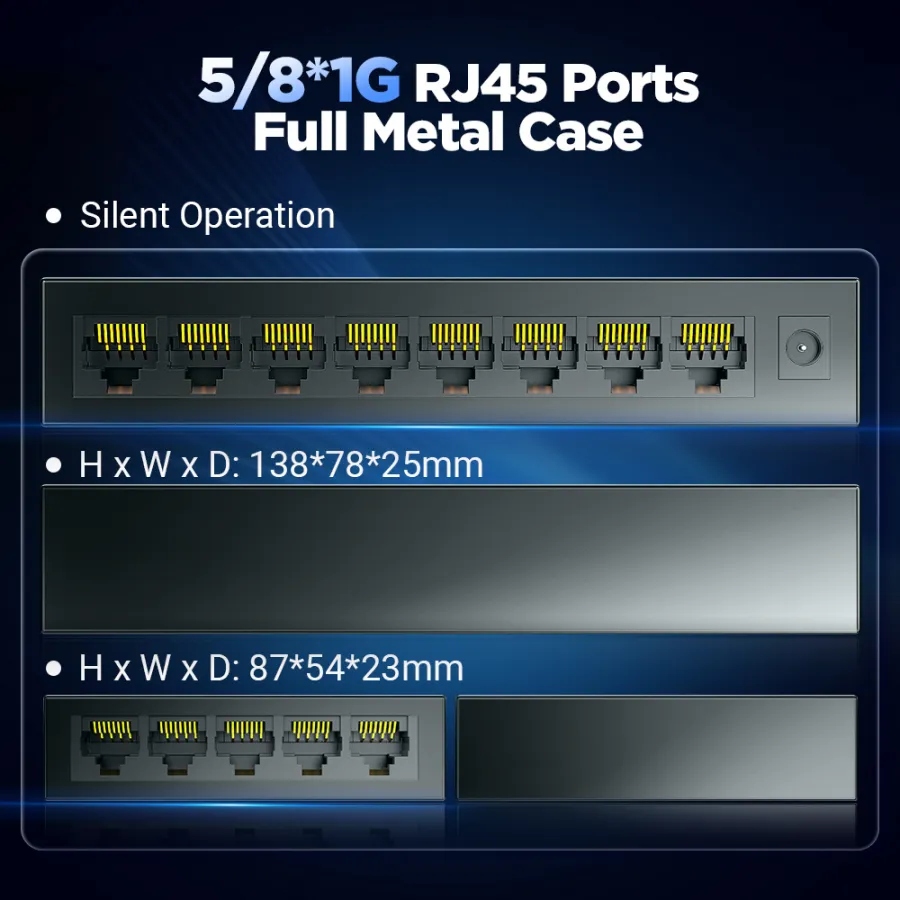

Structure Size Product Size：138*78*25mm@8 Ports, 87*54*23mm@5 Ports
Packing Size：175*120*63mm@8 Ports, 90*88*58mm@5 Ports
Operating Voltage
Power interface: DC2.1
Switch input voltage: DC 5V1A
Total power
Maximum 5W
Packing list
1.Switch：1 PCS
2.User manual ：1PCS
3.Warranty ：1 PCS
4.Power Adapter：1 PCS

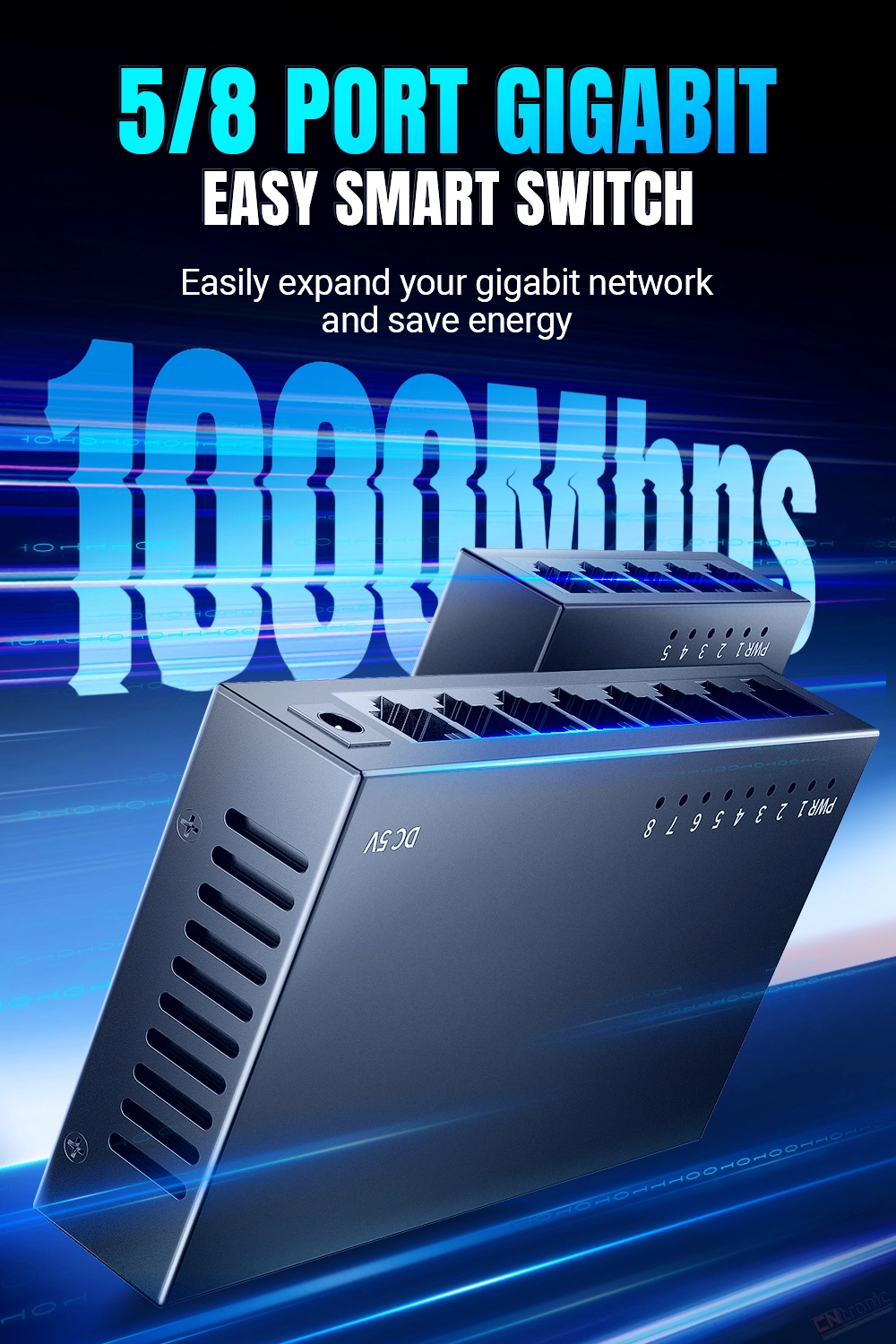

5/8 Port Gigabit Easy Smart Switch
Easily expand your gigabit network and save energy

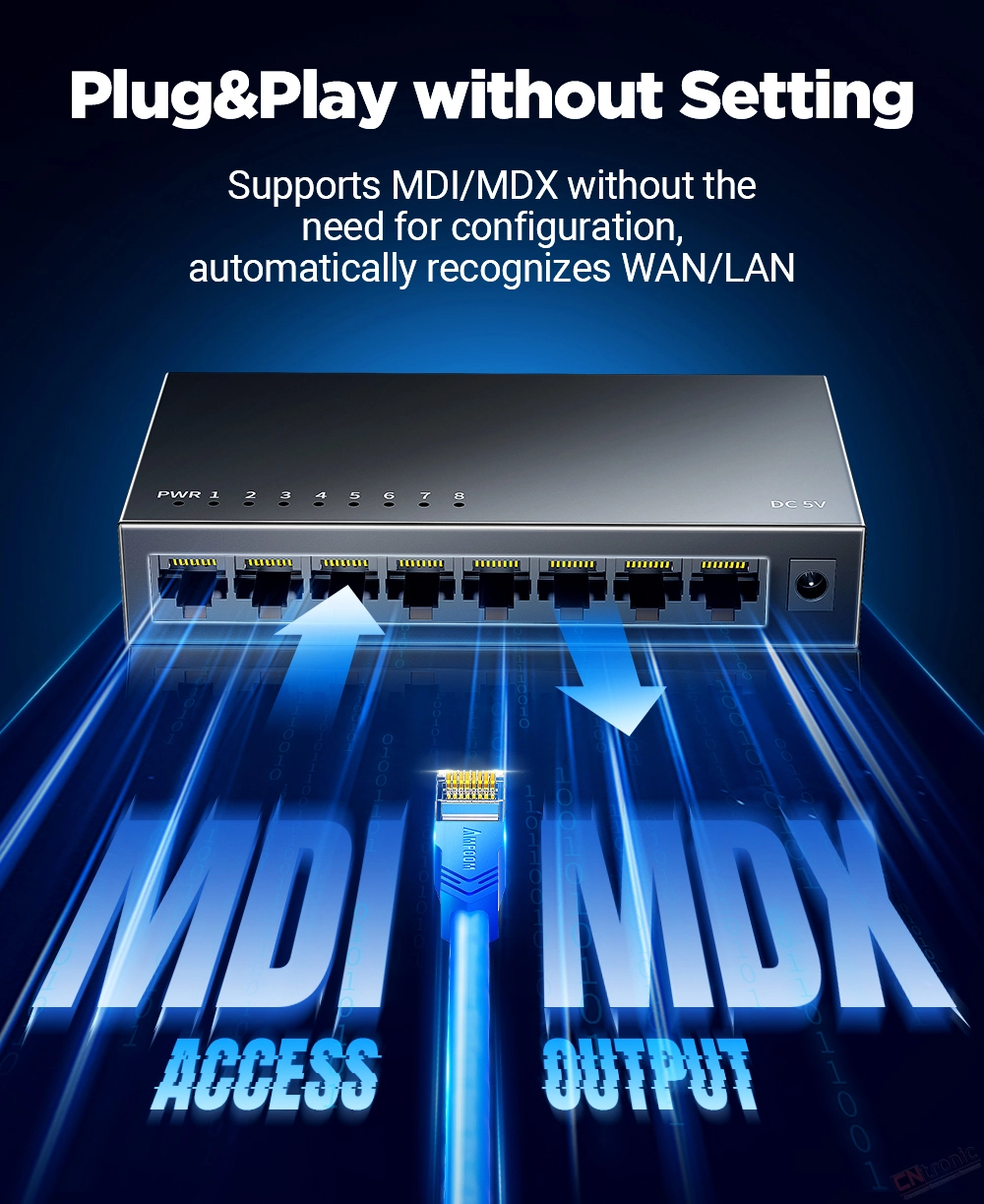

Plug&Play without Setting
Supports MDI/MDX without the need for configuration, automatically recognizes WAN/LAN

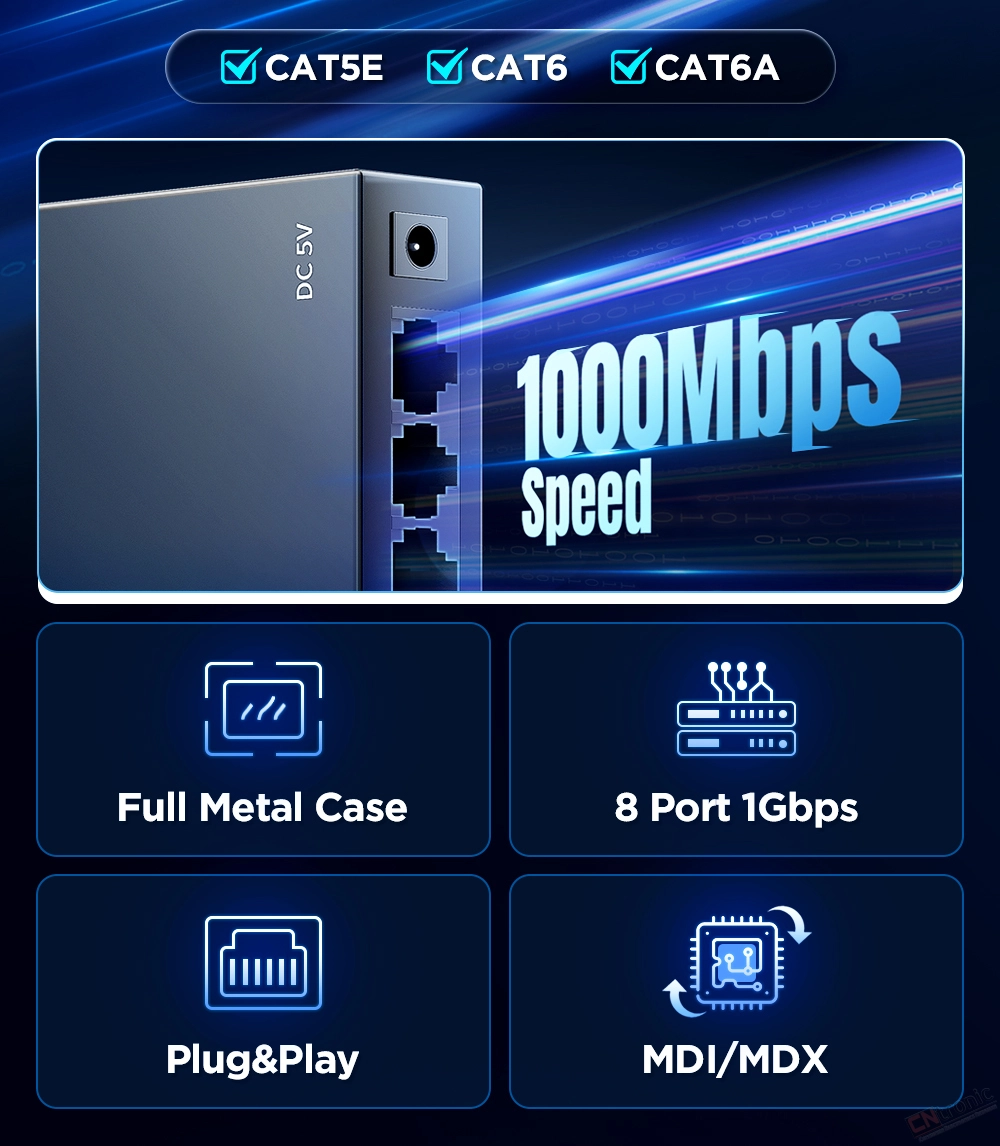

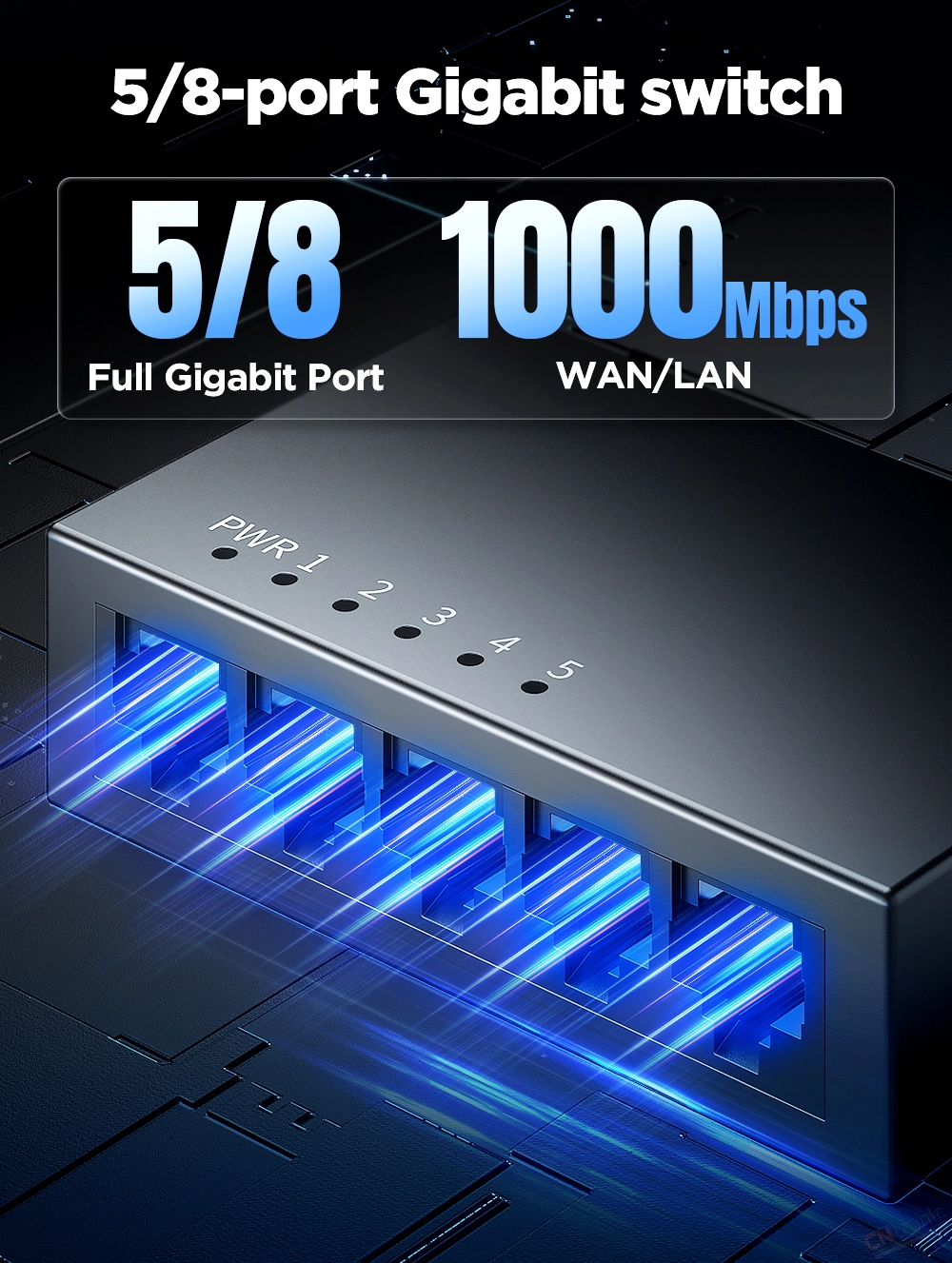

5/8 Full Gigabit Port

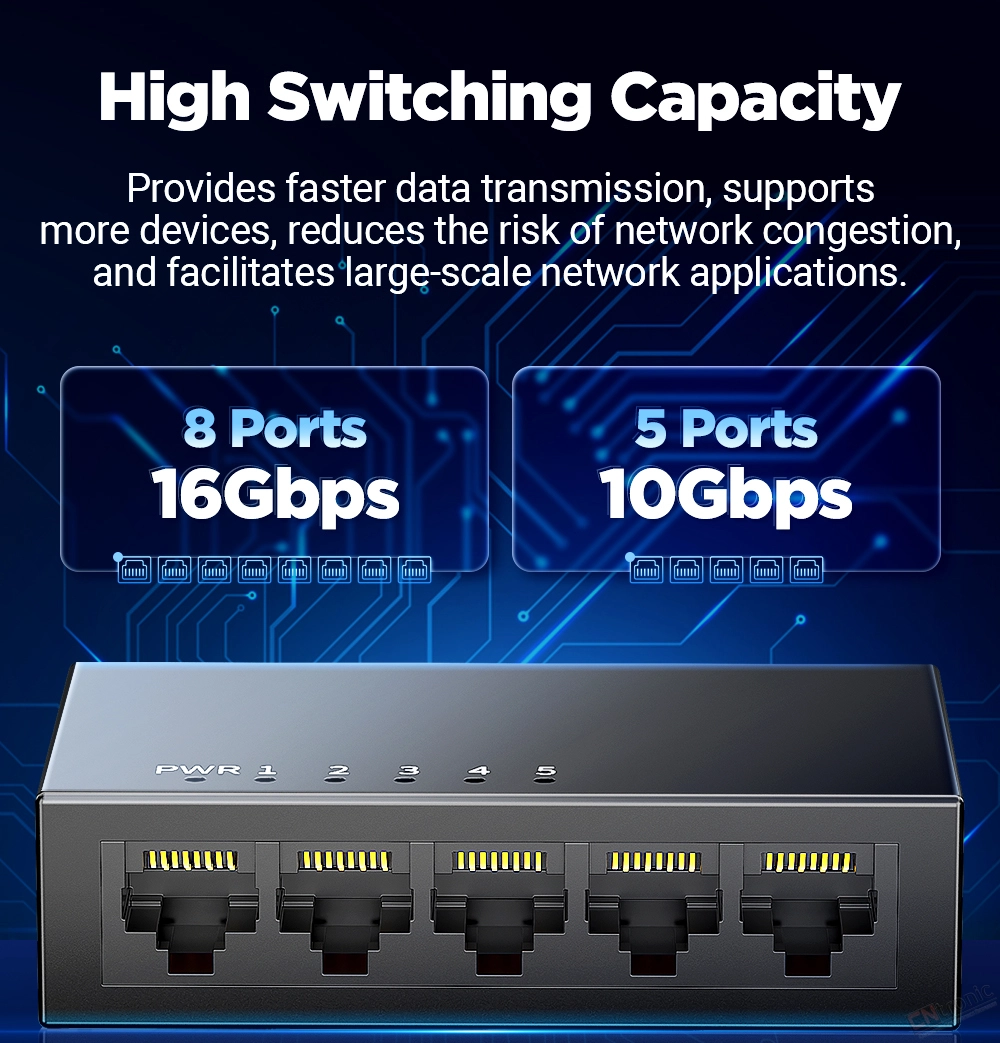

High Switching Capacity
Provides faster data transmission, supports more devices, reduces the risk of network congestion, and facilitates large-scale network applications.
Strong Technical Capabilities
Years of experience make our products more reliable and trustworthy for use

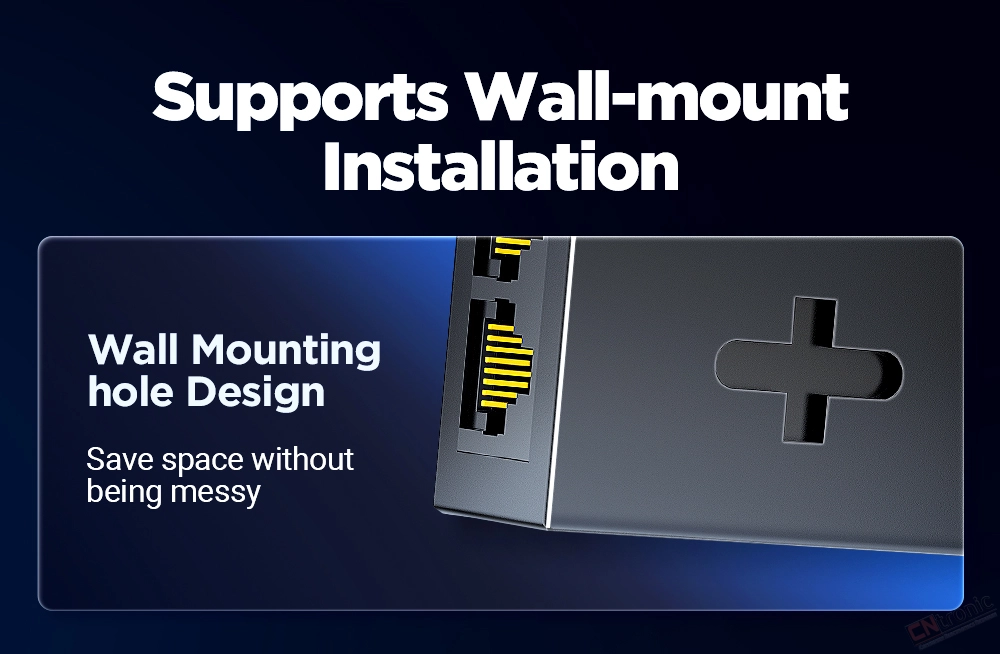

Support Wall-mount Installation
Low Power Consumption, More Power Saving
Less than 2W standby power, reducing electricity bills
Q: Will this power and control (move) p.o.e ptz cameras?
A: No
Q: can HDD be attached or plugged for video and audio recording?
A: Of course. I'm sure they're ratings for individual ports vs total throughput, but I've never experienced issues or a need to look them up.
Q: I plugged my tv into this and it keeps flashing "lan cable connected' and then 'lan cable disconnected' What is causing this?
A: I do not know never connected a switching hub to a TV or TV box. I think if your TV or cable box had a LAN port and y connect to the internet from a direct LAN cable then it should work if your needing more things near buy the switch hub to use the internet by cable. hope i can help also look up on the Tp website for a help person to chat with or email about your setup and the lights. Also try to see where u need to add a ip adress of the internet to connect to if it doesent auto connect on your tv internet setup .
Q: What port for router for the easy smart?
A: Any port would work, easier to distinguish if you use far right or far left port.
Q: If I connect two computers to this switch, what speeds will each connection run at? The full gigabit?
A: Yes, each device will connect to other devices on the switch at 1gb. If the switch is connected to your router, it will only be a 1gb connection to the router/internet. Each port is limited to 1gb.
Q: can this product be used between a security camera and NVR?
A: Yes it is an unmanaged switch and will work perfectly with your surveillance system.
Packaging Details
- Unit Type:
- Package Weight: 0.201
- Package Size: 8x6x9
- Brand Name: AMPCOM
- Origin: Mainland China
- Hign-concerned Chemical: None
- Certification: CE
- Certification: RoHS
- Certification: weee
- Switch Type: Gigabit Switch
- Package: Yes
- Communication Mode: Full-Duplex
- Transmission Rate: 10/100/1000Mbps
- VLAN: No
- Plug Type: EU Plug
- Switch Capacity: 16Gbps
- Choice: yes
