AIYIMA Portable DAC Headphone Amplifier ESS9018K2M Digital To Analog Adapter Stereo Audio Decoder Coaxial Optical Amplifier

4.9 (18 votes) | 40 orders
Price: US $133.64 - 143.75 / piece
Discount Price:
US $ 101.57 - 109.24 / piece
-24%
Ships From
Color
Quantity

Driver for Windows 7 - 10


https://www.mediafire.com/file/z7n16aornyphnb2/DAC_A5_PRO.rar/file



Description:


Features:

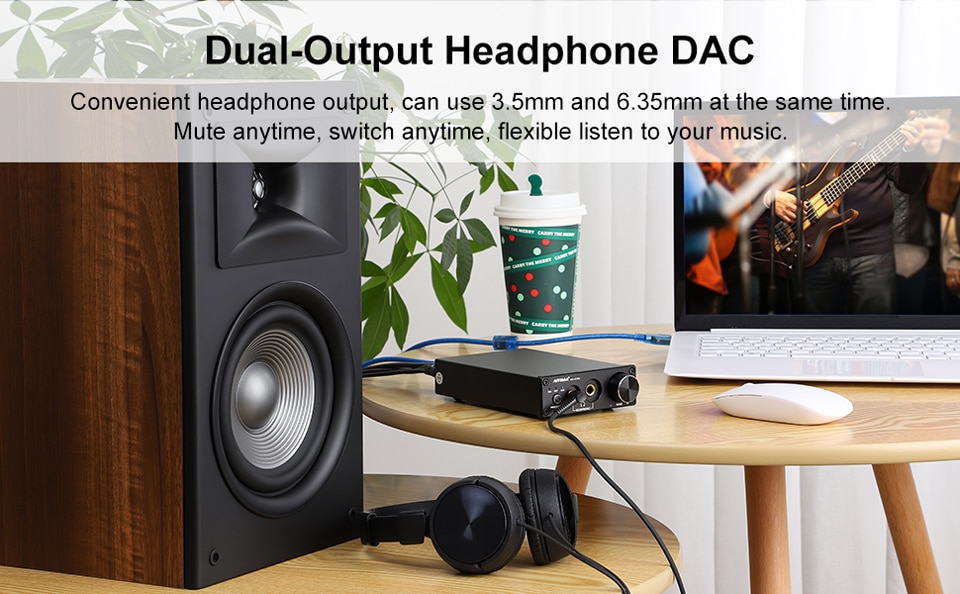

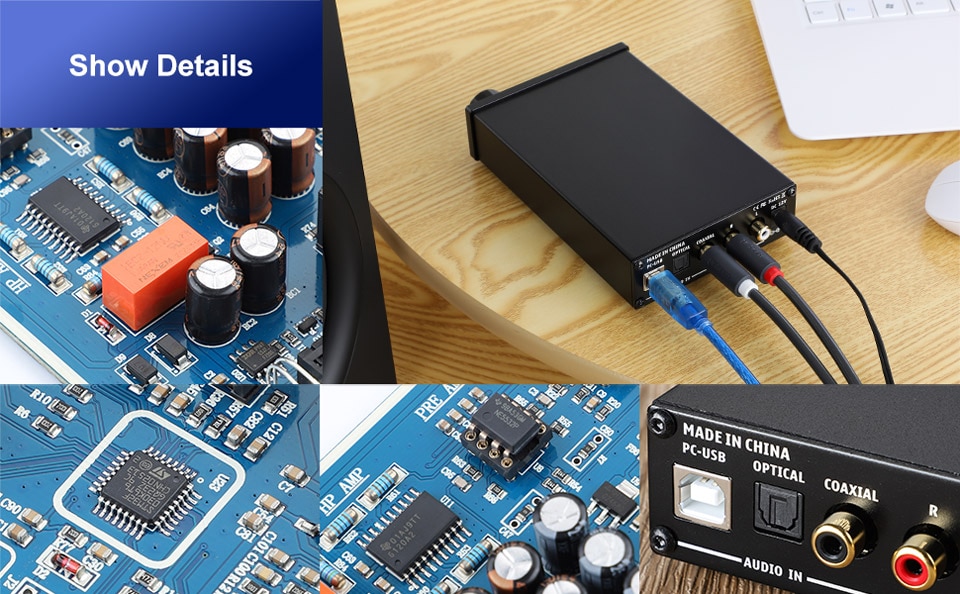

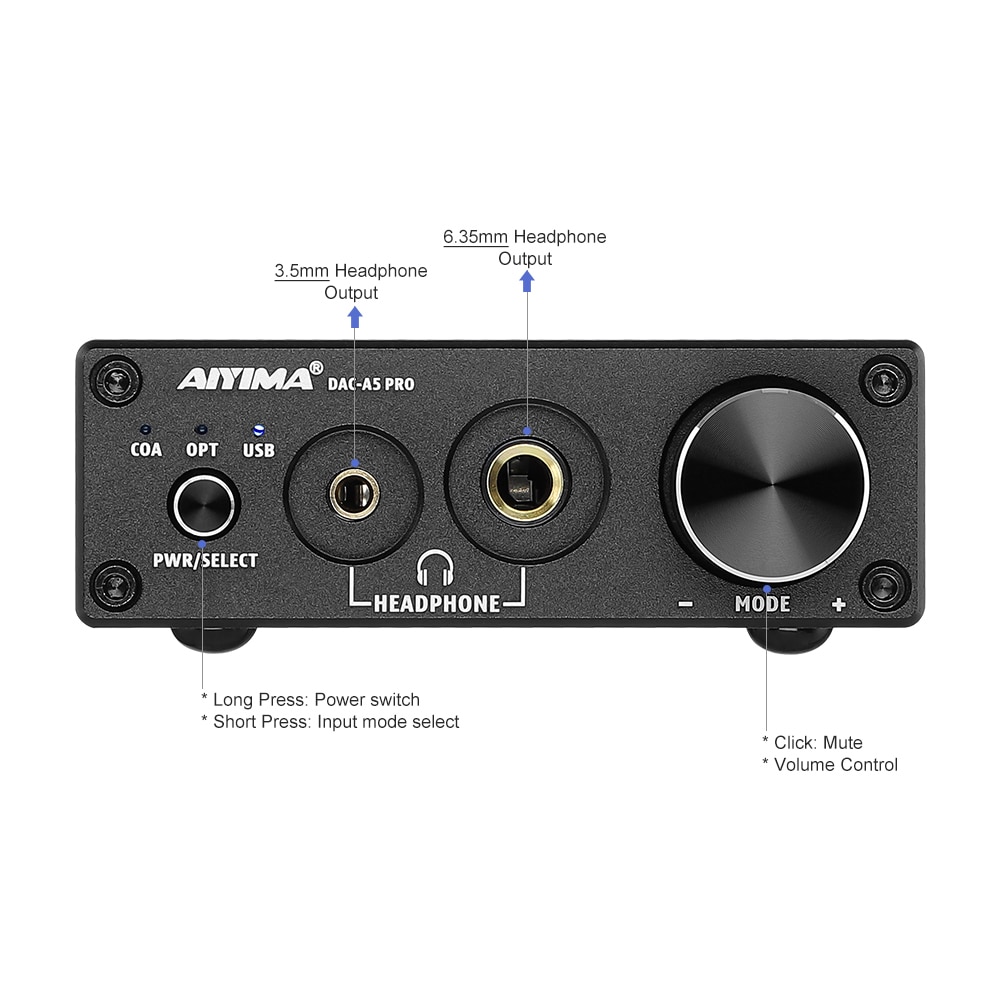

1. [New Upgraded] Cancel the 6.35 to 3.5 adapter, Dual Headphone Output; upgrade the fiber base, optimize the circuit board design, redefine quality and sound.
2.Mac/PC plug-n-play, no special software is needed, RCA and dual headphones outputs.

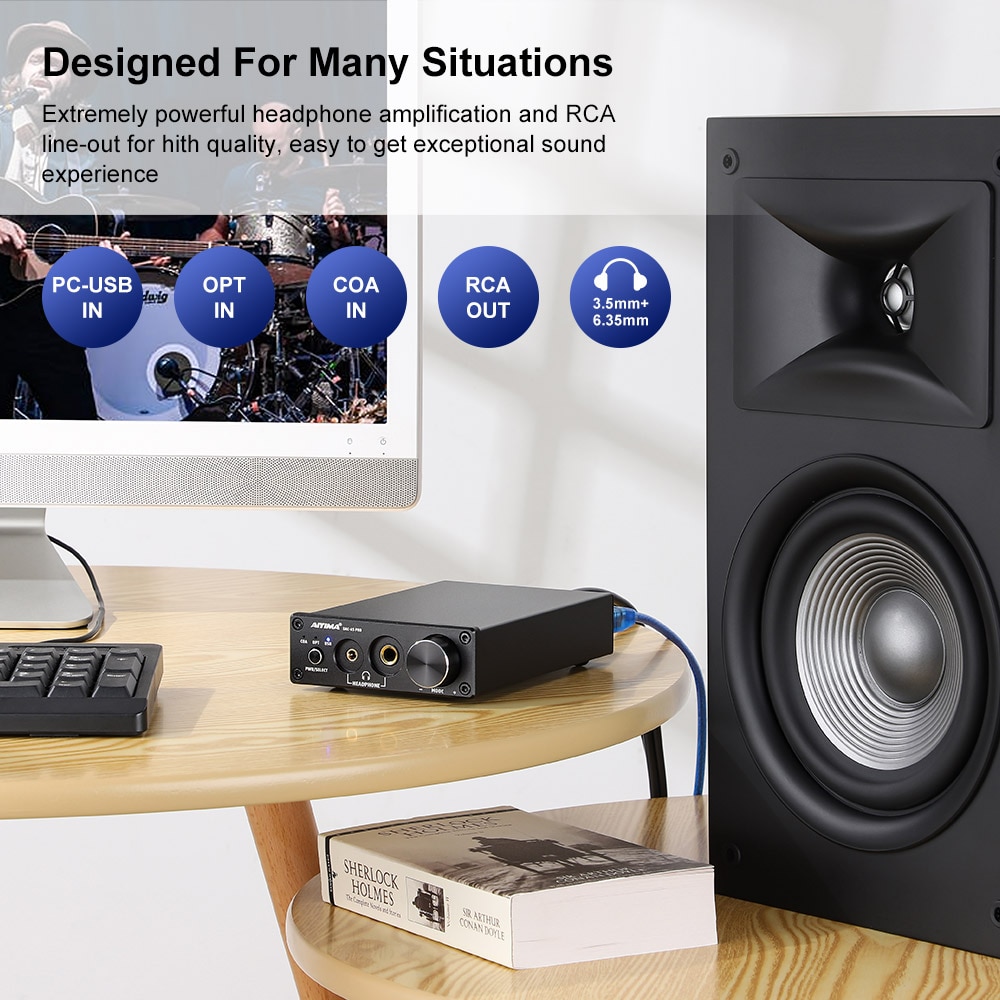

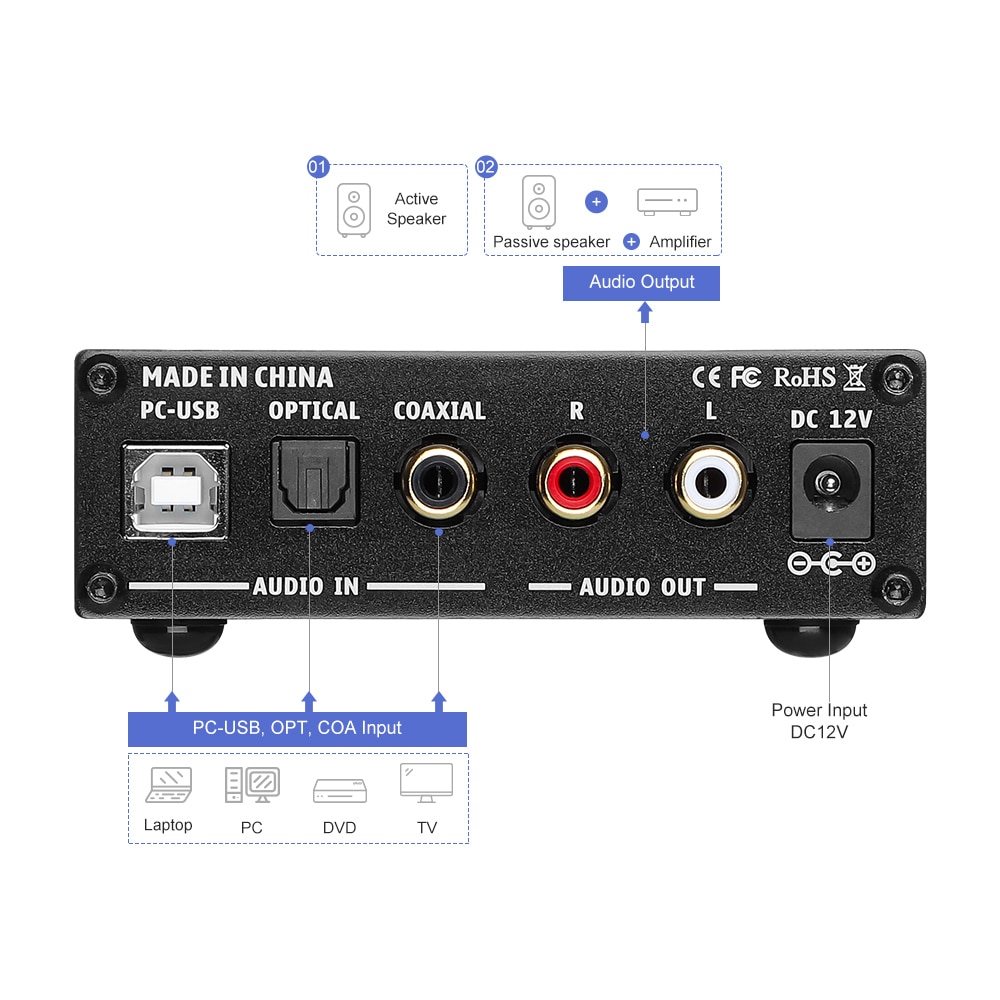

3.USB and optical coaxial S/PDIF inputs, can choose the input mode. With the volume control knob that can adjust the headphones as well as the RCA output. Note: Dolby signal input is not supported!

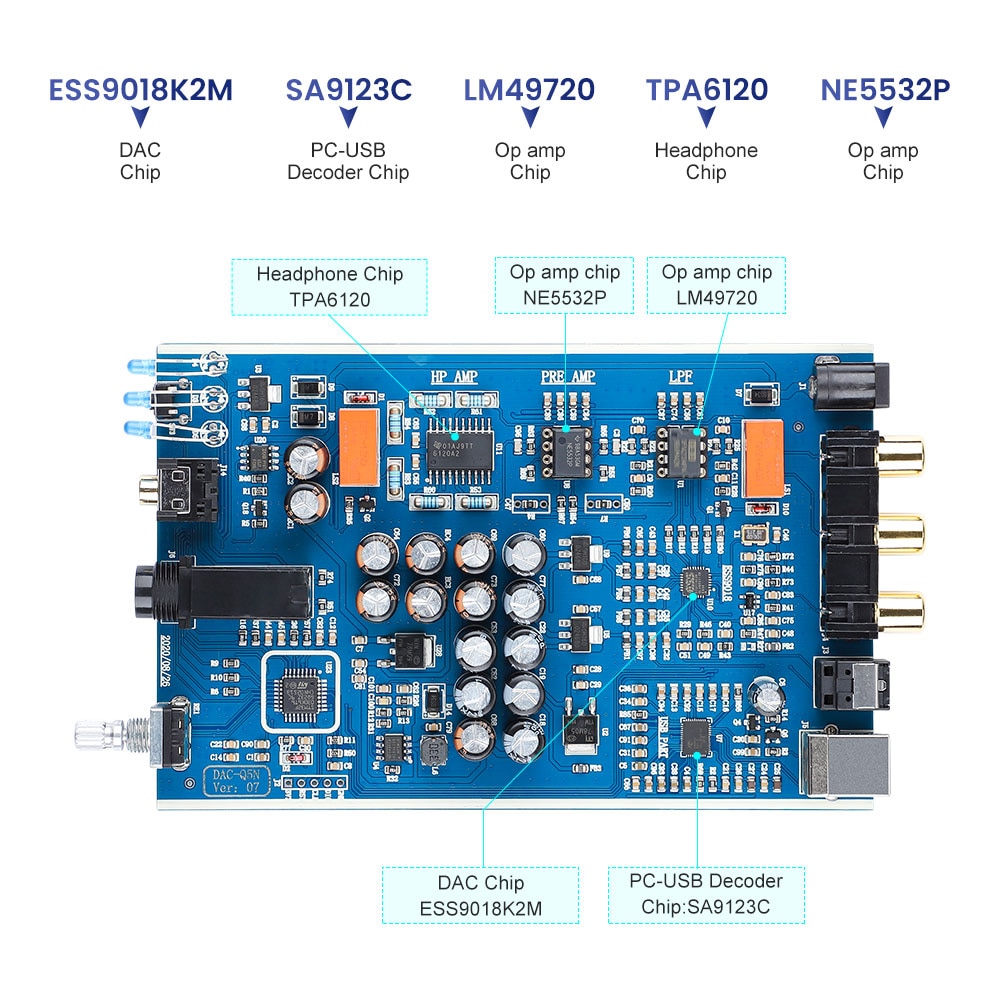

4.Hi-Fi headphone amp chips TPA6120, LM49720 ; with headphones protect circuit for any 16-300 Ohm headphones.
5.Stream bit-perfect 24bit/192Hkz HD with low jitter, built-in Cirrus SA9123C + CS8416 + CS4398 DAC chips, as desktop DAC, stereo headphone amp, and preamp.
Parameters:
Model:DAC-A5 PRO
PC-USB input Sampling Frequency: 192K/24Bit
Optical/Coaxial input Sampling Frequency: 192K/24Bit
PC-USB System supported: XP/W7/W8/10/MAC/linux
Frequency Range: 20H-20kHz (±3dB)
THD: 0.01%
SNR: ≥105dB
Headphone Max power output: 400MWatt @ 32Ω load
Headphone impedance:16-300Ω
Power requirement: 12V, 1A or more
Headphone amplifier: TPA6120 + LM49720
D/A converter: SA9123C + ESS9018K2M
Output level: 2V

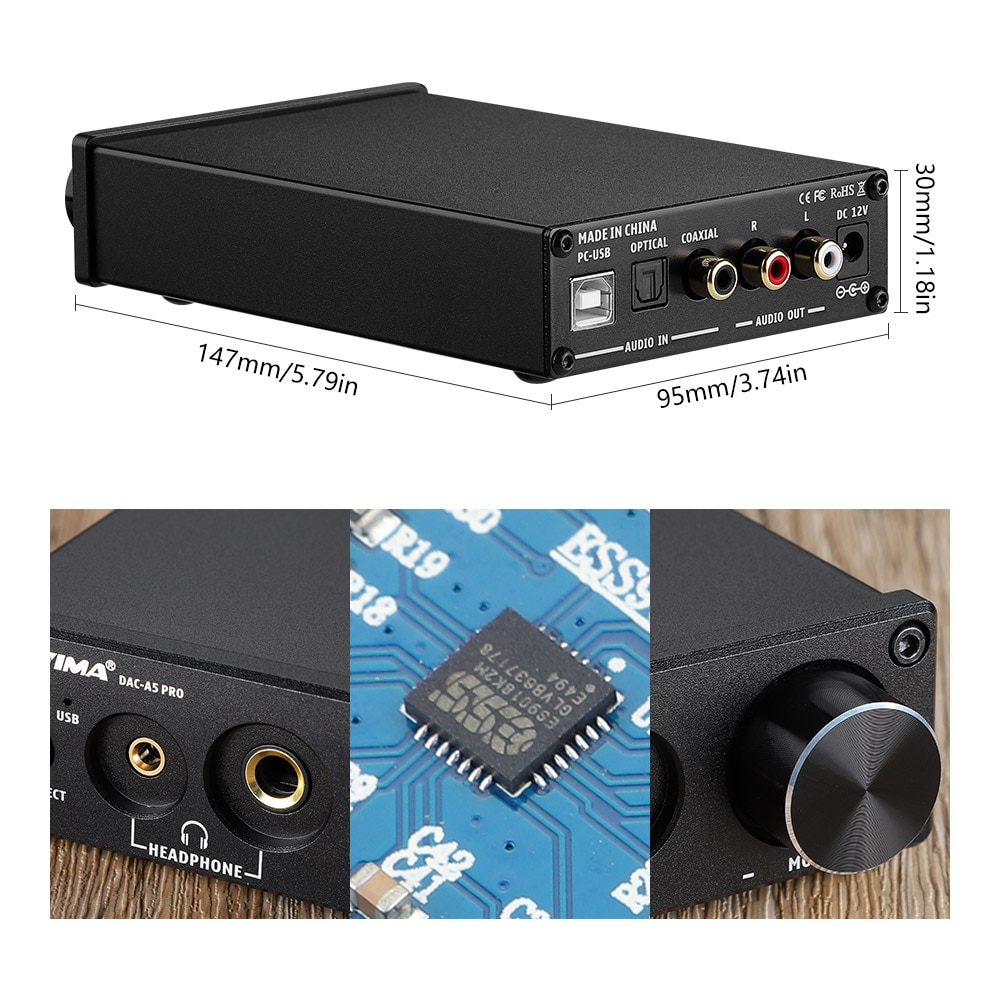

Product Dimension: 147 * 98 *31mm
Product Weight: 0.35KG
Operation Steps:
1. Connect the rear-end device that needs an external connection to the audio output connector.
2. Connect the audio source you want to use to the audio input connector.
3. Connect the power supply.
4. Turn the volume knob clockwise to turn it on and select the desired volume level.
5. Select the desired EQ by rotating the bass treble knob.
6. When the amp output is connected, the RCA analog output will be automatically disconnected.
PC-USB operating instructions:
1. Connect the PC-USB interface on the rear panel of the machine with the factory-configured USB cable (USB can support hot plugging)
2. Press the input signal selection button to select the USB input.
3. Find the icon with the horn symbol in the lower right corner of the PC
4. Click the right button to pop up the dialog box and click ''Select Play Player''
5. Pop-up dialog box to select the playback device recognized by the PC (this machine USB is automatically recognized, free to install the driver manually)
6. Click to confirm the recognized digital output.
Common problem:
Q: All the lines are connected, but there is no sound output?
Answer: 1. Check if the POWER indicator is on. After the power button is pressed, the indicator still does not light. At this time, you can find an equivalent voltage output (must be 5V) in the test to judge the machine failure or power failure. If the POWER indicator is on, check if the corresponding input signal is selected correctly.
2. If the above two points are checked or no sound, check if the VOL knob is in the minimum state, such as clockwise rotation in the minimum state;
3. If both of the above are normal, check if the playback device of the input source is paused, muted, or the volume is at its minimum.
Q: Why is the sound broken?
A: Although this product is a DAC decoder, it can also be used as a pre-stage product. It has amplifying effect. If the volume of the rear-end device is adjusted to the maximum and the pre-stage is also adjusted to the maximum, it is easy to be distorted. You only need to turn down the volume of the front or back level.
Q: Why does the speaker have a large current sound?
A: If you are not using the original standard power supply, please replace the power supply before testing. A lot of power supply in the market has a large interference coefficient, which will cause a large current sound.
Q: Why do I not play the sound source after I plug in the input cable, and the speaker will have a loud beep?
Answer: When the unshielded signal line is used, the interference signal will enter the amplifier for amplification. If you hate this sound, you are advised to replace the shielded signal line or unplug the signal line.
Q: Can the headphone output connector be connected to a microphone?
A: No, the headphone jack is a signal output interface, not an input interface.
Q: Why is the volume of the machine unchanged, and the sound source is different when accessing different audio sources (such as connecting the CD first and then changing to the mobile phone)?
A: The amplitude of the output signal of different playback devices is different. For example, the mobile phone is usually 0.35MV, and the CD is 1V. The natural sound size is different.
Q: Why is there no sound after the PC-USB is connected to the PC?
A: First press the PC-USB operation to confirm whether the digital playback output is selected. If there is still no sound after selecting it, you can restart the computer and repeat the operation.
Q: Why are lines plugged in, but there is no sound in the RCA analog output?
A: At this time, you should check whether the headphone output is plugged into the earphone, or plug in the earphone adapter. If you plug it in, you need to unplug the earphone or adapter to simulate the RCA output.

Packing List :


1Pcs x Audio DAC-A5 PRO

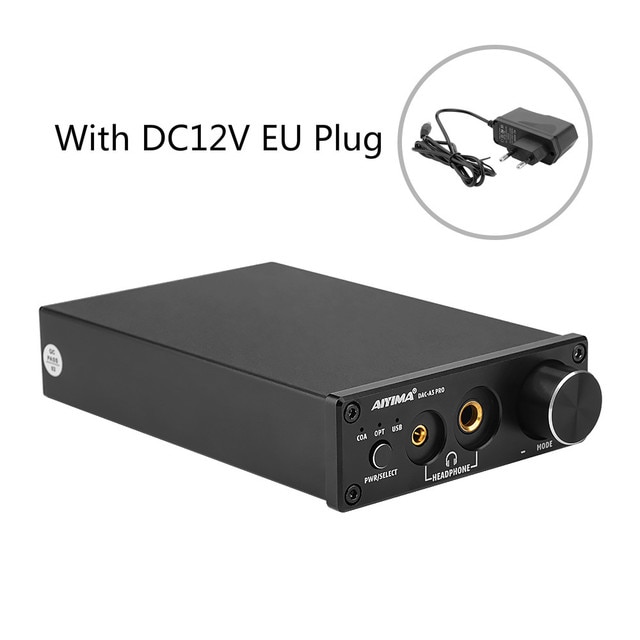

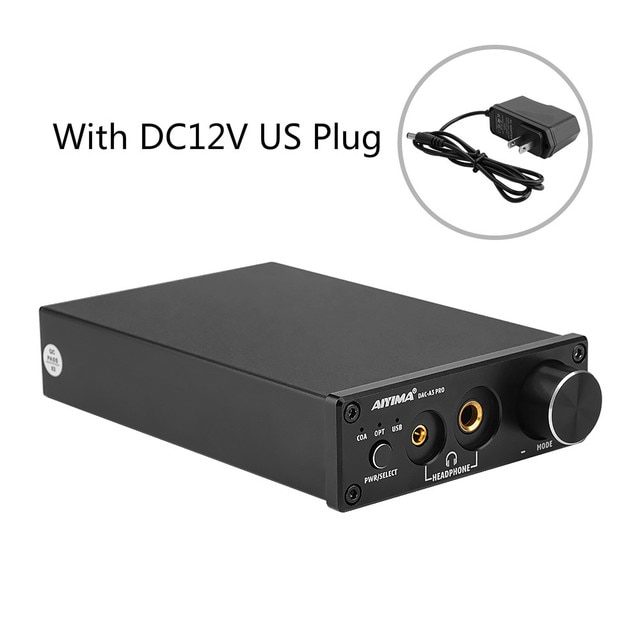

1Pcsx DC12V Power Supply (Optional)




  • Signal To Noise Ratio: 105
  • Dimensions (WxHxD): 147 * 98 *31mm
  • Body Material: Aluminum
  • WIFI: No
  • Bluetooth: No
  • PCM: No
  • DSD (Direct Stream Digital): No
  • Operational Amplifier Chips Model: TPA6120 + LM49720
  • DAC Model: SA9123C + ESS9018K 2M
  • Channels: 2 (2.0)
  • Package: yes
  • Output Power: 400mW
  • Model Number: Mini HiFi 2.0 Digital Audio Decoder USB DAC Headphone Amplifier
  • Type: Mini Amplifier
  • Recommended Headphone Maximum Impedance: 201-250 Ohm
  • Built-in Battery: No
  • Output Type: LINE OUT (AUDIO OUT)
  • Input Type: USB,COAXIAL,OPTICAL
  • Brand Name: Aiyima
  • Certification: CE,RoHS
  • Origin: Mainland China
  • Model: DAC-A5 PRO
