Nobsound Mini HiFi Sound Card DAC TDA1387 USB 8X Audio Decoding Headphone Amplifier DTS/AC3 Coaxial Optical Digital Output
SALE
ID: 6696

Nobsound Mini HiFi Sound Card DAC TDA1387 USB 8X Audio Decoding Headphone Amplifier DTS/AC3 Coaxial Optical Digital Output

5.0 (1 votes) | 2 orders
Price: US $110.98 / piece
Discount Price:
US $ 86.38 / piece
-22%
Ships From
Quantity





Parameters:

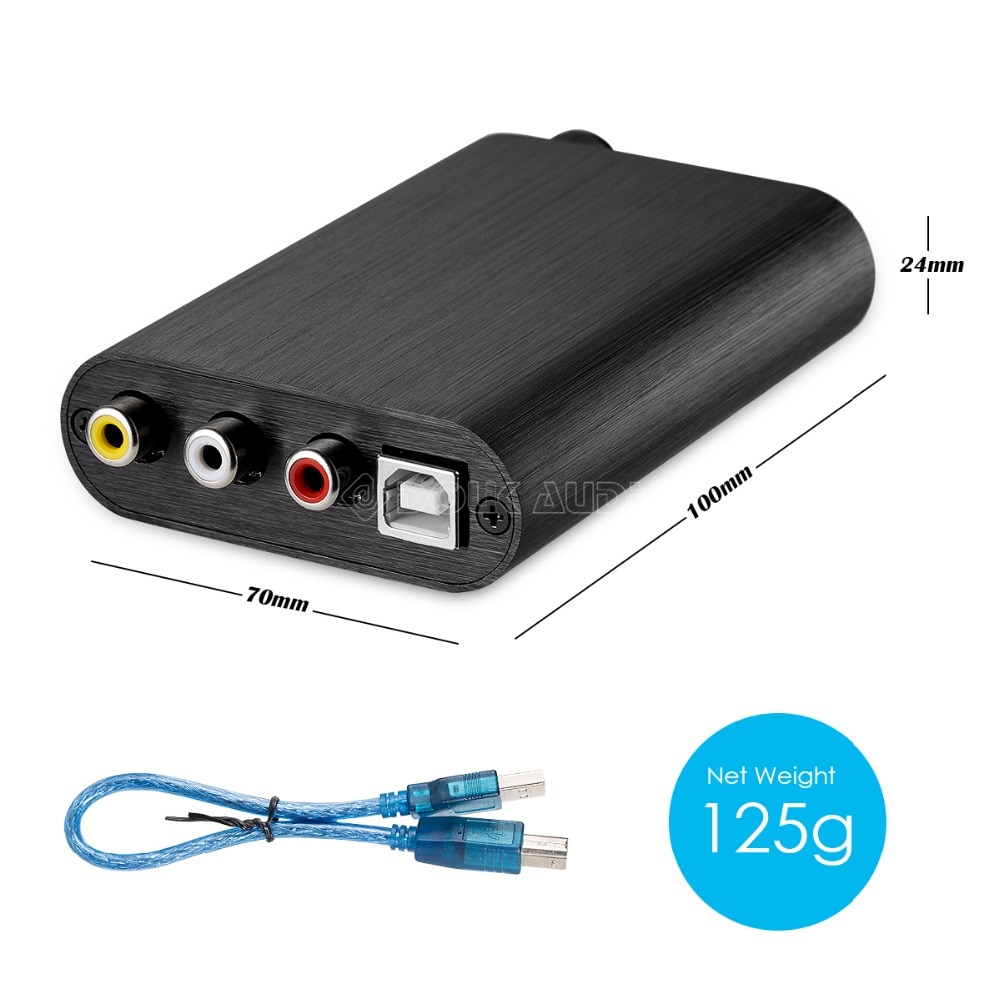

  • Size: 100 * 65 * 25mm
  • RCA line output: 1.5Vrms (can be external connect  multimedia speaker or amplifier)
  • 6.35 headphone output power: 32ohm 60mW
  • USB input bit rate: 16bit 44.1k 48K
  • Coaxial fiber digital output: PCM signal, DTS, Dolby AC3 source.

Features:

USB is powered directly via the CLC network

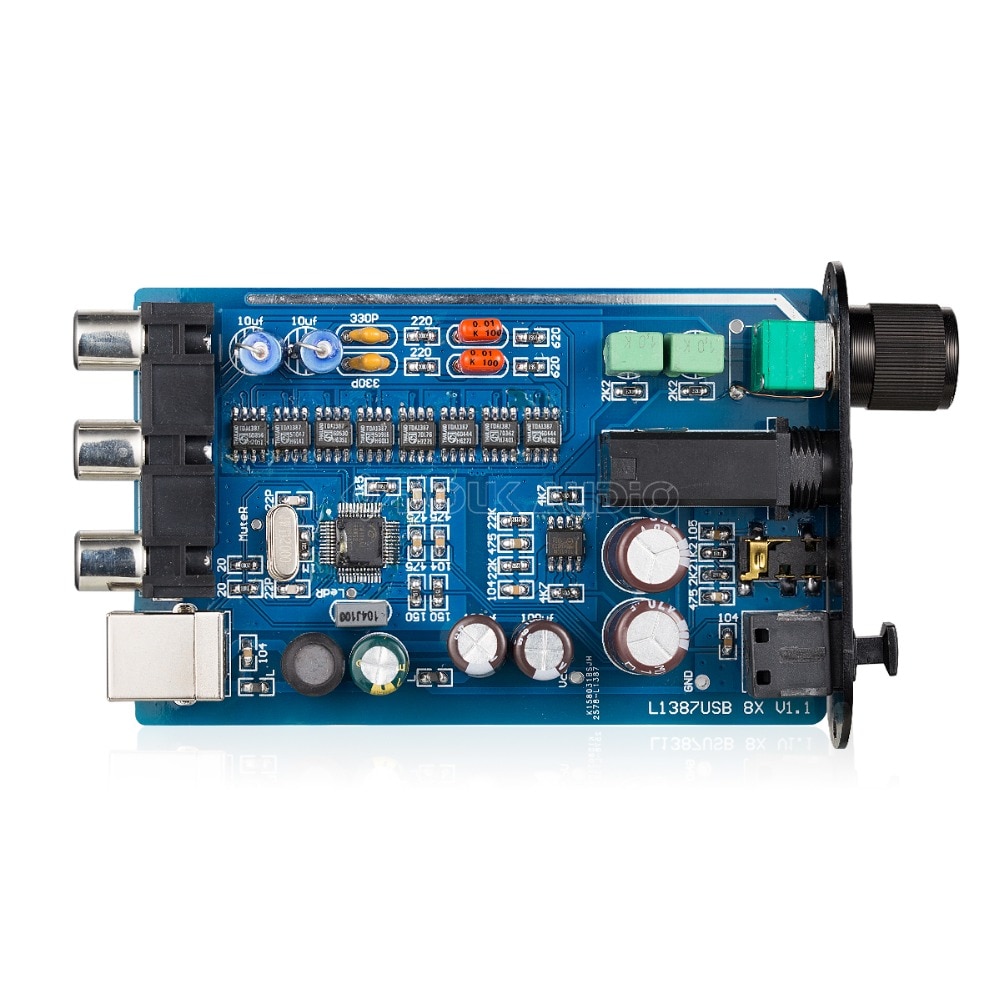

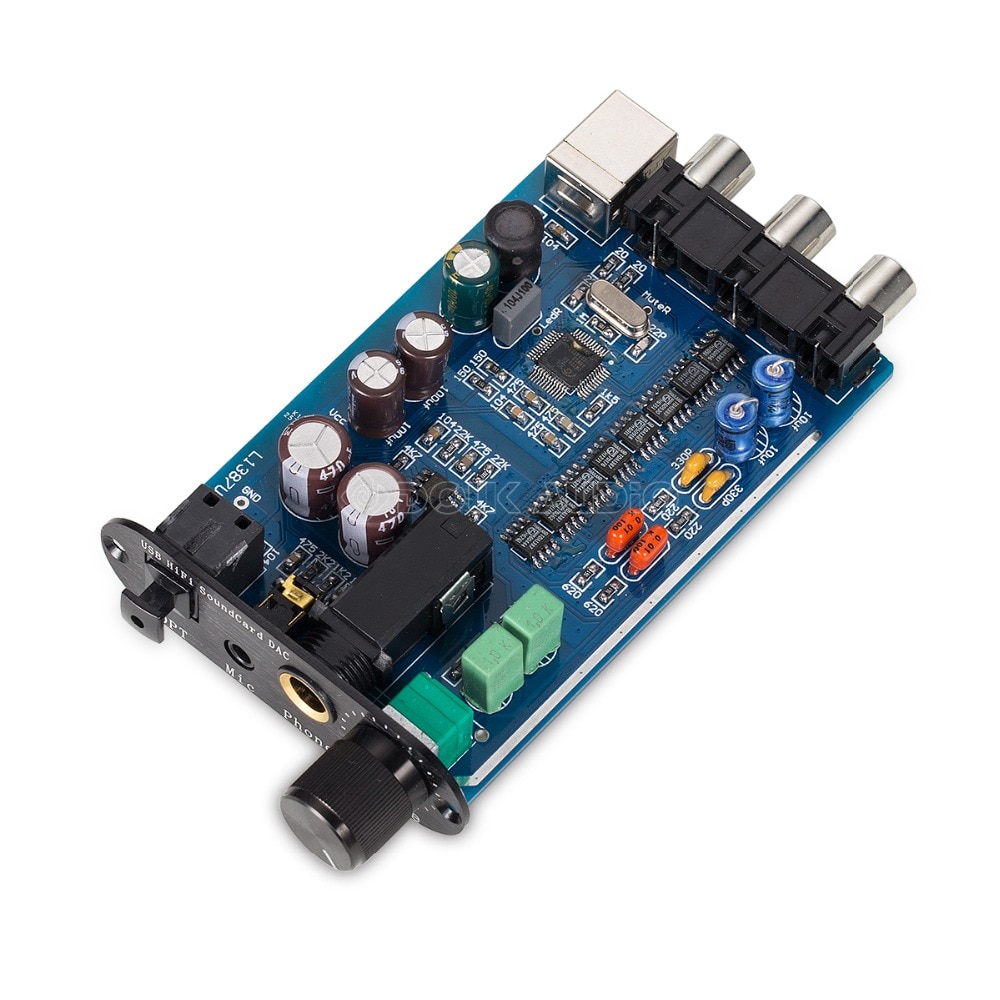

CM108 receive, directly through the I2S output to the TDA1387

Eight TDA1387 decoder chip in parallel, you can make the decoder chip current output capacity increased significantly, the sound density, control has a very significant increase

RCA output can be connected to the amplifier or multimedia active speakers.

Mos-powered Philips TDA1308 amp chip, enough to drive most low-impedance headphones

Provide coaxial, fiber digital output, can be connect decoder, and even output DTS source, connect 5.1 power amplifier

Keep the microphone input compatible capacitor, electret microphone, can support the game and network call function.


Package include:

  • 1× Headphone amplifier/DAC
  • 1× USB Cable



1548149814841486










  • Brand Name: Nobsound
  • Built-in Battery: No
  • Recommended Headphone Maximum Impedance: 301-400 Ohm
  • Output Type: LINE OUT (AUDIO OUT)
  • Output Type: Micro-USB
  • Origin: CN(Origin)
  • Input Type: RCA
  • Input Type: LINE IN (AUDIO IN)
  • Input Type: USB
  • DSD (Direct Stream Digital): No
  • Body Material: Metal
  • Package: YES
  • Channels: Other
  • PCM: No
  • Bluetooth: No
  • WIFI: No
