980REV Mini Pro OTDR Reflectometer 9 Functions in 1 Device OPM OLS VFL Event Map RJ45 Ethernet Cable Sequence Distance Tracker

5.0 (10 votes) | 94 orders
Price:
US $ 434.85 - 477.75 / piece
Quantity

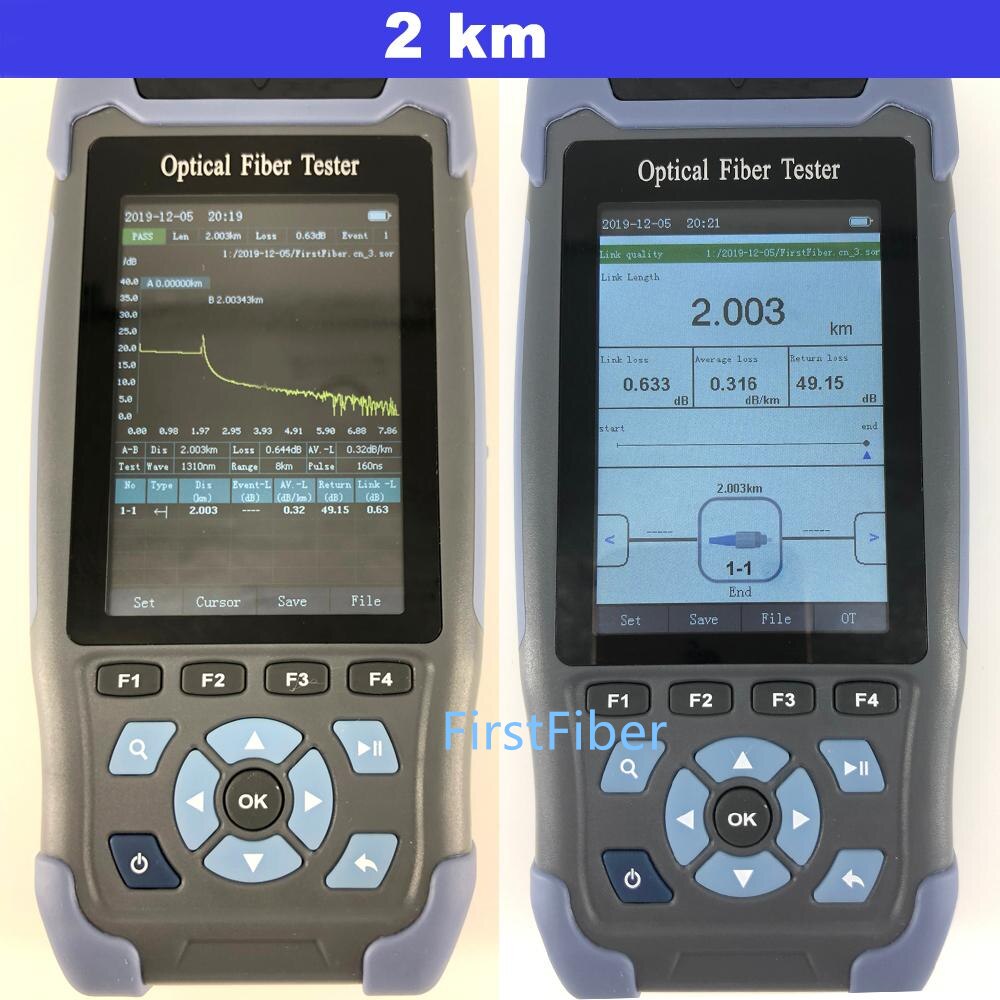

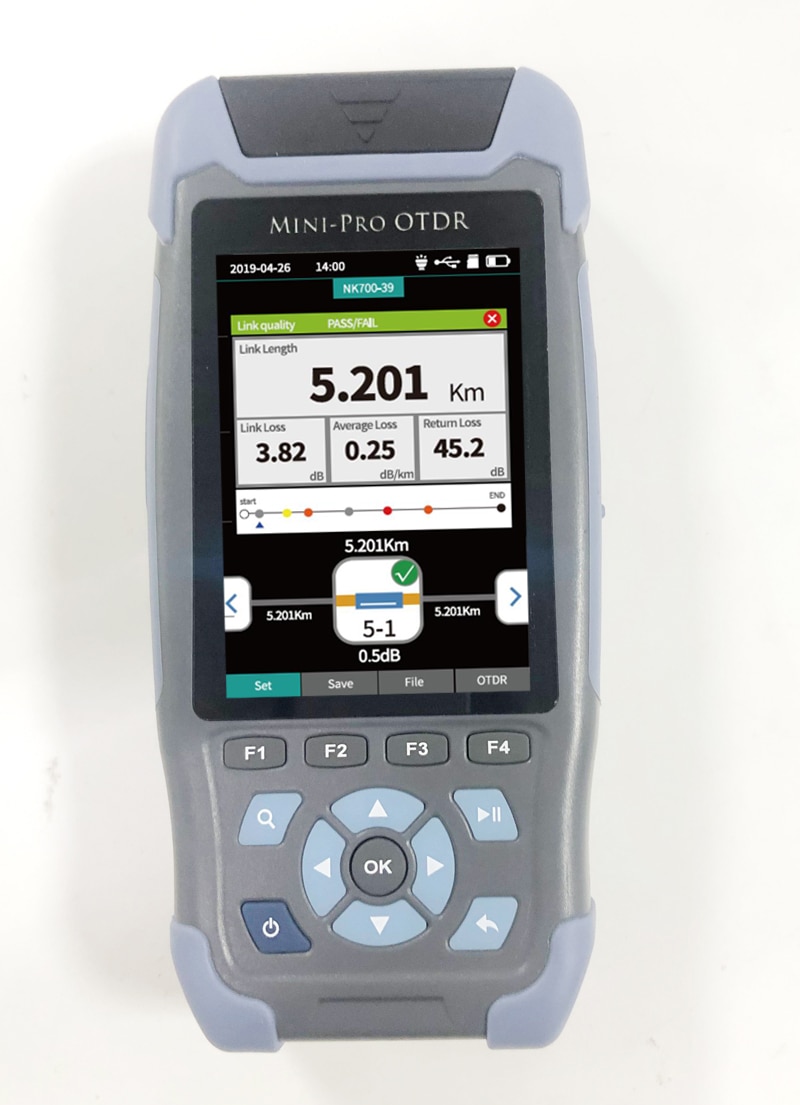

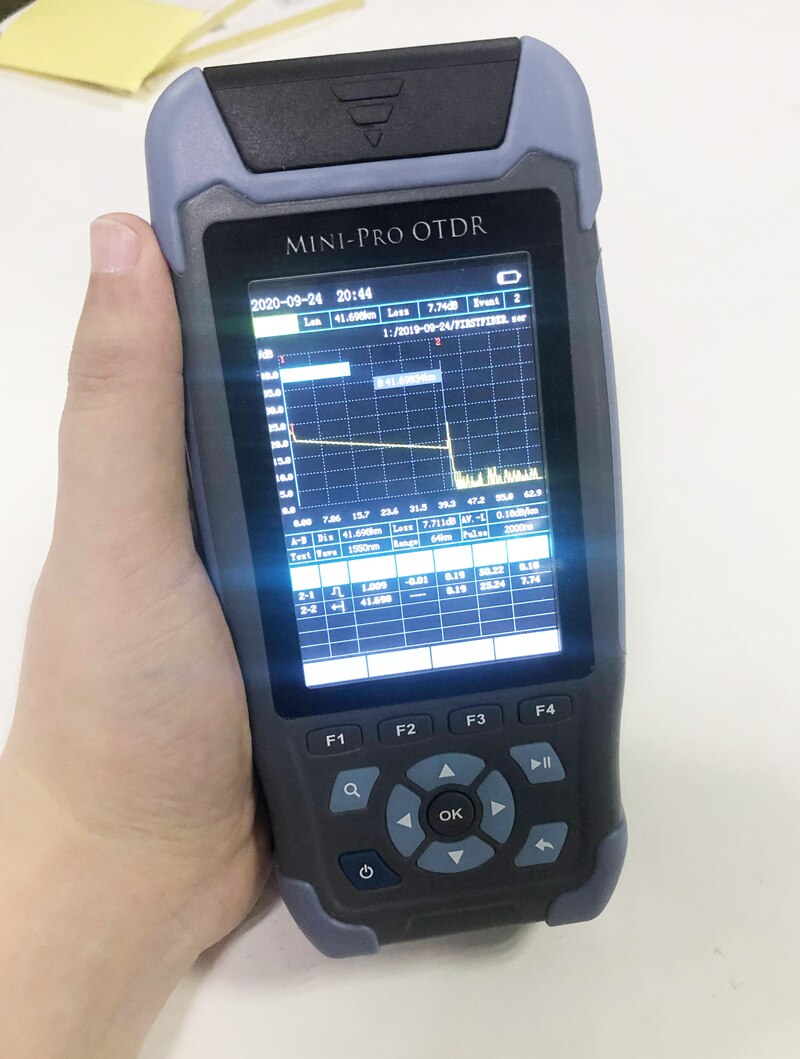

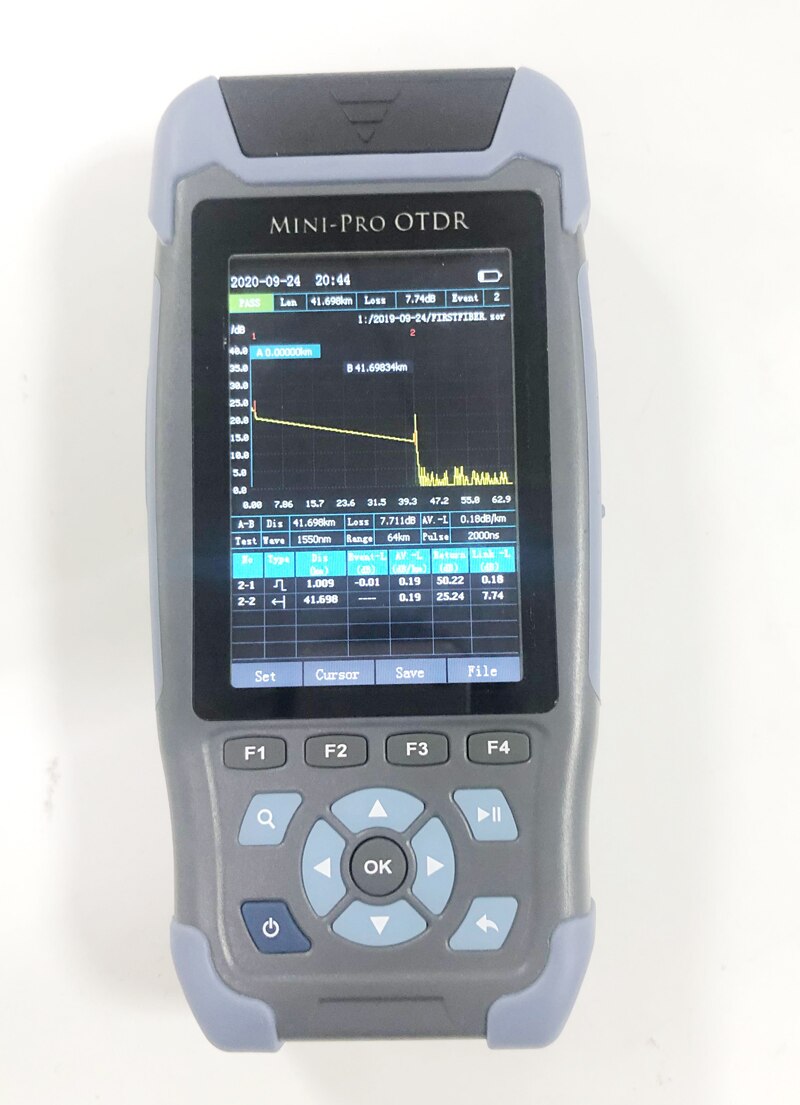

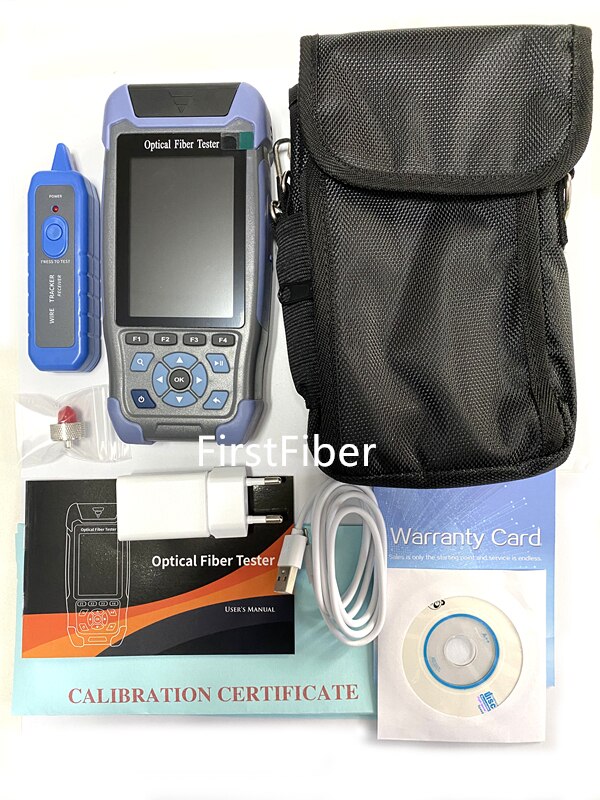

MINI-PRO OTDR


Model: FF-980REV                  Wavelength: 1310 and 1550nm

Dynamic Range: 24/22dB       Testing Range: 3m to 64km

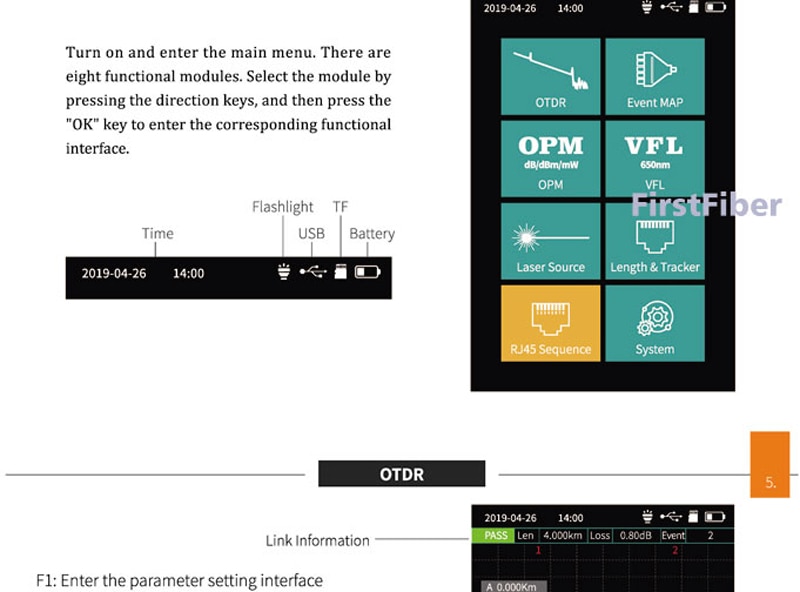

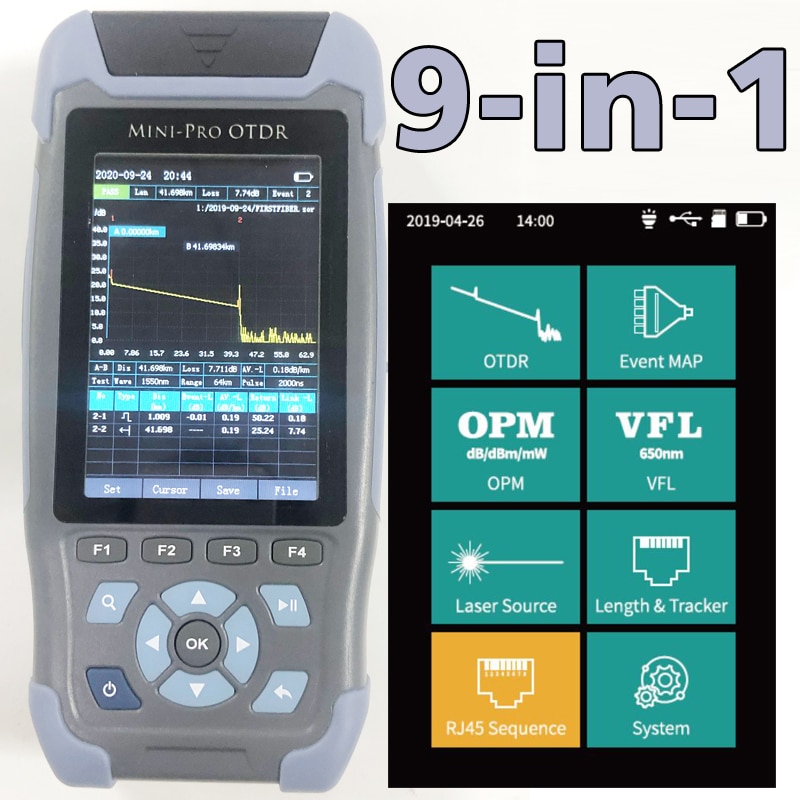

9 Functions in 1 device

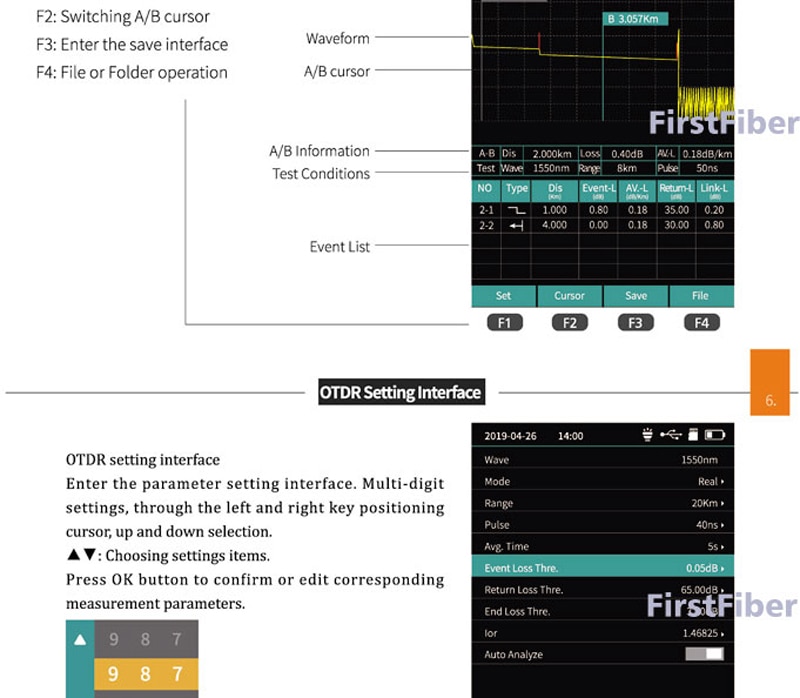

1)  OTDR

2)  EVENT MAP

3)  Optical Light Source

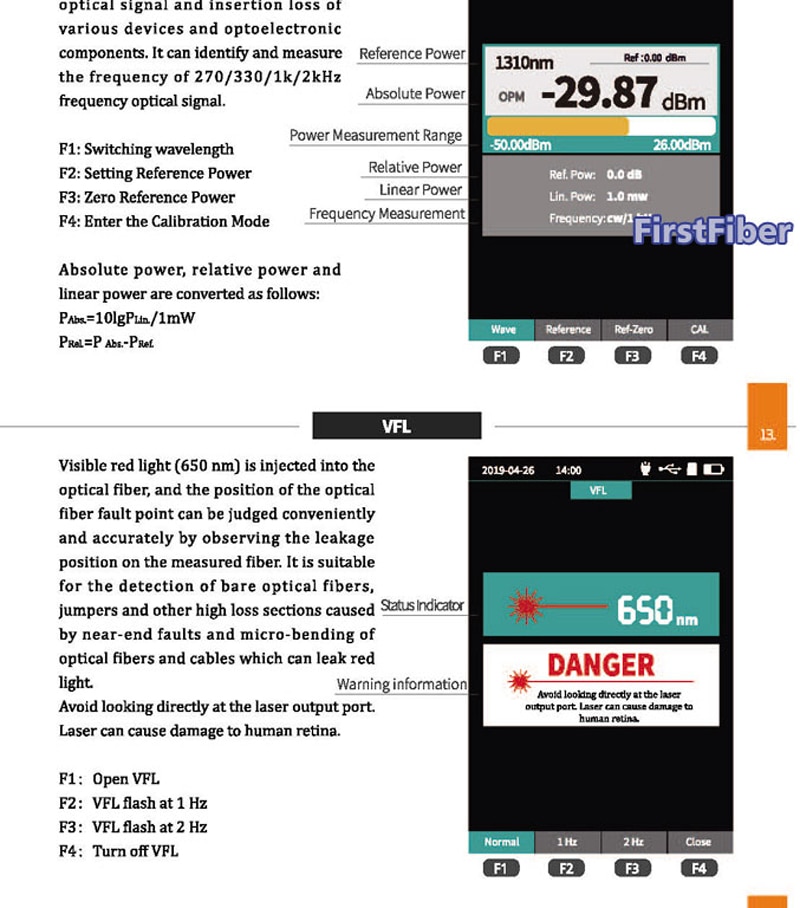

4)  Optical Power Meter

5)  Visual Fault Locator

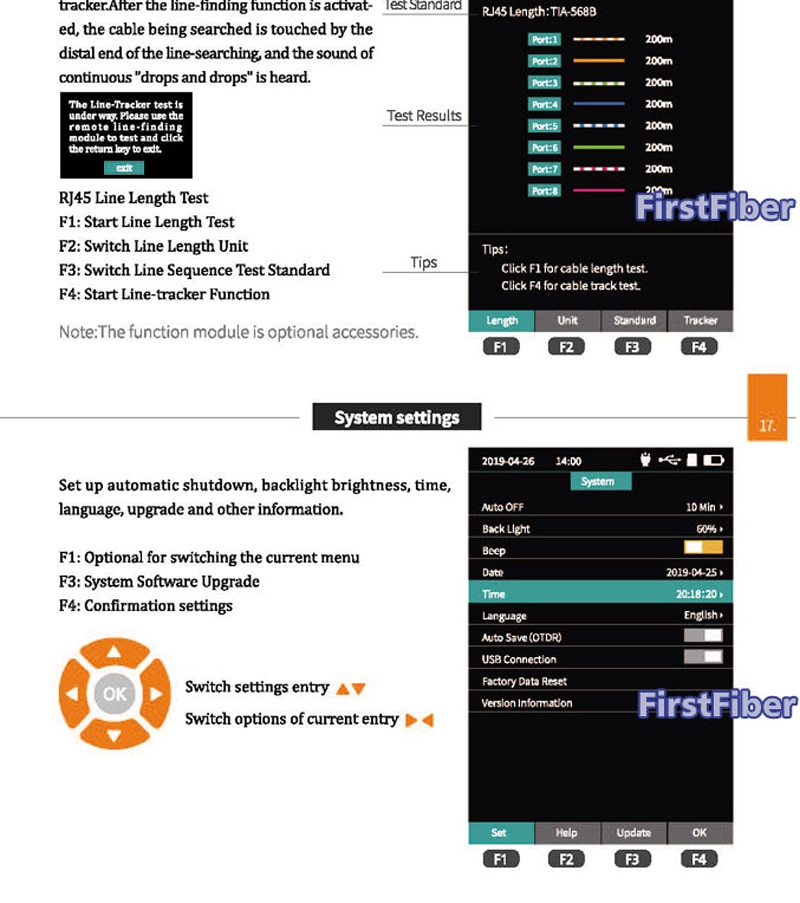

6)  RJ45 Ethernet Cable Sequence

7)  Ethernet Cable Distance

8)  Ethernet Cable Tracker
9)  LED Light






CONTACT SALES ENGINEER 7/24 IF ANY QUESTIONS

sales(@)firstfiber.cn

Wechat/ Whatsapp: +86 18217747005

Skype ID: anker.yang88





980REV_00980REV_04980REV_01980REV_02980REV_03





user-manual_页面_1_03user-manual_页面_1_05user-manual_页面_1_06user-manual_页面_1_07user-manual_页面_1_08user-manual_页面_2_03user-manual_页面_2_06user-manual_页面_2_07user-manual_页面_2_08

1111222233332019-09-25_124951










  • Size: 173x82x37mm
  • Fiber Type: Single Mode
  • Compatible: IBM
  • Connector Type: FC/UPC
  • Item Length: 1m
  • Model Number: FF-980REV
  • Brand Name: OLOEY
  • Certification: CE,RoHS
  • Origin: Mainland China
  • Weight: 350g
  • Dynamic Range: 24/22dB
  • Event Dead Zone: 3m
  • Attenuation Dead Zone: 8m
  • Testing Range: 3m to 60Km
  • Loss Accuracy: 0.05dB/dB
  • Sampling Point: 16K to 256K
  • Sampling Resolution: 0.05m to 8m
  • Reflection Accuracy: 3dB

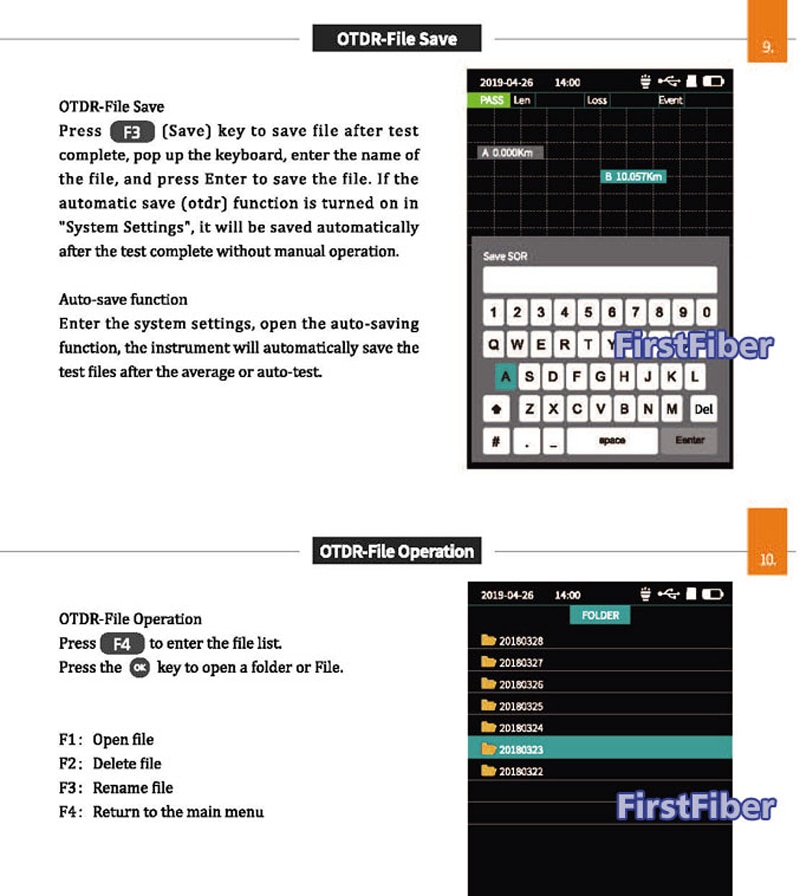

  • Memory: 500 curves (TF card supported)

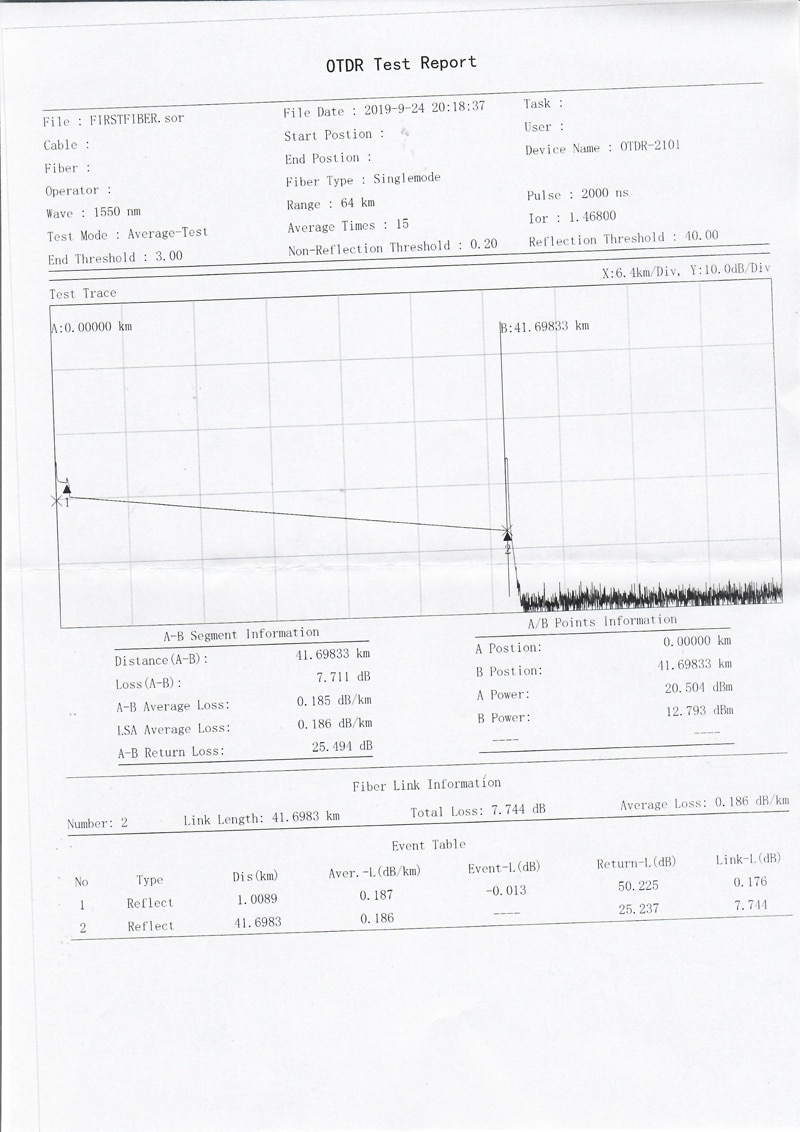

  • OTDR curve Format: SOR
  • Connector: FC/UPC, SC/UPC
  • Interface: micro USB
  • Battery: 3.7V, 4000mAH
  • Power Charging: 5V DC, 2A
  • Working Time: 12 Hours
  • Working Temp.: -10 ℃ to +50 ℃
  • Storage Temp: -20 ℃ to +70 ℃
