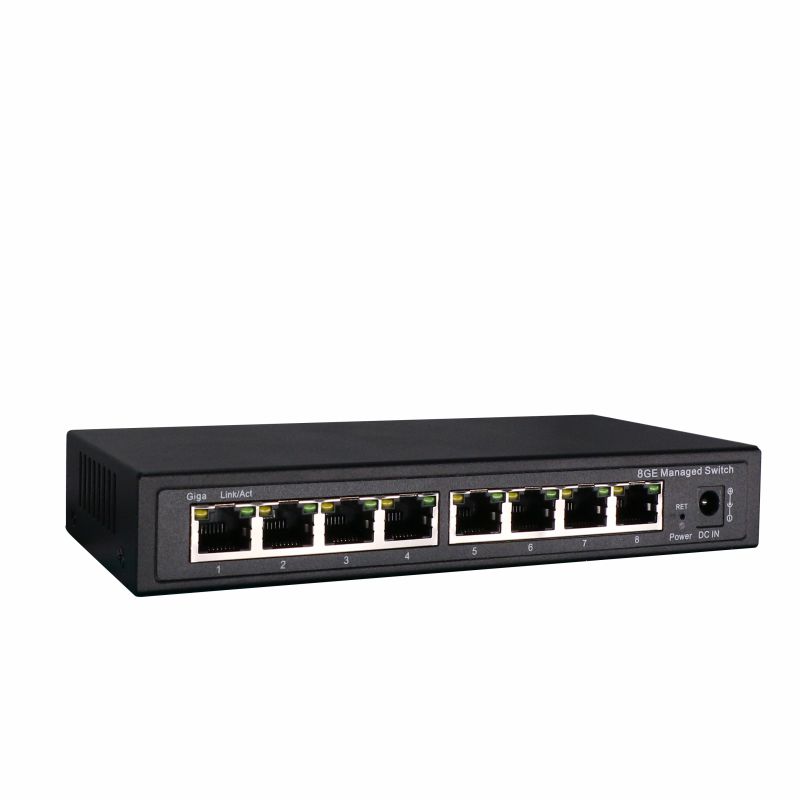

8 Port Gigabit Managed Switch Managed Ethernet Switch with 8 port 10/100/1000M VLAN
4.4 (9 votes) | 53 orders
Price:
US $
65.88
/ piece
Notice: We have the PDF manual of the SW1008WEB, I can send you by email，So please send me your email online.
New Version:
Model | SW1008WEB |
Port | 8GE RJ45 |

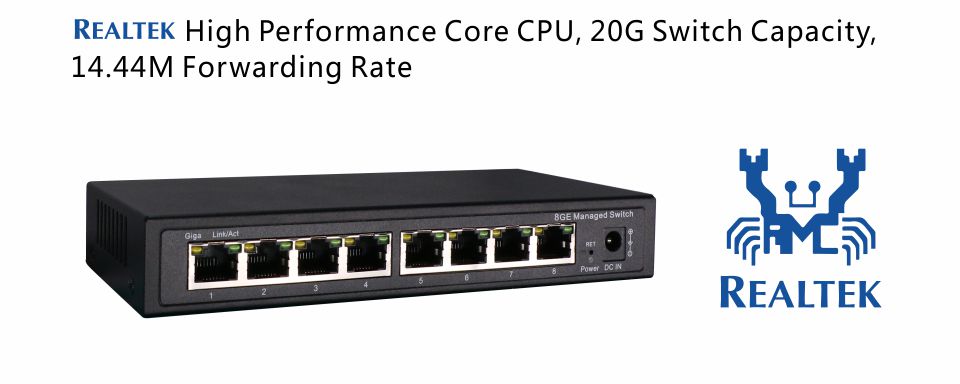

Exchange of content | 20G |
Packet forwarding | 14.44M |
Cache | 2.5M Cache |
Environment | Working temperature: 0℃~40℃ Storage temperature: -40℃~70℃ Working humidity:10%~90%RHNot congealed Storage t humidity 5%~95% RH Not congealed |

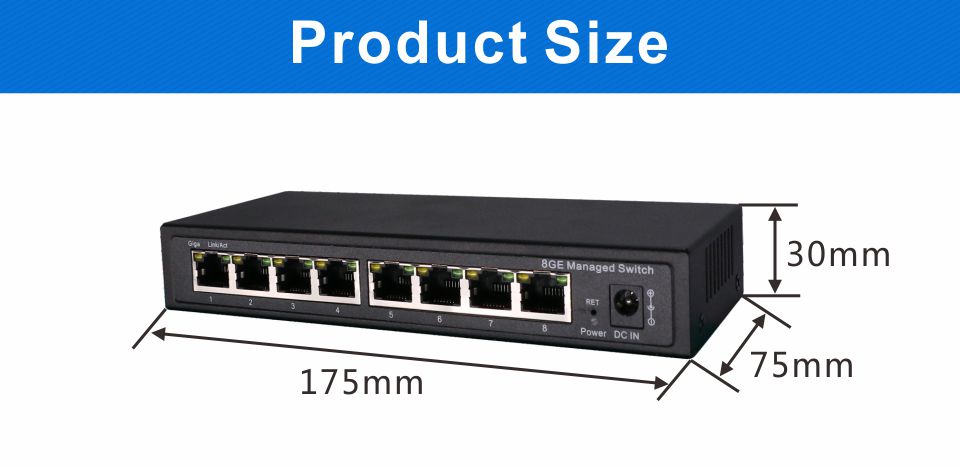

Product size | 175mm*75mm*30mm |
Machine weight | 0.4kg/0.6kg |
Power in | DC 12V 0.5A |
power consumption | ≤5W |
Support standard | IEEE 802.3, 10BASE-T IEEE 802.3u, 100BASE-TX IEEE 802.3ab, 1000BASE-T IEEE 802.3z, 1000BASE-X(Fiber) IEEE 802.3x, flow control |
MAC address | 8K |
VLAN configure | Support port based VLAN Up to 4096 VLAN |
Port trunking | Support trunking |
SPAN | Supporting Port Mirroring of the receiving and transmission |
Loop Guard | Loop protection function, real-time detection, rapid alarm, accurate positioning, intelligent blocking, automatic recovery |
Isolation | Support downlink ports isolated from each other and communicate with upstream port |
Port flow control | Half duplex based back control Full duplex based on PAUSE frames |
Line rate | Support port based input/output bandwidth management |
IGMP | Support IGMP |
Storm suppression | Supporting Unknown Multicast, Unknown Multicast and Broadcast Types storm Suppression |
Security | Support user port+ IP address+ MAC Security properties of port based MAC address quantities |
QOS | port queue priority algorithm |
port | Auto-MDIX, Auto negotiation |
Negotiation mode | Port support for automatic negotiation (self-negotiation transmission rate and duplex mode) |
System maintenance | Upgrade package upload System log view WEB restore factory configuration |

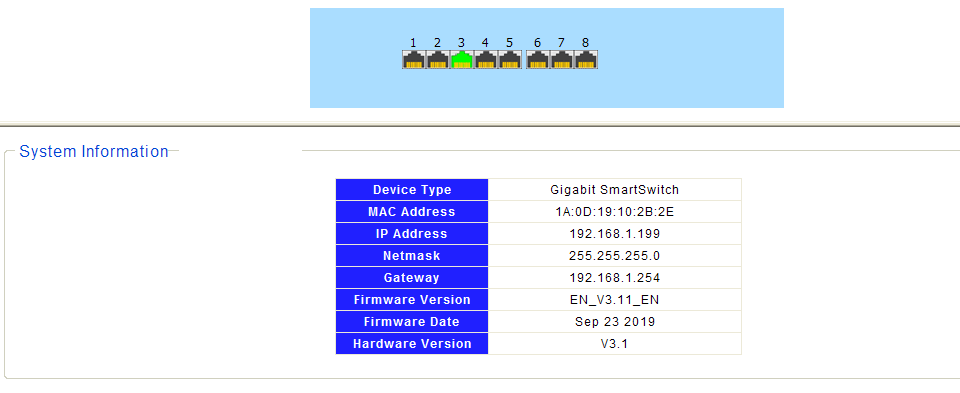

Network management | Support WEB Interface management |
- Switch Type: Gigabit Switch
- Number of Interfaces: 9
- VLAN: YES

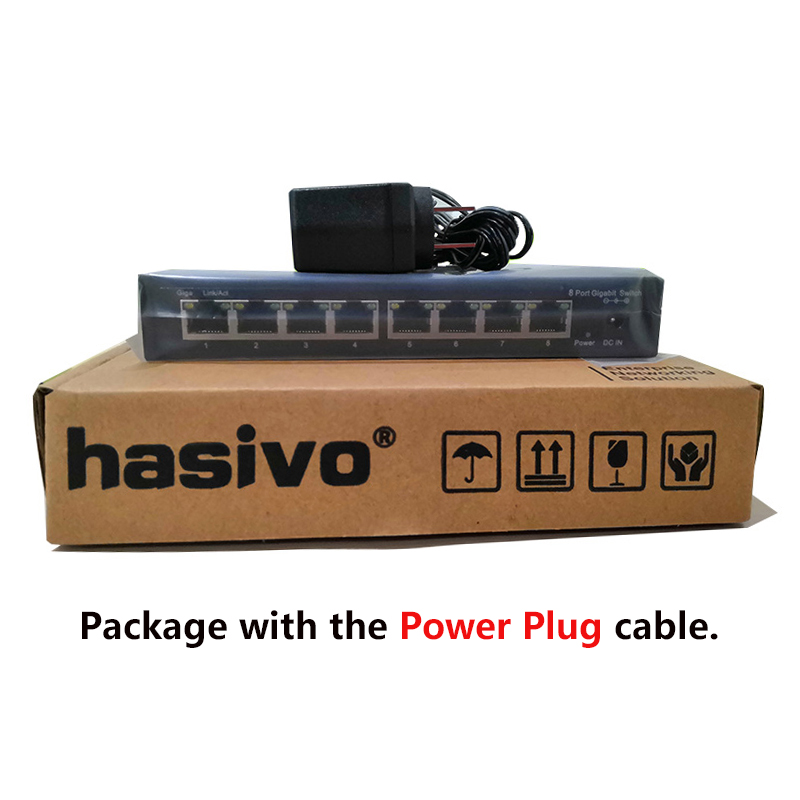

- Package: Yes
- Certification: CE,FCC,RoHS
- Transmission Rate: 10/100/1000Mbps
- Switch Capacity: 20G
- Communication Mode: Full-Duplex & Half-Duplex
- Model Number: SW1008WEB
- Function: VLAN Support,QoS
- Brand Name: hasivo
- Origin: Mainland China
