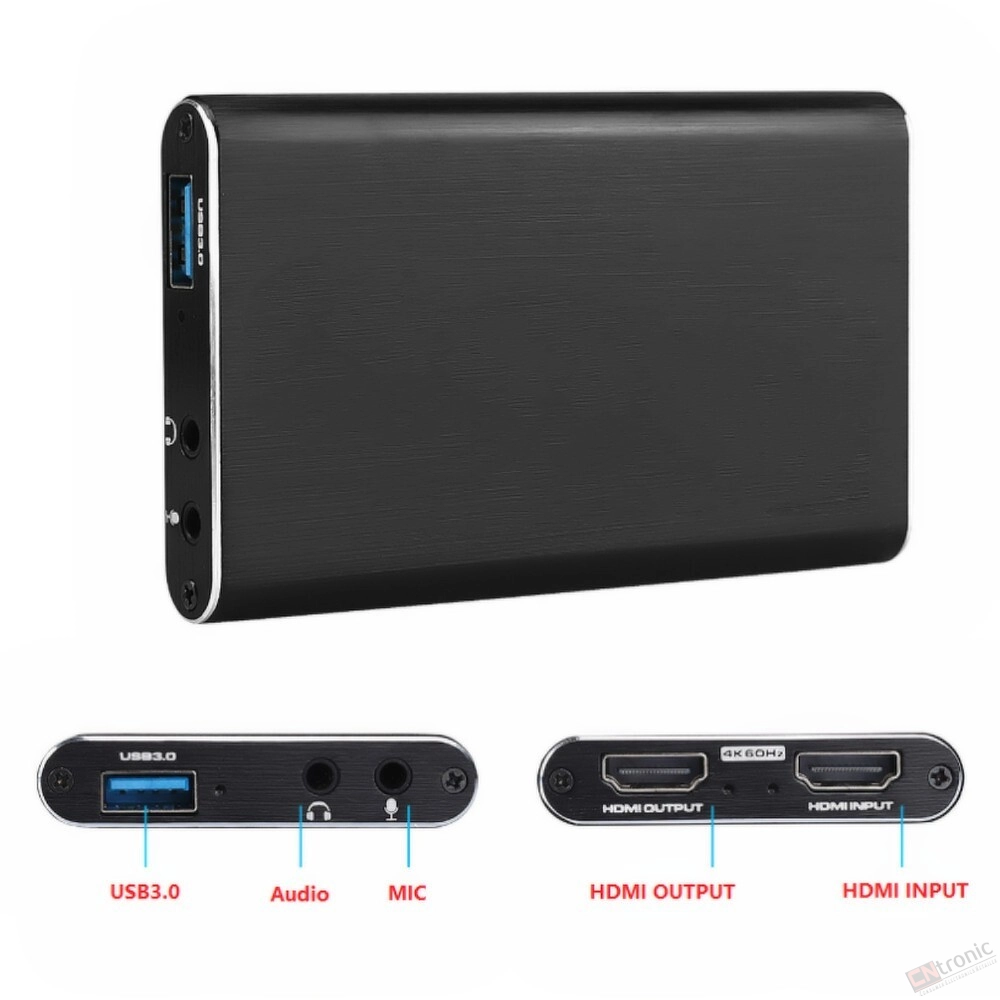

4K HDMI Video Capture Card Device Game HDMI Capture Card HDMI Capture USB 3.0 1080P for PC PS4 Xbox HD Capturing Live Streaming
About Description:
1. Introduction
HDMI to USB3.0 Video Capture Dongle, it is easy to carry, have a superior performance,superior compatibility, simple installation and many other features. It can capture one HDMI 4Kp60 input ,output HDMI 4Kp60 and USB 1080p60 signals. The HDMI video capture meets UVC and UAC standard, without having to install drivers and settings, the real PnP, easy to use.
2. Feature
1. It doesn't need to install a driver, and it is truly PnP.
2. It is compatible with Windows, Linux, OS X operating systems
3. USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0
4. The process of video and audio is done by the dongle and will not occupy the CPU.
5. It can capture one single channel HD HDMI video signals.
6. It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
7. Support HDMI 2.0b and HDCP 2.2.
8. Support MIC input and audio output.
9. Support HDMI loop output 4Kp60.
3. Specification
Host Interface: USB3.0, *300-350MB/s, USB2.0, *40MB/s
Input Interface: HDMI interface
HDMI Input Formats:480i,480p,576i,576p,720p,1080i,1080P,4Kp30,4Kp60
HDMI Output Formats:480i,480p,576i,576p,720p,1080i,1080P,4Kp30,4Kp60
USB3.0 Output Formats Resolutions:360x240/640x480/720x480/720x576/768x576/800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/1440x900/1600x1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576
Frame Rate:30/40/48/50/59.94/60 fps
Size:103x72x19 (L/W/H, mm)
Weight:135g
Power consumption: <= 2.5W
Working Temperature: 0-50 deg C
Storage Temperature: -20-70 deg C
Storage Humidity: 5%-90%
4. Connect and Operate

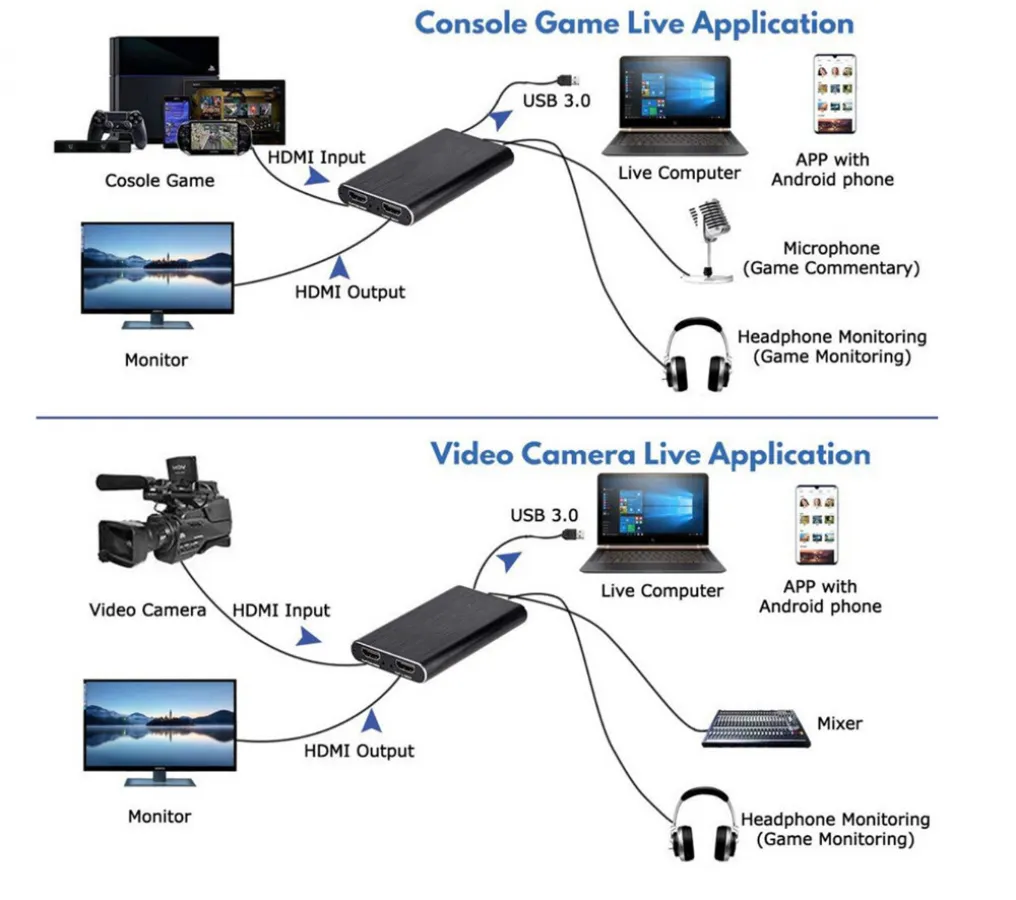

1.Connect the signal sources such as Blu-Ray Player, Play Station , audio/video receiver, satellite receivers with HDMI output interfaces with a HDMI cable to the device HDMI input
2. Insert the USB3.0 cable head to USB3.0 interface, the other side of the cable into your computer's USB3.0 interface.
3. HDMI to USB3.0 Video Capture Dongle is based on UVC (USB video class), UAC（USB audio class）STANDARD, without having to install drivers and settings.After installation in operating system, the relevant video and audio devices will be added on. In Windows, for example, will have new image device:
USB3.0 HD Video Capture ;
USB3.0 HD Audio Capture ;
You'll receive:
1 x USB3.0 Capture HDMI 4Kp60 Box
1 x USB3.0 Cable
1 x HDMI Cable
1 x User Manual
- Please check pictures for more details.
Packaging Details
- Unit Type:
- Package Weight: 0.300
- Package Size: 22x10x25
- Brand Name: BTBcoin
- Model Number: AC4718
- Package: Yes
- Interface Type: USB
- Type 1: HDMI
- Type 2: video card
- Type3: USB 3.0 HDMI Video Capture
- support: Full HD 1080p 60FPS Game Capture
- Feature1: capture card
- Feature2: hdmi capture
- Feature3: video capture
- Feature4: video capture card
- Feature5: video capture device
- Feature6: hdmi capture card
- Feature7: hdmi capture usb
- Feature8: game capture
- Feature9: capture card hdmi
- Feature10: hdmi video capture
- Feature11: hdmi usb capture
- Feature12: video capture hdmi
- Feature13: capture card live streaming
- Feature14: capture card 4k
- Feature15: game capture card
- Feature16: hdmi to usb video capture
- Feature17: usb video capture
- Feature18: usb capture card
- Feature19: video capture 4k
- Feature20: 4k capture card
- Feature21: capture hdmi
- Feature22: video capture hdmi 1080p
- Feature23: usb hdmi capture
- Feature24: hd capture
