XCY Firewall Appliance Mini PC Intel Celeron J1900 Quad-Cores 4x LAN 2.5G i225V i226V Network Card Soft Router Pfsense OPNsense

4.8 (45 votes) | 295 orders
Price: US $337.42 - 636.98
Discount Price:
US $ 215.95 - 397.47
-36%
Quantity

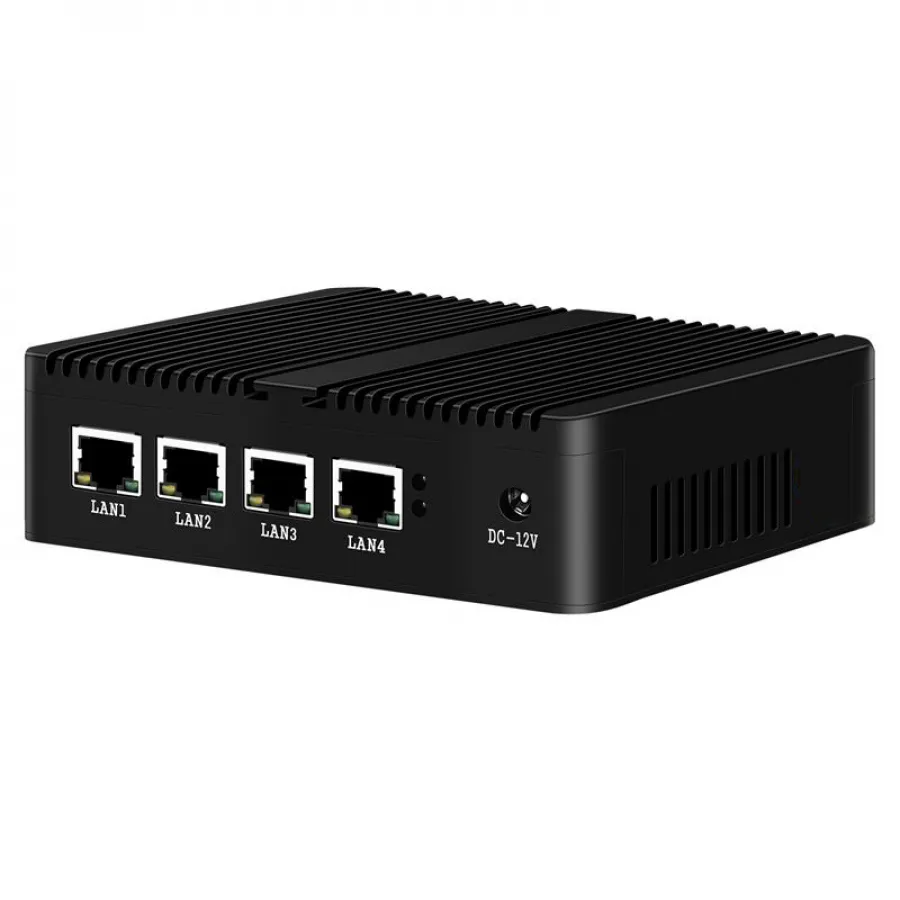

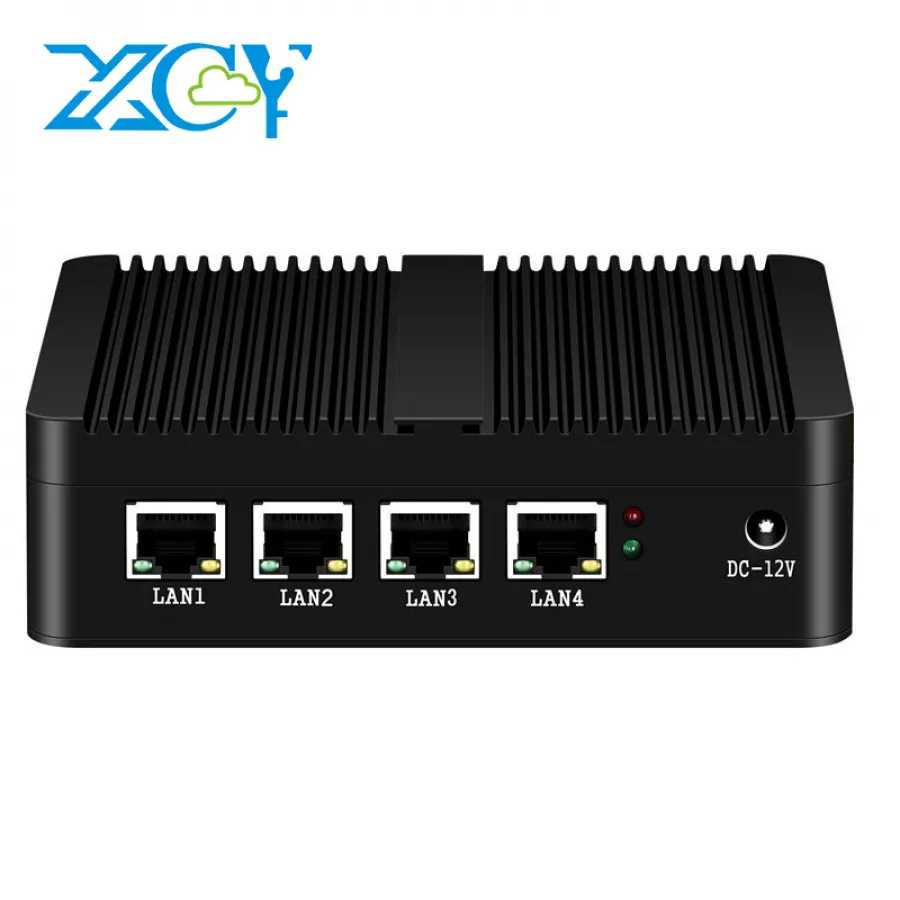

XCY X30 Firewall Appliance Intel Celeron J1900/N2830 Mini PC

Common Use Case:
SMB to Medium Sized Networks
Small to Medium Sized Branch Office
Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
Home or Commercial High-Speed Gigabit Connections

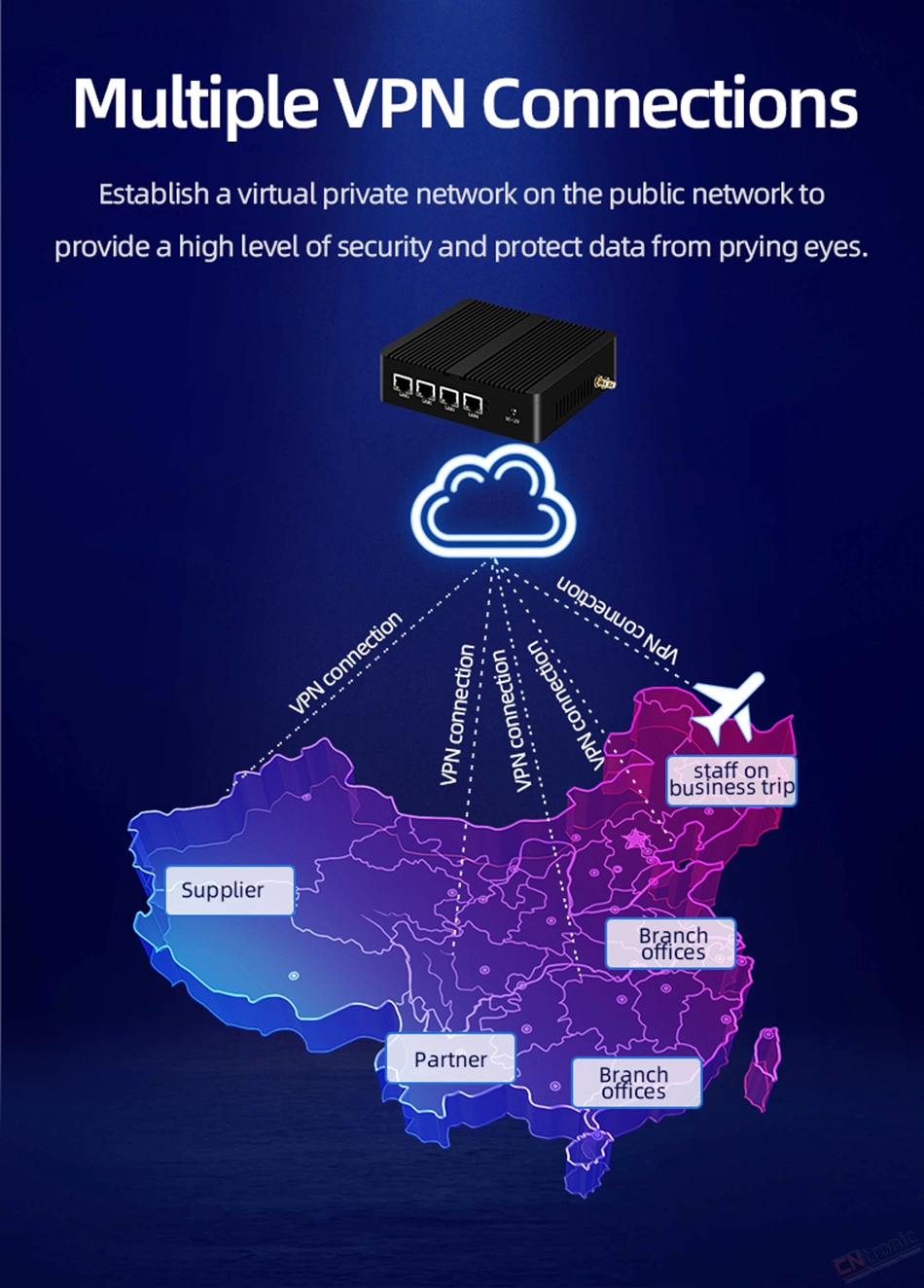

Multiple VPN Connections

Main Features:
- 2.5G Intel i225V or i226V Network card, support PXE, WOL
- OS support Windows 7/8/10, Windows Server, Pfsense, Linux, Ubuntu, OpenWRT, CentOS, EXSI

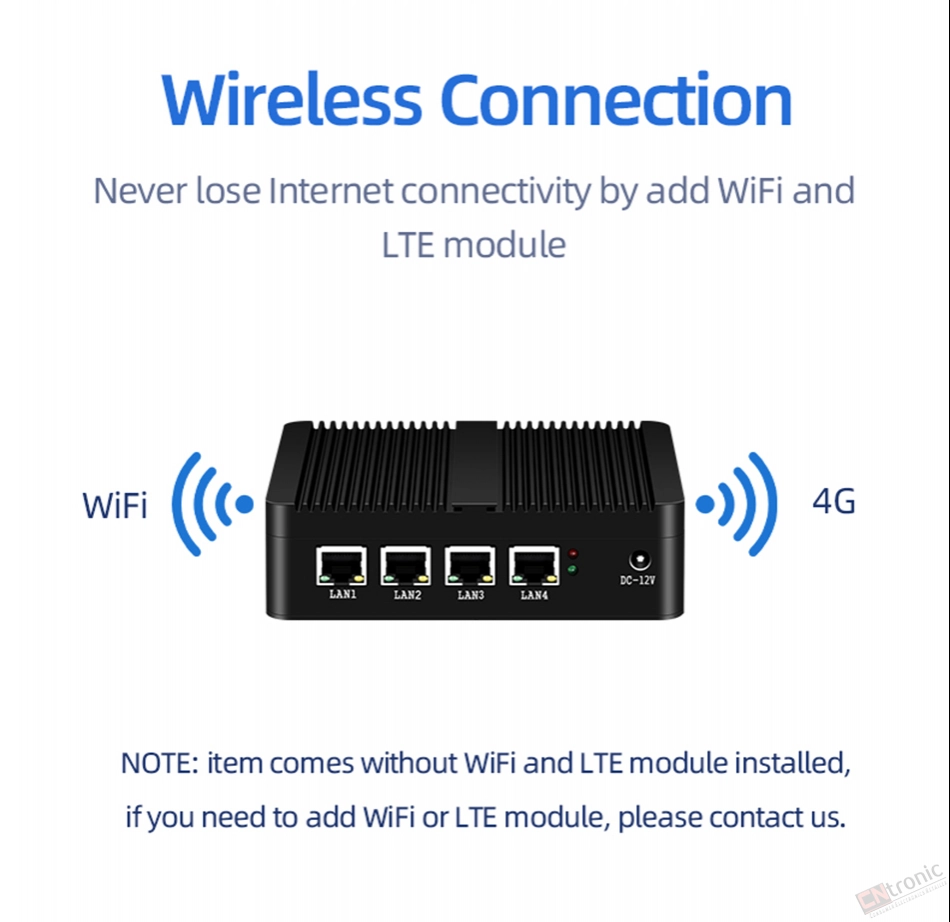

- Support add WiFi /3G/4G LTE module expansion
- Fanless construction, noiseless experience, low power consumption.
- Support wake on LAN, automatically power on after power restore, virtualization function.

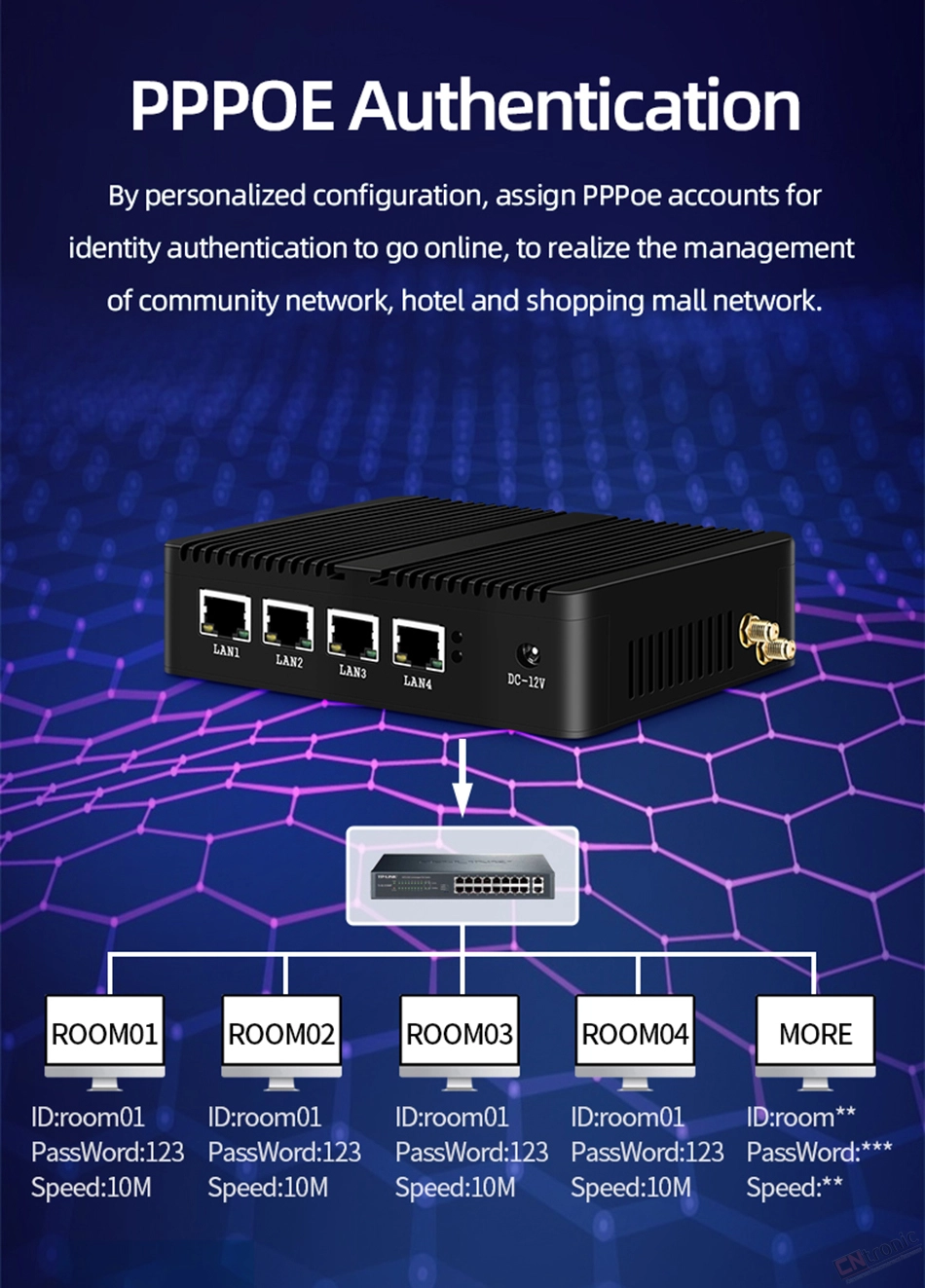

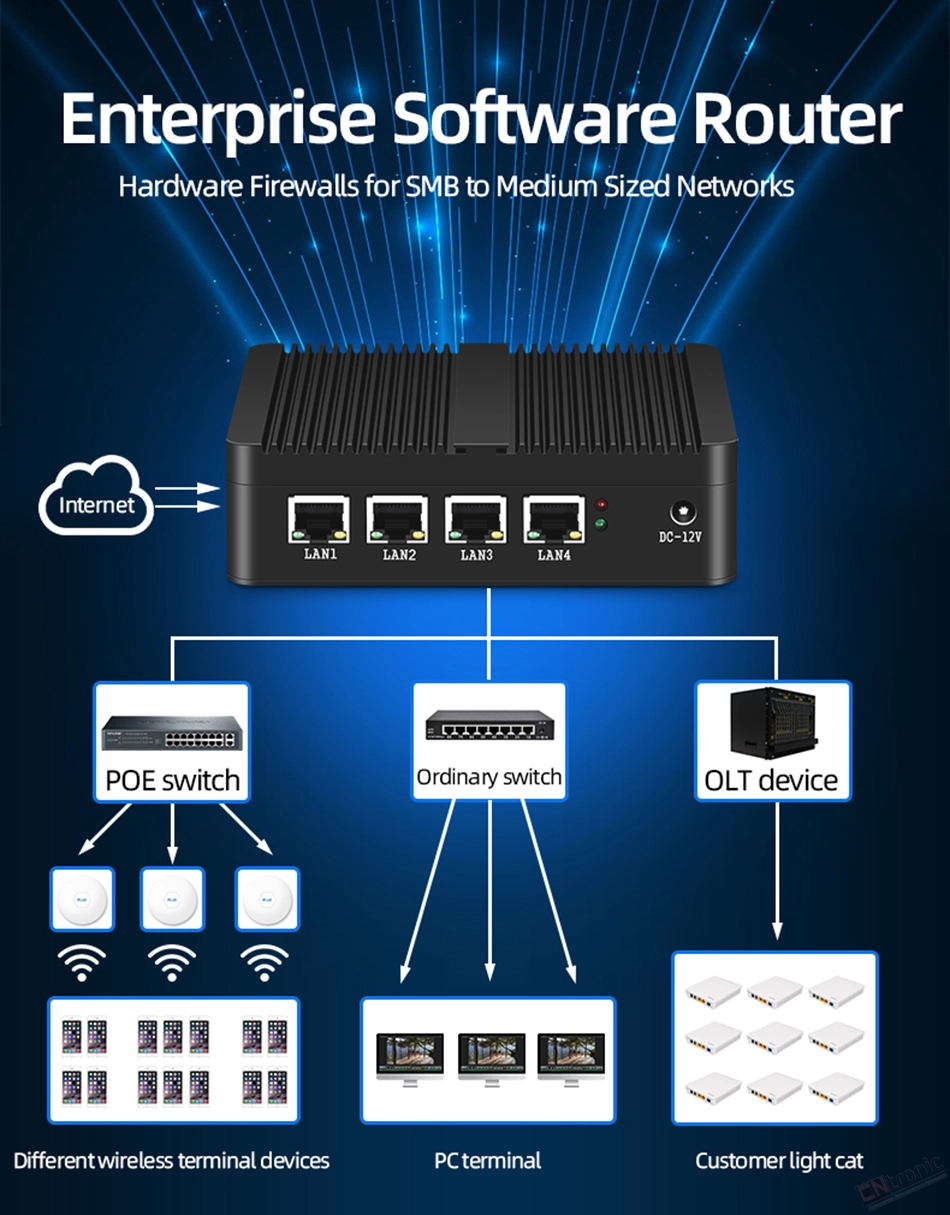

- Can be configured as a firewall, LAN/WAN router, VPN appliance, DHCP/DNS server.

Processors

Intel Celeron J1900, 2M Cache, 4 cores 4 threads, 2.00GHz, up to 2.42GHz

Intel Celeron N2830, 1M Cache, 2 cores 2 threads, 2.16GHz, up to 2.41GHz

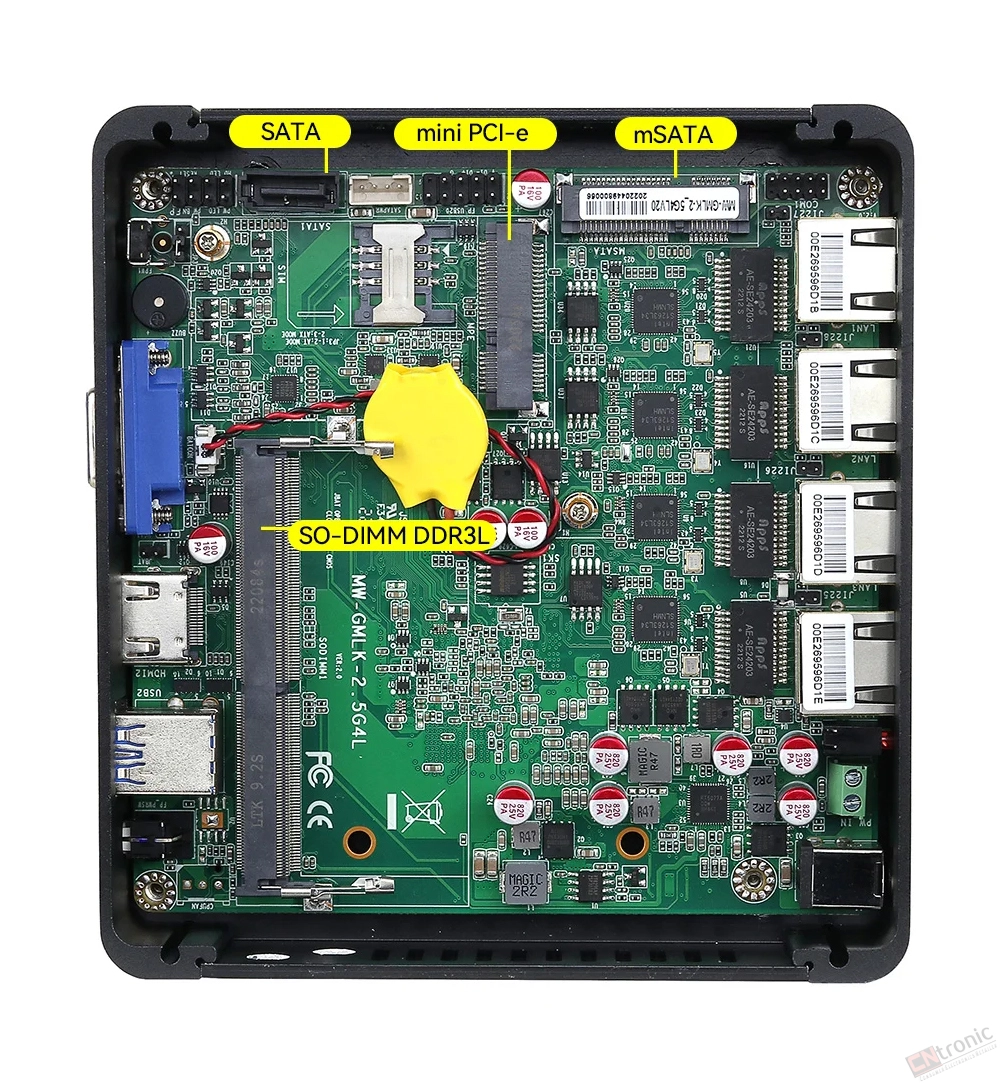

Memory Types

SODIMM-DDR3L 1.35V RAM, max 8GB

Hard Disk Types

1x mSATA SSD

support extra 1x 2.5 inch SATA HDD/SSD

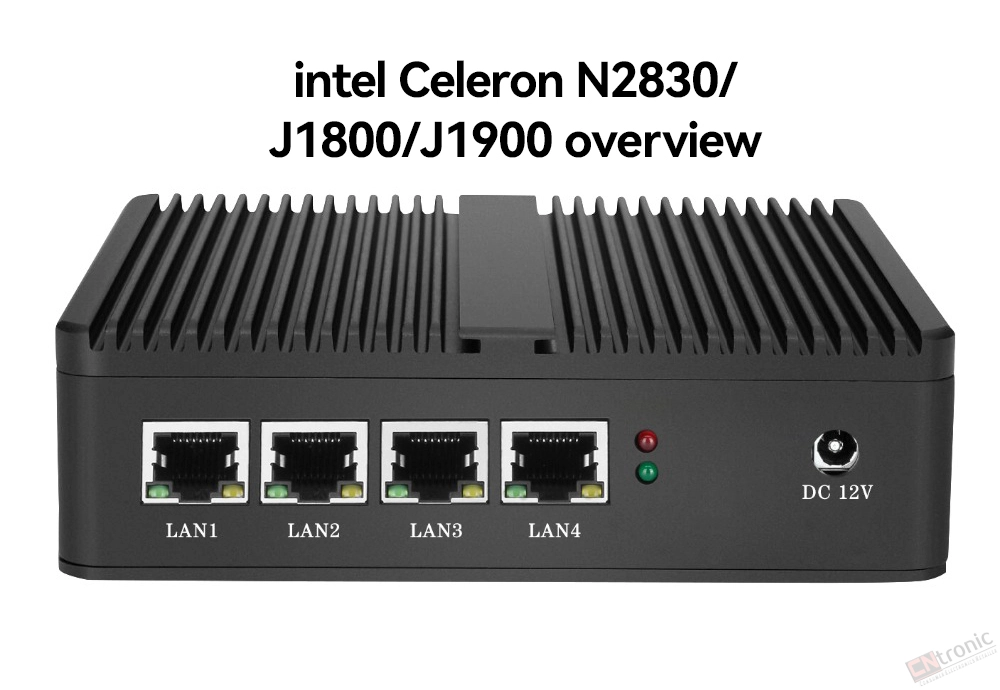

Network Interfaces

intel i225V or i226V 2.5G network card

N2830 has intel i210/211 ethernet or intel i225V/i226V two version,

please leave us message which version you need

Expansion

1x Mini PCI-E slot for WiFi/Bluetooth/3G/4G LTE module,

1x SIM card slot on-board

buyer need to add WiFi/3G/4G LTE module please contact us.

Features

Support WOL, PXE, Automatically power on after power loss

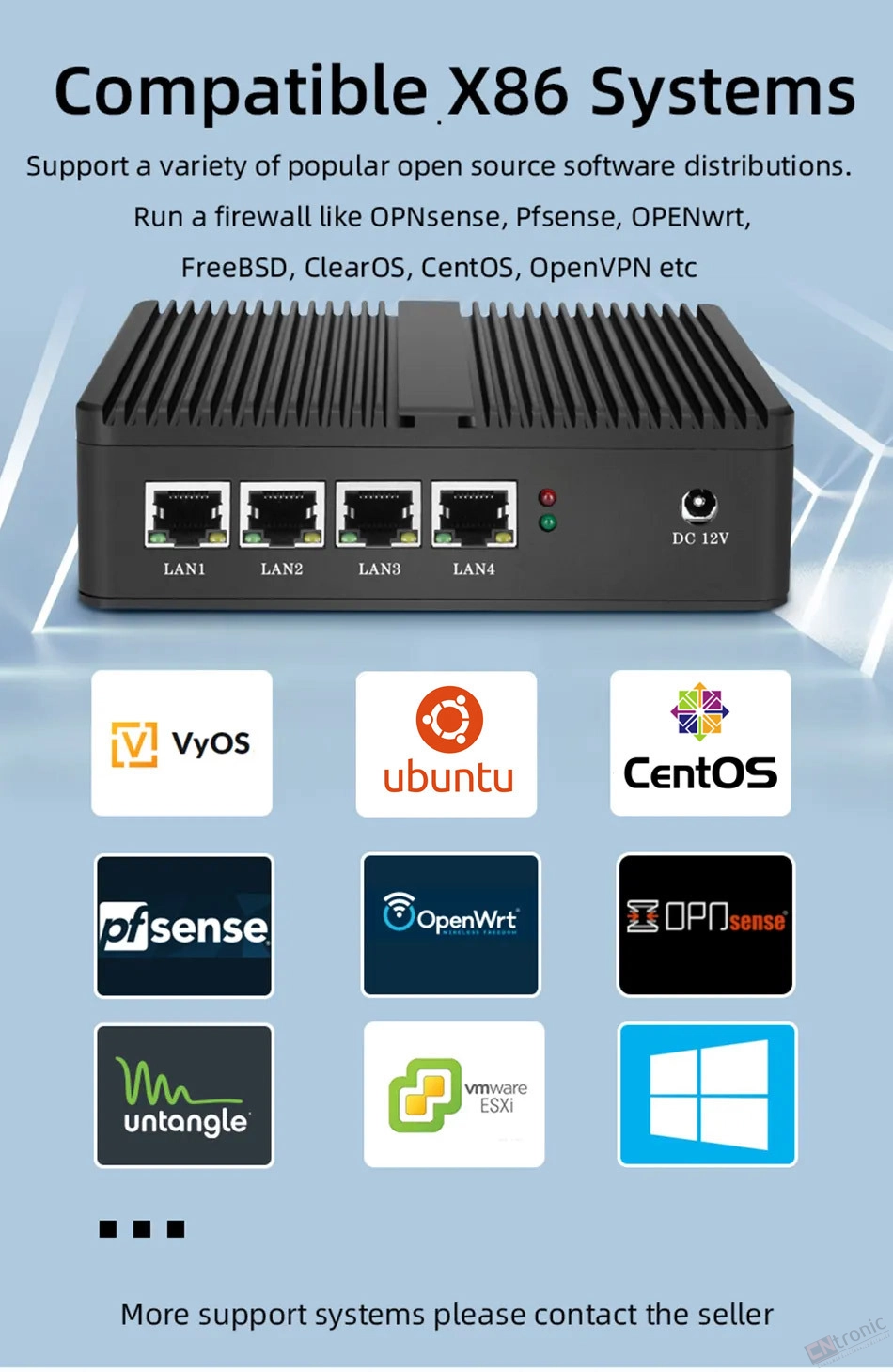

OS Support

Windows, Linux, Ubuntu, CENTOS, EXSI, Pfsense, OPNsense, OpenWRT

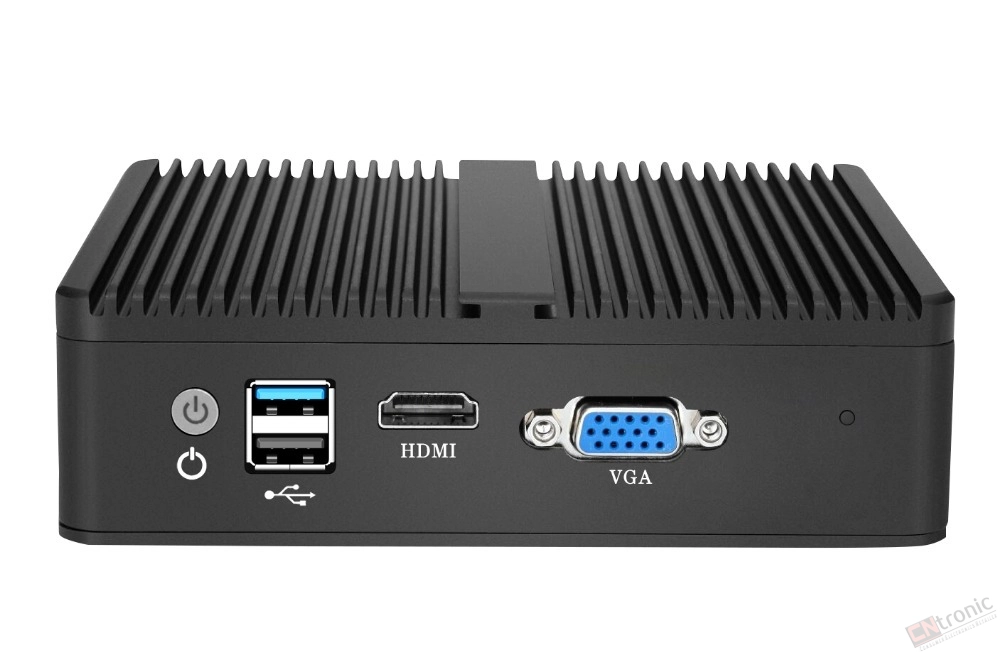

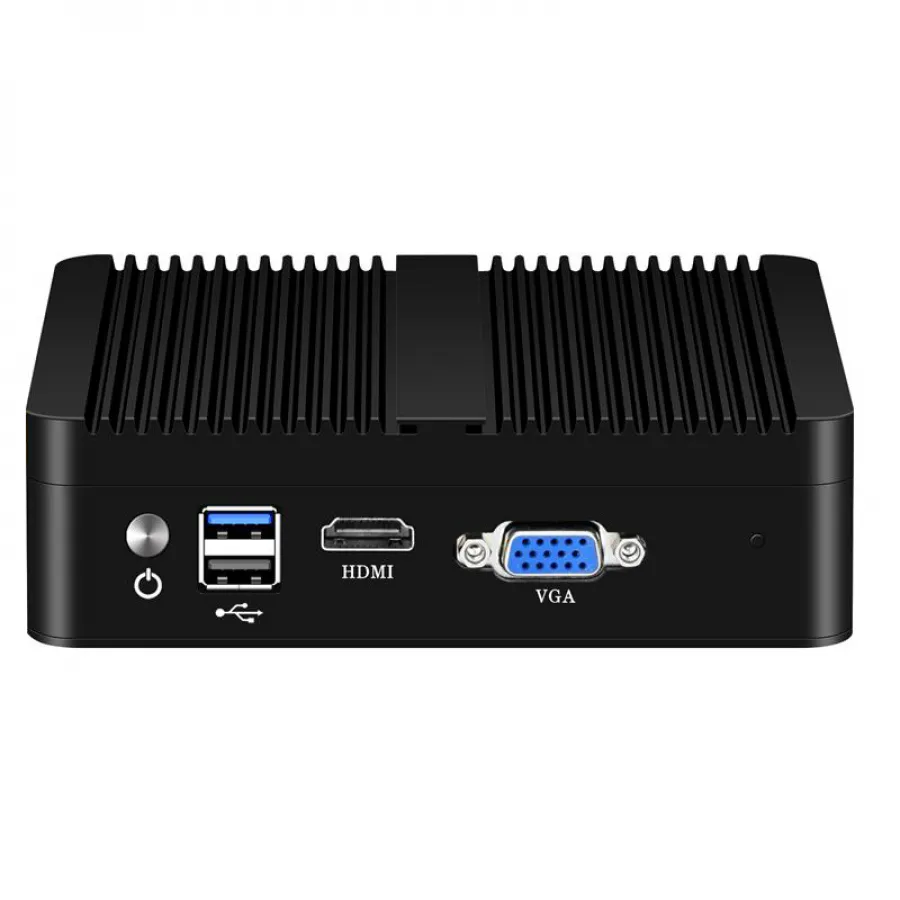

USB Ports

J1900/N2830: 1x USB2.0, 1x USB3.0

Display Port

1x VGA,

1x HDMI

Construction

Fanless passive cooling

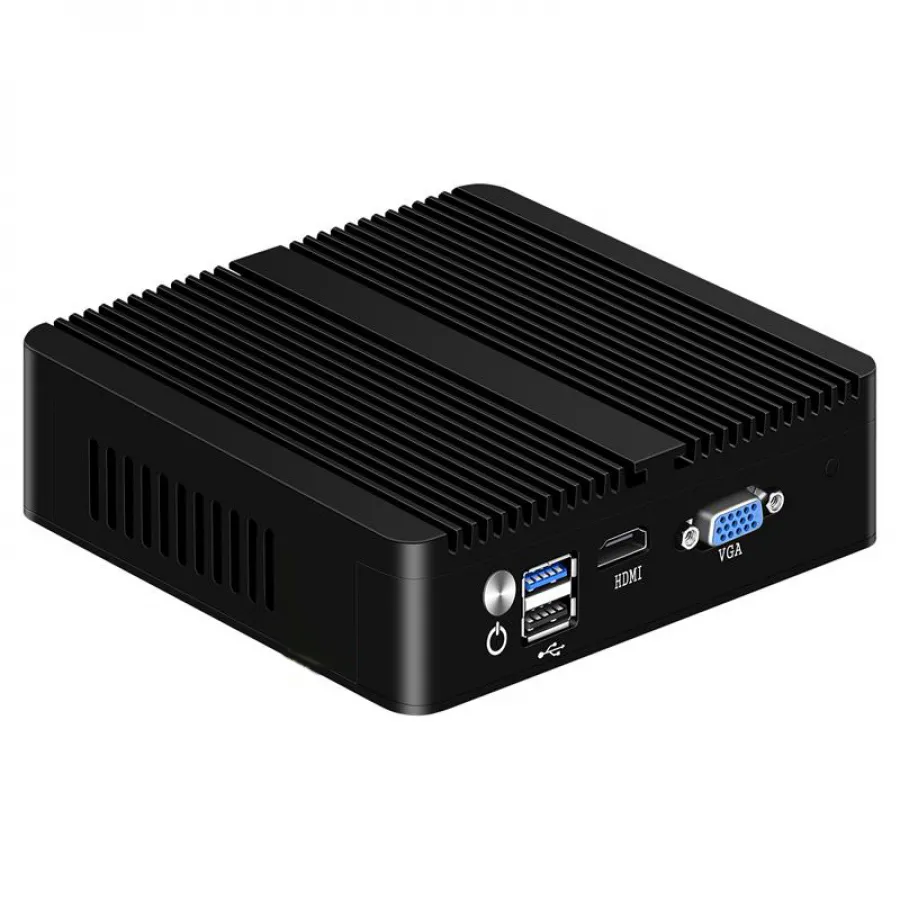

Case

Aluminum Case

Dimension

135x129x40mm

Netweight

1.0Kg

Operating

Temperature

-20℃ to +60℃

RH

5%~95% @30℃,Non-condensing

Power Adapter

Input AC100-240V, Output DC12V-3A

Package List

1x X30A machine

1x AC Adapter

1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )

1x User manual


mini PC comes without WiFi/4G modules pre-installed, if you need them, please contact us.





Packaging Details

  • Unit Type:
  • Package Weight: 1.500
  • Package Size: 15x10x18

  • Brand Name: XCY
  • Memory Capacity: ≥ 4GB
  • Hard Drive Capacity: 128GB
  • Model Number: X30-4LAN
  • Hign-concerned Chemical: None
  • Processor Model: Intel Celeorn J1900, N2830
  • Use: Commercial
  • Origin: Mainland China
  • Type: Mini Desktop
  • Processor Main Frequency: 2.0GHz
  • Graphics Card Type: Integrated Card
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Processor Brand: Intel
  • Type: Mini PC
  • Memory Type: 1*SODIMM DDR3L 1.35V 1600Mhz
  • Hard Drive Type: 1* mSATA SSD, support extra 1* SATA 2.5"
  • USB Ports: 1x USB 2.0, 1x USB 3.0
  • Display Ports: 1x VGA, 1x HDMI
  • Ethernet: 4x intel i225V or i226V NIC, support PXE, wake up on LAN
  • OS Support: Windows, Pfsense, Linux, Ubuntu, CentOS, EXSI, OpenWrt, OPNsense, Debian
  • Cooling: Fanless passive cooling
  • Working Voltage: DC12V-3A
  • Case Dimension: 135x125x39mm
  • Others: Support automatically power on after AC restored
  • SIM Slot: 1x Micro SIM card slot on mainboard
  • WiFi/3G/4G LTE Module: Yes, 1x Mini PCIe support WiFi/3G/4G LTE Module
