433Mhz Universal Wireless Remote Control Switch AC 220v 110V 120V 2CH Relay Receiver Module and 2pcs RF 433 Mhz Remote Controls
ID: 3866

433Mhz Universal Wireless Remote Control Switch AC 220v 110V 120V 2CH Relay Receiver Module and 2pcs RF 433 Mhz Remote Controls

5.0 (20 votes) | 43 orders
Price:
US $ 31.43 / Set
Quantity

433Mhz Universal Wireless Remote Control Switch AC 250V 110V 220V 2CH Relay Receiver Module and 2pcs RF 433 Mhz Remote Controls

255842611894420

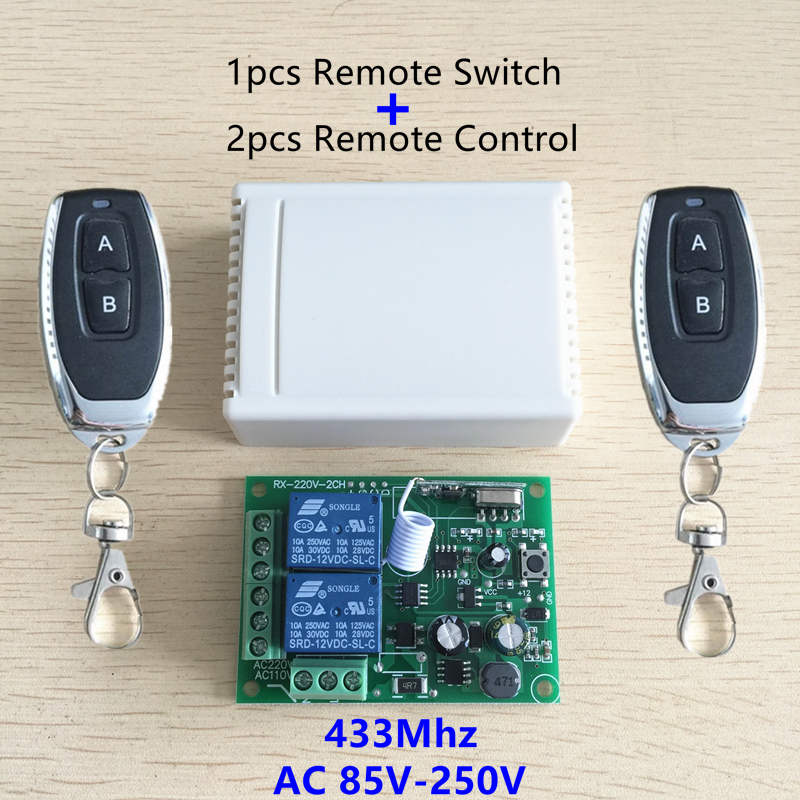

Package Included:

Receiver module (KR2202-4   )      * 1pcs ( include Shell )

Remote Control                              * 2pcs (include battery )

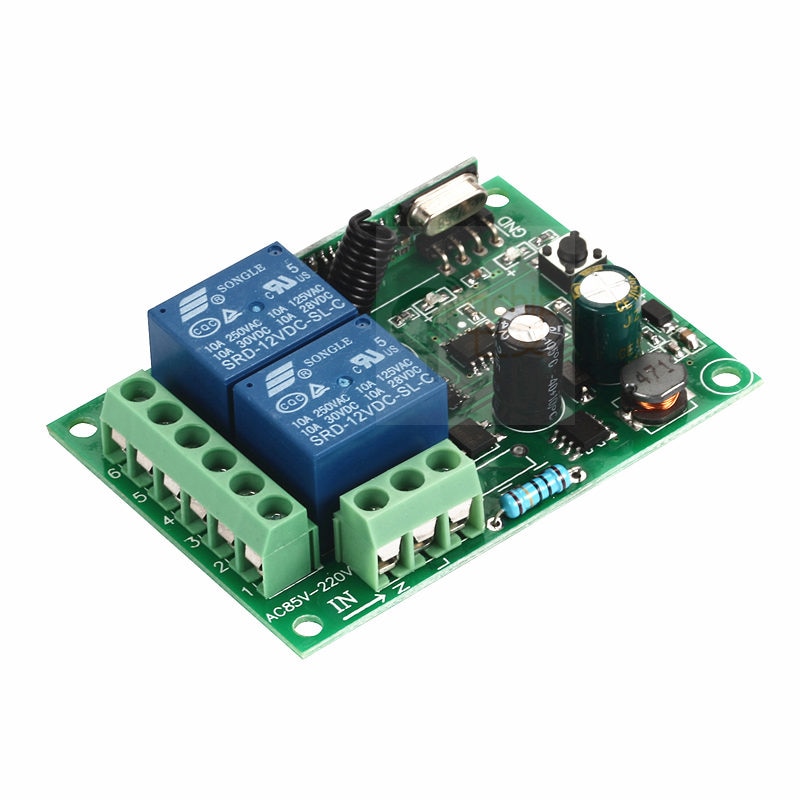

110V 220V 2 Channel Wireless Remote Control Switch Receiver Module Remote Control KT05

Technical Data:

Input Power: AC 85V-250V
Standby Current:<8.5MA
RF Frequency: 433Mhz
RF working mode: superheterodyne
Receive sensitivity: > 97 dbm
Transmitting distance: More than 15 meters
Decoding mode: MCU software decoding
Learnable Transmitters: 1 - 20 transmitters
Support remote type: Learning code (1527)
Switching Modes:   Momentary and Toggle
Wiring type: fixed terminal
Switch Output : normally open & normally closed.

Dimension of PCB   (L,W,H)    68*47*26mm
Switch Output:
NO:     normal open
COM:  common
NC:     normal close

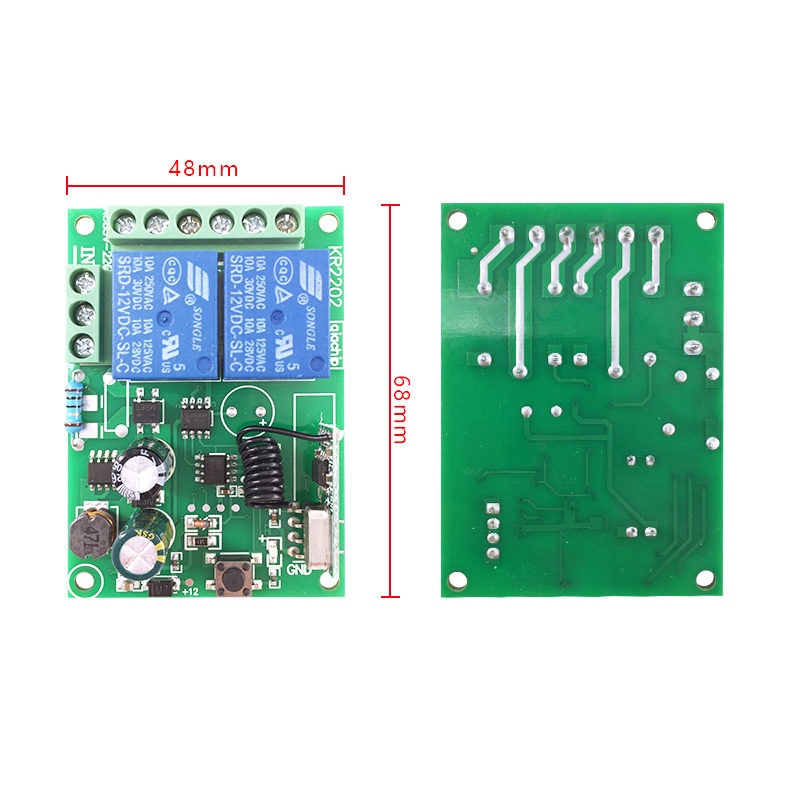

110V 220V 2 Channel Wireless Remote Control Switch Receiver Module110V 220V 2 Channel Wireless Remote Control Switch Receiver Module Size


Instruction


HOW TO USE:

On this products details page, there is a demonstration video available
You can also see the video at this URL:    https://youtu.be/k06q76qthBw

Working Modes explanation:

Momentary Mode:
Press the remote button, the relay (on the receiver) activates;
release the remote button, the relay deactivates.

Toggle Mode:
Press and release the remote button , the relay (on the receiver) activates.
Press and release the remote button again and the relay deactivates.

** Note **
After clearing the stored transmitters, all transmitters will need to be relearned by the receiver.
Push the learning button on the receiver 8 times, and the codes will be cleared .


Learning the transmitter : (momentary Mode)

STEP 1

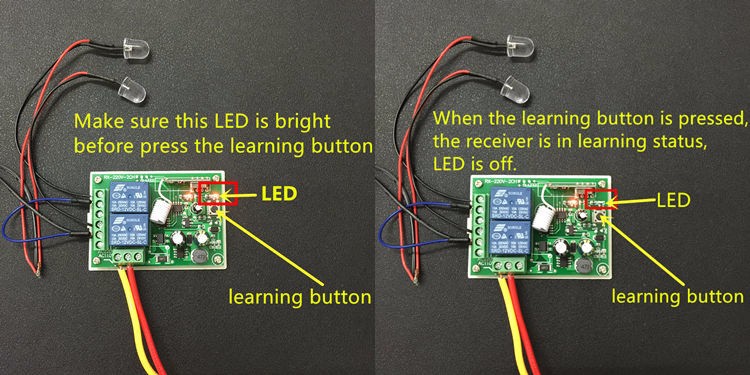

Press and release the learning key on the receiver once.
Wait for a moment , the LED will turn off , indicating you entered the learning state.

STEP 2
Press and release the first button on your transmitter, the LED on the receiver board will flash on then off indicating the button was learned.

STEP 3
Press and release the second button on your transmitter, watching the LED go on and off again.
Wait 3 seconds, the LED will turn on again, indicating system is ready for use.


Learning the transmitter : ( Toggle Mode )

STEP 1
Press and release the learning key on the receiver twice.
Wait for a moment , the LED will turn off , indicating you entered the learning state.

STEP 2
Press and release the first button on your transmitter, the LED on the receiver board will flash on then turn off.
Indicating the button was learned.

STEP 3
Next press and release the second button, watching the LED go on and off again.
Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use

** Notice **
Two button transmitters can only be used as toggle or momentary.
One mode per 2 button transmitter.

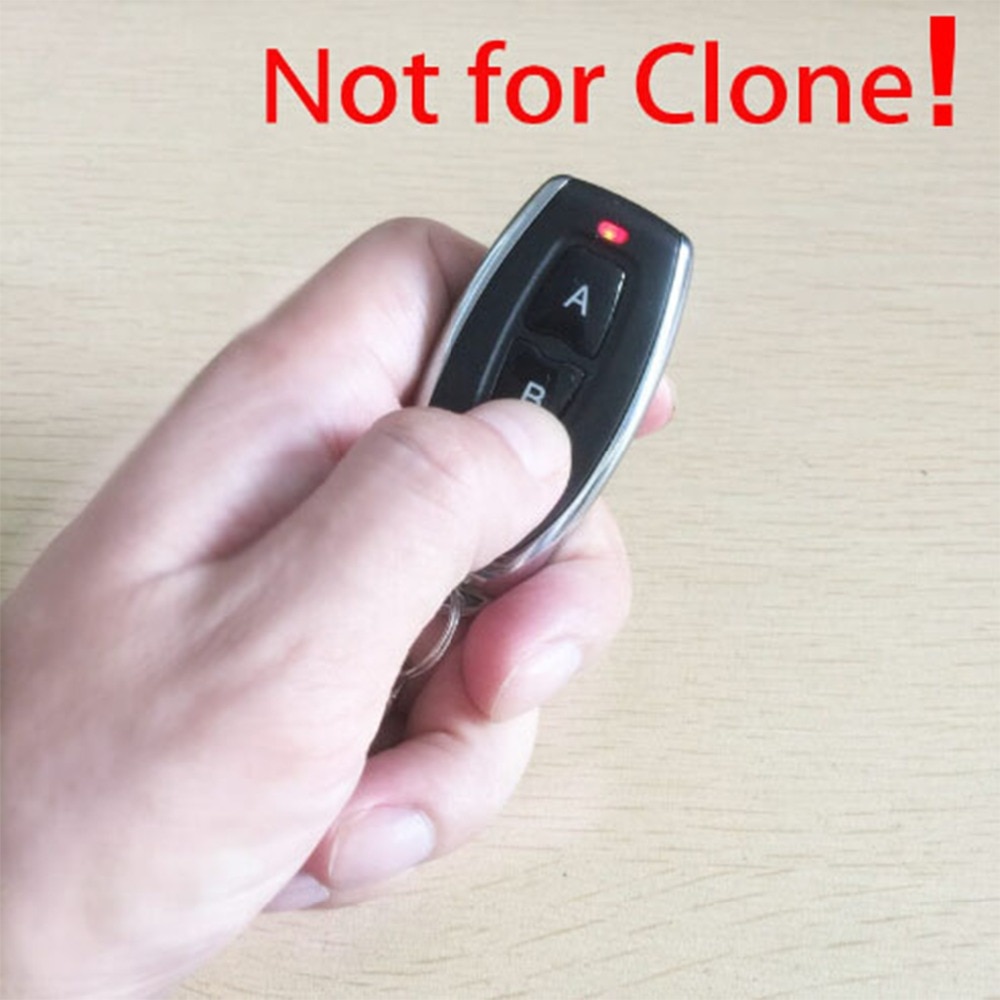

(Please note: You let the control panel to learn the remote control, you must press the "A" and "B" button;  Rather than just pressing one of them )

However you can program another transmitter in the other mode.

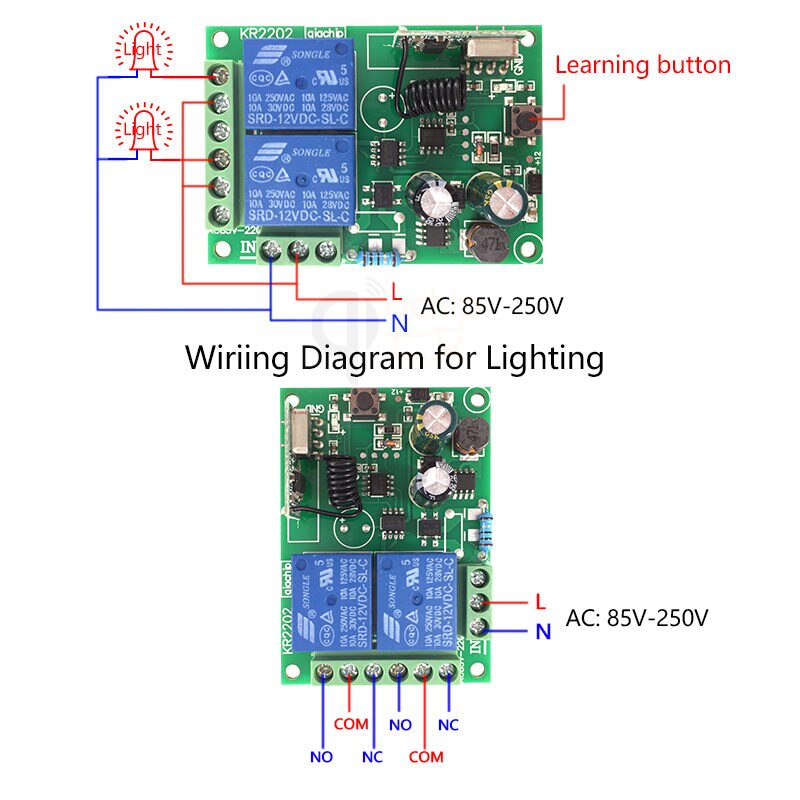

Wiring diagram

  110V 220V 2 Channel Wireless Remote Control Switch Receiver Module Diagram










Please note

learning 750







Packaging Details

  • Unit Type: Set
  • Package Weight: 0.11kg (0.24lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)

  • Brand Name: QIACHIP
  • Use: Electric Door
  • Use: Automated curtains
  • Use: Lighting
  • Use: Switch
  • Use: Universal
  • Certification: CE
  • Origin: CN(Origin)
  • Wireless Communication: RF
  • Support APP: No
  • Channel: 2pcs
  • Package: No
  • Frequency: 433 MHz
  • Model Number: KR2202+2KT05
  • Working Voltage: AC 85V-250V
  • Quiescent Current: 8.5 mA
  • Receiving Sensitivity: >97dbm
  • Modulation Mode: ASK
  • Matching Mode: Intelligent Learning code
  • Working temperature: -10 ~ +80
  • Shell: Yes
  • PCB dimension: 68*47*26mm
  • RF working mode: superheterodyne
  • Working Distance: 20 meters indoor, 80-100 in open space
