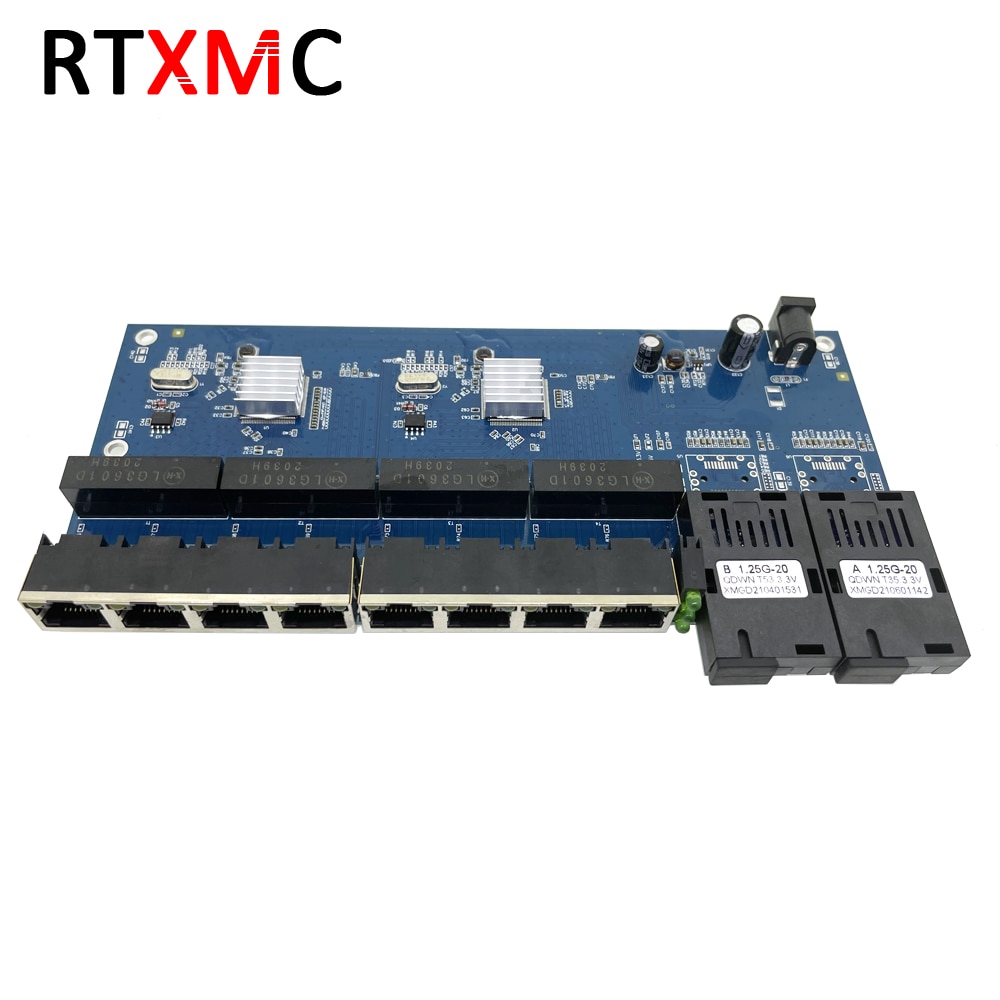

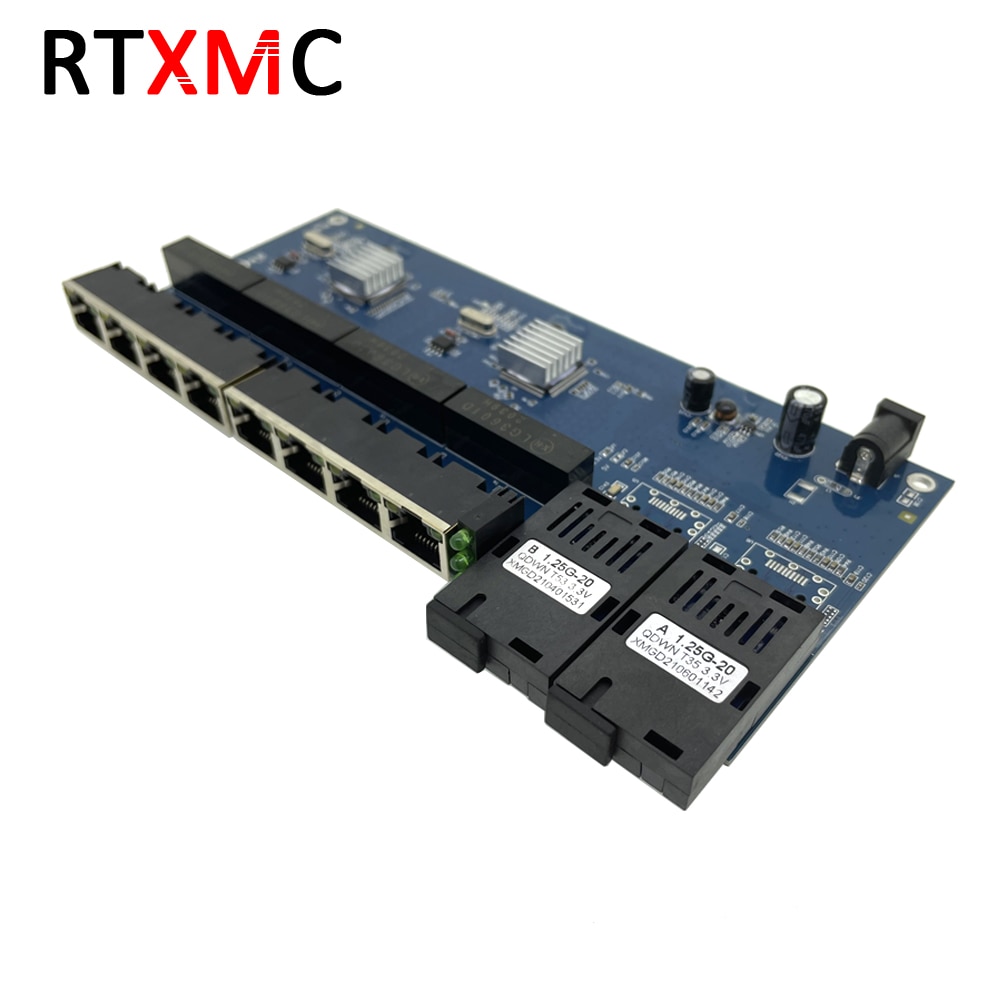

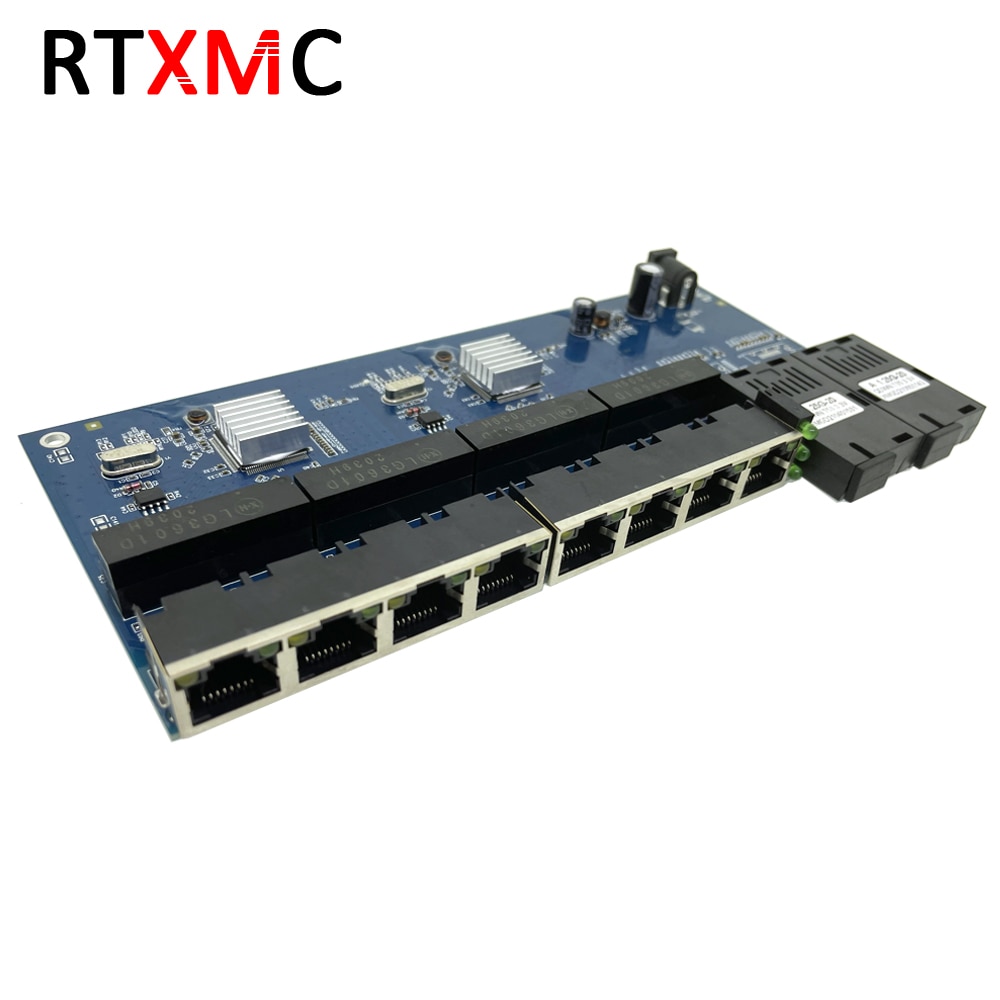

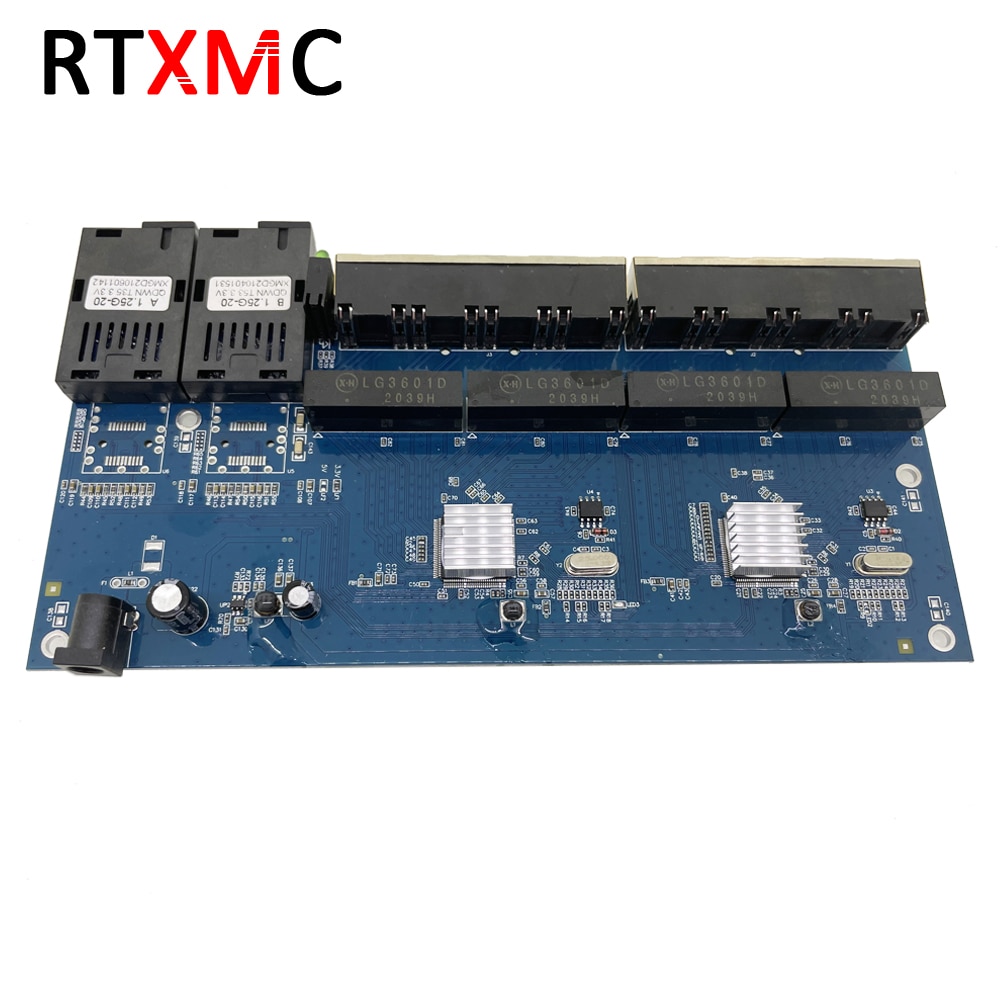

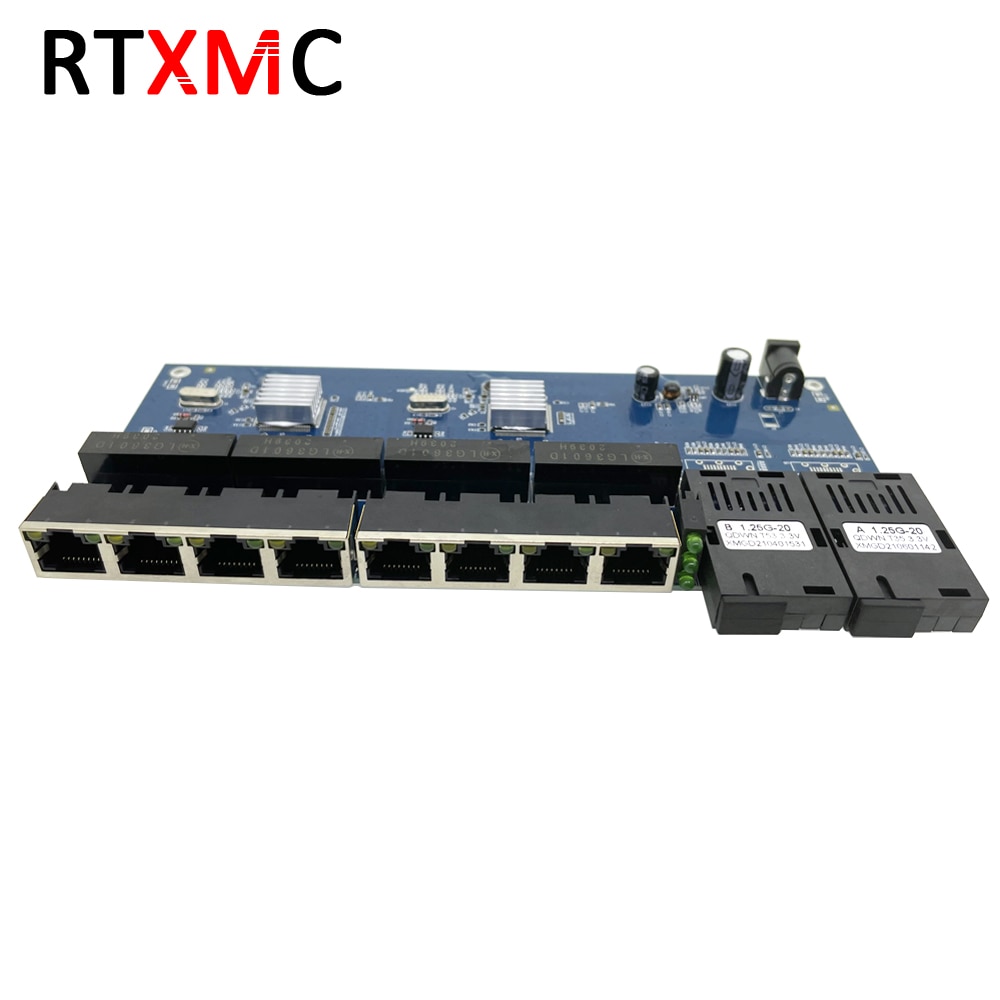

2G8E 8UTP RJ45 Gigabit Ethernet Switch 2*1.25G Fiber port SC connector 8*10/100/1000M PCBA Board  Fibra optical Converter plate
ID: 33932

2G8E 8UTP RJ45 Gigabit Ethernet Switch 2*1.25G Fiber port SC connector 8*10/100/1000M PCBA Board Fibra optical Converter plate

4.7 (21 votes) | 38 orders
Price: US $62.37 - 83.07 / piece
Discount Price:
US $ 37.13 - 47.41 / piece

1000M Gigabit Ethernet Switch 2G8E Fiber Ethernet Switch

please note:

1. Default with 1pcs 1310nm A side Fiber module and 1pcs 1550nmB side, 2pcs 1550nm B Side or 2pcs 1310nm A side can be provided as request.

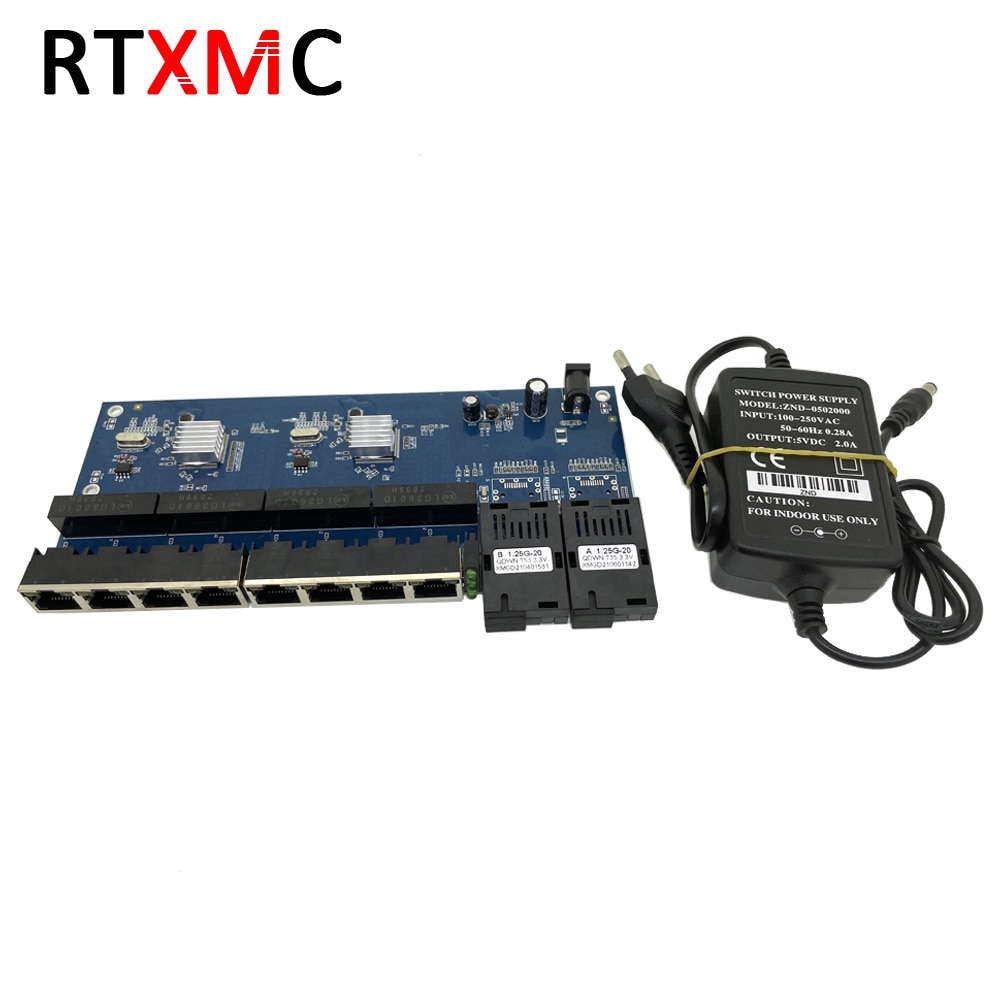

2. This board comes without power adapter ,if need the dapter can buy extra in my store ,just need pay cost price ,please contact with us if you need !

Gigabit Fiber Ethernet

The Gigabit 2G8FE is an Ethernet Fiber Switch which is specially designed for network monitoring. It has eight 10/100/1000Mbps Ethernet ports and two 1.25Gbps fiber ports. It adopts Marvell chips to ensure low power consumption and high stability. It extends the transmission distance of a network from 100m to 120km via copper cables. It can extend the transmission distance; there are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.

Main Features:

1.Support the switch between 10/100/1000Base-TX and 1000Base-SX/LX
2.2*1.25Gbps full-duplex fiber ports and 8*100M Ethernet ports with auto-negotiation function
3.Support 1000M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function
4.Each port has the complete LED Indicator light
5.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot
6.Support IEEE802.1d Spanning Tree
7.Support high performance QoS function on each port
8.Support 5-16V voltage input
9.Support IEEE 802.3x flow control and back pressure control
10.Require no configuration and will instantly operate as soon as you power it up
11.Low power consumption chip with heat sink built in to ensure longtime efficient operation

What is Included

1000M 2G8E PCBA Board *1pcs

  • Brand Name: RTXMC
  • Certification: CE
  • Origin: CN(Origin)
  • Item Length: 1m
  • Compatible: QSFPTEK
  • Compatible: Ubiquiti
  • Compatible: Mikrotik
  • Compatible: Transition Networks
  • Compatible: Zyxel
  • Compatible: Ericsson
  • Compatible: Enterasys
  • Compatible: Brocade
  • Compatible: Mellanox
  • Compatible: Alcatel-lucent
  • Compatible: Customized Brands
  • Compatible: Cisco
  • Compatible: Arista
  • Compatible: FOUNDRY
  • Compatible: TP-link
  • Compatible: Allied
  • Compatible: Extreme
  • Compatible: Dell Force10
  • Compatible: Juniper
  • Compatible: D-Link
  • Compatible: Linksys
  • Compatible: Netgear
  • Compatible: HP
  • Compatible: IBM
  • Compatible: Intel
  • Compatible: Trendnet
  • Compatible: Open Switch
  • Compatible: Dell
  • Compatible: F5 Networks
  • Compatible: Hirschmann
  • Compatible: Moxa
  • Compatible: planet
  • Compatible: Supermicro
  • Compatible: AVAGO
  • Compatible: Avaya
  • Compatible: Ciena
  • Compatible: Finisar
  • Compatible: H3C
  • Compatible: SMC
  • Compatible: Huawei
  • Compatible: Aruba
  • Fiber Type: Single Mode
  • Connector Type: SC/UPC
  • Size: 20CM*8CM
  • Model Number: 1000M 2G8E
  • Power Supply: DC 5V2A
  • Ethernet Port: 8*10/100/1000M RJ45
  • Fiber Port: 2*1.25G Fiber Port
  • Wavelength: 1310nm/1550nm
