2 PCS lot 4 inch Professional Planar Tweeter Speaker transducer HiFi AMT ribbon tweeter 8 Ohm Super belt type loudspeaker

4.9 (34 votes) | 78 orders
Price: US $73.80 / 2 Pieces
Discount Price:
US $ 61.99 / 2 Pieces
-16%
Color
Quantity

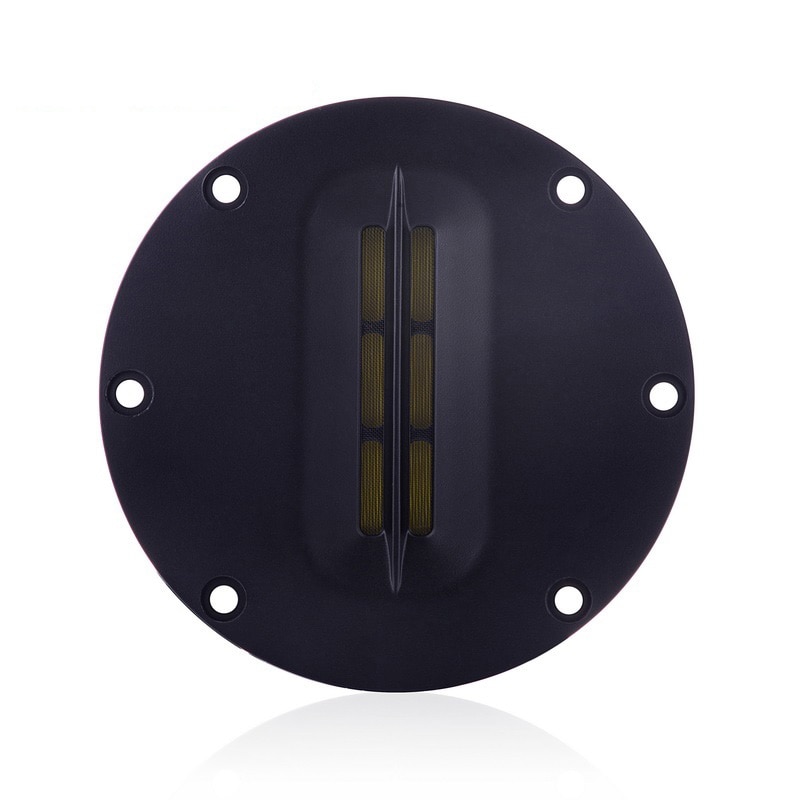

Planar AMT Ribbon tweeter
Some loudspeaker designers use a planar-magnetic tweeter, sometimes called a quasi-ribbon. Planar magnetic tweeters are generally less expensive than true ribbon tweeters, but are not precisely equivalent as a metal foil ribbon is lighter than the diaphragm in a planar magnetic tweeter and the magnetic structures are different. Usually a thin piece of PET film or plastic with a voice coil wire running numerous times vertically on the material is used. The magnet structure is less expensive than for ribbon tweeters









Rated Impedance



Front Panel

Aluminum like plastic


Sensitivity

94dB



Finish of Panel

Powder coat


Frequency Range

1500k~40k Hz



Diaphram

KAPTON


RMS Power

15W



Conductive Line

Alumium foil


Max Power

30W



Magnet

Neodymium


Lowest crossover

3.5k Hz(recommend)



Terminal (mm)

5.5*0.5(+,-)



FEATURES
• ABS Plastic faceplate provides secure, stable mounting
• Low- mass pleated Kapton diaphragm
• Very fast transition, high power handling with Strong Neodymium
• High detailed and dynamic output, very low distortion
•Linear impedance

• Clear & Nature high frequency

PARAMETER

Impedance

8ohms

Power Handling

15watts(RMS),30watts( max)

Sensitivity

92dB@1W/1m

Frequency Response

1,500 - 33,000Hz

Diaphragm

Kapton&Alumium foil

Magnet System

Neodymium

Dimensions

Overall Outside Diameter4" x 0.76"

Net. Weight

115gram

Recommend Crossover Frequency

2,300Hz



Customer feedback and Diy artworks:

Thanks for Mr “Alexander Klochkov” comments "Thanks again! Awesome sound!"

Payment:

1,For online order,We accepte Alipay on Cntronic,You can pay using Visa, Mastercard, Western Union, Qiwi and Bank Transfer;All the payment are accepted through security payment processor ESCROW,Payment must be made within 3 days after place order.
2, For big quantity goods. We also accept the payment term ofTT, West Union and Paypal
Delivery Details:
1: Woldwide Shipping.(Except some countries and APO/FPO address)
2: The orders processed timely after payment verification.
3: We only ship to confirmed order address, your order address Must Match yourrecipient address.
4: Service Transit Time is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
5: If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
Returns & Refunds:
1: 12 months Manufacturer's Warranty. Buy with confidence! Accessories come with a 1 month warranty.
2: If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact me before you return it.
3: Defective items MUST BE reported and returned to us within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number.
4: Return shipping cost be paid by the Buyer.
Customer OEM design based on 1000 Sets, Please email us when you need such service



  • Tweeter type: planar-magnetic
  • Input Power(W): <25 W
  • Impedance: 8 Ohm
  • Wi-Fi Music: DIY
  • Voice Control: No
  • Frequency Range: 60Hz-23KHz
  • Output Power: 30W
  • Display Screen: No
  • Waterproof: No
  • Support APP: No
  • Support Memory Card: No
  • Material: Aluminum
  • Remote Control: No
  • Support Apt-x: Yes
  • Intelligent Personal Assistant: None
  • Display Screen: No
  • Built-in Microphone: No
  • Audio Crossover: Full-Range
  • Number of Loudspeaker Enclosure: 1
  • Power Source: DC,AC
  • PMPO: 30W
  • Channels: 2 (2.0)
  • Feature: DTS
  • Battery: No
  • Communication: AUX
  • Speaker Type: Bookshelf
  • Cabinet Material: Plastic
  • Brand Name: Sounderlink
  • Certification: CE,FCC,WEEE
  • Origin: Mainland China
  • Model Number: AMT-YDG4070-03-8Ohm-15
  • Use: Home Theatre, Karaoke Player
  • Type: Active
  • Channels: 1
  • Speaker Structure: Reflective
  • Special Feature: Mini, Wireless, Portable
  • Speaker Classification: Tweeter
  • Interface Type: None, USB
  • Speaker Type: Mini
  • Intelligent Personal Assistant: None
