17-in-1 SMD Adapter Support SOP8 SOP16 WSON8 TSSOP8 XSON8 DFN8 USON8 WLCSP TDFN8 BGA12 BGA8 BGA24 - DIP8 NOR SPI FLASH NAND
ID: 124332

17-in-1 SMD Adapter Support SOP8 SOP16 WSON8 TSSOP8 XSON8 DFN8 USON8 WLCSP TDFN8 BGA12 BGA8 BGA24 - DIP8 NOR SPI FLASH NAND

4.9 (30 votes) | 162 orders
Price: US $20.22
Discount Price:
US $ 17.36
-14%
Quantity

Buy Now
Add to Cart
17-in-1 SMD Adapter Support SOP8 SOP16 WSON8 TSSOP8 XSON8 DFN8 USON8 WLCSP TDFN8 BGA12 BGA8 BGA24 TO DIP8 Conversion NOR SPI FLASH NAND

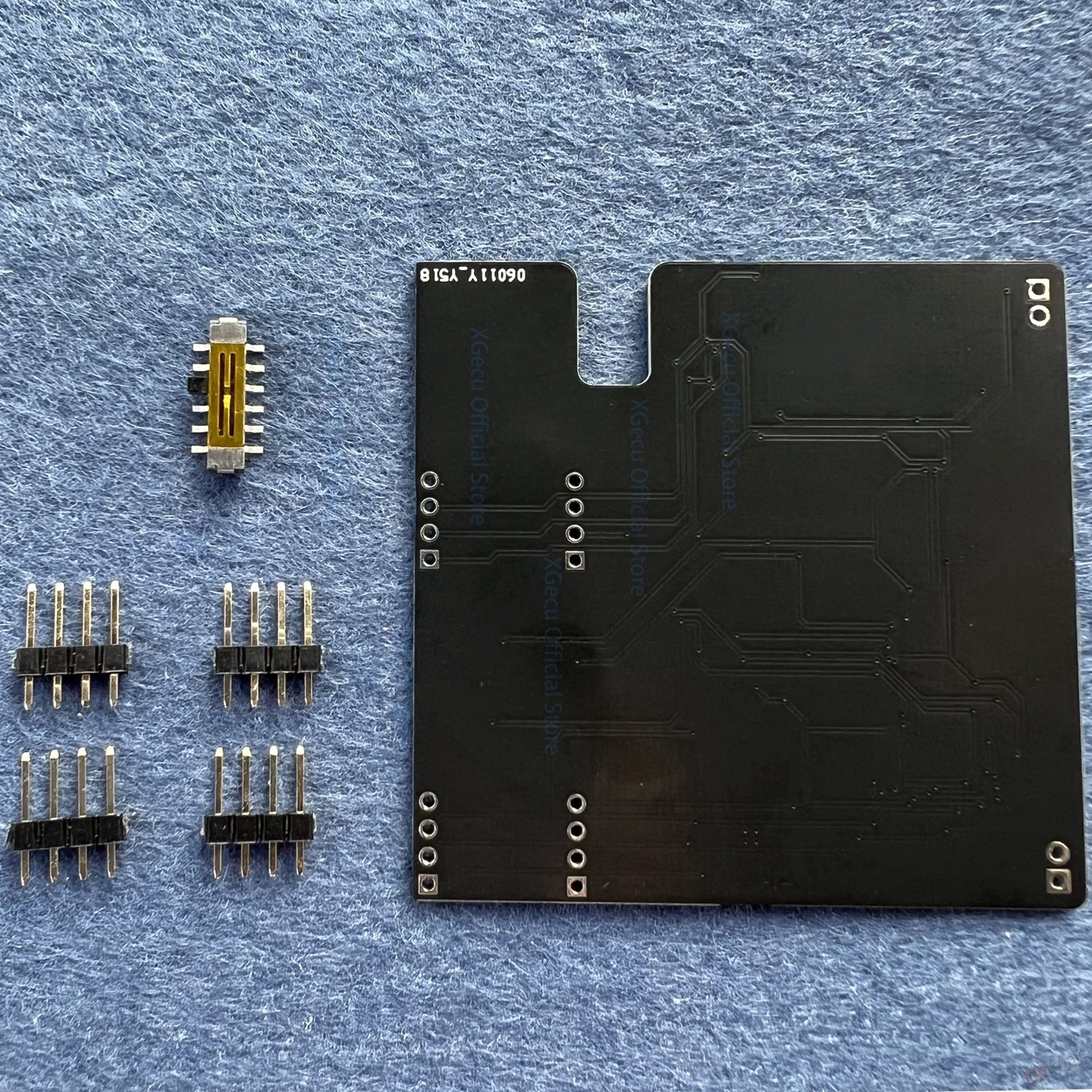

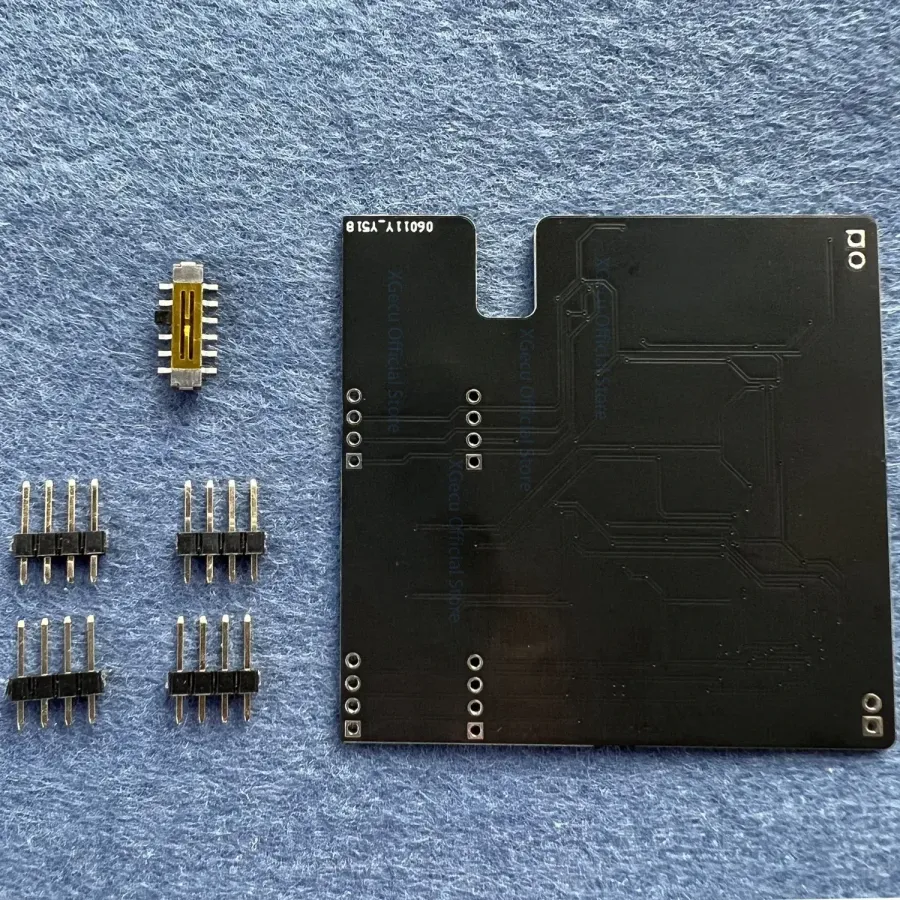

Note: Components are unsoldered. You need to solder the pins and switches yourself.

Description:Support 17 kinds of different packages memory chip conversion to DIP8 package, through a small switch to convert the T48 or T56 programmer to use, the use of high-quality PCB board, easy to use, inexpensive, very suitable for amateur use, can save you a lot of money.

List of 17 IC packages supported:



1.SOP8 150mil


2.SOP8 200mil


3.SOP16 300mil


4.WSON8 8*6
5.WSON8 6*5


6.TSSOP8 4.4*3.0


7.XSON8 4*4


8.USON8 4*3


9.WSON8 3*3
10.WLCSP-12


11.BGA12 2.3*2


12.BGA8 2.2*1.6


13.BGA24 8*6(4-6)
14.BGA24 8*6(5-5)


15.TDFN8 3*2


16.USON8 1.5*1.5
17.DFN8 1.2*1.2

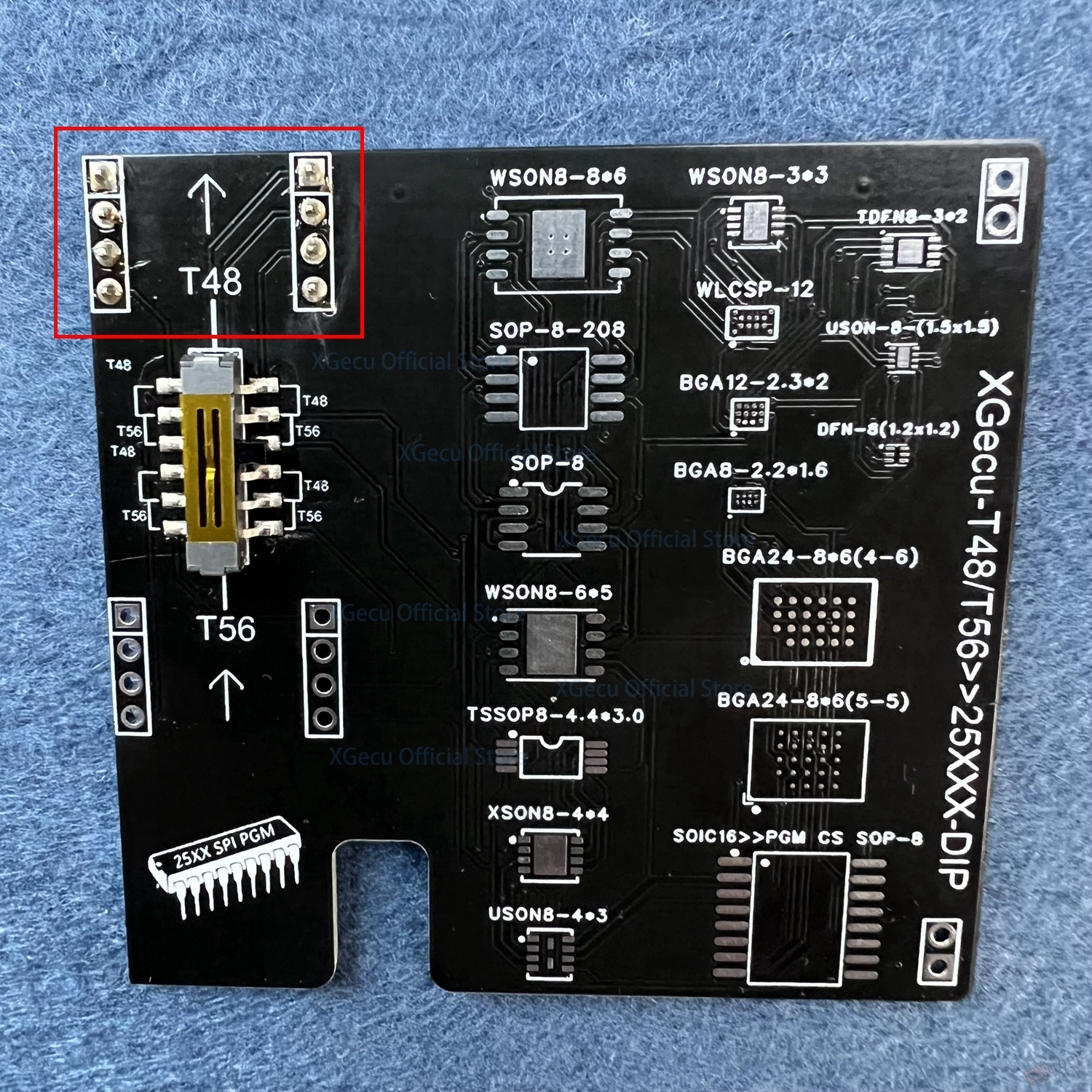

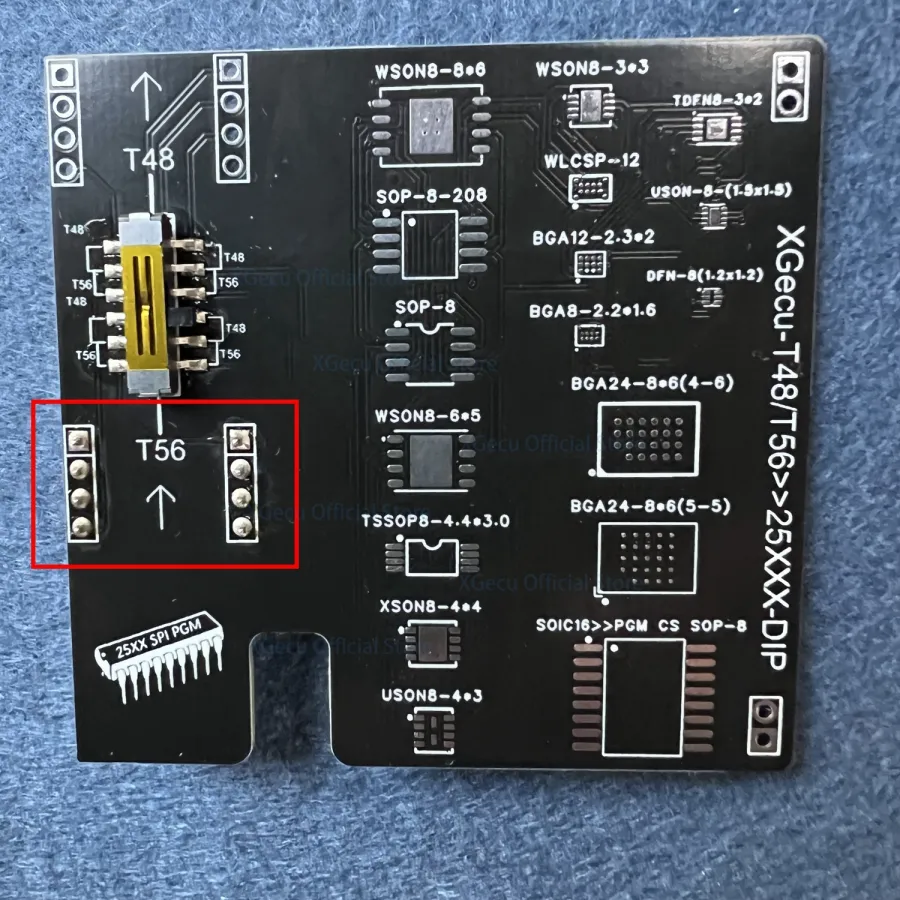

Soldering instructions: We bring with the PCB board 4 groups of 4Pin pins, the actual use of only two groups of 4Pin, the other two groups are spare, please do not put the 4 groups of pins are soldered, just according to your programmer to choose the T48 or T56, soldering 2 groups of a total of 8Pin can be, please see the following physical schematic, soldered after the switch will be dialed to the corresponding position.
In addition, this board is designed for SPI 25 FLASH, not for SPI NAND, may not work properly due to interference.
